9.2m 11m 200kg Small Aerial Work Platform Self Propelled Vertical Telescopic Mast Boom Man Lift with Jib

Customization: Available
After-sales Service: Online
Warranty: 15 Months

Product Description

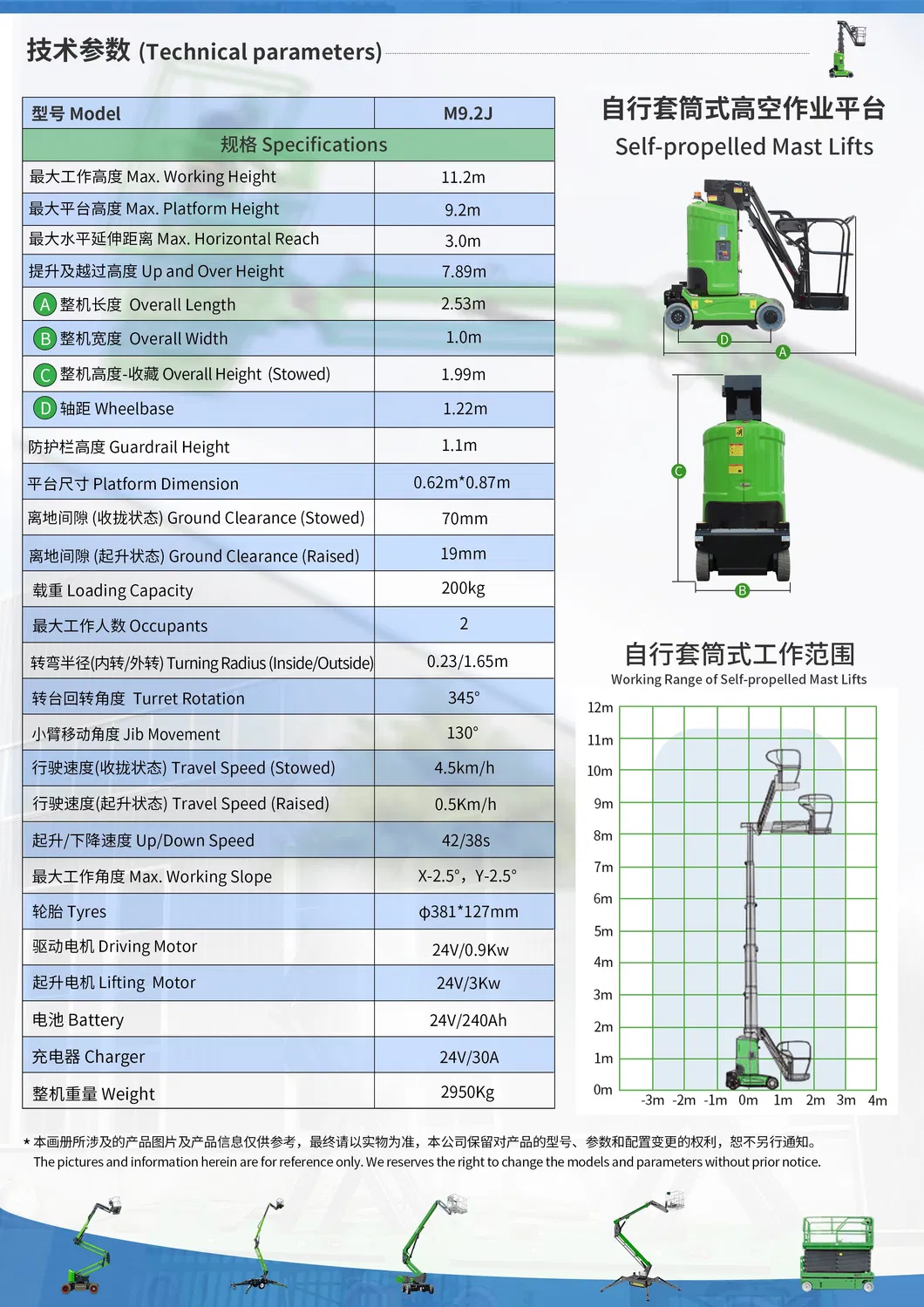

Basic Specifications
Model NO.
M9.2J
Product Name
Self-Propelled Mast Lift
Type
Lifting Equipment
Power
AC Motor
Fuel
Electric
Load Capacity
≤1T
Lift Height
9000mm
Battery Type
Lead Acid (48V/320ah)
Self Weight
3590kg
Wheel Type
Solid PU
Condition
New
Load Center
>500mm

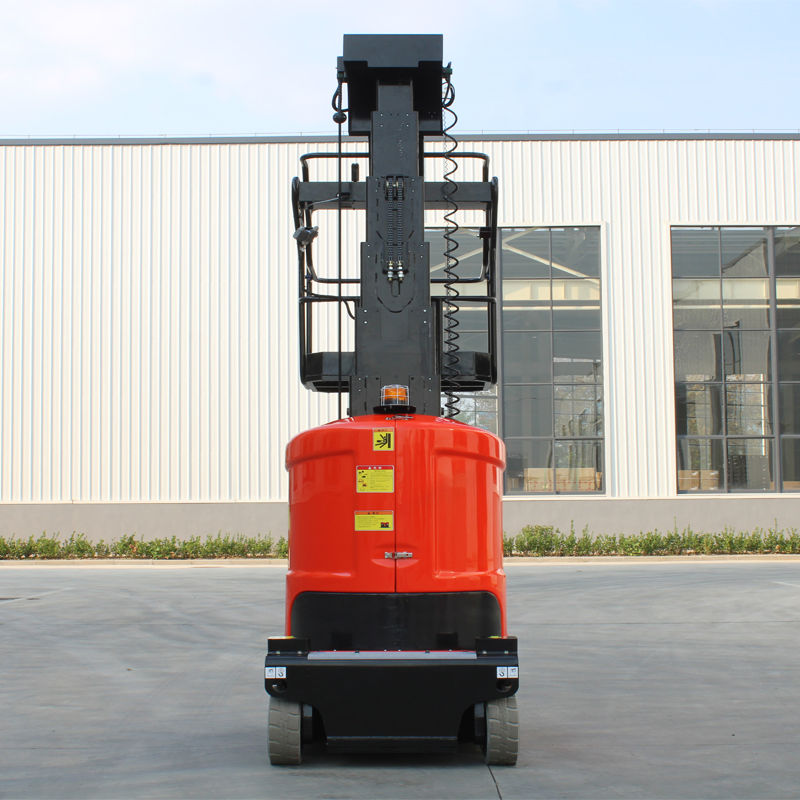

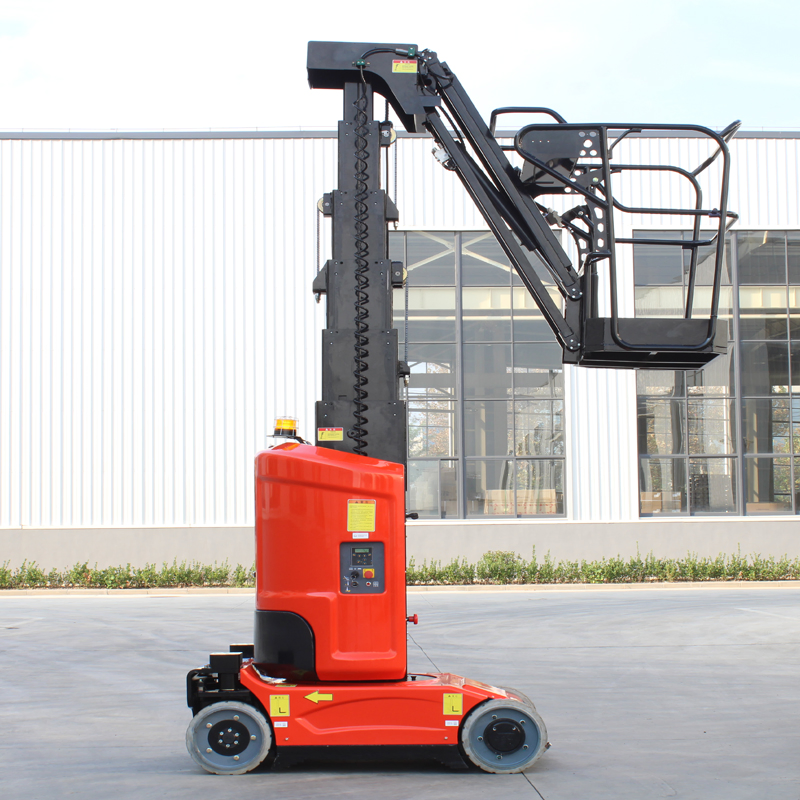

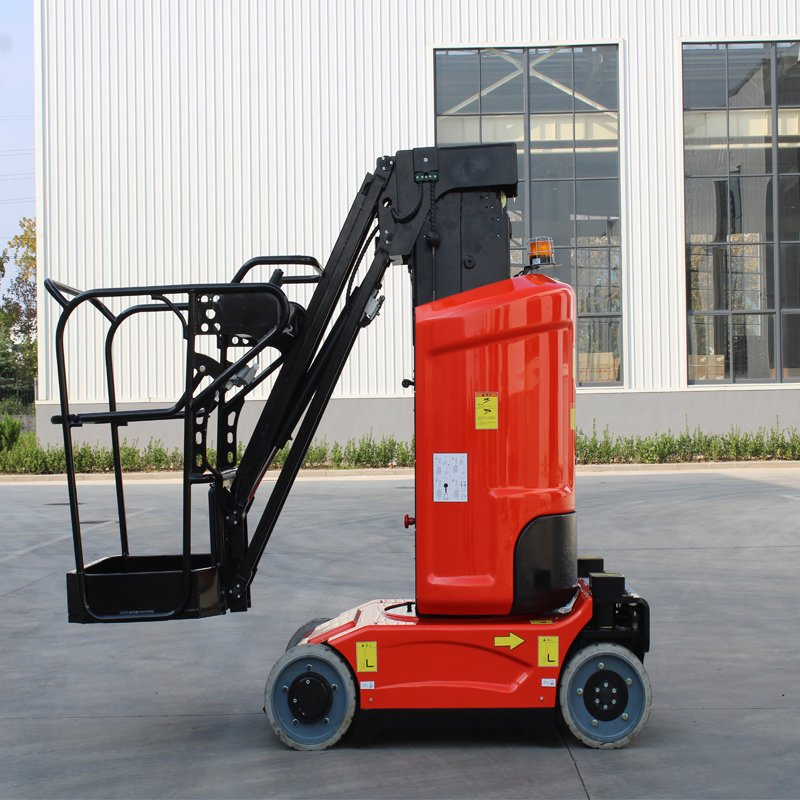

9m Self Propelled Mast Lift Overview
Mast Lift
Standard Features & Configuration
• AC driving motor • Proportional Joystick Controls
• Drivable At Full Height • Non-Marking Tires
• 4×2 Drive System • Automatic Braking System
• Emergency Descent System • Emergency Stop Button
• Swing out Components Cover • Tubing Explosion-Proof System
• Fault Diagnosis System • Tilt sensor Alarm
• 345° Turret Rotation • Motion Alarm & Horn
• Charging Protection System • Automatic Pothole Protection
• Platform Load Sense System • Lanyard Attachment Point
Quality Control & Maintenance

Our telescopic propelled mast lifts undergo a strict indoor and outdoor quality control system. This includes rigorous testing of braking performance, mast inclination angles, chassis oil leakage detection, counterweight stability, loading, lifting, tilting, turning, and climbing capabilities.

To ensure high performance, all equipment is tested again before delivery. Units that do not pass every test are not allowed to leave the factory. For equipment in storage exceeding one month, regular maintenance and testing are performed until dispatch.

Complete Equipment Solutions
  • Diesel Forklifts: Capacity from 1.5 ton to 32 ton.
  • Electric Forklifts: Capacity from 1.5 ton to 12 ton.
  • LPG & Gasoline Forklifts: Capacity from 1.5 ton to 7 ton.
  • Warehouse Equipment: Electric pallet trucks, reach trucks, stackers, and trailers.
  • Rough Terrain Solutions: Capacity from 1.8 to 5 ton.
  • Specialized Functions: Cold storage electric forklifts, explosion-proof units, VNA articulated forklifts, and multi-directional telehandlers.
Frequently Asked Questions
Q: What is the maximum working height of this mast lift?
A: This model provides a maximum lifting height of 9000mm (9 meters), suitable for various indoor and outdoor aerial tasks.
Q: What type of power system does it use?
A: It is powered by a high-efficiency AC motor and a 48V/320ah lead-acid battery, ensuring quiet and emission-free operation.
Q: Can the lift be moved while the platform is raised?
A: Yes, it is designed to be drivable at its full height, which significantly increases productivity during work.
Q: What safety features are included?
A: Key safety features include an automatic braking system, emergency descent system, tilt sensor alarm, pothole protection, and a platform load sense system.
Q: Is the mast lift suitable for indoor flooring?
A: Yes, it is equipped with non-marking solid PU tires specifically designed to protect delicate indoor floors.

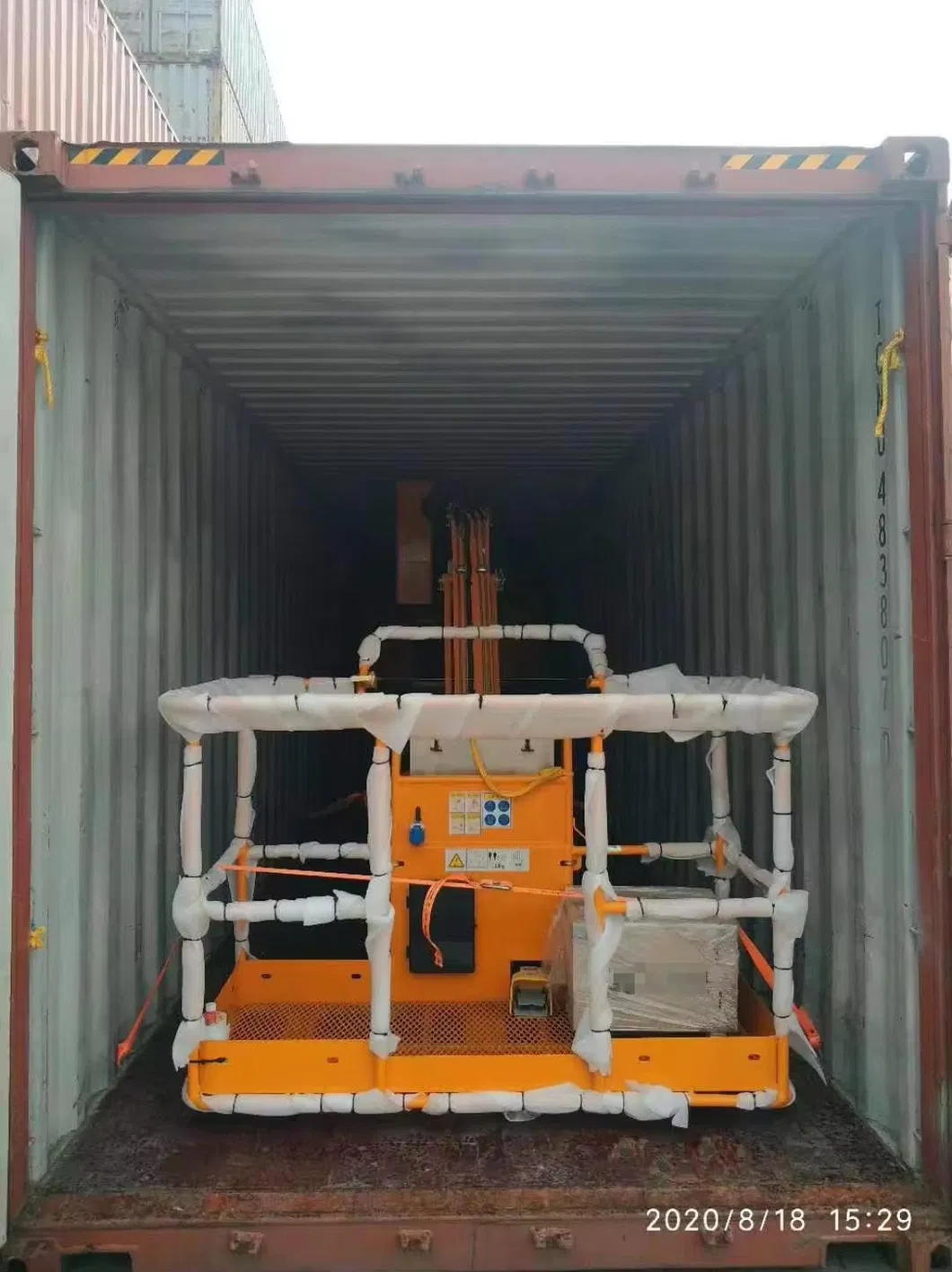

Q: How is the equipment protected during shipment?
A: We typically use nude packaging for container shipments, with 2 units fitting into a 40'HQ container to ensure efficient transport.
