Home > Telescopic Boom Lift > New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift

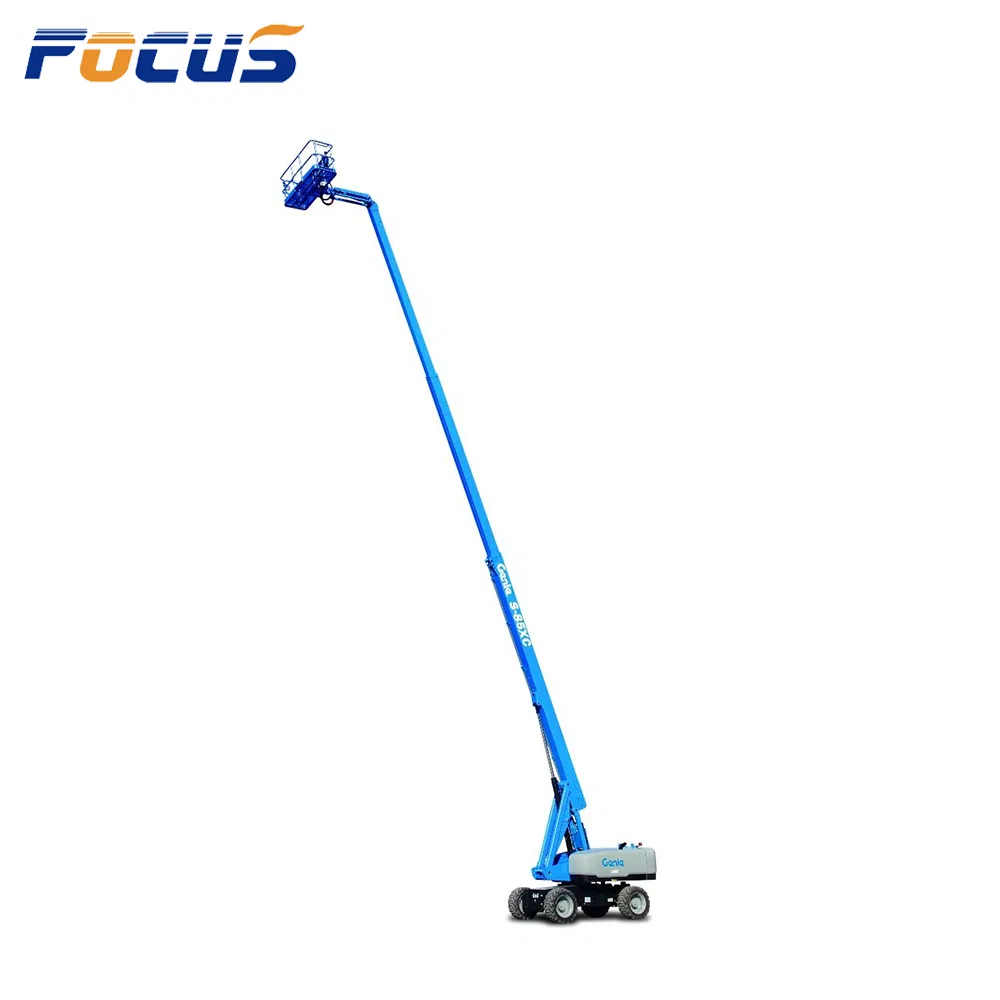

New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
1 / 5
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift
New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift

New/Used Genie S85xc Construction Site Use Articulating Telescopic Self Propelled Boom Lift

Customization: Available
After-sales Service: Video Technical Support, Spare Parts Support
Warranty: 12 Month
Send Inquiry

Product Description

📋 Overview & Basic Info
Model
Genie S85-XC / S65-XC
Mechanism
Telescoping Lift
Capacity
300/454kg (Dual Capacity)
Driven Type
Hydraulic Self-propelled
Working Height
21.81m
Horizontal Outreach
16.51m
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
🏗️ Product Description

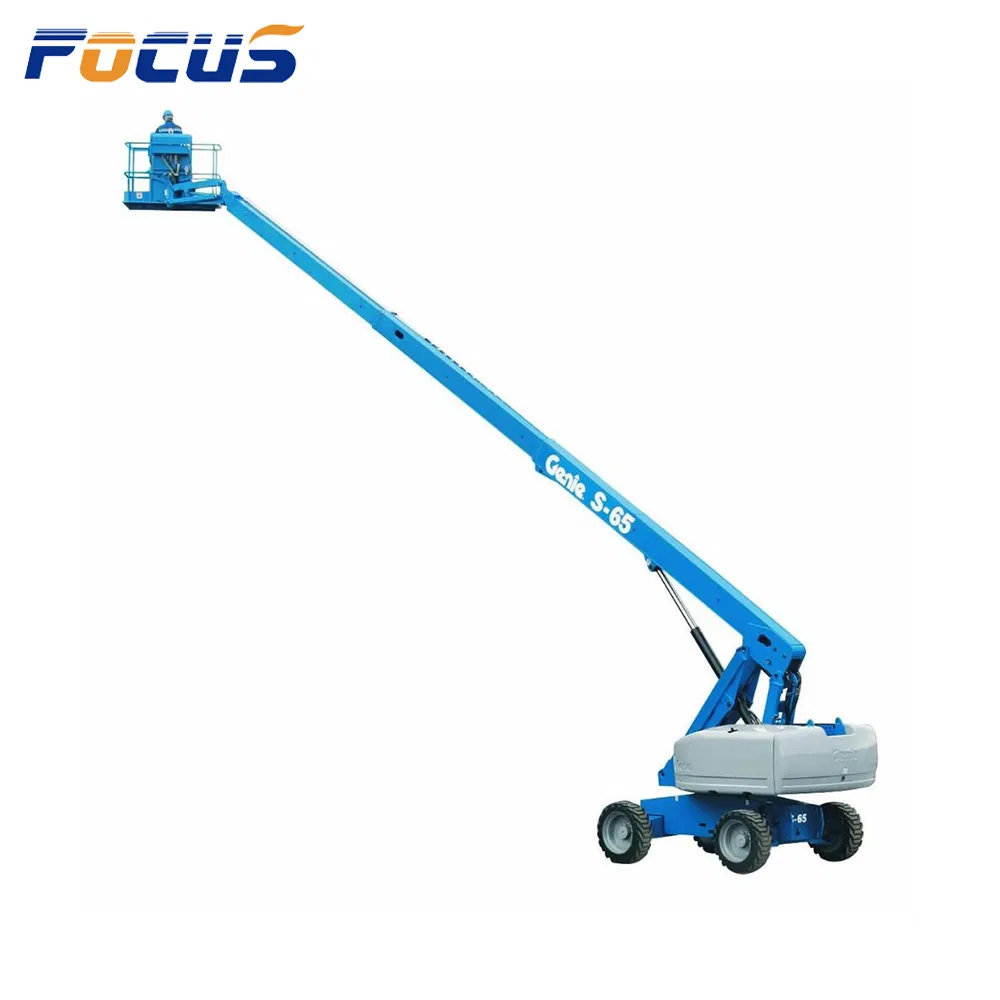

Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment

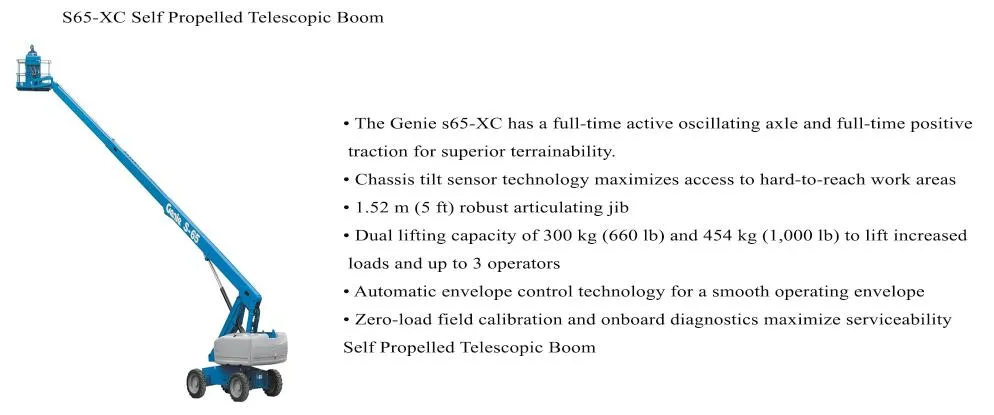

The Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. The Genie Xtra Capacity™ (XC) feature allows up to three people to work onboard with tools and materials.
  • Maximum capacity with a robust jib design to handle increased loads
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Chassis tilt sensor technology maximizes access to hard-to-reach work areas
  • Onboard diagnostics maximize serviceability
  • Option to add the Genie Lift Power™ generator system

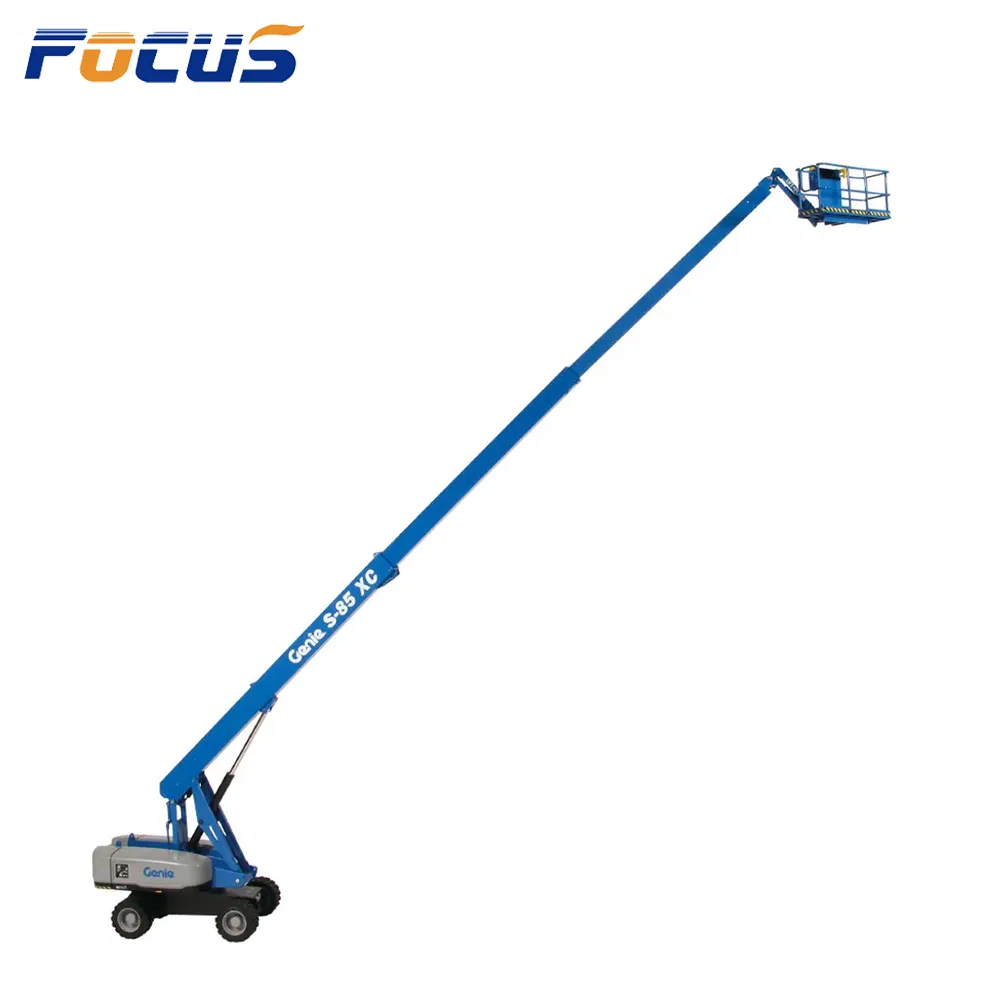

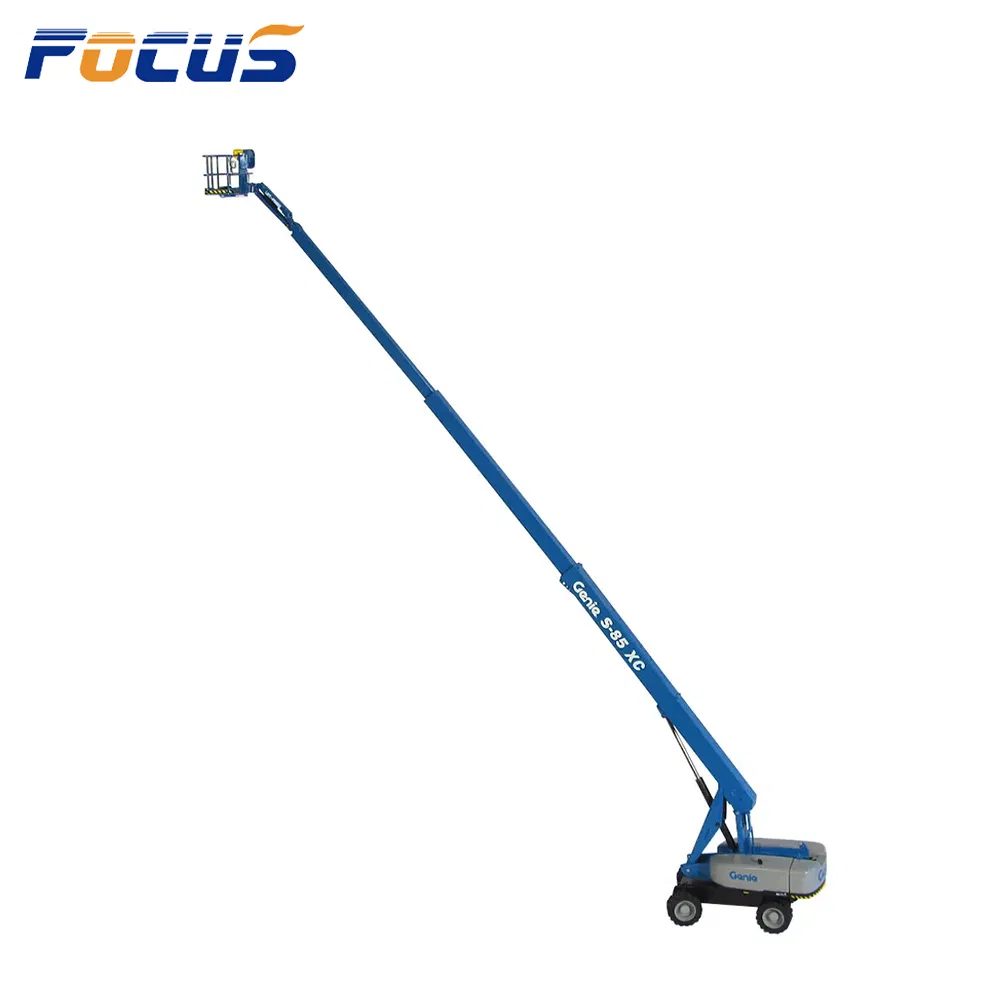

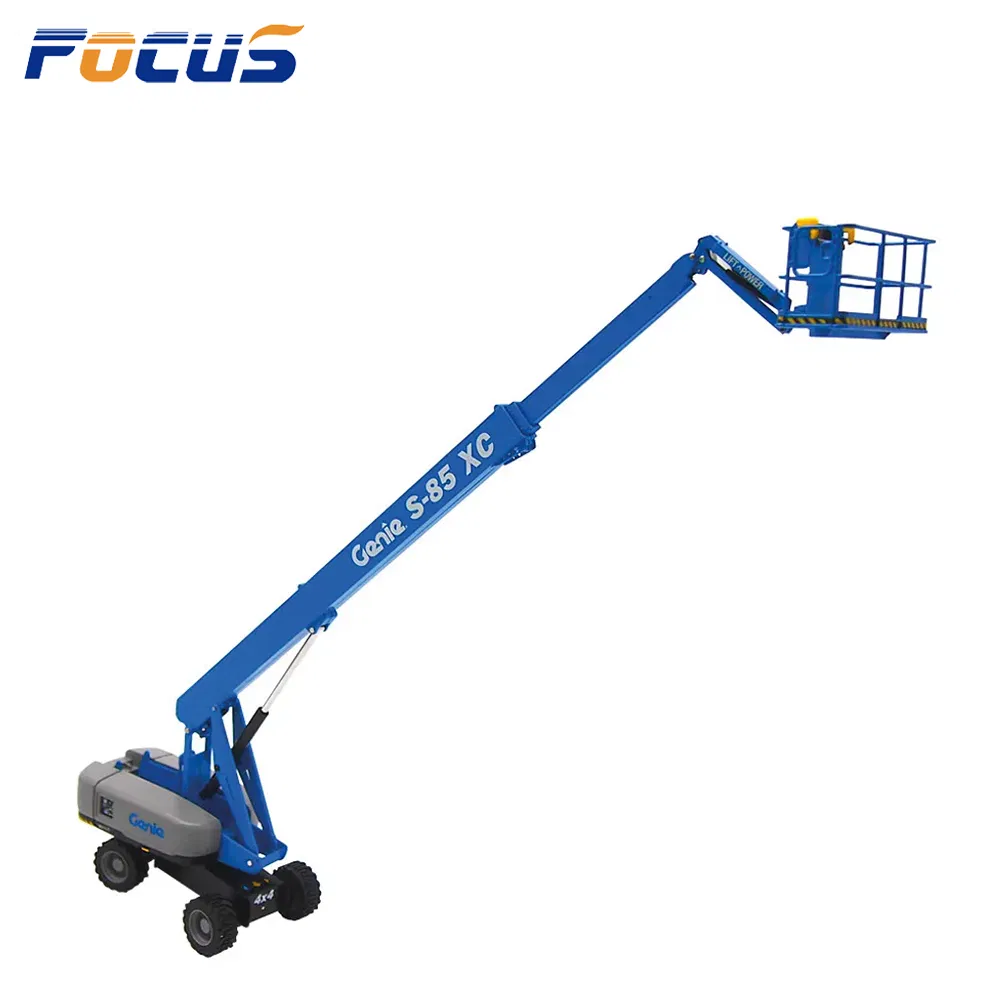

Genie S85xc Boom Lift
📸 Detailed Photos
Detail 1

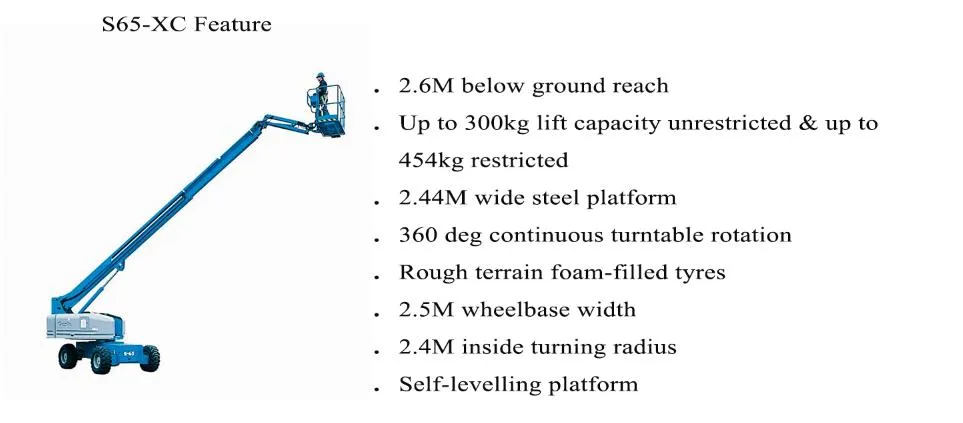

Detail 2
Detail 3

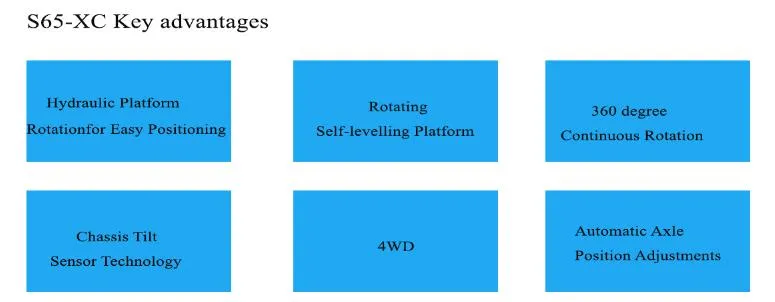

Detail 4

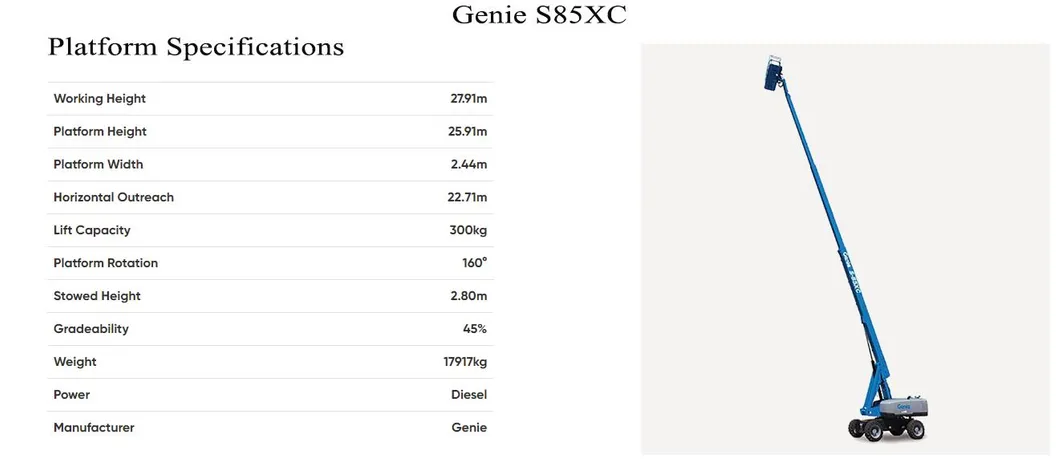

Detail 5

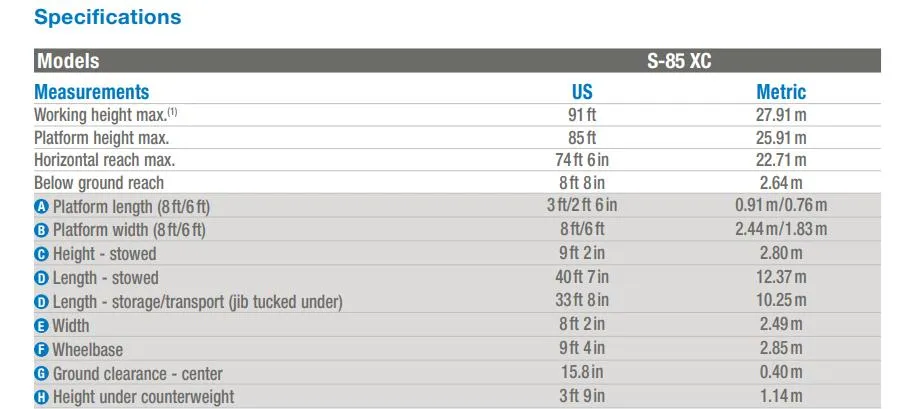

Detail 6
📜 Certifications
Certifications

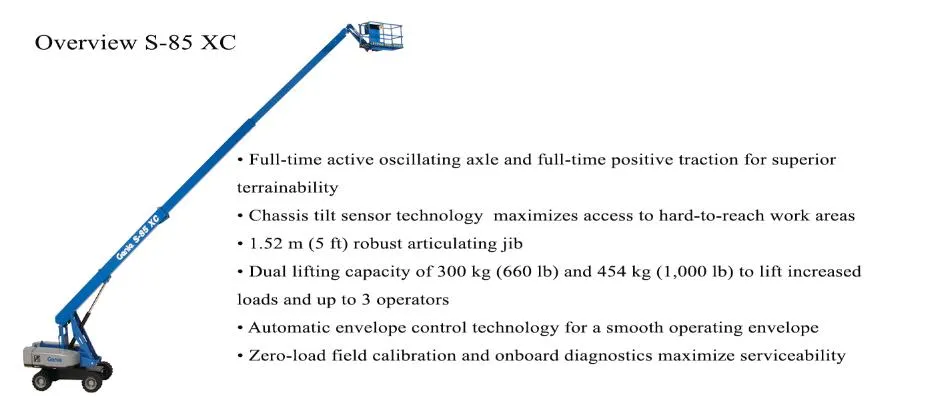

Cert 1
Cert 2
Cert 3
⚙️ Product Parameters
Measurements Metric US
Working height maximum21.81 m71ft
Platform height maximum19.81 m65ft
Horizontal reach maximum16.51 m54ft 2in
Productivity
Lift capacity - unrestricted300kg660lbs
Lift capacity - restricted454kg1000lbs
Turntable rotation360° continuous
Gradeability - stowed45%45%
Power
Power sourceDeutz D2011L03i, 48 hp (36 kW)
Fuel tank capacity132 L35 gal
🚢 Packaging & After Sales
Facility

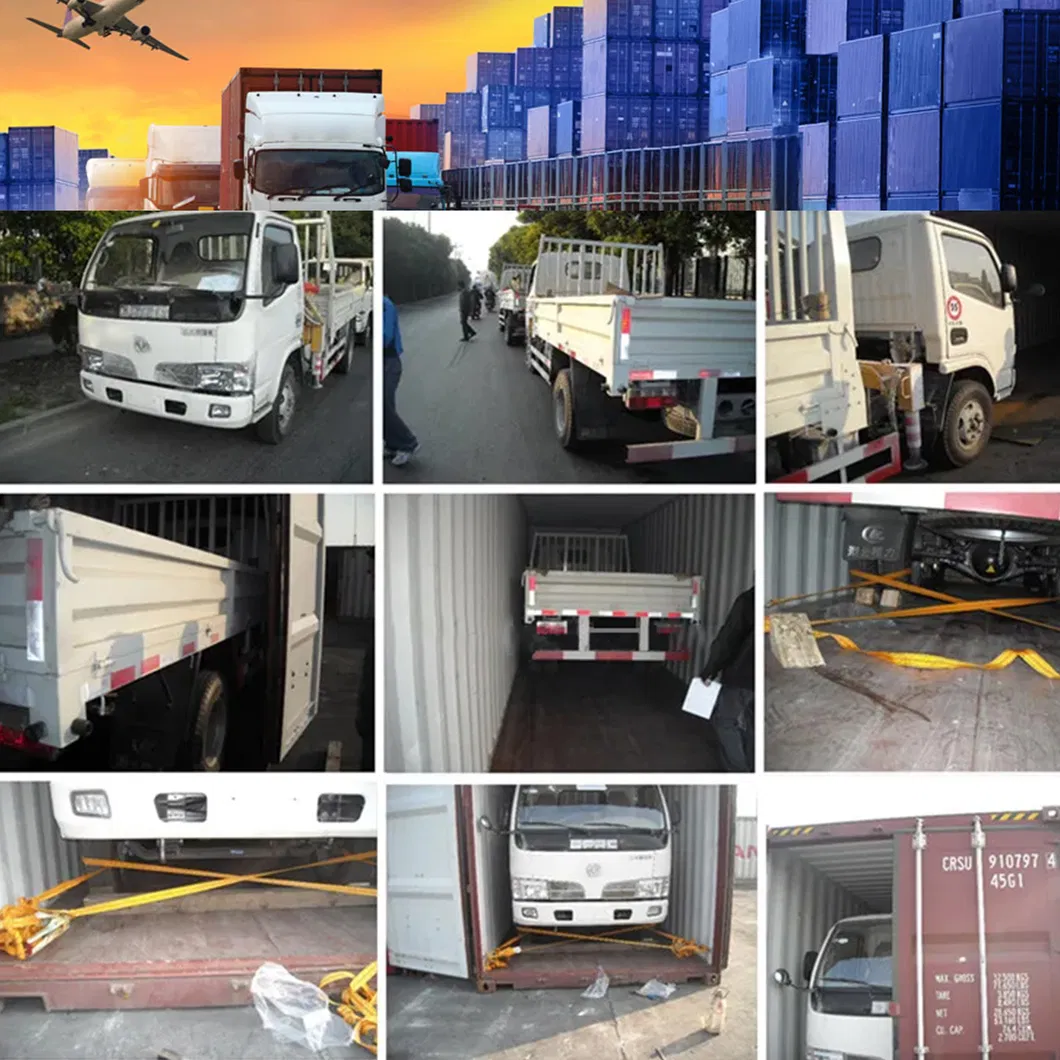

Shipping

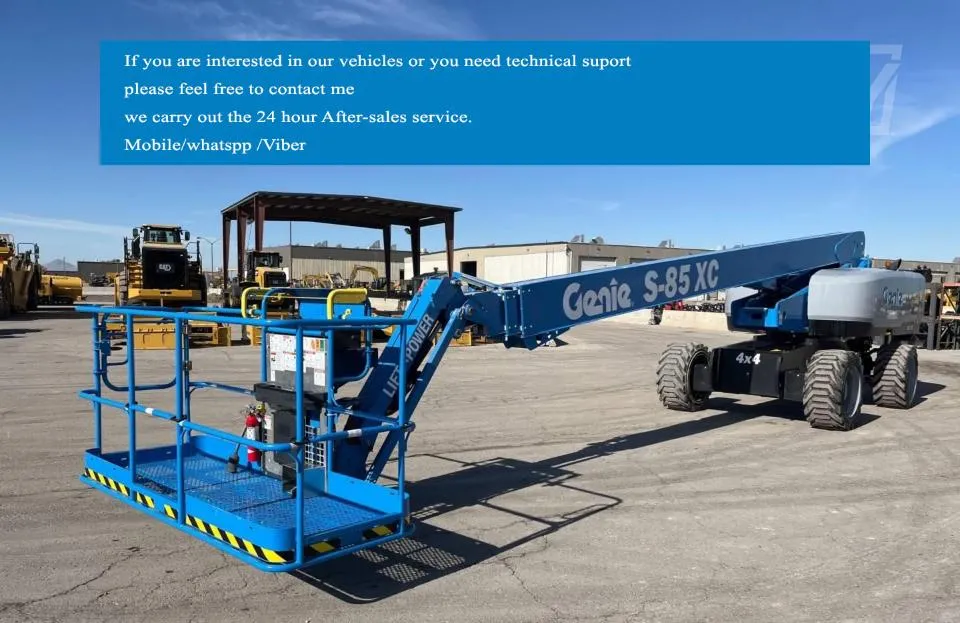

Support
❓ Frequently Asked Questions
What is the maximum working height of the Genie S-65 XC?
The Genie S-65 XC reaches a maximum working height of 21.81 meters (71 feet).
What does the "XC" designation mean for this boom lift?

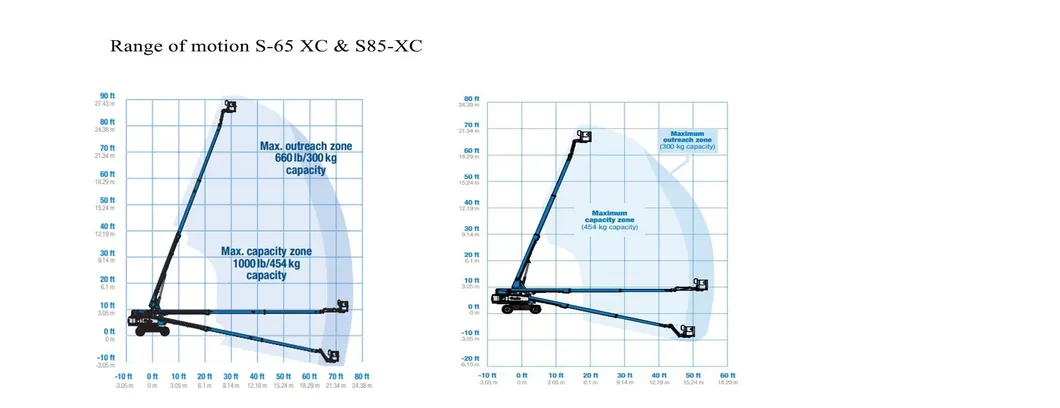

"XC" stands for Xtra Capacity, meaning it features a dual-envelope design that allows for an increased lift capacity of up to 454kg (1,000 lbs).
Is the machine suitable for rough terrain?
Yes, it is a 4x4 self-propelled diesel boom lift with 45% gradeability, making it ideal for challenging construction sites.
What type of engine powers the Genie S-65 XC?
It is powered by a reliable Deutz D2011L03i diesel engine, providing 48 hp (36 kW) of power.
How many people can work in the platform?
Thanks to the XC technology, up to three people can work onboard while maintaining sufficient capacity for tools and materials.

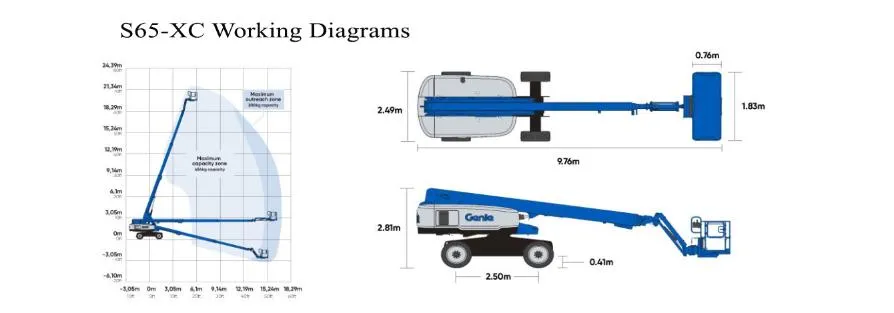

What are the transportation dimensions?
The package size is approximately 200cm x 130cm x 140cm for shipping components, though the unit itself has a closed length of 9.76m and a width of 2.49m.
