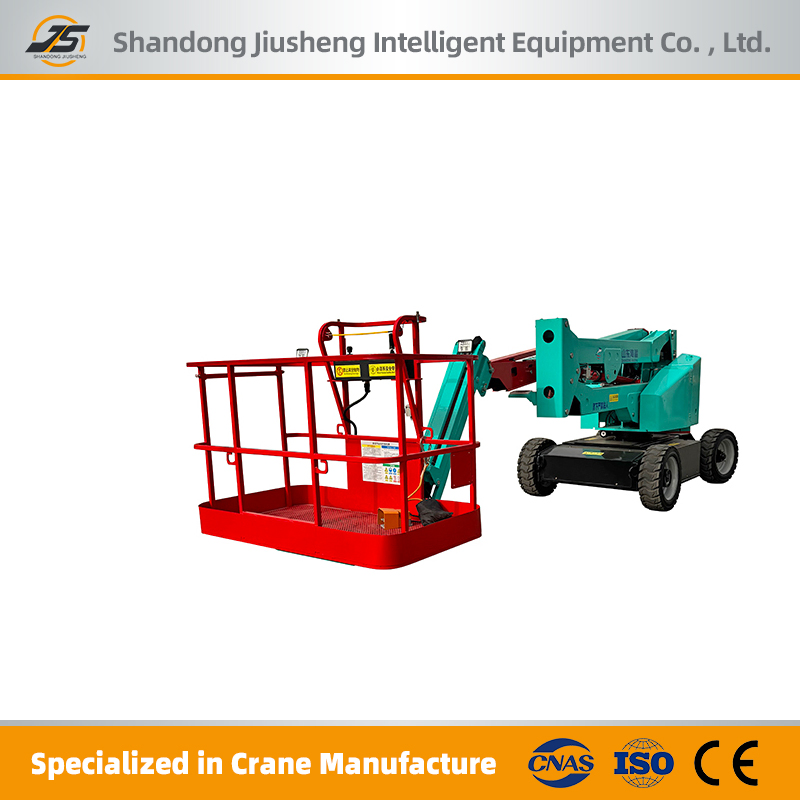

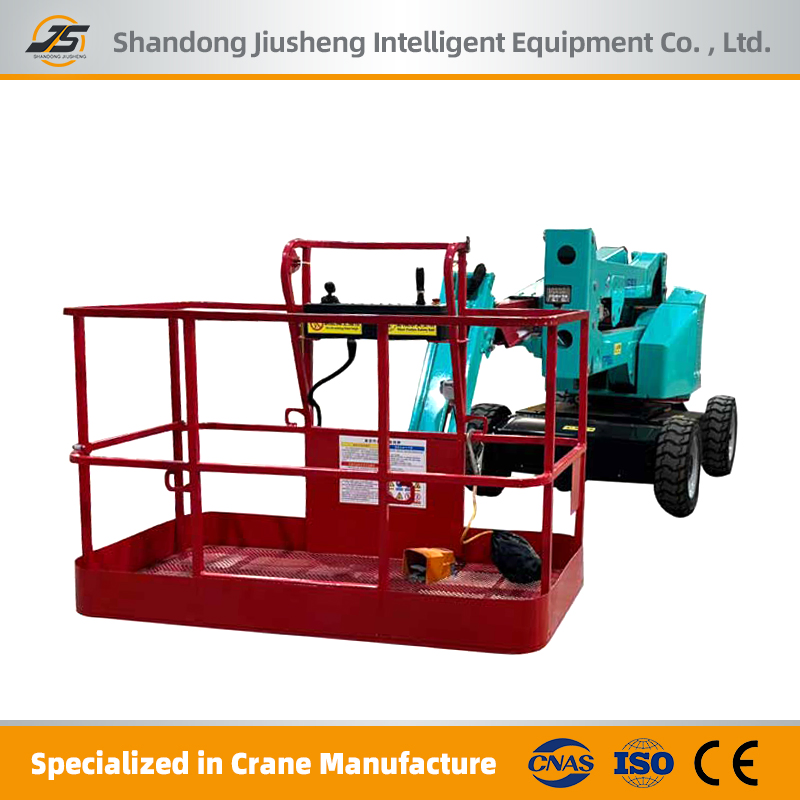

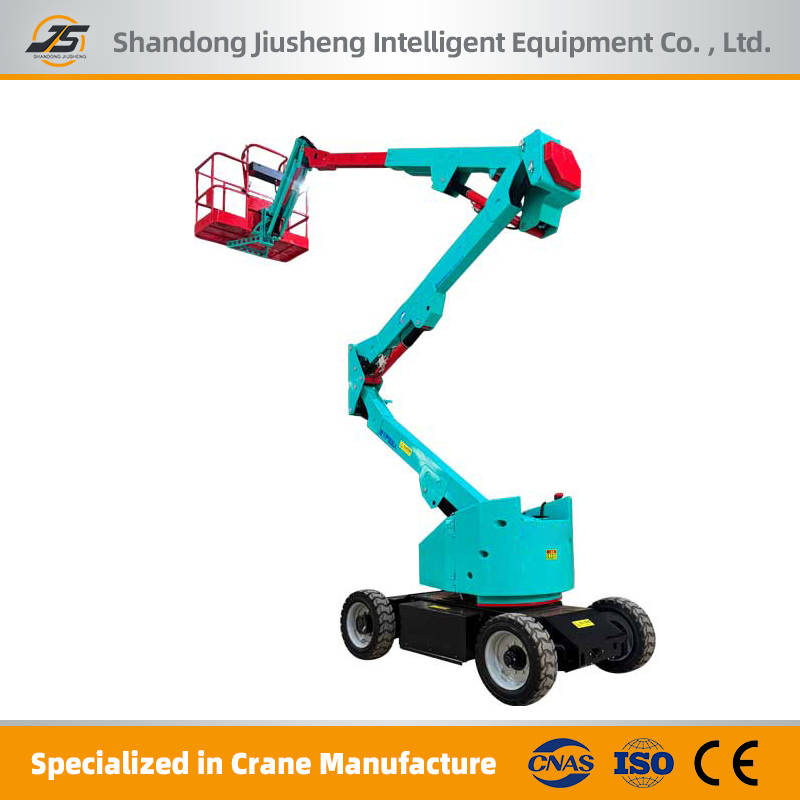

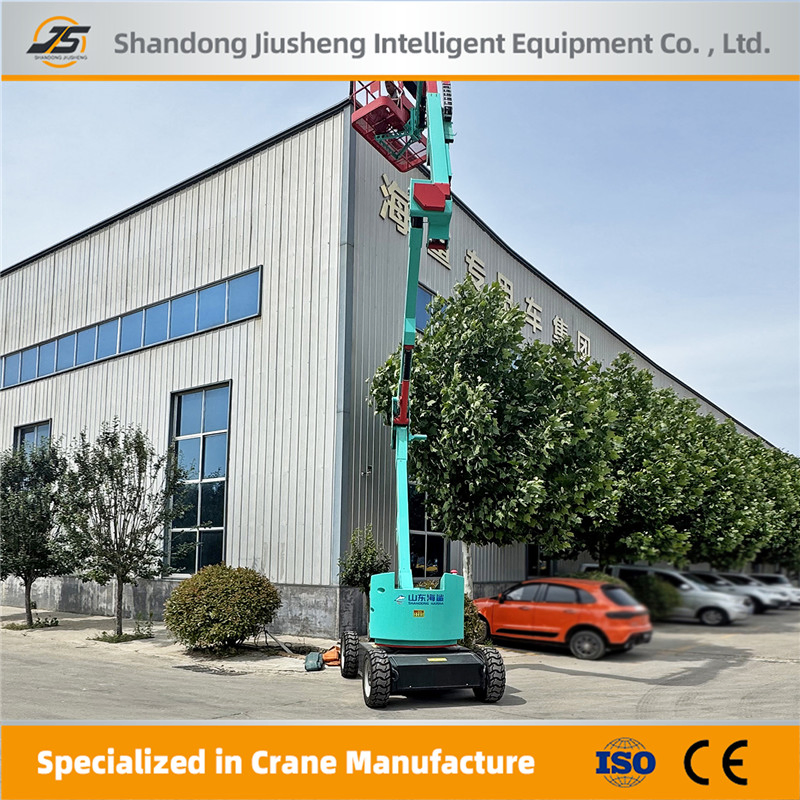

Mobile Telescopic Curved Arm Elevating Work Platform Lift for Work

1 / 5

Mobile Telescopic Curved Arm Elevating Work Platform Lift for Work

Customization:	Available
After-sales Service:	24-Hour Online Support
Warranty:	1year

Send Inquiry

Product Description

Basic Info.

Model NO.

JS-16M

Application

Workshop, Warehouse, Building

Lift Mechanism

Articulated Lift

Moves

Self-propelled

Driven Type

Hydraulic

Certification

CE, ISO 9001

Working Height

16m

Platform Height

14m

Load Capacity

230kg

Weight

6650kg

Battery

48V/450ah

Packaging & Delivery

Package Size

700.00cm * 200.00cm * 200.00cm

Gross Weight

6650.000kg

Product Description

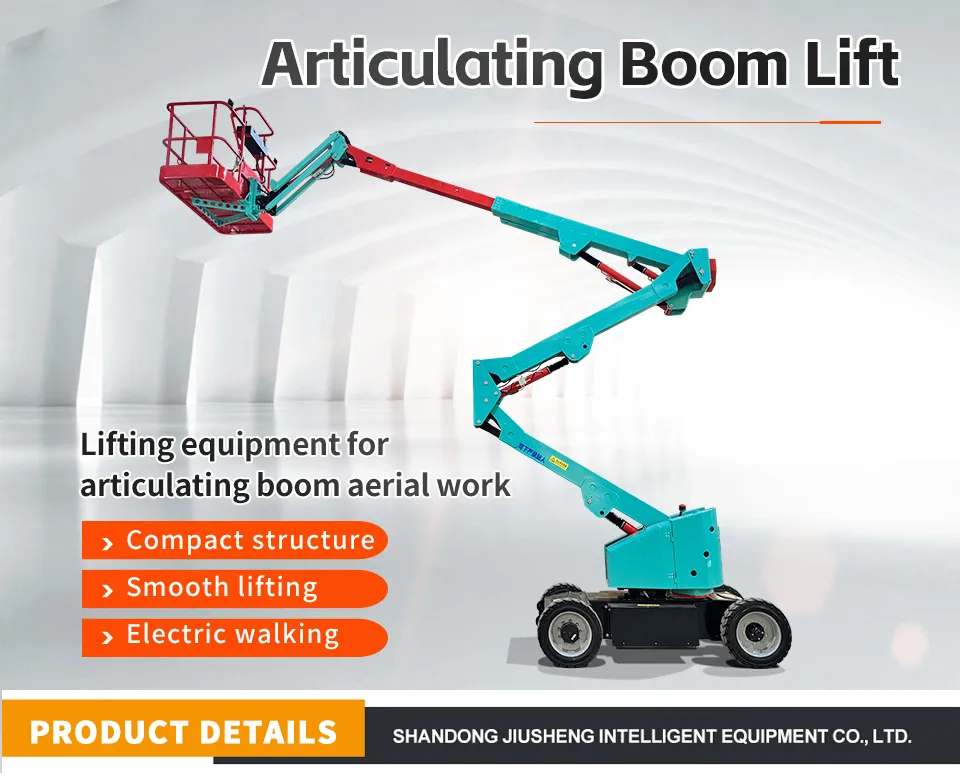

Articulating Boom Lift Overview

The articulated boom aerial work platform truck is a kind of lifting equipment that realizes aerial work through the curved arm structure, which is composed of multiple retractable and folding arms, supports vertical lifting and horizontal extension, and can cross obstacles (such as buildings and trees) for operation.

Applications

Construction: Glass curtain wall installation, exterior wall spraying and aerial welding.
Roadwork: Maintenance of street lights, installation of traffic signs.
Interior Decoration: Replacement of ceilings and light fixtures.
Fire Rescue: Evacuation of people from high-rise buildings.

Key Configurations

Compact Structure: Operated in narrow indoor warehouses.
Electric Drive: Large capacity lithium battery, low noise, low maintenance.
Easy to Operate: Walk on your own, one person can operate.
Control System: Intelligent monitoring panel with fault diagnostics.

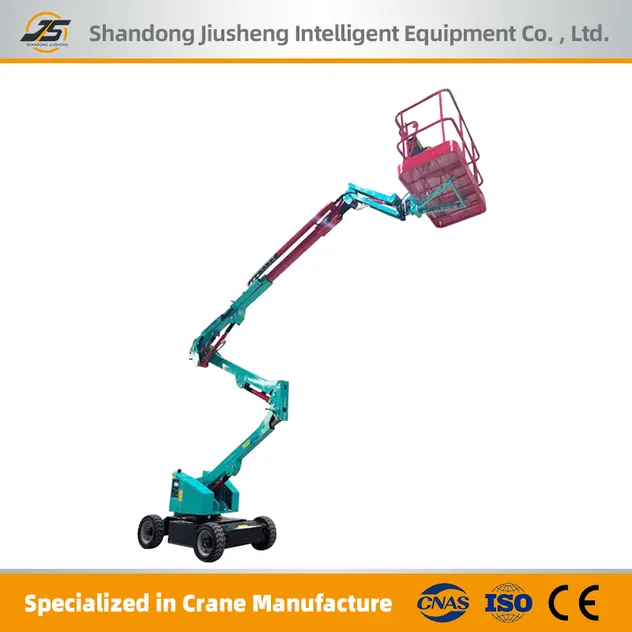

Right Elevation

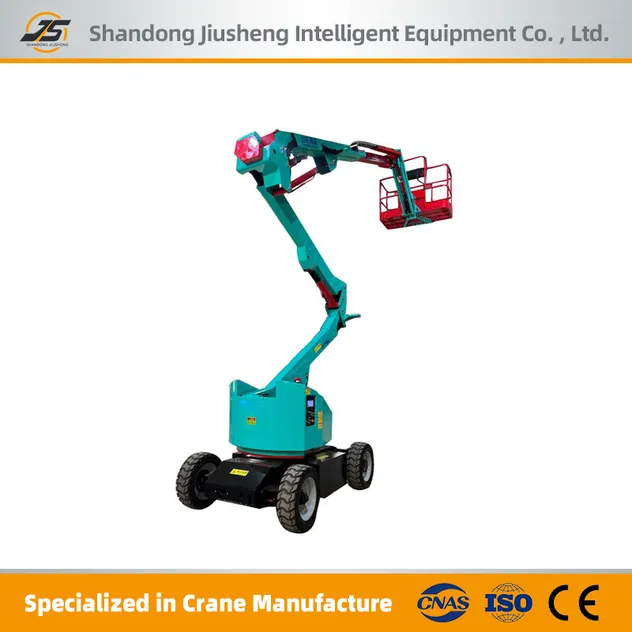

Left Elevation

Front Elevation

Technical Specifications

(Custom configurations available upon request.)

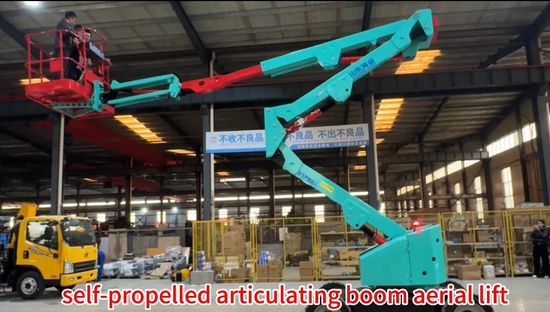

Self-propelled electric articulated arm aerial work platform
Working height	16m	Stretch horizontally	7.4m
Platform height	14m	Platform length	0.92m
Package size	26.61.75m	Wheelbase	2m
Bearing	230kg	Platform rotates	±90°
Travel speed	5km/h	Tyre	240/55D17.5
Drive	2WD	Voltage	12V

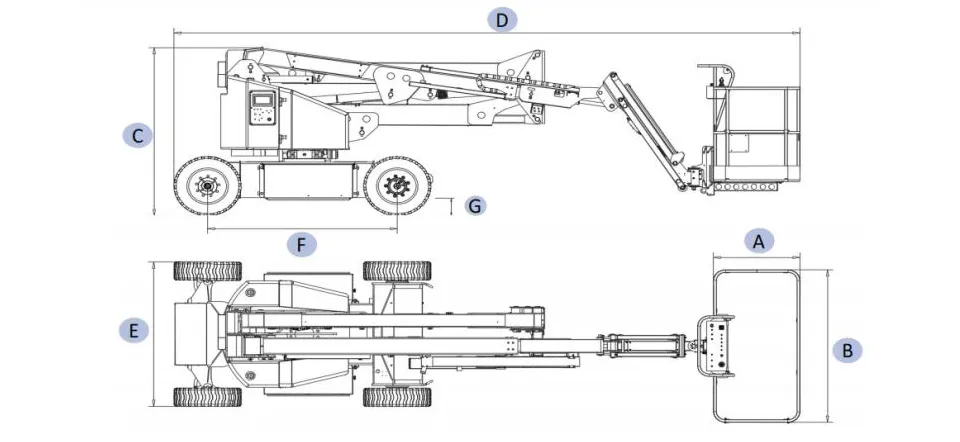

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional manufacturer with 10 years of experience. We are a high-tech enterprise providing truck-mounted cranes, aerial trucks, spider cranes, and other products directly supplied by our facilities.

Will you deliver the equipment on time?

Yes, we strictly adhere to delivery schedules. Our commitment to timely delivery is a core part of our contract fulfillment process.

Can I customize the size and configuration of the boom lift?

Absolutely. As a manufacturer, we support customized processing and can tailor technical specifications to meet your specific project needs.

How do you guarantee product quality?

We hold numerous product patents and our engineering team ensures every unit undergoes rigorous quality testing. We also provide a one-year warranty for your peace of mind.

What are your main advantages?

Our dedicated production lines allow for favorable pricing and high-quality control. Our experienced technical support team is available to assist you throughout the product lifecycle.

How can I place an order?

You can reach out via our official contact channels for a quote. Once specifications are confirmed, the order is finalized through a formal Purchase Order (PO).
