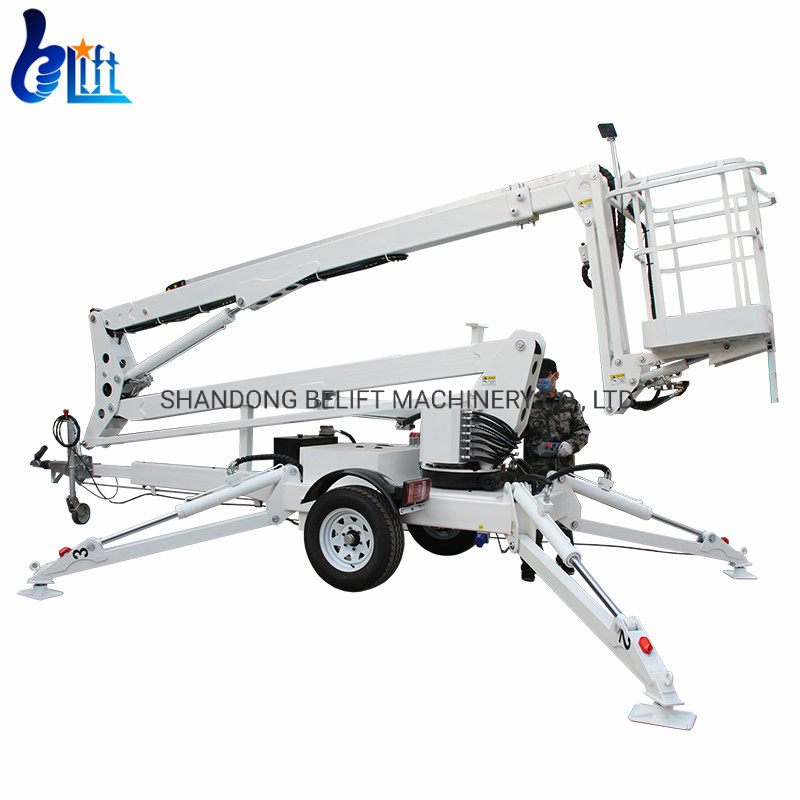

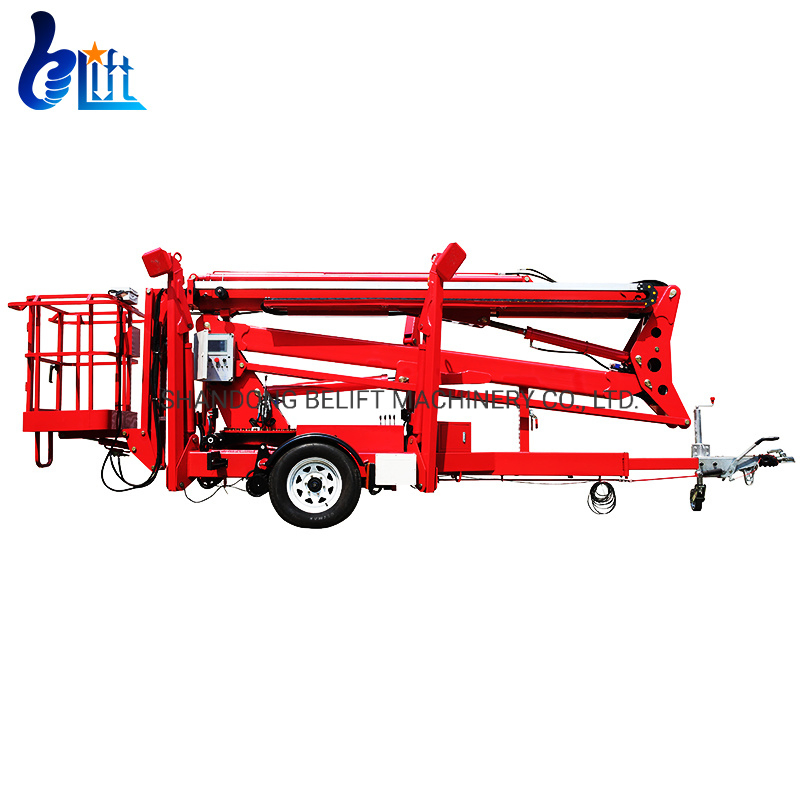

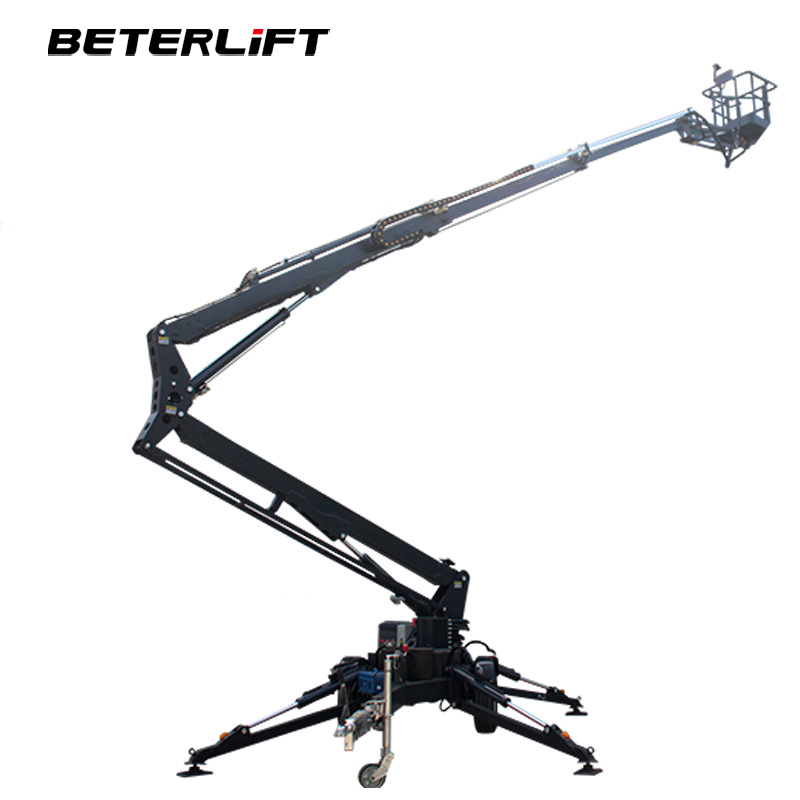

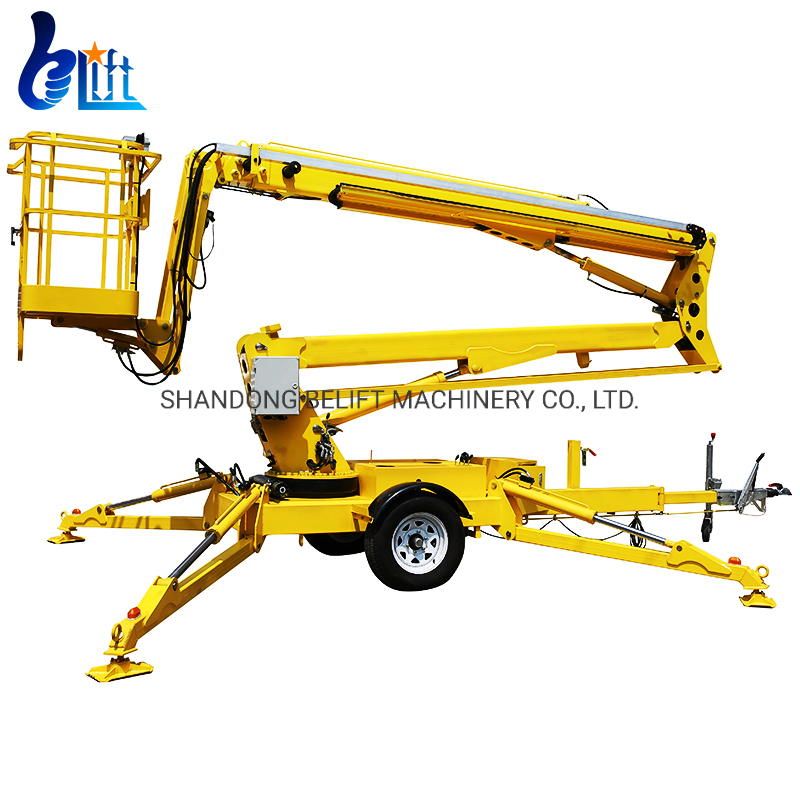

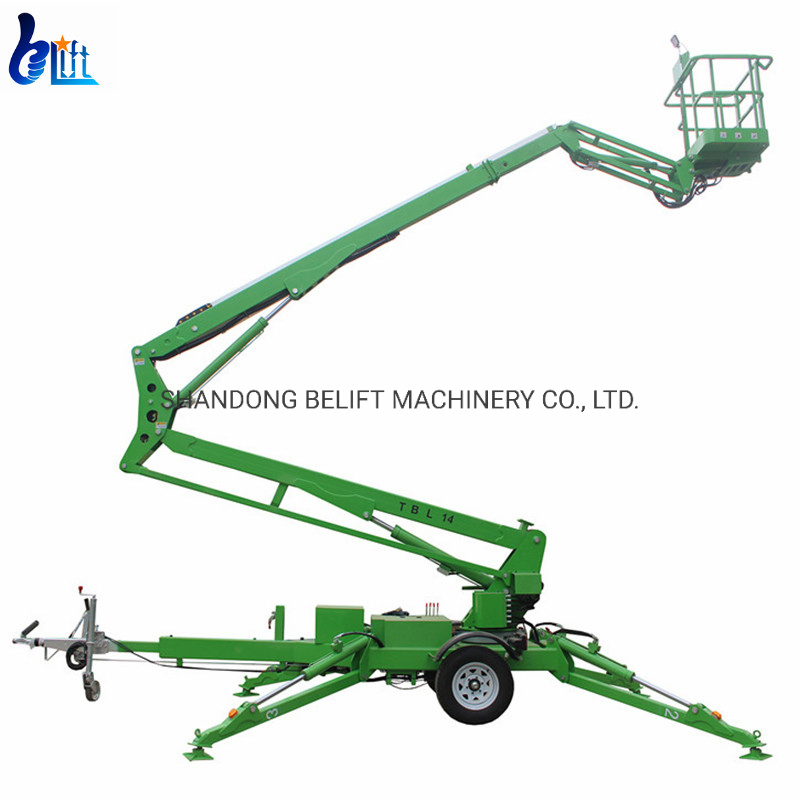

10m-22m Electric Hydraulic Aerial Telescopic Cherry Picker Towable Spider Trailer Boom Lift

Basic Info.

Model NO.

SBL

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Articulated Lift

Carrying Capacity

Light Level

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating

Max.Platform Height

10m-22m

Max.Working Height

12m-24m

Lifting Capacity

200kg

Platform Size

0.9X0.7m

Working Radius

5.5m-14.5m

Power Type

AC/Diesel/ DC/Gasoline

Product Description

10m-24m Electric Towed Telescopic Cherry Pickers Hydraulic Articulated Spider Towable Boom Lift

Towable boom lift is one type of aerial work man lift platform used by construction companies, shipyards, cleaning and installation service companies and so on. It is mainly featured by its compact size, stable lifting, 360 degree rotating and multi powers with the max platform height from 10m to 20m.

Features and Advantages

Optional Power/Engine: AC Power (110v/220v), Diesel Engine, Gasoline Engine, DC Battery, or Hybrid power.
Equipped with rotatable motor allowing 359 degree rotation.
Reaching max 12m-24m working height.
Waterproof and dustproof control panels and electric box.
High Quality accessories and optional automatic walking design.
Adopting perfect shot blasting treatment and anti-corrosion paint spraying.
High strengthened steel structures for smooth lifting and operation.

Product Parameters

Model Type	SBL10	SBL12	SBL14	SBL16	SBL18	SBL20	SBL22
Lifting height	10M	12M	14M	16M	18M	20M	22M
Working height	12M	14M	16M	18M	20M	22M	24M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	12.5M	14.5M	15.5M
Net Weight	1855KG	2050KG	2500KG	2800KG	3100KG	3290KG	3500KG

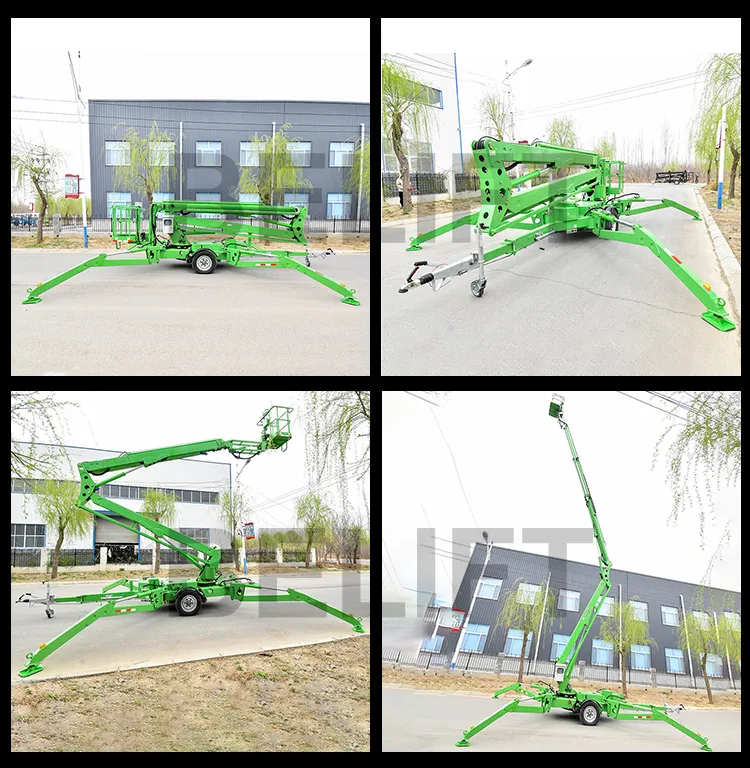

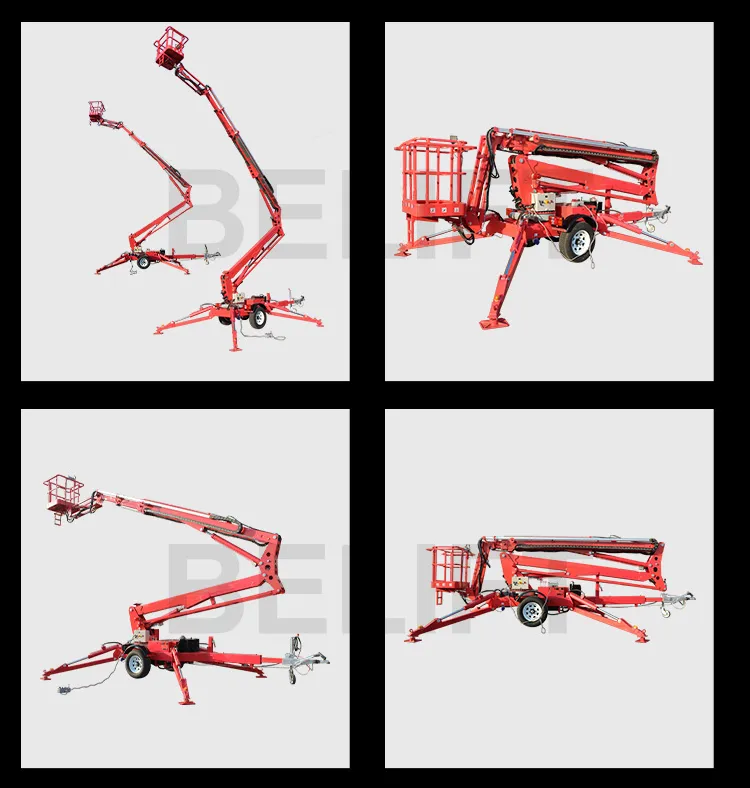

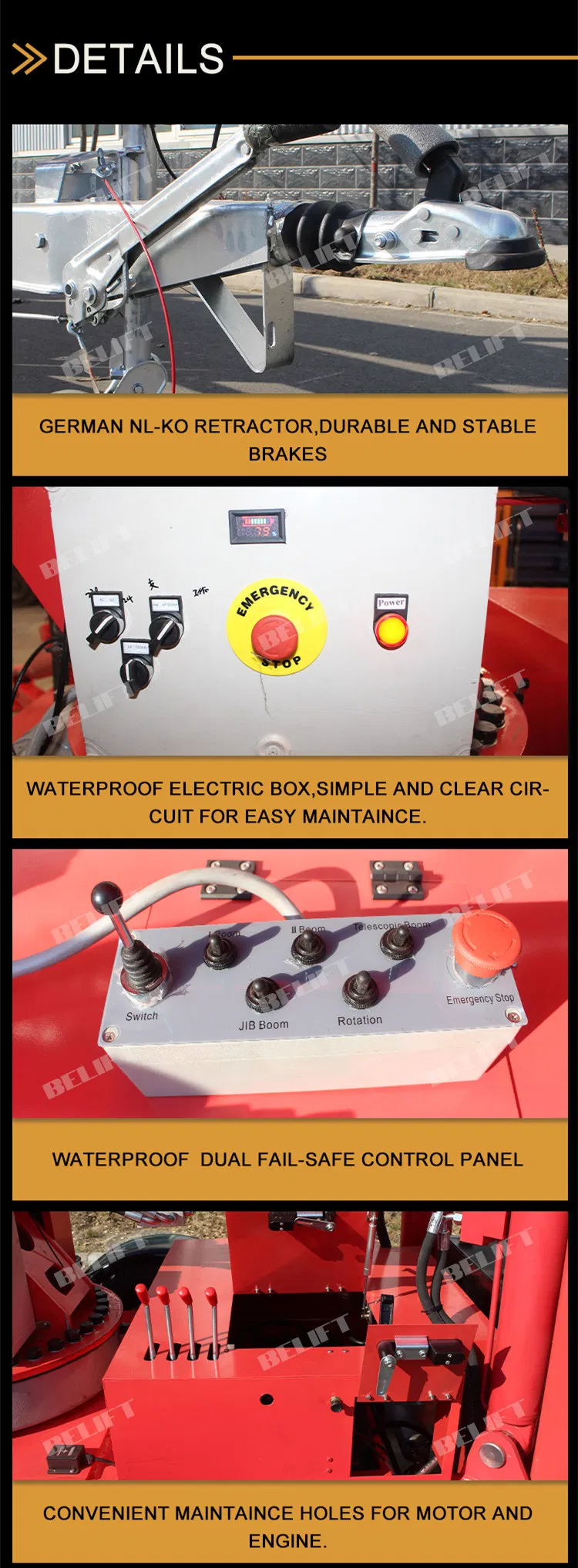

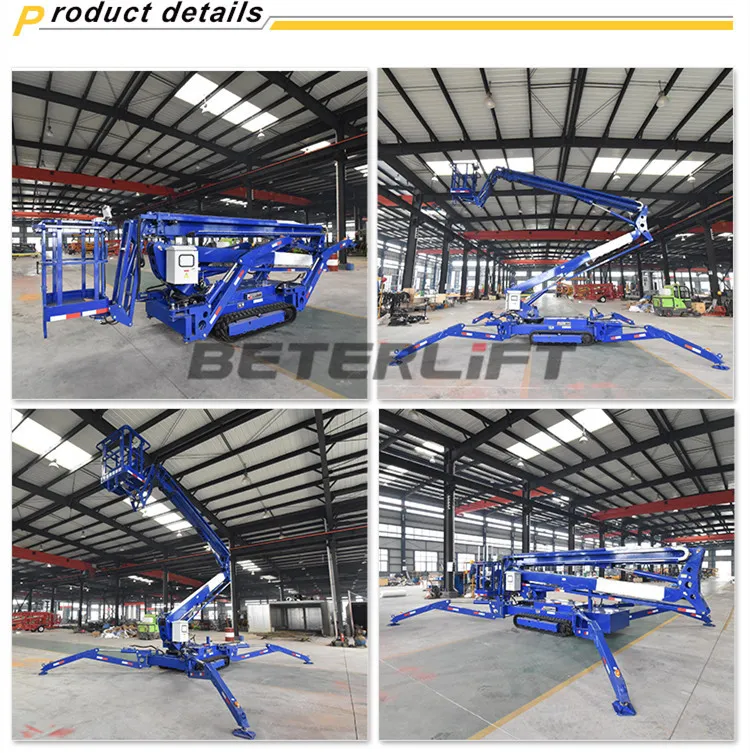

Detailed Photos

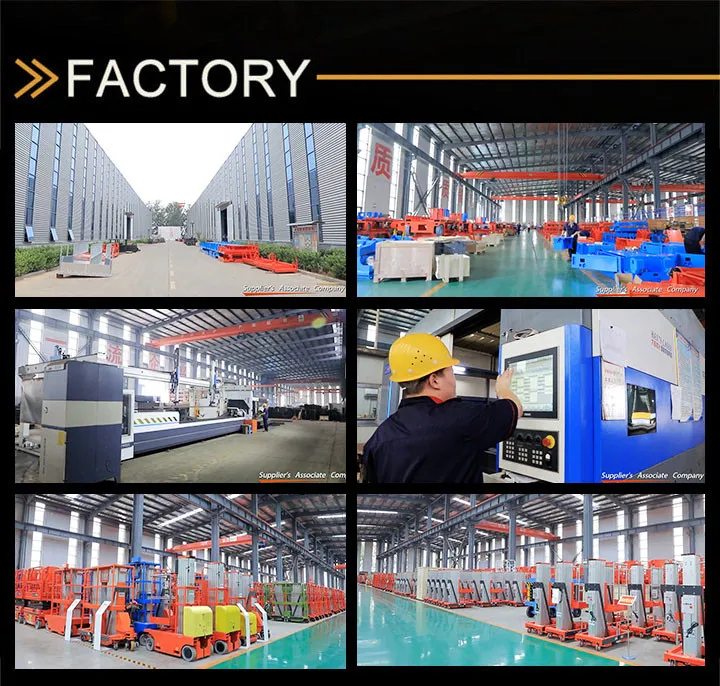

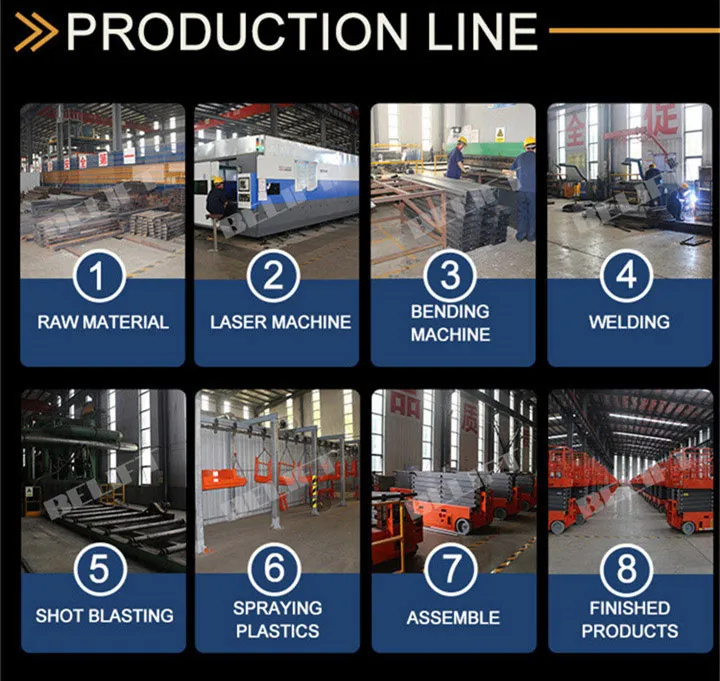

Production & Quality

Specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Our products are recognized by customers worldwide for their reliability and performance.

Certificates: CE, ROHS, SGS, ISO etc.

After Sales Service

Spare parts provided freely within quality warranty period.
Comprehensive user's manual provided with the equipment.
Lifetime technique support for all components.
24 hours telephone and Internet service support.

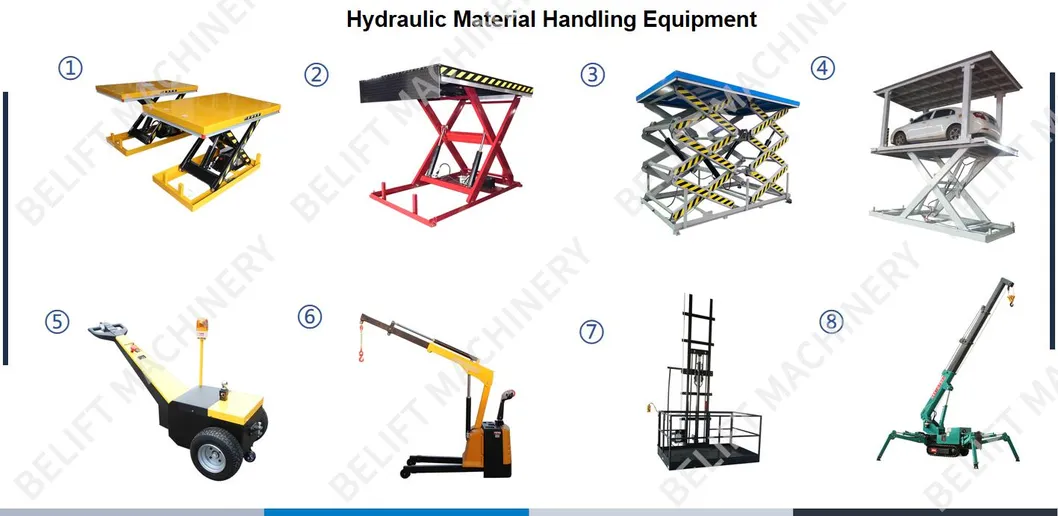

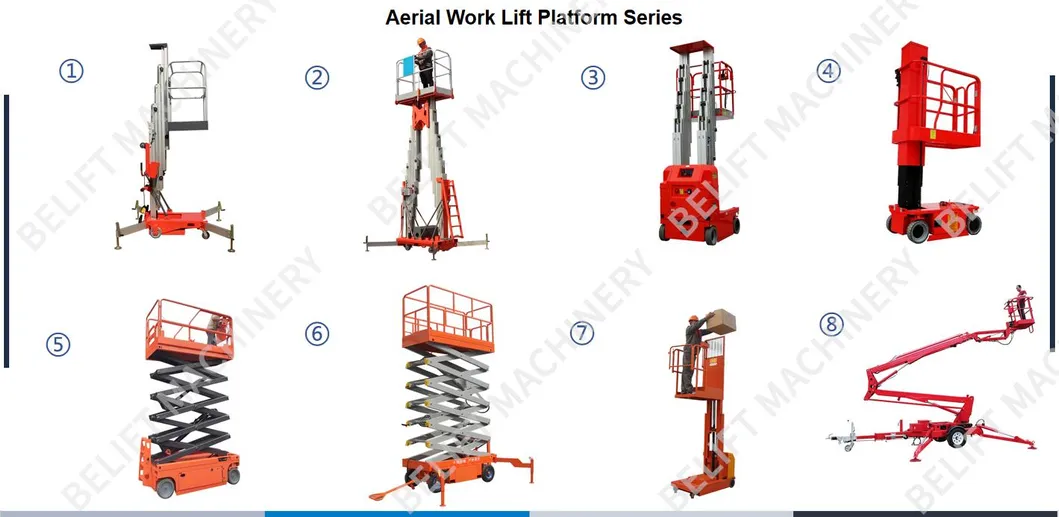

Other Recommendations

FAQ

How can customers buy parts once they break down?

The equipment adopts common hardware parts. You can purchase them at local hardware markets or forklift parts shops easily.

How can customers repair the boom lift?

The equipment has a very low failure rate. In case of issues, we provide video guidance and detailed repair instructions to assist you.

How long is the quality guarantee?

We provide a one-year quality guarantee. If failure occurs within a year, we send replacement parts free of charge.

What are the available power sources?

Power sources can be customized based on local standards, including AC, DC, Diesel, Gasoline, or Hybrid options.

Is special training required to operate the lift?

The controls are intuitive and user-friendly. We provide a manual and video tutorials; most operators become proficient within minutes.

Can the equipment be used in windy conditions?

The boom lift is designed with a wind resistance level of 5 or below for maximum safety during aerial operations.
