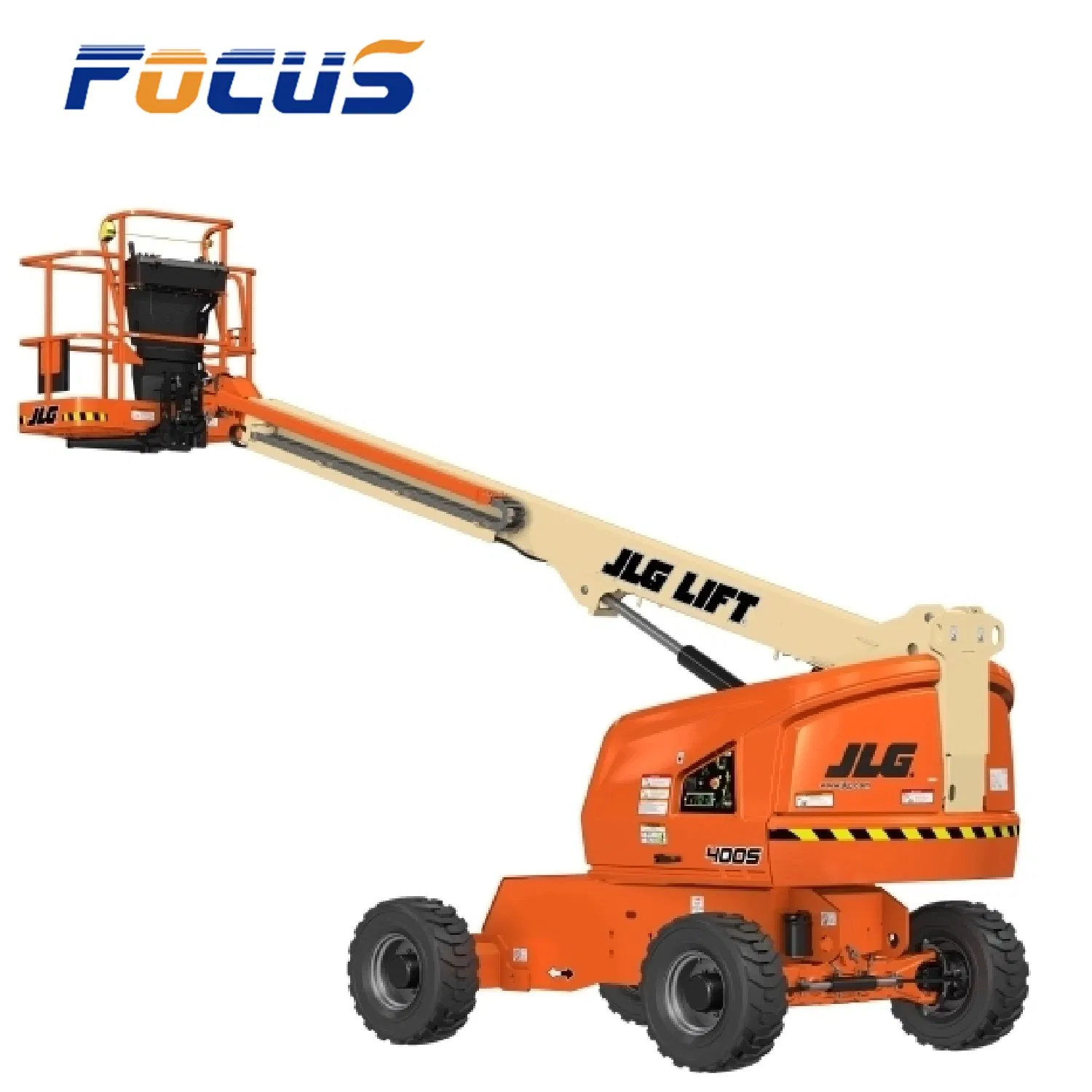

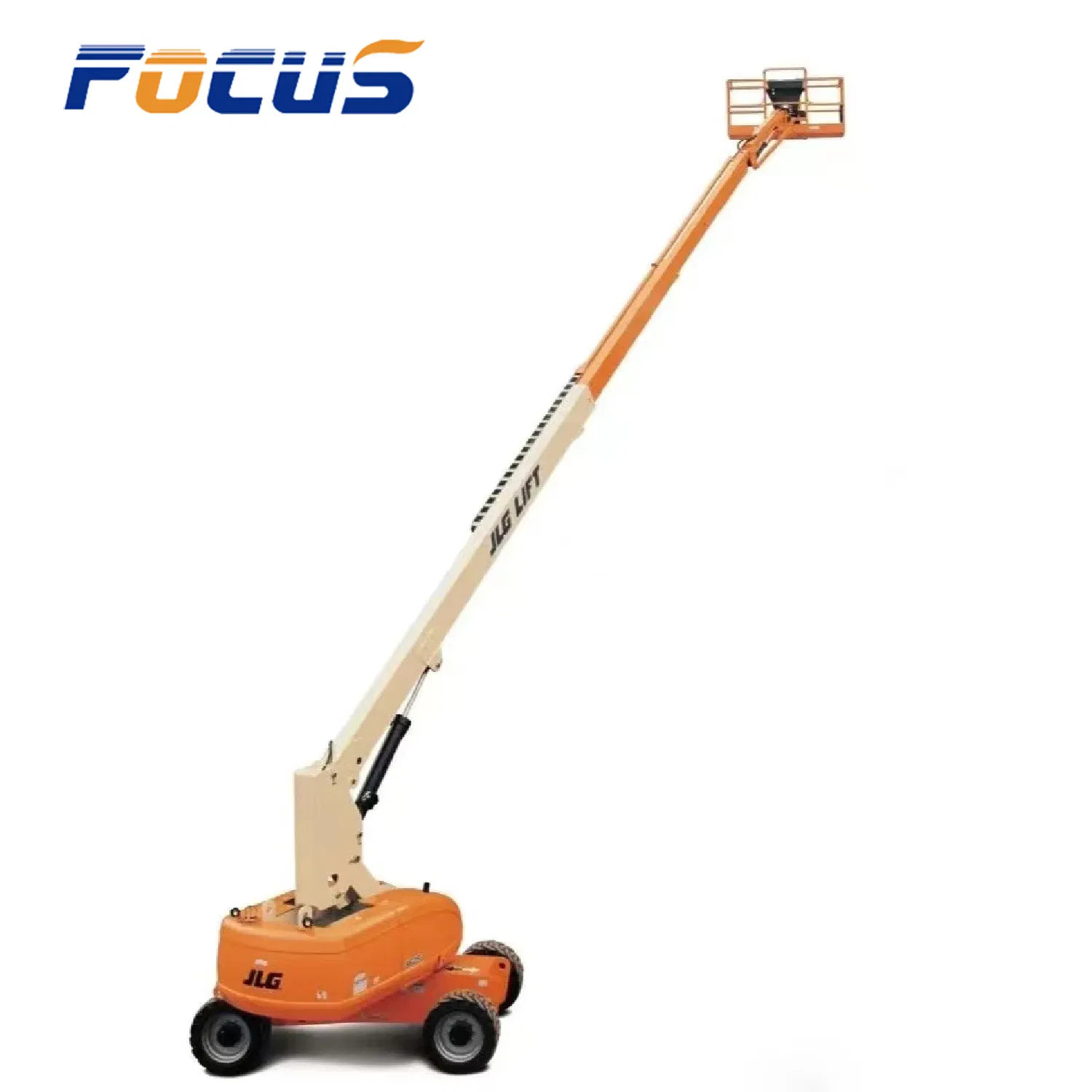

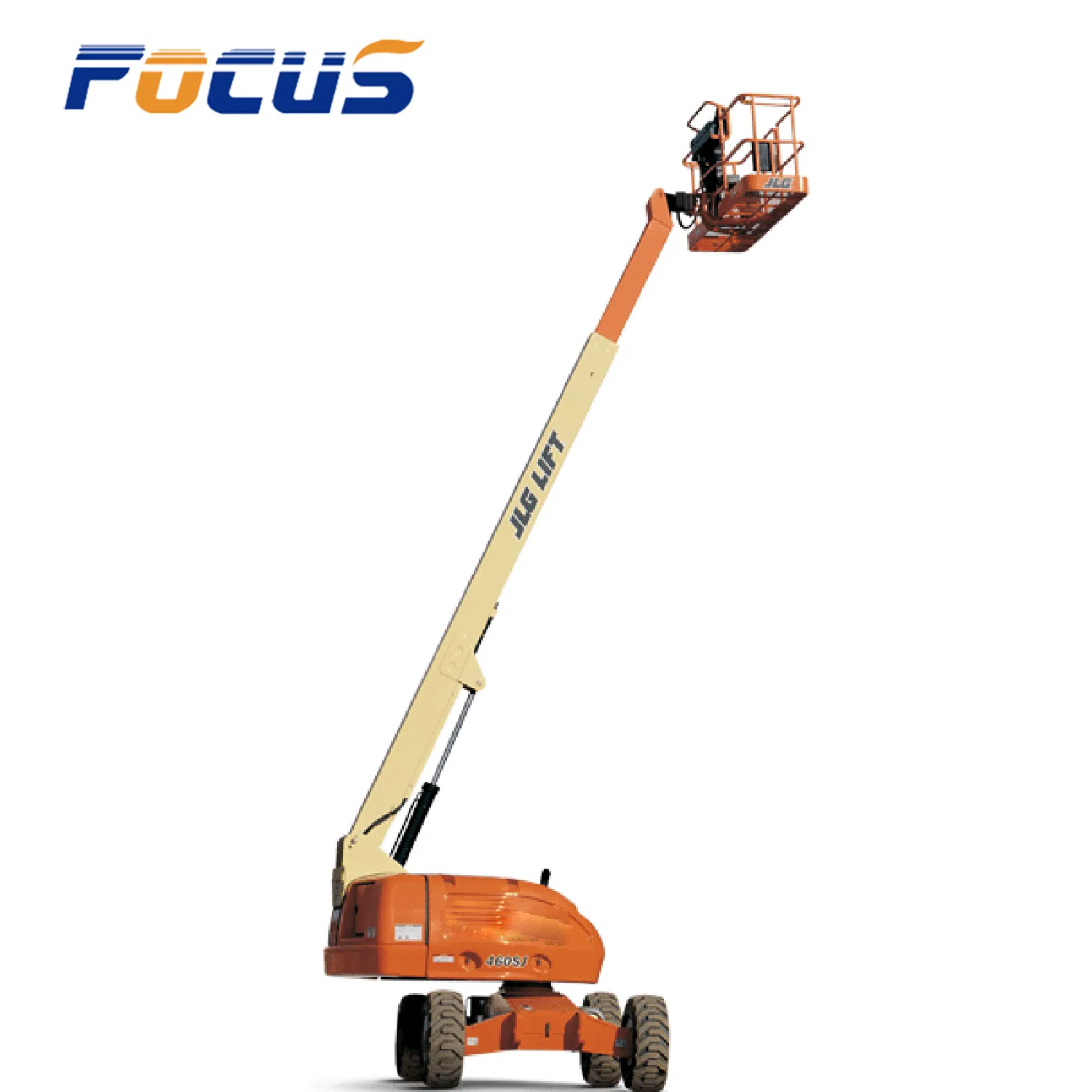

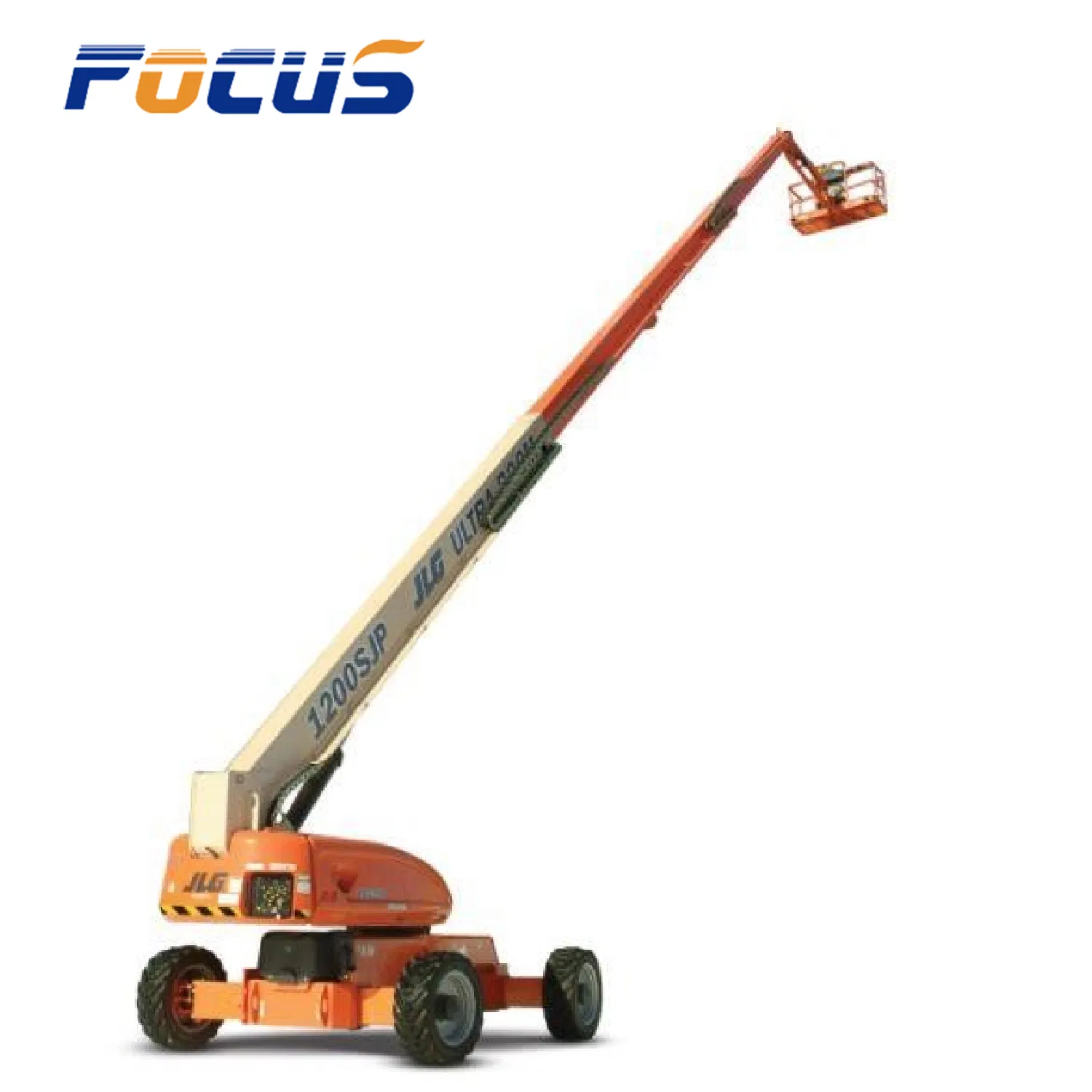

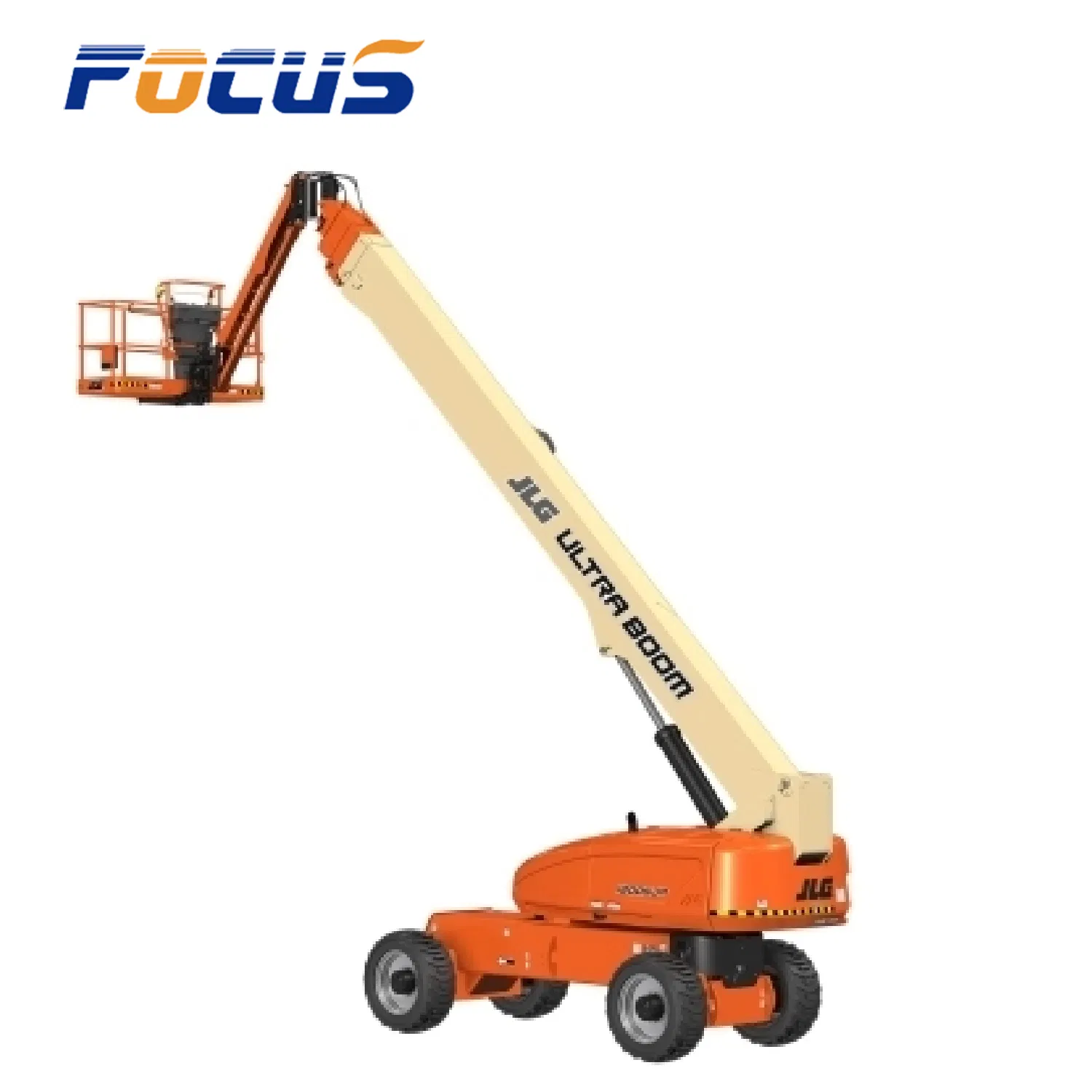

Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
1 / 5
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height
Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height

Jlg-660/860sj - Telescopic Boom Lift Swing Continuous 360° 22.31m Working Height

Customization: Available
After-sales Service: Video Technical Support, Online Support, Spare PAR
Warranty: 24 Months
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
660SJ
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Self-propelled
Driven Type
DC
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Brand
JLG
Platform Height
20m
Working Height
22.32m
Loading Capacity
227kg
Horizontal Extension
17.30m
Power Source
Diesel
Engine Type
Deutz D2011L04
Curb Weight
11918kg

Product Description

JLG 600 Series 660SJ Telescopic Boom Lift/ Manlift with 20m straight boom aerial work platform

With its powerful performance and excellent reliability, the 600 series helps you easily cope with the challenges encountered on the construction site. The larger platform load capacity and working range of the JLG® 600 series effectively improves access and work efficiency.

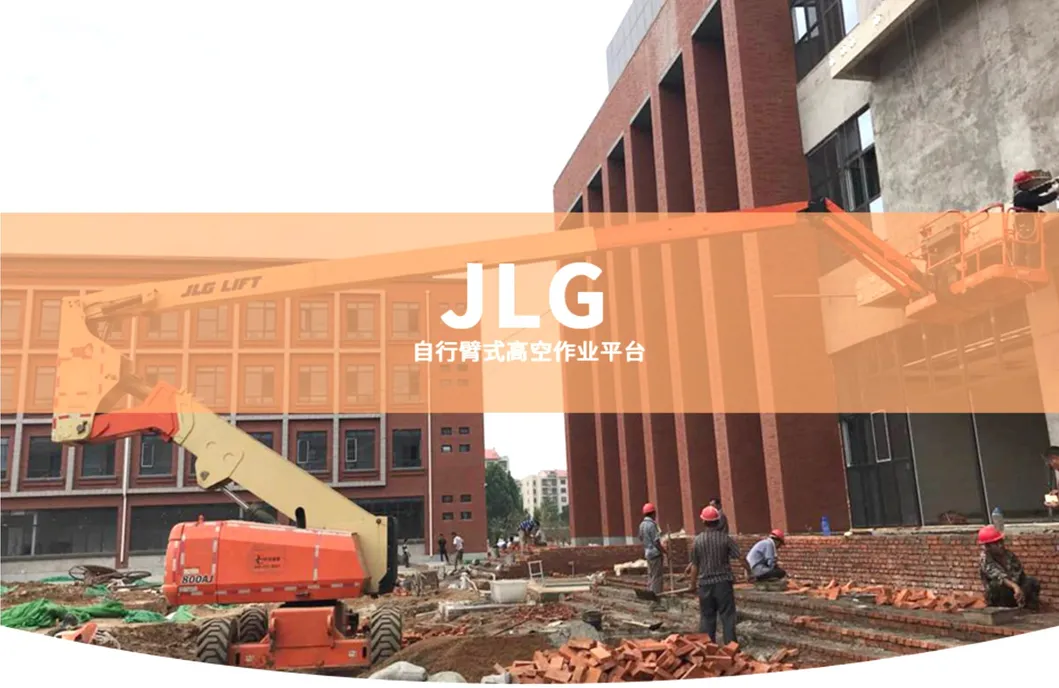

JLG 660SJ Image 1

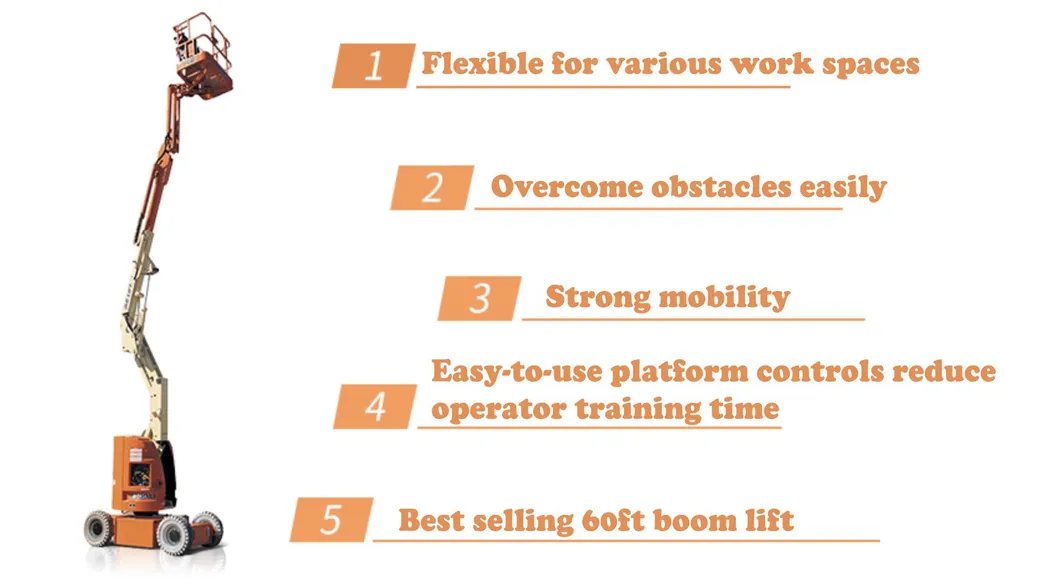

JLG 660SJ Image 2

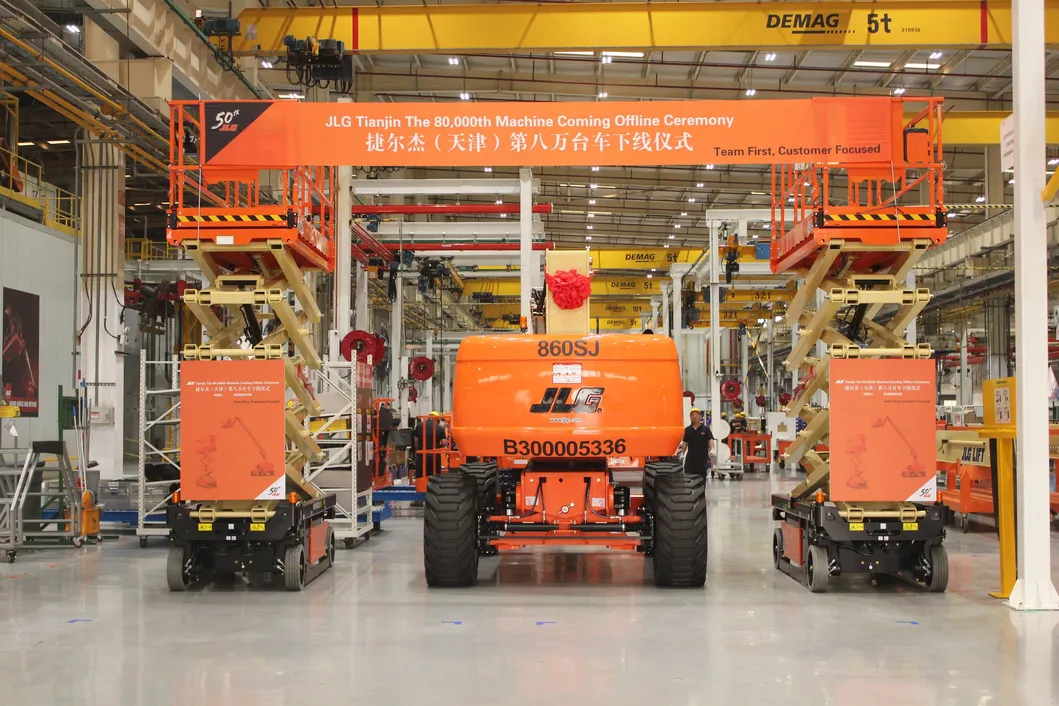

JLG 660SJ Image 3

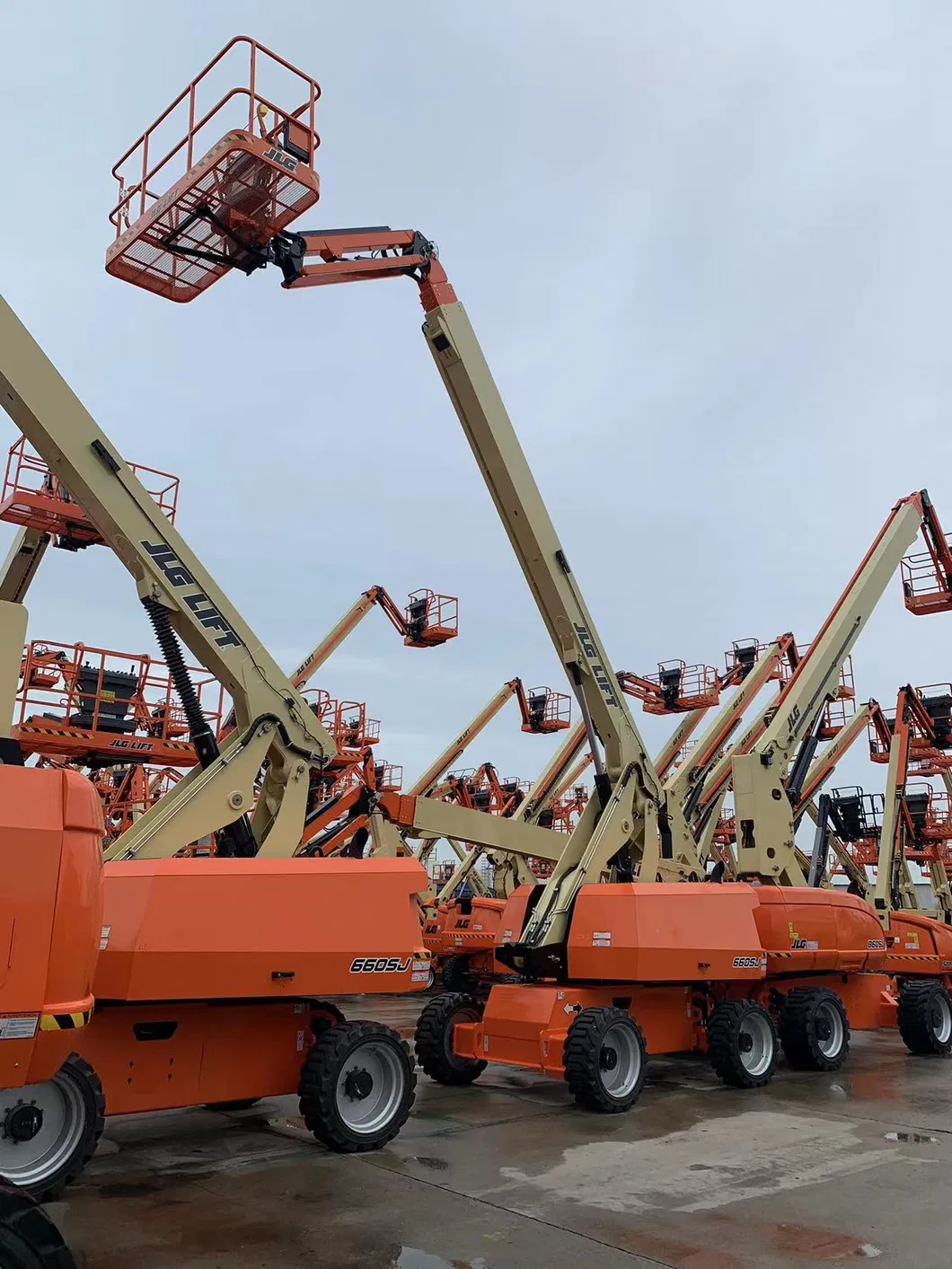

JLG 660SJ Image 4

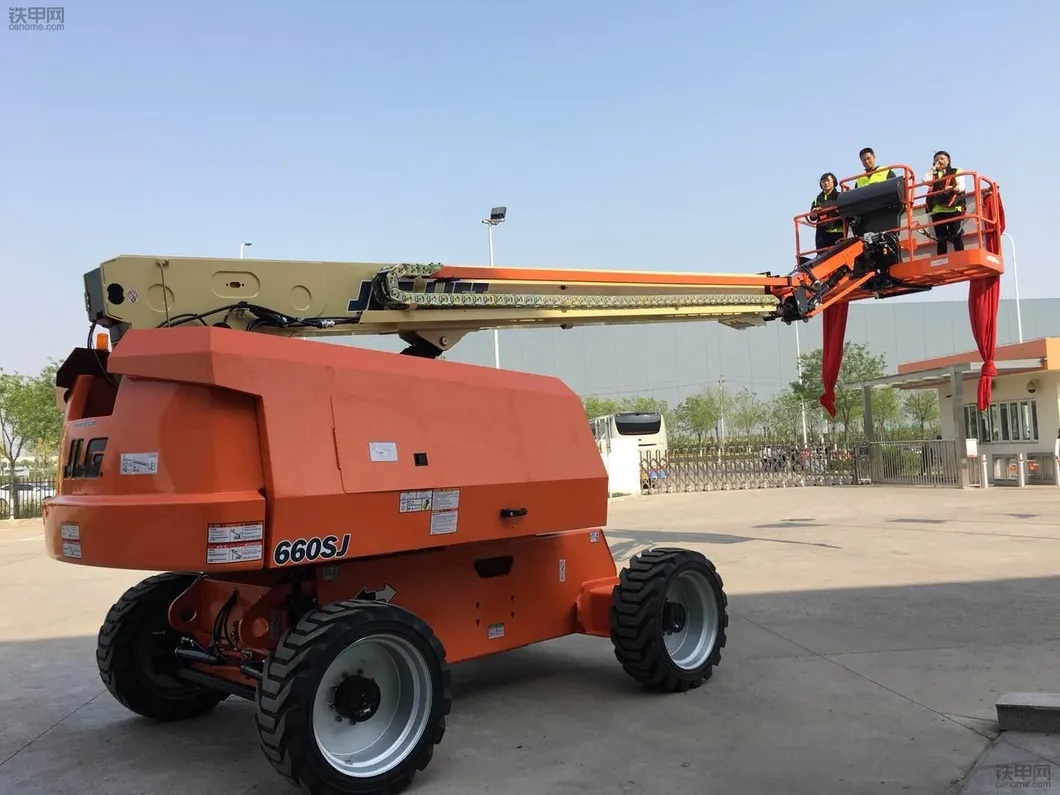

JLG 660SJ Image 5

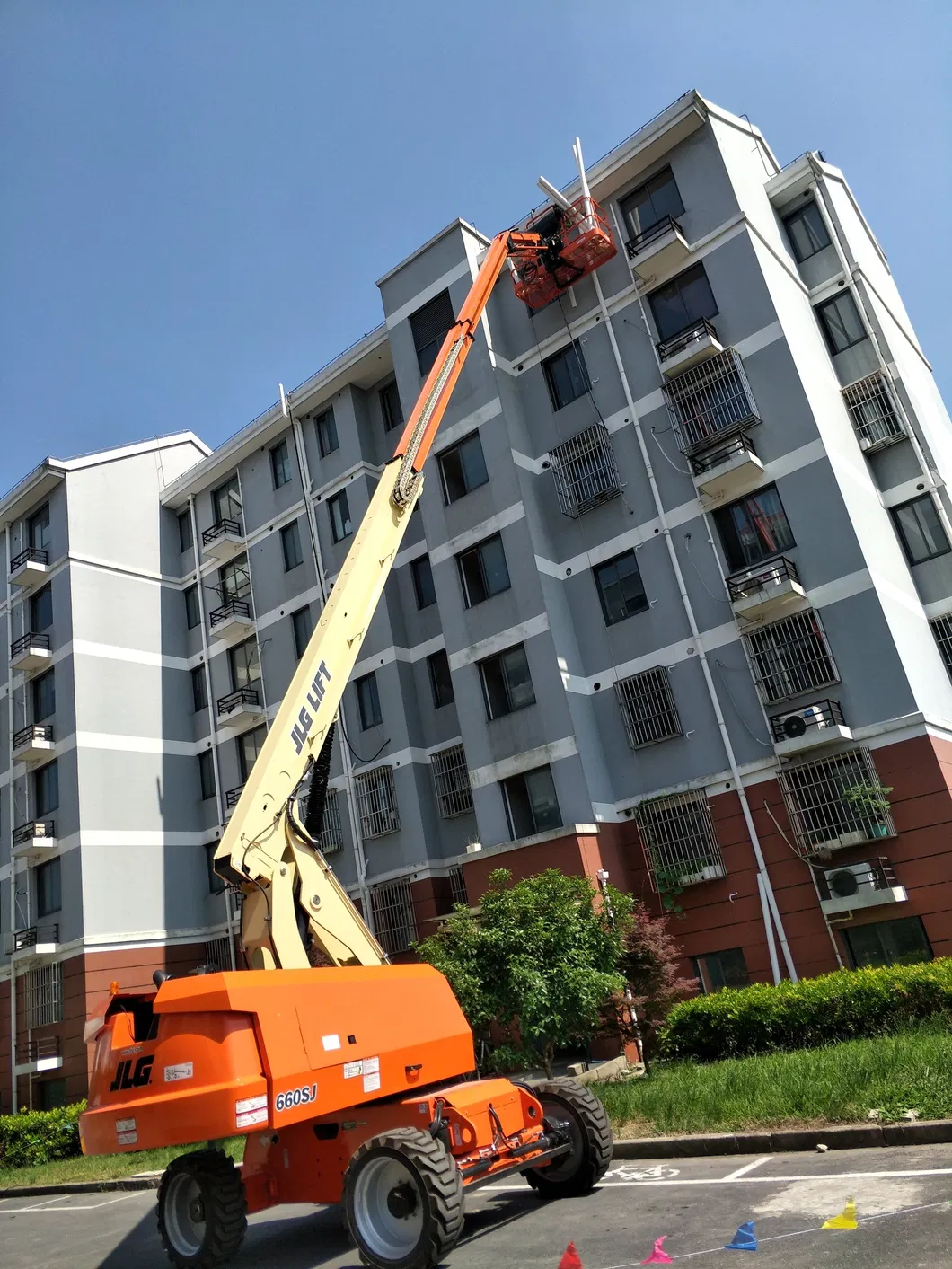

JLG 660SJ Image 6

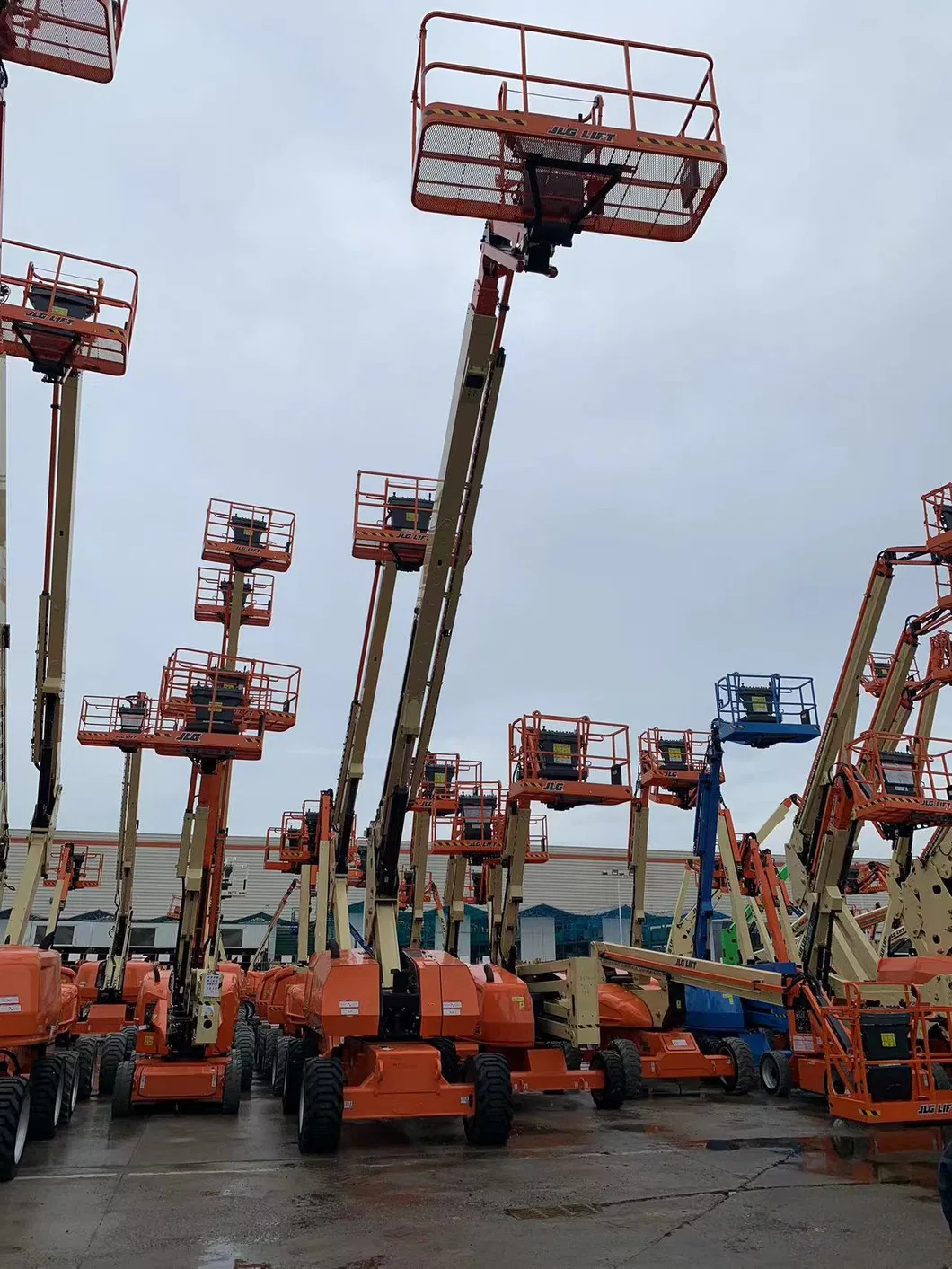

JLG 660SJ Image 7

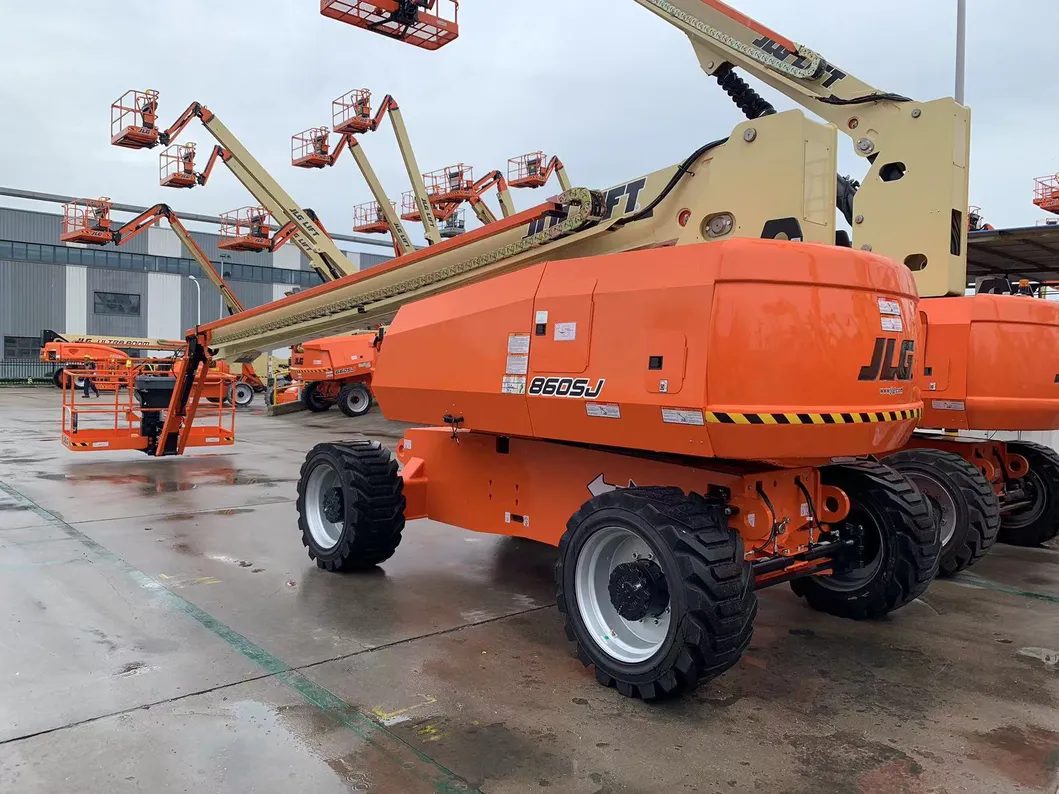

JLG 660SJ Image 8

Technical Parameters

Platform Height20.2m
Horizontal Reach17.37m
Turntable Rotation360° Continuous
Platform Rotation180° Hydraulic
Forearm (Jib)1.83m
Platform Size0.91 x 2.44m
Overall Width2.48m
Flick1.22m
Storage Length10.79m
Storage Height2.49m
Wheelbase2.51m
Ground Clearance0.3m
Total Weight11494 kg

Frequently Asked Questions

What is the maximum working height of the 660SJ?
The JLG 660SJ offers a maximum platform height of 20.2m and a total working height of approximately 22.32m.
What type of engine does this boom lift use?
It is powered by a high-performance Diesel engine, specifically the Deutz D2011L04 model.
What is the platform's lifting capacity?
The 660SJ has a standard loading capacity of 227kg, suitable for operators and their essential equipment.
Does the machine support continuous rotation?
Yes, the turntable features 360-degree continuous rotation for maximum maneuverability on site.
Is the 660SJ certified for international safety standards?
Yes, this model complies with major international certifications including GS, CE, RoHS, and ISO 9001.
What are the transport dimensions of this equipment?
The storage length is 10.79m, storage height is 2.49m, and overall width is 2.48m.
