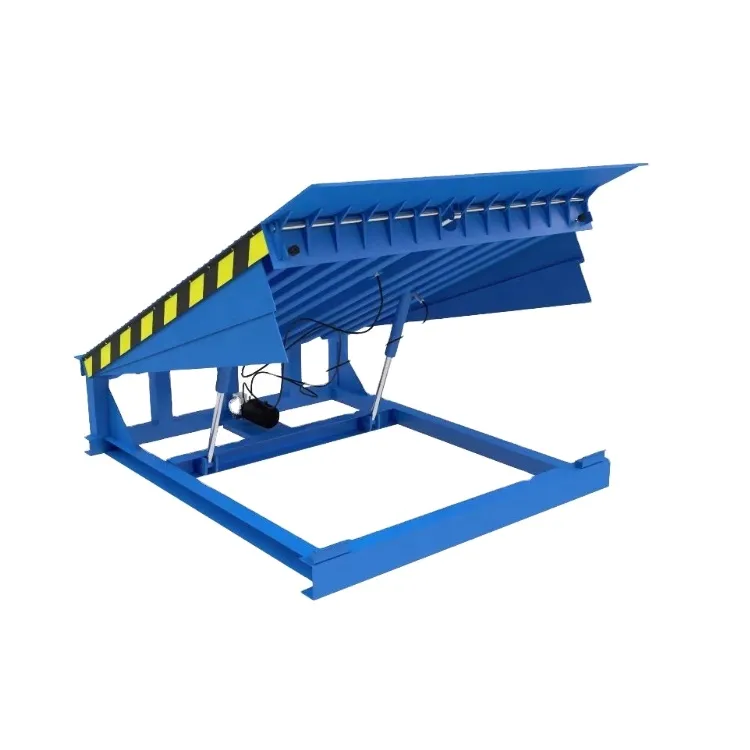

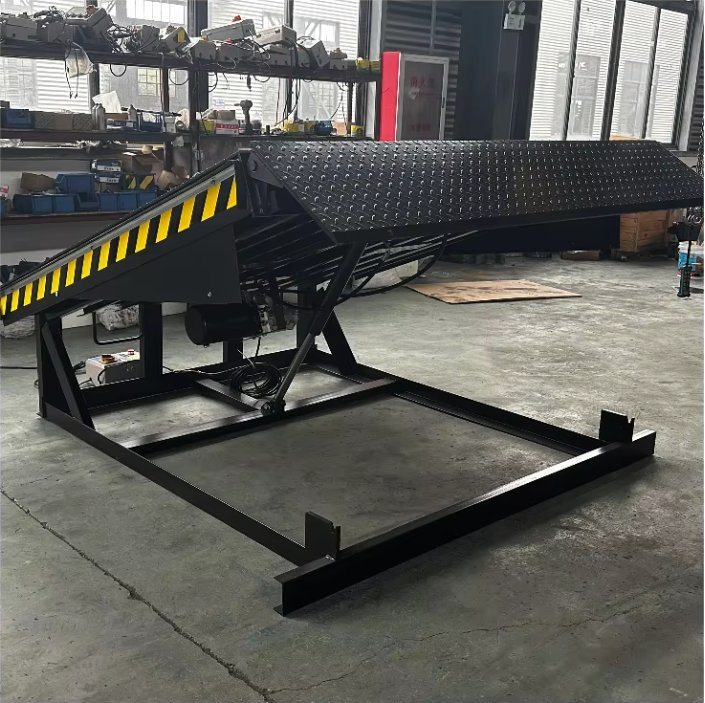

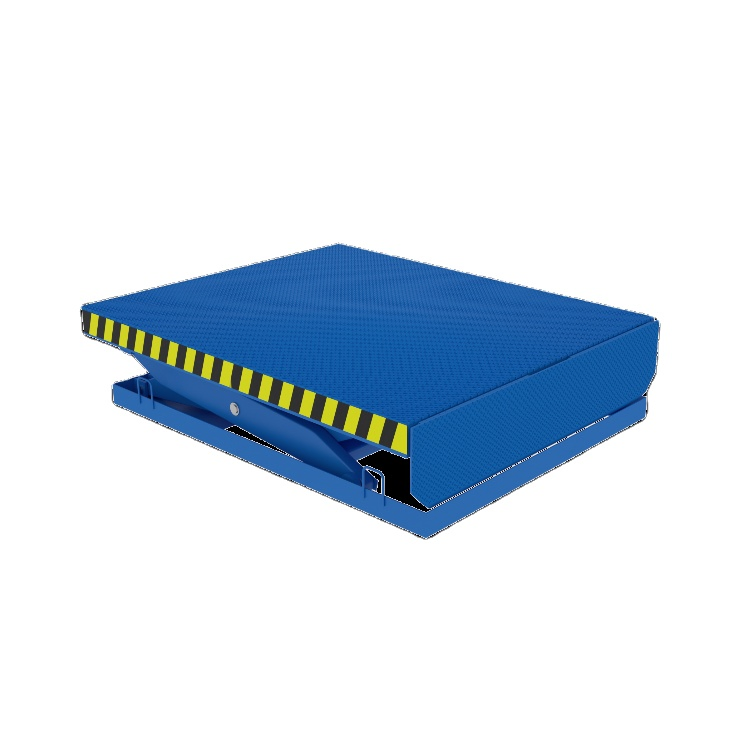

The Hydraulic Platform Specifications
| Specification |
Width of Platform |
Length of Platform |
Width of Pit |
Length of Pit |
Height of Pit |
| 2000 × 2000 | 2000mm | 2000mm | 2030mm | 2000mm | 610mm |
| 2000 × 2300 | 2000mm | 2300mm | 2030mm | 2300mm | 610mm |
| 2000 × 2500 | 2000mm | 2500mm | 2030mm | 2500mm | 610mm |
| 2000 × 3000 | 2000mm | 3000mm | 2030mm | 3000mm | 610mm |
| Dynamic Load |
Panel Thickness |
Material |
Mouth Plate |
Static Load |
Suitable Forklift |
| 6 Ton | 6 mm | 4mm L-steel | 12x400 | 8 Ton | 2.5 Ton |
| 8 Ton | 8 mm | 4mm L-steel | 14x400 | 10 Ton | 3 Ton |
| 10 Ton | 8 mm | 14# I-beam | 16x400 | 12 Ton | 3.5 Ton |

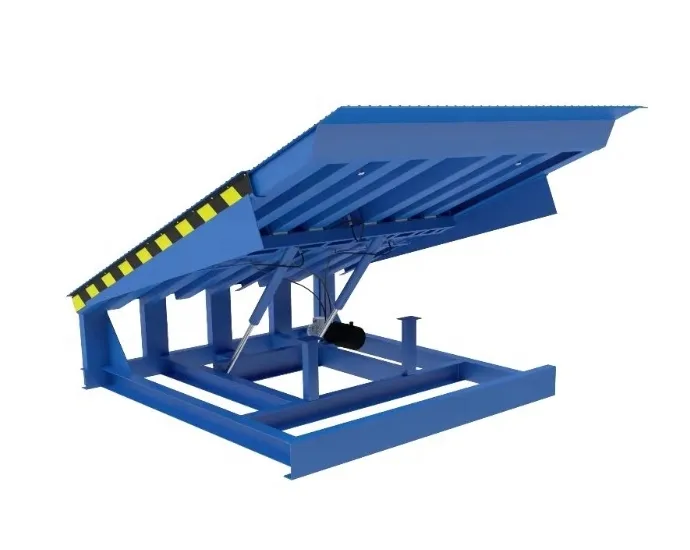

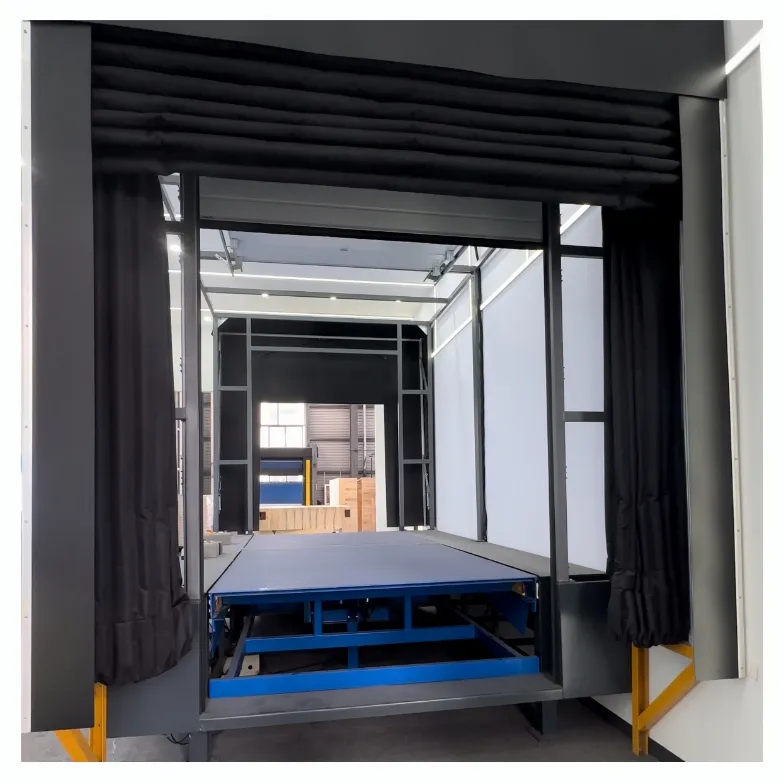

Telescopic Hydraulic Platform
| Width |
Length |
Height |
Pit Width |
Pit Length |
Pit Height |
Telescopic Length |
| 2000mm | 2000mm | 600mm | 2030mm | 2000mm | 610mm | 650mm |
| 2000mm | 2500mm | 600mm | 2030mm | 2500mm | 610mm | 980mm |
| 2000mm | 3000mm | 600mm | 2030mm | 3000mm | 610mm | 980mm |
Frequently Asked Questions
What is the maximum load capacity of these dock levelers?
The standard capacity ranges from 6 to 20 tons, and we offer customization options to meet higher load requirements for specific industrial needs.
Can the equipment size be customized for our existing pits?
Yes, both the equipment dimensions and the foundation pit requirements are fully customizable to ensure a perfect fit for your facility.

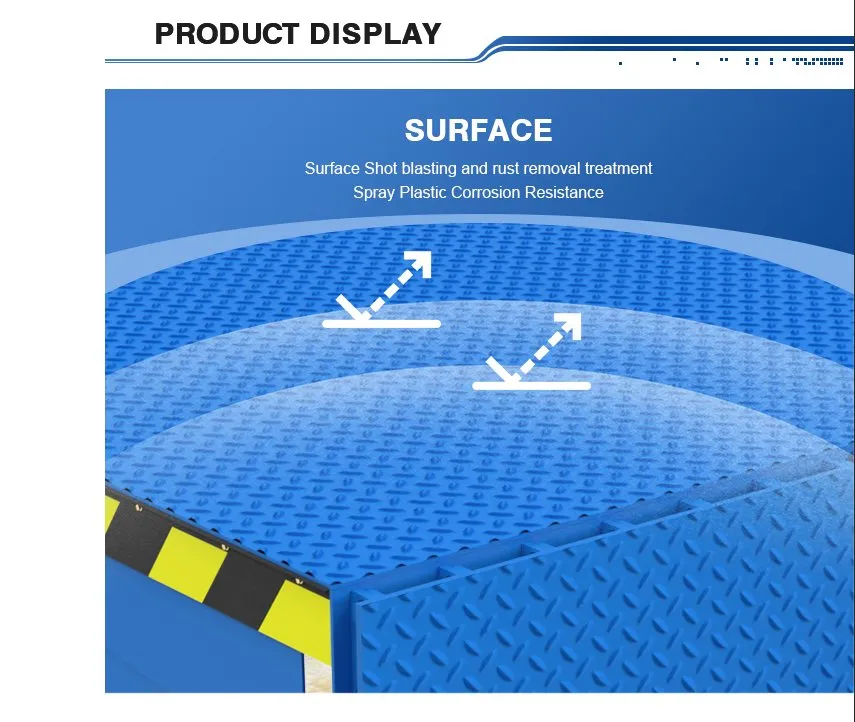

What kind of surface treatment is used for durability?
We use a steel sand spray process after thorough rust removal, followed by high-quality coating to ensure excellent corrosion resistance and longevity.

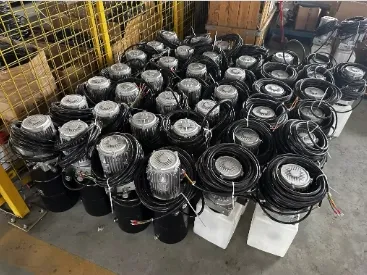

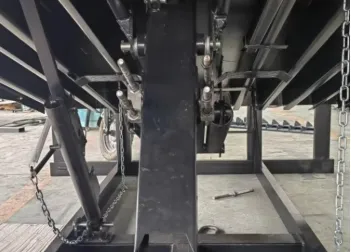

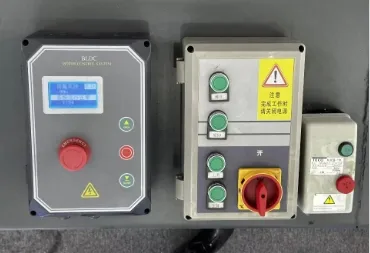

What power source does the lift mechanism use?

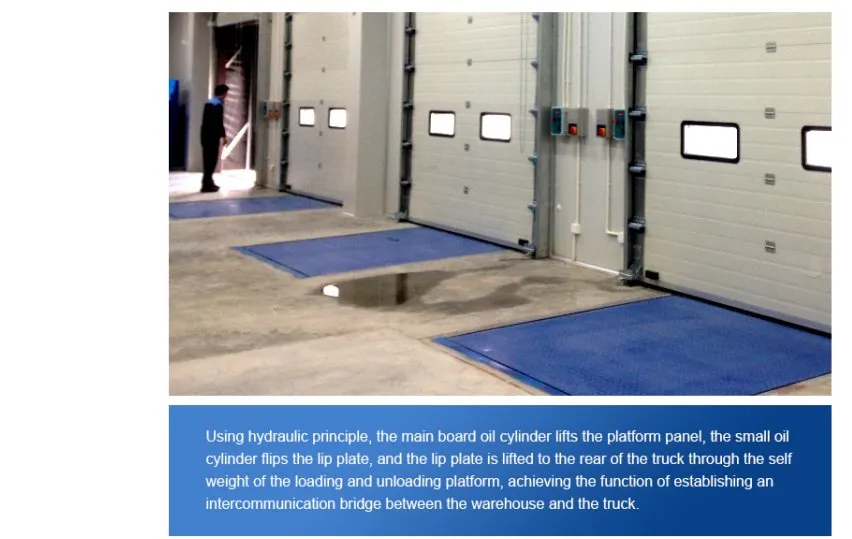

The system is driven by a high-performance hydraulic pump station, providing smooth, reliable, and efficient articulated or telescopic lifting.
Are safety features like anti-collision bumpers included?

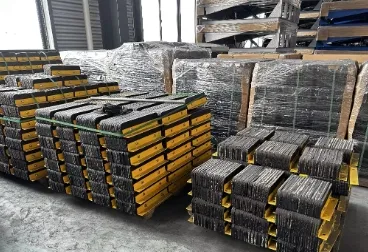

Yes, each unit comes with standard anti-collision rubber bumpers (L300*W200*H100mm) and a slip-resistant pattern plate surface for safe operation.
What certifications do your dock levelers have?
Our products are manufactured under strict quality control and hold ISO 9001 certification, ensuring international standards of safety and performance.
