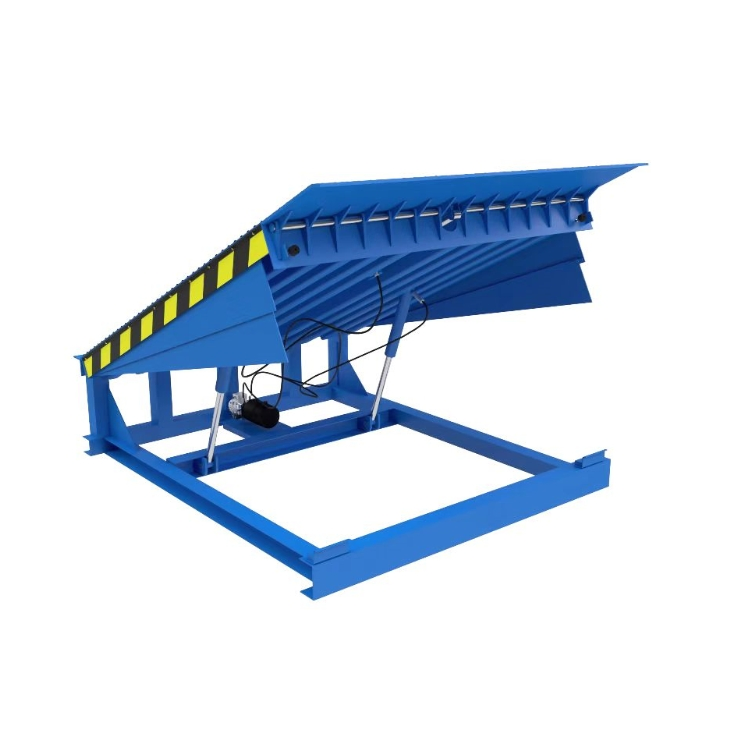

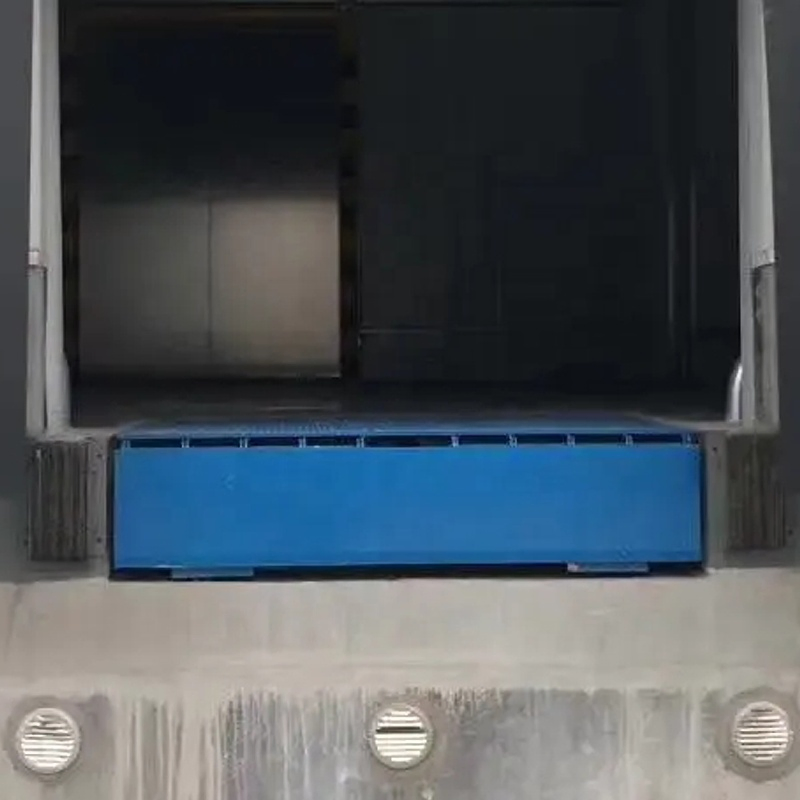

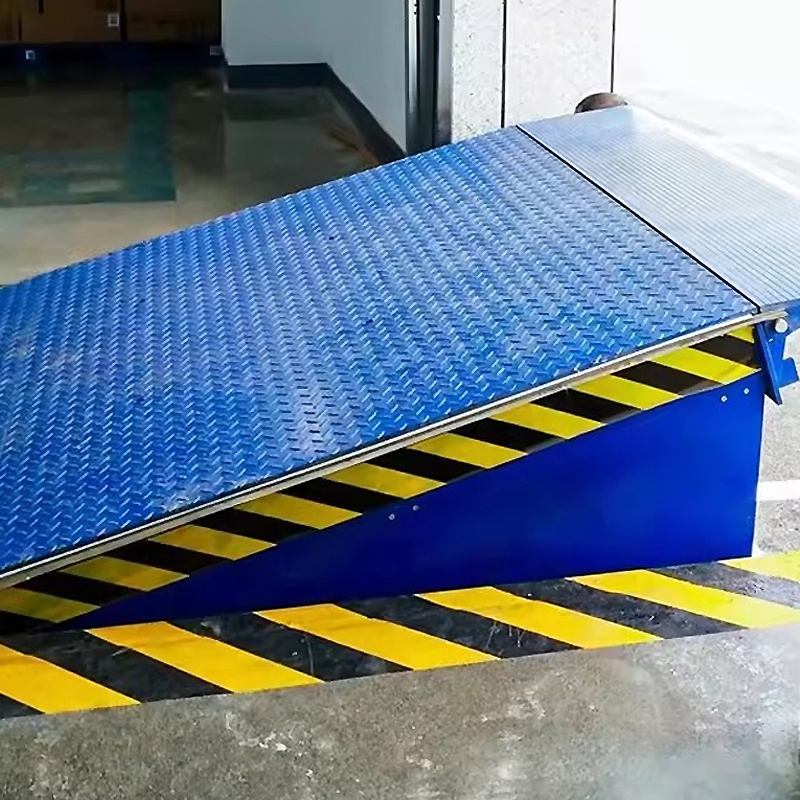

Adjustable Hydraulic Dock Leveler for Truck and Container Loading

1 / 5

Adjustable Hydraulic Dock Leveler for Truck and Container Loading

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Application

Warehouse Crane

Lift Mechanism

Hydraulic

Carrying Capacity

Weight Level

Moves

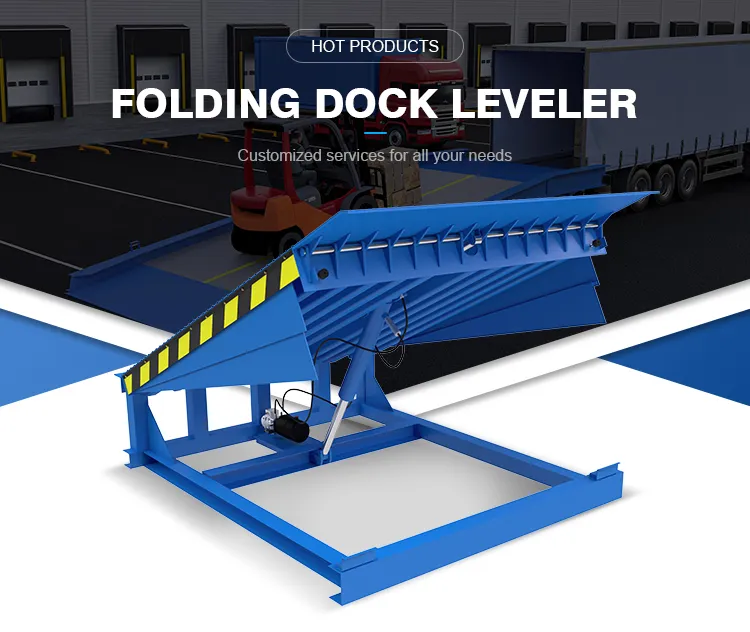

Folding Dock Leveler

Driven Type

Hydraulic

Running Mode

Stationary

Certification

CE, ISO 9001

Size

2000X2000/2000X2500/2000X1600mm

Dynamic Load

6t/8t/10t/15t/20ton

Power Source

Electric Hydraulic

Height Range

-300/+300mm

Adjustment Time

<30 Seconds

Lip Thickness

14/16mm*400/500mm

Platform Plate

6/8mm (Integrated Tread)

✓

Product Description

Hydraulic Dock Leveler Configuration (6-20 Ton)
Equipment Size	L2000/2500W2000H600mm	Customizable
Rated Load	Dynamic: 6 tons, Static: 9 tons	Dynamic: 8-20 tons available
Lip Thickness & Length	12mm*400mm	14/16mm*400mm
Main Platform	6mm tread plate	8mm integrated tread plate
Control Box	Wall-mounted ABS plastic	Del/Screen Control Box
Motor Power	380V, 50Hz, 1.1KW	International Brands (Italy/Germany)

Frequently Asked Questions

What is the standard adjustment range for this dock leveler?

The height adjustment range is typically +300mm upwards and -300mm downwards to accommodate various truck bed heights.

What dynamic load capacities are available?

We provide multiple configurations including 6 ton, 8 ton, 10 ton, 15 ton, and 20 ton options to meet different warehouse requirements.

How long does it take to complete a full adjustment cycle?

The electric hydraulic system is highly efficient, completing the adjustment from any position to the corresponding height in less than 30 seconds.

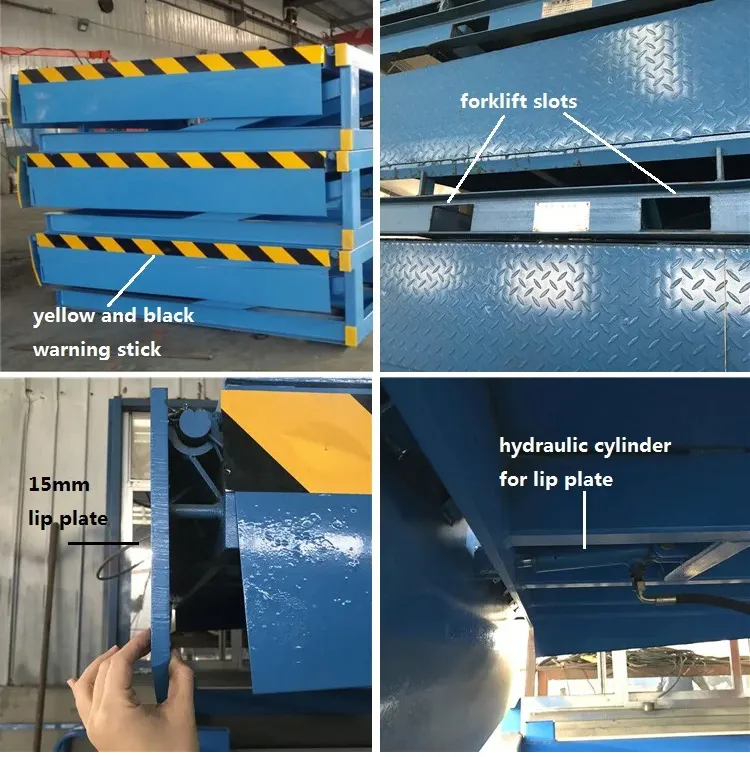

Is the platform surface slip-resistant?

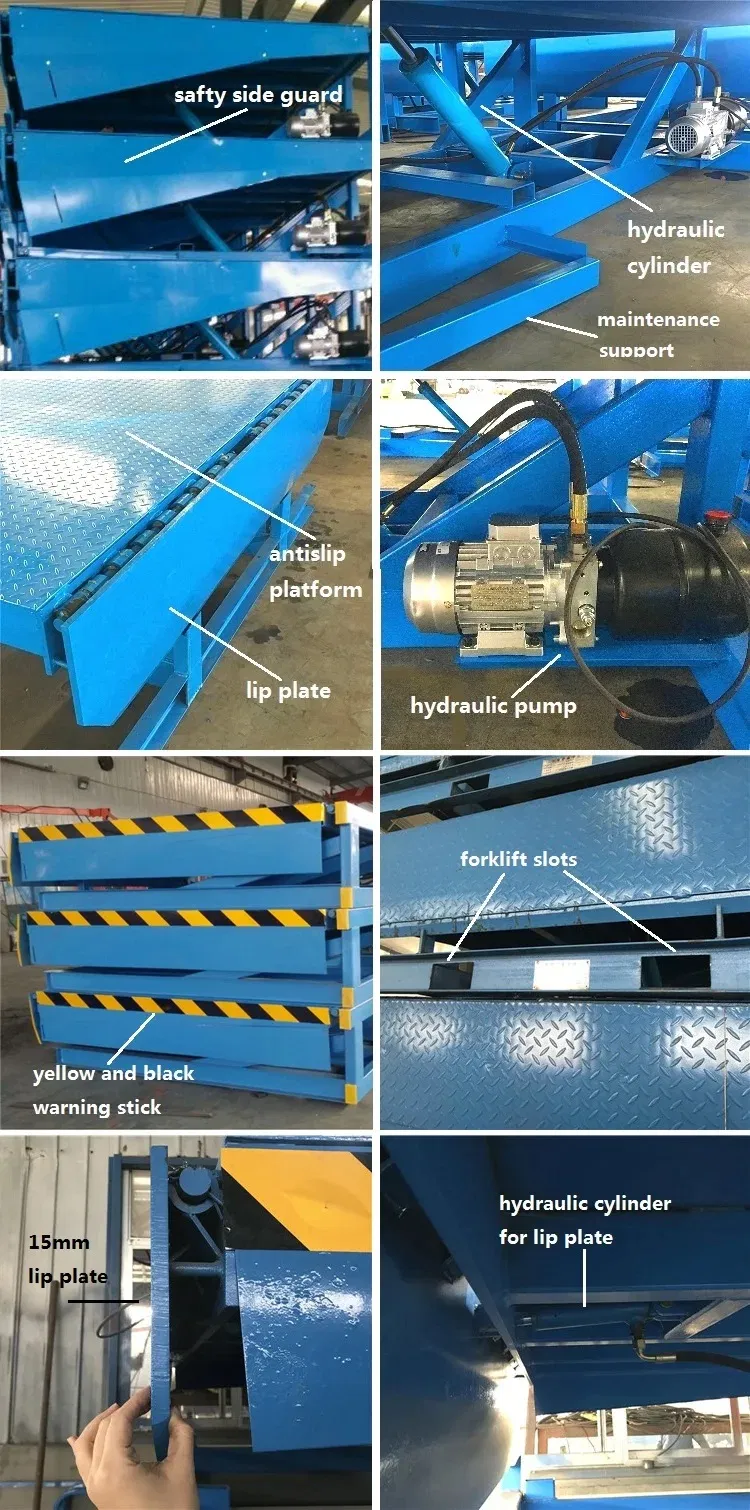

Yes, the main platform and the lip are made of integrated tread plates (6mm to 16mm thickness) providing excellent traction and durability.

What certifications does this equipment hold?

Our hydraulic dock levelers are fully certified with CE and ISO 9001 standards, ensuring international safety and quality compliance.

Can the size and motor power be customized?

Absolutely. While we have standard sizes (e.g., 2000x2000mm), we offer customizable dimensions and can equip the units with premium motors from Italy, Germany, or Switzerland.
