Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
1 / 5
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck
Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck

Hot Sale Electric Fast Delivery Warehouse Loading Dock Leveler Hydraulic for Truck

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

i

Technical Specifications

Model
DL24
Application
Warehouse Crane, Charge and Discharge
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Loading Capacity
10000kg
Certification
CE, RoHS, ISO 9001
Power Supply
380V/0.75kw
Hydraulic Unit
Swiss Bucher Hydraulic System
Working Range
-300 to +350mm
Origin
China
Electric Hydraulic Dock Leveler
★

Electric Hydraulic Dock Leveller

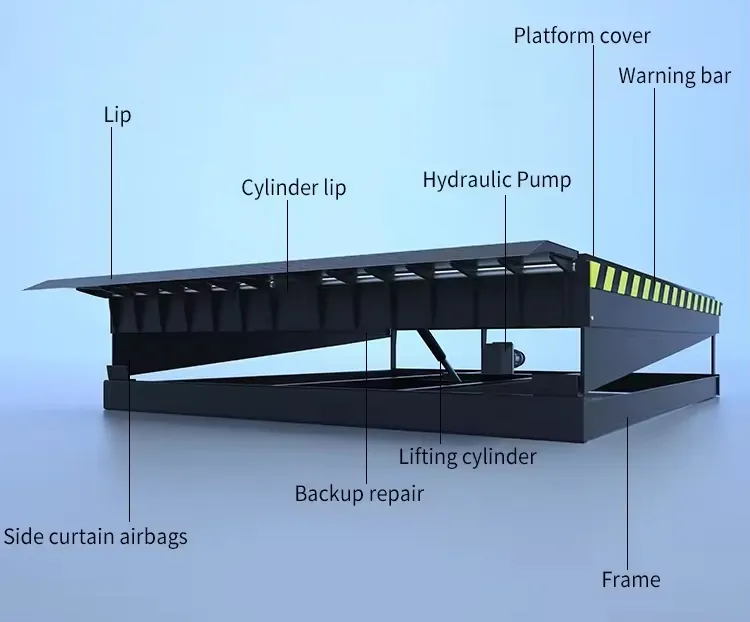

Product Show

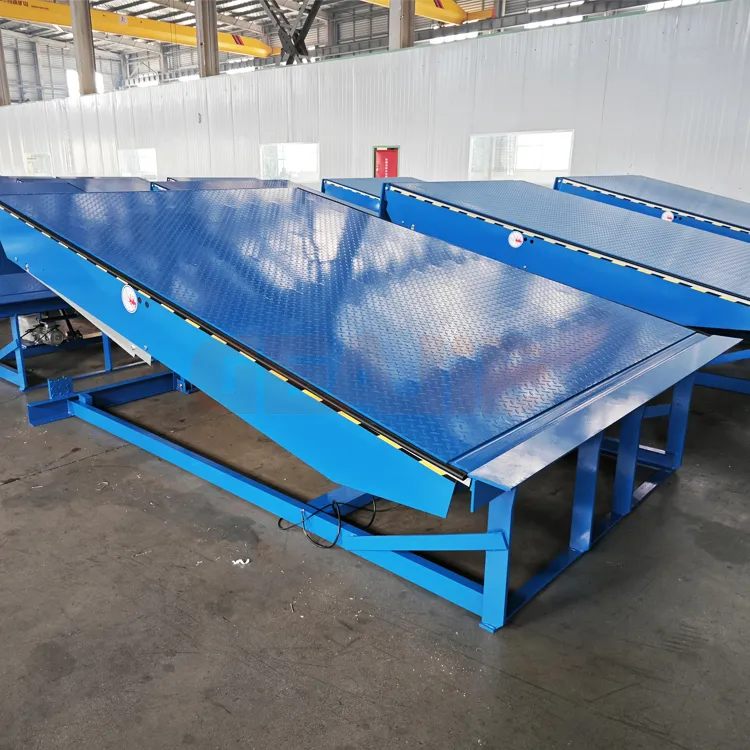

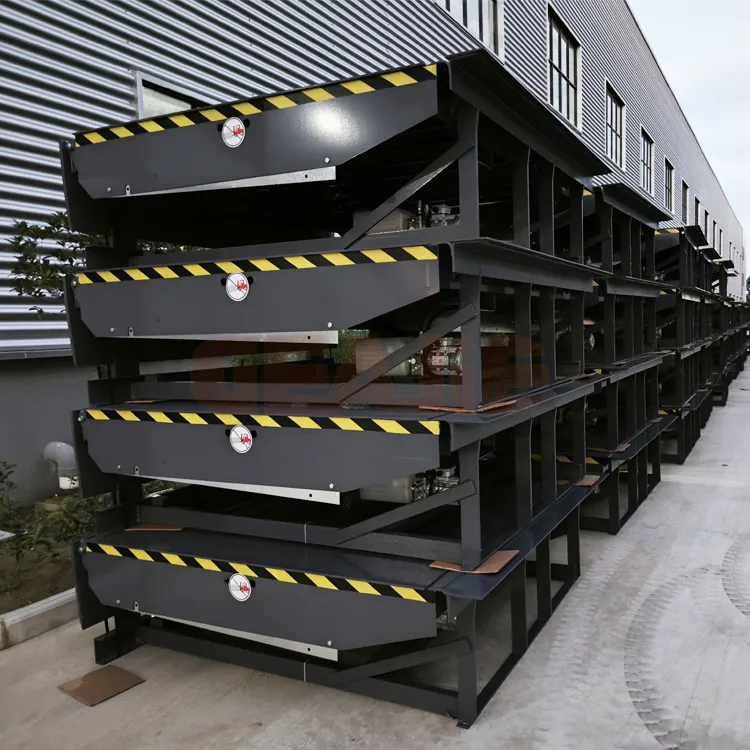

Dock Leveler View 1 Dock Leveler View 2 Dock Leveler View 3
Material & Description
Application EnvironmentLogistics unloading port
Load Capacity6-25 tons
Width Options1830mm, 2000mm, 2130mm
Length Options2000mm, 2500mm, 3000mm, 3500mm
Lip PlateStandard 400mm, 500mm optional
Countertop Structure8mm high-strength anti-skid pattern steel plate with reinforced bottom.
Lip Thickness14mm, 16mm, or 20mm based on load capacity.
Security ConfigurationAnti-fall function, anti-pinch protection, maintenance support rod, night self-locking.
⚙

Structural Components

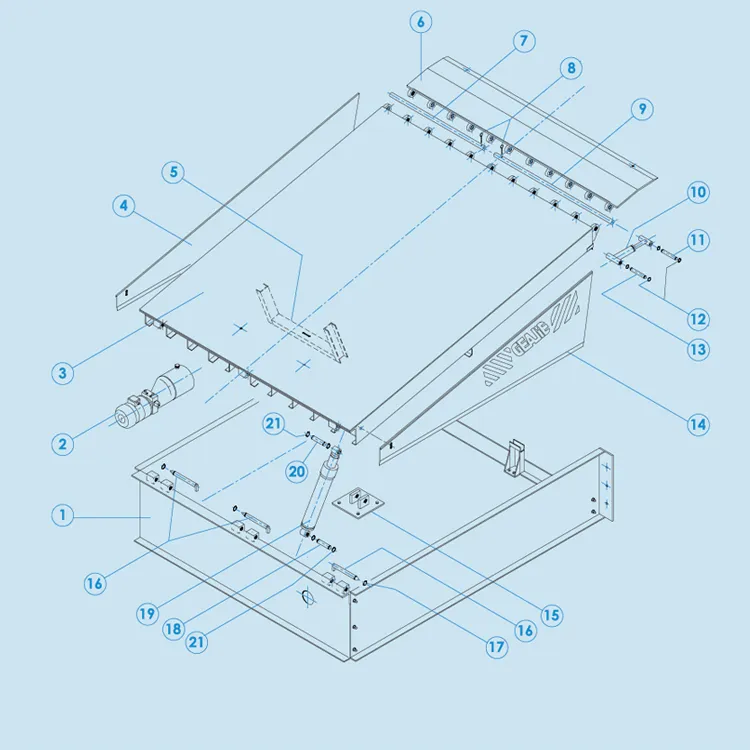

Structural Drawing
  • 1. Mould
  • 2. Hydraulic control unit
  • 3. Upper plate
  • 4. Left/Right foot guard
  • 6. Swinging lip
  • 10. Cylinder of the lip
  • 19. Upper plate cylinder
  • Options & Accessories:
  • • Dual hydraulic lifting system
  • • Galvanized treatment
  • • Brush/Vinyl Seal
  • • Interlocking door systems
✔

Core Advantages

Durable Material: High-strength treated steel ensures long-term load-bearing capacity and corrosion resistance.
Versatile Operation: Available in hydraulic, pneumatic, and mechanical types with remote or manual controls.
Safety First: Features anti-slip surfaces, safety barriers, and sensors to protect personnel.
Adjustability: Flexible height adjustment to match various truck and dock dimensions for smooth loading.

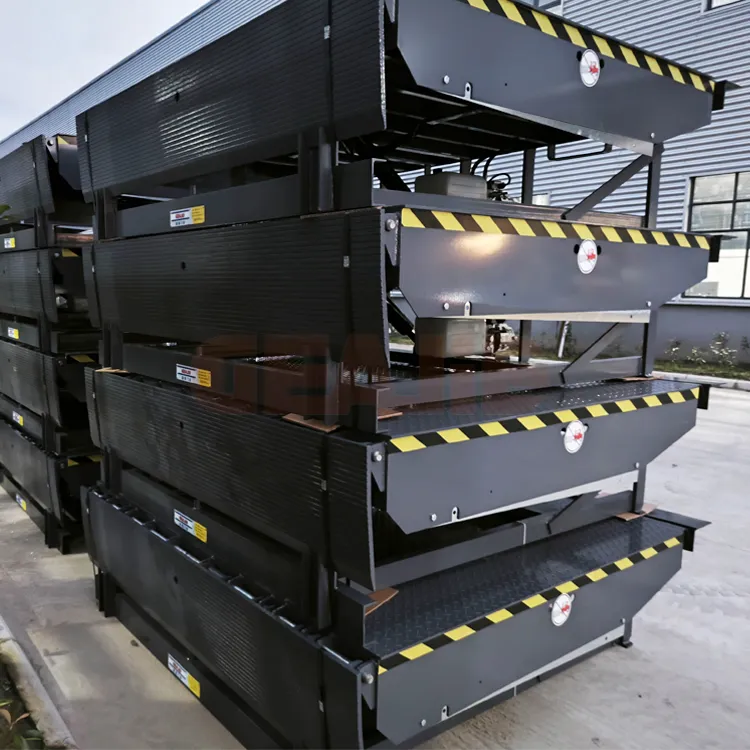

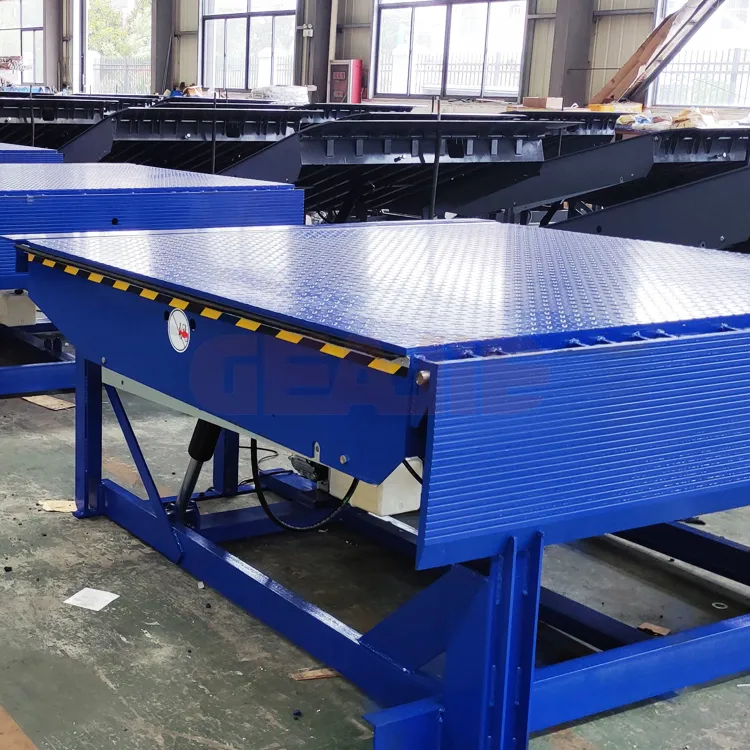

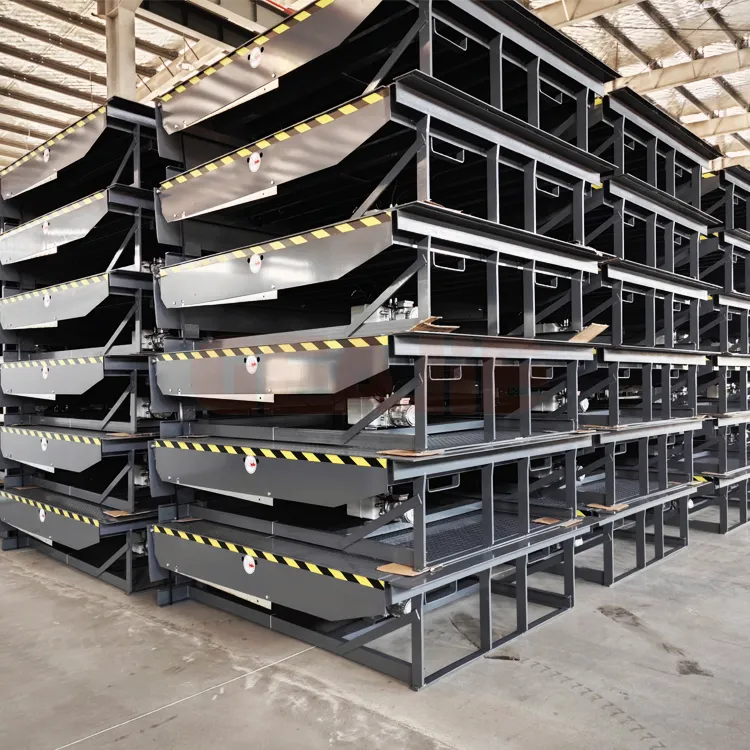

Advantage 1 Advantage 2 Advantage 3
?

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What are the maximum available sizes for the dock leveler?
The maximum length can be 6.5M and the maximum width is 6M, which is adjustable based on requirements.
Is the installation process difficult?
No, the product is designed for a very easy installation process.
Where is a dock leveler typically used?
They are ideal for factory outlets, logistics parks, and any outgoing cargo ports.
What is the main benefit of using a dock leveler?
It significantly improves cargo handling efficiency and ensures safe, easy loading and unloading of goods.
Are custom colors or specifications available?
Yes, we support non-standard loads, sizes, and customized colors such as black, gray, blue, or green.
