Towable Cherry Picker – High Capacity & CE Approved for Tree Trimming

Customization:	Available
After-sales Service:	Warranty Service, Repair and Maintenance, Spare PA
Warranty:	18 Months

Send Inquiry

Product Description

📋

Overview

Model NO.

SWGKT-12, SWGKT-14, SWGKT-16, SWGKT-18, SWGKT-20

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Tow Behind Boom Lift

Moves

Self-propelled

Driven Type

Hydraulic

Certification

GS, CE, ISO 9001

Max. Height

14-22m

Load Capacity

200kg

Platform Style

Folding Arm Type

Working Radius

6.5-11m

🏗️

Product Description

Independently developed towable boom lift is designed for complex high-altitude operations and difficult-to-access work sites, with an operating height of 10-17.85m and a load capacity of 200kg. The machine adopts CAN bus intelligent control, has excellent micro-motion performance and stability, and optimizes the body design, is lightweight and energy-saving, and has both lithium batteries and gasoline range extenders, making it suitable for multiple indoor and outdoor scenarios.

📊

Product Parameters

Model	SWGKT-12	SWGKT-14	SWGKT-16	SWGKT-18	SWGKT-20
Max Working Height	14M	16M	18M	20M	22M
Max Platform Height	12M	14M	16M	18M	20M
Load Capacity	200kg	200kg	200kg	200kg	200kg
Working Radius	6.5M	8.5M	10.5M	11M	11M
Rotation Range	359° non-continuous / 360° continuous
Overall Size	7.31.72.1m	6.61.72.1m	5.71.72.2m	7.61.82.25m	5.81.92.25m
Total Weight	2100kg	2300kg	2500kg	3300kg	3800kg
Power	Gasoline/Diesel/AC Power Supply

🔩

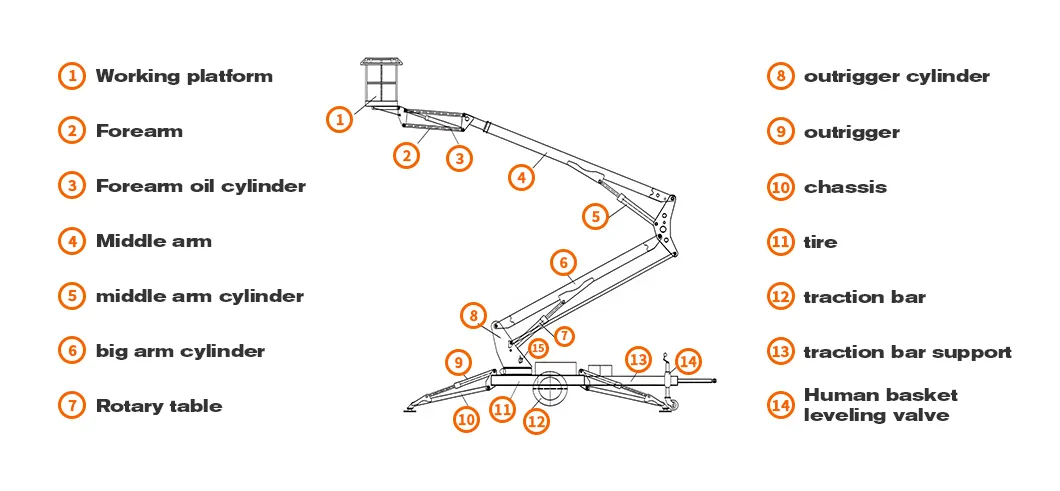

Main Structure

⭐

Core Features

High Security: 20 safety protection strategies and dual redundant control ensure safe operation.

Excellent Stability: Automatic and manual integrated leveling legs adapt to inclined surface operations.

Precision Control: CAN bus intelligent control, precise micro-movement, smooth operation.

Convenient Transport: Specialized slots and hooks design to improve transportation efficiency.

Energy Efficiency: Lightweight body with lithium battery and gasoline range extender options.

Strong Economy: Low TCO cost and high return rate with reduced maintenance requirements.

🌍

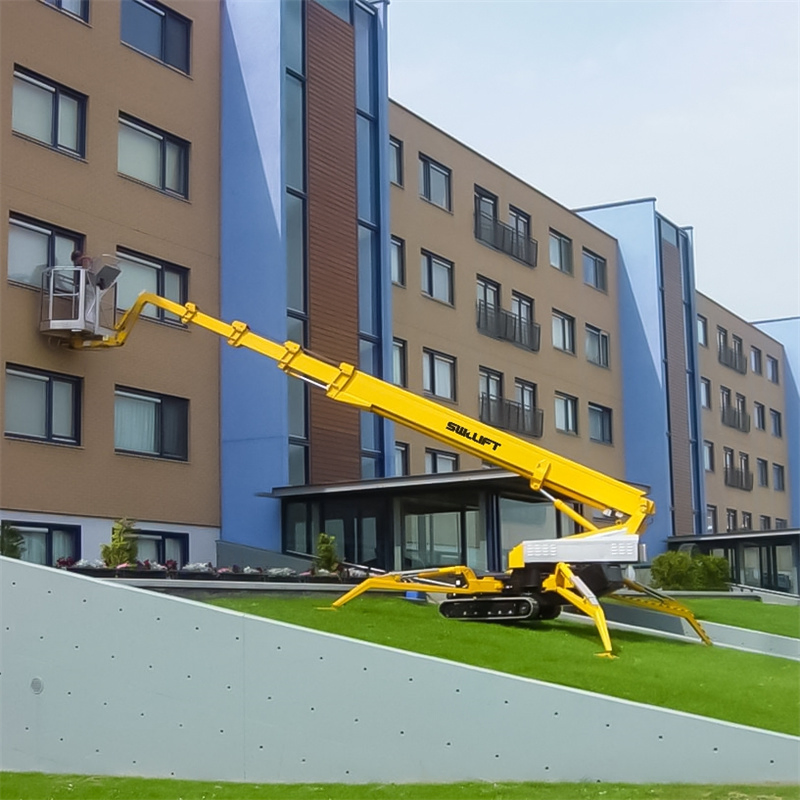

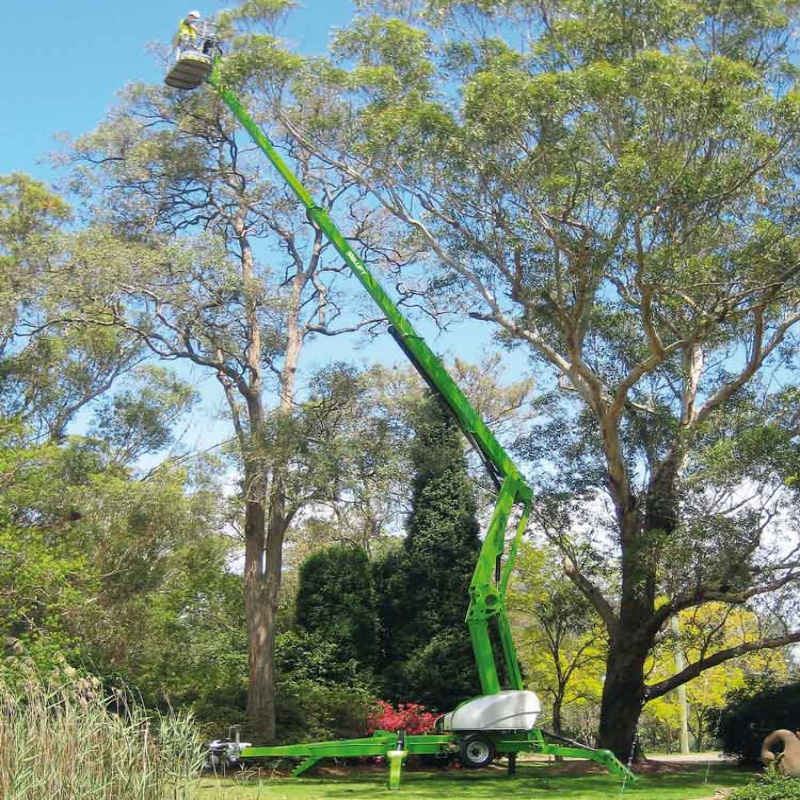

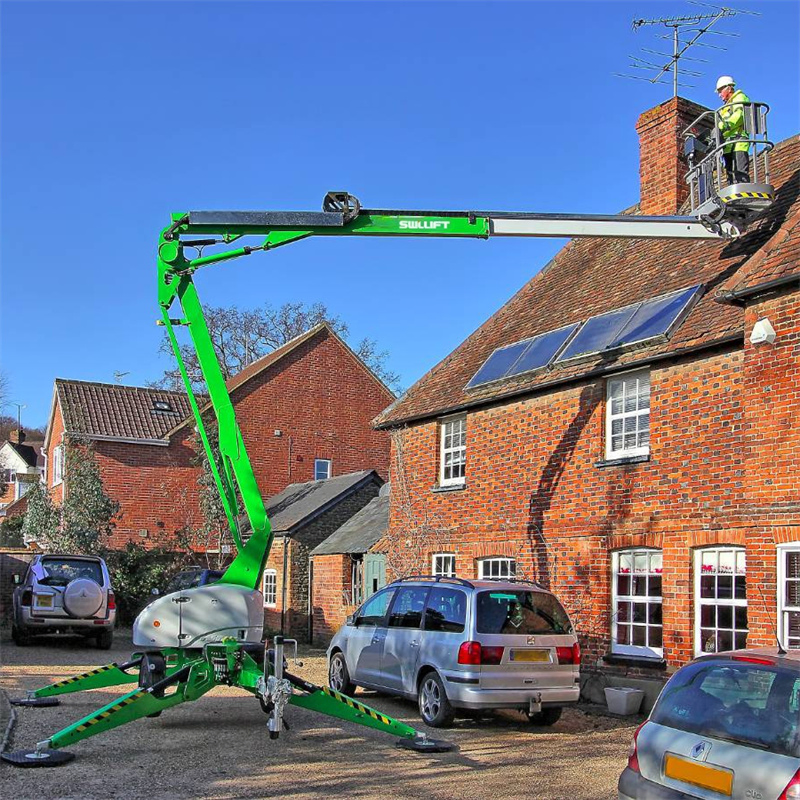

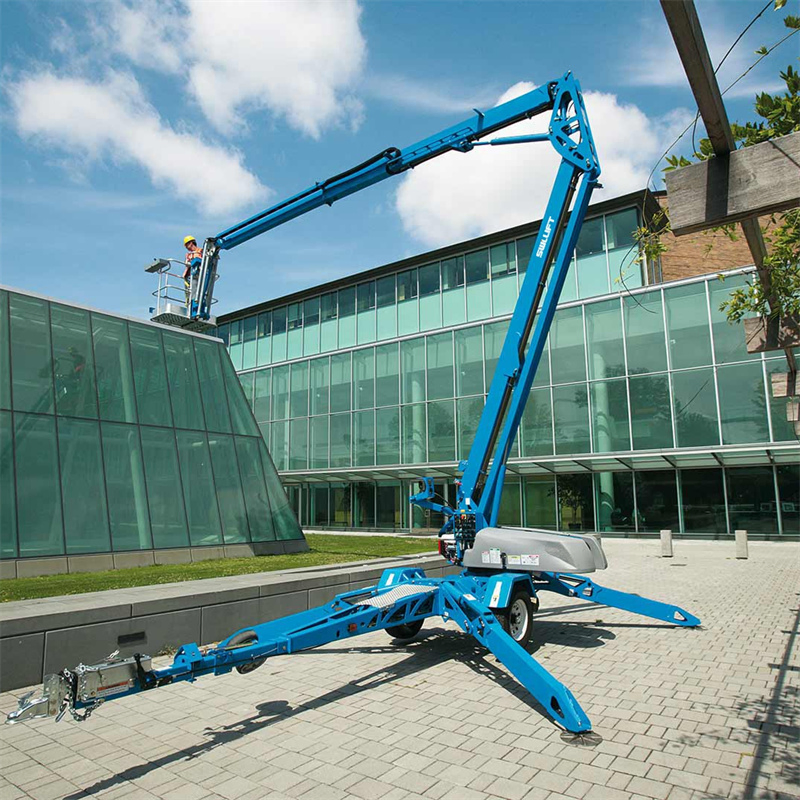

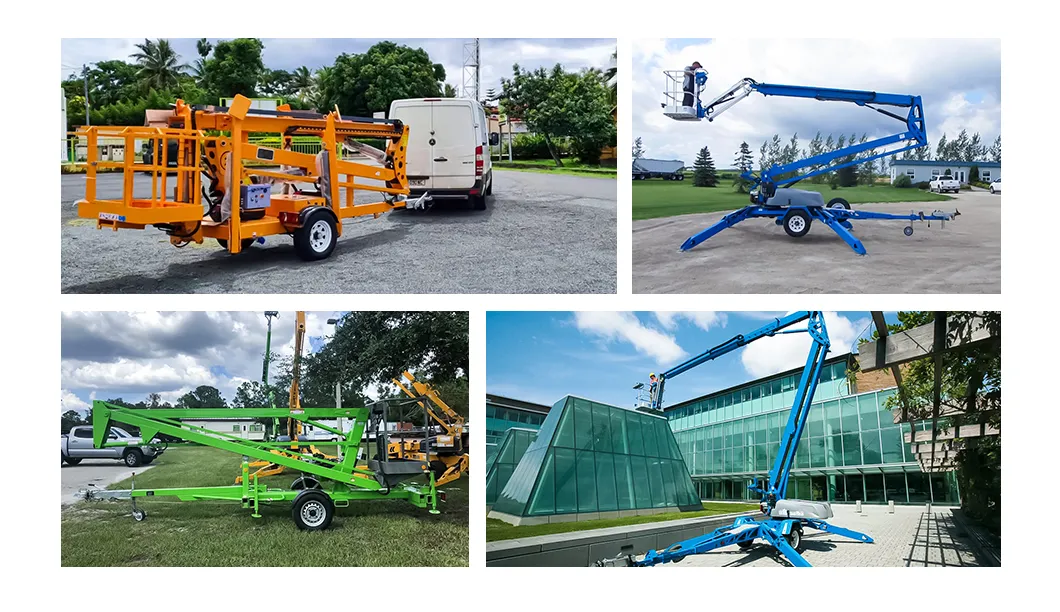

Application Scenarios

Widely used in municipal engineering, building maintenance, landscaping, power maintenance, warehousing, and logistics. It is particularly effective in locations with delicate flooring or inclined terrain.

🏆

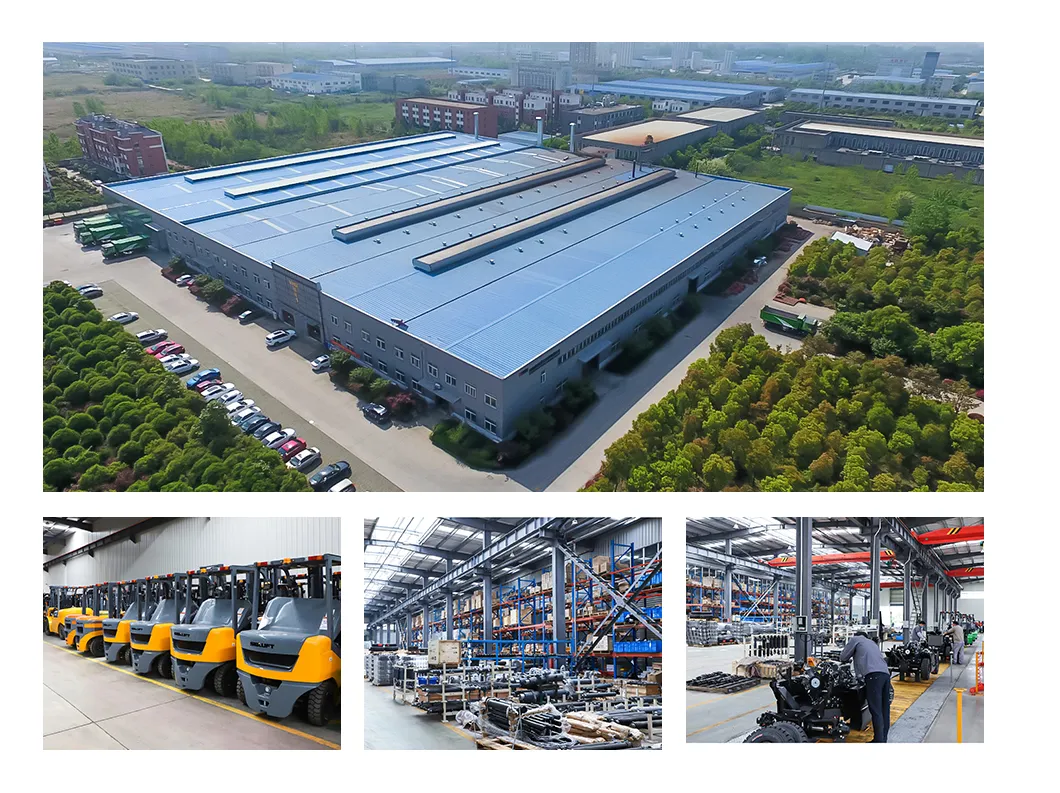

Professional Manufacturing & Support

Specializing in designing, manufacturing, and selling high-altitude work platforms including straight-arm, articulated, scissor, and spider types.

Key Advantages:

Factory Direct Pricing - Eliminating intermediate links.
Fast Global Delivery - Efficient logistics system.
Quality Assurance - CE and ISO certified production.
Lifetime Support - 1-year warranty and ongoing technical guidance.
24/7 Service - Instant technical answers and remote diagnosis.

❓

Frequently Asked Questions

Do you provide OEM services?

Yes, we provide professional OEM services to meet your specific customized requirements for lifting equipment.

How long is the standard delivery time?

Many products are kept in stock for immediate shipment. Custom or out-of-stock items are typically dispatched within 14-25 working days after payment.

What kind of quality certifications do you have?

Our products are strictly controlled during production and have passed ISO 9001 and CE quality certifications. Each unit undergoes 100% pre-shipment testing.

What is the warranty period for these machines?

We offer a standard 1-year warranty. We also provide lifelong technical support and 24-hour remote guidance for maintenance.

Which payment methods do you support?

We support a wide range of methods including T/T, L/C, D/P, Western Union, PayPal, and credit card payments.

Can you provide technical guidance for installation?

Yes, we provide complete user manuals, video call maintenance guidance, and if necessary, engineers can be sent to project sites for onsite guidance.
