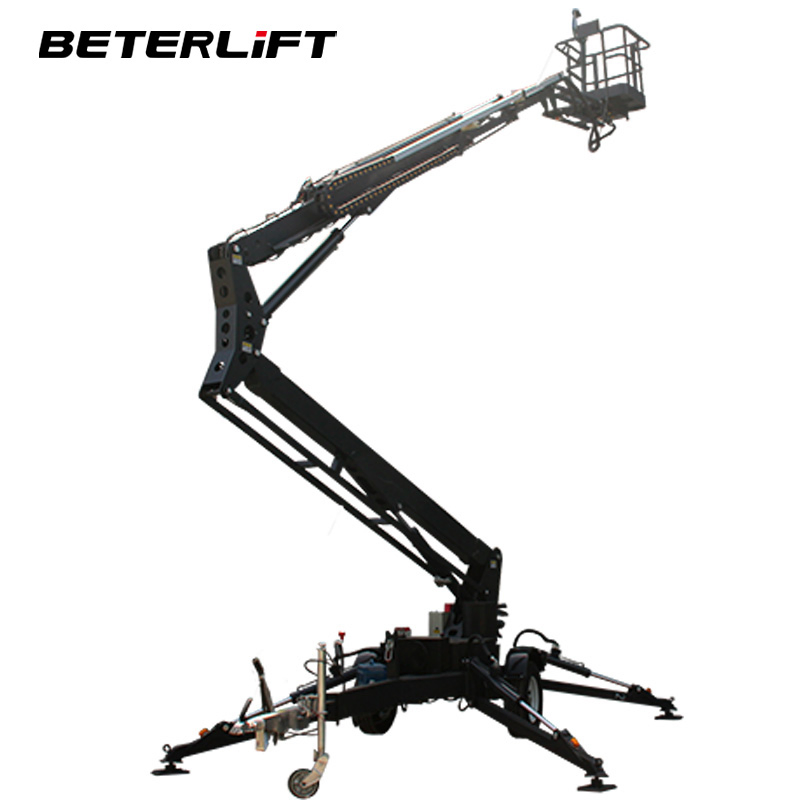

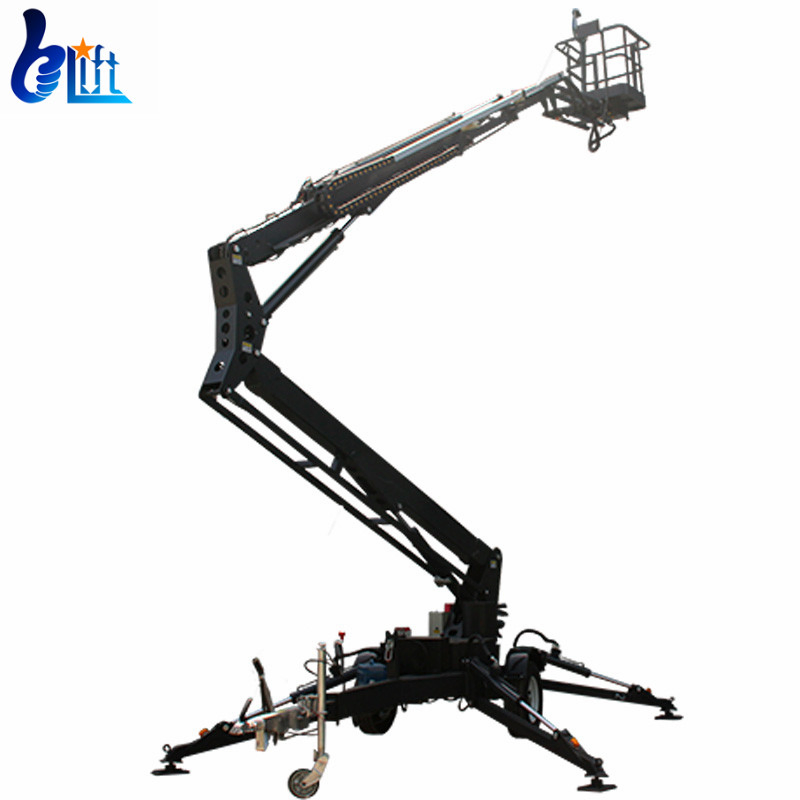

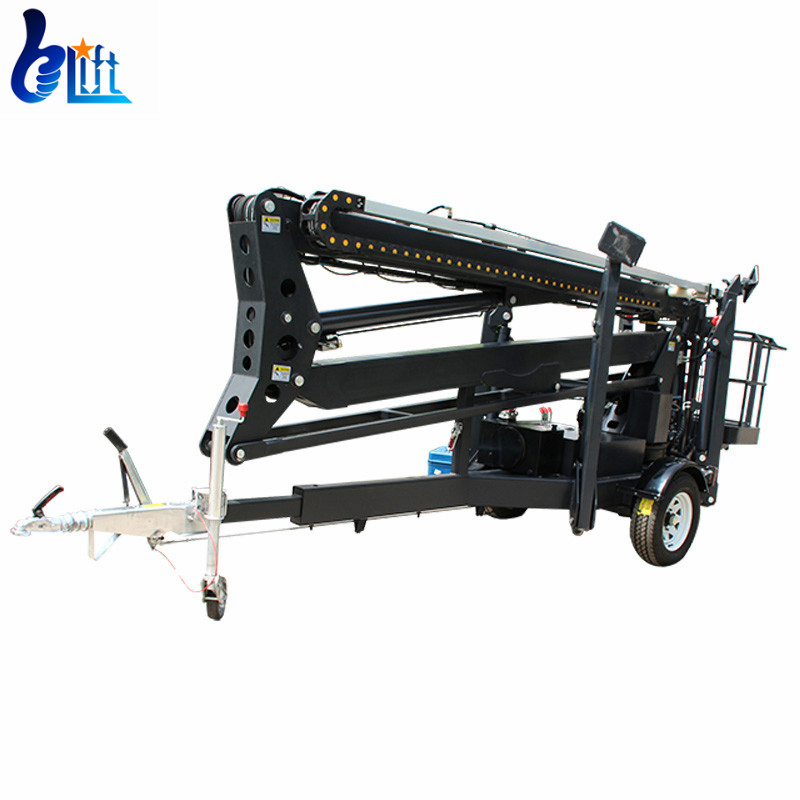

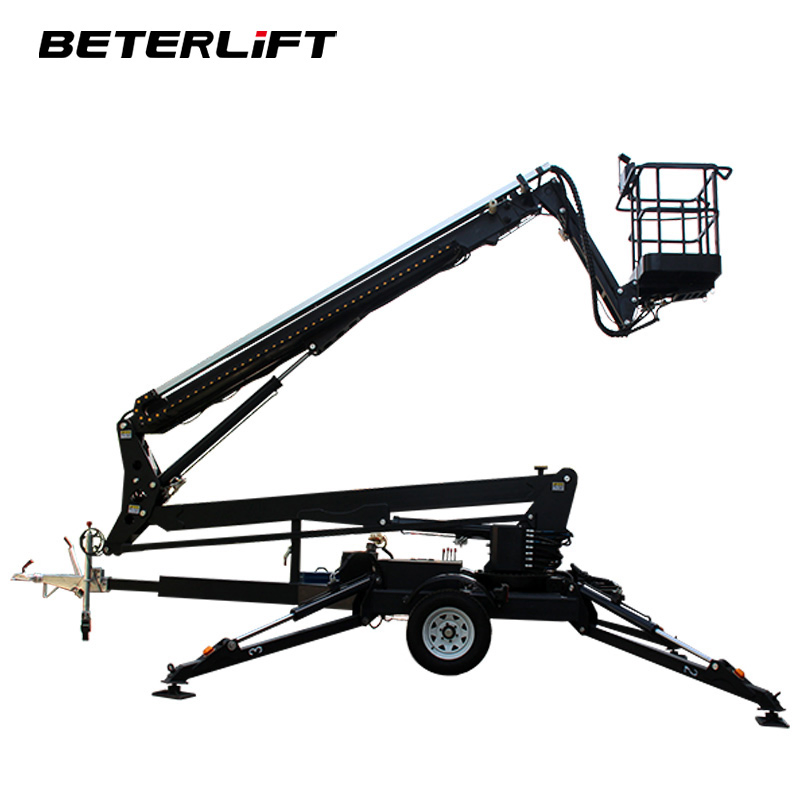

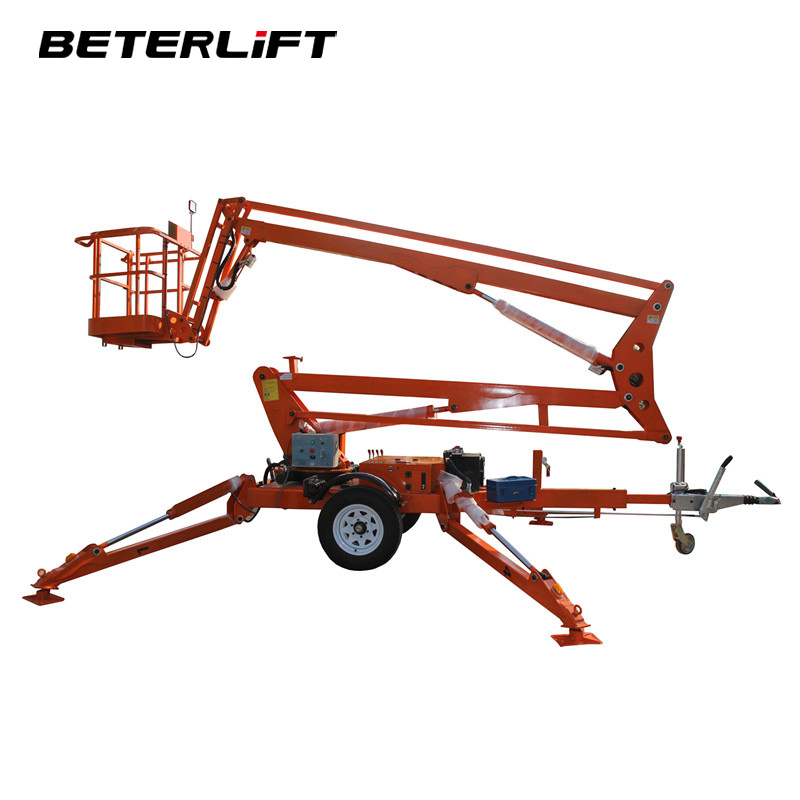

12m 14m 18m Self Propelled Articulating Towable Telescopic Cherry Picker

Still deciding? Get samples of $ !
Order Sample

Product Description

🚀 Overview & Basic Specifications
Model NO.
SBL10
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Certification
GS, CE, RoHS, ISO 9001
Max. Platform Height
10m-20m
Lifting Capacity
200kg
Power Type
AC / Diesel / DC / Gasoline
📝 Product Description

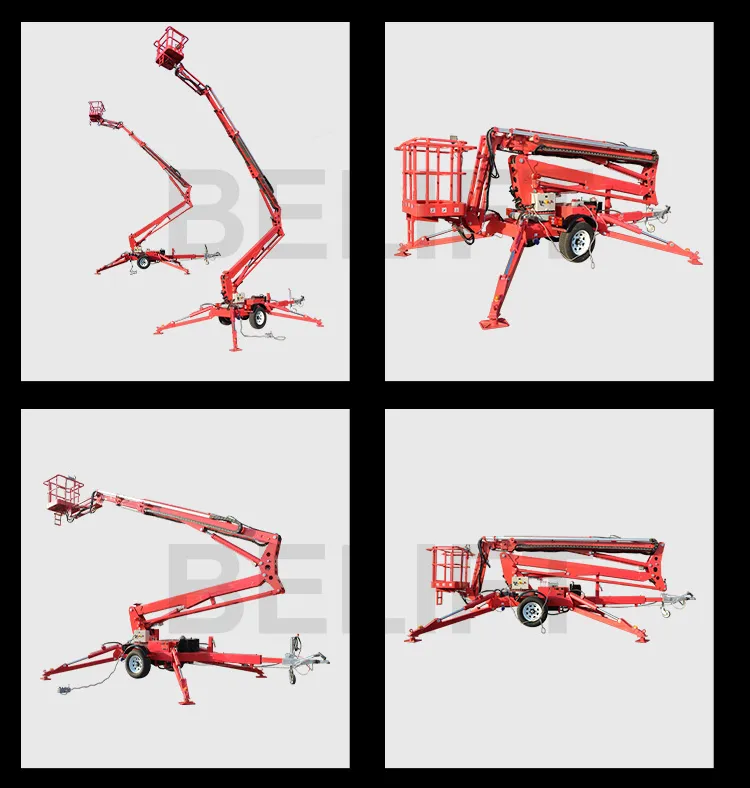

10m-24m Electric Man Aerial Platforms Hydraulic Articulated Spider Towable Boom Lift

This type of aerial work man lift platform is widely used by construction companies, shipyards, and installation services. It is characterized by its compact size, stable lifting, 360-degree rotation, and multi-power options.

Trailer Mounted Boom lifts are designed to be easily towed behind standard vehicles, eliminating the need for additional transportation equipment. Their lightweight design enables efficient maneuverability and quick set-up, increasing productivity on-site.

🌟 Features & Advantages
Multiple Power Options
Available in AC, DC, Diesel, or Gasoline power sources to suit your site needs.
🔄
359° Rotation
Equipped with a rotatable motor for precise positioning and wide working range.
🛡️
Durable Protection
Waterproof and dustproof control panels and electric boxes for outdoor reliability.
🏗️
High-Strength Steel
Robust structures ensure smooth lifting and dropping with high load stability.
📊 Technical Parameters
Model Type SBL10 SBL12 SBL14 SBL16 SBL18 SBL20 SBL22
Lifting height 10M 12M 14M 16M 18M 20M 22M
Working height 12M 14M 16M 18M 20M 22M 24M
Load capacity 200KG
Working radius 5.5M 6.5M 8.5M 10.5M 12.5M 14.5M 15.5M
Net Weight 1855KG 2050KG 2500KG 2800KG 3100KG 3290KG 3500KG

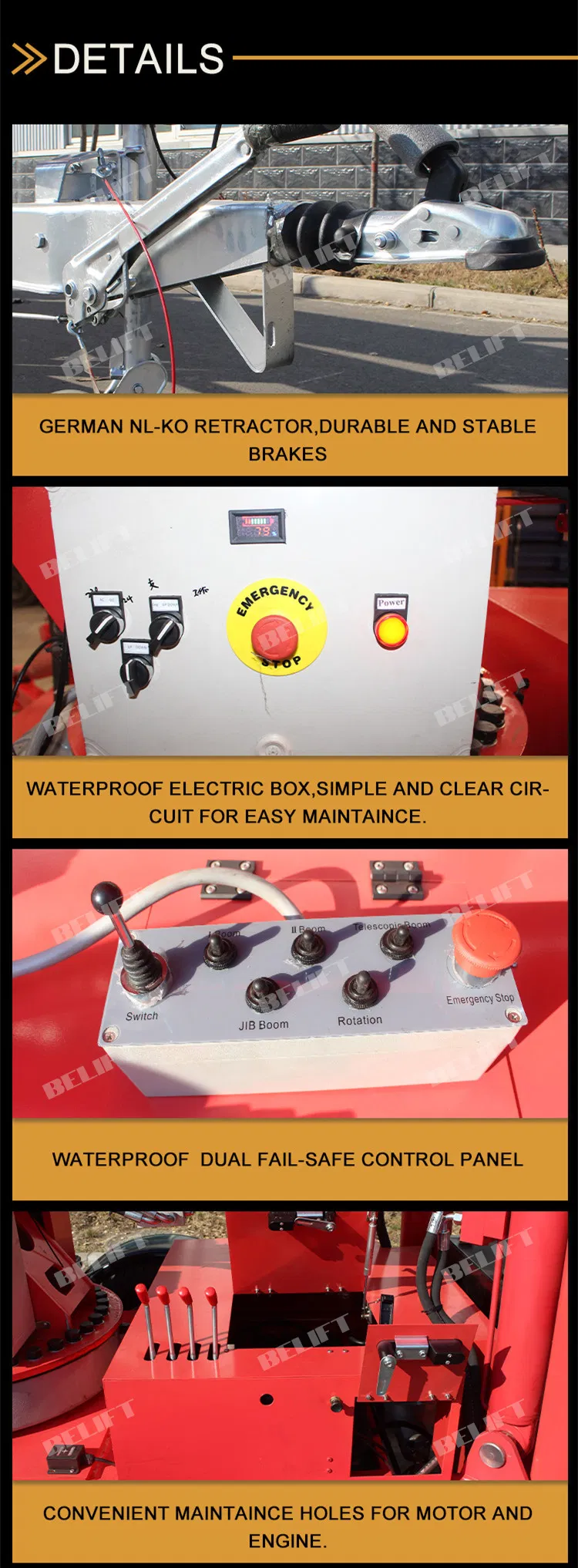

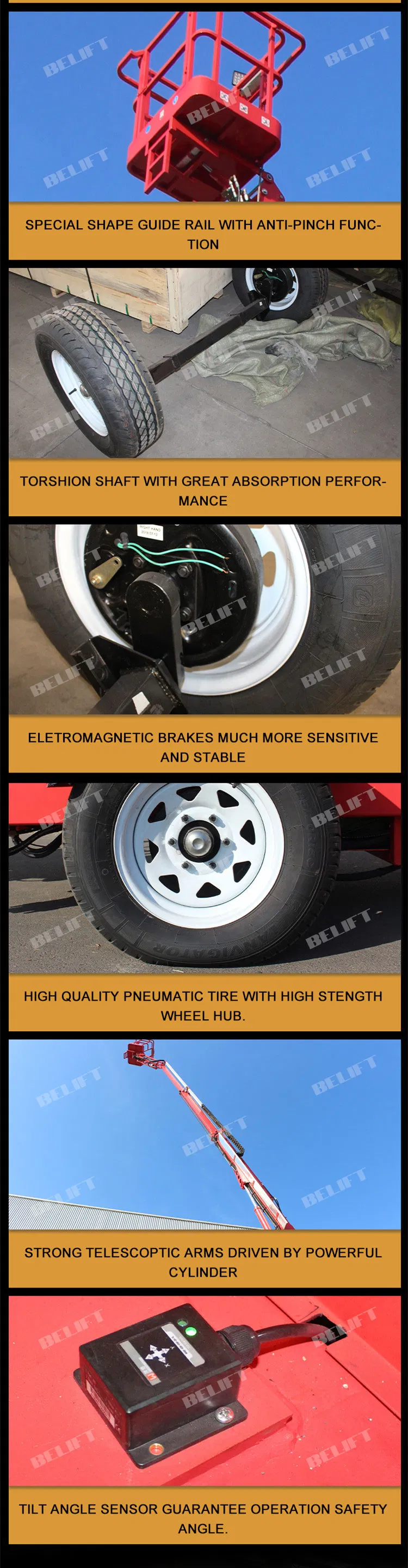

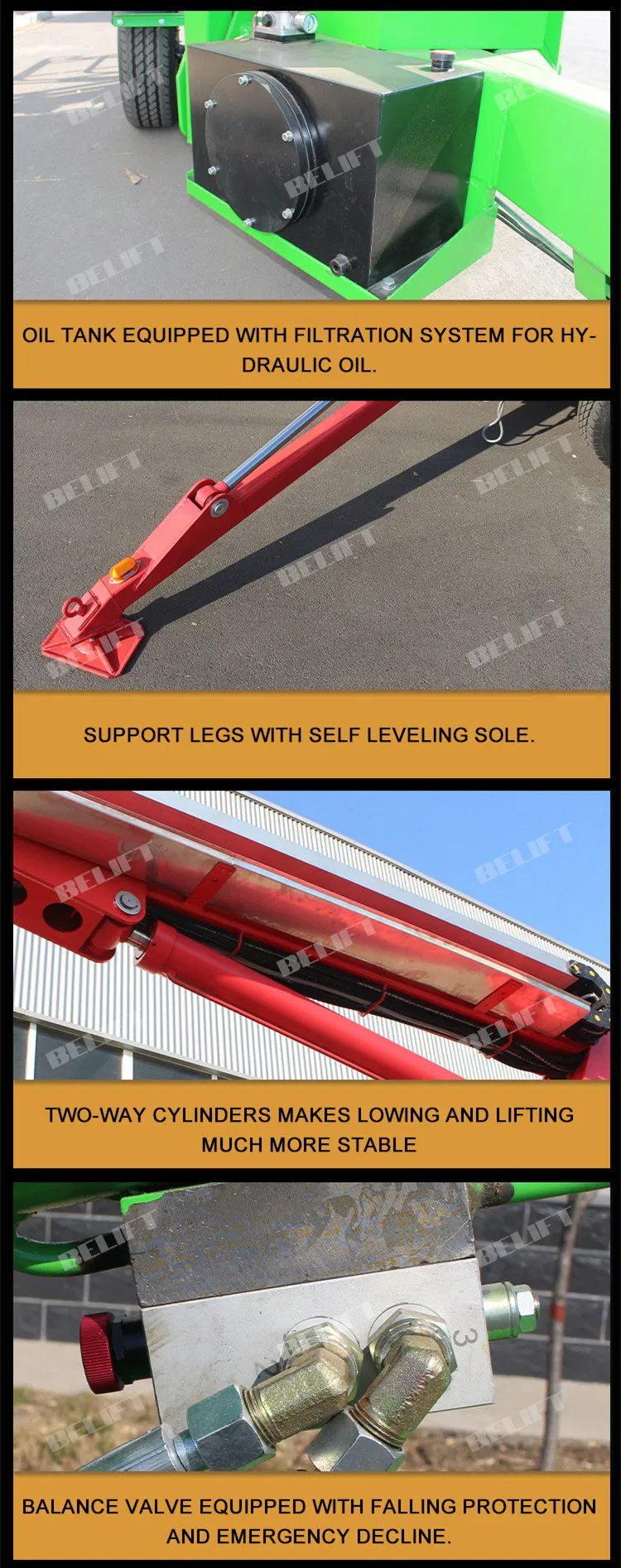

📷 Detailed Photos

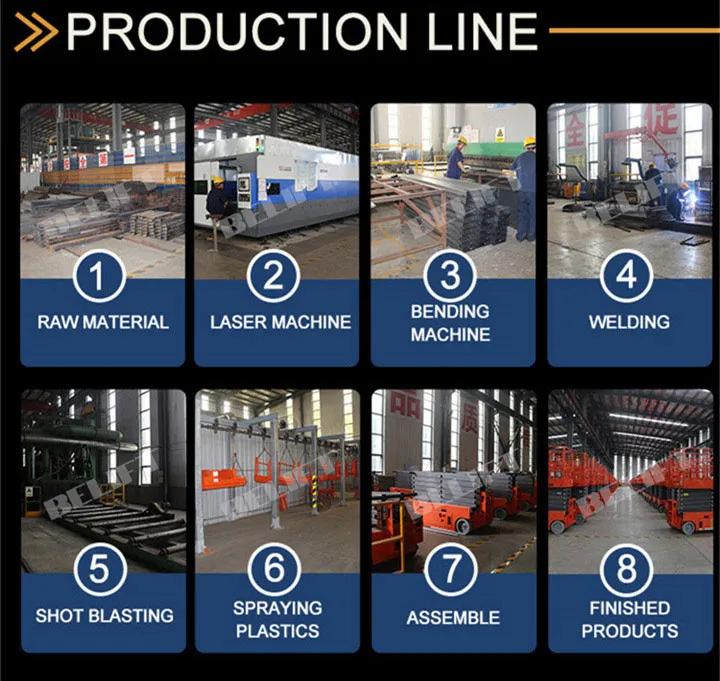

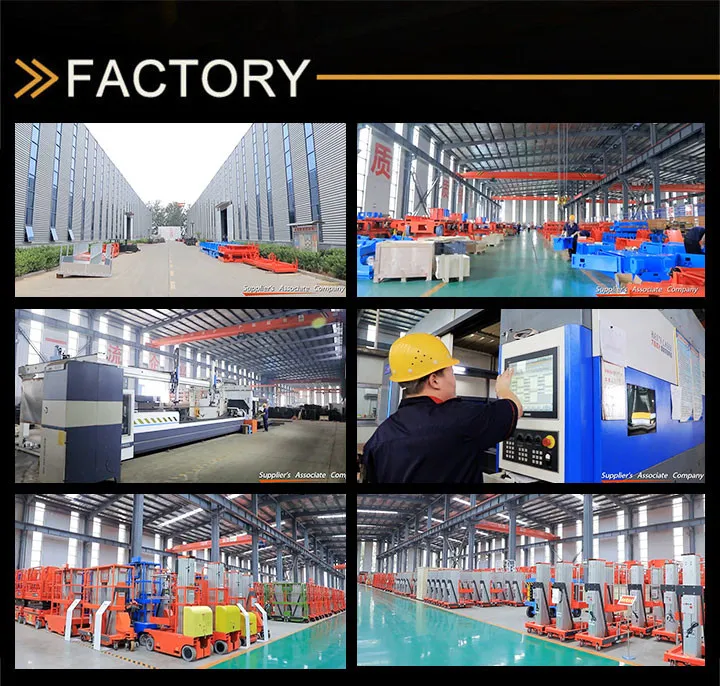

🏭 Quality & Service

Specializing in Aerial Work Platforms and Material Lift Platforms since 2015. Our products are exported worldwide and recognized for high quality and safety.

Certifications: CE, ROHS, SGS, ISO etc.

✅ Free spare parts within warranty
✅ Lifetime technical support
✅ 24/7 online service
✅ Automatic production line quality
❓ Frequently Asked Questions
1. How can customers buy replacement parts?
The lift uses common hardware parts available in most local hardware markets or forklift parts shops.
2. How is the equipment repaired if a fault occurs?
The equipment has a very low failure rate. If needed, we provide guidance via video and detailed repair instructions.
3. What is the standard warranty period?
We provide a one-year quality guarantee. During this period, replacement parts are sent free of charge.
4. Can the power source be customized for my country?
Yes, power sources (AC/DC/Diesel/Gasoline) can be customized according to your local electrical standards and requirements.
5. Is the towable boom lift easy to transport?
Yes, it is designed with a standard trailer structure that can be easily towed behind most common vehicles.
6. What safety features are included?
It includes stabilizing outriggers, emergency stop buttons, manual lowering valves, and explosion-proof valves for hydraulic hoses.
