20m 22m 24m 28m 32m Towable Boom Lift Cherry Picker for Sale

1 / 5

20m 22m 24m 28m 32m Towable Boom Lift Cherry Picker for Sale

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

📊

Technical Overview

ApplicationWorkshop, Warehouse, Building Crane

Lift MechanismArticulated Lift

Carrying CapacityLight Level

MovesSelf-propelled

Driven TypeDiesel/AC/DC

Running ModeMoving

FeatureExplosion-Proof, Insulating

CertificationCE, ISO 9001

Lifting Capacity230-500kg

Lifting Height10-53m

PackageWooden Box, Wooden Pallet

OriginChina

🏗️

Product Description

Articulated Platforms provide great ease in hard-to-reach areas. Ideal for modern living spaces, large hotels, shopping malls, and industrial maintenance. These platforms replace risky traditional scaffolds and catwalks for cleaning, electricity, ventilation, and glass mounting tasks.

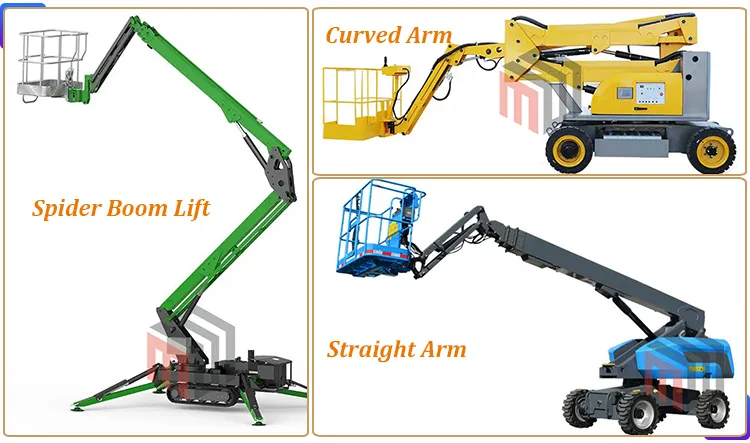

Available Types:

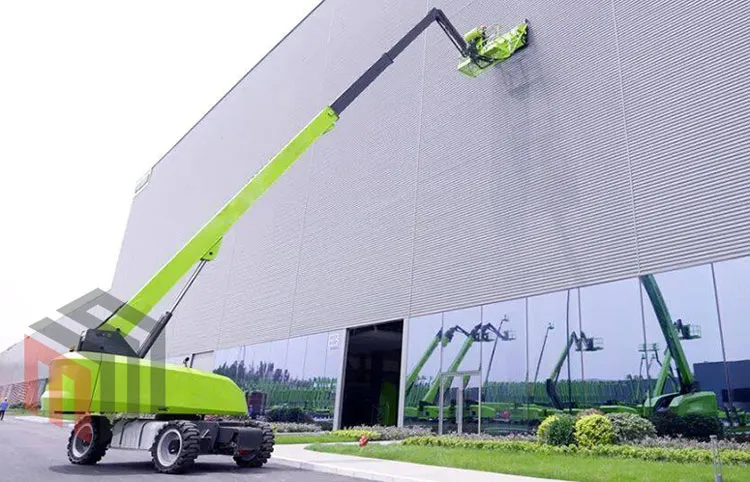

Straight Boom Articulated Platform: Lifting height 10-43 m (32-141 ft)

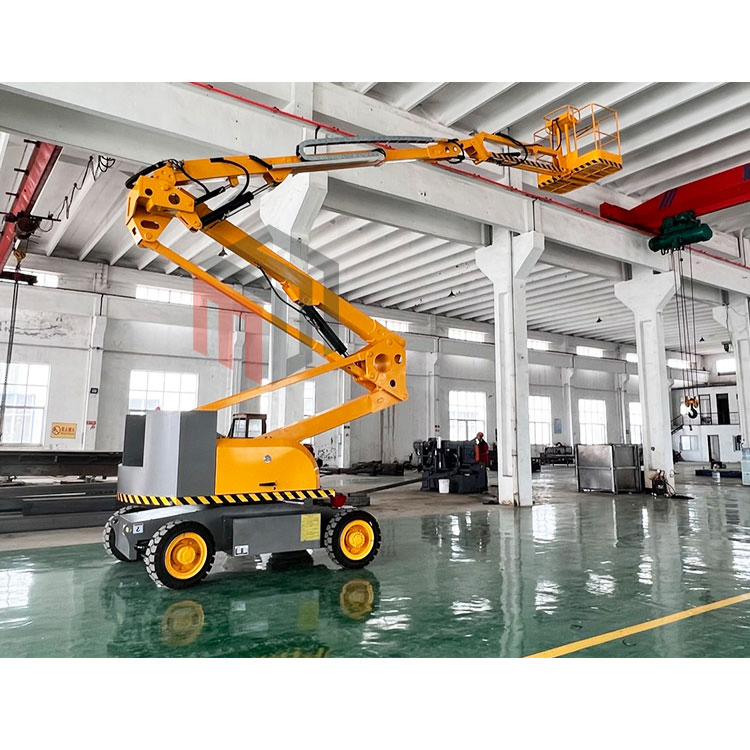

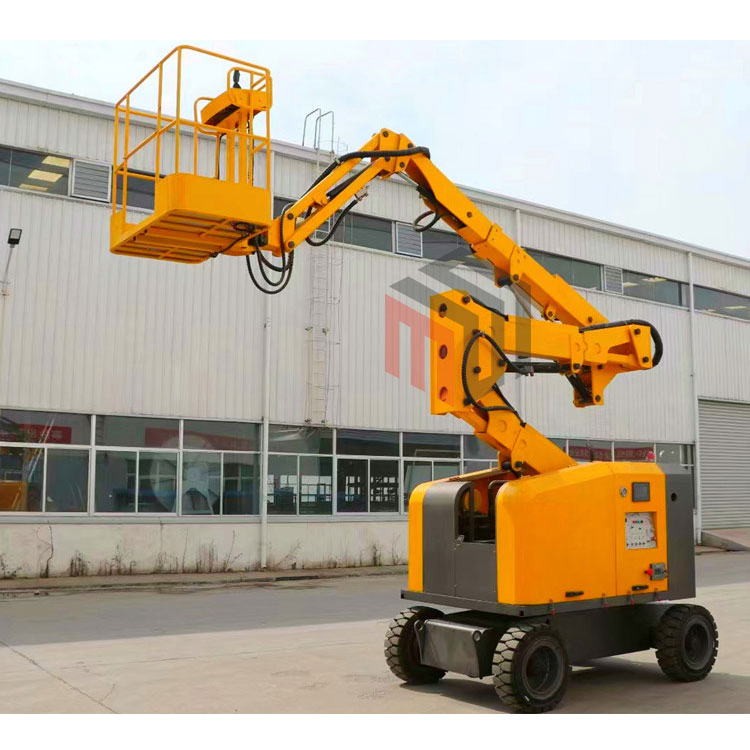

Curved Boom Articulated Platform: Lifting height 10-32 m (32-105 ft)

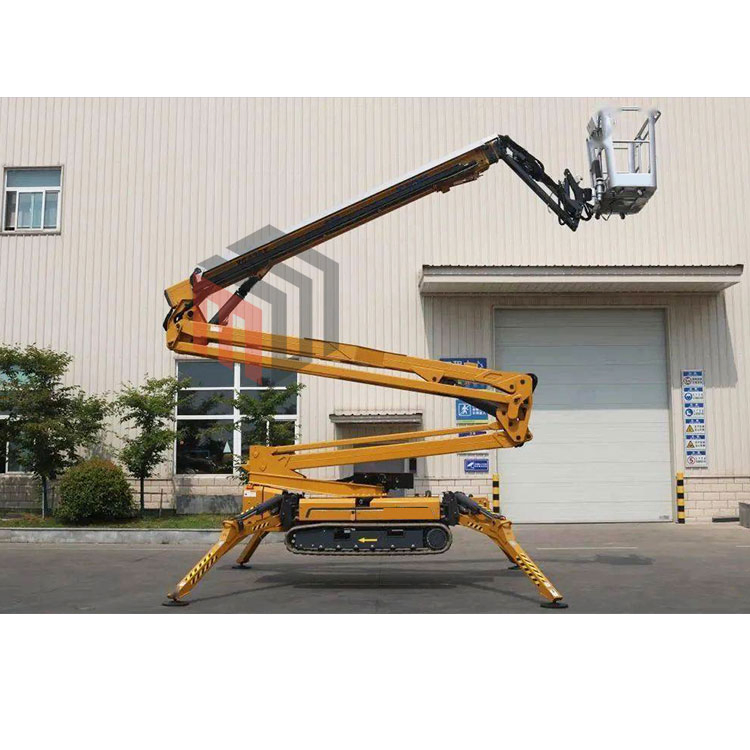

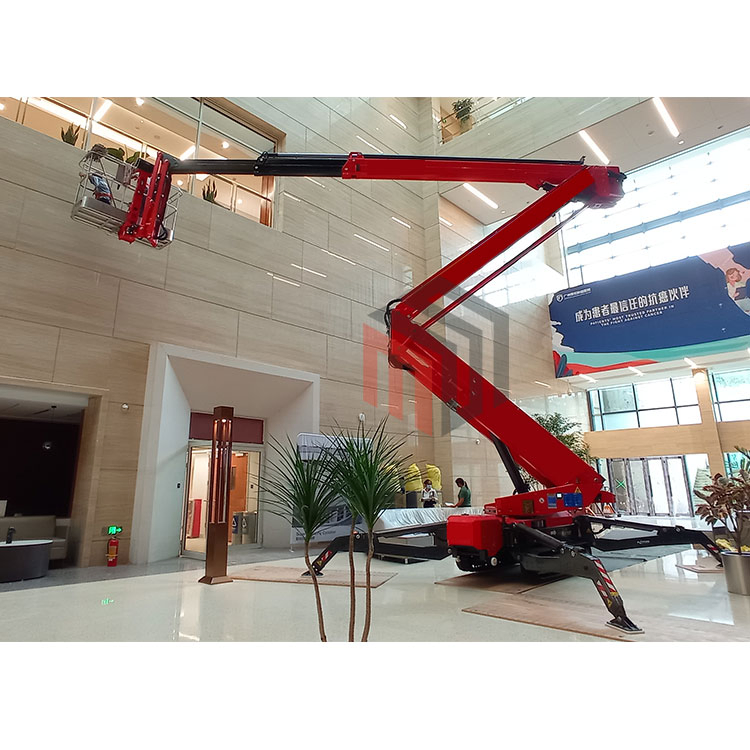

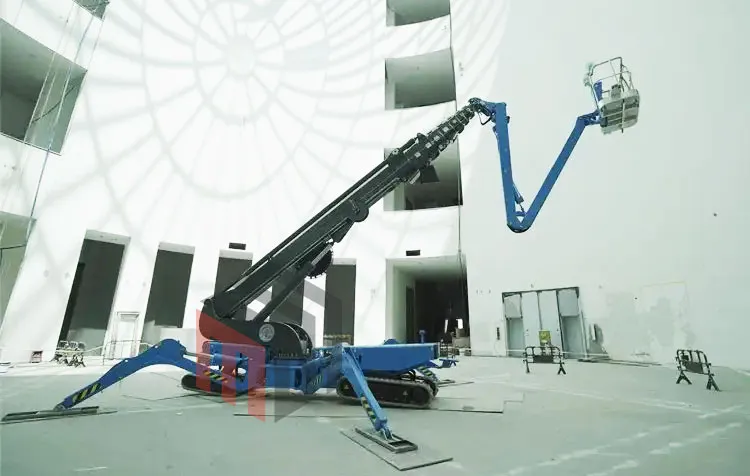

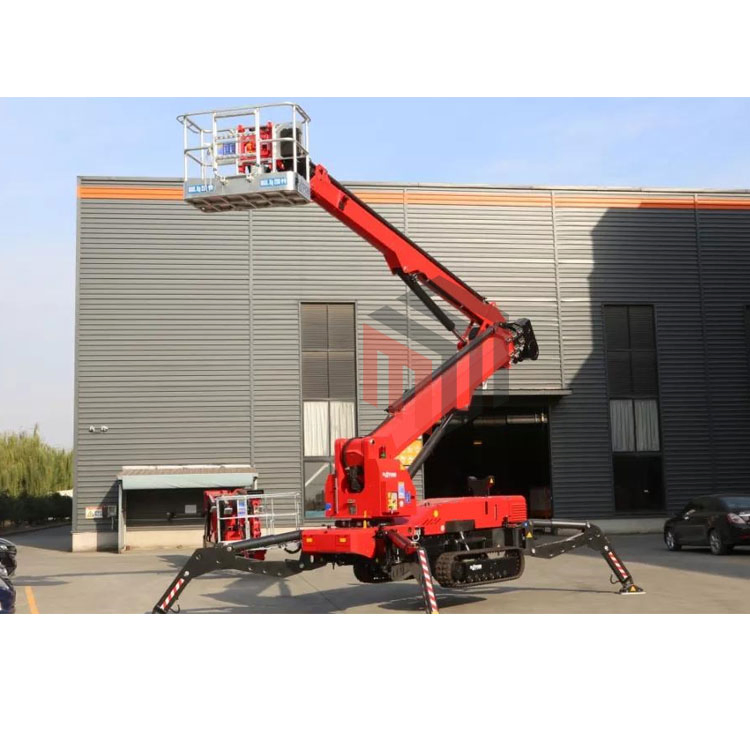

Spider Articulated Platform: Lifting height 12-53 m (40-174 ft)

For large-scale jobs requiring both height and reach, these lifts offer exceptional mobility, tight turning radiuses, and crab steer with oscillating axles for superior traction on uneven surfaces.

⚙️

Product Parameters

1. Straight Boom Articulated Platform

Model	Working Height	Horizon Outreach	Loading Capacity	Power
Z-22	22.51m	16.68m	454kg	Diesel / Electric
Z-24	24.8m	17.9m
Z-26	26.3m	19.5m
Z-28	28.6m	21.9m

2. Curved Boom Articulated Platform

Model	Working Height	Platform Size	Loading Capacity
Q-8 to Q-14	8m - 14m	1600*800mm	230kg
Q-16 to Q-20	16m - 20m	1800*800mm	230kg

3. Spider Articulated Platform

Model	Working Height	Horizon Outreach	Loading Capacity
SPT-13 to 18	13.4m - 17.6m	7.8m - 9.2m	200kg
SPT-22 to 33	21.7m - 32.48m	10.3m - 15.6m	230kg
SPT-43	43.18m	17.33m	330kg

❓

Frequently Asked Questions

1. What types of articulated platforms are available?

We offer three main types: Spider Articulated Platforms (12-53m), Curved Boom Articulated Platforms (10-32m), and Straight Boom Articulated Platforms (10-43m).

2. How is the product quality guaranteed?

All products are manufactured according to national and international standards. We are ISO certified and perform rigorous testing on every unit before delivery.

3. What are the available power source options?

The platforms can be powered by Diesel, AC electric, or DC battery power, depending on the specific model and work environment requirements.

4. Can these lifts operate on sensitive or uneven surfaces?

Yes, especially the Spider Articulated models. They feature spider legs and crawlers designed for sensitive conditions such as indoor flooring, sand, and turf.

5. What is the standard loading capacity?

The loading capacity typically ranges from 200kg to 500kg, with many standard articulated models supporting around 230kg to 454kg.

6. What payment and delivery terms are accepted?

We accept delivery terms including FOB, CFR, CIF, and EXW. Accepted payment types include T/T and L/C in USD, EUR, or CNY.
