Basic Specifications
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level (200kg)
Driven Type
AC / DC / Diesel / Gas
Certification
GS, CE, RoHS, ISO 9001
Swivel
360 Degree Rotation
Horizontal Reach
5m to 10.5m

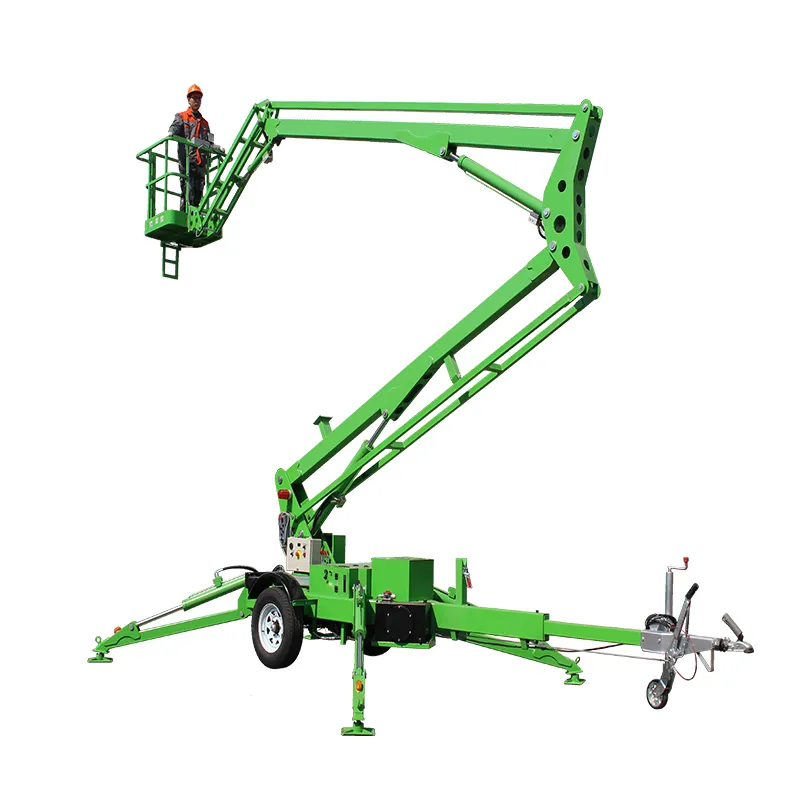

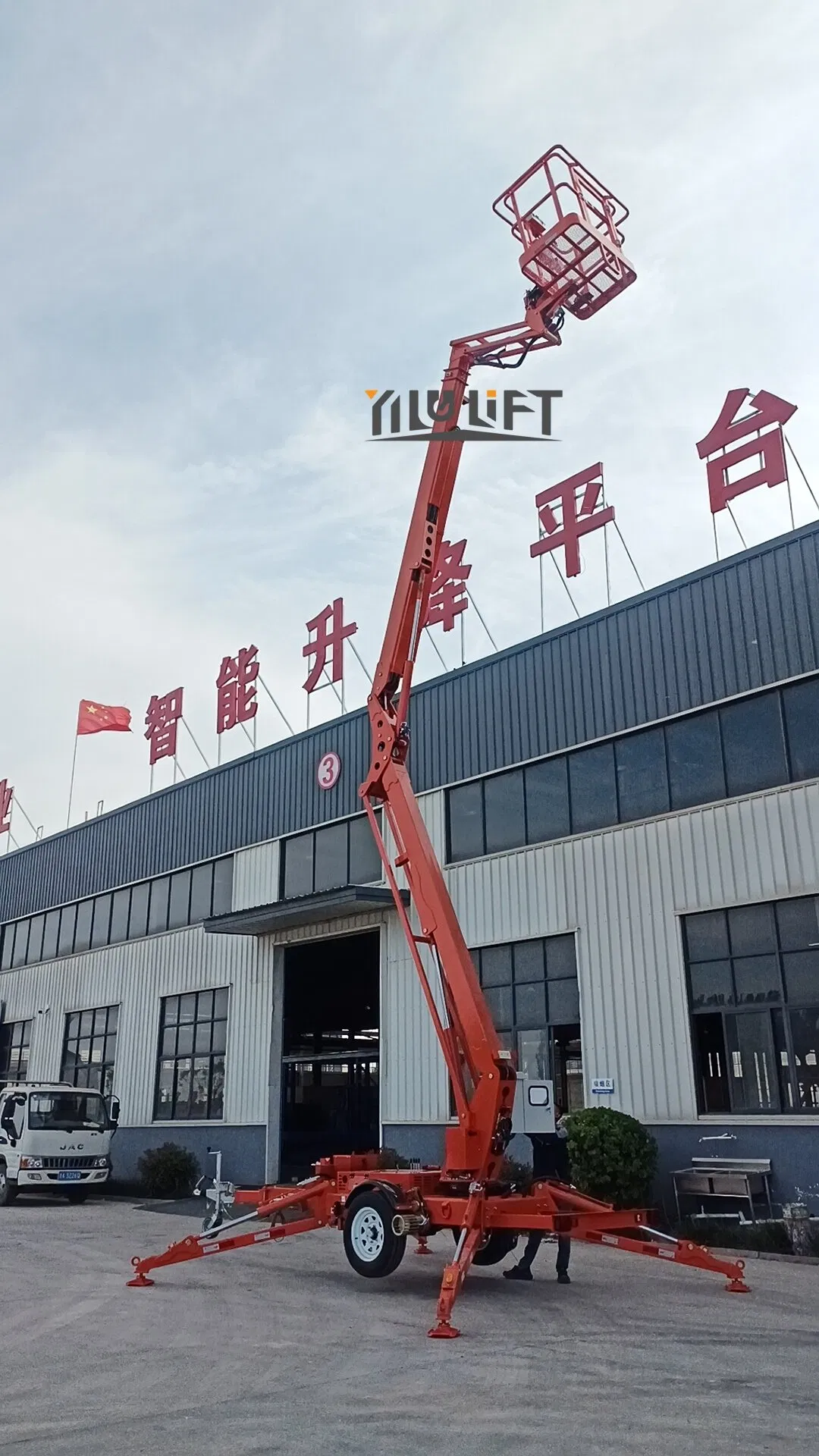

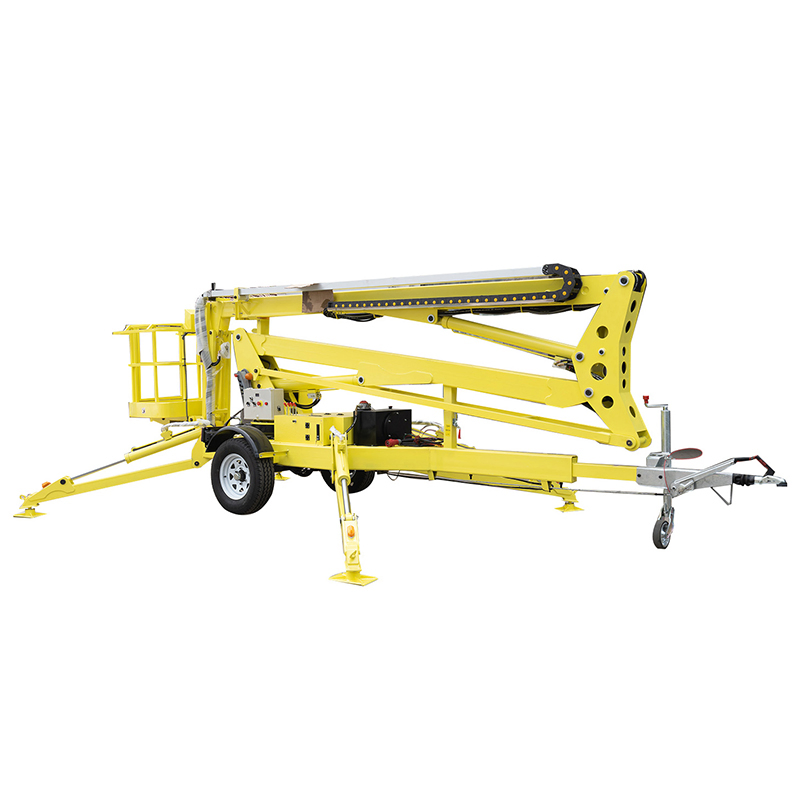

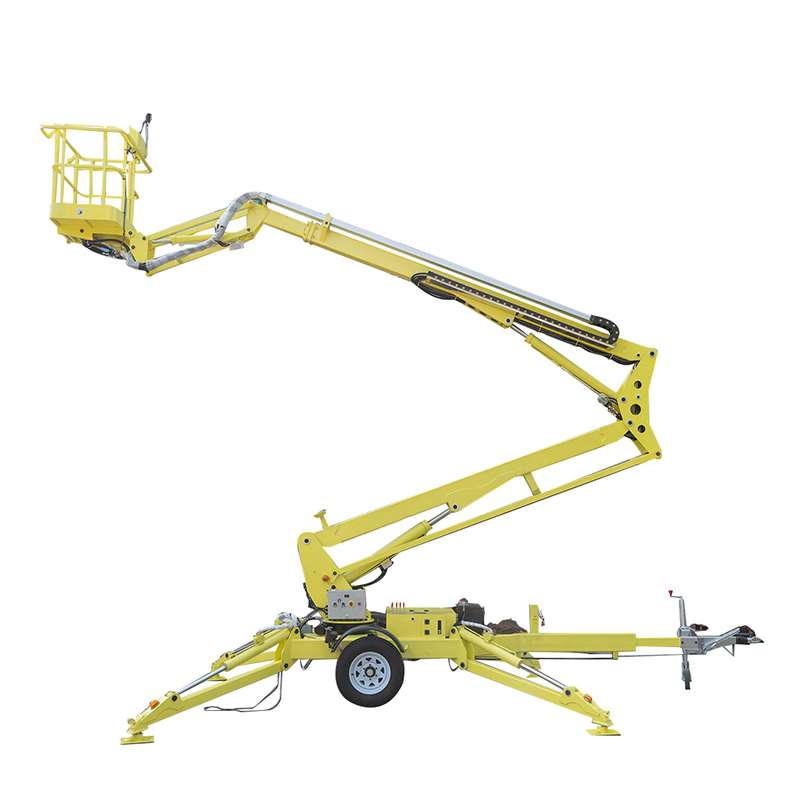

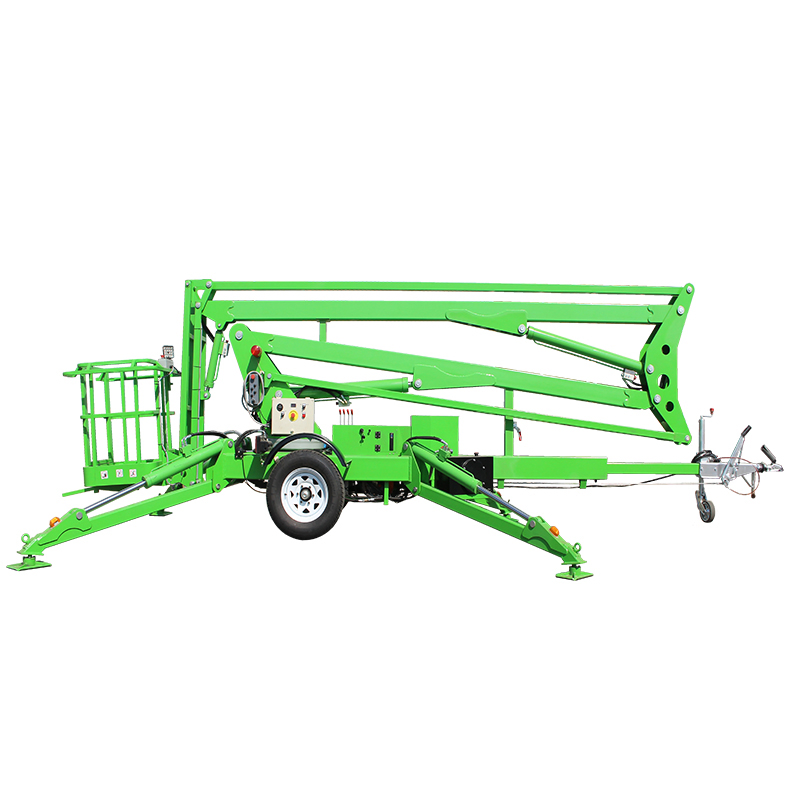

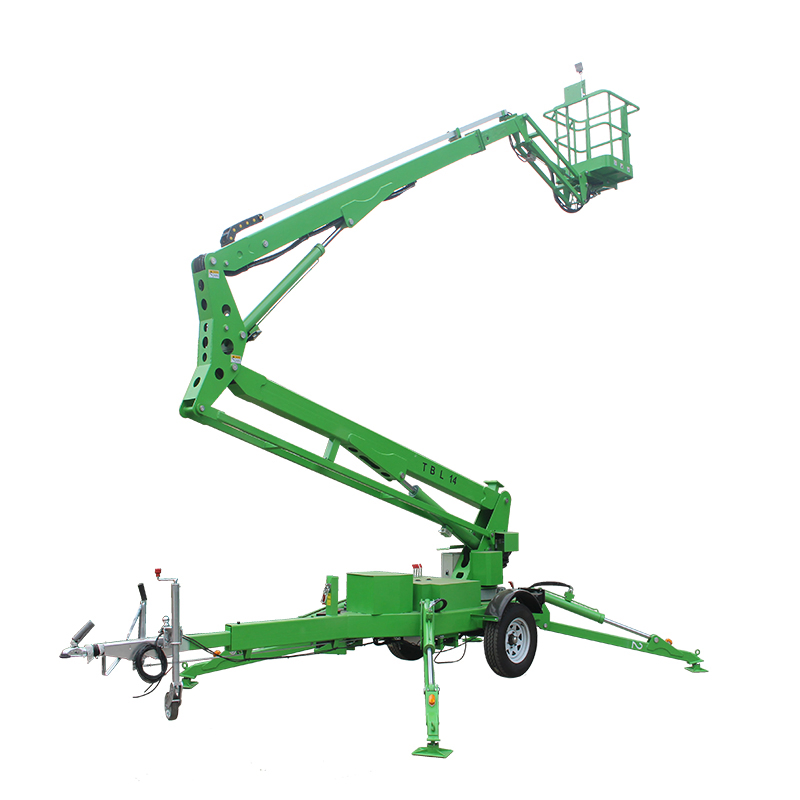

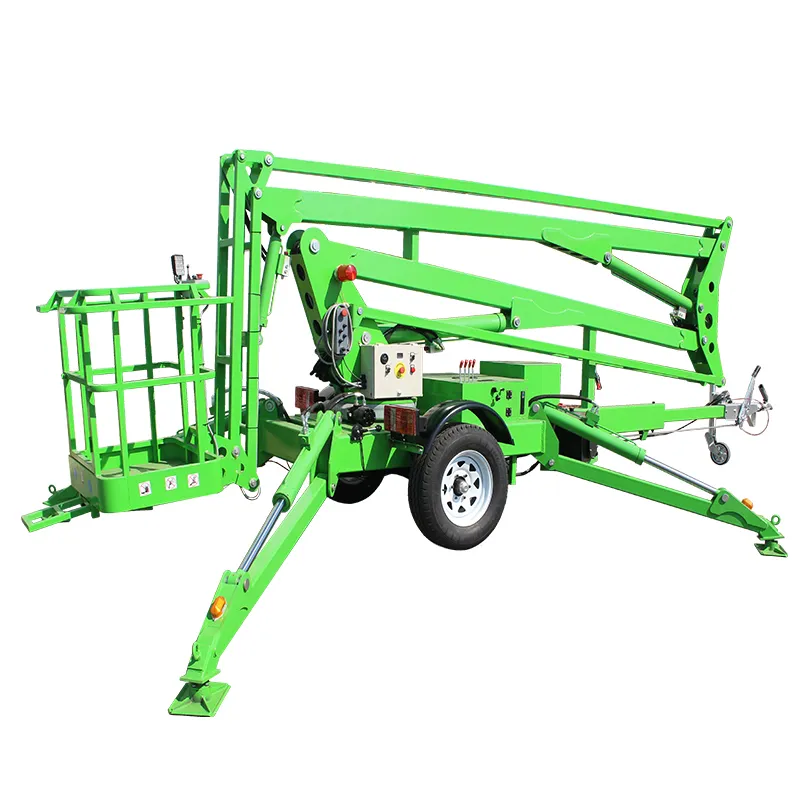

Towable Boom Lift Features
- High-quality Germany ALKO brand brakes
- Switzerland Bucher brand DC pump station
- Japan Honda brand Gasoline pump station

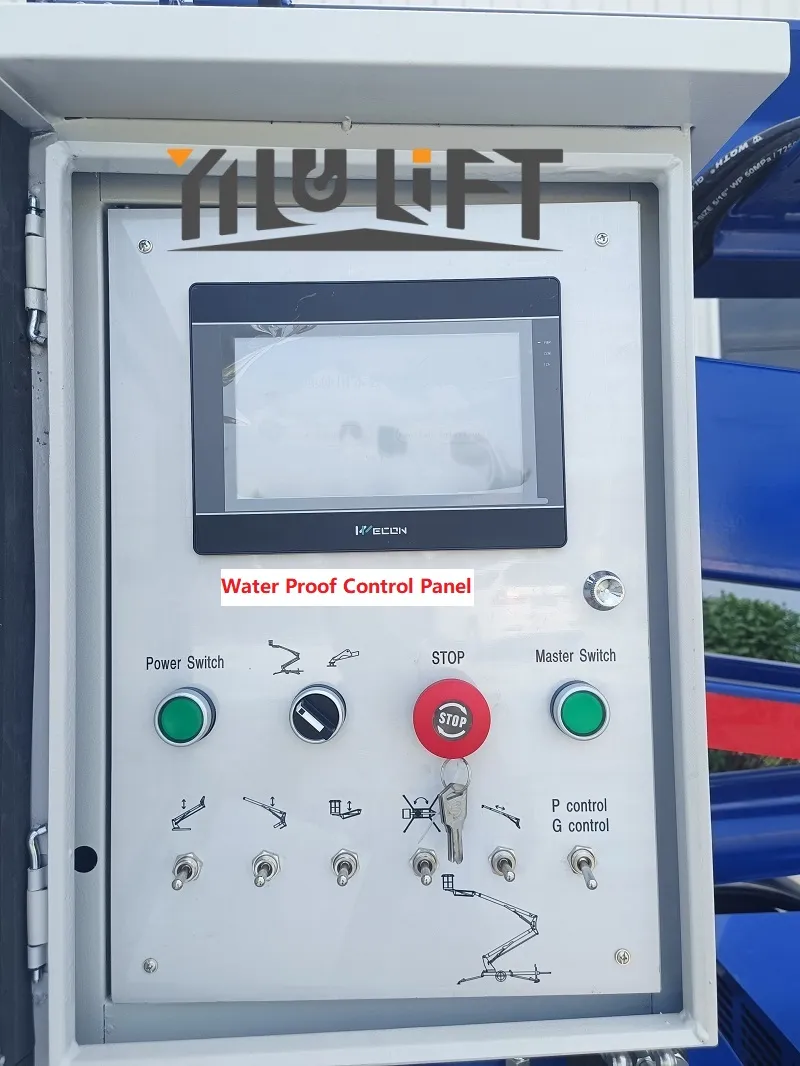

- Waterproof and dust-proof electrical box for outdoor use
- Self-Levelling sole for efficient and safe operation
- Two-way cylinders with balance valve & emergency decline
- Torsion Shaft with great shock absorption
- Hydraulic oil filtration alarm system
- Stable Rotary motor with 360° rotation
- Wide Horizontal reach from 5m to 10.5m
- Max 120Km/h Towing Speed
- Multiple power options: AC, DC, Diesel, Gas combined
Technical Parameters
| Model |
TBL-10A |
TBL-12A |
TBL-14A |
TBL-16A |
TBL-18A |
TBL-20A |
| Lifting Height |
10M |
12M |
14M |
16M |
18M |
20M |
| Working Height |
12M |
14M |
16M |
18M |
20M |
22M |
| Load Capacity |
200KG |
| Working Radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
| Overall Size (L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
Safety Precautions
1
Anti-burst valve: Prevents accidents in case of hydraulic hose rupture.
2
Spillover valve: Releases pressure when system limits are exceeded.
3
Emergency decline valve: Manual descent capability during power failure.
4
Anti-dropping device: Mechanical protection against platform falls.
Frequently Asked Questions
1. How can I place an order for the Towable Boom Lift?
Please provide your detailed requirements including material needs, dimensions, and weight. We will provide detailed parameters and a formal quotation based on your specs.
2. What are the available payment terms?
We accept various payment methods including Wire Transfer (T/T), Letter of Credit (L/C), and Trade Guarantee services.
3. What is the standard delivery time?
For standard models, the delivery time is typically 7 days. For customized orders, the timeline is determined based on specific requirements and component availability.
4. What kind of warranty and support is provided?
We offer a 1-year warranty on the equipment and lifelong technical support via email or video consultation.
5. Which modes of transportation are available?
Depending on your location and urgency, you can choose between sea freight, air freight, or rail transportation.
6. Can the power source be customized?
Yes, we offer multiple power configurations including AC, DC, Diesel, Gasoline, or hybrid combinations to suit your local working environment.
