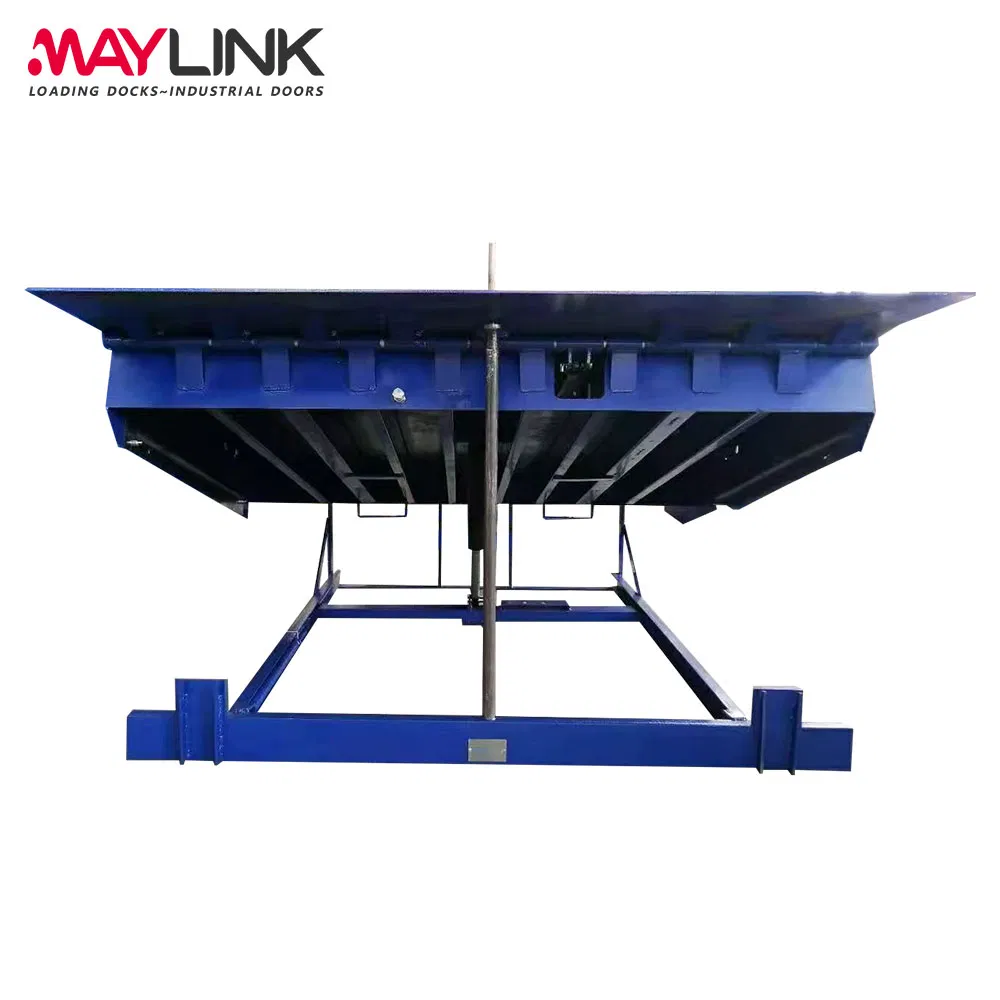

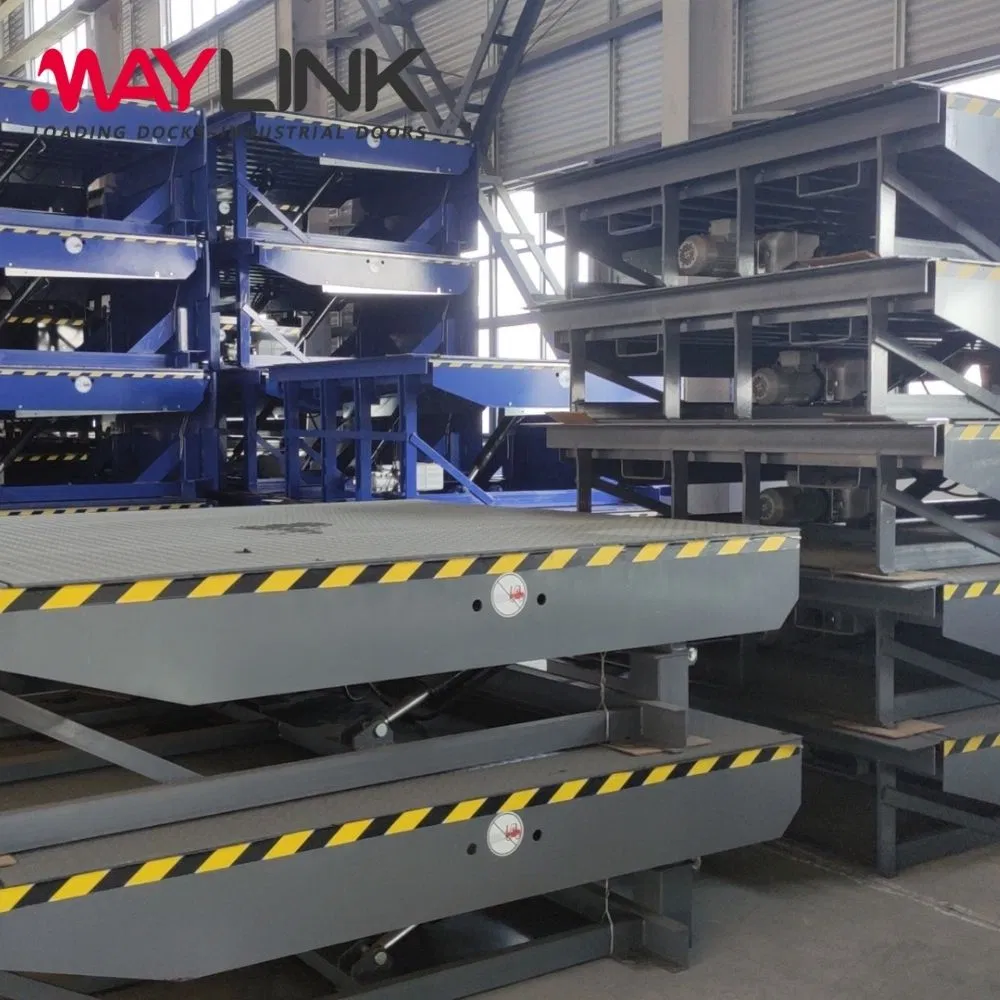

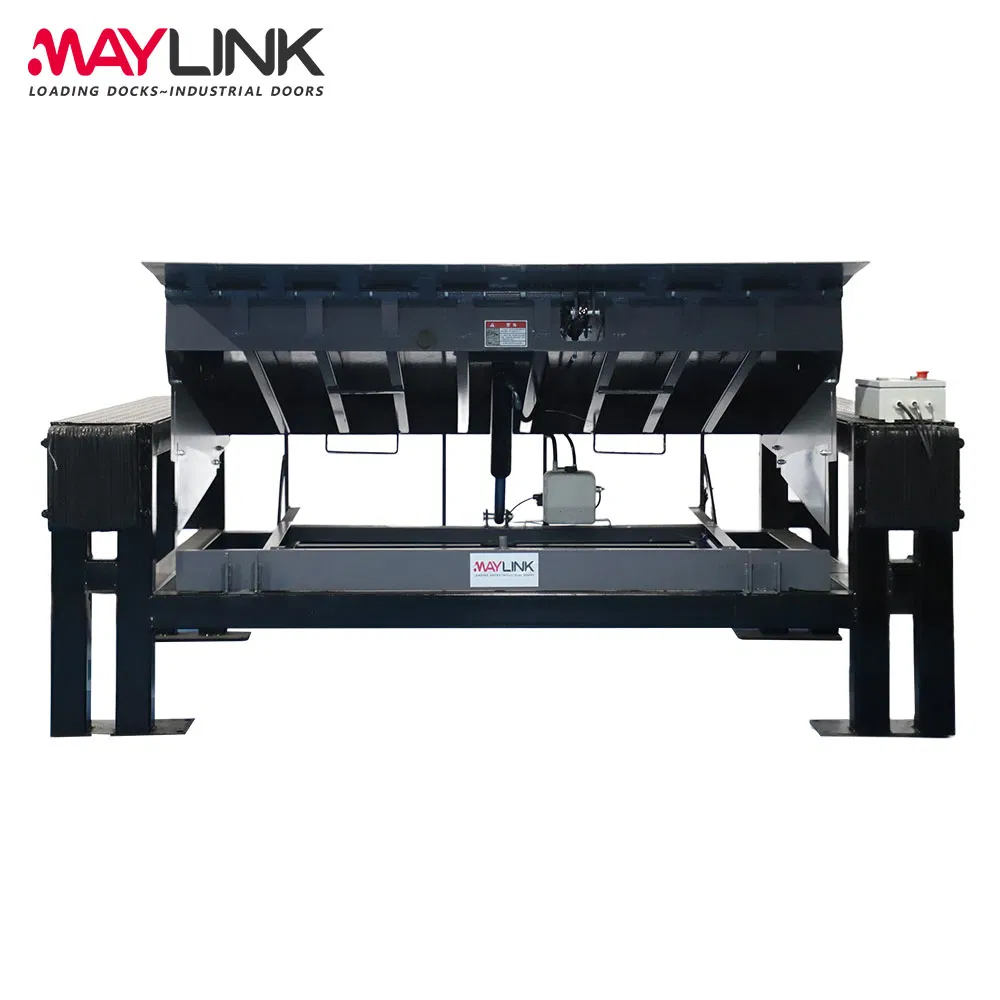

Maylink Adjustable Dock Plate Leveler with Hydraulic Control for Safe Use

1 / 5

Maylink Adjustable Dock Plate Leveler with Hydraulic Control for Safe Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

MLK-HDL-008

Application

Warehousing Docking

Lift Mechanism

Hydraulic Lift

Carrying Capacity

Weight Level

Driven Type

Hydraulic

Feature

Heavy Duty

Certification

CE, RoHS, ISO 9001

Size

W2000mm*L2000mm*H600mm (Customizable)

Load Capacity

Dynamic 8 Tons, Static 16 Tons

Adjust Range

+350mm, -300mm

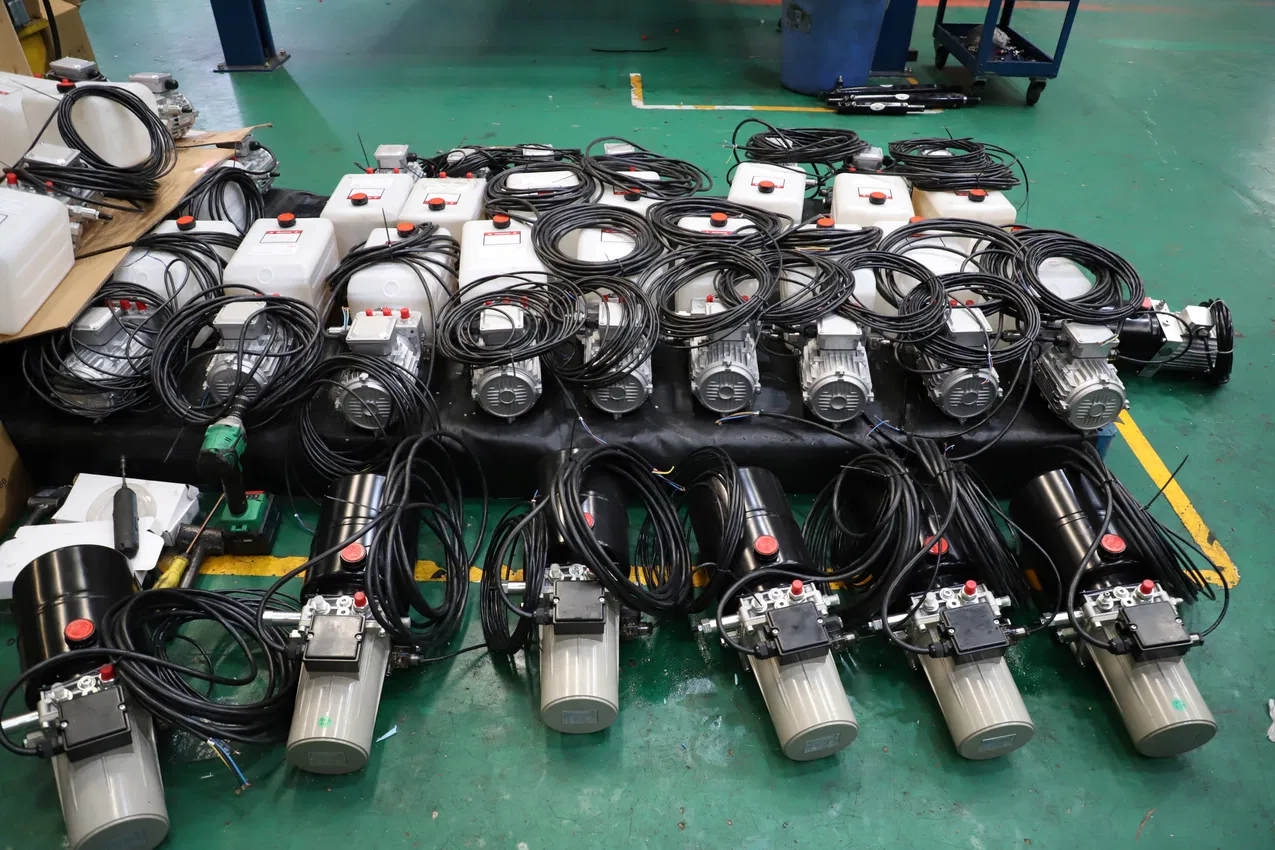

Hydraulic System

German Argo-Hytos/Switzerland Bucher

Lead Time

2-4 Weeks

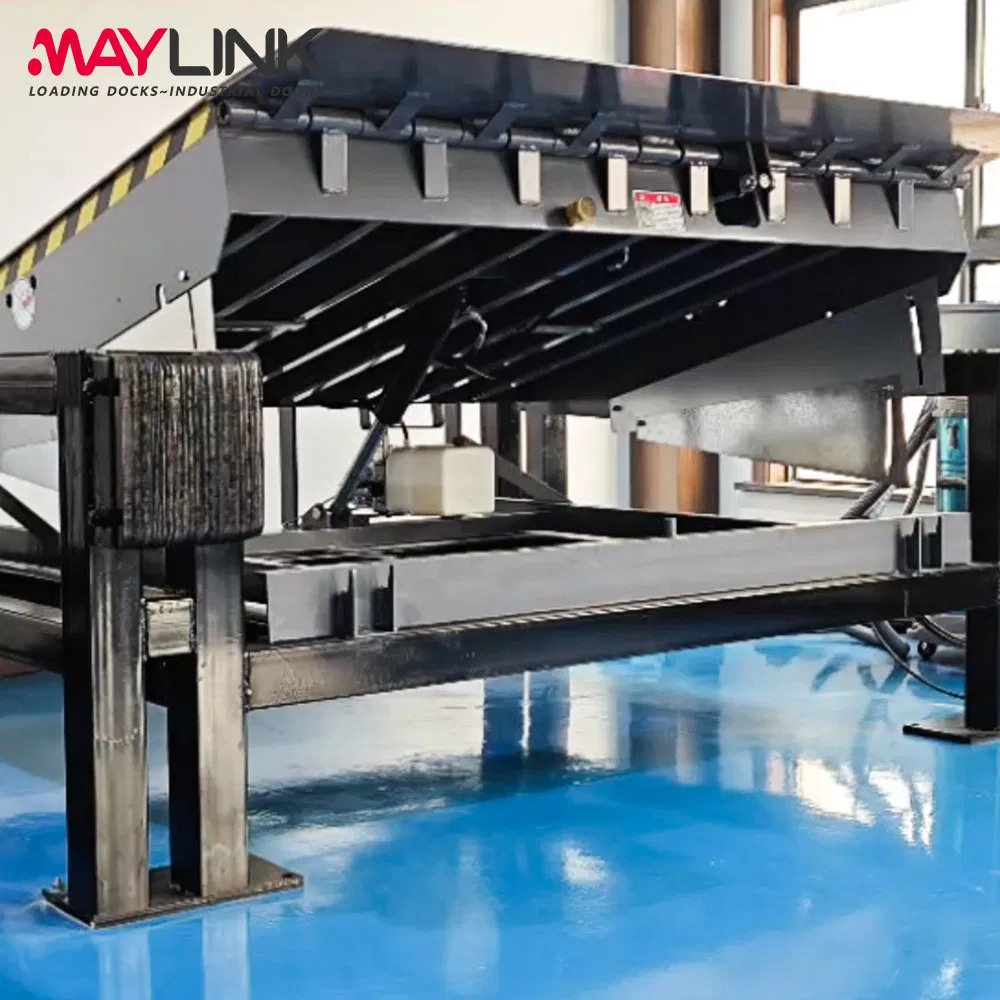

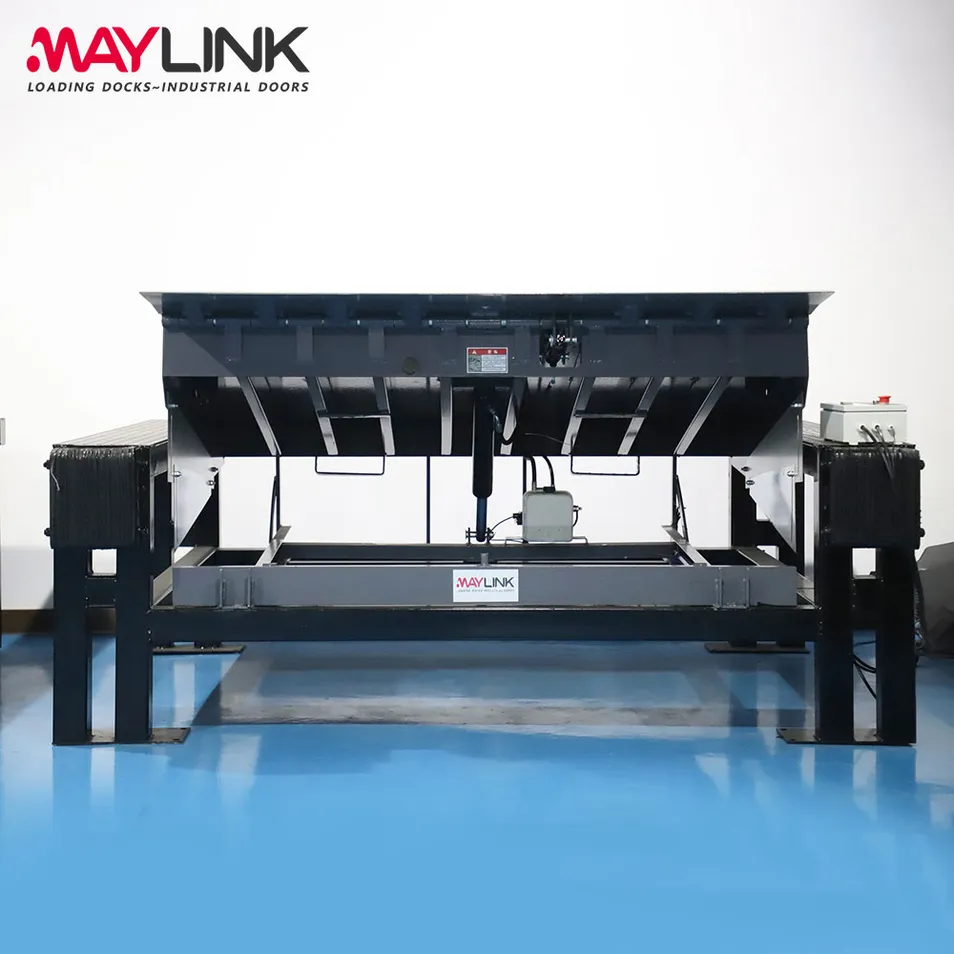

Hydraulic Dock Leveler Overview

The electric hydraulic dock leveler is designed to bridge height differences between loading docks and truck carriages of varying heights. With the press of a button, the platform automatically rises and the lip extends to create a smooth, adjustable slope for forklift access, greatly improving loading efficiency.

Unmatched Strength & Durability Heavy-duty steel frame handles extreme loads (up to 20 tons) with ease, featuring corrosion-resistant finishes.

Effortless Operation Smooth, low-noise operation with one-button control reduces manual labor and operator fatigue.

Enhanced Safety Equipped with lip locks, safety legs, and anti-slip surfaces to prevent accidents.

Configuration Chart

Size Options	W2000×L2000/2500/3000×H500/600mm (Customization Available)
Power Supply	380V/3P/50~60Hz or 220V/1P/50~60Hz
Load Capacity	Dynamic 6.8T to 10T; Static 13.6T to 20T
Adjust Range	+350mm, -300mm
Dock Plate	8mm Non-slip pattern steel
Tongue Plate	16mm Non-slip pattern steel
Hydraulic System	Germany Argo-Hytos / Switzerland Bucher
Control Box	IP54 Integrated Control Box

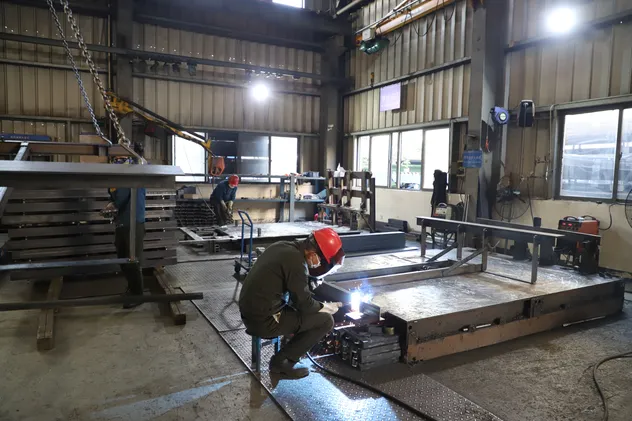

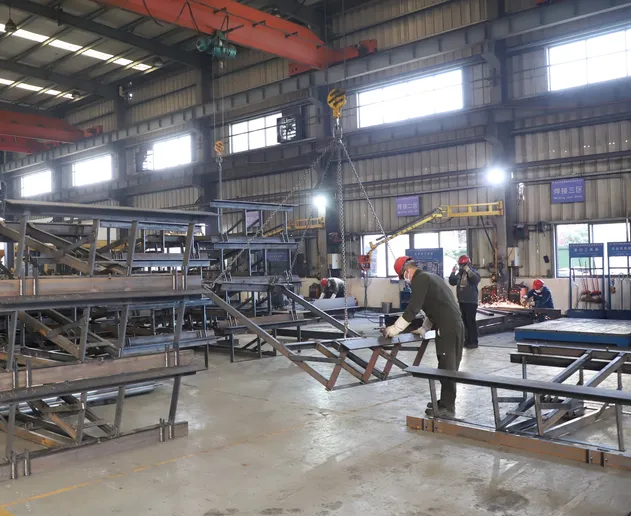

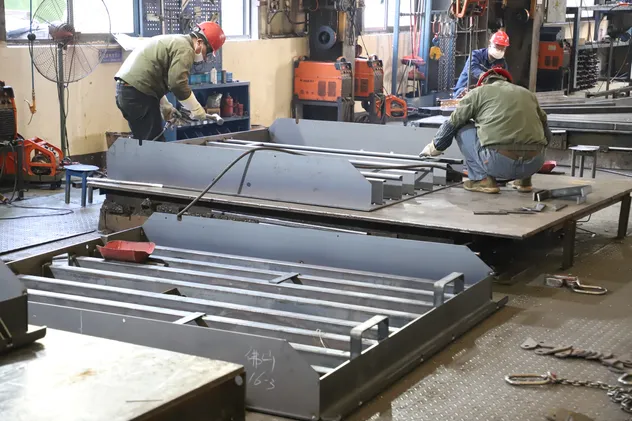

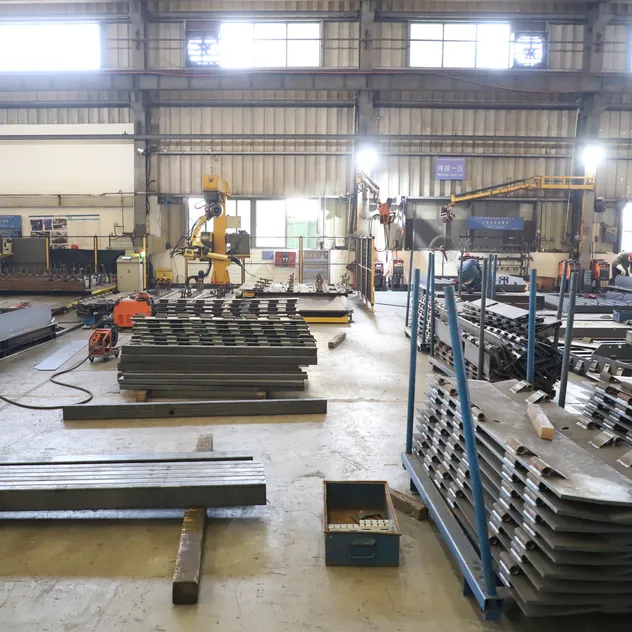

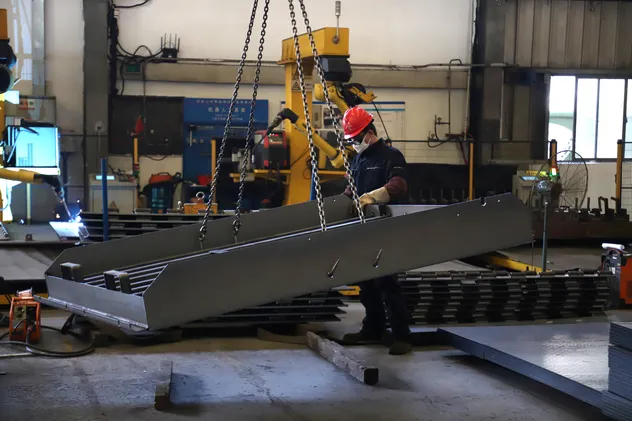

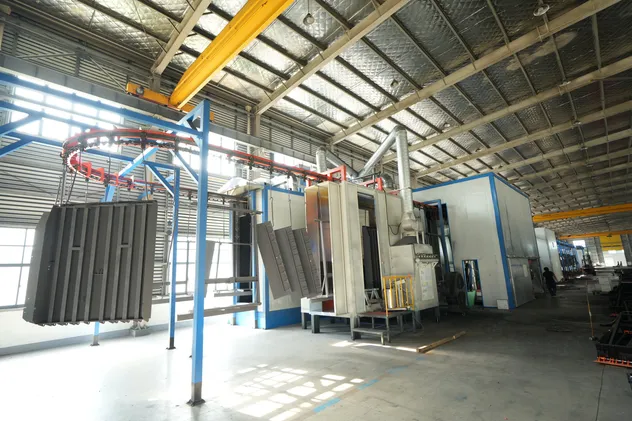

Production Process

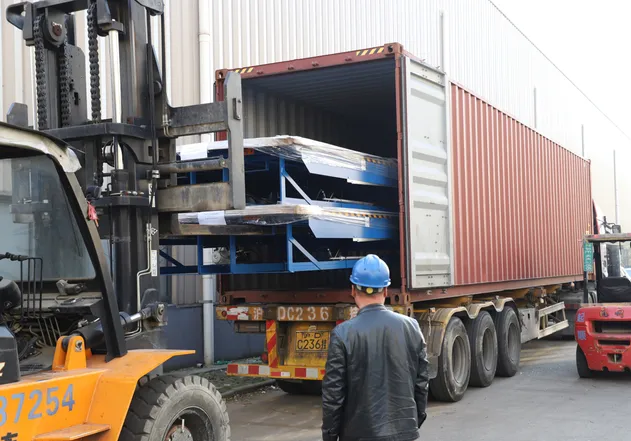

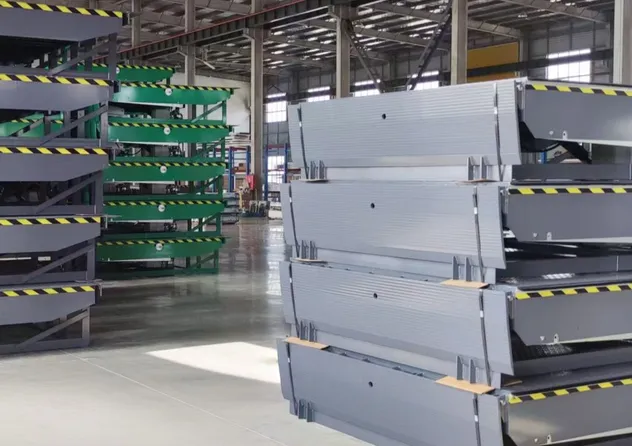

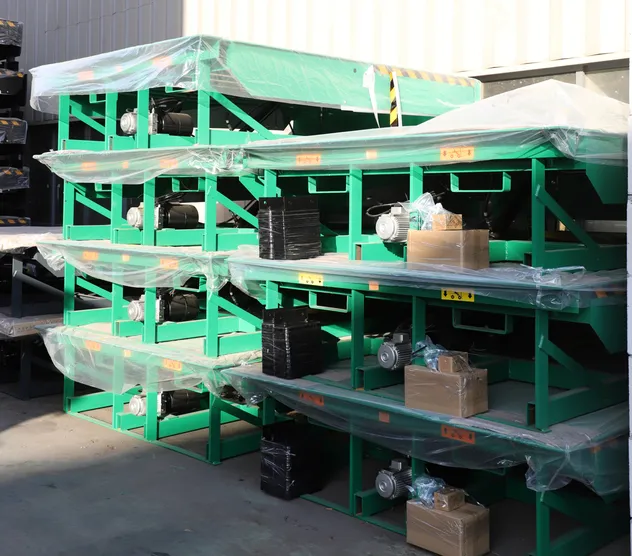

Packing & Delivery

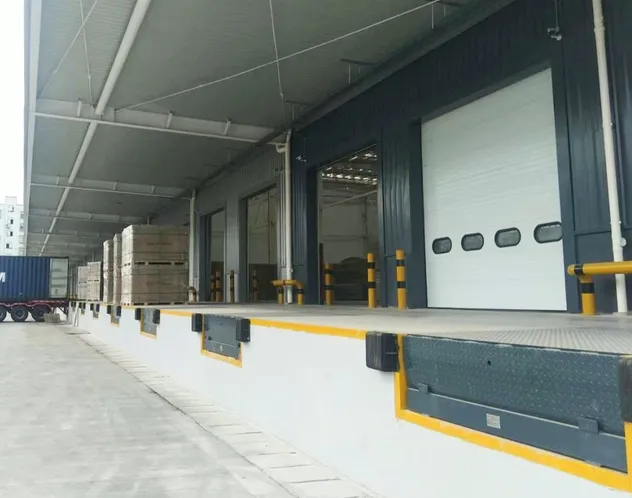

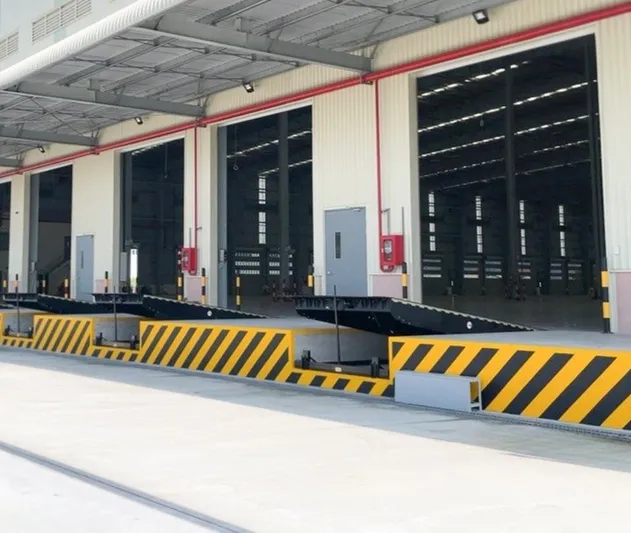

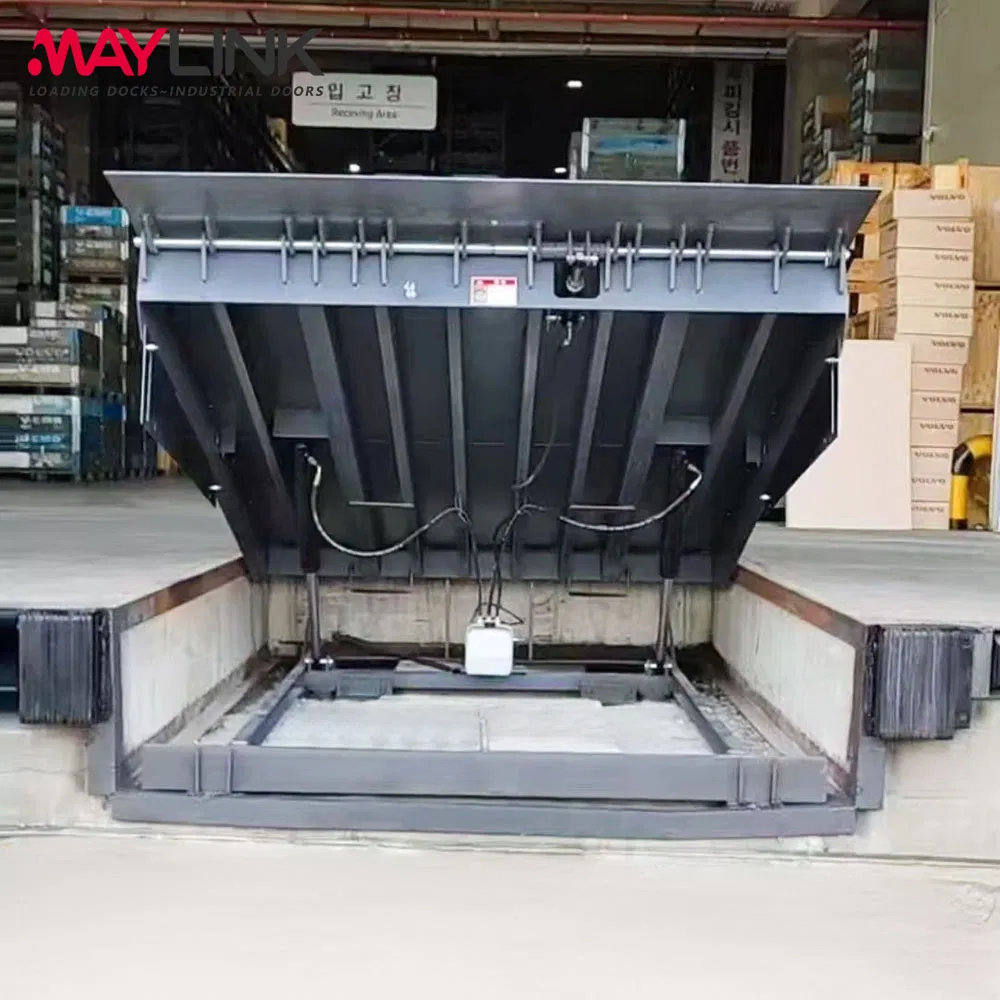

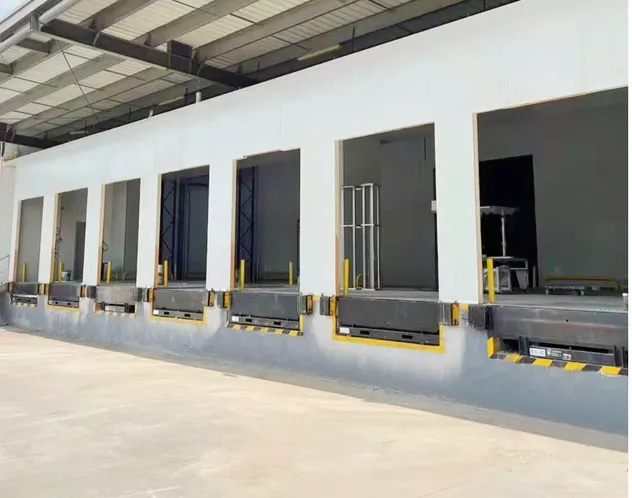

Product Cases

Frequently Asked Questions

How does a hydraulic dock leveler improve loading efficiency?

It automates the process of bridging the gap between the loading dock and the truck. With one-button control, the platform and lip position themselves, allowing forklifts to drive straight into the vehicle safely and quickly.

What are the standard load capacities available?

Standard dynamic load capacities range from 6.8 tons to 10 tons, with static load capacities reaching up to 20 tons to accommodate heavy-duty industrial requirements.

Can the dock leveler be customized for specific pit sizes?

Yes, while we offer standard sizes like 2000x2000mm, we provide full customization for width, length, and height to fit your existing warehouse pit dimensions.

What safety features are included in the hydraulic system?

Our levelers include safety legs, lip locks, emergency stop buttons, and anti-slip tread plates. The hydraulic system is also designed to hold the platform in place in case of an accidental truck departure.

What is the typical lead time for an order?

Standard production and delivery preparation typically take 2 to 4 weeks, depending on the order volume and customization requirements.

Which industries typically use this equipment?

It is widely used in logistics parks, cold chain storage, pharmaceutical manufacturing, food processing, and electronics industries to ensure safe and efficient goods transfer.
