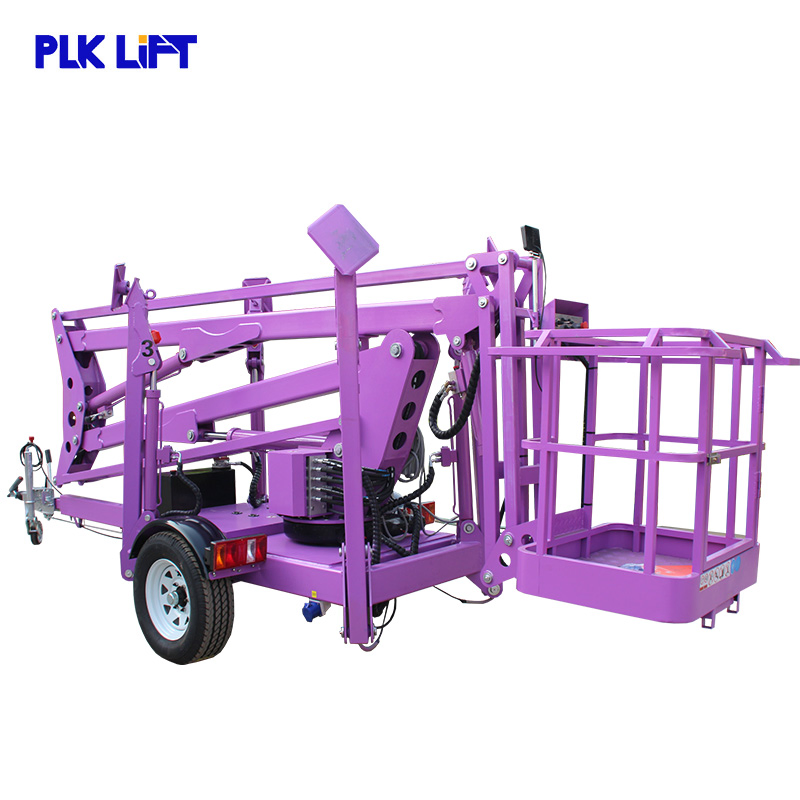

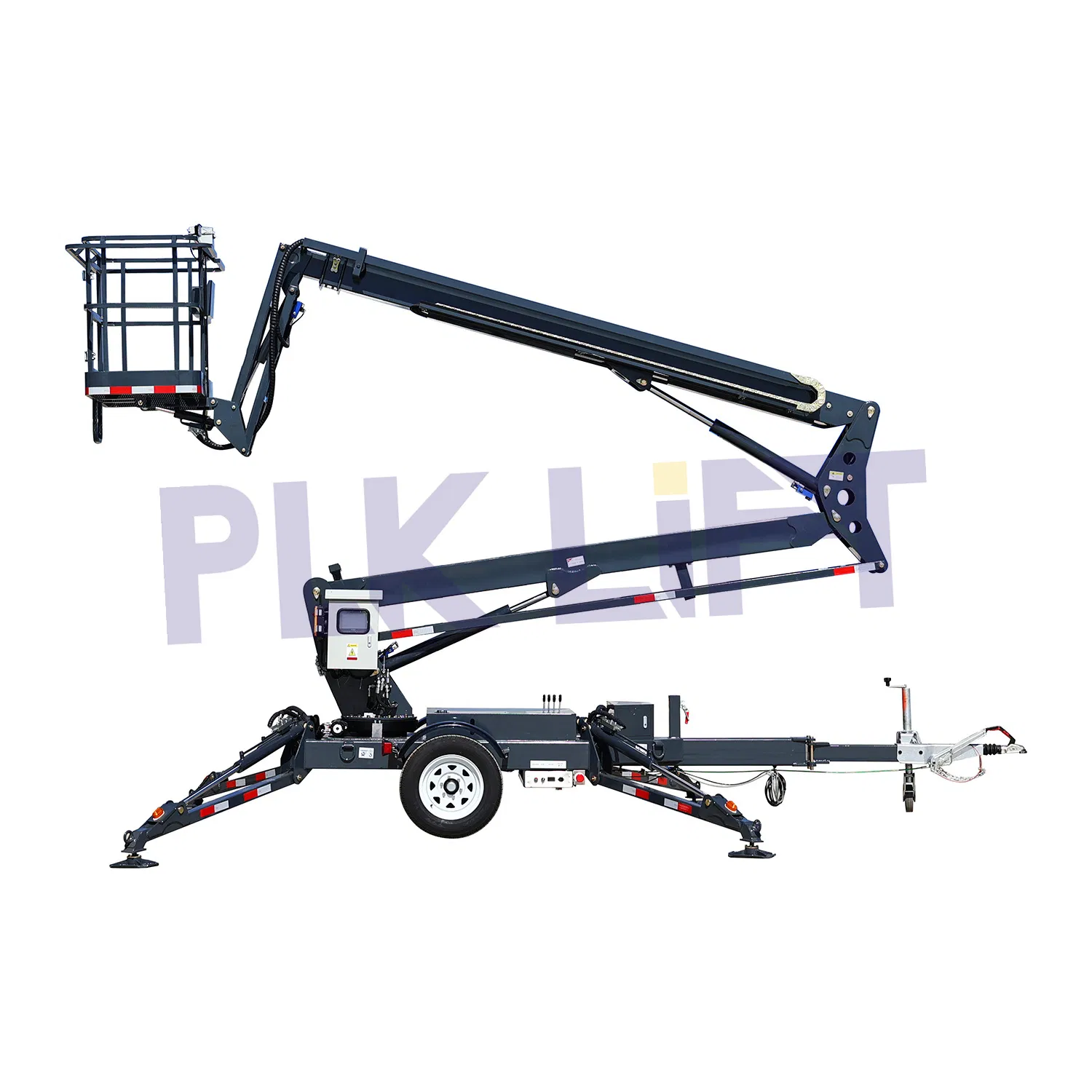

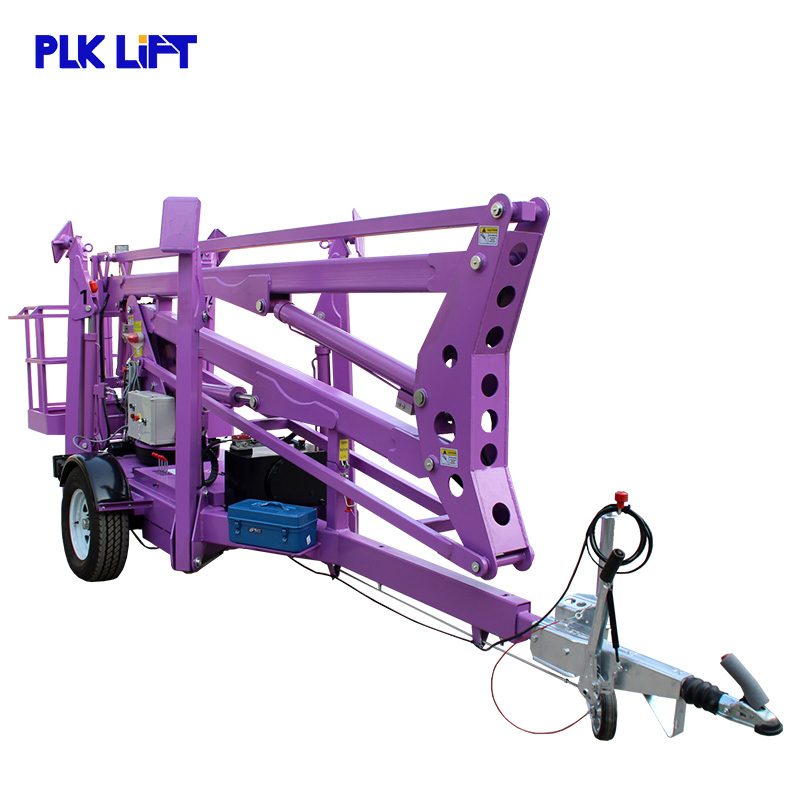

16m 18m 20m Hydraulic Towable Moving Cherry Picker for Sale

1 / 5

16m 18m 20m Hydraulic Towable Moving Cherry Picker for Sale

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

ModelTBL

ApplicationWorkshop, Shipboard, Warehouse, Building

Lift MechanismHydraulic

Capacity200 Kg / 300 Kg

MovementTowable / Crawler Tracked

CertificationGS, CE, RoHS, ISO 9001

Turning Degree360°

Surface TreatmentPlastic Spraying

Input Voltage110V-400V (Customized)

Lift Height10m, 12m, 14m, 16m

Product Overview

The Hydraulic Boom Lift can reach working heights from 12m to 22m with a load capacity of 200kg to 300kg. Power options include DC (battery), gasoline, diesel engine, or dual power systems. It is widely used for aerial tasks such as road lamp repair, tree trimming, and window cleaning. The crawler-tracked version is specifically designed for rough and muddy terrain where standard lifts cannot operate.

Key Advantages

✔ Germany Alko Brand Brakes

✔ Waterproof Control Panel

✔ Two-Way Hydraulic Cylinders

✔ Switzerland Bucher Brand DC Pump

✔ Waterproof Engine Covers

Model	TBL-12A	TBL-14A	TBL-16A	TBL-18A	TBL-20A	TBL-22A
Lifting Height	10M	12M	14M	16M	18M	20M
Working Height	12M	14M	16M	18M	20M	22M
Load Capacity	300KG	220KG	300KG	220KG	220KG	220KG
Working Radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Overall Width	1.7M	1.7M	1.7M	1.7M	1.8M	1.9M

Optional Features

Friction Wheel Walking Device (Automatic Moving)

Electric Basket Rotation

360 Degree Continuous Rotation

Insulated Working Basket

Emergency Hand Pump

Overload Sensor System

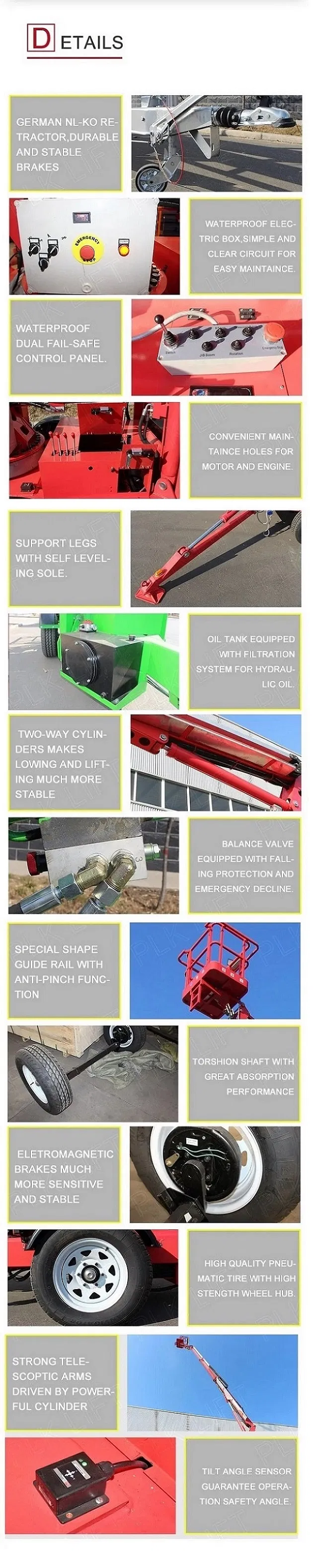

Hydraulic Towable Cherry Picker Display 1

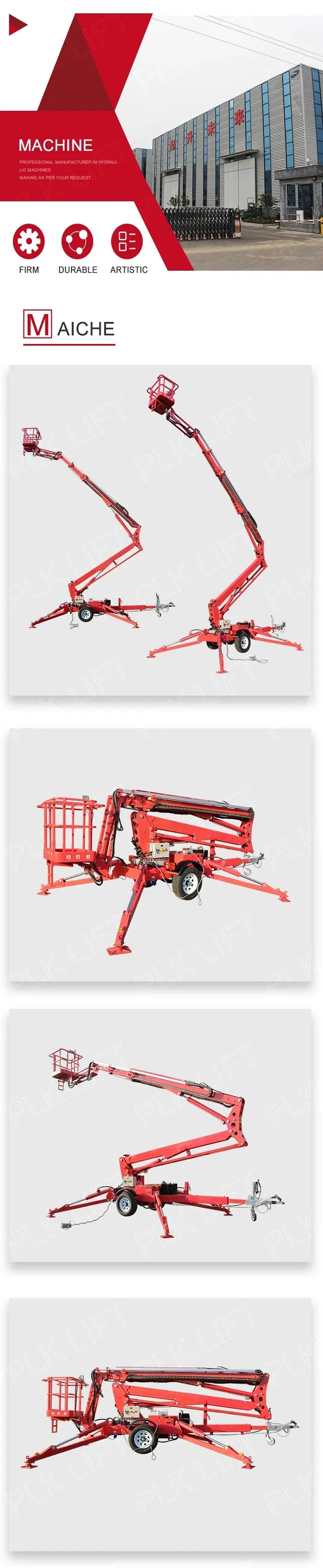

Hydraulic Towable Cherry Picker Display 2

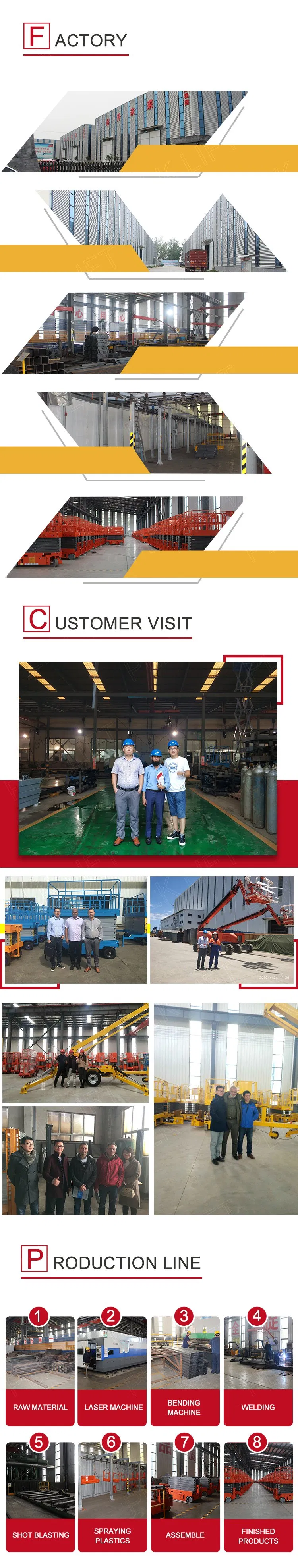

Hydraulic Towable Cherry Picker Display 3

Frequently Asked Questions

Q1: What is the maximum working height of these boom lifts?

The series offers a wide range of working heights, starting from 12 meters up to a maximum of 24 meters depending on the specific model selected.

Q2: What power options are available for the hydraulic system?

We offer flexible power configurations including single power (AC, DC, Diesel, or Gasoline) and dual power combinations (e.g., DC + Diesel or AC + Gasoline) to suit different working environments.

Q3: Can the boom lift be moved automatically without a tractor?

Yes, by selecting the optional Friction Wheel Walking Device, you can use a remote control to move the boom lift independently without the need for a towing vehicle.

Q4: Is the equipment suitable for use on uneven or soft ground?

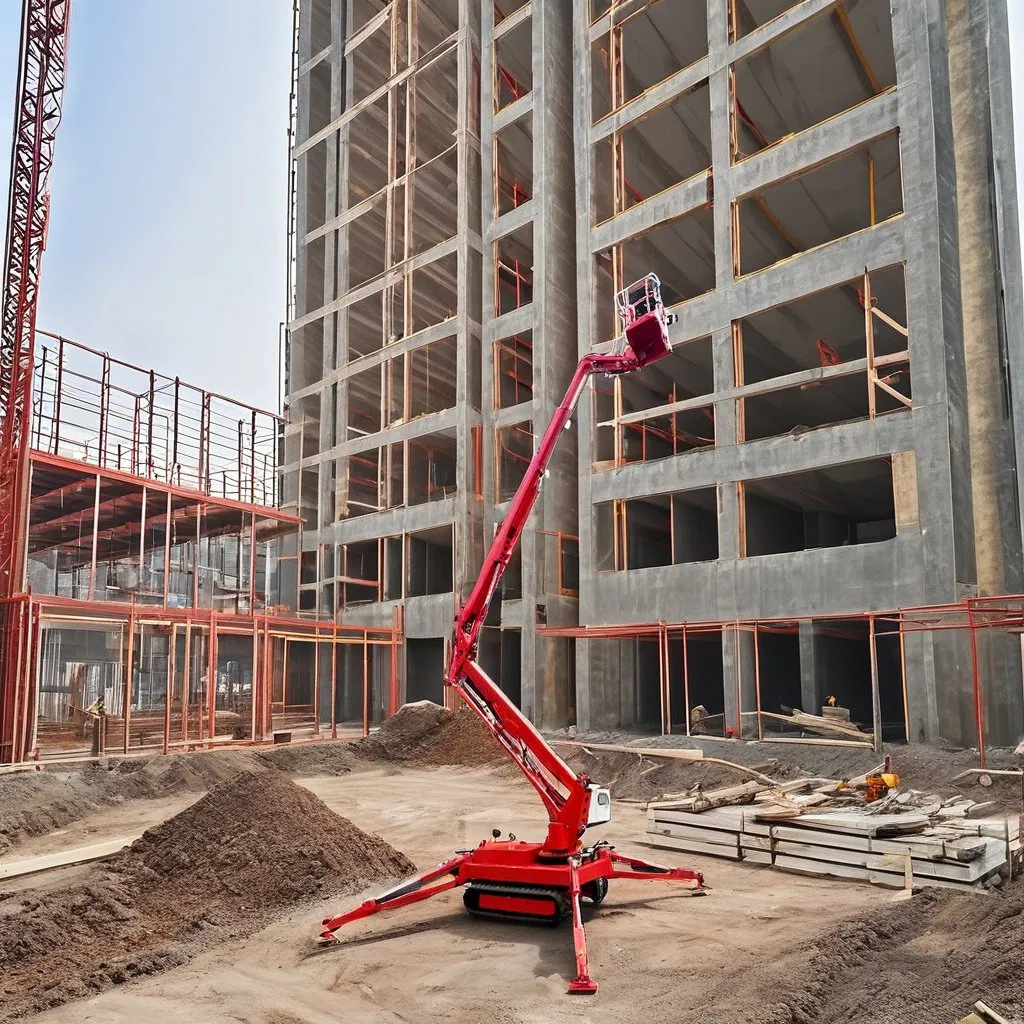

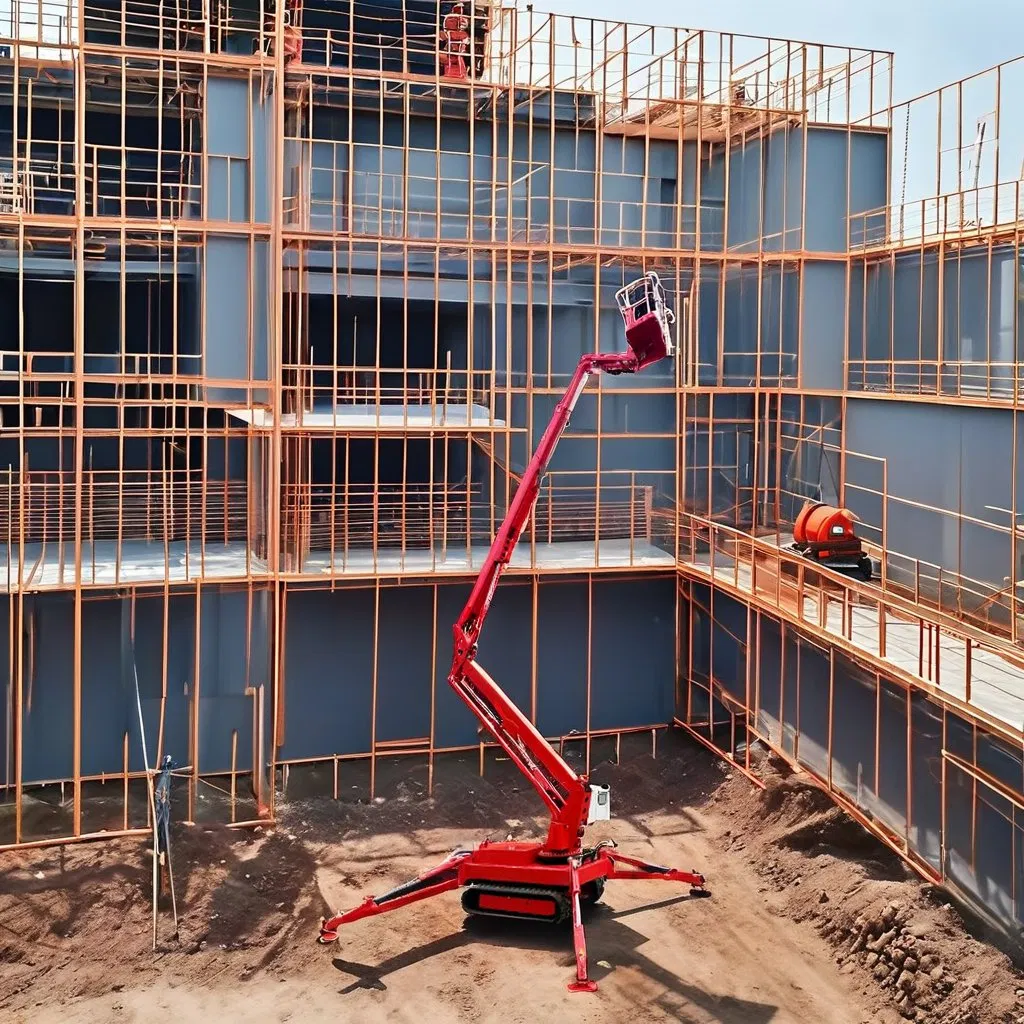

The crawler-tracked version is specifically designed for stability and mobility on rough, muddy, or unpaved construction sites where traditional wheeled lifts might struggle.

Q5: What safety certifications do your products hold?

All our boom lifts are fully CE certified and comply with ISO9001, GS, and RoHS standards to ensure high quality and operational safety.

Q6: Can the platform load capacity be increased?

While the standard load capacity is 200kg-220kg, we offer an optional upgrade to a 300kg load capacity for specific models to accommodate heavier tools or materials.
