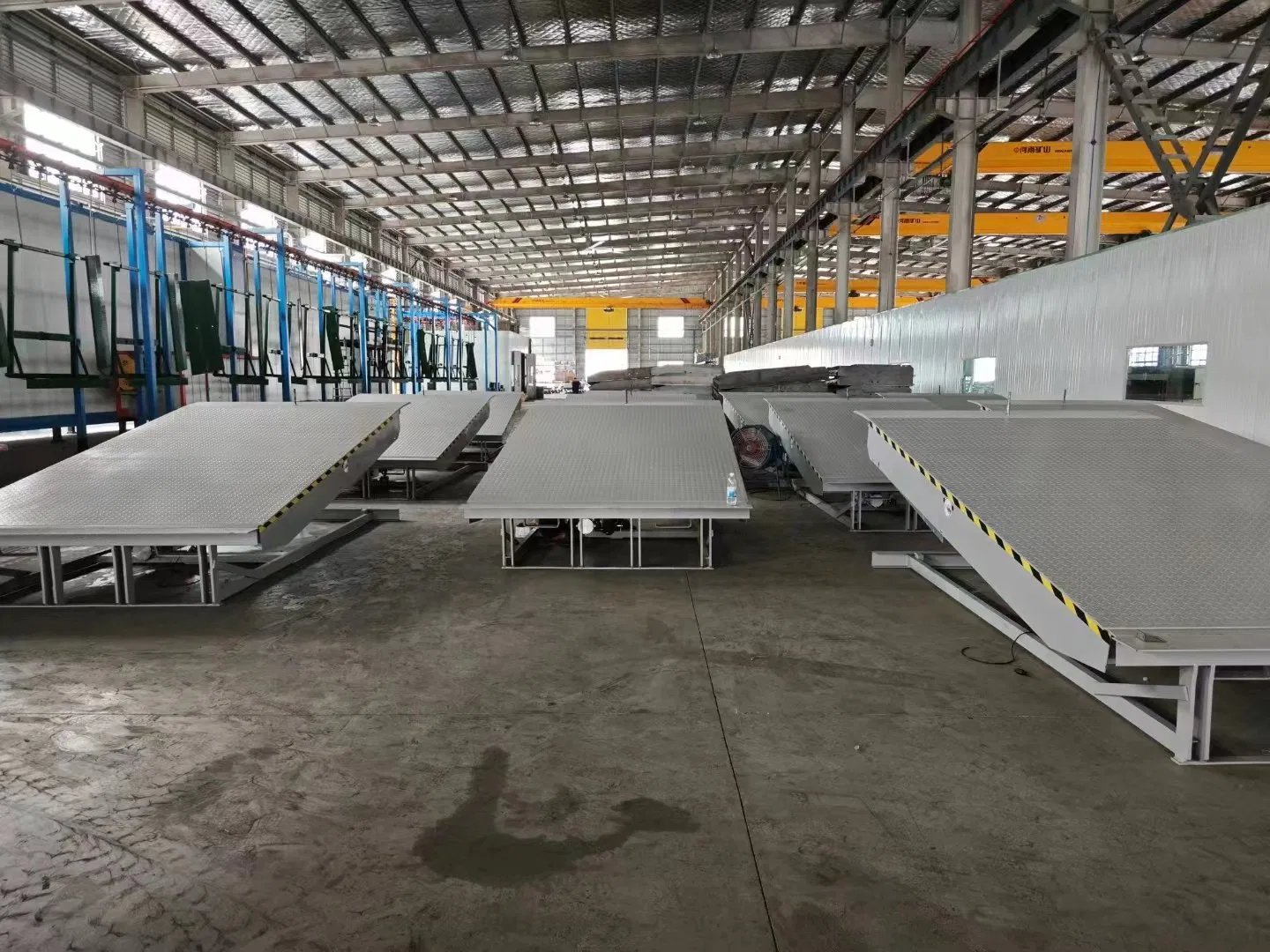

Hydraulic Dock Leveler connects trucks and platforms for streamlined loading and unloading operations. This system effectively compensates for the height difference between the vehicle and the building platform.

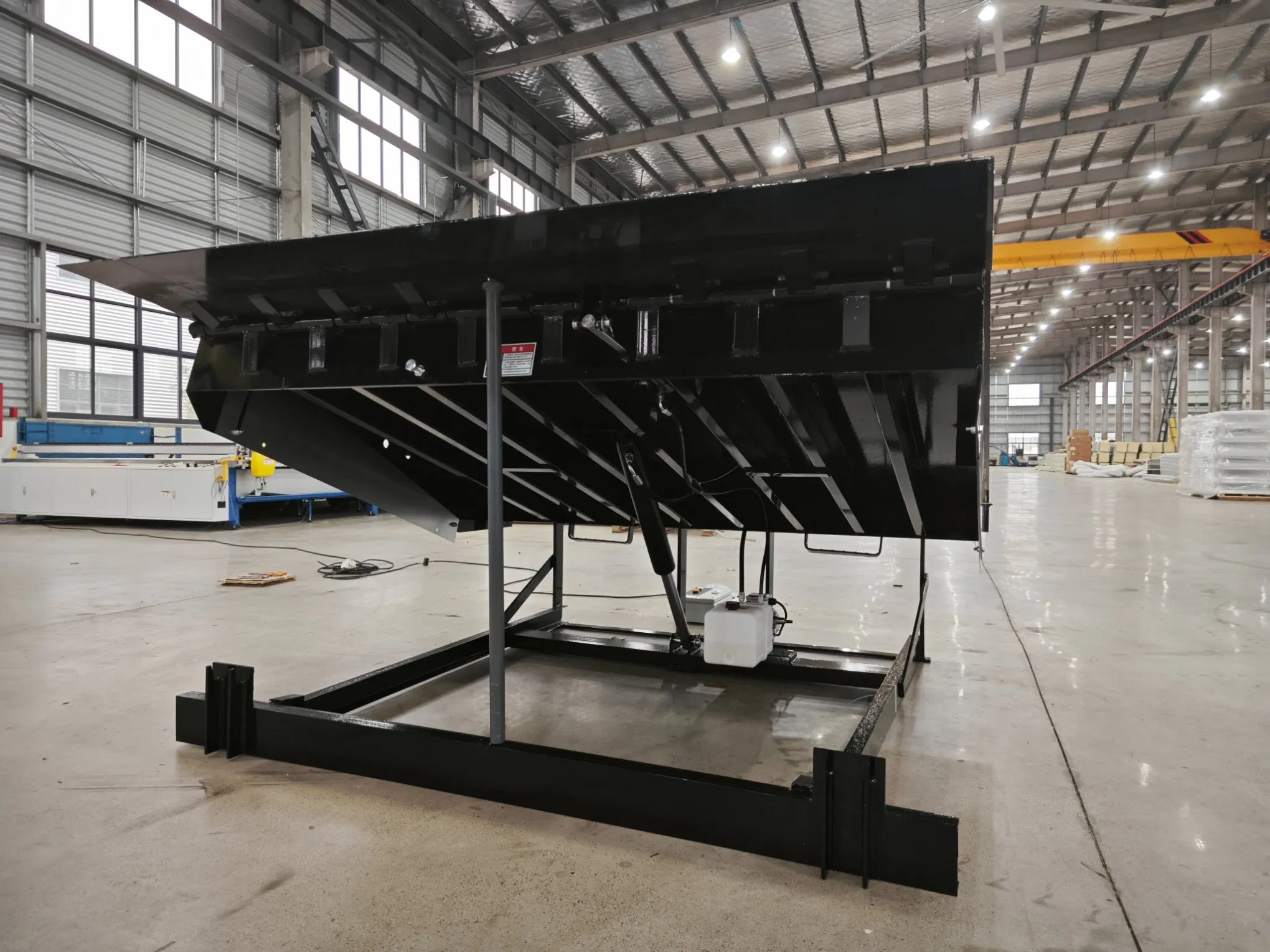

When the truck is stabilized at the dock, the main panel and slab are lifted to the truck compartment board using the electro-hydraulic system. This allows handling vehicles to enter the compartment directly, ensuring a safe and efficient workflow. Safety is prioritized in the structural design, with actual carrying capacities exceeding international load-bearing standards.
| Part Name | Configuration |
|---|---|
| Platform size | (W*L*H) 2000*2000*500(mm) |
| Load | Dynamic load 6800kg / Static load 13600kg |
| Countertop panel | Thickness 8mm, antiskid pattern steel plate |
| Lip | Thickness 16mm, whole sheet antiskid steel plate |
| Hydraulic system | Dedicated unit, 0.75kW 380V 50HZ |
| Control system | CPU integrated system with status display & fault codes |
| Hydraulic cylinder | Main panel lift & auxiliary lap plate flip; NOK seals |
| Hydraulic tubing | Goodyear brand, pressure 220 bar |
| Adjustable range | +350/-300mm |
| Bumper block | One pair, 250*300*100mm |
