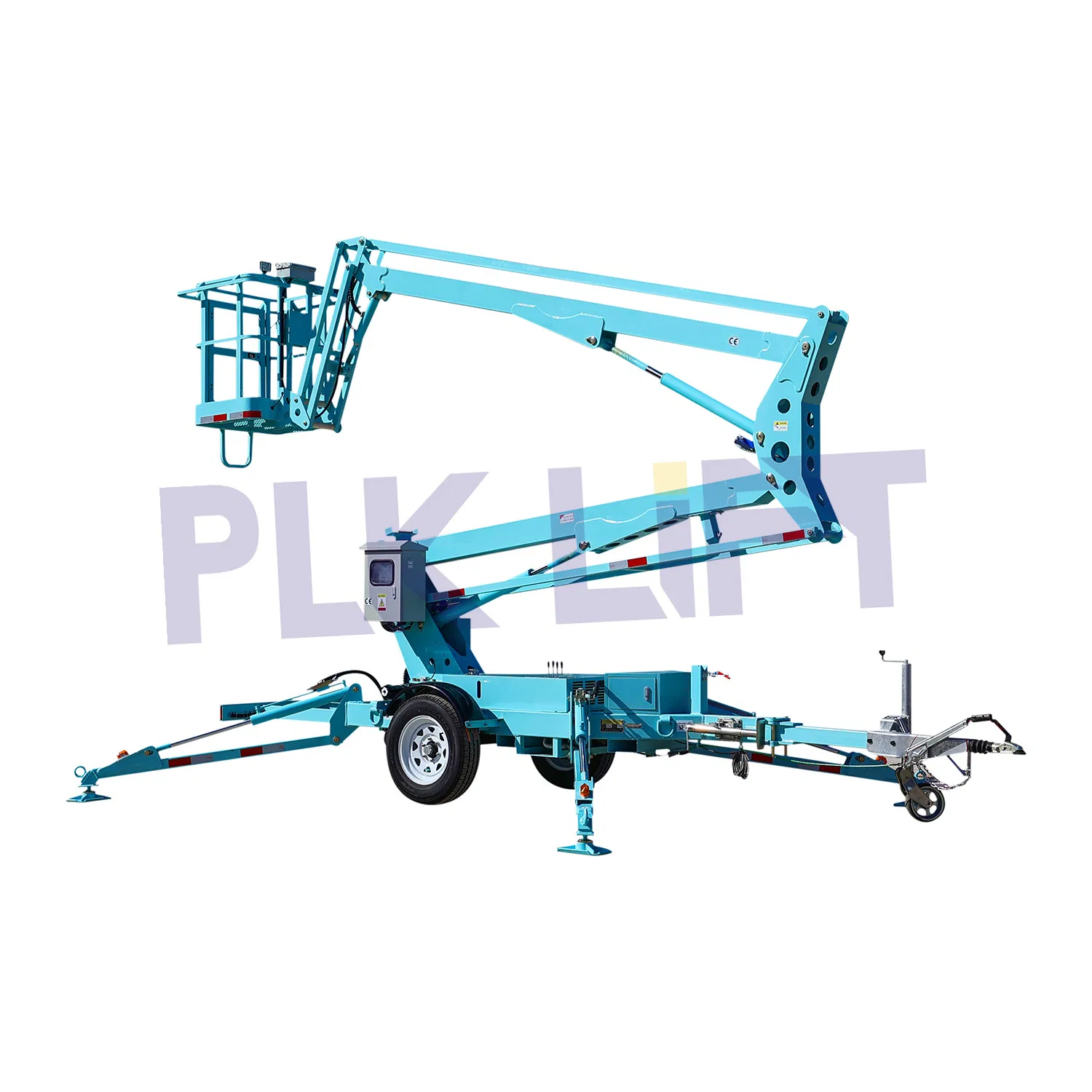

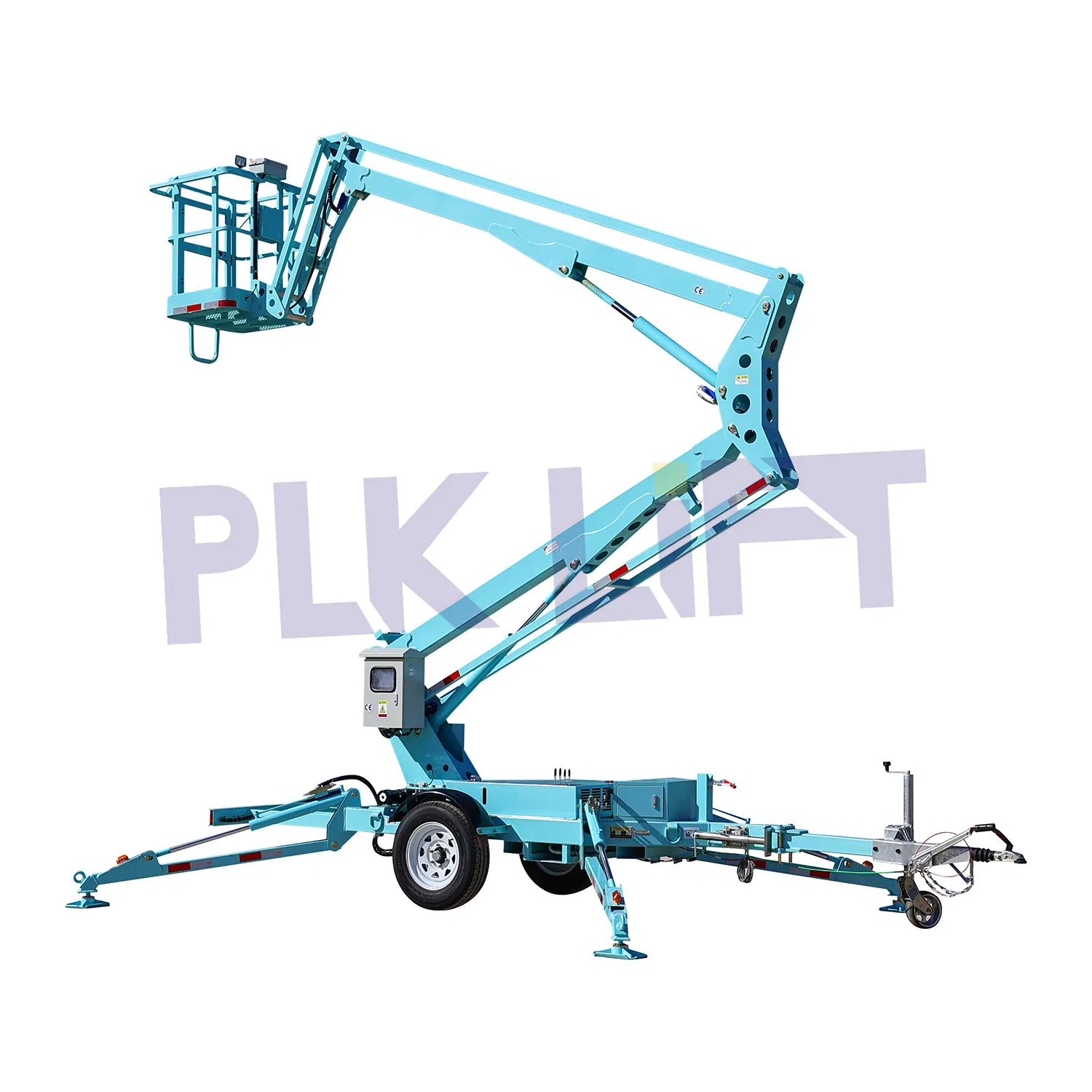

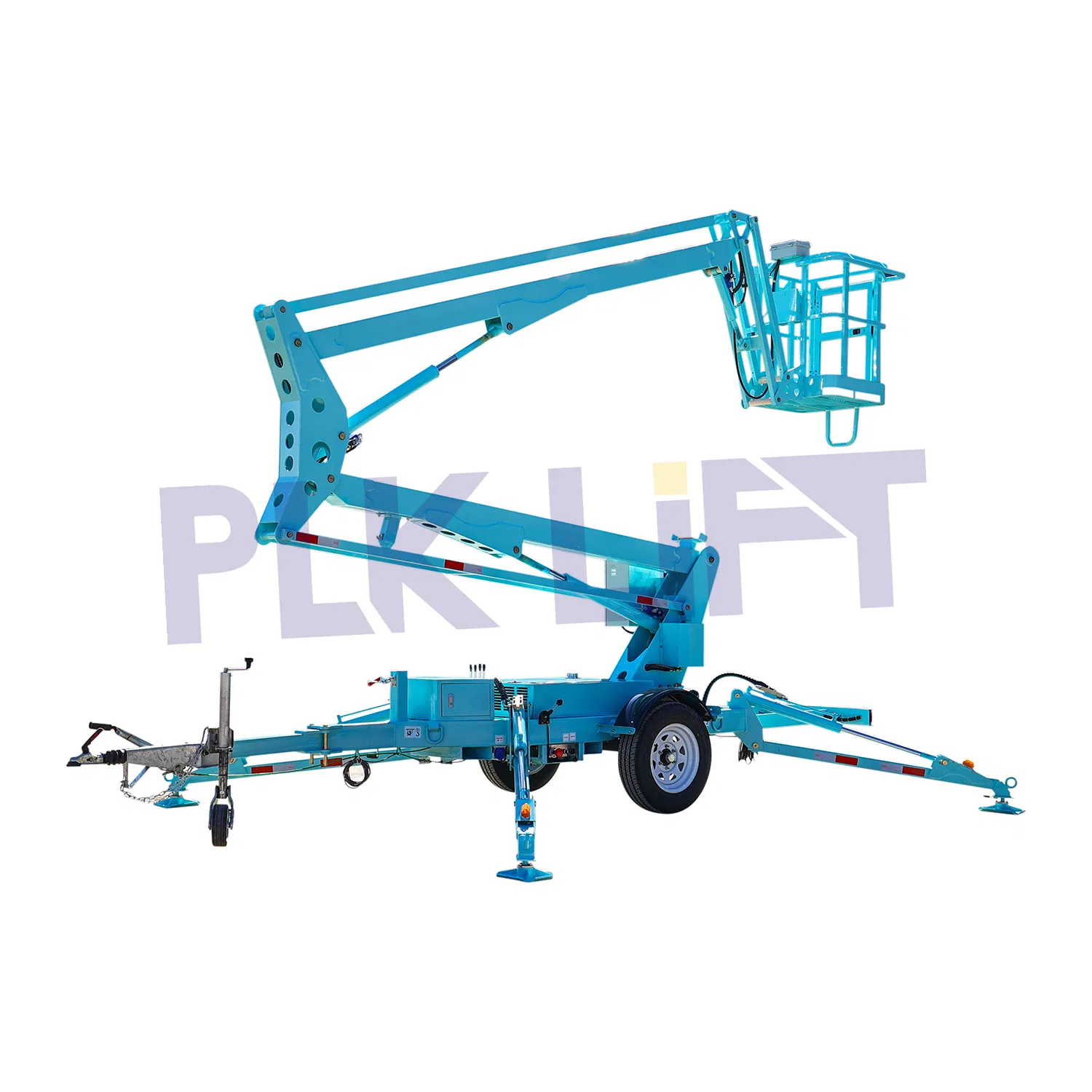

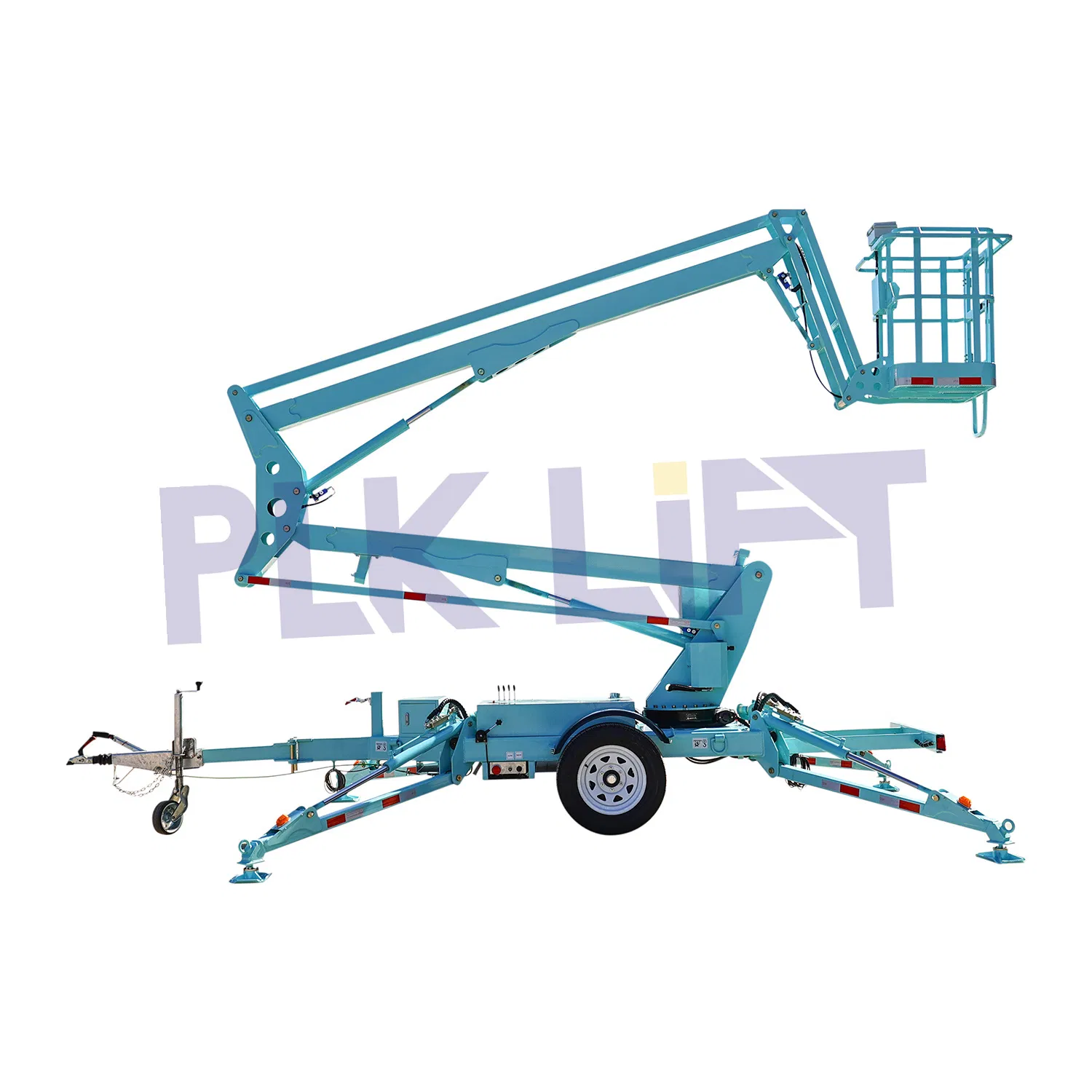

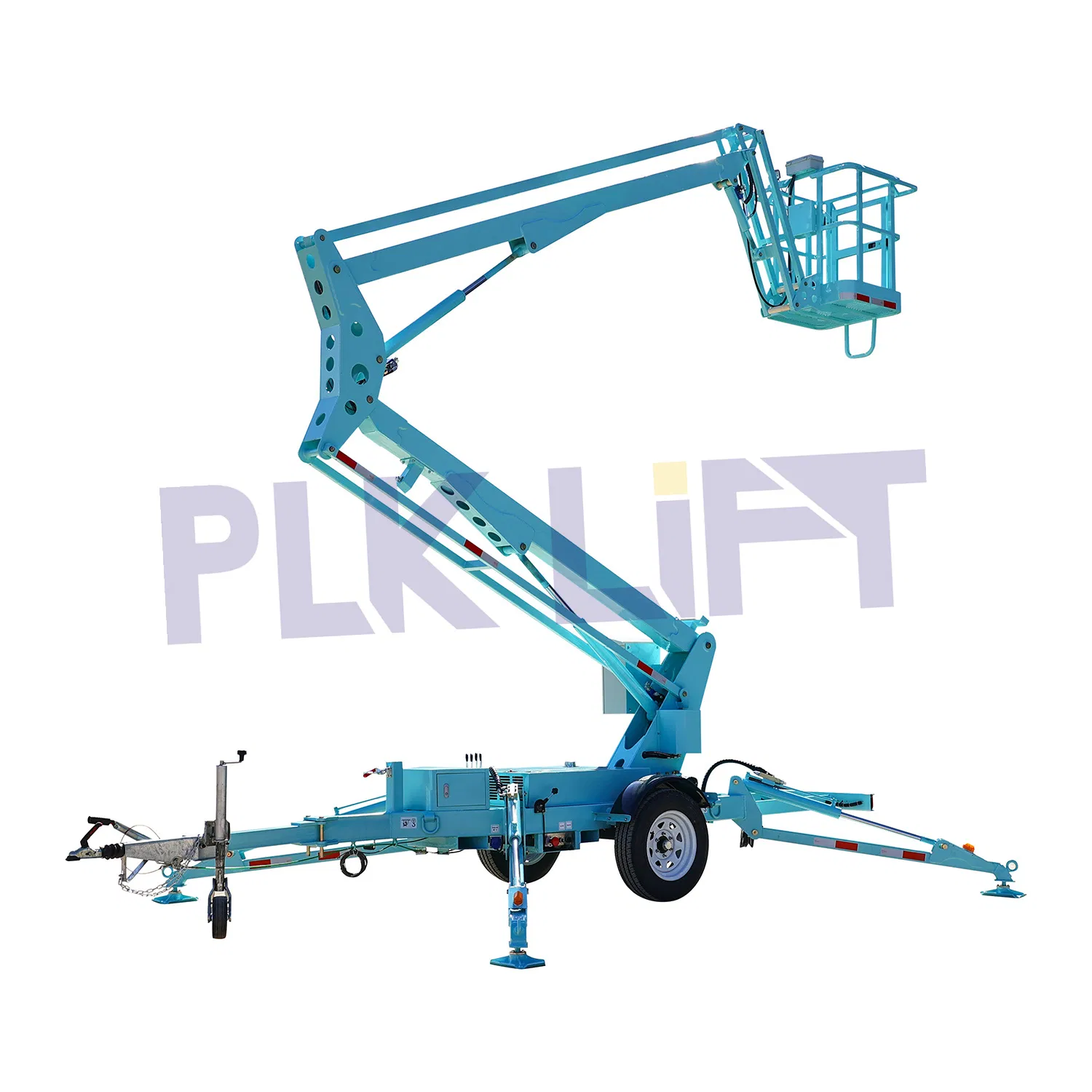

10m 12m 14m Gasoline Diesel Hydraulic Manlift Towable Cherry Picker Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

TBL

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Hydraulic

Carrying Capacity

200 Kg

Moves

Towable / Crawler Tracked

Certification

GS, CE, RoHS, ISO 9001

Turning Degree

360 Degree

Surface Treatment

Plastic Spraying

Input Voltage

110V - 400V (Customized)

Lift Height

10m, 12m, 14m, 16m

🚀 Product Description

12m to 22m Crawler Tracked Articulating Hydraulic Boom Lift

The Towable Boom Lift can reach working heights from 12m to 22m with a load capacity of 200kg. Power options include DC (battery), gasoline, or diesel engines. It is widely used for aerial tasks such as road lamp repair, tree trimming, and window cleaning. Featuring a crawler track system, it excels on rough and muddy terrain where standard firm-site machinery cannot operate.

📊 Technical Parameters

Model	TBL-12A	TBL-14A	TBL-14AT	TBL-16A	TBL-18A	TBL-20A	TBL-22A
Lifting Height	10M	12M	12M	14M	16M	18M	20M
Working Height	12M	14M	14M	16M	18M	20M	22M
Load Capacity	300KG	220KG	300KG	300KG	220KG	220KG	220KG
Working Radius	5.5M	6.5M	7.8M	8.5M	10.5M	11M	11M
Platform Size	1.2 * 0.8M
Power Options	AC / DC Battery / Diesel / Gasoline / Dual Power

⚙️ Features & Options

Friction Wheel Walking Device (Remote Controlled)
Electric Basket Rotation
300kg High Load Capacity Option
Full 360 Degree Rotation
Insulated Basket for Electrical Safety
Manual Hand Pump for Emergency Lowering
Overload Protection Sensor
Waterproof Control Panel & Engine Cover
Germany Alko Brand Brakes
Switzerland Bucher DC Pump Station

🖼️ Product Gallery

❓ Frequently Asked Questions

1. What is the maximum working height of this boom lift?

The series offers a wide range of working heights, starting from 12 meters up to 24 meters, depending on the specific model selected.

2. What power sources are available for the hydraulic system?

We provide multiple power configurations: Single Power (AC, DC Battery, Diesel, or Gasoline) and Dual Power combinations (e.g., DC Battery + Diesel) for maximum versatility.

3. Can the boom lift operate on soft or uneven ground?

Yes, the crawler tracked version is specifically designed for rough and muddy terrain, providing superior stability and traction compared to standard wheeled lifts.

4. Is the platform rotatable for better positioning?

Standard models offer 359-degree rotation, with an option for full 360-degree continuous rotation to ensure precise access to aerial work areas.

5. What safety features are included as standard?

The lift includes Germany Alko brand brakes, waterproof control panels, two-way hydraulic cylinders, and can be equipped with overload sensors and emergency manual lowering pumps.

6. Does the equipment meet international quality standards?

Yes, all products are CE certified and comply with GS, RoHS, and ISO 9001 quality management standards.
