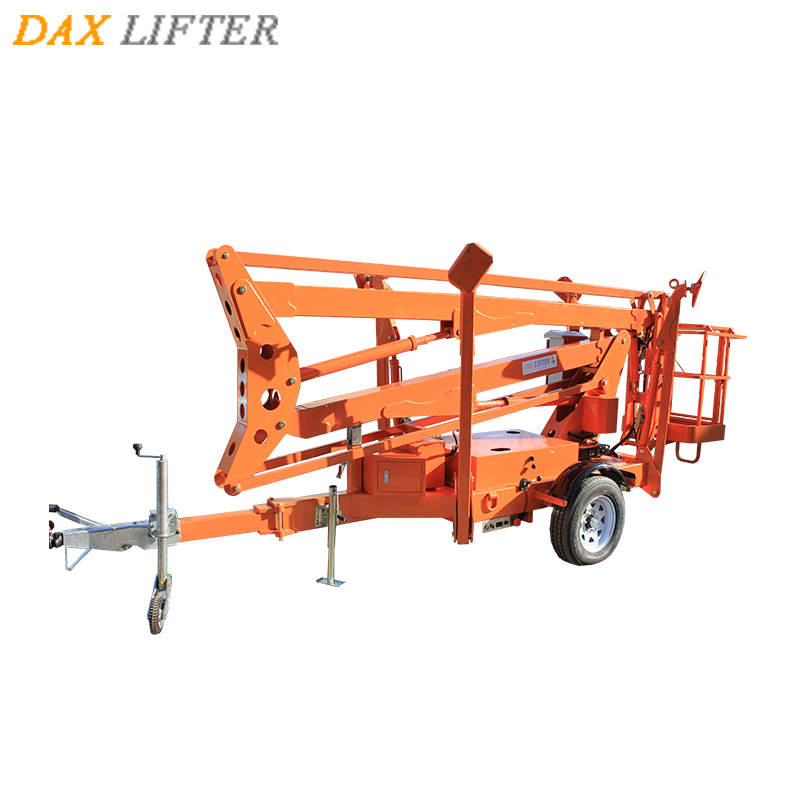

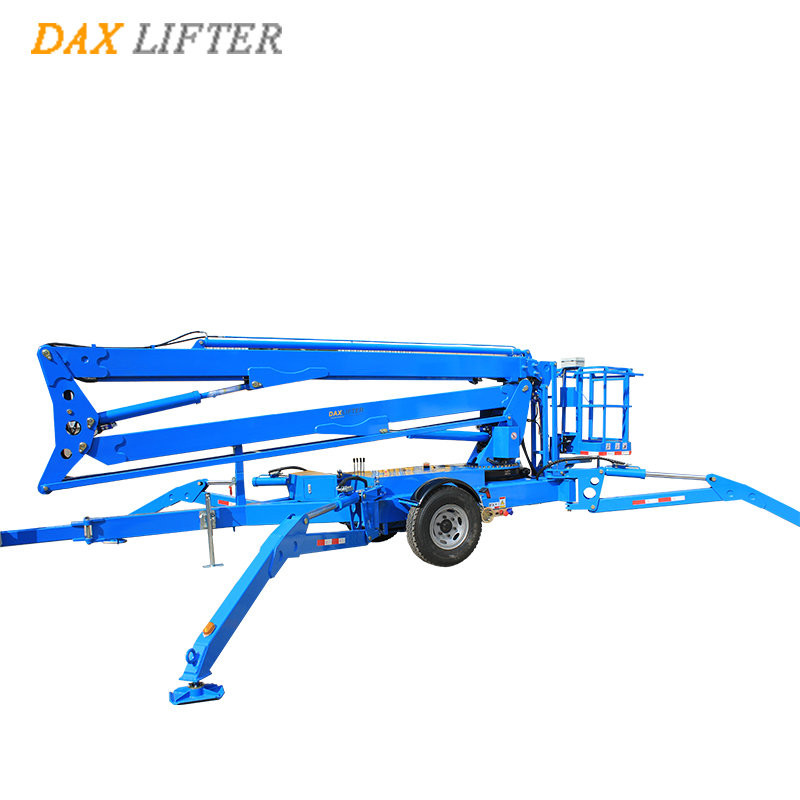

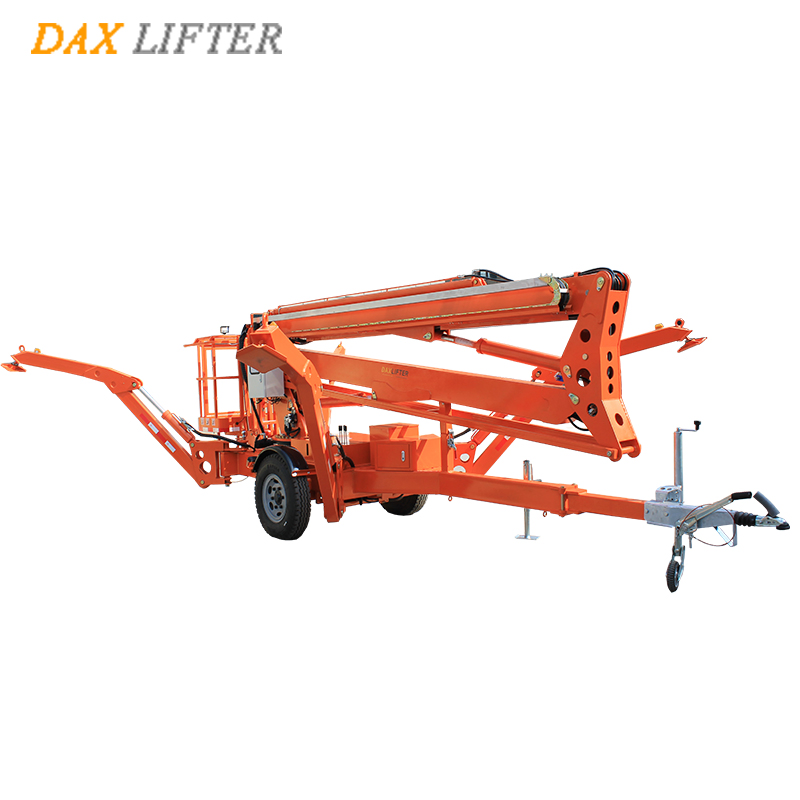

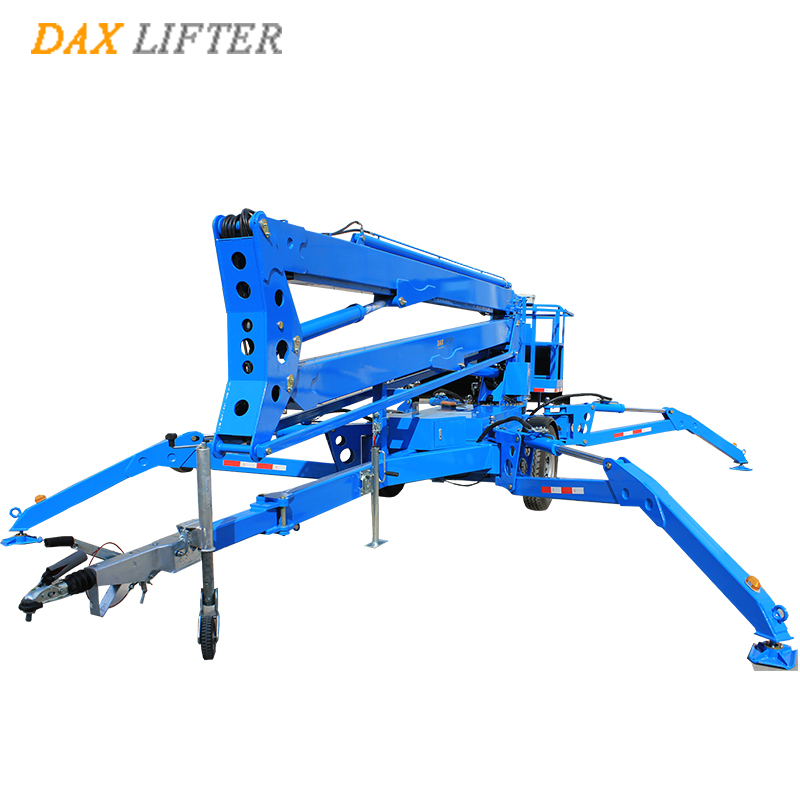

Dax Machinery 18m China Small Towable Spider Articulated Cherry Picker

i

Basic Information

Model NO.

DXBL

Application

Workshop, Shipboard, Warehouse, Building Crane

Carrying Capacity

Middle-Level (200kg)

Certification

CE, ISO 9001

Height Range

10-16m

Rotation

360° Continuous

Platform Size

0.9*0.7m

HS Code

8428909090

★

Product Overview

The Towable Spider Boom Lift is a high-performance hydraulic lifting solution designed for outdoor construction and high-altitude maintenance. Featuring a high ascent height and a large operating range, the articulated arm can easily fold over obstacles to reach difficult locations.

With a 360° continuous rotation capability, this equipment serves as an essential tool for lifting personnel and goods safely. It is particularly stable on uneven surfaces thanks to its four hydraulic support legs, making it ideal for stations, docks, and public building projects.

📊

Technical Specifications

Model	DXBL-10	DXBL-12	DXBL-14	DXBL-16	DXBL-18	DXBL-20
Lifting Height	10m	12m	14m	16m	18m	20m
Working Height	12m	14m	16m	18m	20m	22m
Load Capacity	200kg
Working Radius	5.5m	6.5m	8.5m	10.5m	11m	11m
Overall Length	6.3m	7.3m	6.65m	6.8m	7.6m	6.9m
Overall Width	1.7m	1.7m	1.7m	1.7m	1.8m	1.9m

🖼️

Product Display

✔

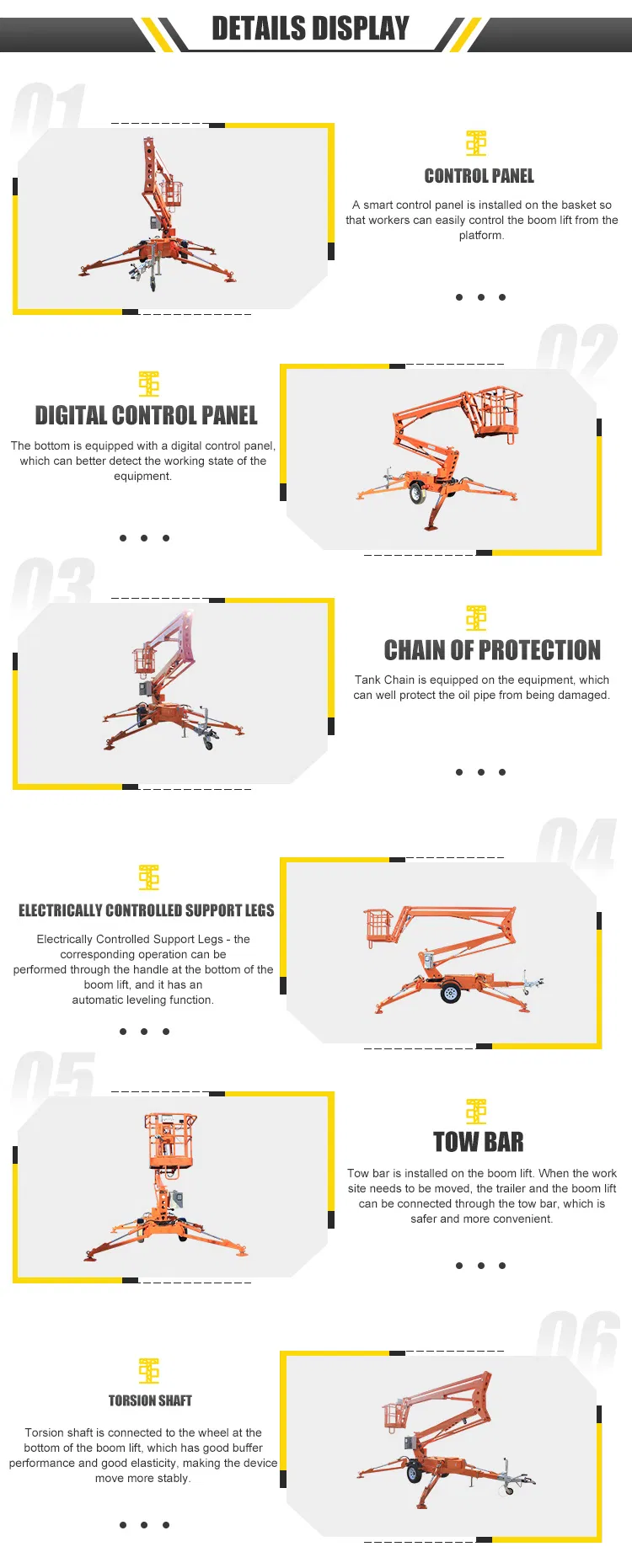

Key Features & Advantages

High-quality Brakes

Imported braking systems ensuring reliable quality and stop-motion precision for safer towing.

360° Continuous Rotation

Equipped with specialized bearings allowing the folding arm to rotate fully for maximum reach.

Safety Indicator Lights

Equipped with multiple safety indicator lights to alert surrounding workers and ensure a secure environment.

Tilt Angle Sensor

Advanced limit switch design effectively protects the operator by preventing unsafe elevation angles.

Dual Control Platforms

Control panels are installed both on the ground and on the high-altitude platform for convenient operation.

Hydraulic Stability

Features four precision hydraulic outriggers with individual control rods to ensure perfect leveling on any terrain.

?

Frequently Asked Questions

What is the maximum working height of the towable boom lift?

Depending on the model selected, the working height ranges from 12m up to 22m, with platform heights reaching up to 20m.

Can it be operated on uneven ground?

Yes, the equipment is designed with four independent hydraulic supporting legs (outriggers) that ensure the lift remains stable and level even on uneven surfaces.

What power sources are available for this boom lift?

We offer multiple power source options including AC electric, Battery (DC), Diesel, Gasoline, or Hybrid power to suit different working environments.

Is the control system waterproof?

Yes, the boom lift is equipped with a waterproof control panel and a waterproof electrical box, making it highly durable for outdoor construction use.

What safety features are included for high-altitude work?

Safety features include a basket safety lock, emergency stop buttons, tilt angle sensors, and safety indicator lights to ensure a secure working environment for operators.

Is the boom lift easy to transport?

Yes, it is a "towable" lift designed with a traction handle and high-quality German brakes, allowing it to be easily moved between work sites using a standard vehicle.
