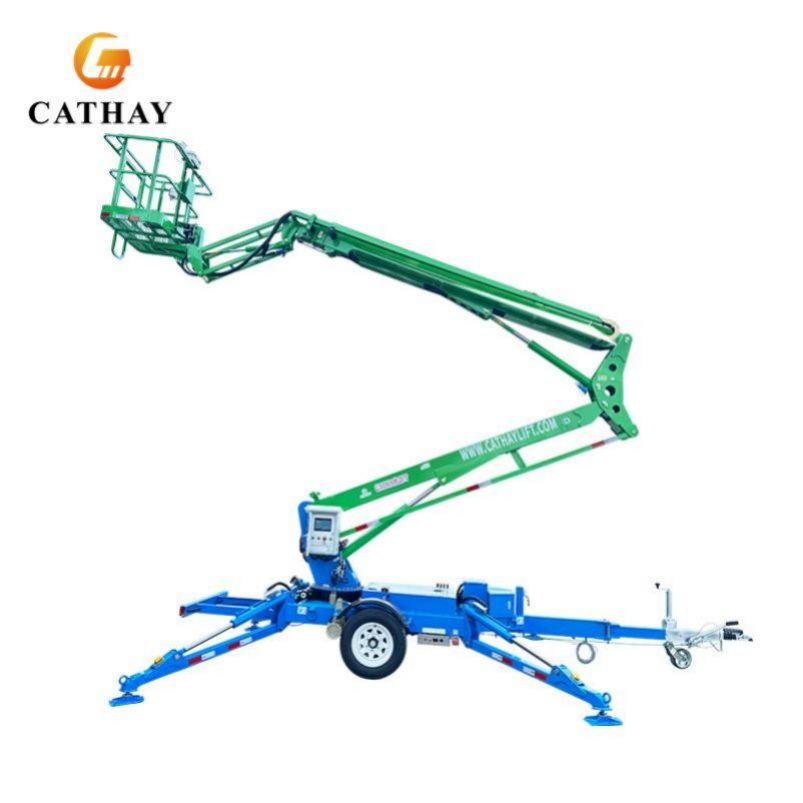

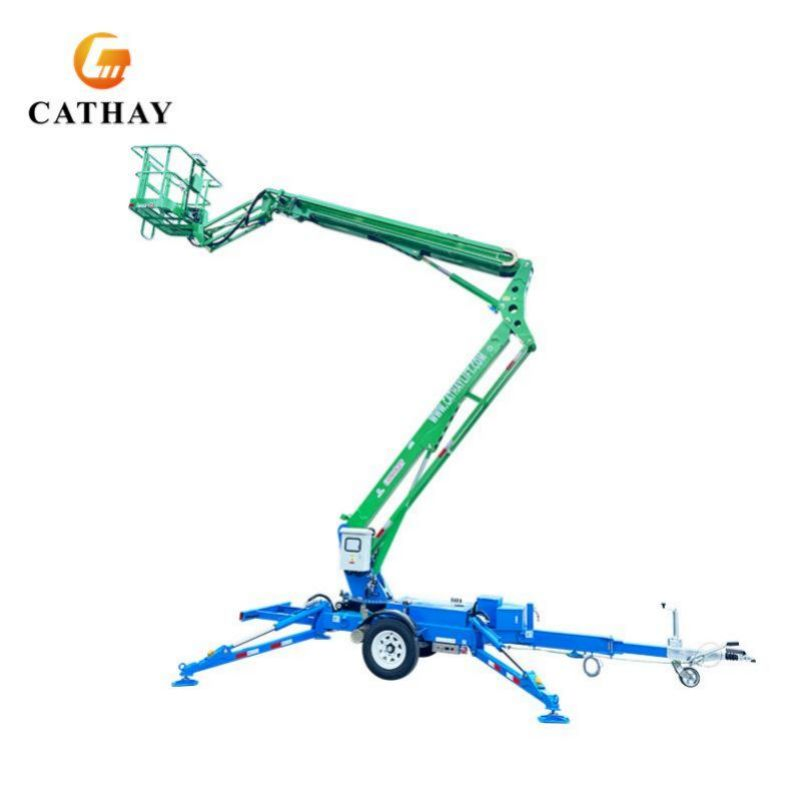

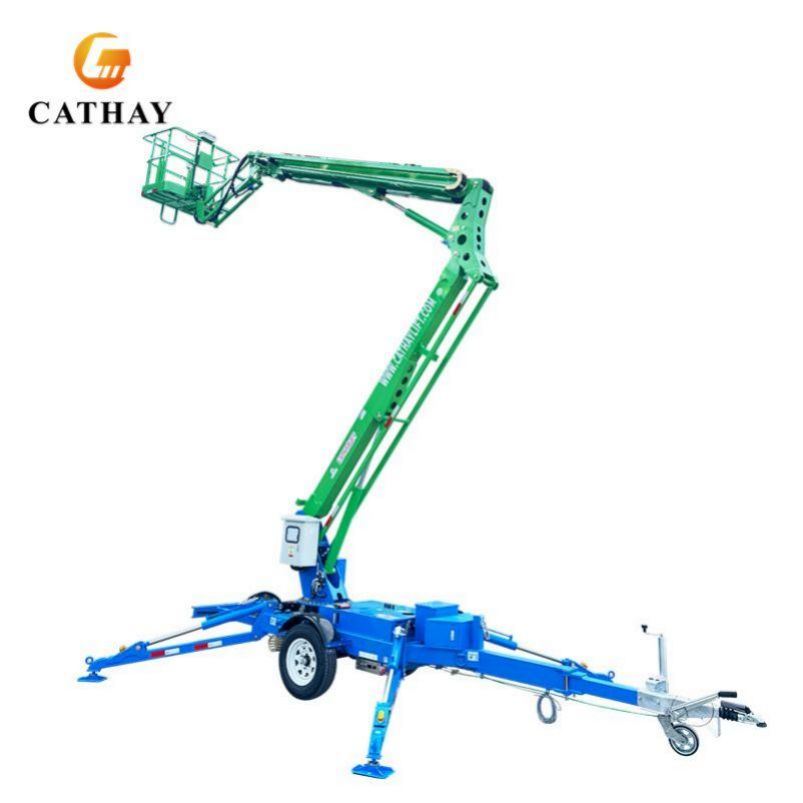

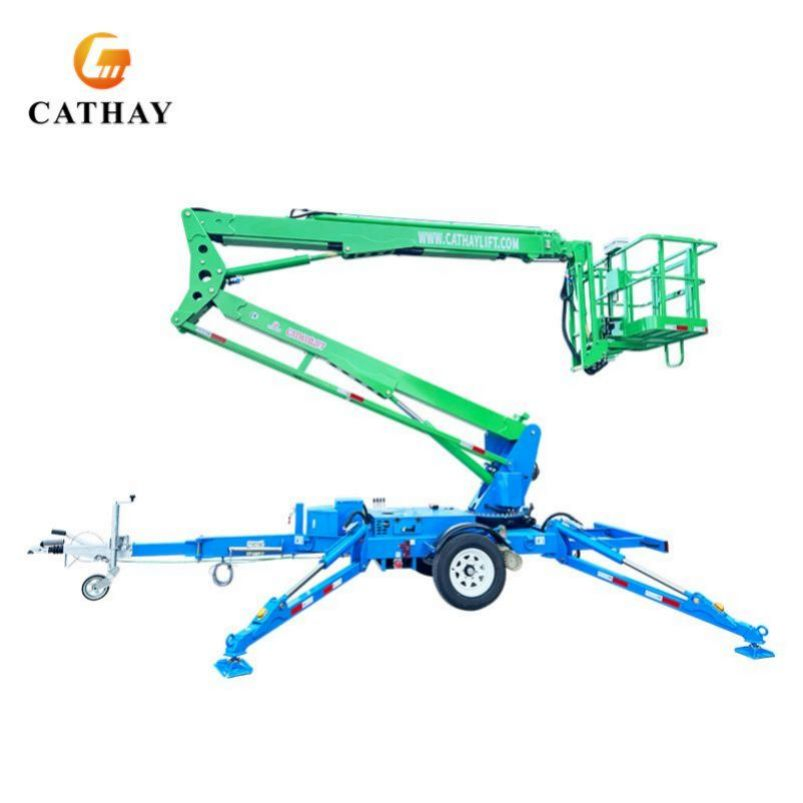

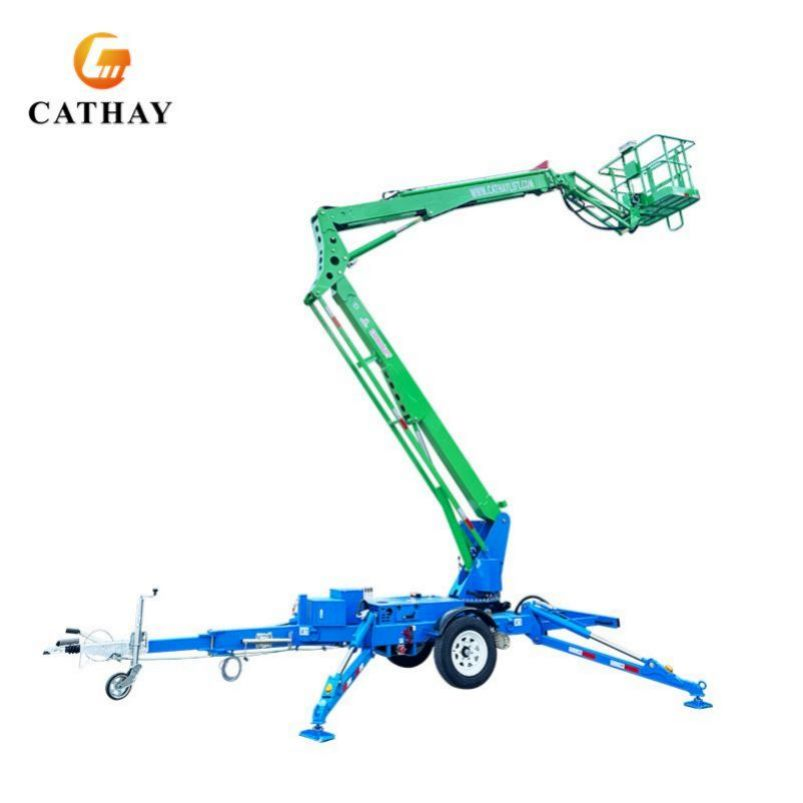

CTA-20t AC/DC Gasoline Diesel Towable Articulating Cherry Picker

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
CTA-12T, CTA-14T, CTA-16T, CTA-18T, CTA-20T
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
227kg
Driven Type
AC / DC / Gasoline / Diesel
Feature
Explosion-Proof, Insulating
Working Height
12m-24m
Working Radius
5.5-11m
Net Weight
1750kg-5000kg
📦
Packaging & Delivery
Package Size
520.00cm * 170.00cm * 210.00cm
Gross Weight
1750.000kg
Product Description

The Trailer boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m, and the models with higher lift heights are all telescopic versions. The horizontal working radius of 5.5m~11m, and its 360-degree rotating table, make it have outstanding performance in various aerial work projects.

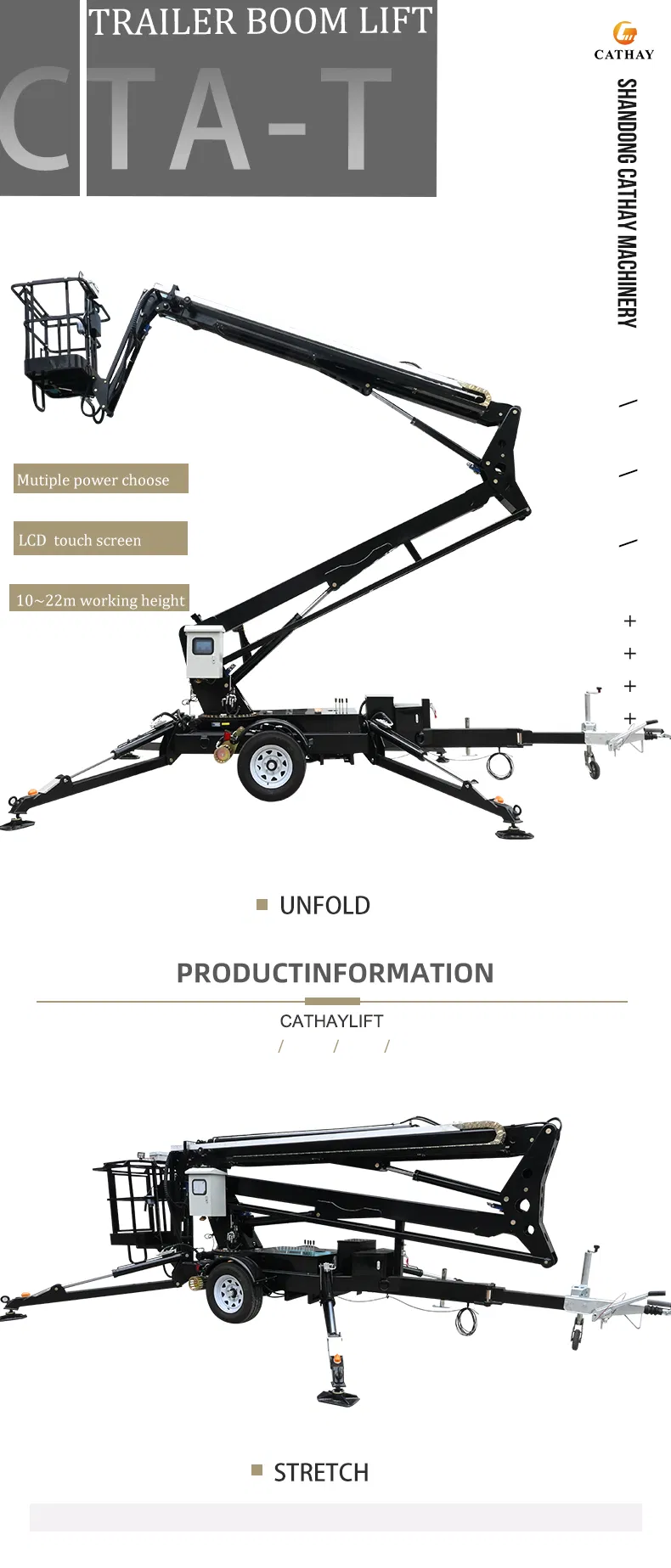

High-end Towable/Trailer Boom Lift
📋
Product Parameters
Model Type CTA-12A CTA-14A CTA-14T CTA-16T CTA-18T CTA-20T CTA-22T CTA-24T
Version ArticulatedArticulatedTelescopicTelescopicTelescopicTelescopicTelescopicTelescopic
Lifting height 10M12M12M14M16M18M20M22M
Working height 12M14M14M16M18M20M22M24M
Load capacity 227kg
Working radius 5.5M6.5M7.8M8.5M10.5M11M11M11M
Net Weight 1750KG1950KG1850KG2150KG2350KG3000KG3500KG5000KG

* Products can be tailored to suit specific requirements, such as large slope work, one-key leg leveling, insulated baskets, and remote control.

Product Advantages

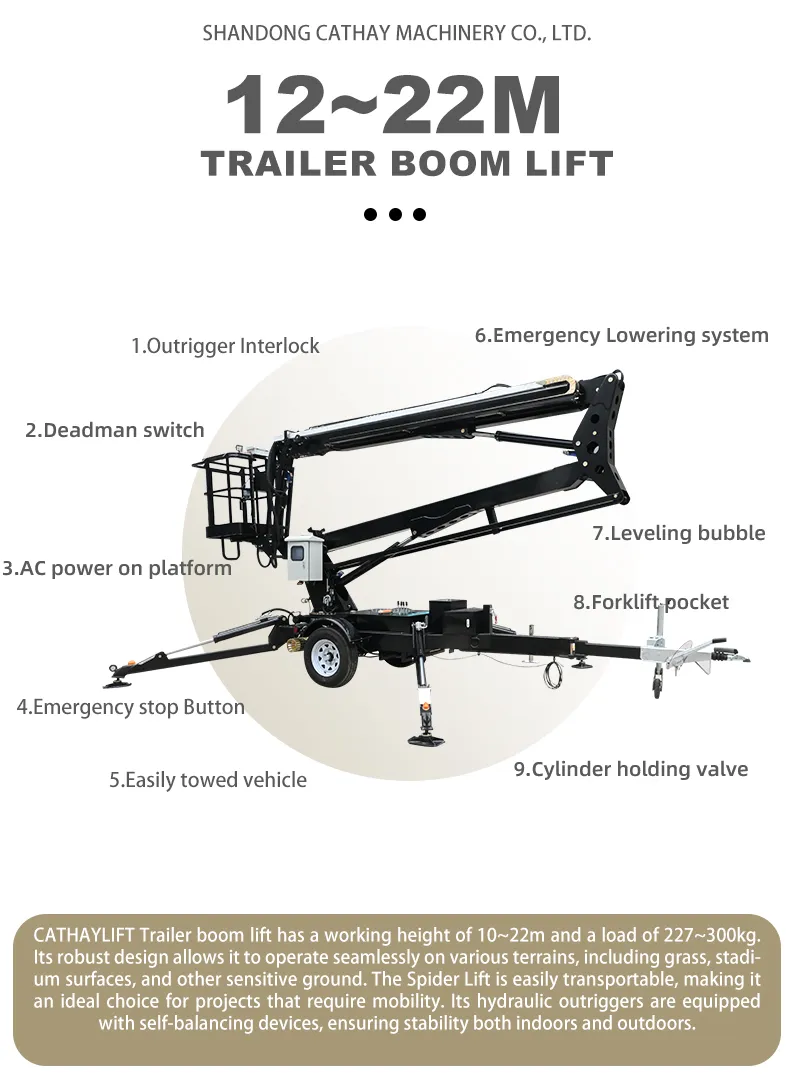

Advantage Overview
Trailer Boom Details
Bidirectional Cylinder: Accurate, fast, and features superior sealing to prevent oil leakage.
Smart Control: Waterproof LCD touch screen panel displaying machine status and E-manual.
Safety First: Deadman switch design with foot switch cooperation to prevent accidental operation.
Multiple Power: Options include Honda gasoline engines and Bucher DC motors.
Automatic Leveling: Hydraulic outriggers with self-balancing design and one-button basket leveling.
Towing Capability: German AL-KO Retractor with electromagnetic and manual brakes for speeds up to 120km/h.

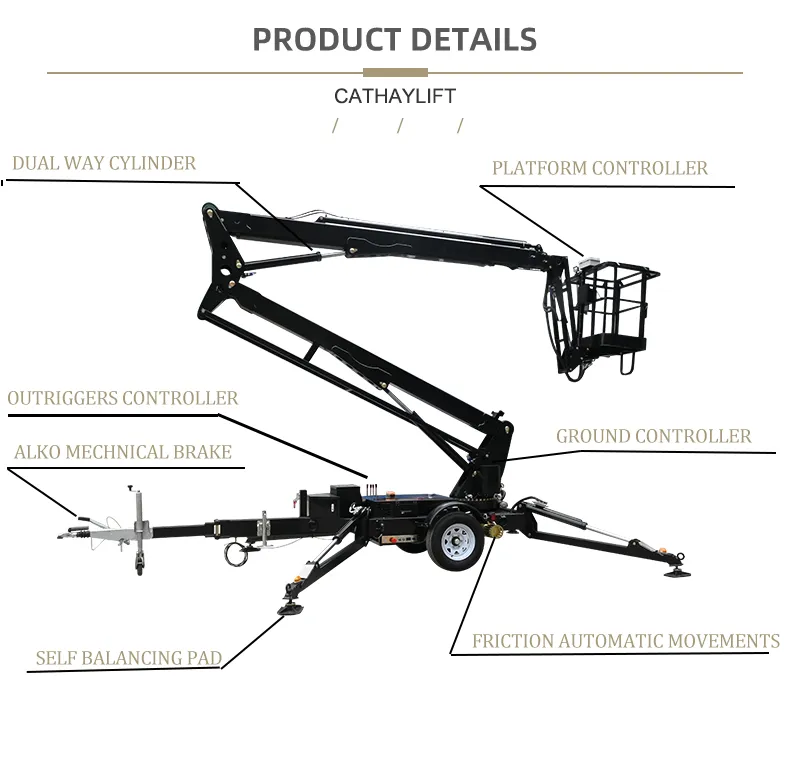

Control Panel Details

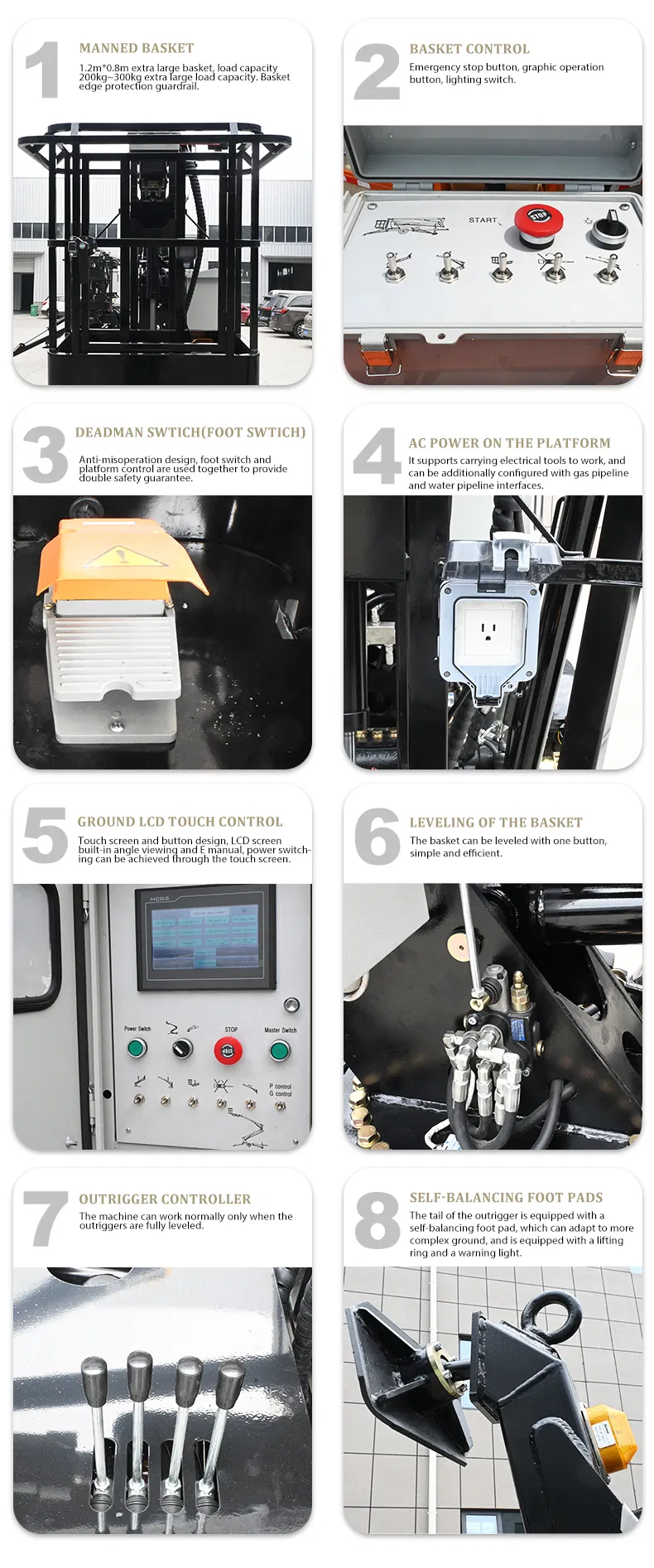

Structure Display

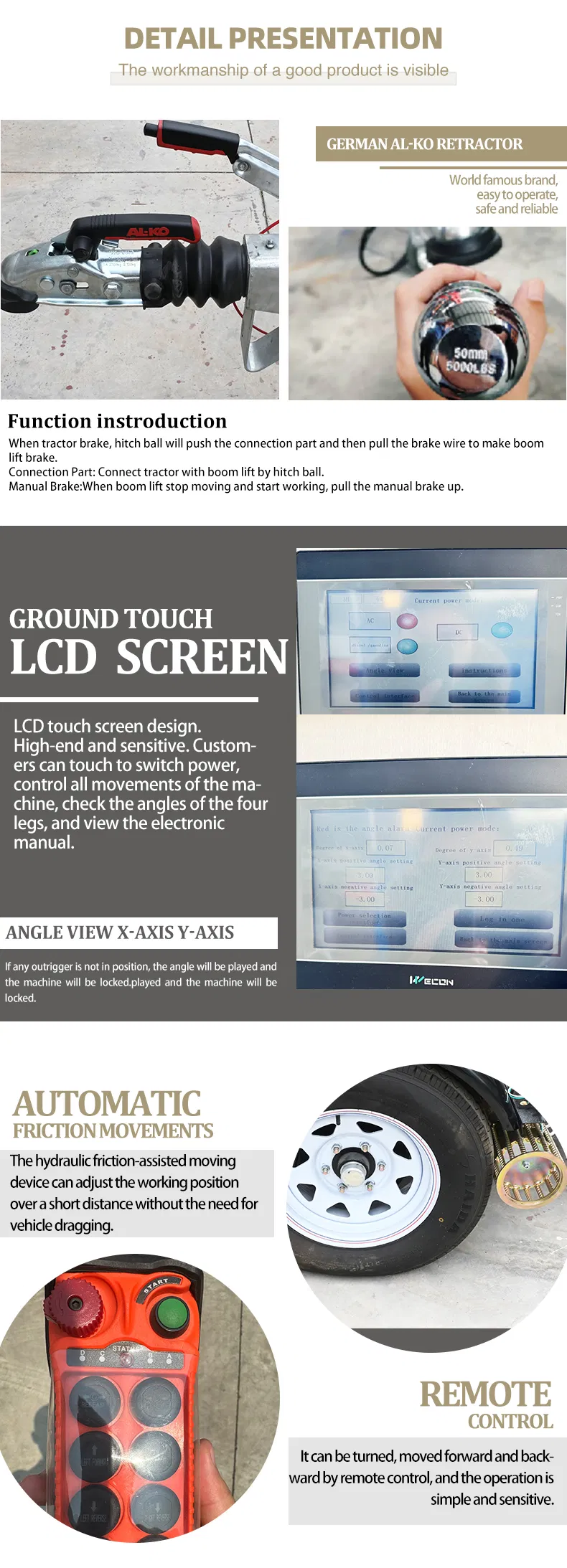

Components

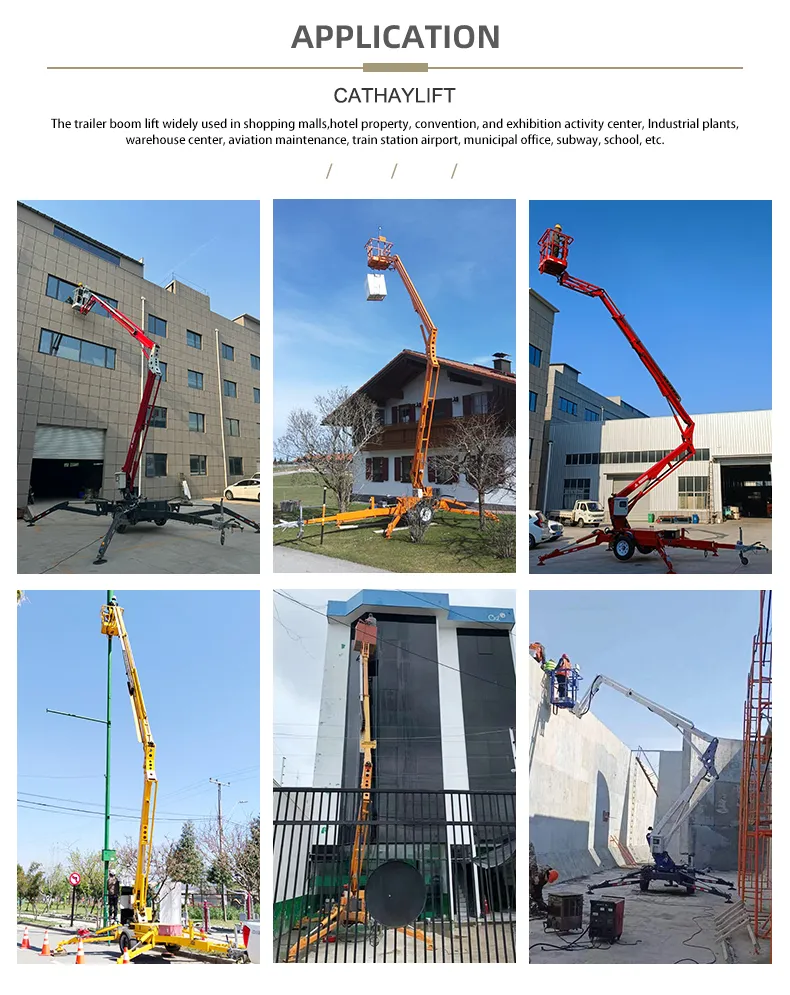

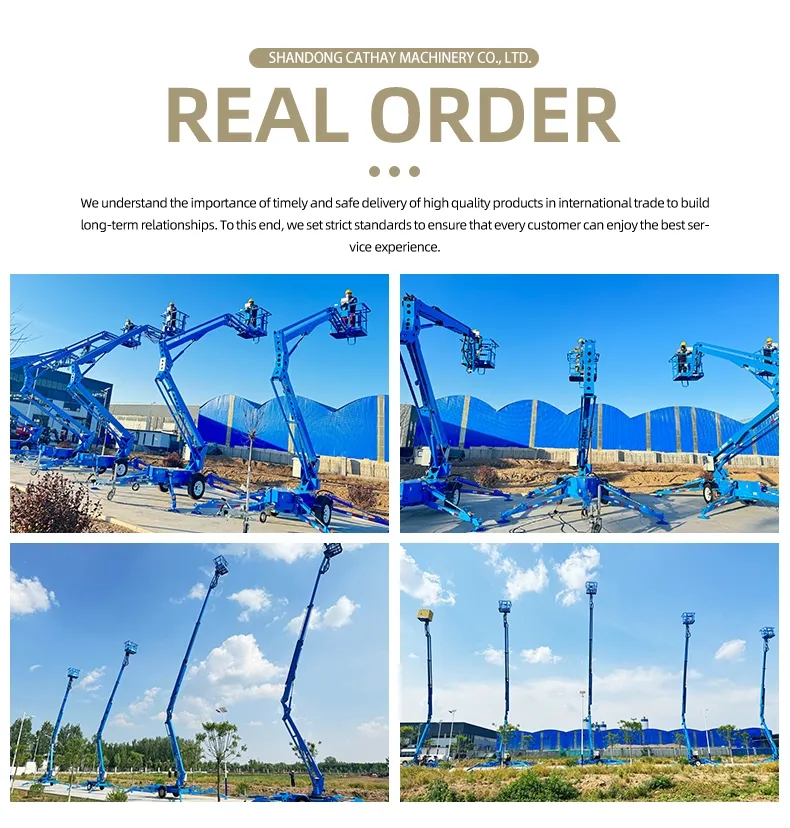

Applications & Real Orders

These boom lifts are versatile machines used across various industries. In construction, they support steel structure installation and high-rise access. For maintenance, they provide safe access to roofs, HVAC systems, and lighting. In agriculture, they assist with harvesting and pruning. Utility workers rely on them for electrical line maintenance with optional insulated platforms.

🏢
Production & Certification

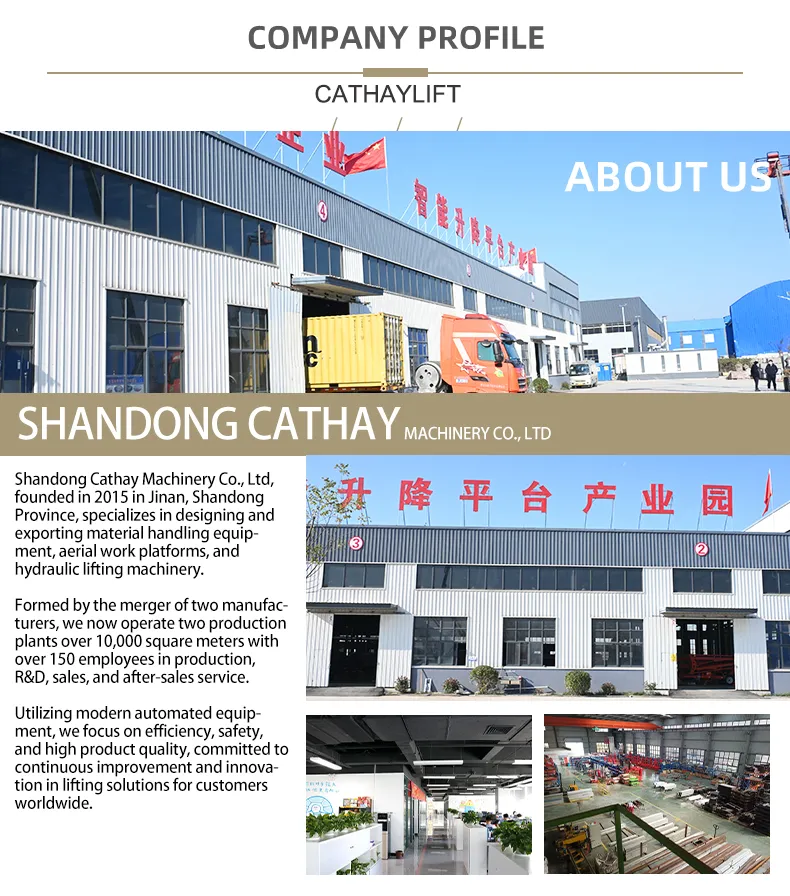

Production Facility
Certifications
Teams and Customers
🔗

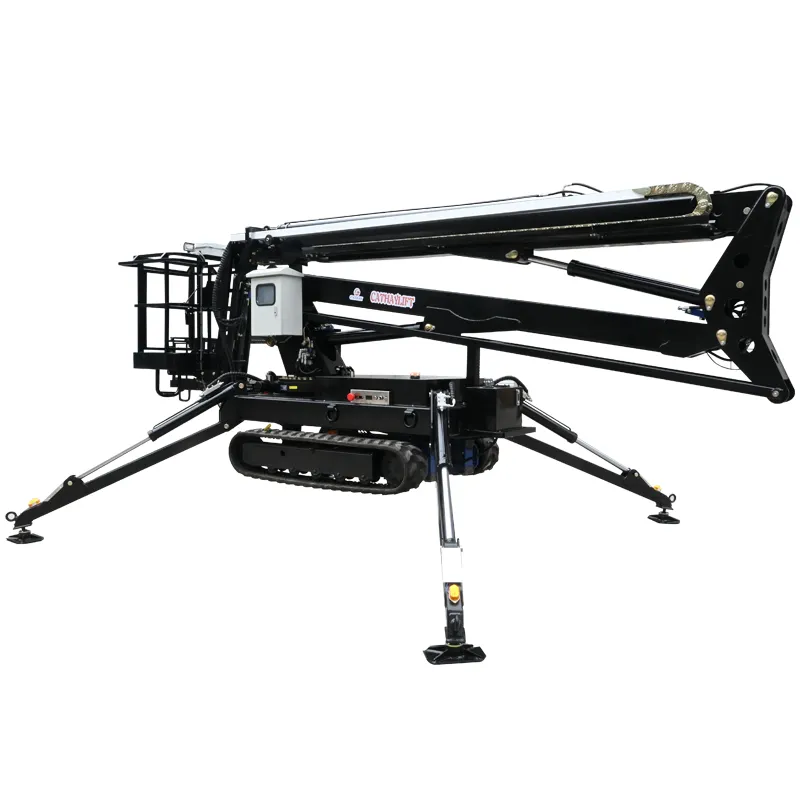

Related Products
Frequently Asked Questions
What is the maximum working height available?
Our towable boom lifts offer a range of working heights from 12 meters up to 24 meters, depending on the specific model selected.
What power source options can I choose?
We offer multiple power options including AC electric, DC battery, Diesel, Gasoline, and Dual Power systems (e.g., AC + Diesel or Gasoline + DC Battery) to suit different environments.
How much weight can the platform carry?
All standard models in this series have a robust load capacity of 227kg (approximately 500lbs), sufficient for two workers and their tools.
Is the equipment easy to transport?
Yes, it is highly portable and can be towed by various vehicles. It features a German AL-KO retractor and can handle towing speeds up to 120km/h.
What safety features are included?
Safety features include a Deadman switch, waterproof control panels, hydraulic outriggers with automatic leveling, and optional insulated baskets for utility work.
Can the lift be used on uneven ground?
Yes, the hydraulic outriggers are designed with a self-balancing system to ensure the machine remains stable and level during operation.
