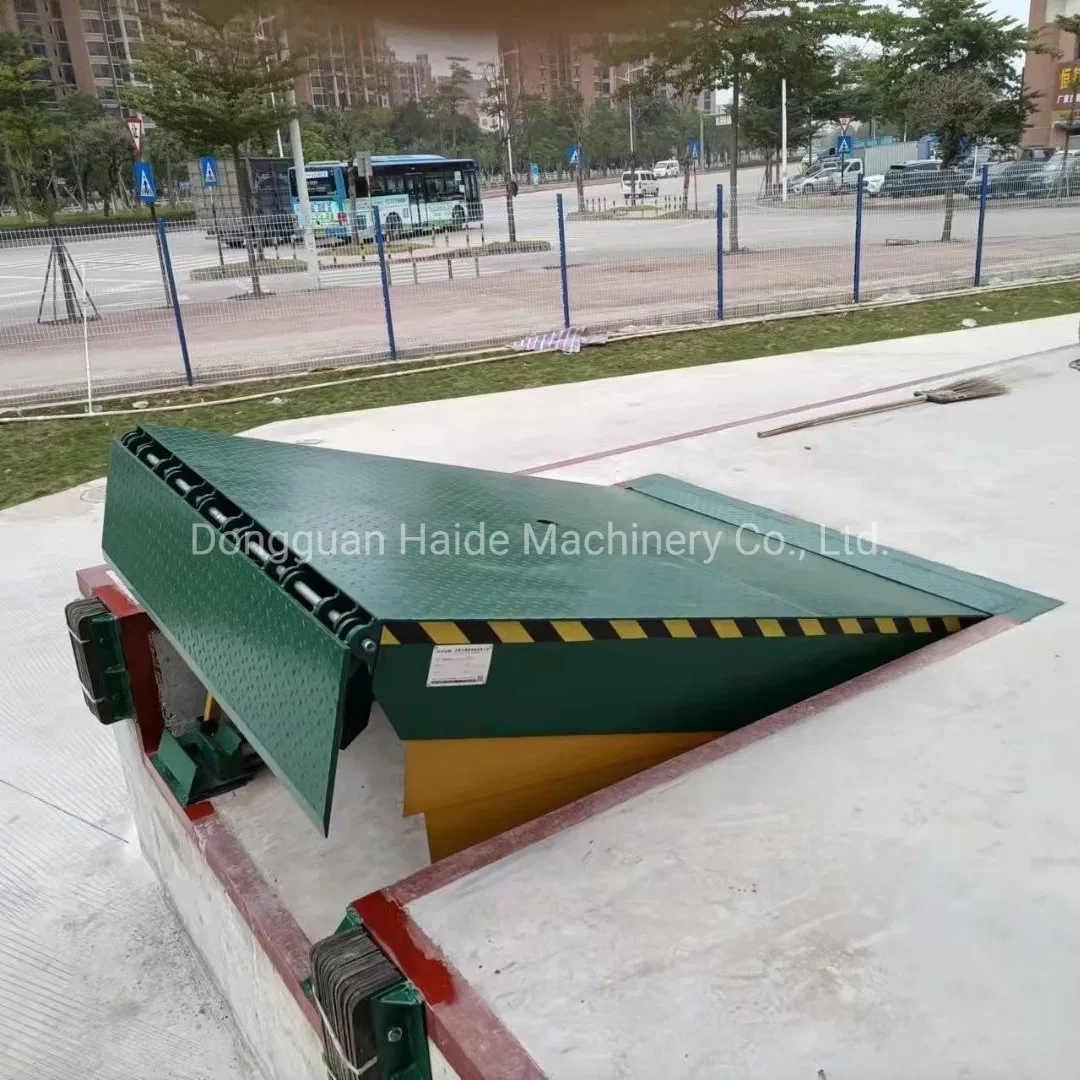

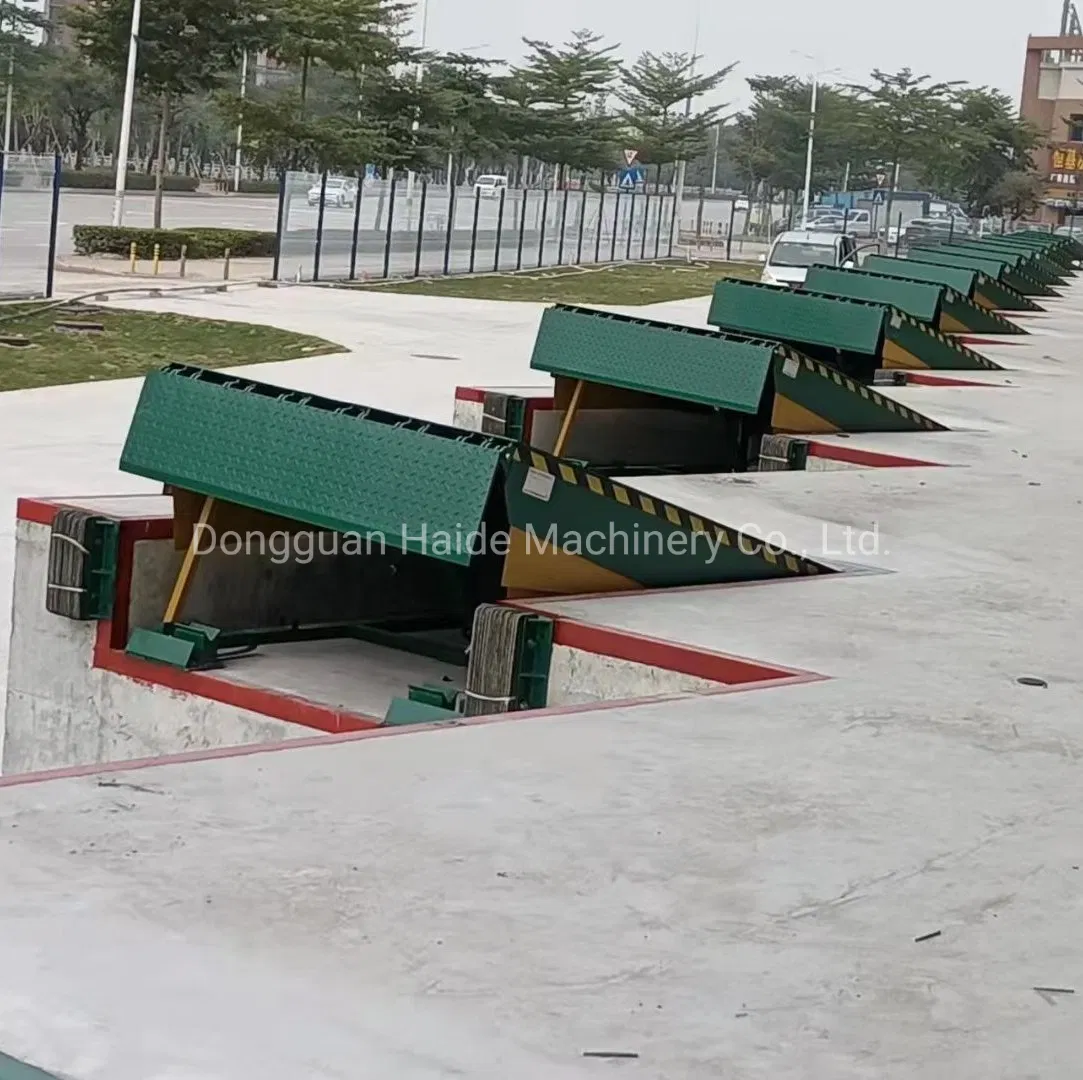

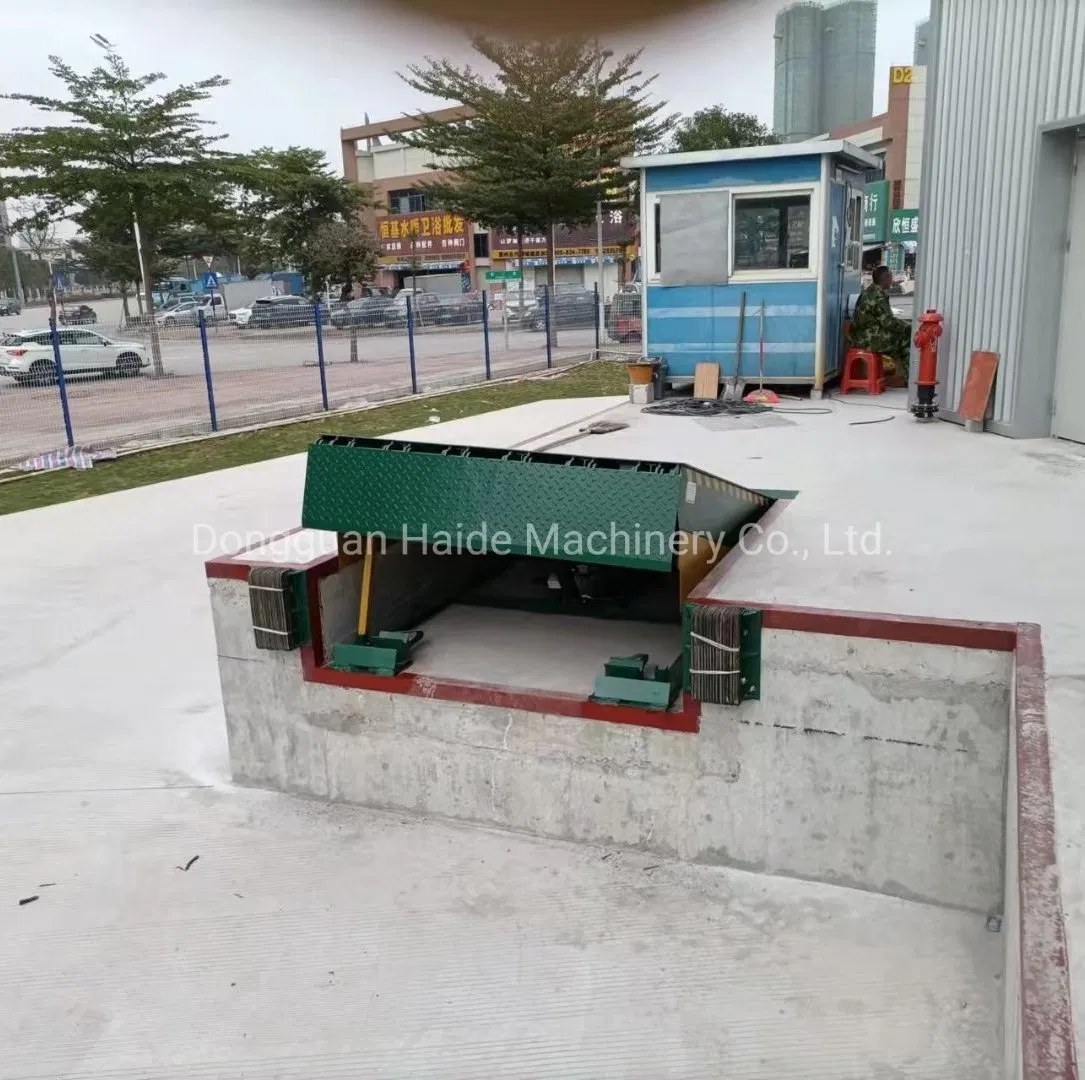

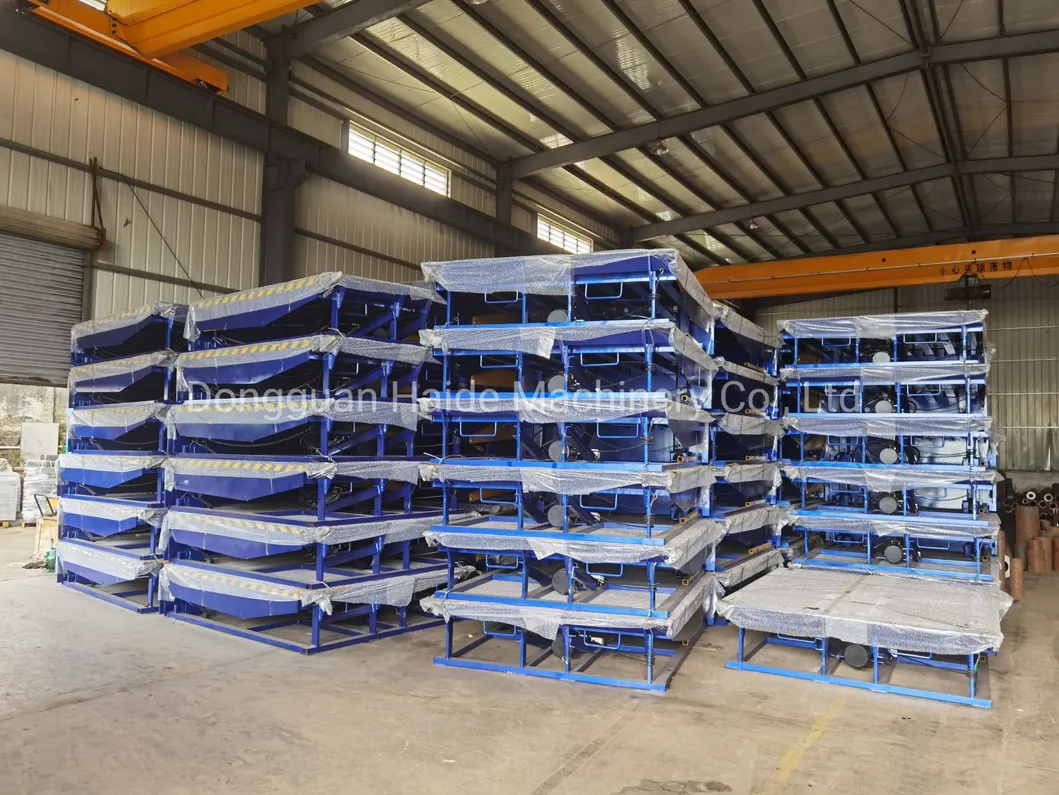

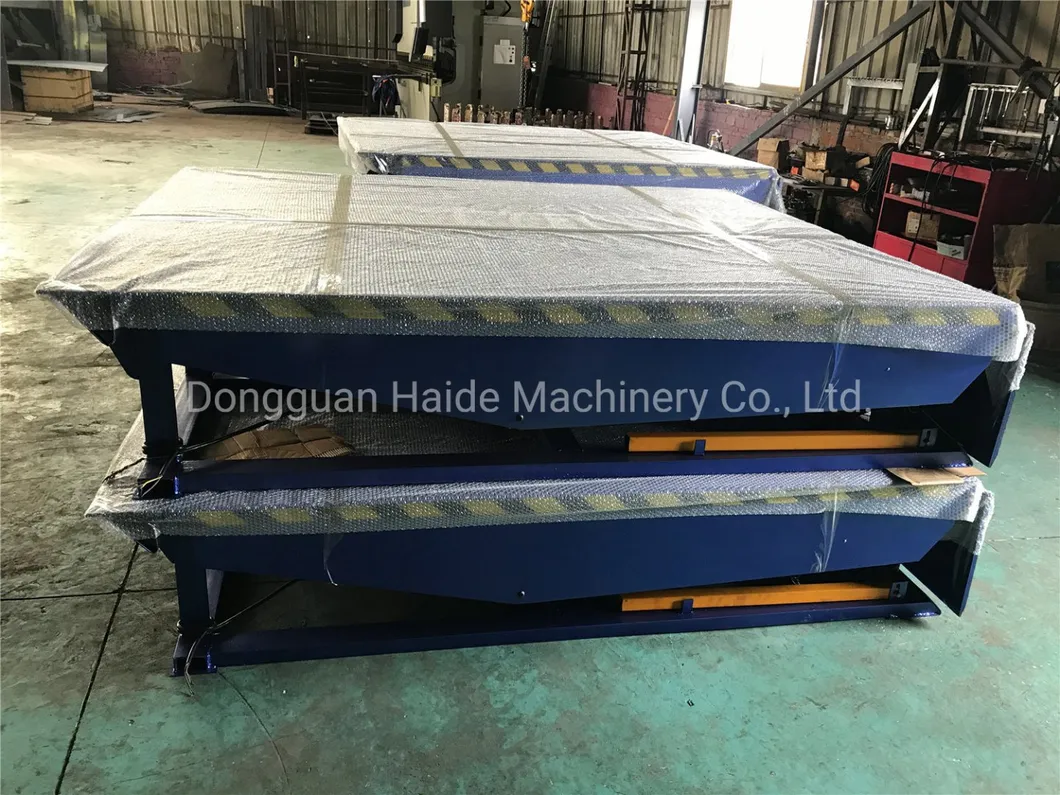

✓CE-Approved Dock Leveler: High-performance hydraulic solution for loading bays.
★Safety Features: The 3-fragment full range toe-guard prevents accidental entry into the dock leveler, ensuring operator safety and preventing casualties.
⚙Operation Process: Simple control system with "UP", "EXTEND", and "DOWN" buttons for smooth platform rising, lip extension, and restoration to stored positions.

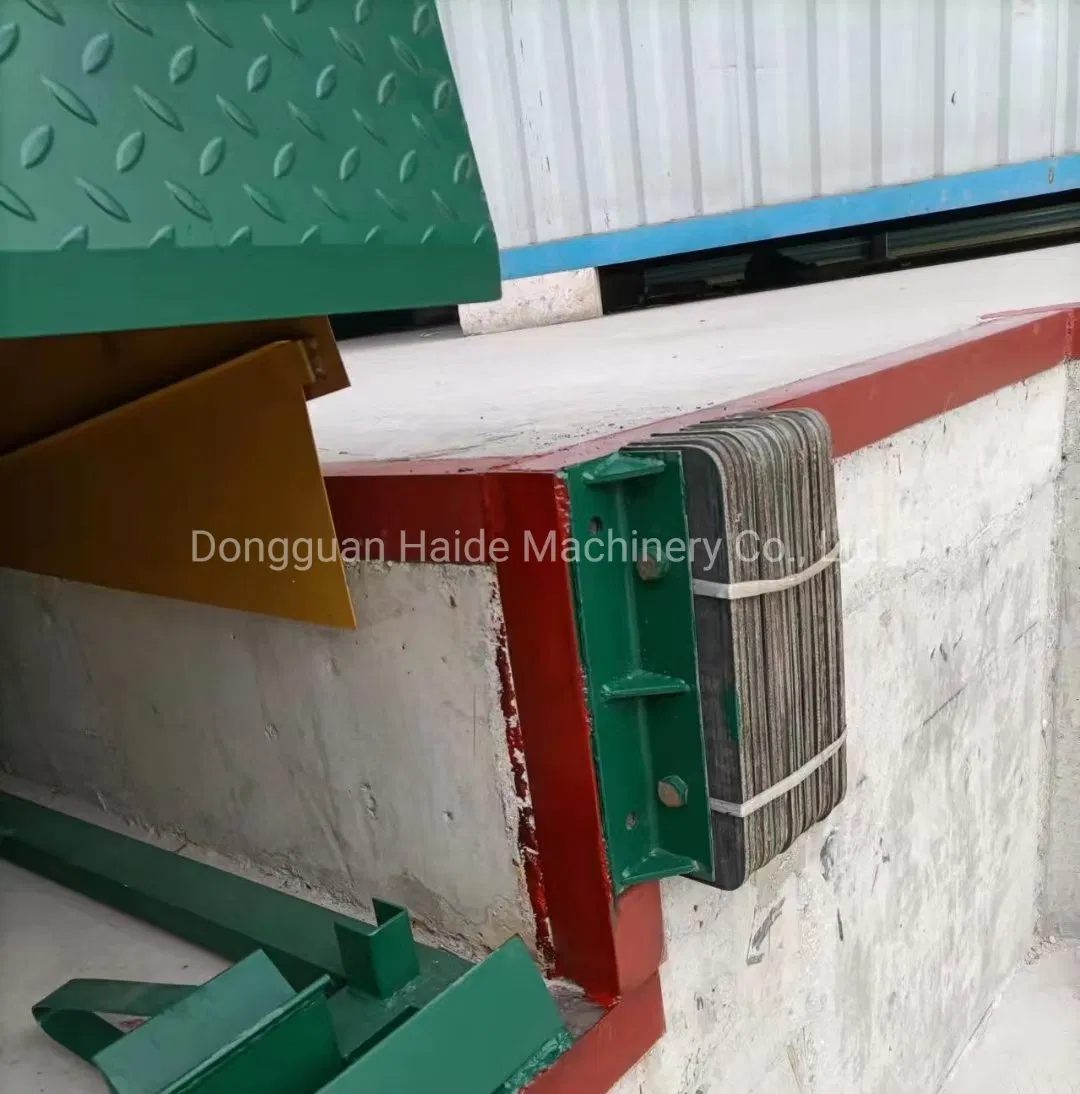

🛡Durability: Includes two laminated rubber bumpers with woven fiber to withstand heavy shocks between trucks and the dock. Complies with European EN1398 standards.
| Model | Equipment Spec (W*L*H) mm | Pit Dimension (W*L*H) mm | Capacity | Adjust Range | Lip Board (W*L*T) |
|---|---|---|---|---|---|
| 6*6 | 1830*1830*490 | 1870*1680*500 | 10~25T | +300/-300mm | 1830*400*15 |
| 7*6 | 2130*1830*490 | 2170*1680*500 | +300/-300mm | 2130*400*15 | |
| 6*8 | 1830*2440*490 | 1870*2280*500 | +300/-300mm | 1830*400*15 | |
| 7*8 | 2130*2440*490 | 2170*2280*500 | 10~25T | +300/-300mm | 2130*400*15 |
| 6*10 | 1830*3050*490 | 1870*2880*500 | 10~25T | +400/-300mm | 1830*400*15 |
| 7*10 | 2130*3050*490 | 2170*2880*500 | 10~25T | +400/-300mm | 2130*400*15 |
