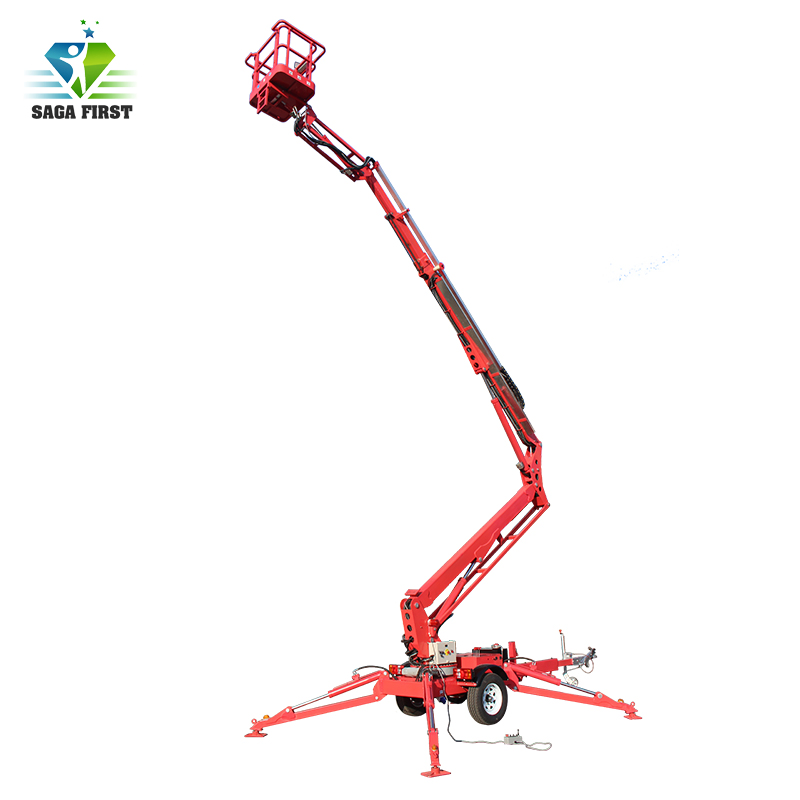

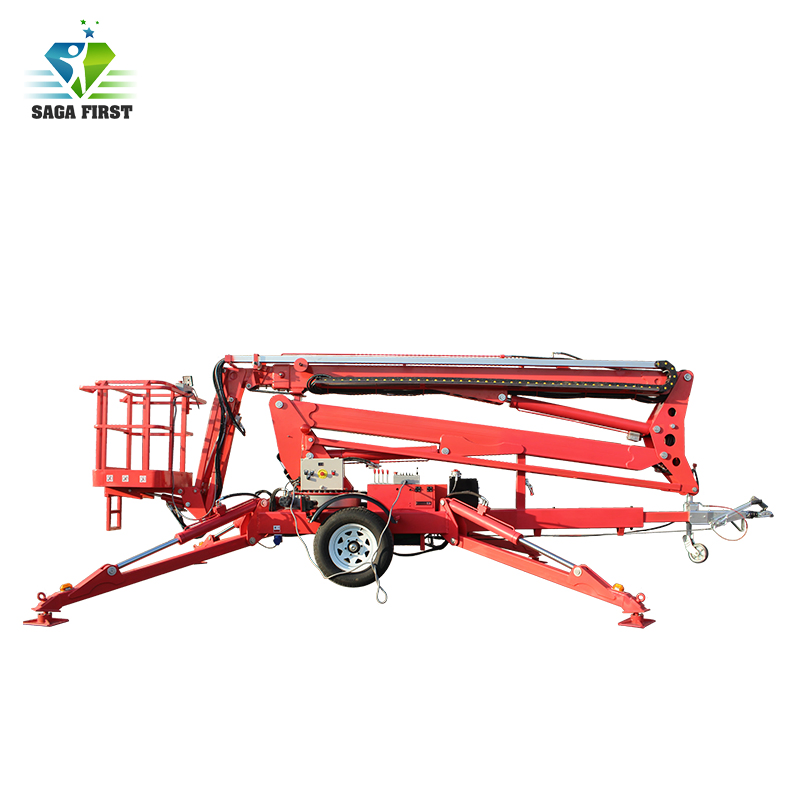

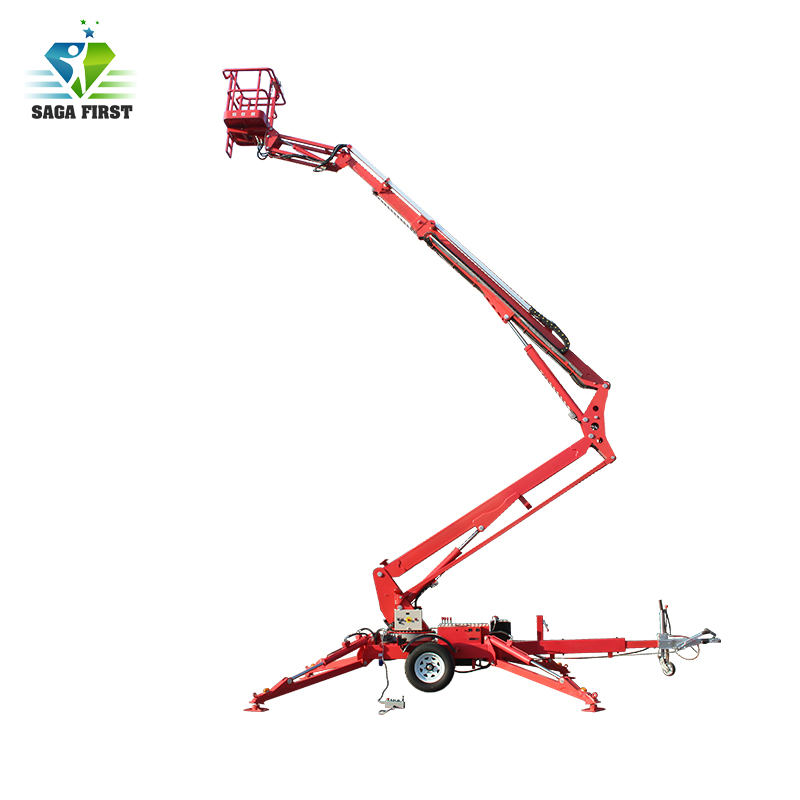

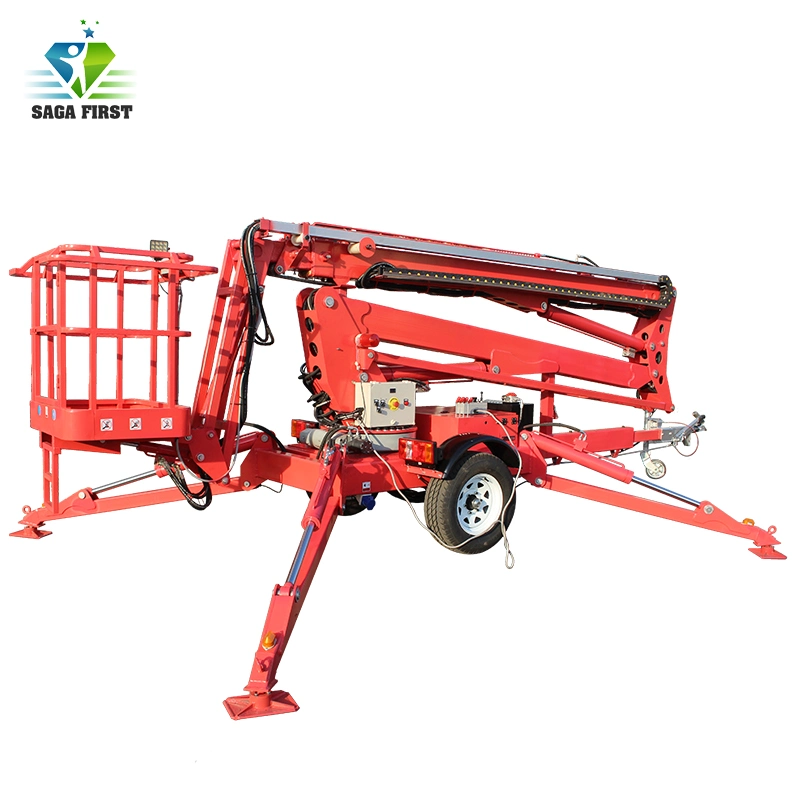

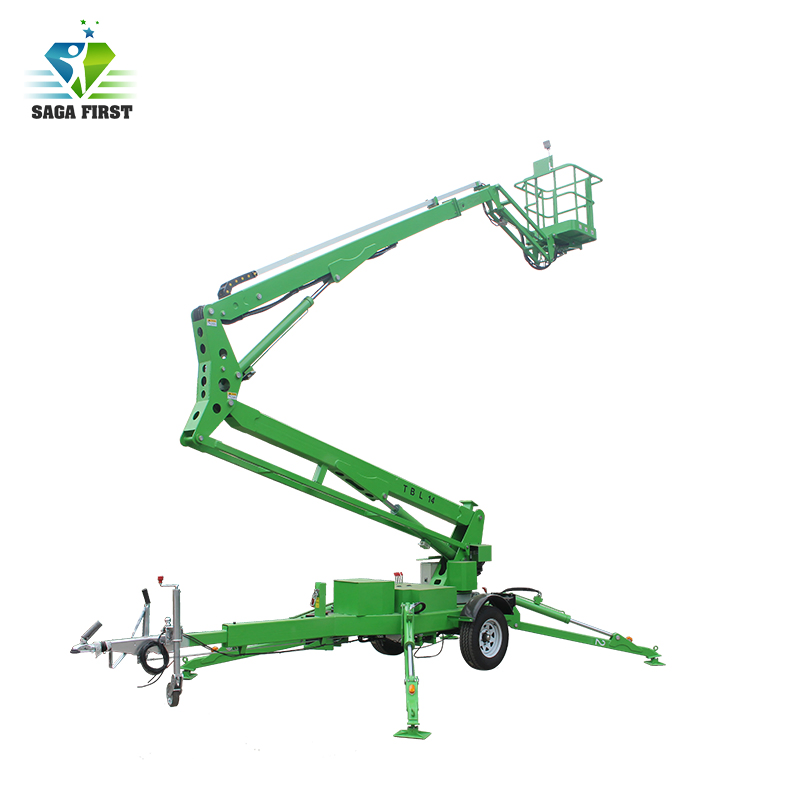

16m 10m Hydraulic Towable Trailed Cherry Picker

1 / 5

16m 10m Hydraulic Towable Trailed Cherry Picker

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

TBL

Carrying Capacity

Light Level

Moves

Moving

Driven Type

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, ISO 9001

Load Capacity

200kg

Lifting Height

8m, 10m, 12m

Platform Size

1100*700mm

Power Type

DC Battery / Diesel

Lifting Motor

3kw

Warranty

12 Months

Delivery Time

15 Days

Production Capacity

1000 Units

Origin

China

Product Introduction

The Trailing Towable Cherry Picker is an ideal aerial lift platform for both indoor and outdoor maintenance. It features a 360-degree rotation capability and offers platform heights ranging from 6m to 16m. Its compact structure allows for operation in tight spaces, and it can be easily towed by a car or tractor to any location.

📊 Model Specifications

Model	Unit	TBL-8	TBL-10	TBL-12	TBL-14	TBL-16
Platform Height	m	8	10	12	14	16
Working Height	m	10	12	14	16	18
Load Capacity	kg	200	200	200	200	200
Working Radius	m	3.5	4	5.5	6.5	7
Platform Size	mm	1100 * 700
Net Weight	kg	1500	1600	1800	2000	2200
Overall Length	mm	5200	5400	6400	6800	7200

Key Features

360 degrees continuous rotation of the arm.
High-quality sealing parts to ensure 300,000 cycles without leakage.
Equipped with an automatic shut-off valve on the cylinder outlet.
Emergency dropping device for enhanced safety.
Dual control systems: platform and ground operation.
Lubricated bearings and grease cups for flexible, silent rotation.
Sliding track rollers to reduce rocking and vibration.

Safety Precautions

Explosion-proof valves: Protects hydraulic pipes from rupture.
Spillover valve: Adjusts pressure during upward movement.
Emergency decline valve: Manual lowering during power failure.
Anti-dropping device: Prevents accidental platform falls.
Siren: Operational alert for surrounding safety.

Product Showcase

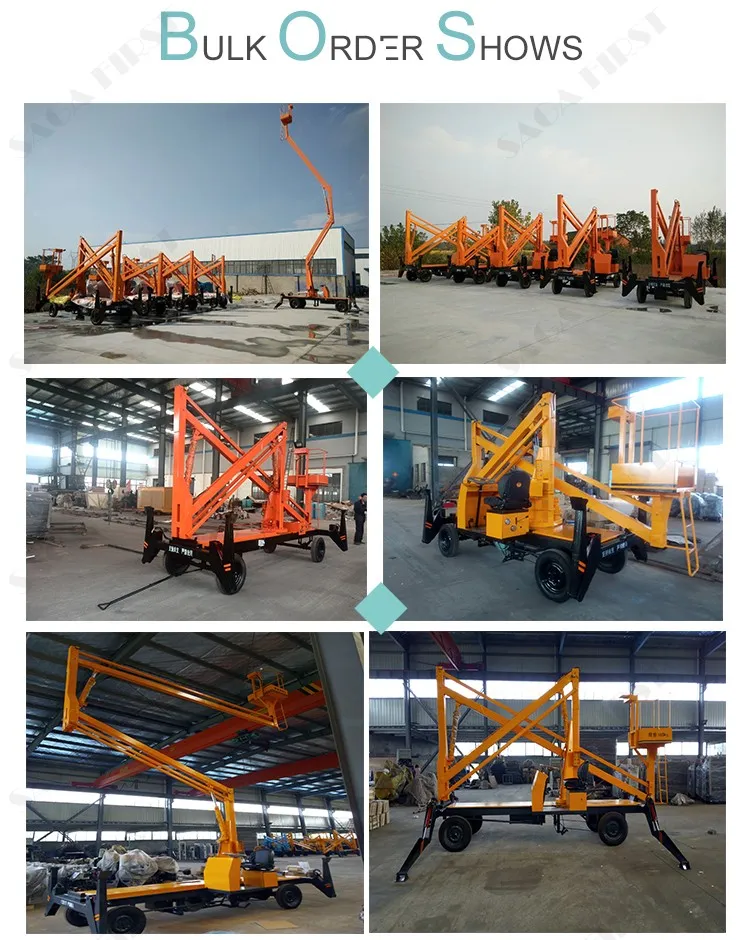

Hydraulic Towable Trailed Cherry Picker View

Our Professional Service

🛠️ Customized design based on your specific requirements.

🚢 Global shipment arrangement to your destination port.

📹 Operational and maintenance videos provided.

📦 Fast express delivery for spare parts within 7 days.

Frequently Asked Questions

How can I purchase replacement parts?

The boom lift uses common hardware components. You can easily find replacement parts at your local hardware market or purchase them directly from us.

What should I do if the machine needs repair?

Our equipment has an extremely low failure rate. If an issue occurs, we provide detailed video guides and technical instructions to assist your maintenance team.

How long is the quality guarantee period?

We provide a one-year quality guarantee. If any component fails within the first year due to manufacturing defects, we will send replacement parts free of charge.

What power options are available for the cherry picker?

You can choose from three configurations: Diesel engine power, Battery electric power, or a Hybrid system combining both diesel and battery.

Can the lift be operated from the platform?

Yes, there are three control panels: one for the support legs, one on the main body, and one inside the basket for the operator's convenience.

What are the main safety features of this boom lift?

It includes explosion-proof valves, emergency decline valves for power outages, a spillover valve for pressure regulation, and an anti-dropping device.
