Self-Propelled Scissor Lift /12m Hydraulic Scissor-Type Aerial Work Platform with Telescopic Platform

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info

Model NO.
12m Hydraulic Aerial Work Plat
Application
Workshop/Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
320kg
Moves
Self-propelled
Driven Type
DC
Production Capacity
50000 Pieces/Year
HS Code
8427109000

Packaging & Delivery

Package Size
240.00cm * 120.00cm * 200.00cm
Gross Weight
2950.000kg

Product Description

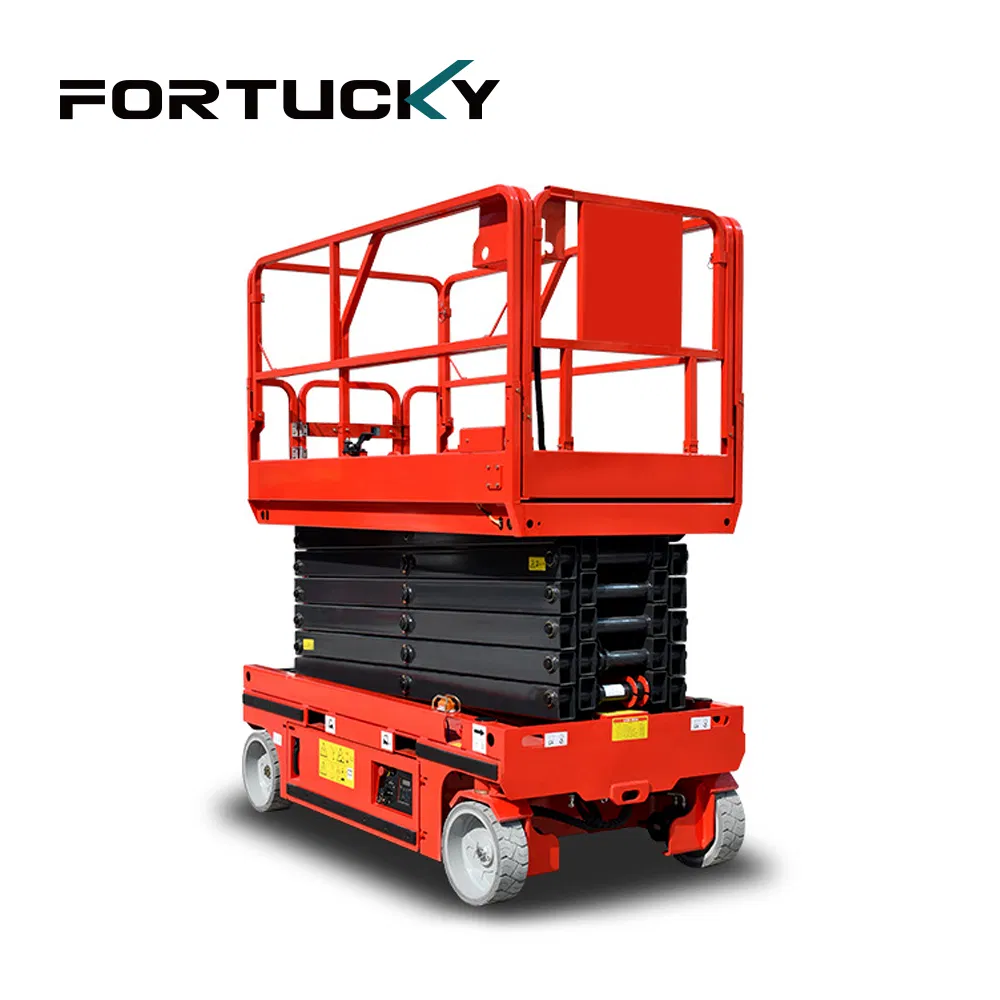

12m Hydraulic Scissor-Type Aerial Work Platform with Telescopic Platform
Product Overview

Experience the revolutionary shift in aerial work platforms with our self-powered, electrically-driven telescopic boom. Powered by a clean battery, this platform promises a whisper-quiet operation, completely free from pollution. Its eco-conscious design makes it a versatile choice for both indoor and outdoor scenarios, particularly where noise and air purity are of utmost importance. The compact construction and lightweight nature of the machine allow it to navigate standard passages and elevators effortlessly.

🛡️ Core Strengths & Safety

Our equipment excels in safety with features including standard proportional controls, automatic braking, and charging protection systems. The inclusion of an emergency descent system, platform self-locking door, emergency stop button, and safety maintenance support pole builds a formidable safety barrier. Enhanced by automatic pit protection and inclination protection.

⚙️ Detailed Design

Meticulously crafted for user convenience: foldable fence, one-way extension platform, and seamless tires. Equipped with action beeps, horns, and strobe lights for effective environmental alerts. Standard transportation forklift holes simplify movement and relocation.

Technical Parameters

Size Specifications
Max. Working Height13.8m
Max. Platform Height11.8m
Overall Length / Width2.39m / 1.16m
Overall Height (Included/Folded Fence)2.6m / 2.06m
Work Platform Size (L*W)2.27 * 1.13m
Platform Extension Size0.9m
Ground Clearance106mm / 29mm
Performance & Power
Rated Load Capacity320kg
Extended Platform Rated Load113kg
Travel Speed (Retracted/Lifting)3.5km/h / 0.8km/h
Gradeability25%
Power Source4*6V/200Ah
Drive Motor24V/4.5kw(DC)
Whole Machine Weight2950kg

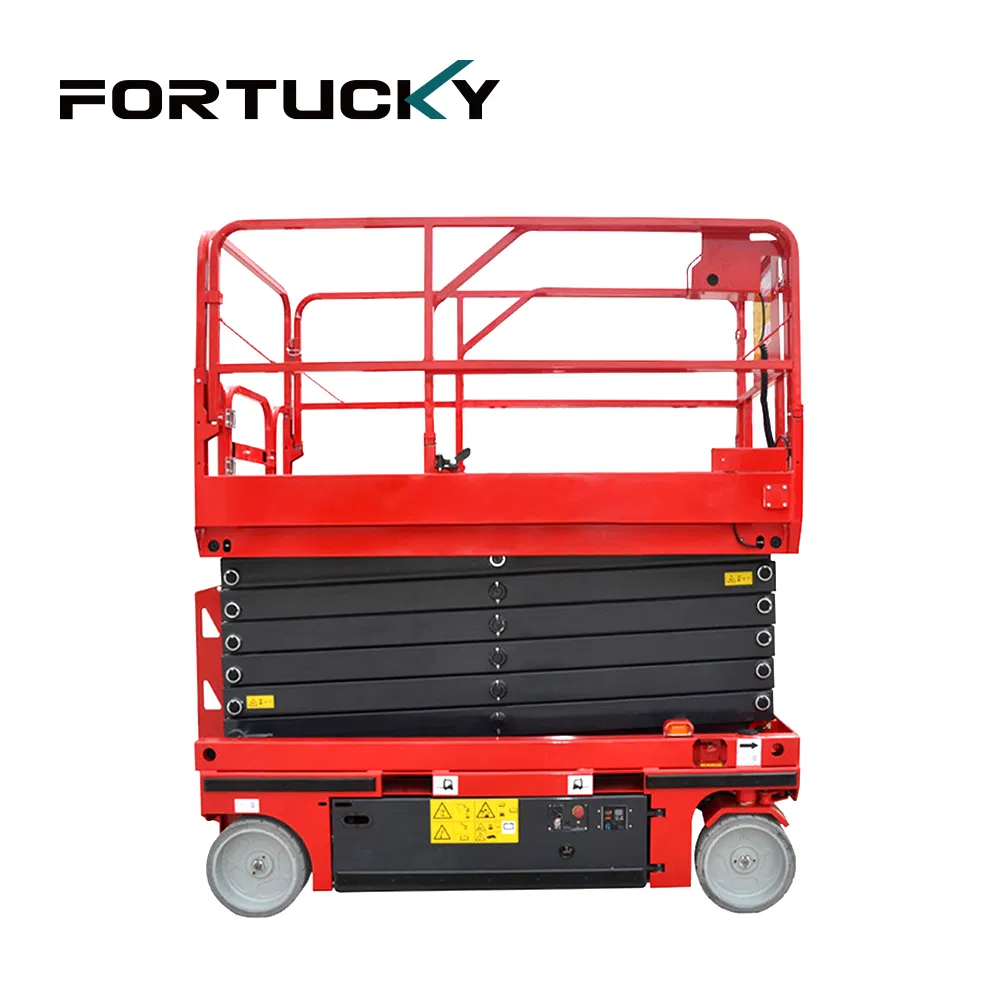

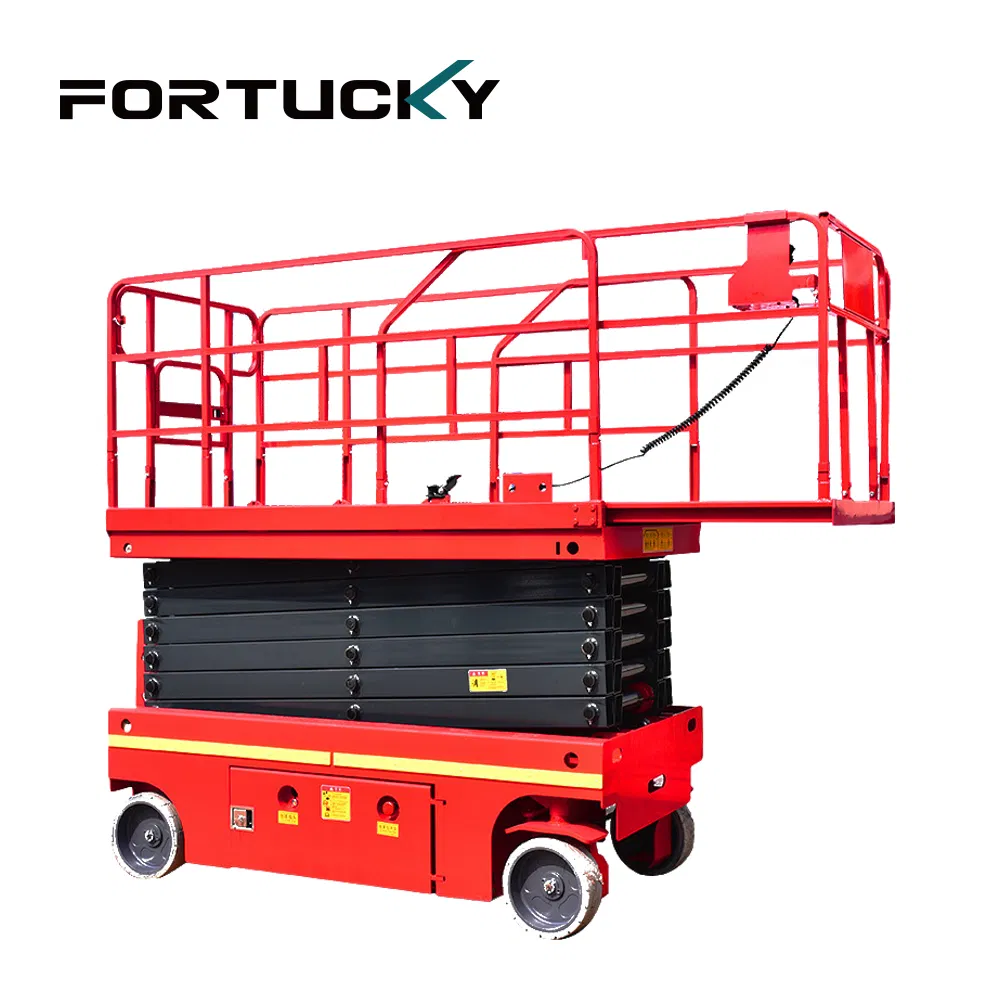

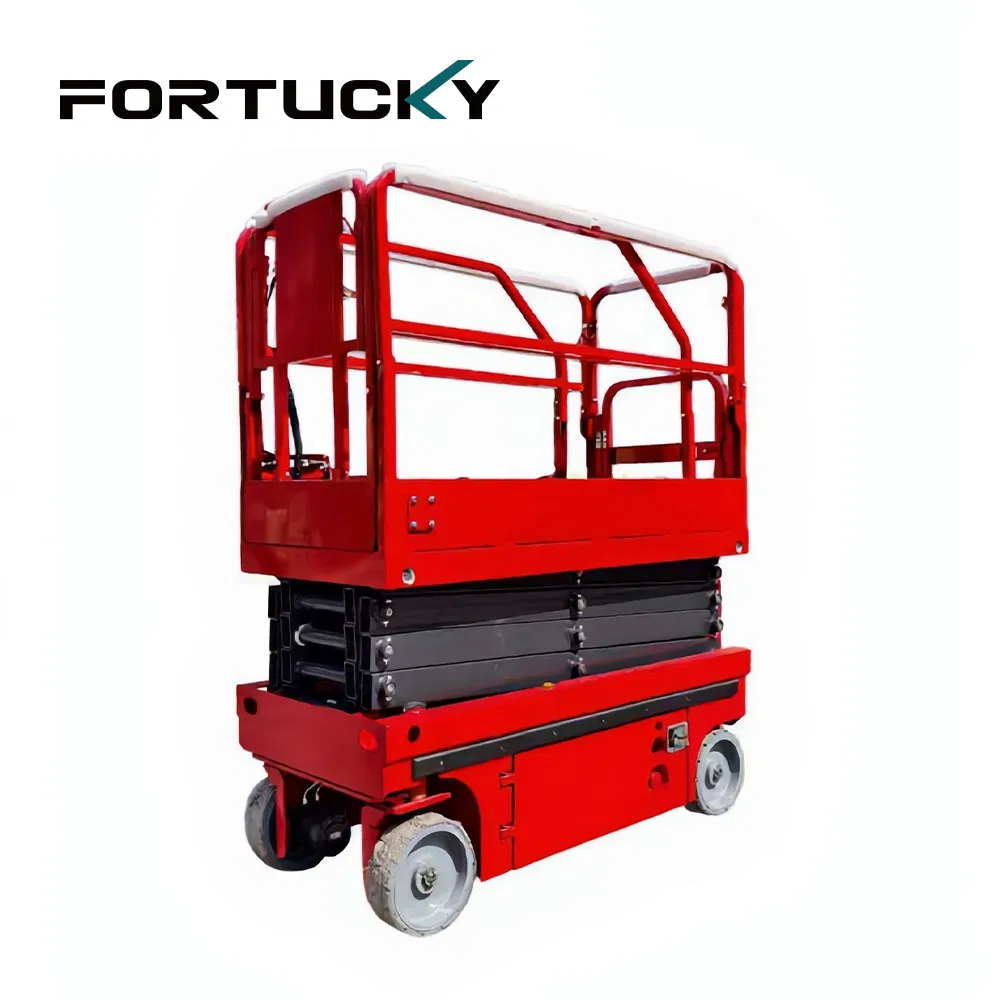

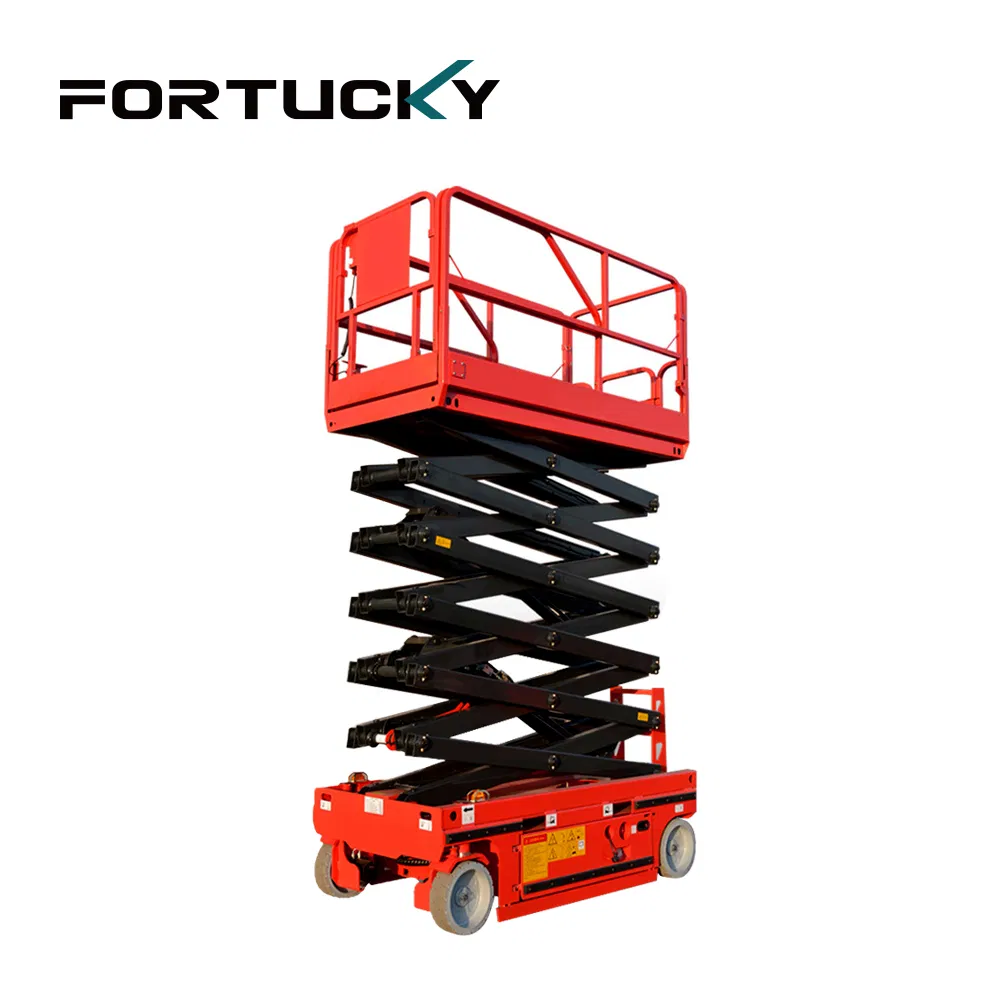

Visual Display

Frequently Asked Questions

What is the maximum reach of this hydraulic platform?
The 12m Hydraulic Scissor-Type platform offers a maximum working height of 13.8 meters and a maximum platform height of 11.8 meters.
How much weight can the platform support?
The main platform has a robust rated load capacity of 320kg, while the extended platform can support up to 113kg.
Can this equipment be used indoors?
Yes, it is ideal for indoor use. It is powered by a clean DC battery system, providing whisper-quiet operation and zero emissions.
What safety mechanisms are built into the design?
Safety features include automatic braking, emergency descent system, platform self-locking doors, emergency stop buttons, pit protection, and inclination protection.
Is the platform easy to transport?
Yes, it features a compact design with foldable fences and standard forklift holes, allowing it to pass through standard doors and elevators easily.
What type of tires are used?
The machine is equipped with seamless solid tires, which are designed to protect floors and provide stable movement.
