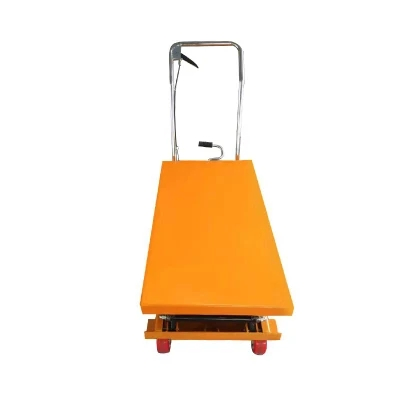

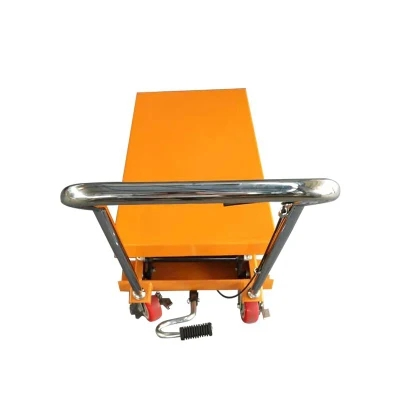

Manual Lifting Table Hydraulic Lift Platform Scissor Lift Table with Factory Price

1 / 5

Manual Lifting Table Hydraulic Lift Platform Scissor Lift Table with Factory Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

HBMEC

Customized

Available

Standard

International

Material

Steel / Aluminum / Stainless Steel

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating, Emergency Stop

Lifting Height

720/900/126/130/150mm

Control Methods

Hand

Platform Size

700*450*40mm

Handle

Fixable

Switch

Up/Down Button

Anti-Corrosion

Yes

Emergency Valve

Yes

Structure

Scissor Structure

Usage

Factory, Workshop, Home Garage, Shipboard

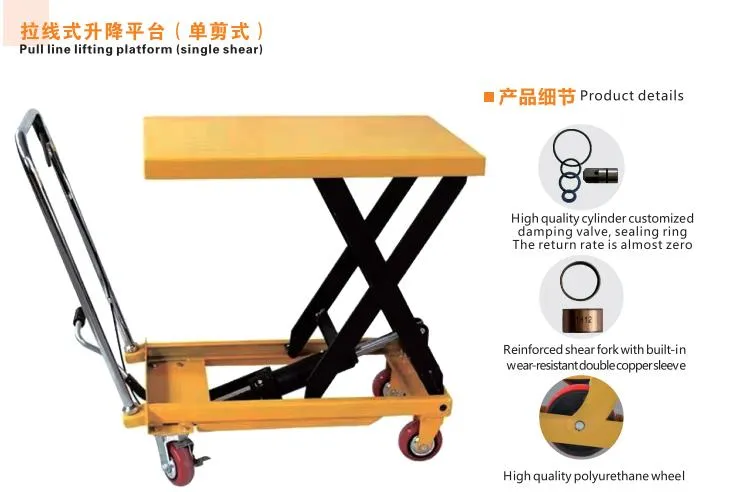

Pull Line Lifting Platform (Single Shear)

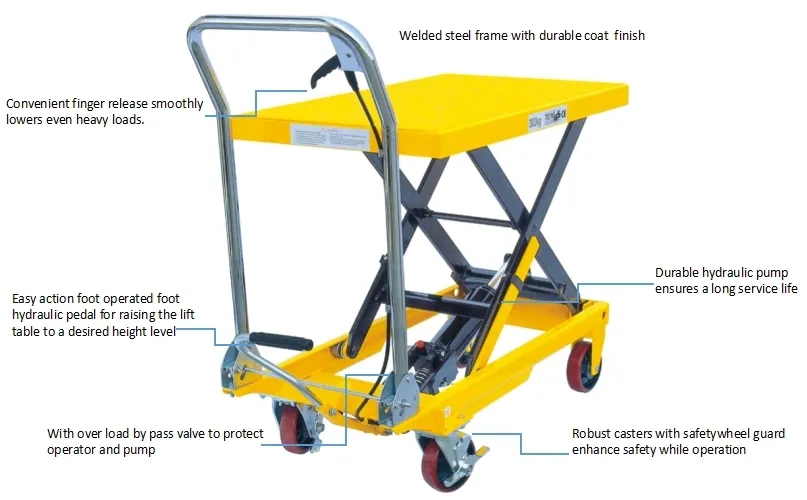

Product Features

The foot rod connects the hydraulic system to lift the platform to the required position.

Overload protection device (pressure limiting valve) automatically controls the car body within limited load range.

Polyurethane wheels: anti-noise, anti-slip, and anti-wear.

Platform descending control: lift the wrench upward for smooth oil pump pressure relief.

Product Parameters

Parameter Item	150kg Model	350/500kg Model
Rated load capacity	150kg	350/500kg
Minimum platform height	210mm	280mm
Maximum height after lifting	720mm	900mm
Size of platform	70045040mm	82050050mm
Diameter of wheel	100mm	125mm
Height of handle above ground	730mm	950mm
Self-weight	42kg	70/74kg

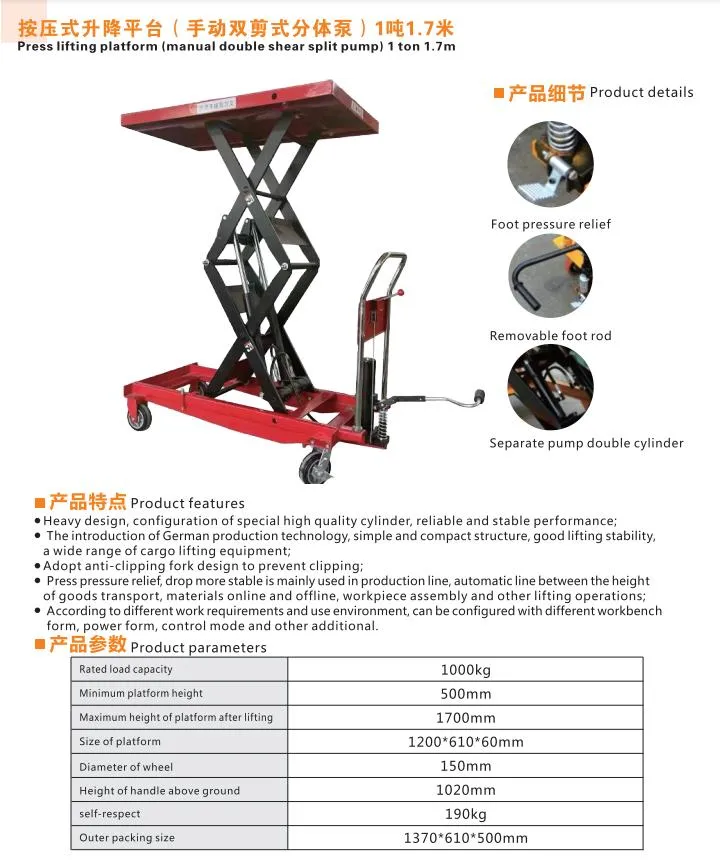

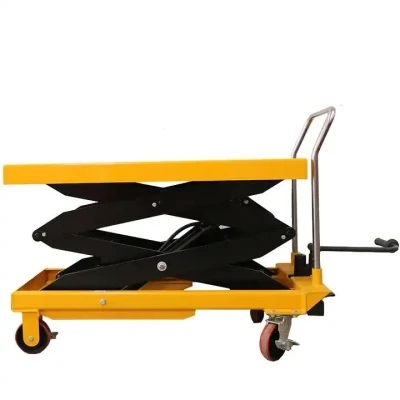

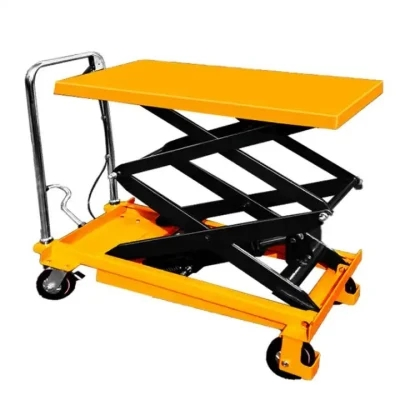

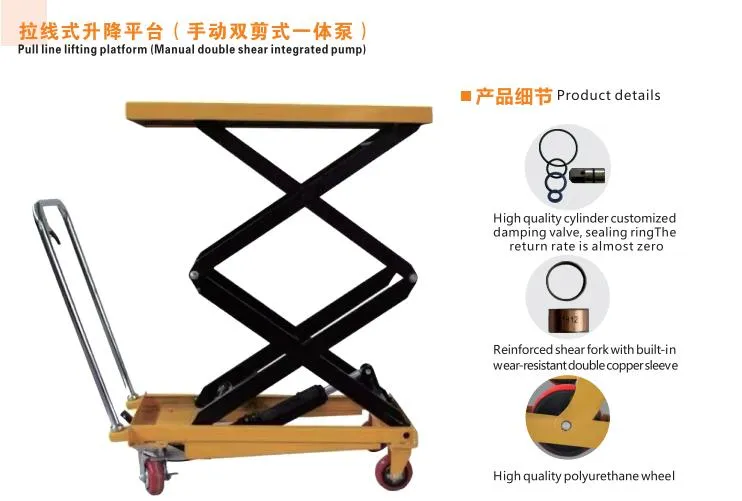

Manual Double Shear Integrated Pump Platform

Advanced Product Features

Imported German production technology with simple, compact structure and excellent lifting stability.

Anti-clipping fork design to ensure operator safety during operation.

Ideal for production lines, automatic lines, workpiece assembly, and engine bracket lifting.

Configurable workbench forms, power modes, and control systems based on environment.

Technical Parameters

Parameter Item	150kg	350/500kg (A)	350/500kg (B)
Rated load capacity	150kg	350/500kg	350/500kg
Minimum platform height	302mm	350mm	400mm
Max height after lifting	1220mm	1300mm	1500mm
Size of platform	70045040mm	92050050mm	92050050mm
Diameter of wheel	100mm	125mm	125mm
Handle height	730mm	960mm	960mm
Self-weight	50kg	97/99kg	100/106kg

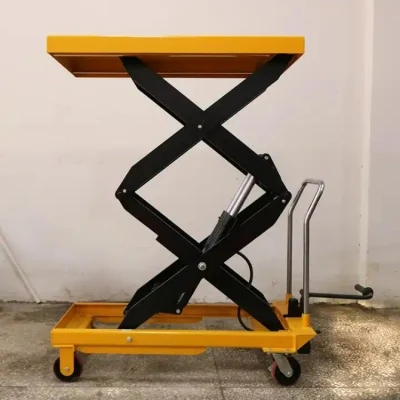

Product Details Display

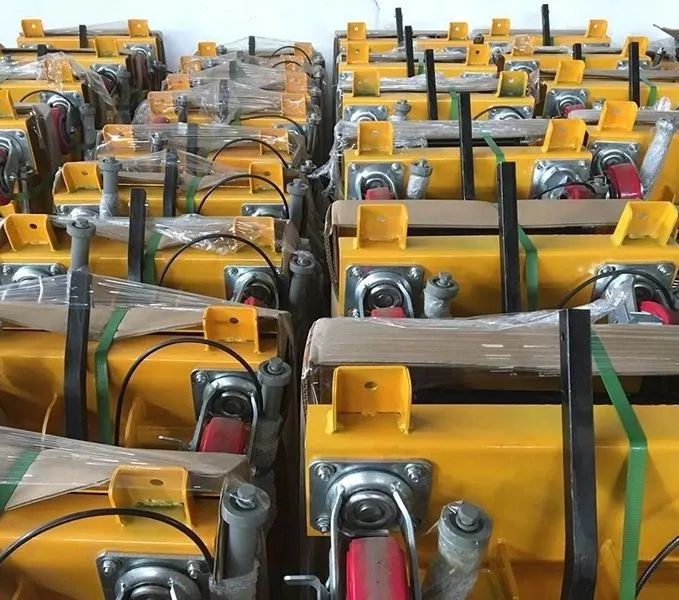

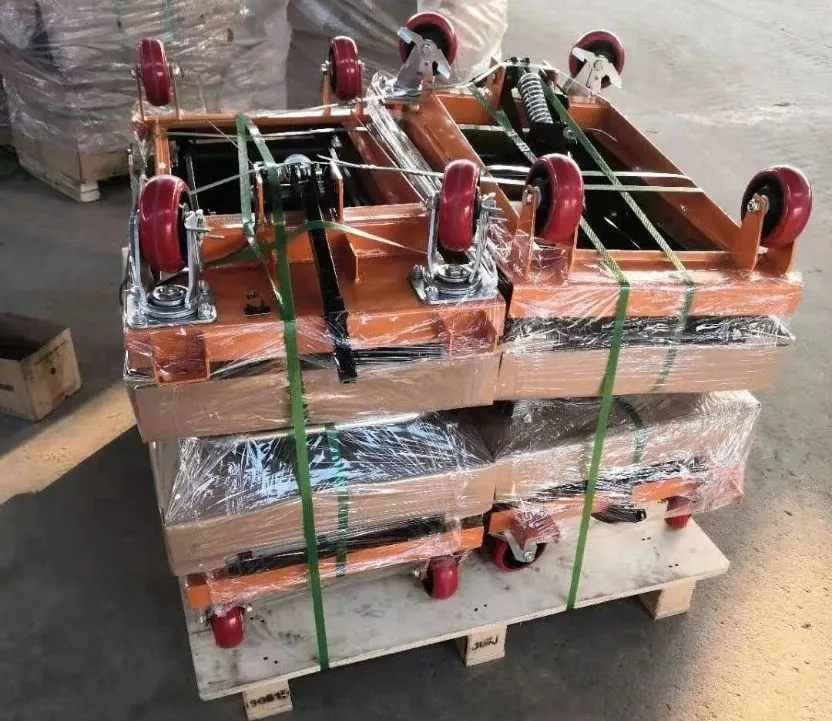

Packaging & Shipping

Customization Services

We provide comprehensive customization for Steel Wire Mesh and lifting products. If you have specific design drawings or technical specifications, we can manufacture products tailored to your exact requirements.

Unsure about specifications? Tell us your application scenario, and our engineers will provide recommended specifications and professional drawings for your reference.

Frequently Asked Questions

How can we obtain a formal quote?

Please send us an enquiry via email with your technical drawings, including material grade, tolerance, machining demands, and surface treatment. Our engineers will respond within 3-5 working days.

Can I get a sample to check the quality?

Yes, after price confirmation, samples can be requested. While we charge for sample costs, these are refundable once your first bulk order exceeds the MOQ.

Do you offer OEM services?

Absolutely. Product specifications and packaging can be designed according to your specific branding and functional requirements.

What is the typical lead time for production?

Production capacity is approximately 1000 pieces per month. Standard orders typically ship within 15-30 days depending on the level of customization.

What safety features are included in the hydraulic lifts?

Our platforms include overload protection valves, emergency decline valves, and anti-clipping scissor designs to ensure maximum operator safety.

Are the platforms resistant to corrosion?

Yes, we offer materials like Stainless Steel and specialized surface treatments to ensure high anti-corrosion performance for workshop and shipboard use.
