Hydraulic Pallet Spring Level Loader Positioner Lift Table

1 / 5

Hydraulic Pallet Spring Level Loader Positioner Lift Table

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Lift Mechanism	Scissor Lift
Carrying Capacity	Weight Level
Driven Type	Hydraulic
Certification	GS, CE, RoHS, ISO 9001
Lifting Height	205~4140mm or Customized
Load Capacity	500~4000kg or Customized
Platform Size	1600*1000mm or Customized
Materials	Steel or Aluminum or Stainless Steel
Features	Explosion-Proof, Insulating, Emergency Stop
Usage	Factory, Workshop, Home Garage

Product Description

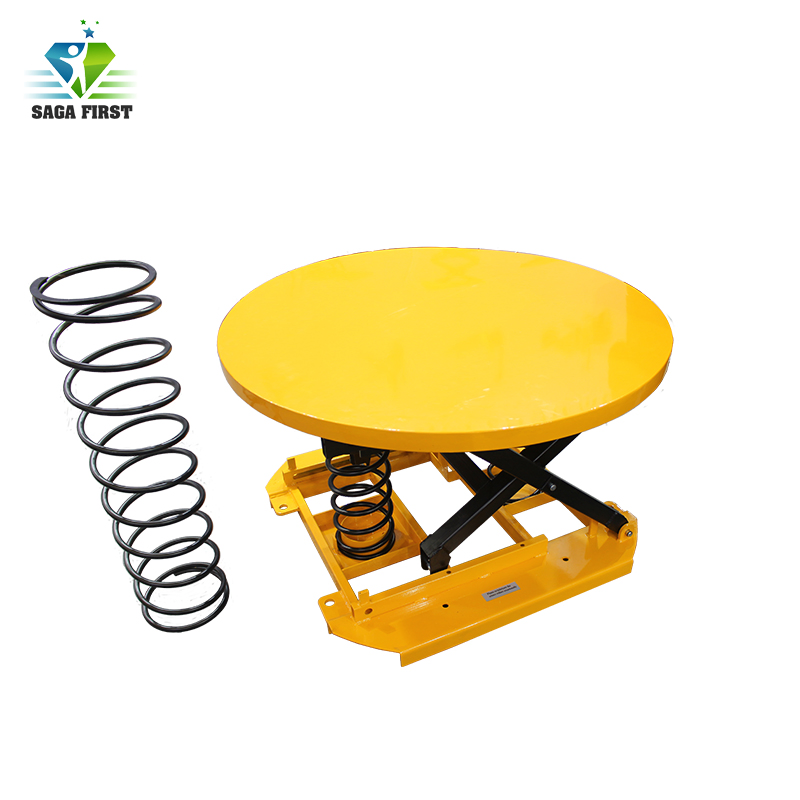

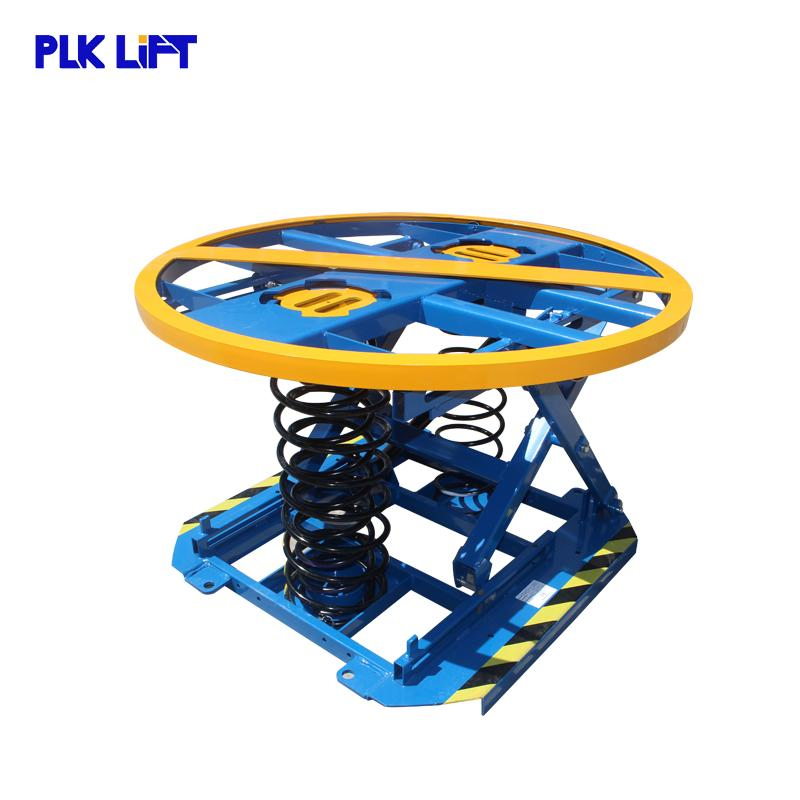

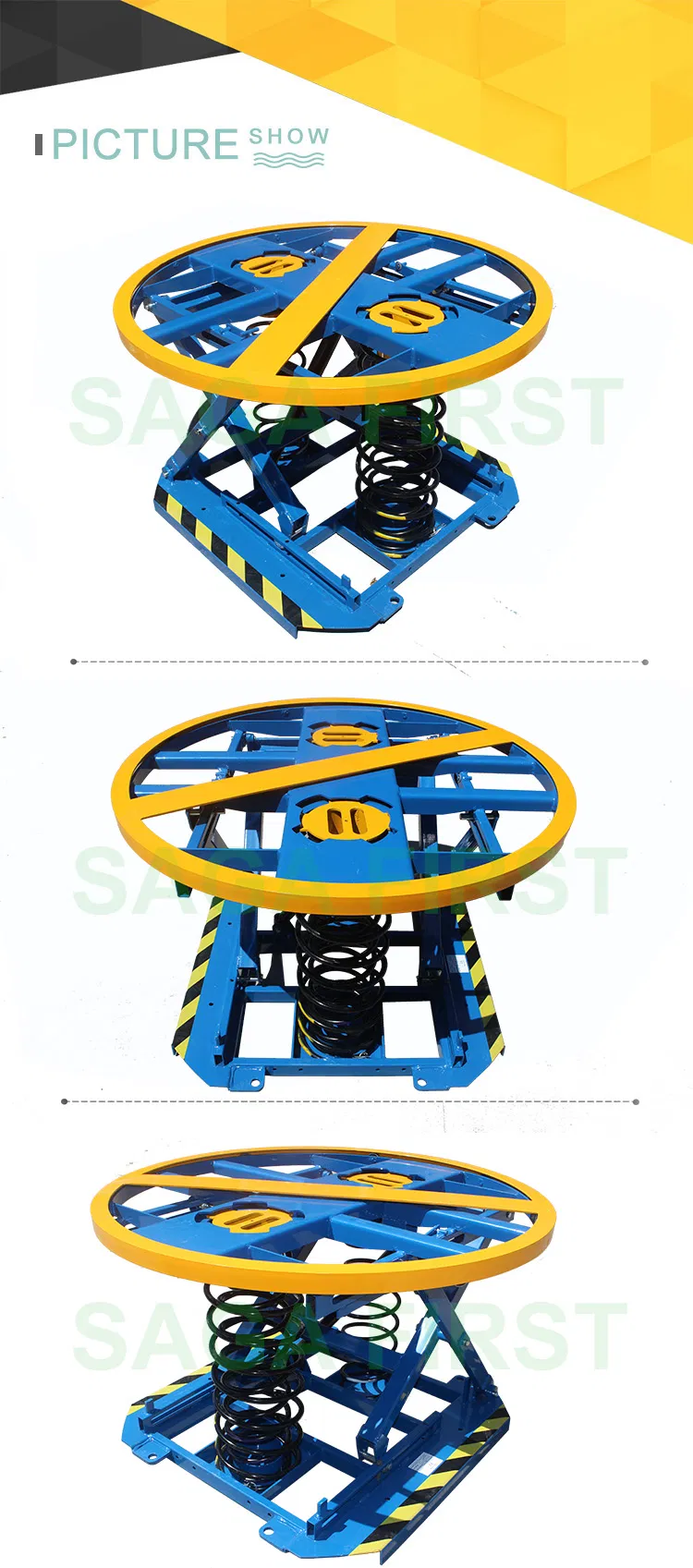

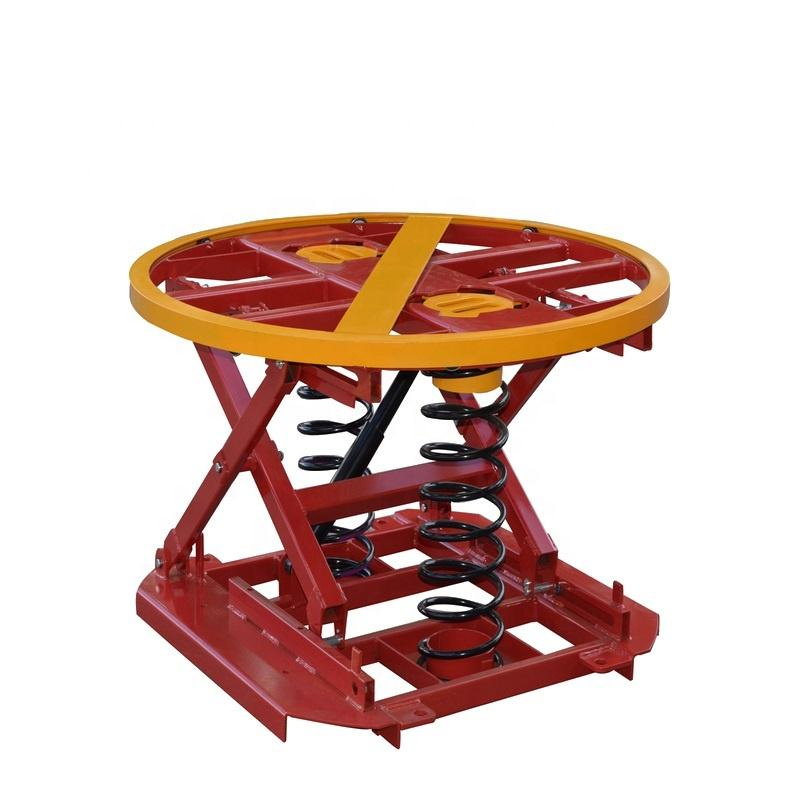

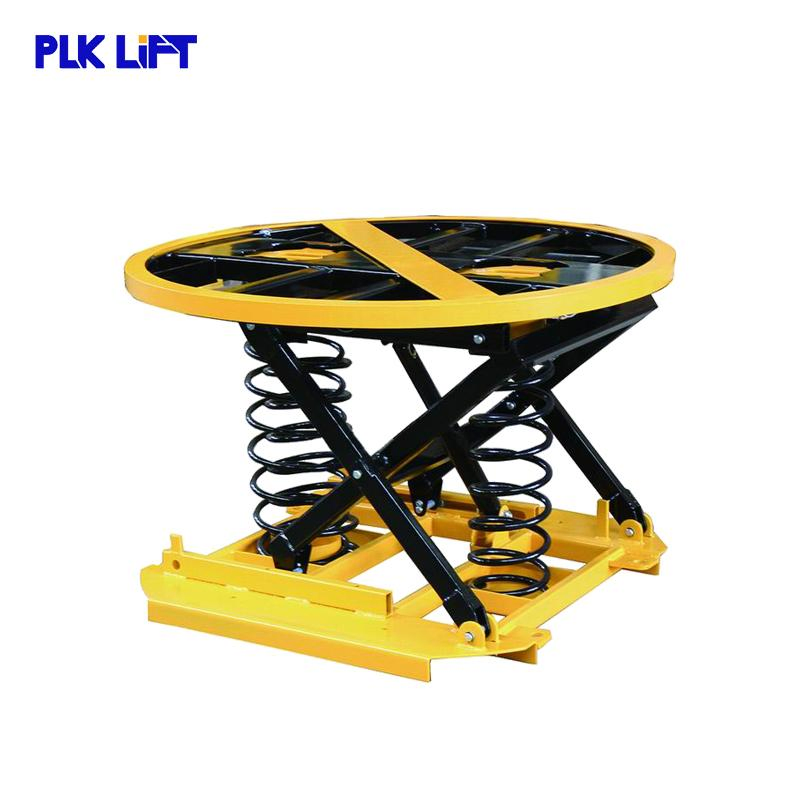

Hydraulic Pallet Spring Level Loader Positioner Lift Table

These Lift Tables are high quality electronic hydraulic scissor lifts compliant with American standard ANSI/ASME and Europe standard EN1570. Standard models offer load capacities from 1000kg to 4000kg with lifting heights ranging from 205mm to 4140mm. We offer full customization for platform size, capacity, and height to meet specific industrial demands.

Auto-Height Maintenance
Automatically maintains a load at the ideal height for manual loading and unloading.

Spring Mechanism
Includes a steel scissor mechanism and large compression springs matched to the pallet weight.

Stability Control
Equipped with a shock absorber to eliminate load bouncing on the springs.

★Model Parameters (HS2000A)

Parameter	Details
Load Capacity (kg)	182-2000kg
Max. Pallet Size(mm)	127012701820
Base Size(mm)	920*933
Lowered Platform Height(mm)	242
Max Platform Height(mm)	705
Rotary Platform Diameter(mm)	1108
Net Weight(kg)	173
Operation	Spring Lift

Safety Precautions & Advantages

Safety Systems

Explosion-proof valves and Spillover valve
Emergency decline valve for power failure
Overload protection locking device
Automatic Safety sensor (stop on barrier)

Key Advantages

Shot blasting and stoving varnish for high anti-corrosion
High quality pump station for stable lifting
Anti-pinch scissor design with self-lubricating pins
Heavy duty cylinders with check valve for hose burst protection

Our Support Service

Custom Design: We design lifters based on specific customer requirements.
Logistics: Shipment arrangement from port to destination or doorstep.
Technical Support: Operation videos, maintenance manuals, and user guides provided.
Rapid Parts: Replacement parts sent via express within 7 days if needed.
Warranty: Two-year quality guarantee with free parts replacement.

Frequently Asked Questions

Q1: How can I buy replacement parts if the lift breaks down?

The equipment adopts common hardware parts. You can purchase them at local hardware markets or forklift parts shops easily.

Q2: How do I handle repairs if a problem occurs?

The equipment has a very low failure rate. If issues arise, we provide technical guidance via video and repair instructions to help you fix it.

Q3: What are the available payment terms?

We accept 100% TT in advance for orders under USD 4999. For larger orders, we accept 30% advance with balance before shipment, or Irrevocable L/C at sight.

Q4: Do you offer OEM & ODM customization services?

Yes, we customize lifting capacity, height, platform size, color, and logo to suit your branding and operational needs.

Q5: What is the standard delivery time for an order?

Typically, production takes 15 to 20 days after receiving the down payment.

Q6: What is your quality control policy before shipping?

We perform 100% inspection three times before shipping to ensure all QA & QC standards are met.
