Basic Specifications
Lift Mechanism
Scissor Lift
Lifting Height
205~4140mm (Customizable)
Load Capacity
500~4000kg (Customizable)
Platform Size
1600*1000mm (Customizable)
Certification
GS, CE, RoHS, ISO 9001
Safety Features
Explosion-Proof, Emergency Stop
Hydraulic Scissor Lift Table
Electric Lifting Equipment with Professional OEM & ODM Service

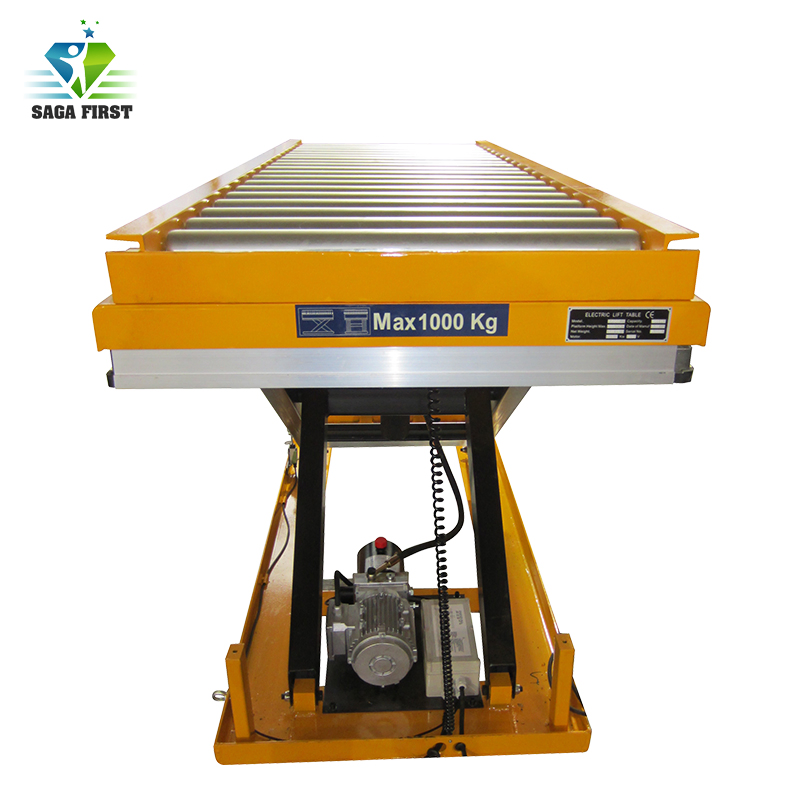

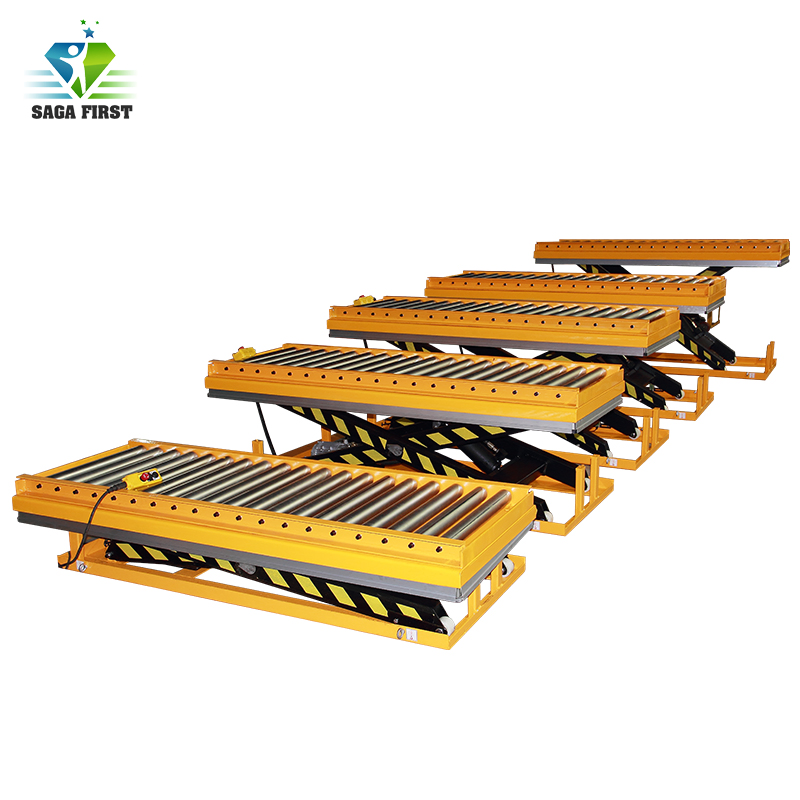

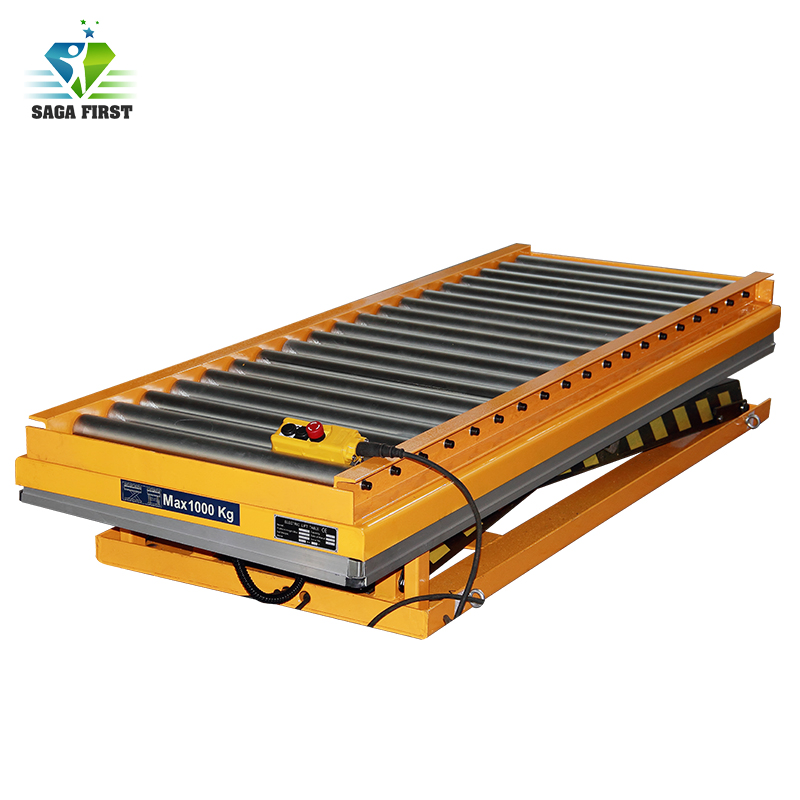

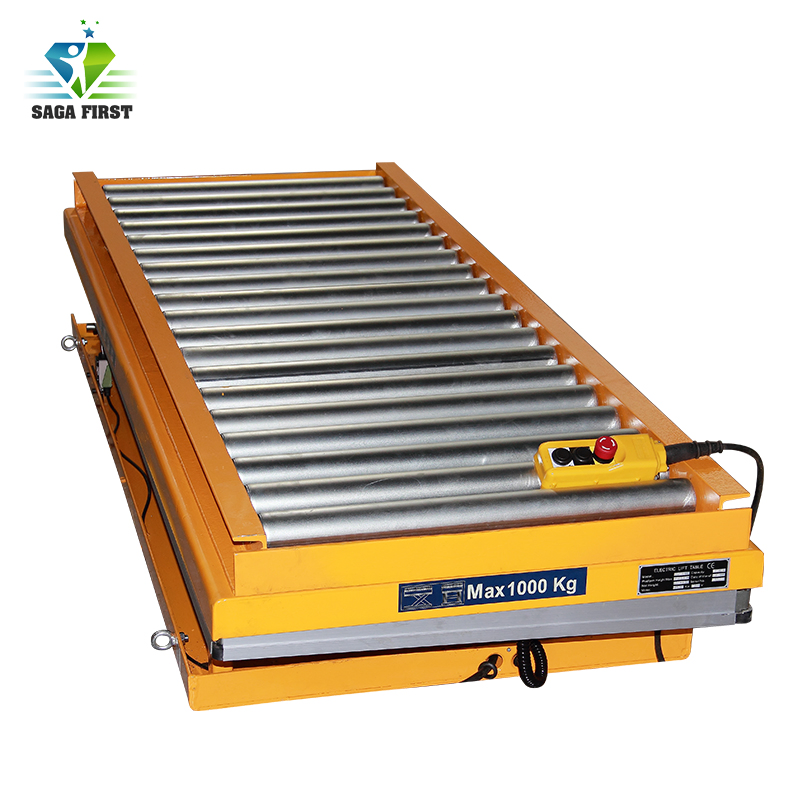

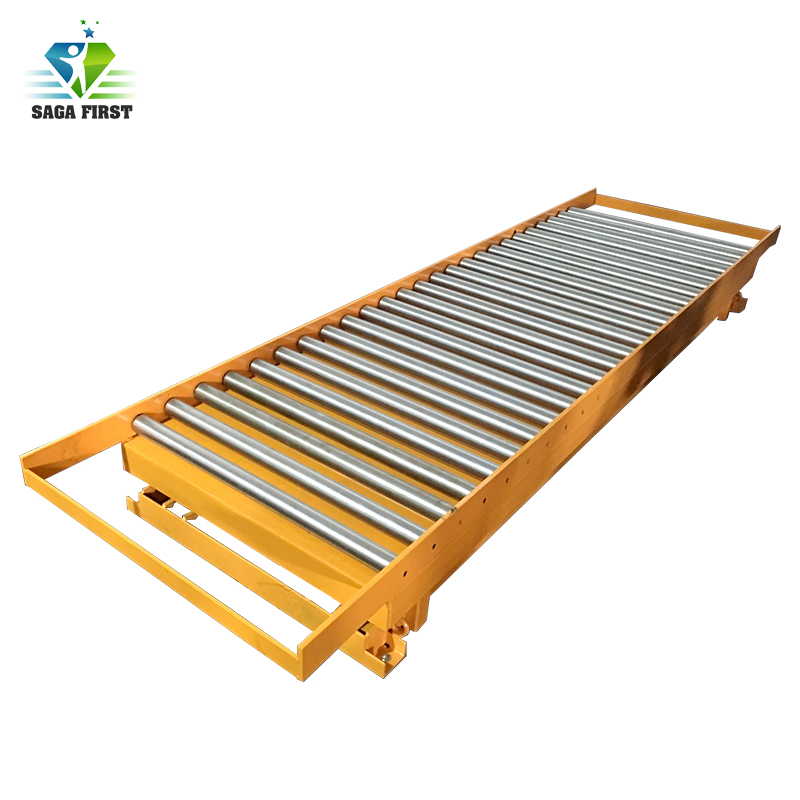

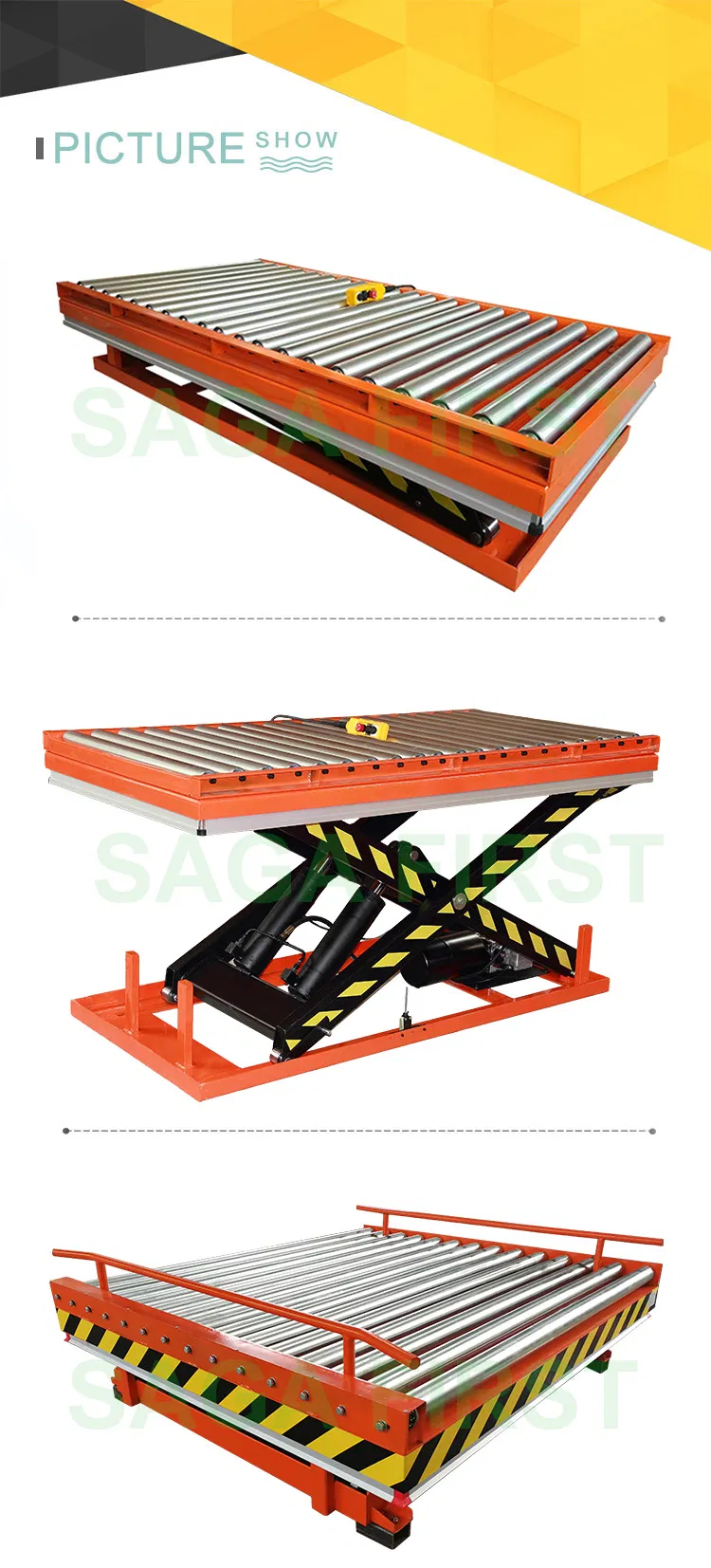

Our Roller Scissor Lift Tables are equipped with high-quality hot galvanizing rollers, allowing cargo to be moved effortlessly across the platform. Designed to meet international safety standards including ANSI/ASME (USA) and EN1570 (Europe).
🛡️
Safety Valves
Explosion-proof and spillover valves for maximum security.
⚙️

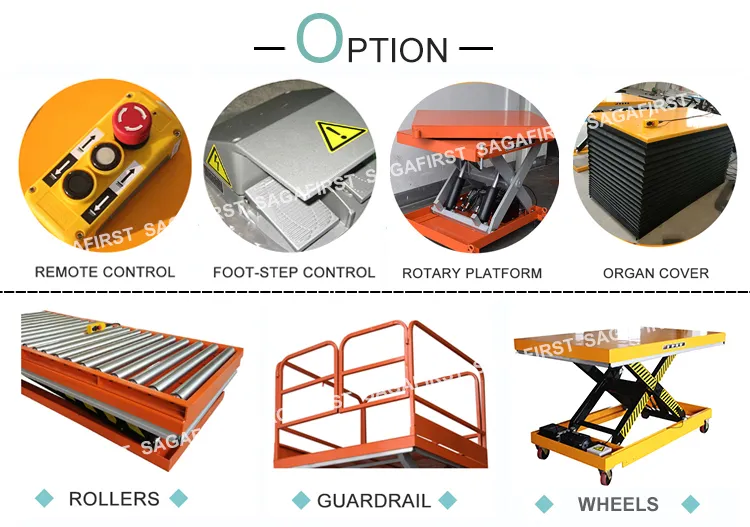

Customization
Tailored platform size, load capacity, and lifting height.
🛑

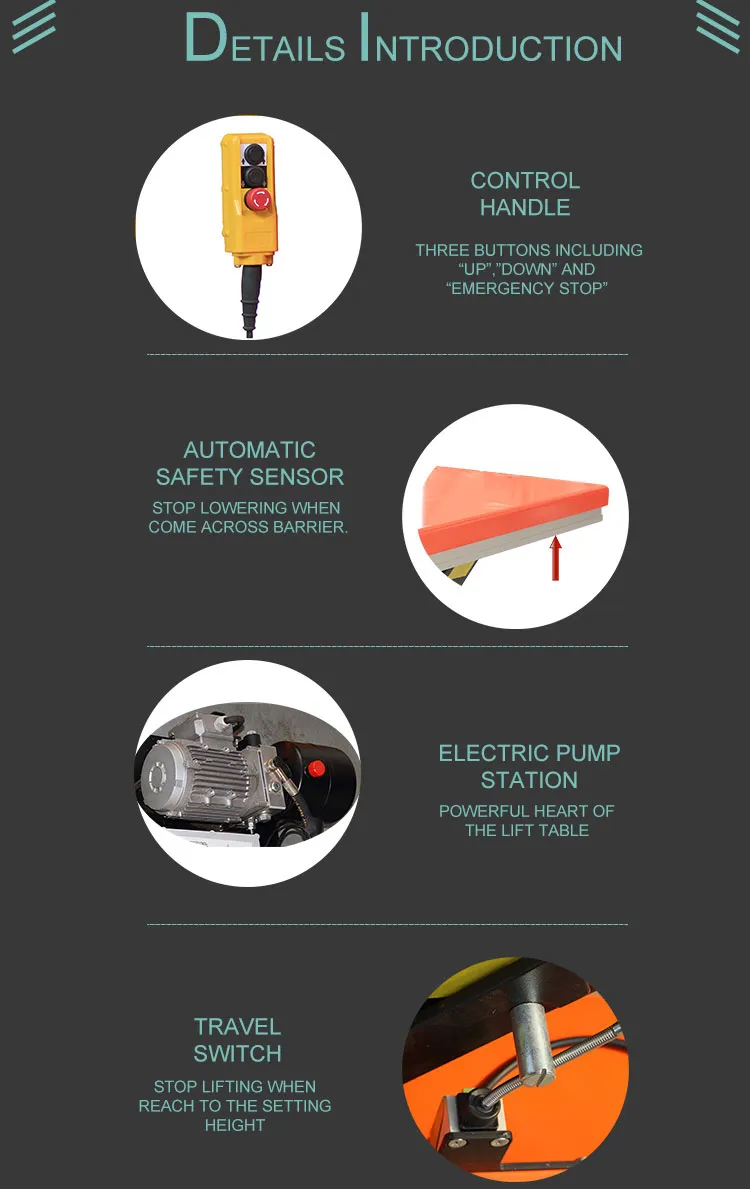

Auto Sensor
Automatic safety sensor stops movement when barriers are detected.
Technical Parameters
| Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height (MM) |
Platform Size (MM) |
Lifting Time (S) |
Net Weight (KG) |
| RS1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | 160 |
| RS1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 |
| RS1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 |
| RS2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 |
| RS2006 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 |
| RS4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 |
| RS4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 |
Key Features & Advantages
- Shot blasting and stoving varnish for high anti-corrosion performance.
- Premium pump station ensures stable lifting and falling cycles.
- Anti-pinch scissor design with self-lubricating pin-roll points.
- Heavy-duty cylinders equipped with drainage systems and check valves.
- Adjustable descent speed via precision flow control valves.
- Simplified structure for easy operation and minimal maintenance.
Frequently Asked Questions
What is the quality warranty period for this equipment?
We provide a comprehensive 24-month (2 years) quality warranty. During this period, we offer free replacement parts for any quality-related issues.
Can the lift table be customized to specific requirements?
Yes, we offer full OEM and ODM services. We can customize the lifting capacity, lifting height, platform size, color, and even the logo to meet your specific industrial needs.
What happens if a part breaks down?
Our equipment is designed using common hardware parts. You can easily find replacements at local hardware markets or forklift parts shops. Additionally, we can provide technical guidance via video.
What are the safety features included?
The lifts include explosion-proof valves, spillover valves, emergency decline valves, overload protection locking devices, and automatic safety sensors that stop the platform if barriers are detected.
What international standards do your lift tables meet?
Our products are manufactured to meet American standard ANSI/ASME and European standard EN1570, ensuring high reliability and safety in global markets.
What is the typical delivery time after ordering?
Standard models typically have a delivery lead time of 15 to 20 days after the initial payment is received.
