Product Description

Basic Specifications

Model NO.

SS HD HF

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Lifting Height

205~4140mm or Customized

Load Capacity

500~4000kg or Customized

Platform Size

1600*1000mm or Customized

Feature

Explosion-Proof, Insulating, Emergency Stop

Certification

GS, CE, RoHS, ISO 9001

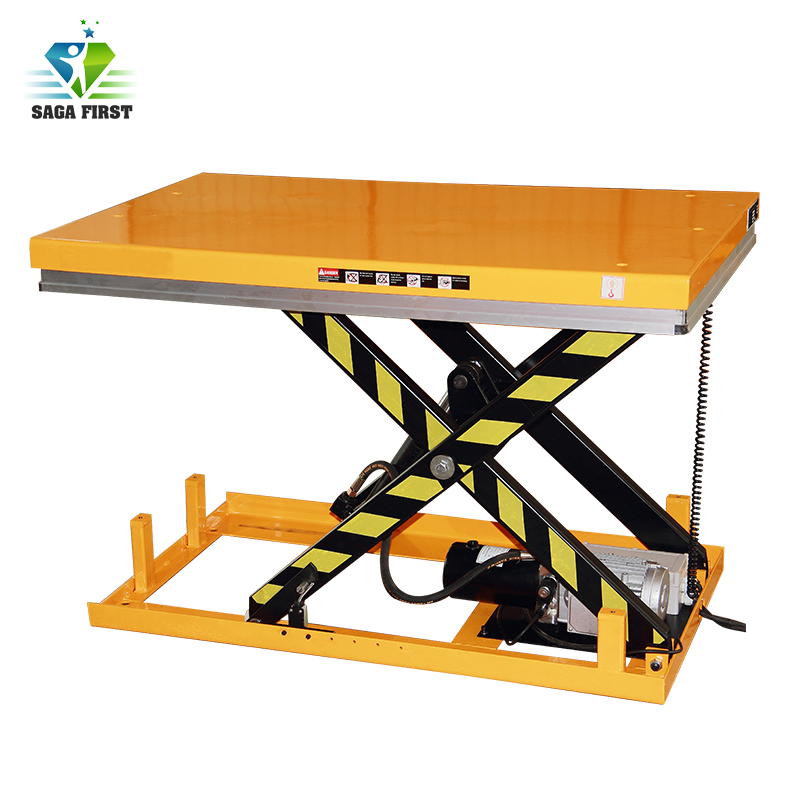

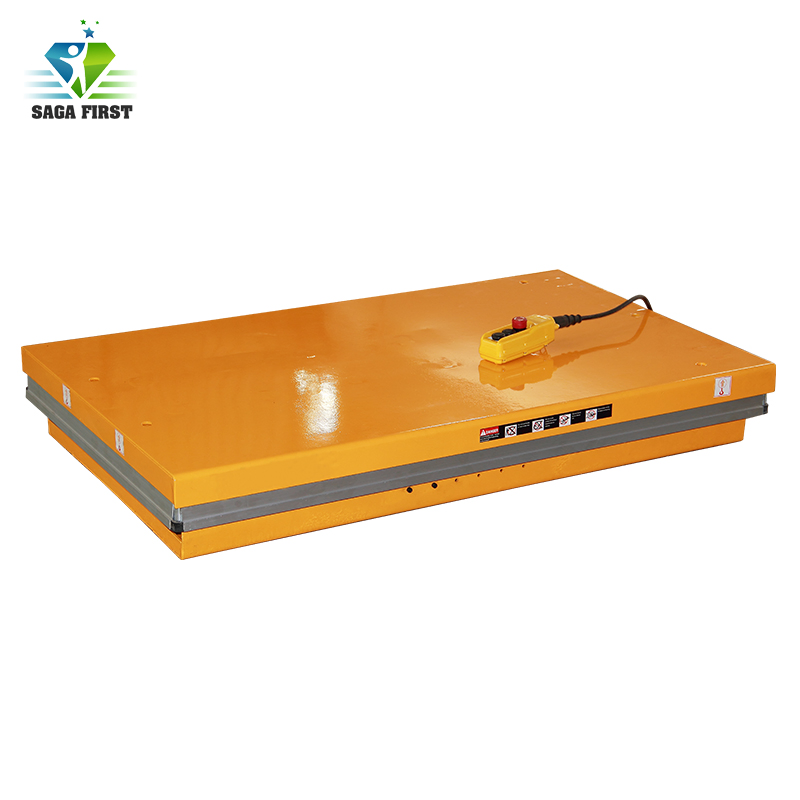

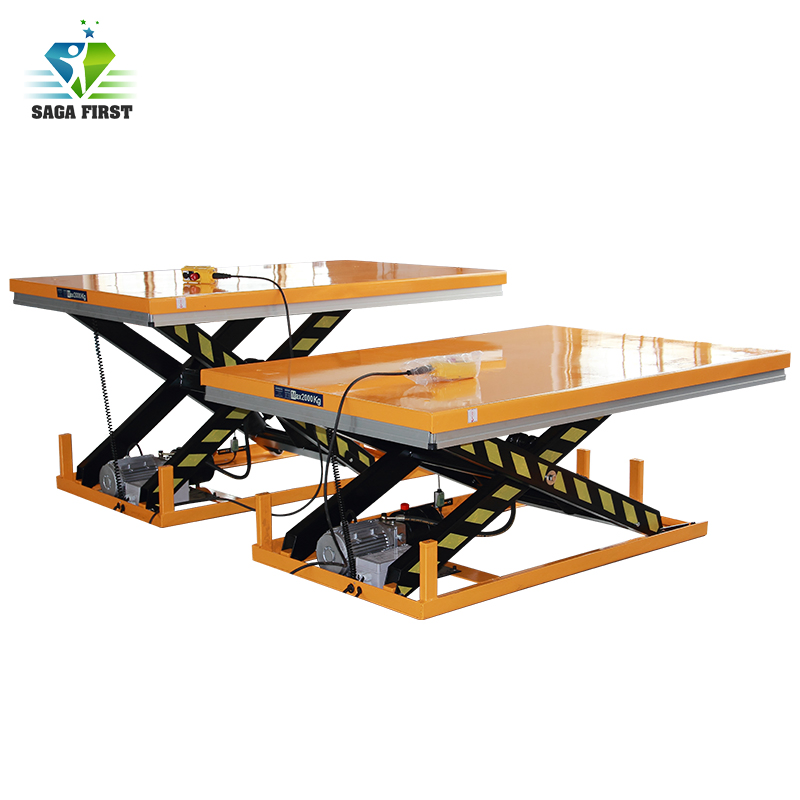

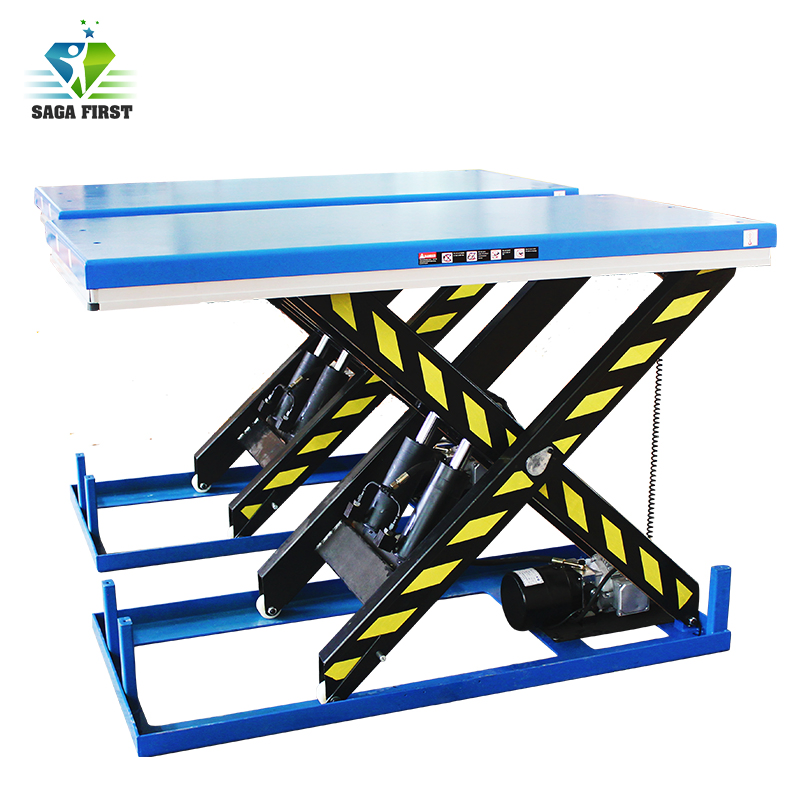

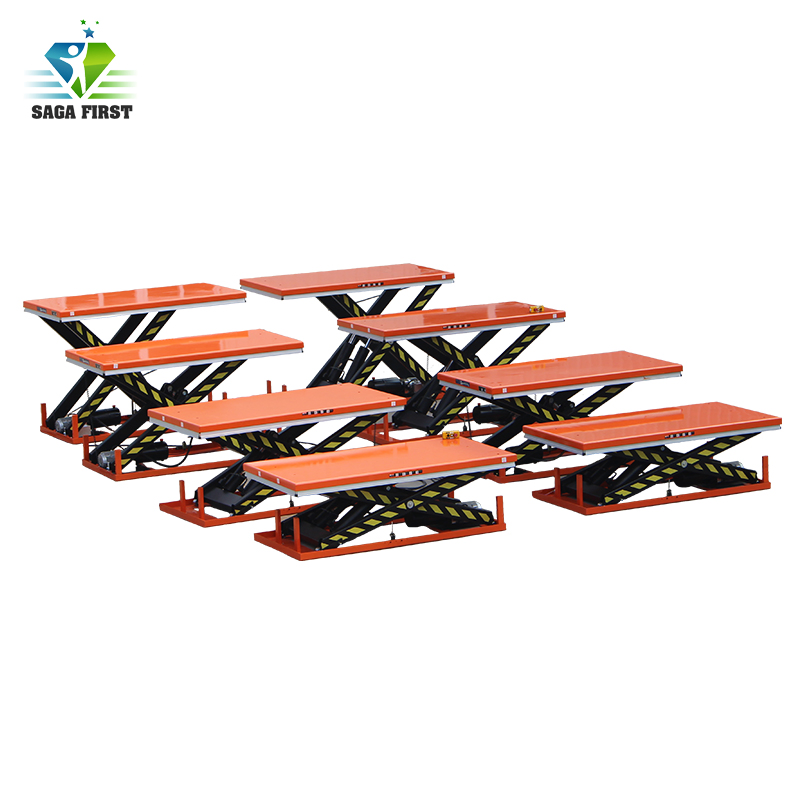

Hand Hydraulic Scissor Lift Table

High-quality electronic hydraulic scissor lifts compliant with American ANSI/ASME and European EN1570 standards. Standard load capacities range from 1,000kg to 4,000kg, with lifting heights from 205mm to 4,140mm. OEM & ODM services are available to meet specific platform size, capacity, and height requirements.

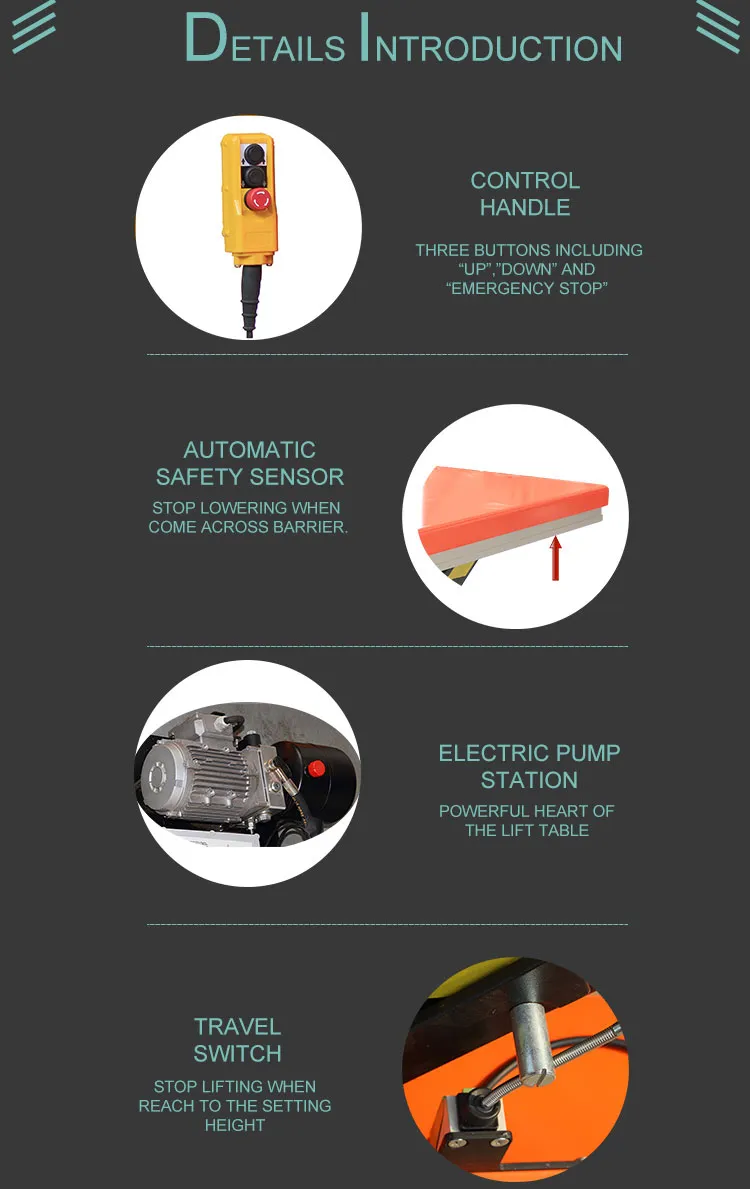

🛡️ Safety Precautions

Explosion-proof valves for hydraulic pipe protection
Spillover valve to prevent high pressure when the machine moves up
Emergency decline valve for manual lowering during power failures
Overload protection locking device
Automatic safety sensor: stops descent when encountering barriers

Technical Parameters

Model	Load Capacity (KG)	Self Height (MM)	Max Platform Height (MM)	Platform Size (MM)	Lifting Time (S)	Net Weight (KG)
SS1001	1000	205	1000	1300×820	20~25	160
SS1002	1000	205	1000	1600×1000	20~25	186
SS2001	2000	230	1000	1300×850	20~25	235
SS2002	2000	230	1050	1600×1000	20~25	268
SS4001	4000	240	1050	1700×1200	30~40	375
HD1000	1000	305	1780	1300X820	35-45	210
HT1000	1000	470	3000	1700x1000	35-45	450
HF400	400	600	4140	1700x1000	30-40	800

Features & Advantages

Surface Treatment

Dealt with shot blasting and stoving varnish for high anti-corrosion performance.

Stability

High-quality pump station ensures stable lifting and lowering operations.

Durability

Anti-pinch scissor design with self-lubricating pin-roll points to prolong life span.

Safety Systems

Heavy-duty cylinders with drainage systems and check valves to prevent lowering in case of hose burst.

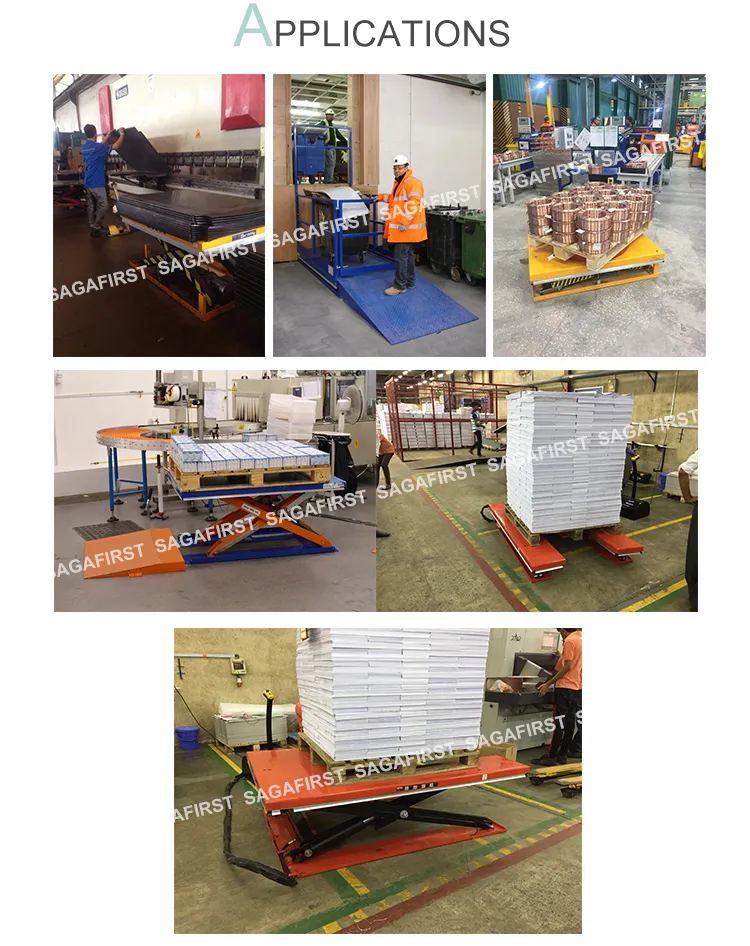

Applications & Services

Stationary scissor lift tables are widely used in workshops, warehouses, and factories. They are also ideal for car parking lots, automobile showrooms, and building maintenance.
