Applicable Industries
Machinery Repair Shops, Manufacturing Plant
Lift Drive / Actuation
Hydraulic
Operation
Electric (Pedal)
Color
Yellow, Blue or Customized
Production Capacity
10000/Year

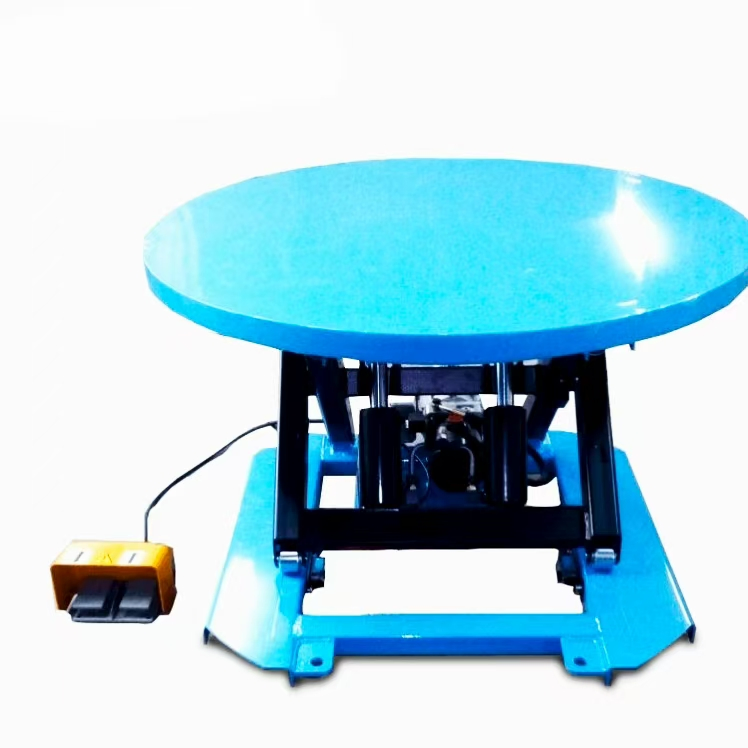

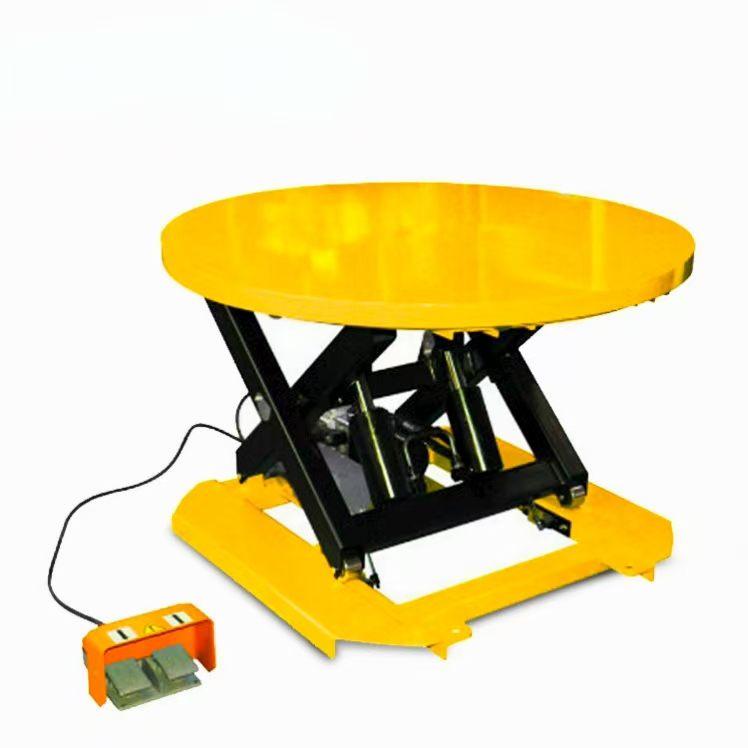

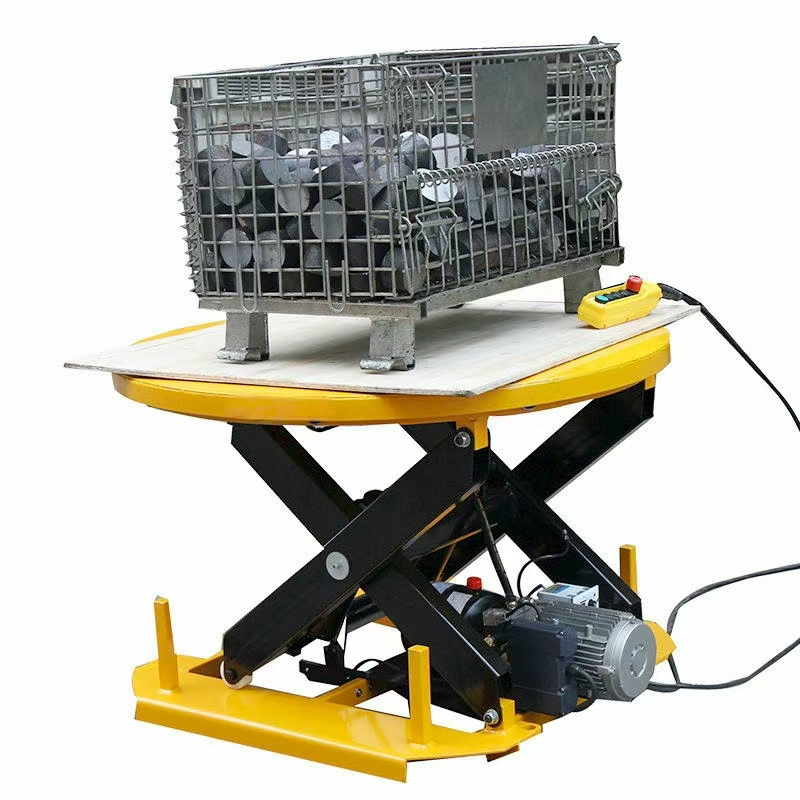

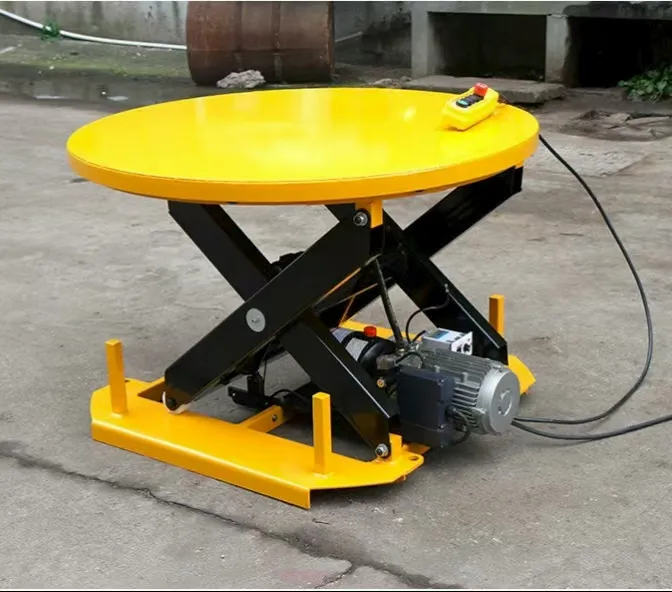

Introducing the Electric Hydraulic Lifting and Rotating Platform Car, a marvel of engineering that combines precision and strength to deliver unparalleled performance. This rotating machine serves as an electric assembly line round table, perfectly crafted to meet diverse lifting needs with its robust lifting platform.

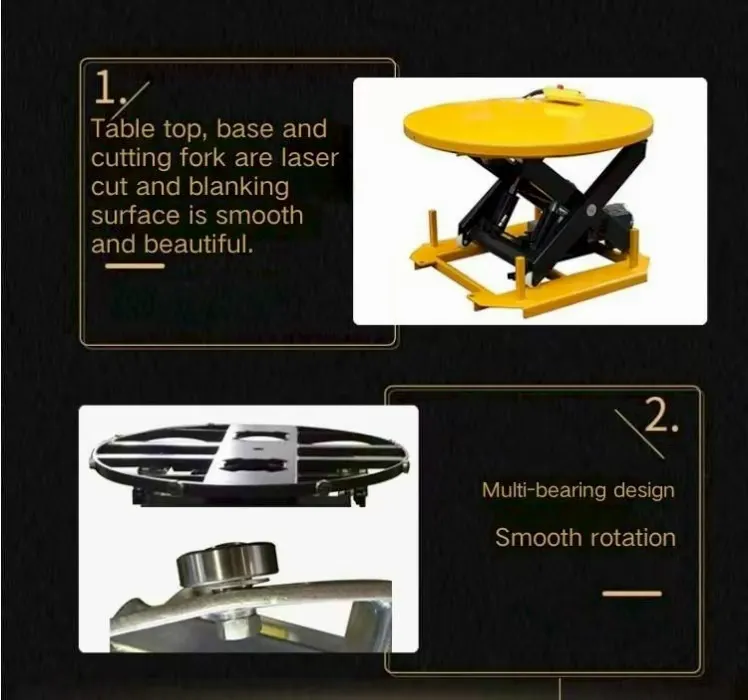

- ✔• 360 degree rotating closed platform.
- ✔• Easy to be moved by the forklift truck.
- ✔• Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

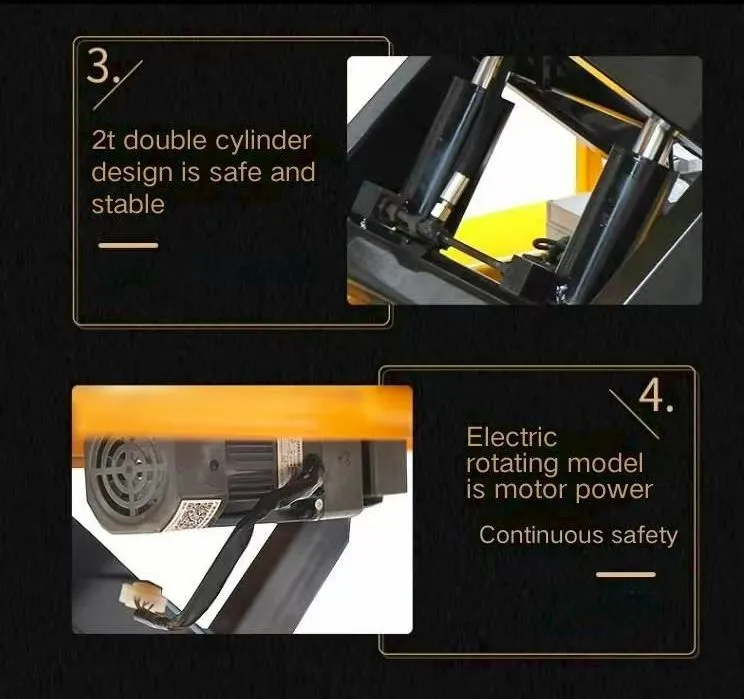

- ✔• Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

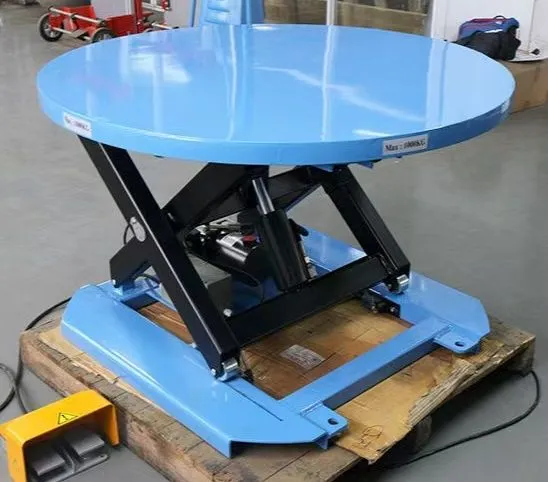

- ✔• Manual rotation type with foot pedal controller, electric rotation type with hand controller.
- ✔• Single phase power supply as optional.
- ✔• Built-out power unit as optional.
| Model |
Unit |
HP-1000E |
HP-2000E |
HP-1000EA |
HP-2000EA |
| Capacity |
kg |
1000 |
2000 |
1000 |
2000 |
| Type |
- |
Electric Lifting & Manual Rotation |
Electric Lifting & Electric Rotation |
| Controller |
- |
Foot pedal (Hand optional) |
Hand controller |
| Diameter of Platform |
mm |
1110 |
| Min. Platform Height |
mm |
300 |
300 |
325 |
340 |
| Max. Platform Height |
mm |
710 |
| Basement Size |
mm |
930x920 |
| Lift Time |
sec |
15-20 |
20-25 |
15-20 |
20-25 |
| Rotating Motor |
kW |
\ |
\ |
0.16KW |
0.3KW |
| Net Weight |
kg |
163 |
175 |
178 |
190 |
Shipping fee and delivery date are tailored to your needs. Connect with our supplier today for personalized information and seamless communication about your shipping options.
Our dedicated after-sales team provides personalized, one-on-one technical support, ensuring you receive expert guidance and assistance.
Are you a trading company or manufacturer?
We are a factory specializing in hydraulic lifting equipment.
How long is the typical delivery time?
Generally, it is 7-15 days if the goods are not in stock, depending on the order quantity.
What are the available load capacities for this platform?
Standard models support 1000kg and 2000kg, but customization options are available.
What are the payment terms for orders?
For orders under 1000USD, 100% in advance. For orders over 1000USD, 30% T/T in advance and the balance before shipment.
Does the lift table come with safety features?
Yes, it includes heavy-duty cylinders with a drainage system and a check valve to prevent lowering in case of a hose burst.
Can the rotation be automated?
We offer both manual rotation types (with foot pedal) and fully electric rotation types (with hand controller).
