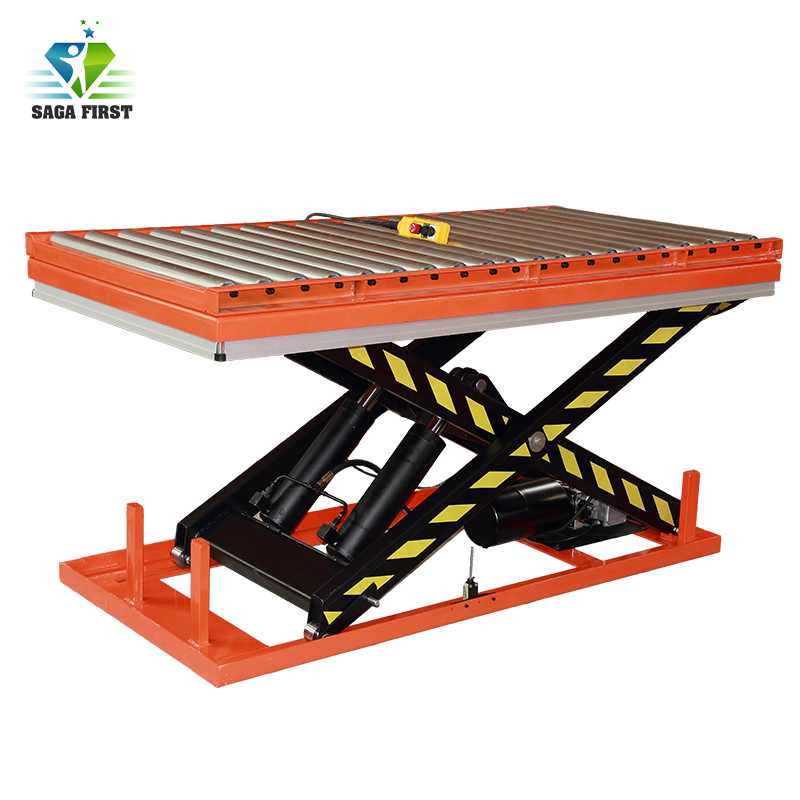

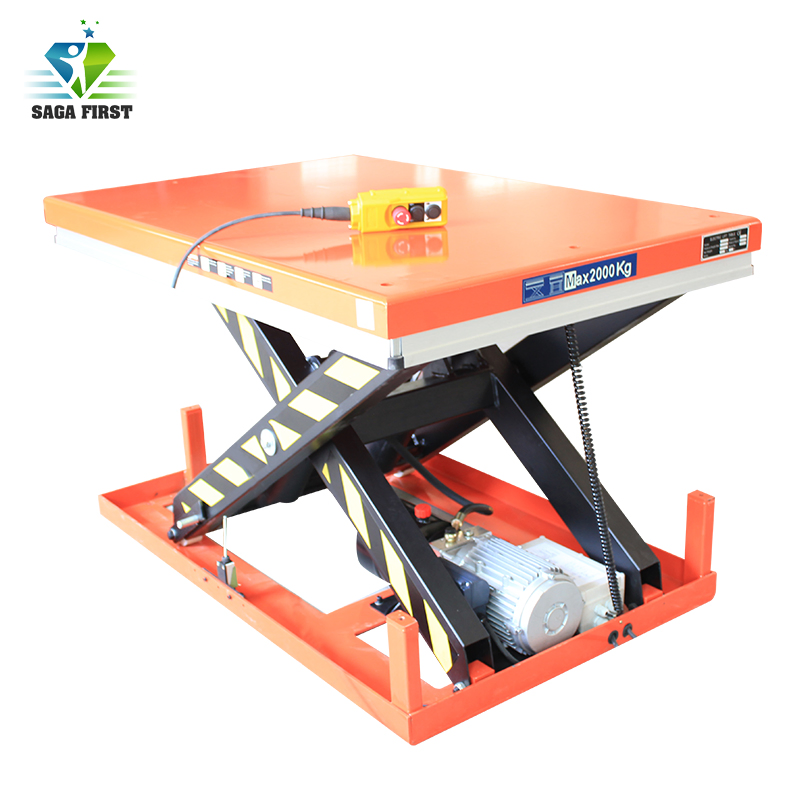

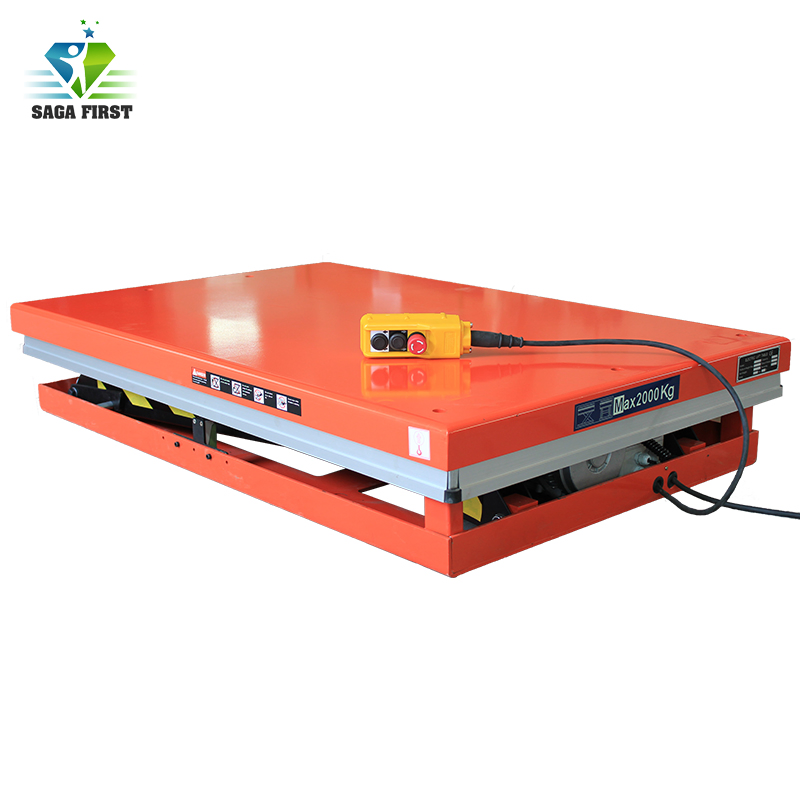

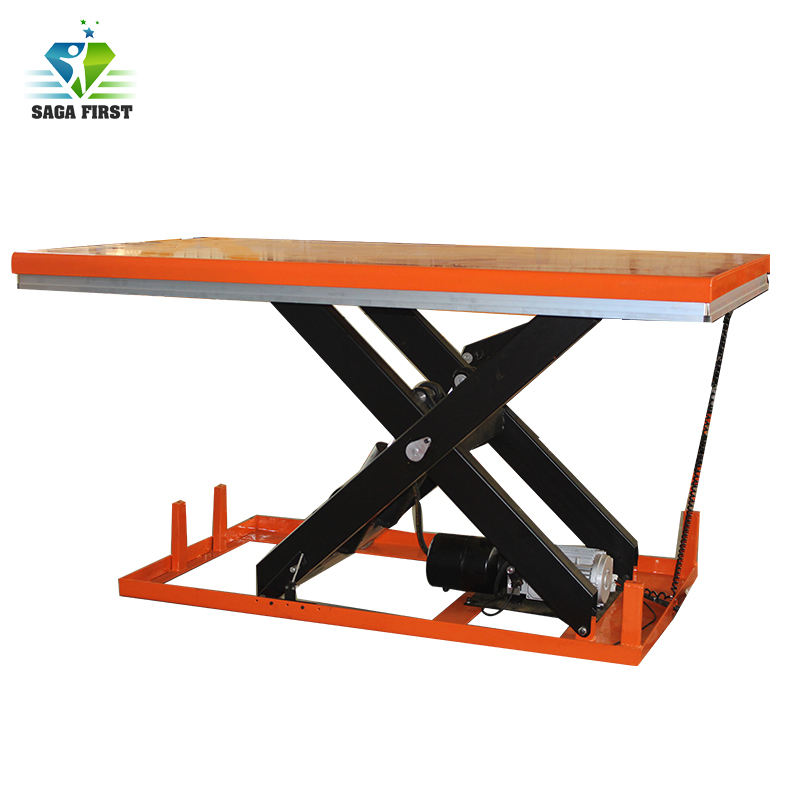

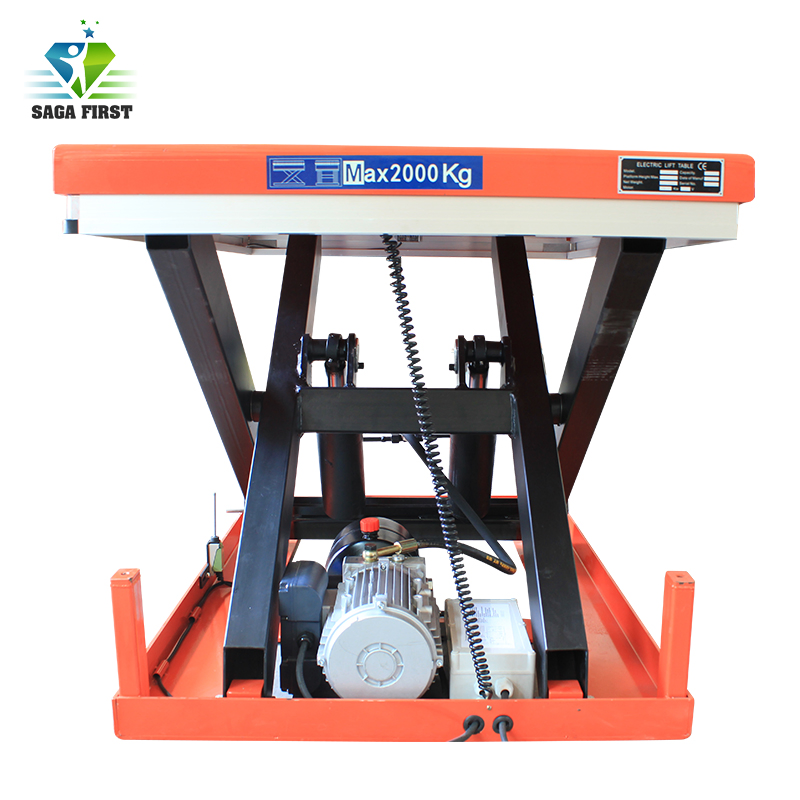

Electric Control Hydraulic Stationary Scissor Lift Table

Basic Specifications

Carrying Capacity

Weight Level

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating, Emergency Stop

Certification

GS, CE, RoHS, ISO 9001

Lifting Height

205~4140mm or Customized

Load Capacity

500~4000kg or Customized

Platform Size

1600*1000mm or Customized

Warranty

2 Years

Hydraulic Scissor Lift Table

Our Scissor Lift Tables are high-quality electronic hydraulic lifts compliant with American standard ANSI/ASME and European standard EN1570. Standard models offer load capacities from 1,000kg to 4,000kg, with lifting heights ranging from 205mm to 4,140mm. We offer full OEM & ODM customization for platform size, capacity, and height to meet your specific industrial requirements.

Technical Parameters

Model	Load Capacity (KG)	Self Height (MM)	Max Platform Height (MM)	Platform Size (MM)	Lifting Time (S)	Net Weight (KG)
SS1001	1000	205	1000	1300×820	20~25	160
SS1002	1000	205	1000	1600×1000	20~25	186
SS2001	2000	230	1000	1300×850	20~25	235
SS2002	2000	230	1050	1600×1000	20~25	268
SS4001	4000	240	1050	1700×1200	30~40	375
HD1000	1000	305	1780	1300X820	35-45	210
HT1000	1000	470	3000	1700x1000	35-45	450
HF400	400	600	4140	1700x1000	30-40	800

Safety Precautions & Features

🛡️

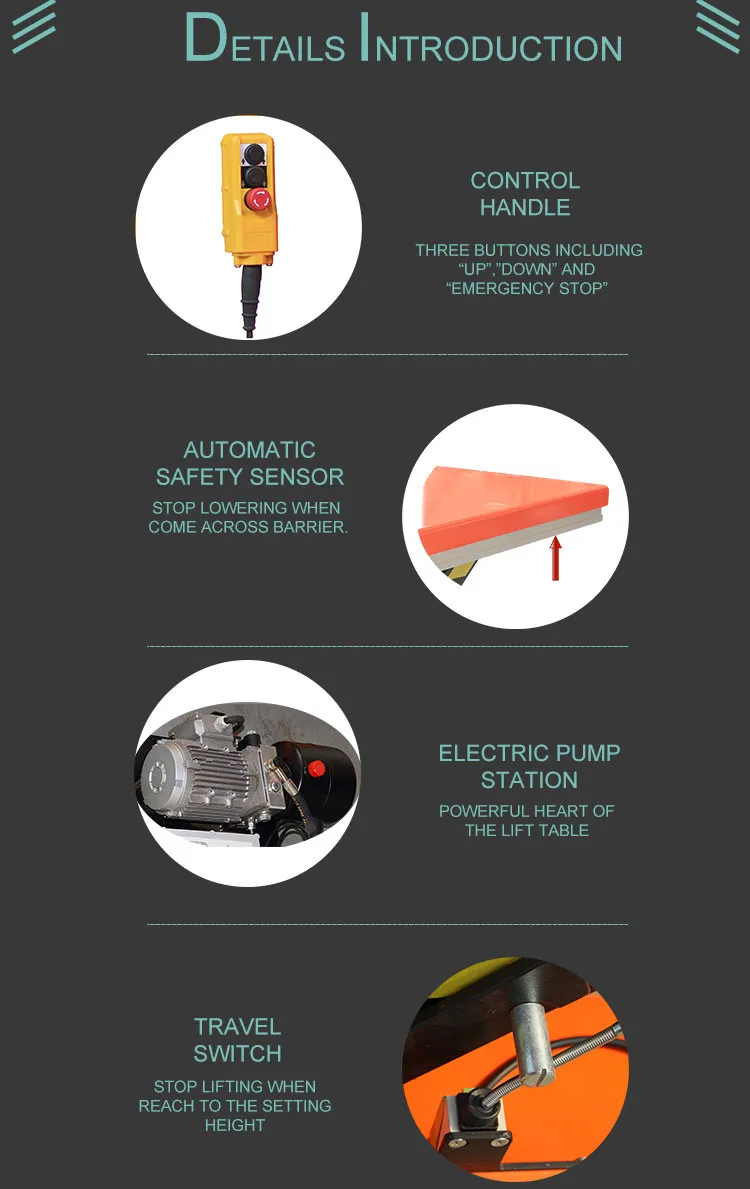

Safety Systems: Includes explosion-proof valves, spillover valves, and emergency decline valves for maximum protection.

⚙️

Overload Protection: Equipped with an overload protection locking device and automatic safety sensors that stop upon encountering barriers.

✨

Surface Treatment: Treated with shot blasting and stoving varnish for superior anti-corrosion performance.

💎

High Stability: Premium pump station ensures smooth lifting and lowering cycles.

🔧

Anti-Pinch Design: Scissor structure features a self-lubricating pin-roll design to prolong service life.

🎮

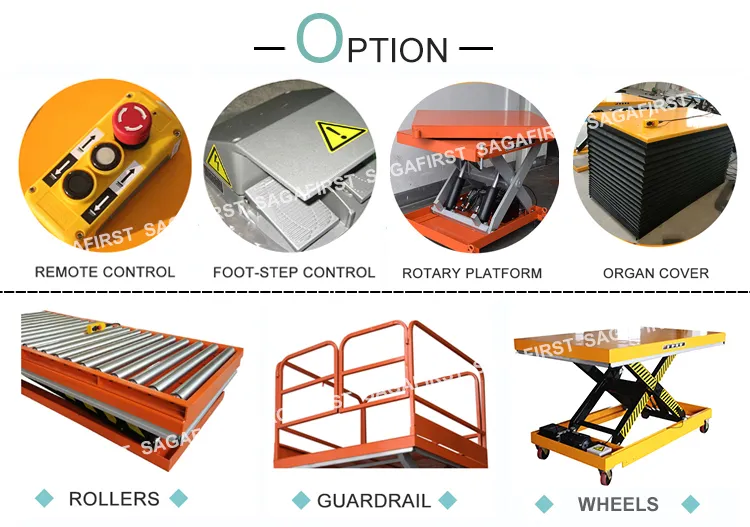

Optional Controls: Available with wireless remote control, footstep control, rollers, or safety bellows.

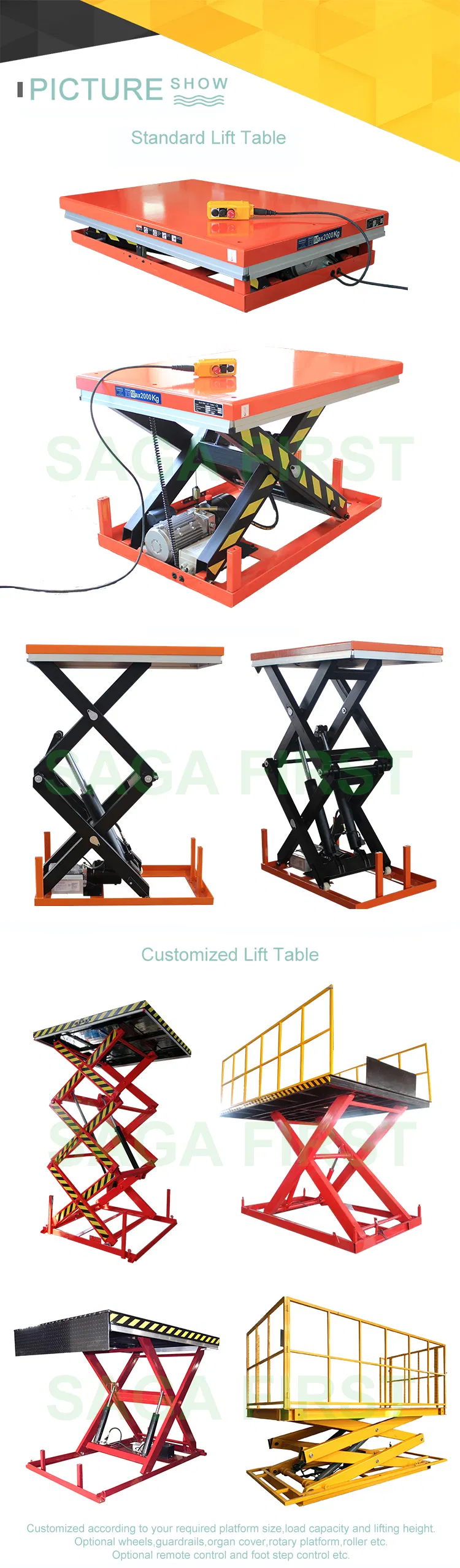

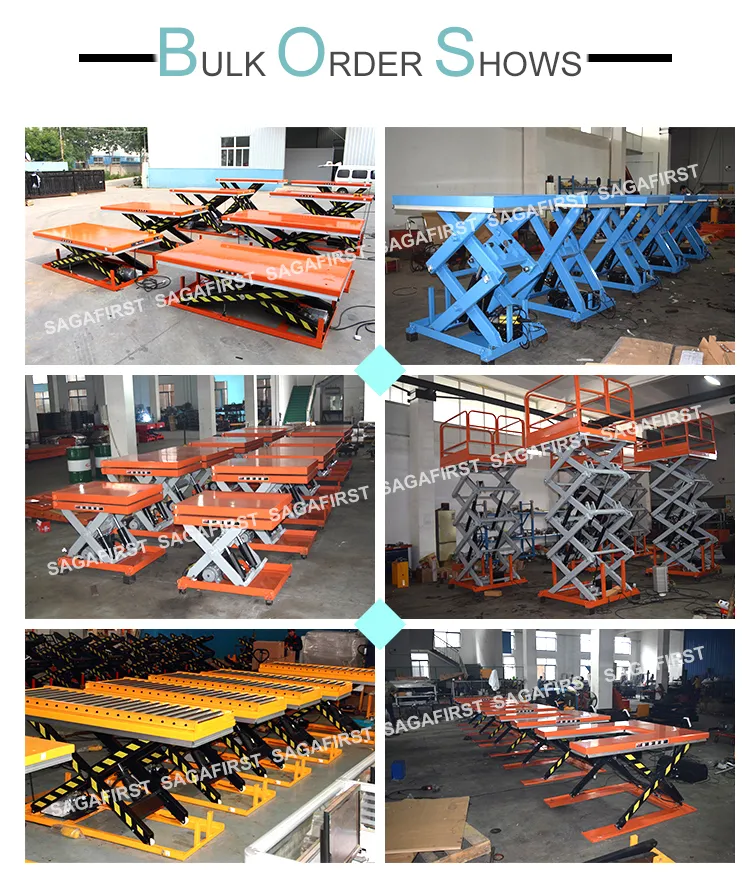

Product Gallery

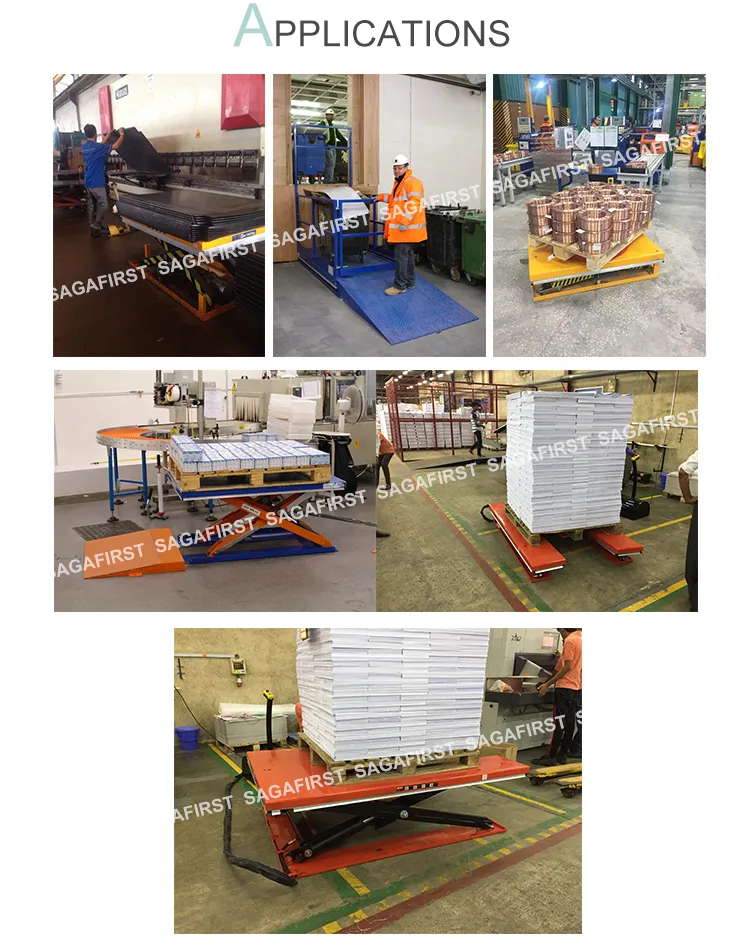

Industrial Applications

Stationary scissor lift tables are essential components in material handling. They are primarily used in workshops, warehouses, and factories to convey goods between different working levels. Additionally, they are suitable for home garages, car showrooms, and building maintenance tasks. The unit can be installed directly on the ground or within a pit for flush-mount access.

Frequently Asked Questions

How can I purchase replacement parts if the equipment breaks down?

The lift utilizes common hardware parts available at most local hardware markets or forklift parts shops. We also provide support for specific components.

What is the failure rate and how are repairs handled?

The equipment features an extremely low failure rate. If an issue occurs, we provide repair instructions and video guidance to facilitate quick maintenance.

What are your quality warranty terms?

We offer a 24-month (2-year) quality guarantee. During this period, replacement parts are provided free of charge.

What payment terms do you accept for international orders?

For orders under USD 4,999, we require 100% TT in advance. For larger orders, we accept 30% TT in advance with the balance due before shipment, or Irrevocable L/C at sight.

What is the typical delivery time after payment?

Standard delivery time is between 15 to 20 days after the initial down payment is received.

What is your quality assurance (QA) policy?

We conduct a 100% inspection of the equipment three times before it is cleared for shipping to ensure perfect functionality.
