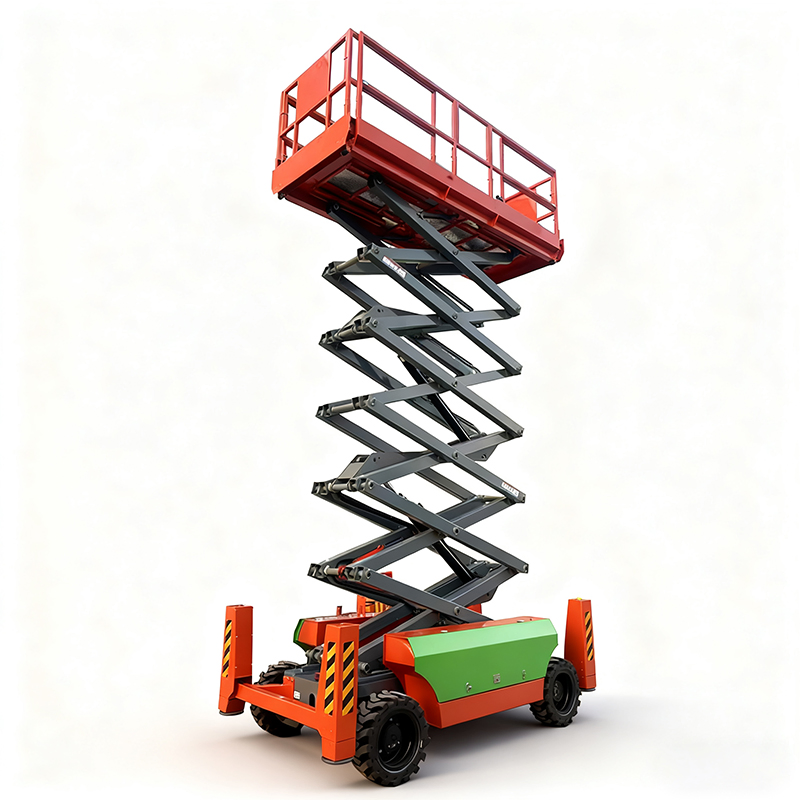

10m 12m 14m 16m 18m 20m Compact Indoor Mobile Elevating Rough Terrain Scissor Lift Warehouse Self-Propelled Electric Wheeled Aerial Work Platform with Outrigger

Basic Information

Model NO.

SJPT1214ERT

Lift Mechanism

Scissor Lift

Carrying Capacity

Light Level (450kg)

Driven Type

AC / Electric

Max. Working Height

14m - 16m

Certification

CE, ISO 9001

Platform Size

257*139cm

Feature

Explosion-Proof, Insulating

Product Description

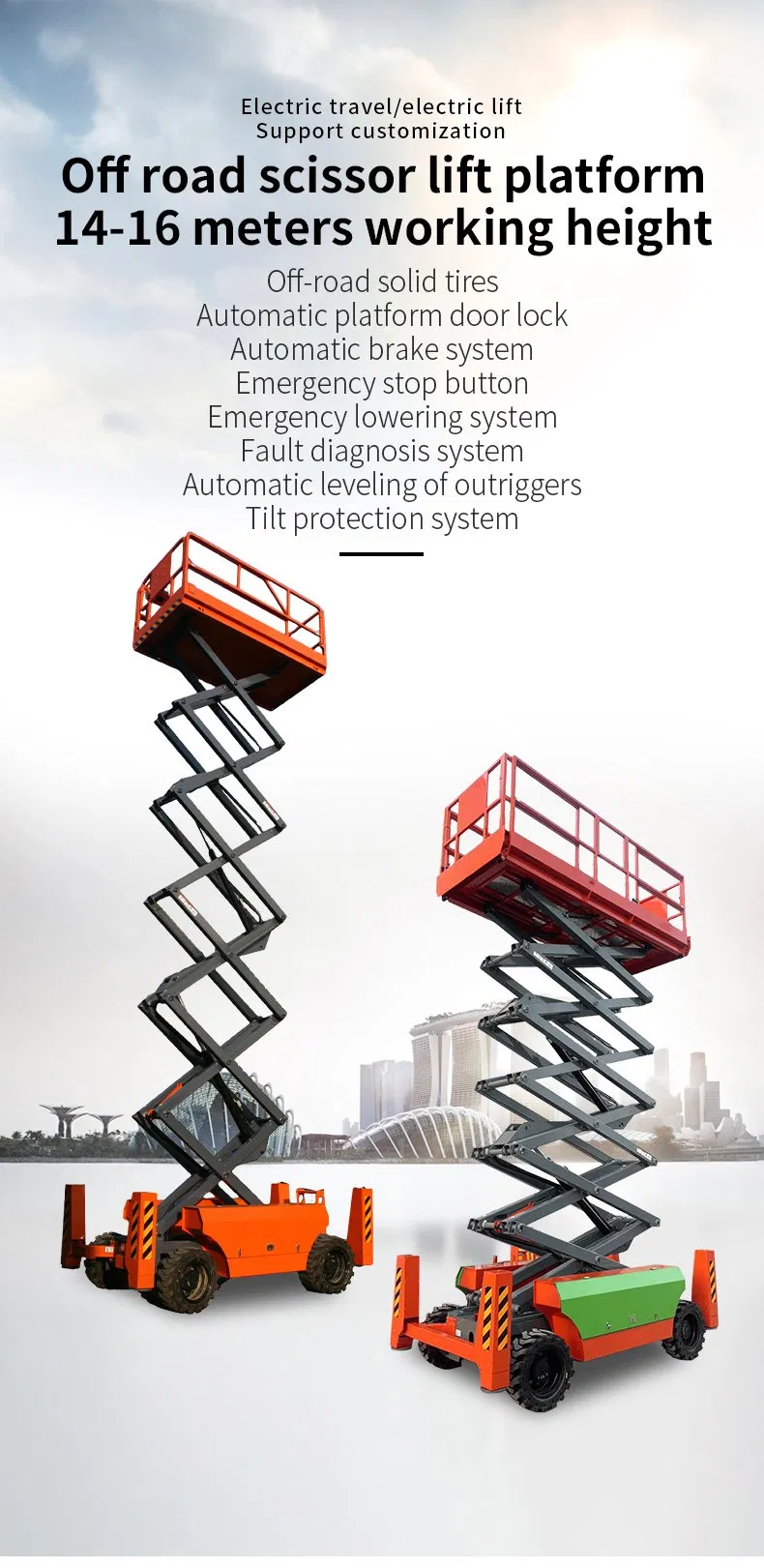

🚀 Outdoor Indoor Maintenance Aerial Work Machine

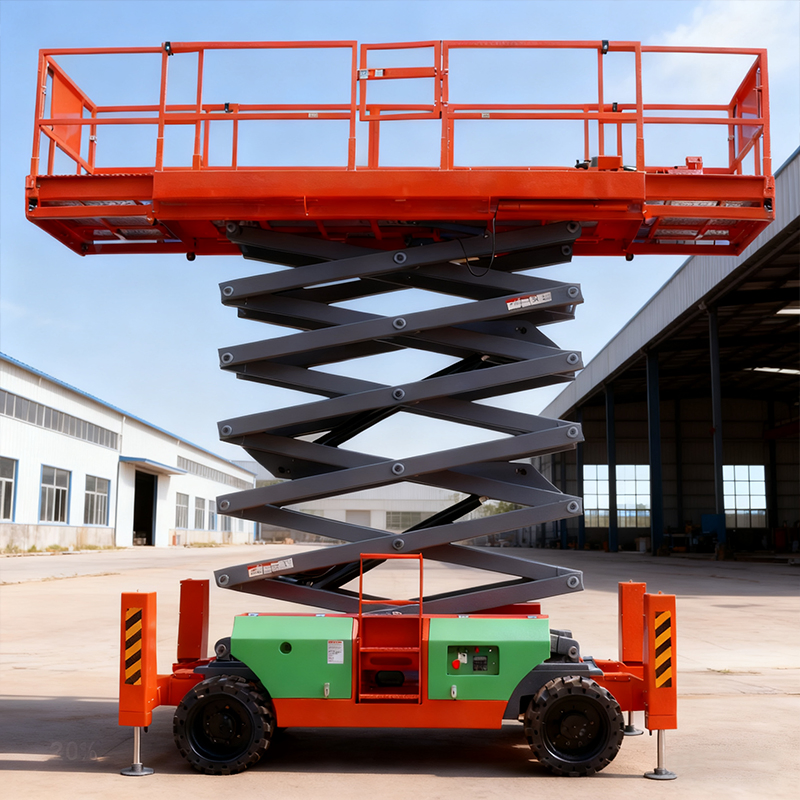

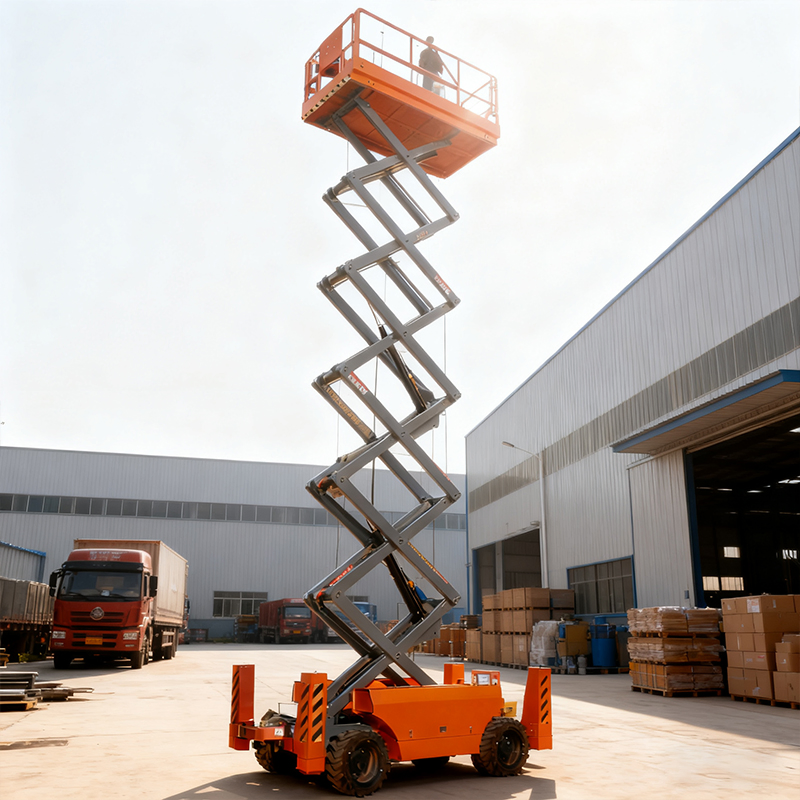

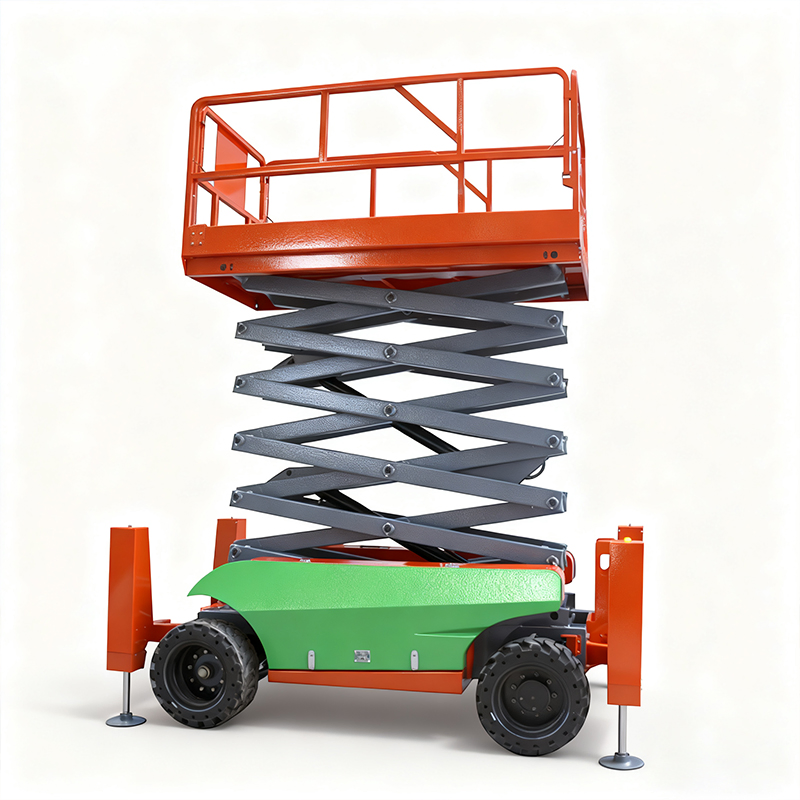

Designed for rough terrain and demanding outdoor environments, this off-road scissor lift provides powerful performance, high stability, and outstanding adaptability. With a working height of 14–16m, it supports both electric travel and electric lifting.

Off-road solid tires: Engineered for muddy roads, gravel, and construction sites.
Automatic Leveling: One-button auto-leveling outriggers ensure stability on uneven ground.
Efficient Power: Electric travel & electric lift for stable, quiet, and efficient operation.
Full Protection: Includes tilt protection, emergency lowering, and automatic brakes.

Technical Specifications

Model	SJPT1214ERT	SJPT1214ERT-T4	SJPT1614ERT-T4
Dimensions
Max. Working Height	14m	14m	16m
Max. Platform Height	12m	12m	14m
Platform Length/Width	2570/1390mm	2570/1390mm	3600/1390mm
Overall Height (Rails Raised)	2650mm	2650mm	2888mm
Performance
Rated Load Capacity	450kg	450kg	450kg
Max. Gradeability	30%	35%	35%
Travel Speed (Lifting)	6.5Km/h	6.5Km/h	6.5Km/h
Steering / Braking	Rear-Wheel Drive	Front 4WD	Front 4WD
Power & Weight
Battery	8×12V/150Ah	8×12V/150Ah	8×12V/150Ah
Overall Machine Weight	3740kg	4160kg	5150kg

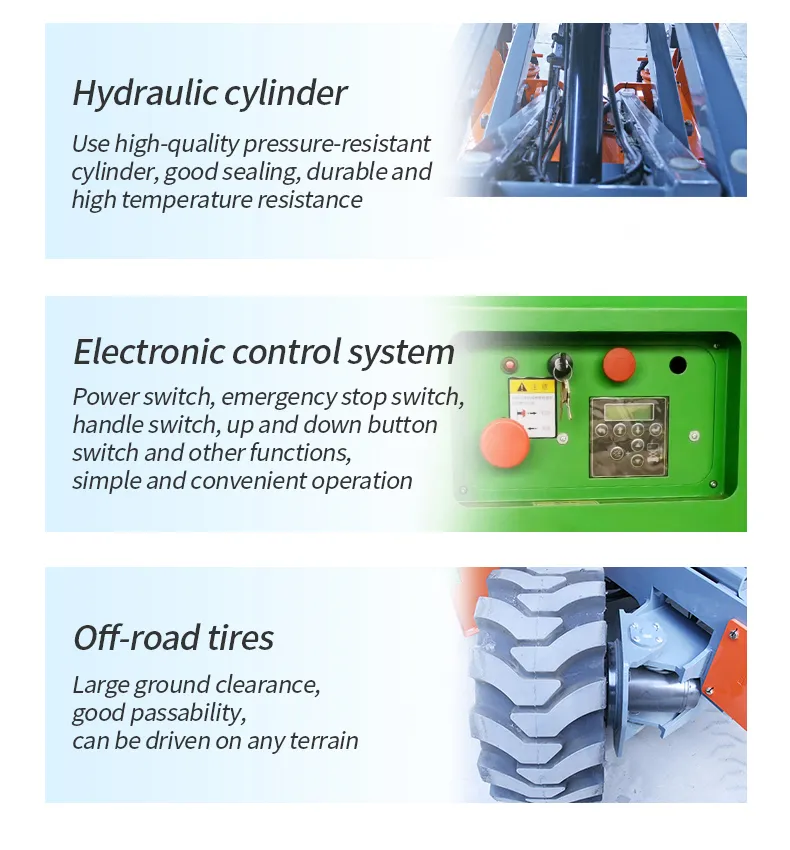

🛠️ Core Components & Safety

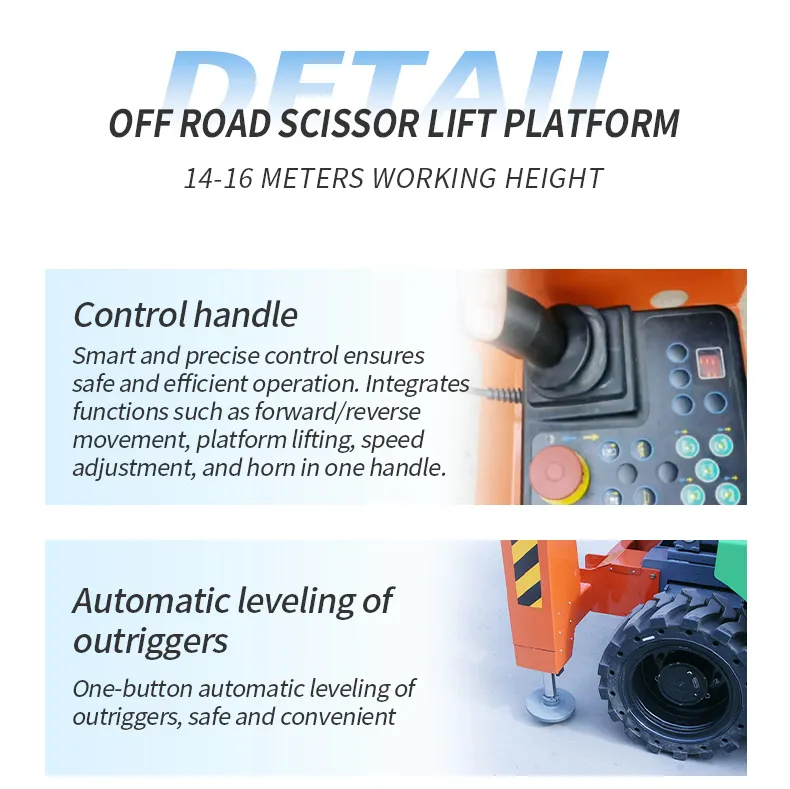

Control Handle: Smart and precise control for travel and lifting.
Hydraulic Cylinder: High-quality pressure-resistant with excellent sealing.
Electronic System: Simple, intuitive, and reliable system protection.
Automatic Braking: Instant response for operator safety.

Work Scenarios

Ideal for Construction sites, High-rise maintenance, Equipment repair, Billboard installation, and Uneven outdoor terrain.

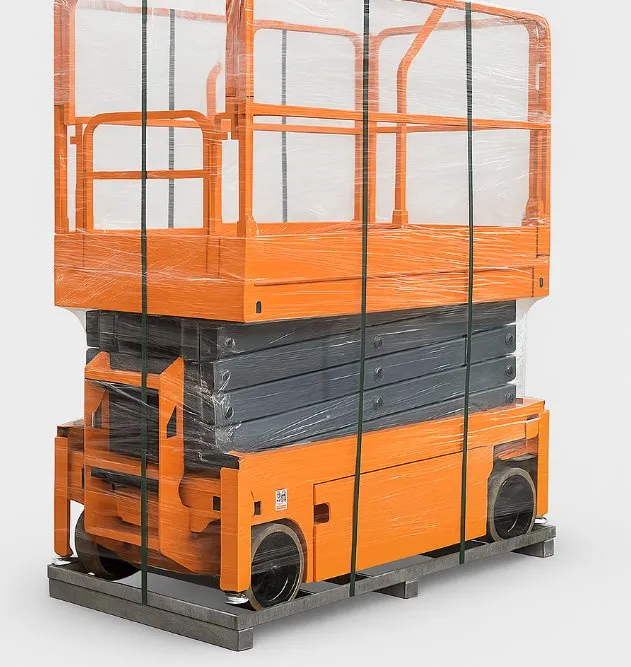

Packing & Delivery

Standard Export Packaging

Standard export pallet
Waterproof protective film wrapping
Edge guard and anti-rust treatment
Secured with high-strength steel straps
Optimized for 20GP and 40HQ containers

Why Choose Our Solutions

We are a professional aerial work platform manufacturer focused on advanced workshop standards and strict quality control. Our precision welding and assembly lines ensure dependable, cost-effective lifting solutions worldwide.

Frequently Asked Questions

1. Can this scissor lift operate on uneven or rough terrain?

Yes. This model is equipped with off-road solid tires and automatic leveling outriggers, providing strong traction and stability on gravel, muddy ground, and construction sites.

2. How long can the machine operate on a full charge?

Under normal working conditions, the lift can operate 6–8 hours per charge depending on frequency and load weight.

3. Is customization available for this model?

Yes, we support customization for working height, colors, and specific safety configuration upgrades. OEM & ODM services are fully supported.

4. What safety features are included?

The machine includes tilt protection, emergency stop functions, automatic braking, platform door locks, and an emergency lowering system.

5. What is the warranty period for this equipment?

We provide a 12-month warranty for the entire machine, excluding wearing parts, along with free technical support and troubleshooting.

6. How is the product protected during international shipping?

We use waterproof protective film, edge guards, and steel straps on standard export pallets to ensure the machine arrives in perfect condition.
