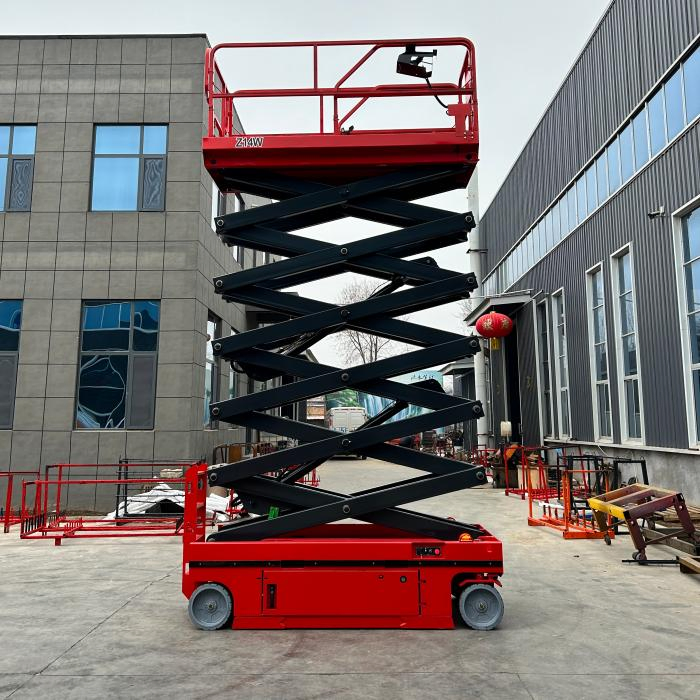

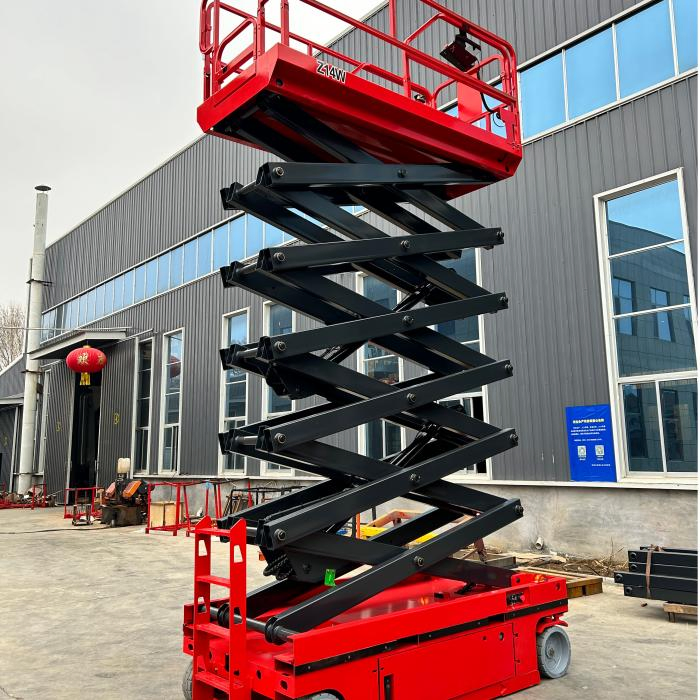

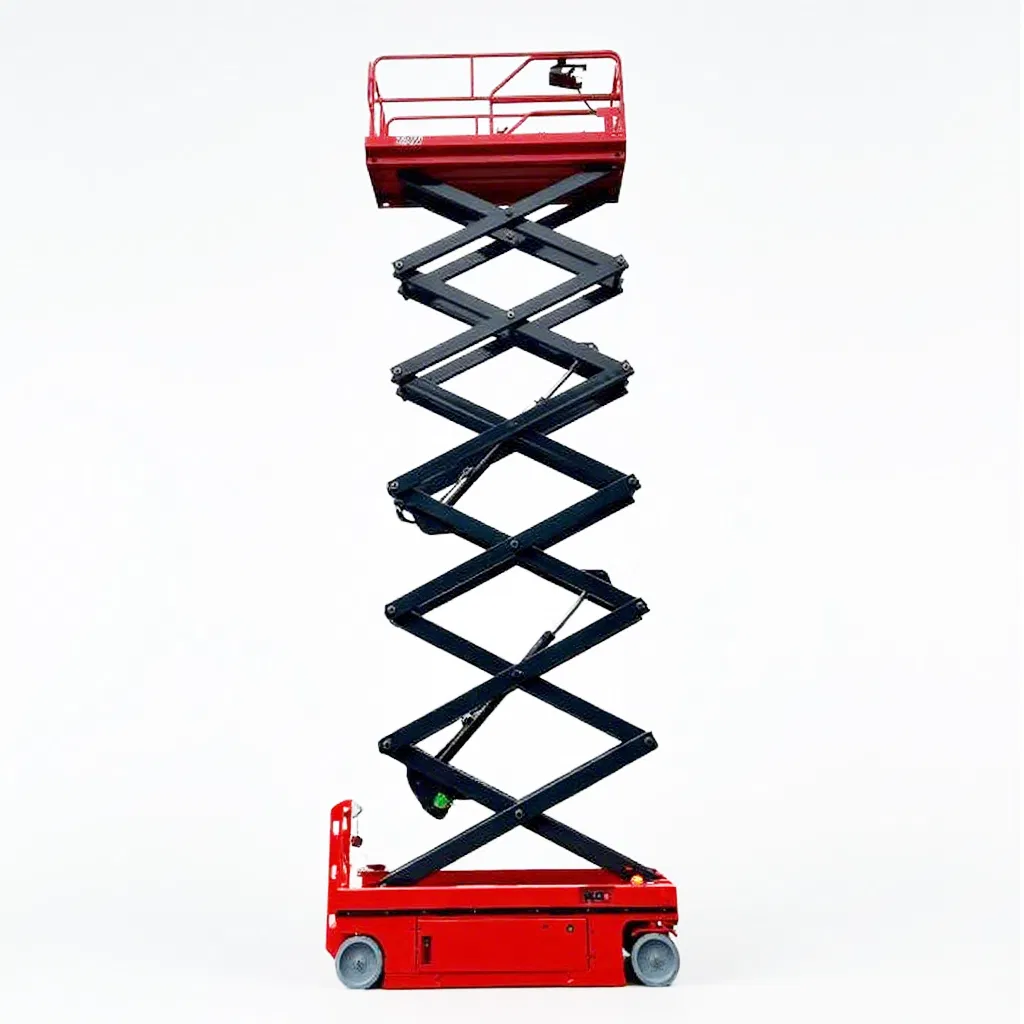

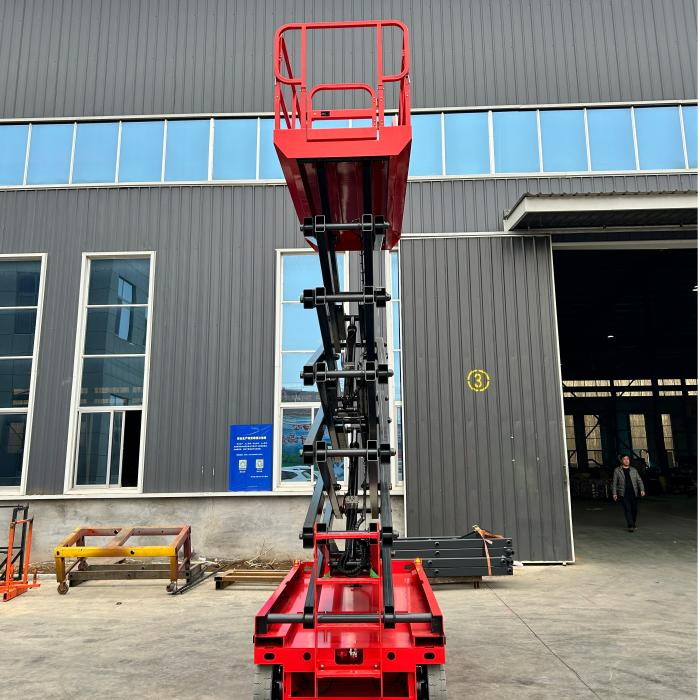

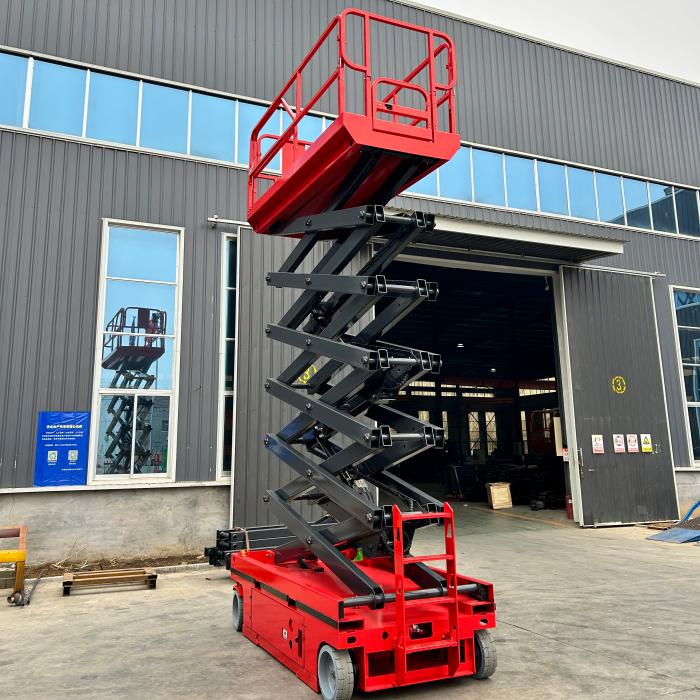

Vmax 14m Heavy-Duty Electric Scissor Lift - 350kg Payload & Rough Terrain Option for Outdoor Projects

Customization: Available
After-sales Service: 1 Years
Warranty: 1 Years

Product Description

i

Basic Specifications

Model NO.
VTJZ14
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Special Weight Level
Driven Type
AC
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Power
2.2kw
Lift Drive
Hydraulic
Package Size
285.00cm * 131.00cm * 260.00cm
Gross Weight
3570.000kg
HS Code
8428909090

Product Description

Electric Scissor Platforms are available in different styles, sizes, and capacities. They are ideal for a wide range of applications including power generation, oil and gas, construction, to food warehouses.

When it comes to working at height, the slightest misstep can have disastrous consequences. That's why it's crucial that workers operate from a secure and stable Electric Scissor Platform. Work platforms are designed and maintained according to industry standards, making them completely safe to use.

They can also be customized to meet the specific needs of your business. For example, you may want to add safety rails or other accessories. You can also choose from a variety of finishes such as paint, hot dip galvanized, and stainless steel. In this way, you can ensure that your new Electric Scissor Platform matches the aesthetic of your facility.

A cantilever work platform is an ideal solution for working on large equipment and trucks. These platforms extend from the side of a truck or other piece of machinery to allow workers to access difficult-to-reach areas. They can be fixed or mobile, and can vary in length from several feet to a few meters.

In addition to offering a safe and convenient way for people to work at height, Electric Scissor Platforms can help companies improve productivity by improving employee morale. Frontline workers play an integral role in keeping operations running smoothly. Work platforms help to connect them with the data and resources they need to do their jobs effectively.

Technical Parameters

ModesVTJZ14E
Max. Working Height15.8m
Max. Platform Height13.8m
Platform Dimensions2.7×1.11×1.1m
Length-stowed2.85m
Width-stowed1.31m
Height-stowed2.6m
Height-stowed (folding guardrails)2.06m
Slide-out platform extension deck-length0.9m
Ground clearance center (pothole guards retracted)0.12m
Ground clearance (pothole guards deployed)0.02m
Wheelbase2.24m
Weight3570kg
Max. Lift capacity230kg
Lift capacity - extension deck extended113kg
Max. Platform occupancy2
Drive speed-stowed3.5km/h
Drive speed-raised0.8km/h
Gradeability -stowed25%
Max. Working Angle1.5°/3°
Turning radius -inside/outside0/2.5m
Lifting speed-raise/lower3-5m/min
Tires-solid non-markingΦ381×127mm
Battery24V/240Ah
Charger24V/36A
📷

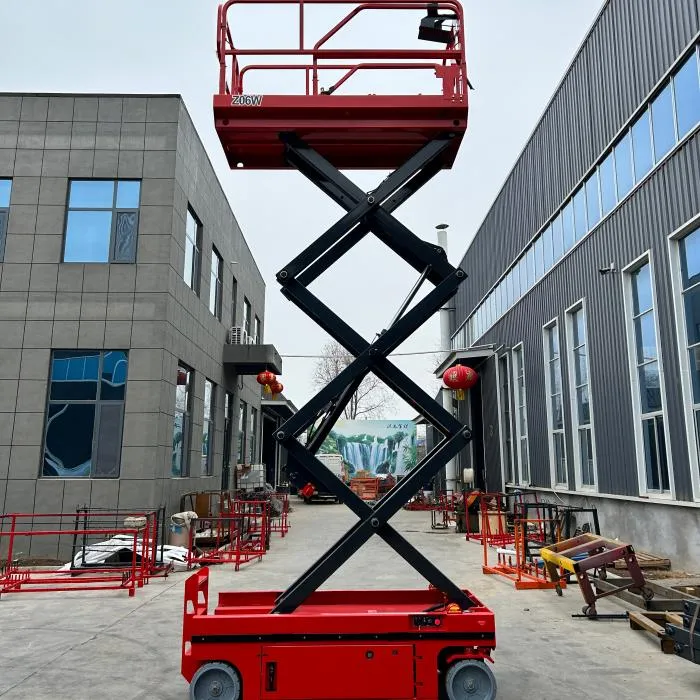

Detailed Photos

Product Overview Technical Drawing Usage Scenario Safety Features Component Details Control System Base Structure
?

Frequently Asked Questions

What is the maximum working height of this scissor lift?
The VTJZ14E model offers a maximum working height of 15.8 meters, with a maximum platform height of 13.8 meters.
Can the guardrails be folded for transport?
Yes, the guardrails are foldable. When folded, the stowed height reduces from 2.6 meters to 2.06 meters, making it easier to pass through standard doorways or for compact storage.
What type of tires does the platform use?
It is equipped with solid non-marking tires (Φ381×127mm), which are ideal for maintaining clean floors in indoor environments like warehouses and workshops.
What is the lifting capacity of the extension deck?
While the main platform has a capacity of 230kg, the slide-out extension deck is designed to support up to 113kg.
Is this platform suitable for outdoor use?
Yes, it features a 25% gradeability and is designed for various applications including construction and building sites, provided the ground meets the working angle requirements (1.5°/3°).
What are the power and battery specifications?
The system is powered by a 24V/240Ah battery with a 2.2kw AC motor, and it includes a 24V/36A charger for efficient recharging.
