1 Ton 2 Ton Super Low-Profile Hydraulic Electric Scissor Lift Table
OEM & ODM & OBM Available
The Low Profile Scissor Lift is designed for efficient material handling, with a load capacity between 1000kg and 2000kg and a remarkably low platform height of just 85mm when fully lowered, allowing for smooth loading and unloading without the need for a pit. It supports full customization, including table dimensions, lifting height, and weight capacity, making it a practical solution for a wide range of industrial applications.

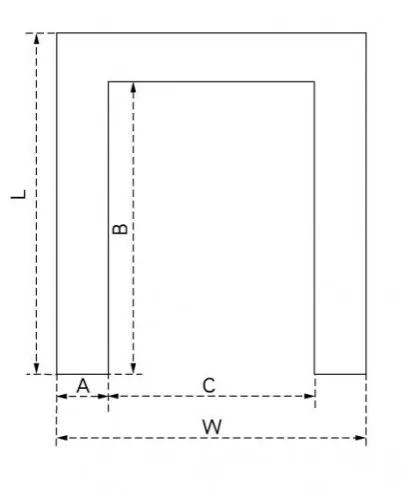

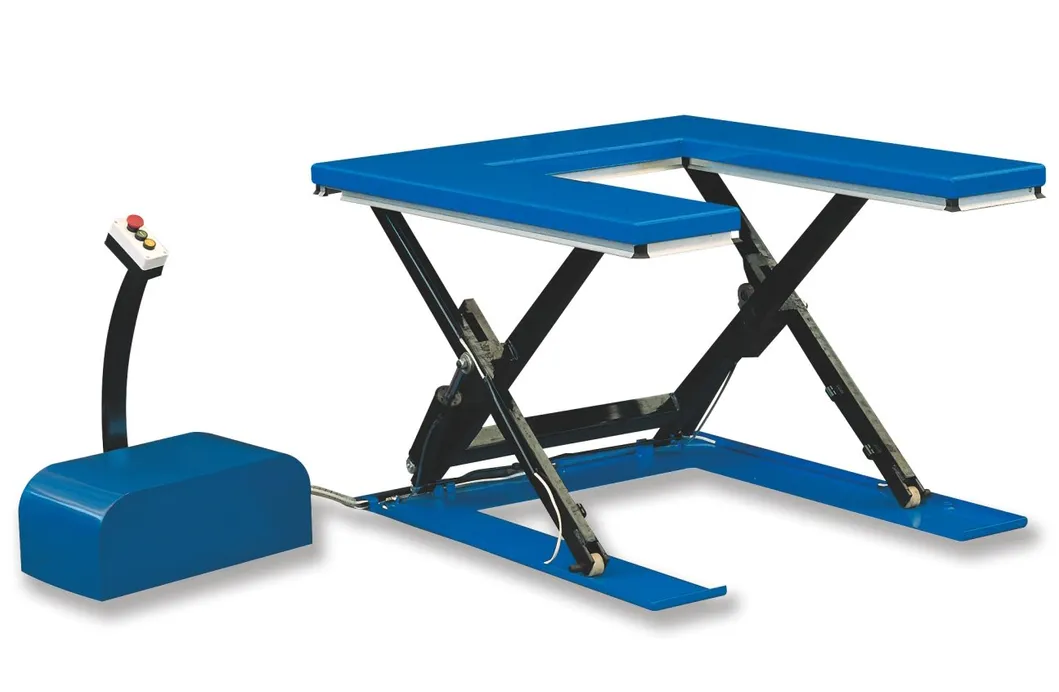

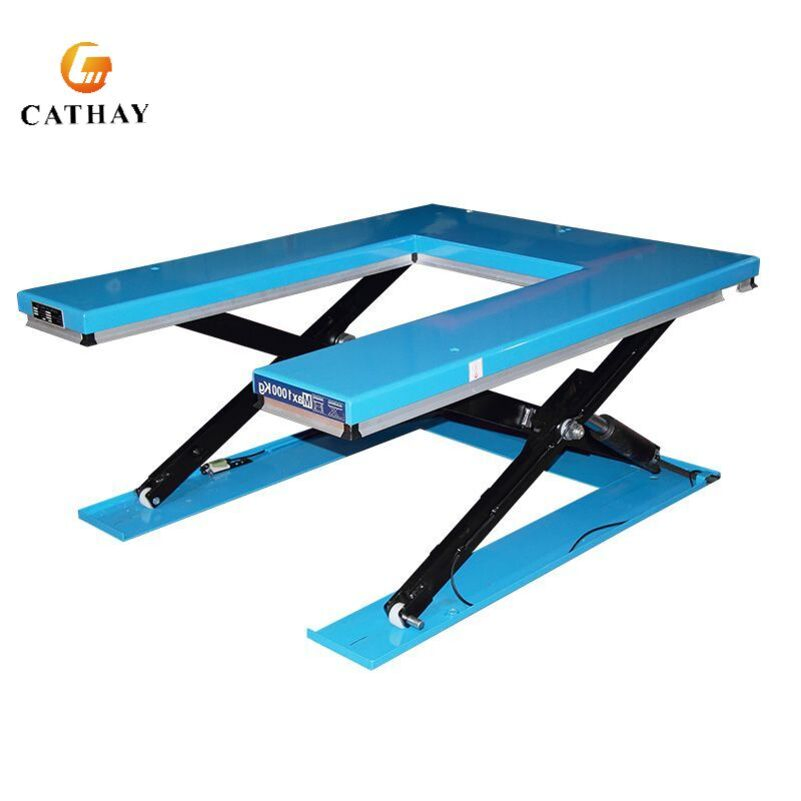

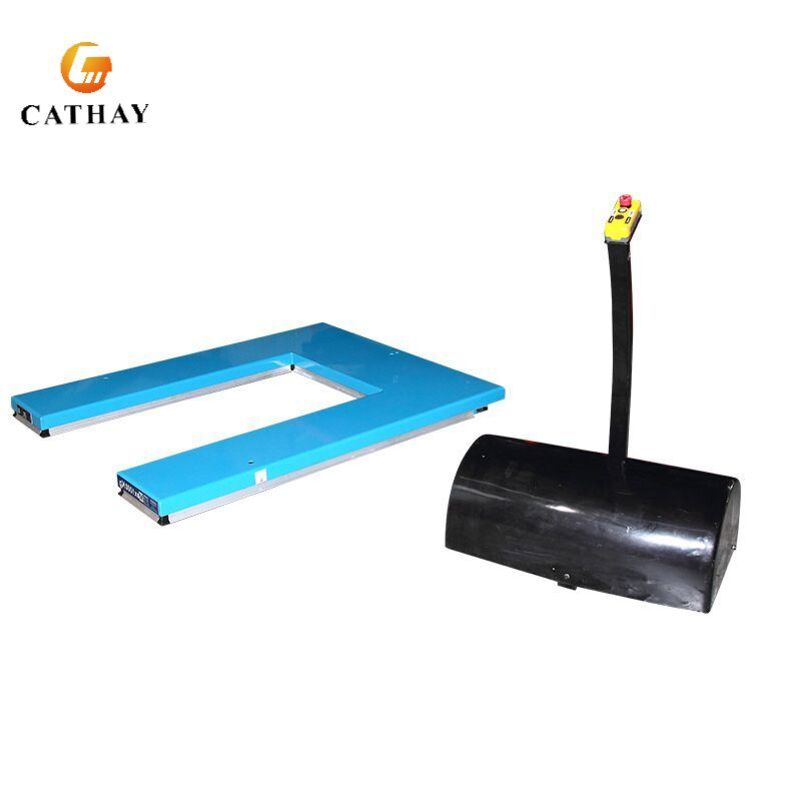

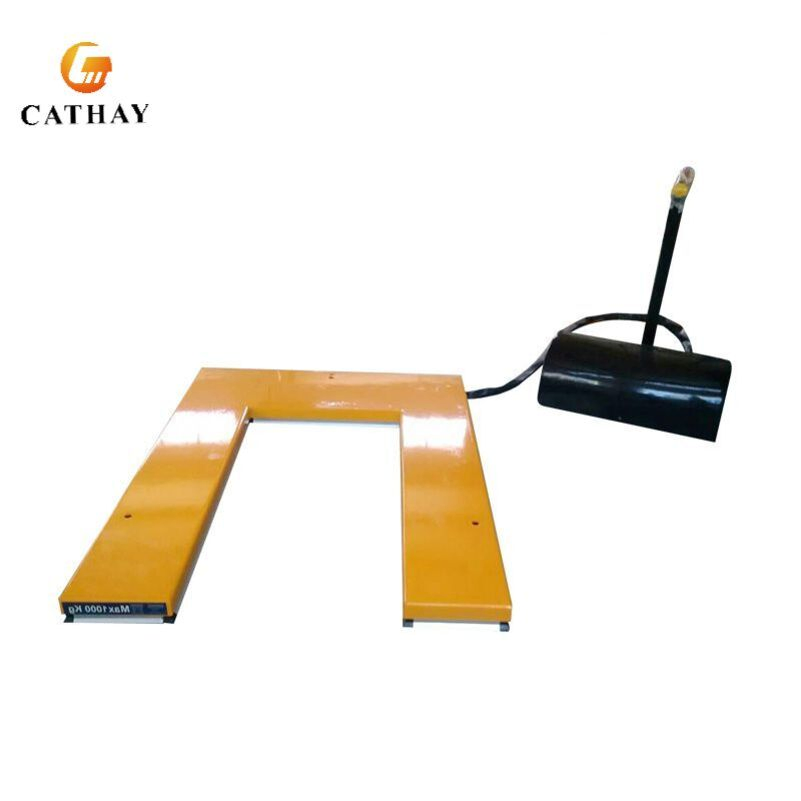

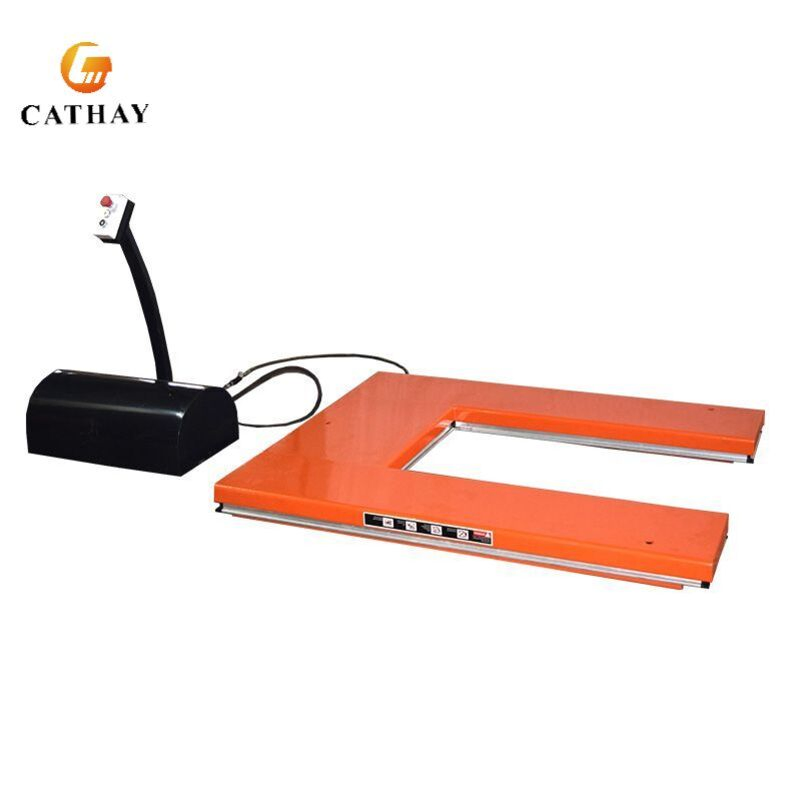

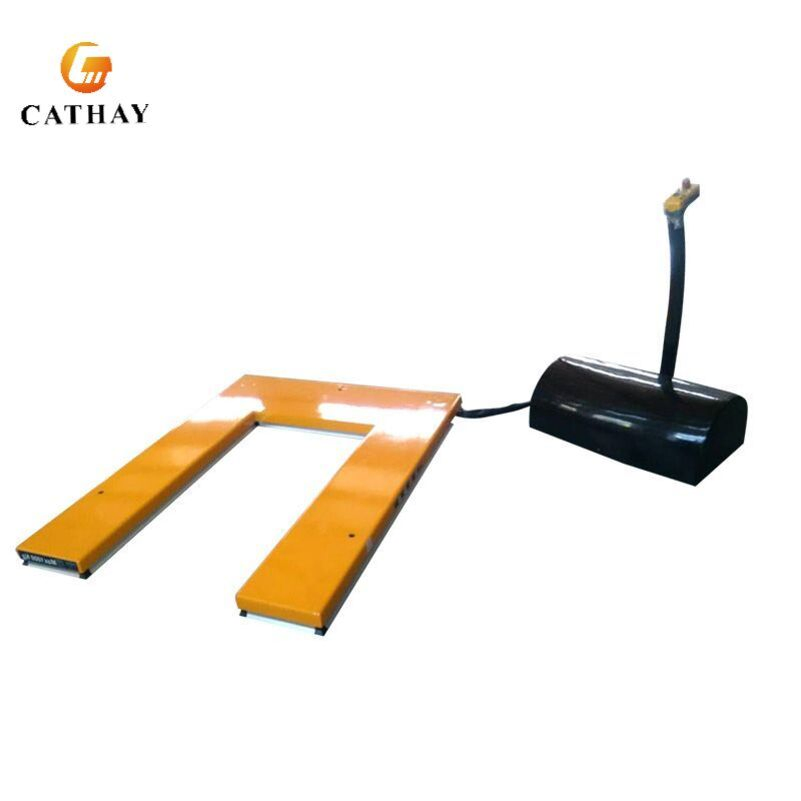

U-Shape Low Profile Scissor Lift Table
| Model | Capacity (kg) | Platform Size (mm) | Base Size (mm) | Self Height (mm) | Max Height (mm) | Lifting Time (s) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| HL1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | 357 |
| HL1002 | 1000 | 1600x1140 | 1325x1074 | 85 | 860 | 25 | 364 |
| HL1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 |
| HL1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 |
| HL2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 |

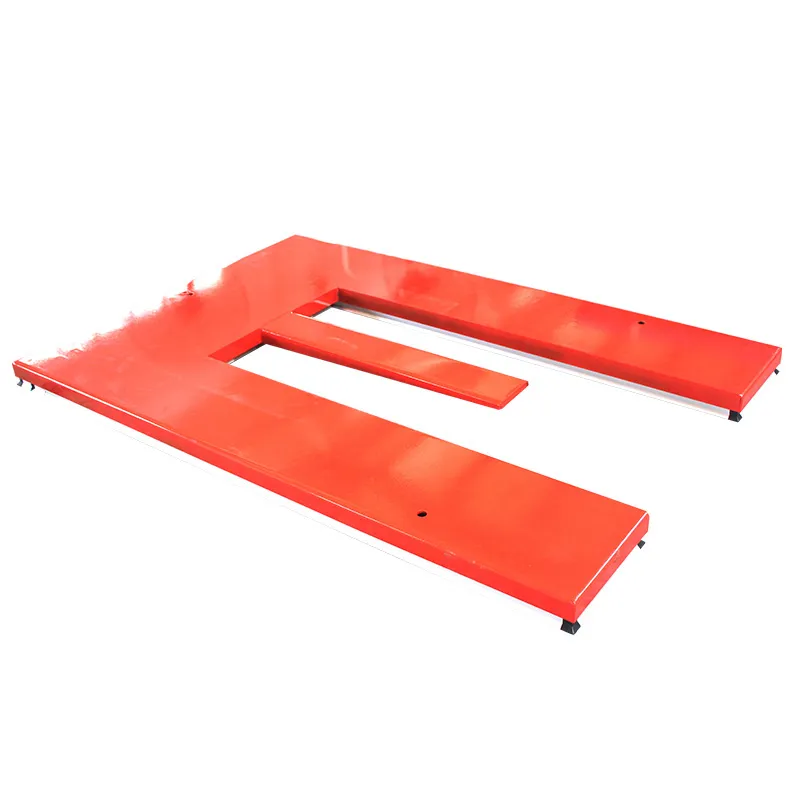

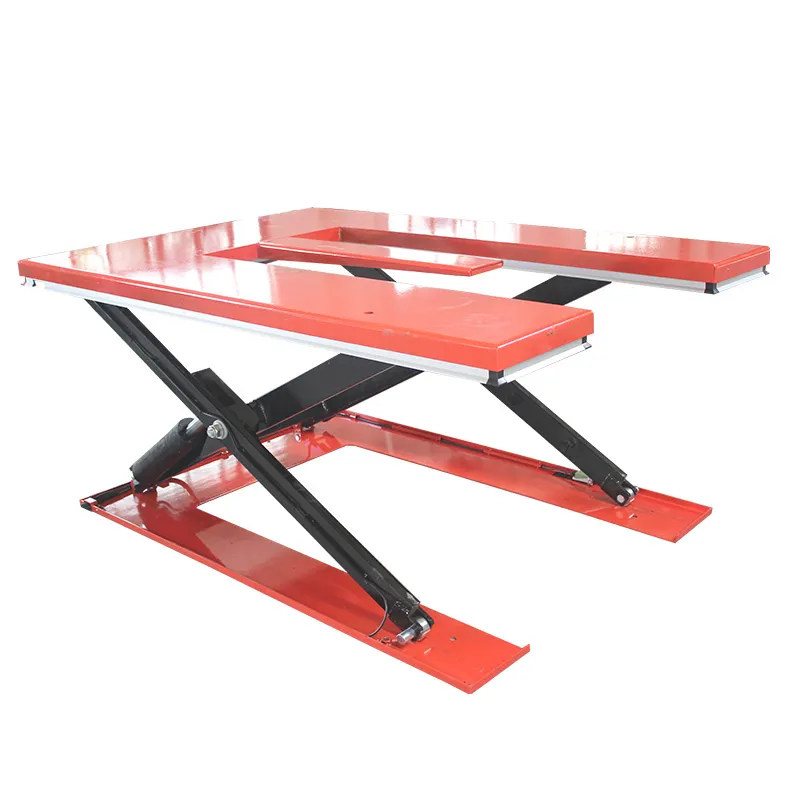

E-Shape Low Profile Scissor Lift Table
| Model | Load Capacity (kg) | Platform Size (mm) | Lowered Height (mm) | Electric Motor (Kw) | Max Platform Height (mm) |
|---|---|---|---|---|---|
| LPE1001 | 1000kg | 1450*1440 | 85mm | 1.1Kw | 860 |
| LPE1002 | 1000kg | 1850*1250 | 105mm | 2.2Kw | 1000 |
Our lift tables provide convenience for working in narrow areas, such as entering elevators, indoors, and under eaves. With a load capacity of 500~5000 kilograms, it can easily accommodate both personnel and materials, saving time and effort.
