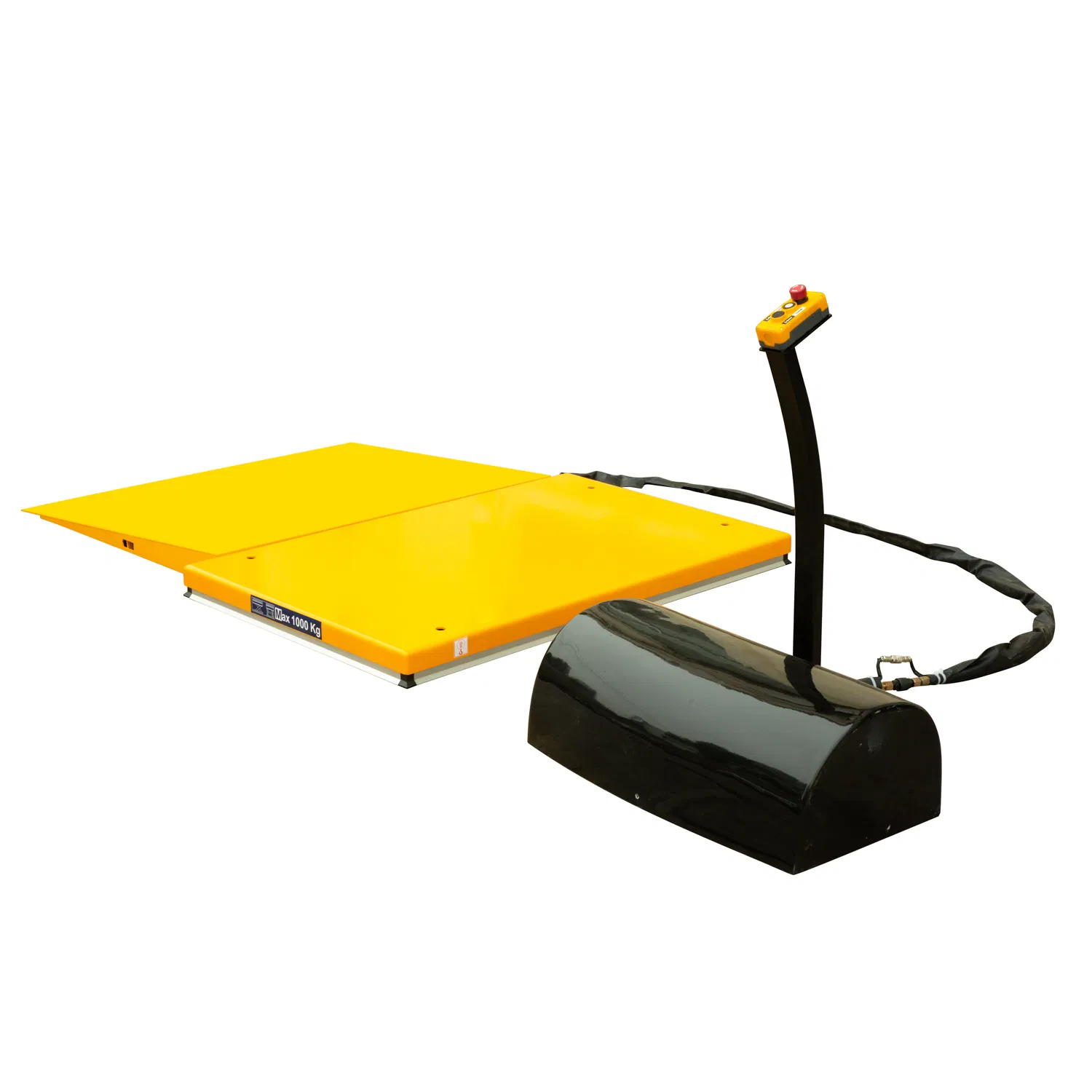

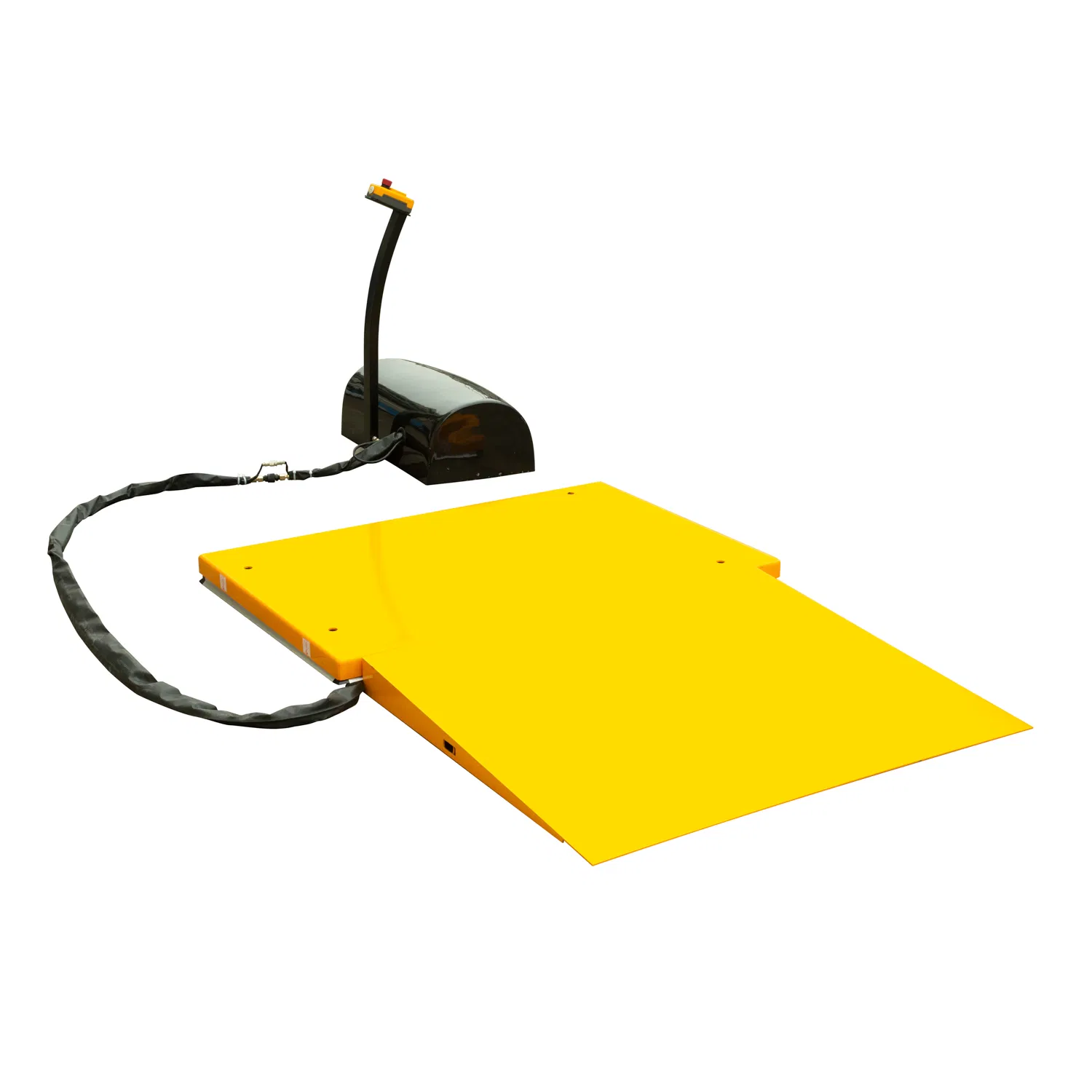

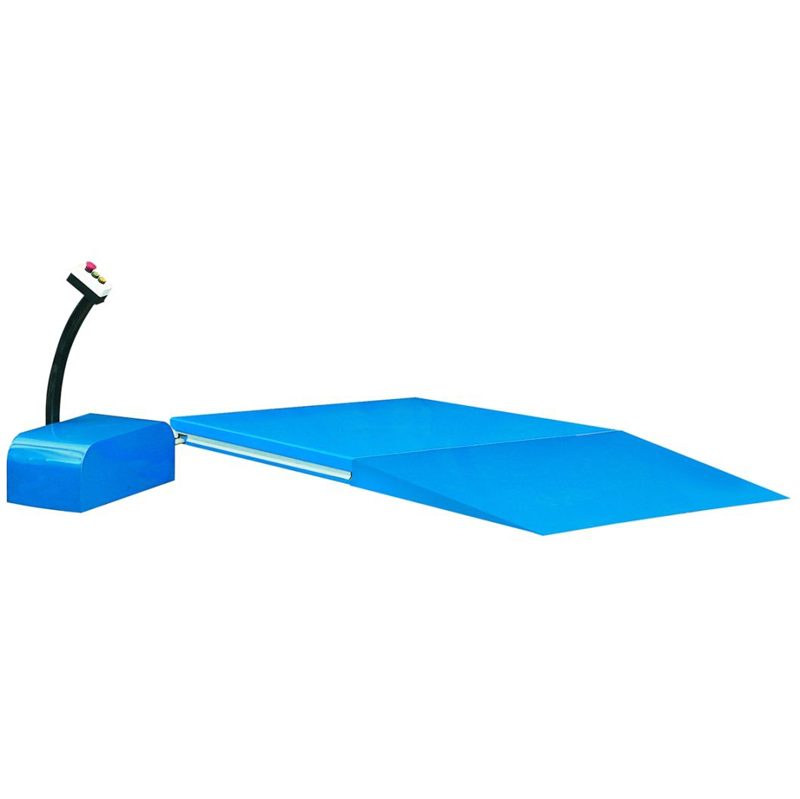

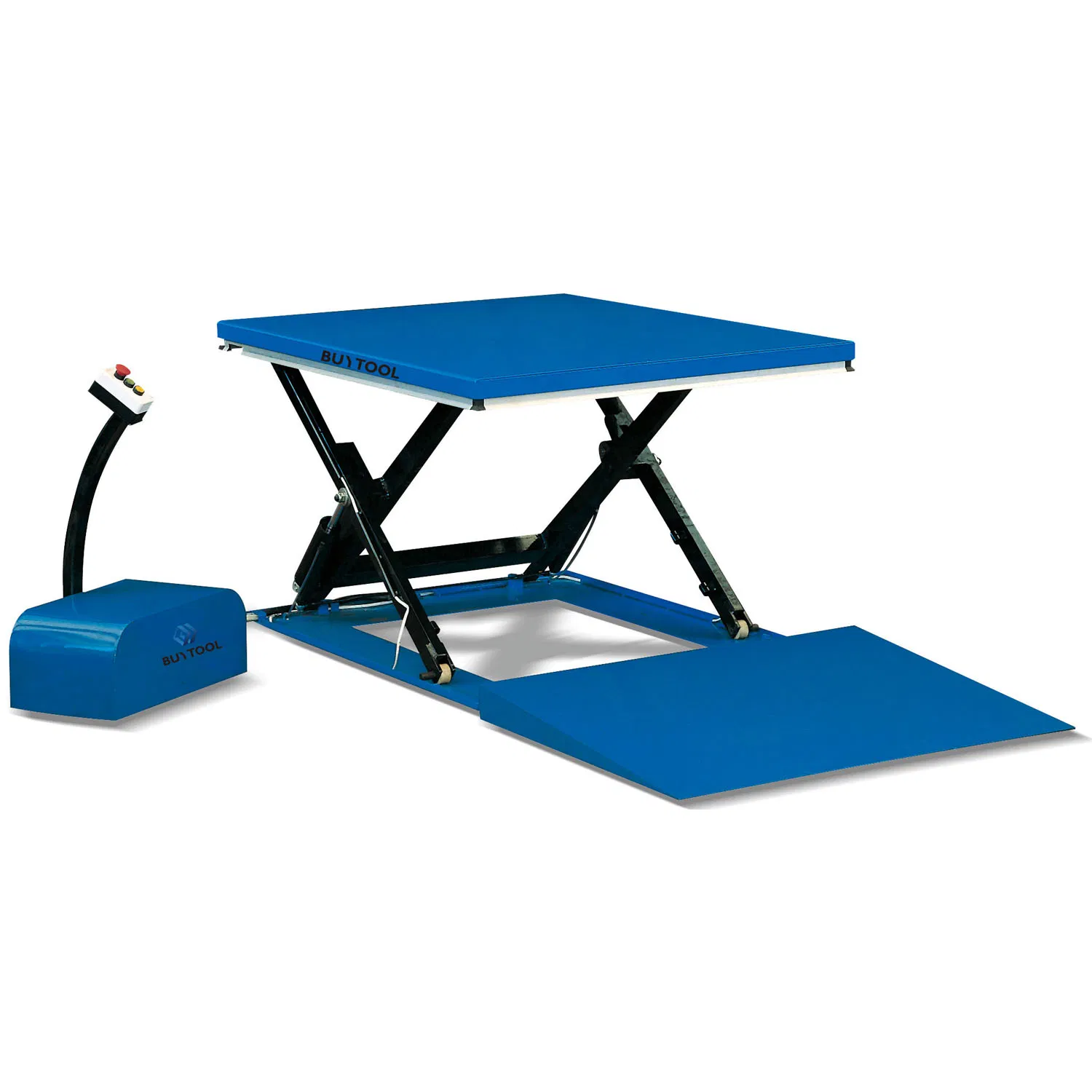

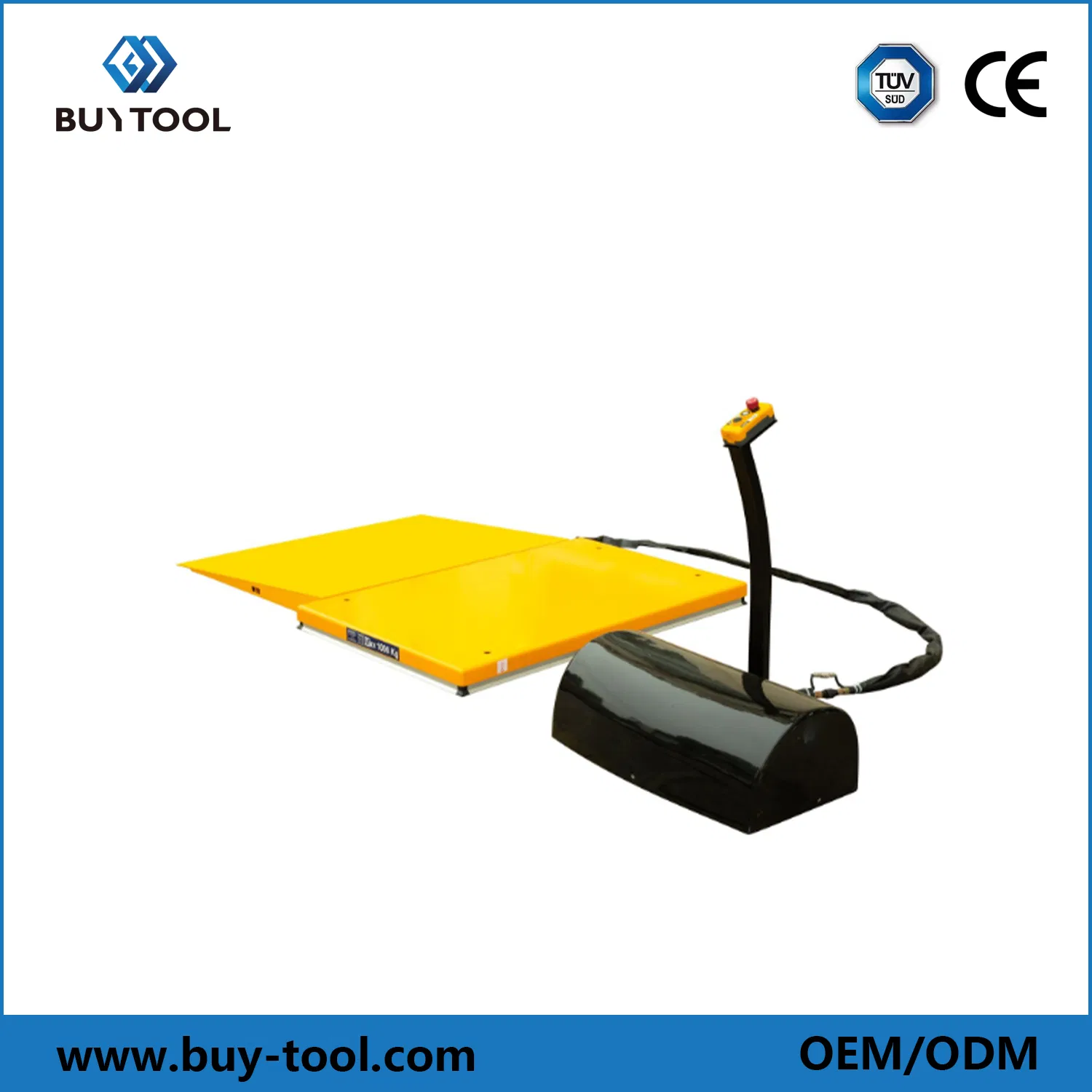

Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
1 / 5
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg
Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Customization: Available
After-sales Service: Twenty Hours Online Service
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
HY1001, HY1005, HY1501, HY2001
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
AC Power
Feature
Explosion-Proof
Certification
CE Approved
Capacity
1000kg, 1500kg, 2000kg
Table Size
1450*1140mm
Power
380V/50Hz
Product Name
Low Profile Lift Table
Product Description

Low Profile Mini Hydraulic Scissor Lift Table

  • Heavy duty design with larger platform.
  • Loading ramp included as standard equipment.
  • Oiless bushings on all pivot points.
  • Low closed height eliminates the need for pit installation.
  • Manufactured to European safety standards EN1570: 1999.
  • Remote power pack with IP54 protected controls.
  • Safety perimeter to prevent descent on contact with obstructions.
  • 24V control box with emergency stop button.
  • Hose burst safety valve for emergency protection.
  • Mechanical safety chocks for secure maintenance.
Technical Parameters
Model Capacity (kg) Platform Size (mm) Min.Height (mm) Max.Height (mm) Stroke (mm) Lifting Time (s) Power Pack
HY100110001450×11408586077525380V/50HZ, 0.75kw
HY100210001600×11408586077525380V/50HZ, 0.75kw
HY100510001600×10008586077525380V/50HZ, 0.75kw
HY150115001600×80010587077530380V/50HZ, 1.5kw
HY200120001600×120010587077535380V/50HZ, 2.2kw
Detailed Photos

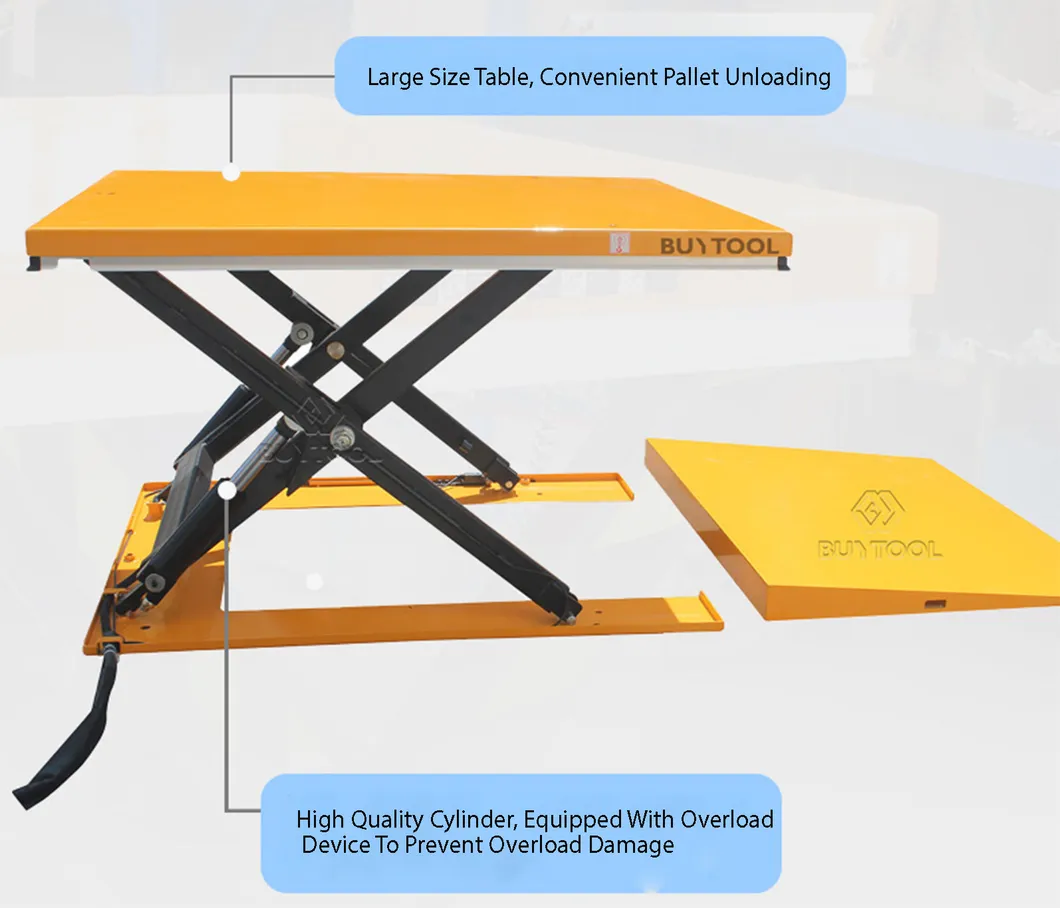

Scissor Lift Table View 1

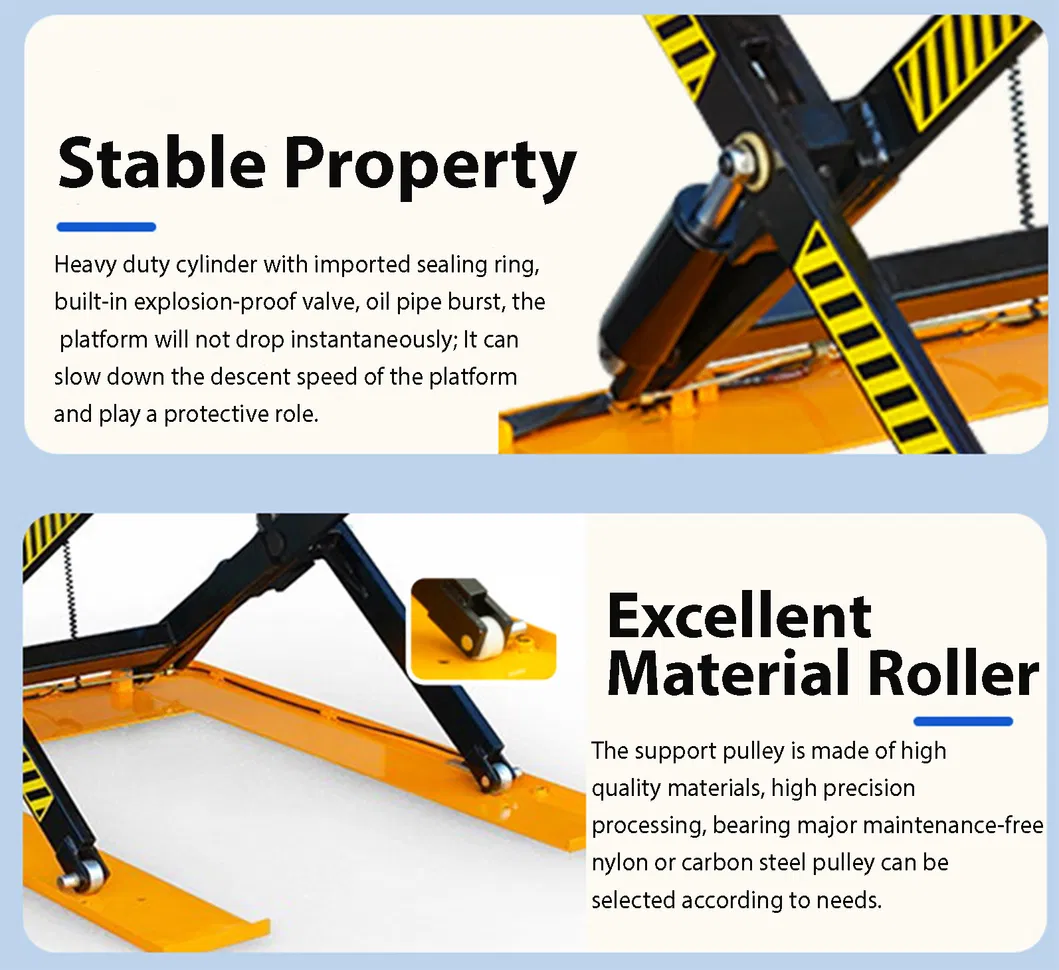

Scissor Lift Table View 2

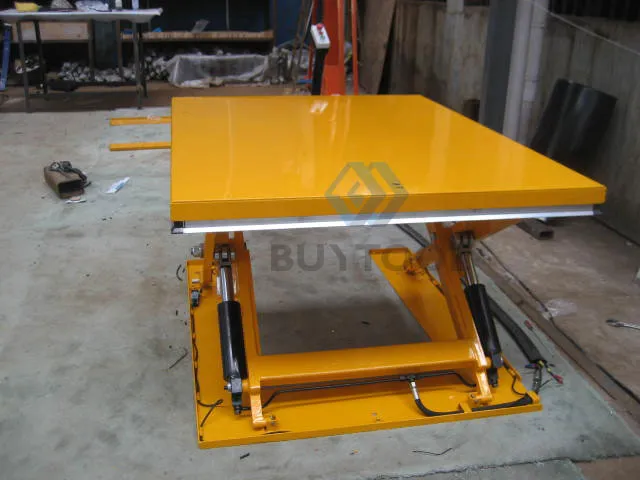

Detail 1

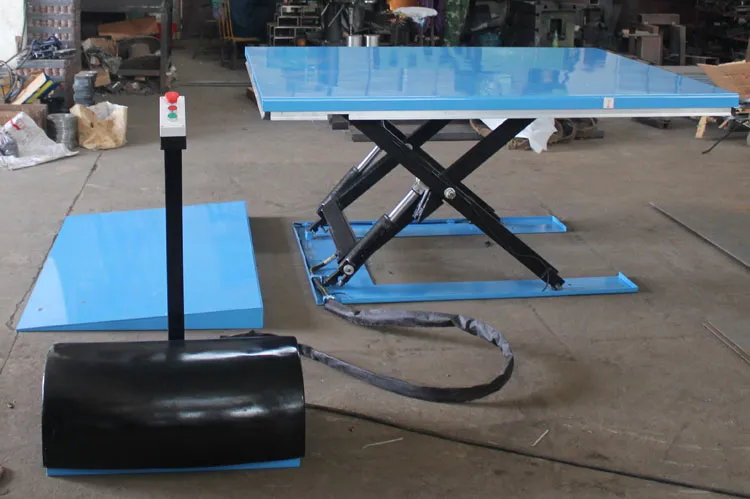

Detail 2

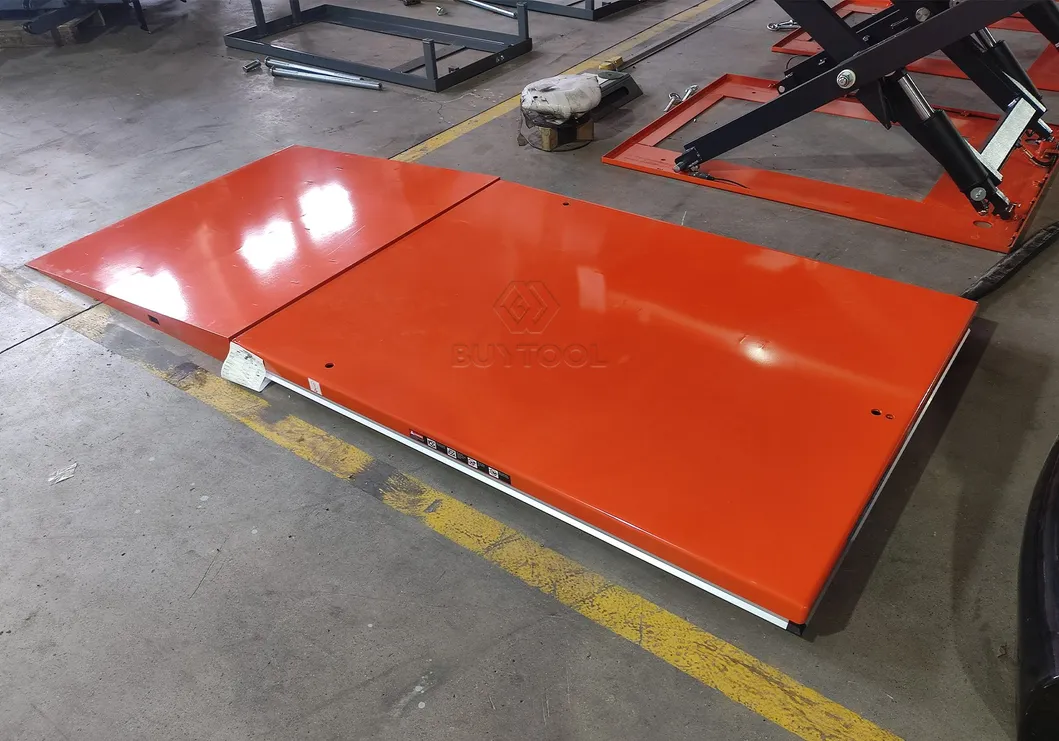

Detail 3
Range Of Application
Application Scenarios
Packing and Shipping

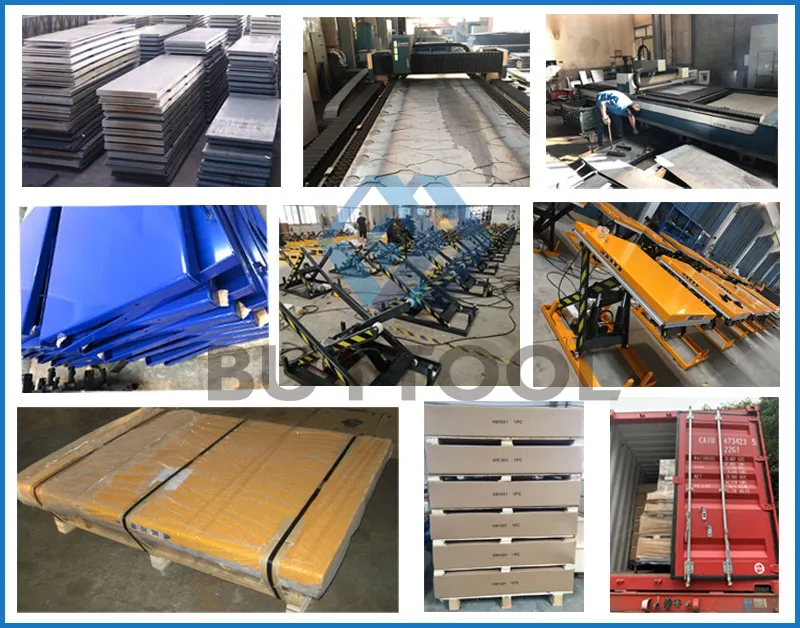

Packaging Detail
Frequently Asked Questions
How do you ensure the quality of your lift tables?
Our products are CE approved with a 5-step inspection process: raw material check (ISO9001), production monitoring, load limit testing after assembly, 100% pre-shipment inspection, and optional third-party inspection.
What is the standard warranty period?
All of our hydraulic lift tables carry a comprehensive one-year quality guarantee.
What is the typical lead time for an order?
Normally, the lead time is 30 days. For single-item full container orders, it can be as short as 20 days, while mixed containers may take up to 45 days.
Does the low profile design require a pit for installation?
No, these tables achieve an exceptionally low closed height (as low as 85mm), which eliminates the need for expensive pit construction.
What safety features are included?
Safety features include a safety perimeter to stop descent on contact with obstructions, a hose burst valve to prevent sudden drops, and mechanical safety chocks for maintenance.
Can the power supply and color be customized?
Yes, while the standard is 380V/50Hz, the power supply can be adjusted to your local requirements, and the product color is fully customizable.
