Self-Propelled Mast Lifts

Customization:	Available
After-sales Service:	24 Hours Online After-Sales Service
Warranty:	12 Months Apart From Man-Made Faults

Send Inquiry

Product Description

Overview & Basic Info

Model NO. AMWP11.2-8100

Type Self-Propelled Mast Lift

Application Workshop, Warehouse, Building Crane

Certification CE, ISO9001: 2000

Condition New

Transport Package Wood Pallet

Specification 2965kg

HS Code 8428909090

Capacity 200 Units Per Month

Packaging & Delivery

Package Size 263.00cm * 110.00cm * 219.00cm

Gross Weight 2965.000kg

Product Parameters

Max.Working Height	11.2m
Max.Platform Height	9.2m
Max.Horizontal Reach	3m
Up and Over Height	7.89m
Guardrail height	1.1m
Overall Length	2.53m
Overall Width	1.0m
Overall Height(stowed)	1.99m
Platform Dimension	0.62*0.87m
Ground Clearance(Stowed)	70mm
Ground Clearance(Raised)	19mm
Wheelbase	1.22m
Loading capacity	200kg
Occupants	2
Turning Radius(Inside/Outside)	0.23/1.65m
Turret Rotation	345°
Jib Movement	130°
Travel Speed(Stowed)	4.5km/h
Travel Speed(Raised)	0.5km/h
Up/Down Speed	42/385
Max.Working Slope	X-2.5", Y-2.5"
Tyres	381*127mm
Driving Motor	24V/0.9kW
Lifting Motor	24V/3kW
Battery	24V/240Ah
Charger	24V/30A
Weight	2950kg

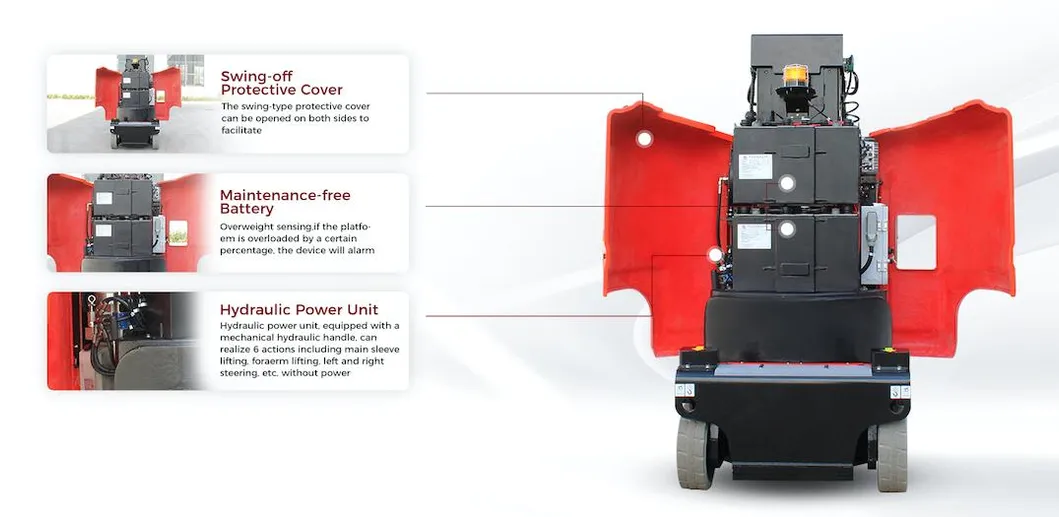

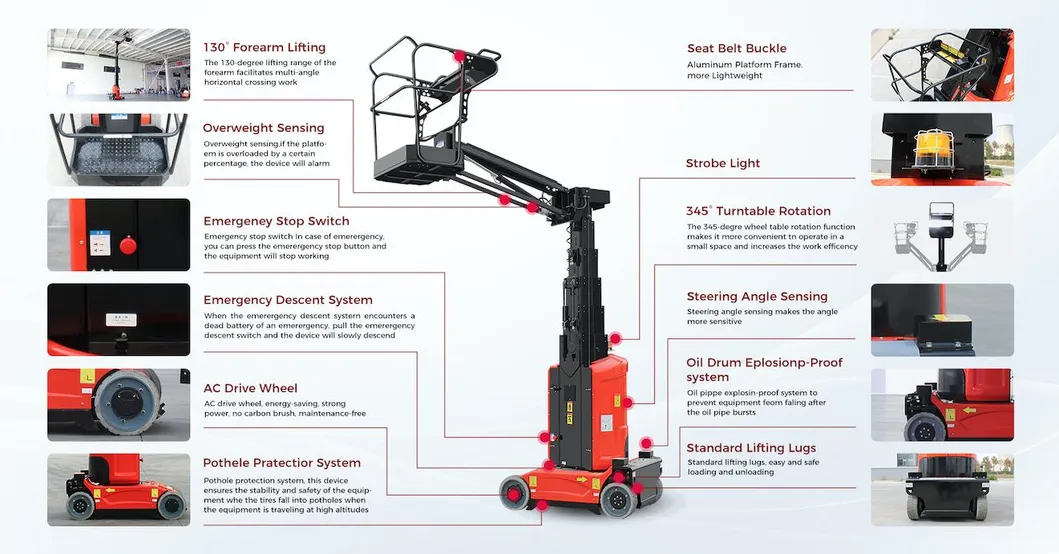

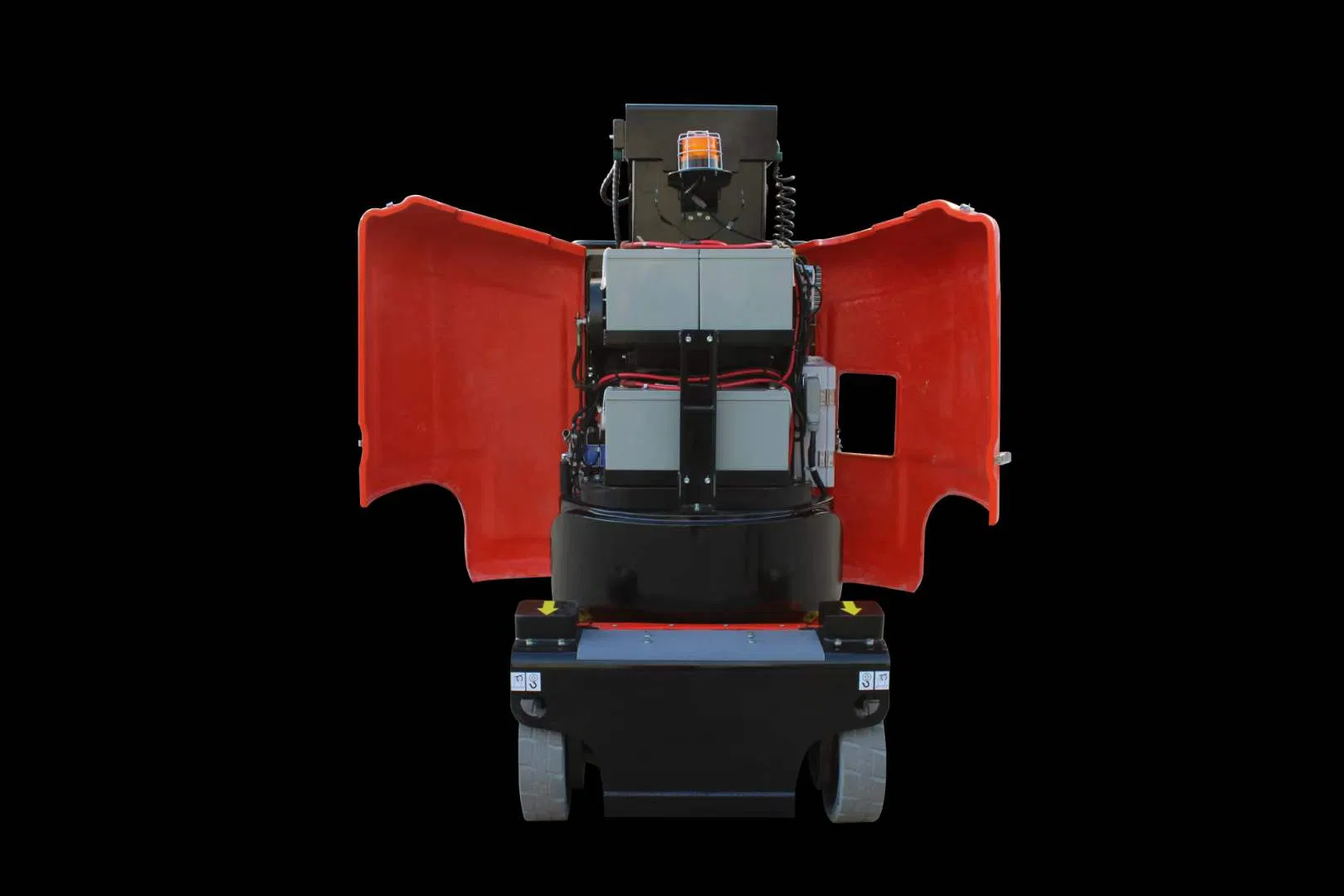

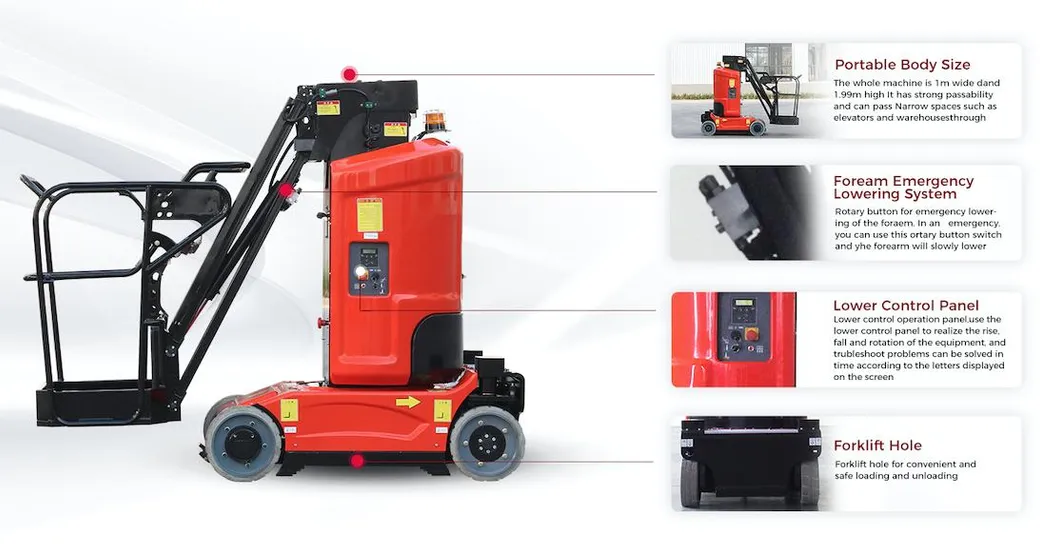

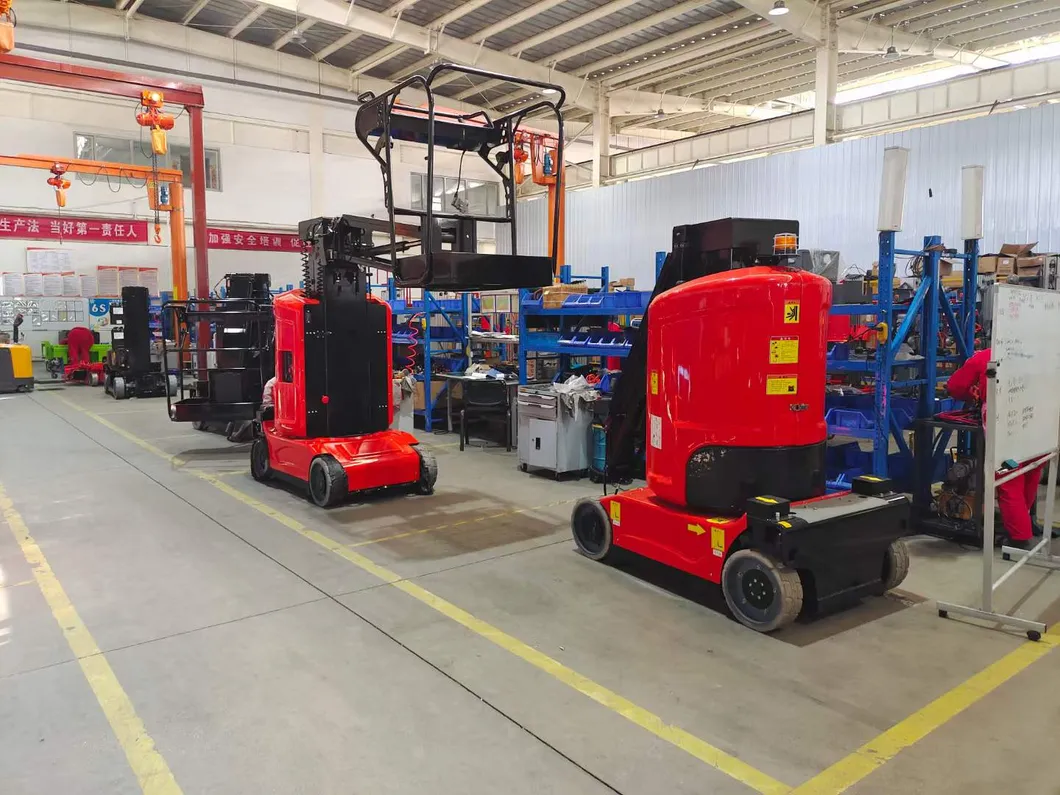

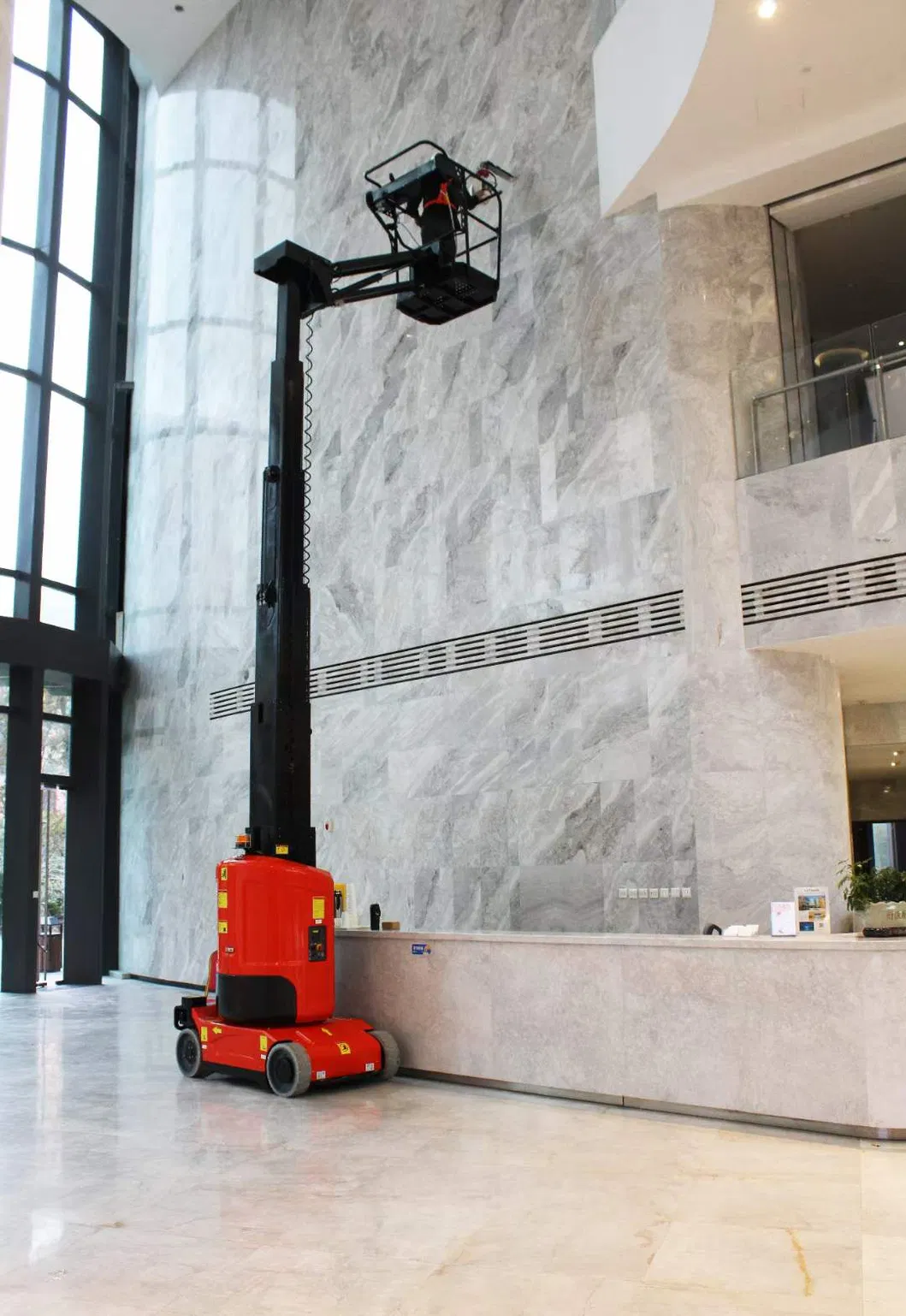

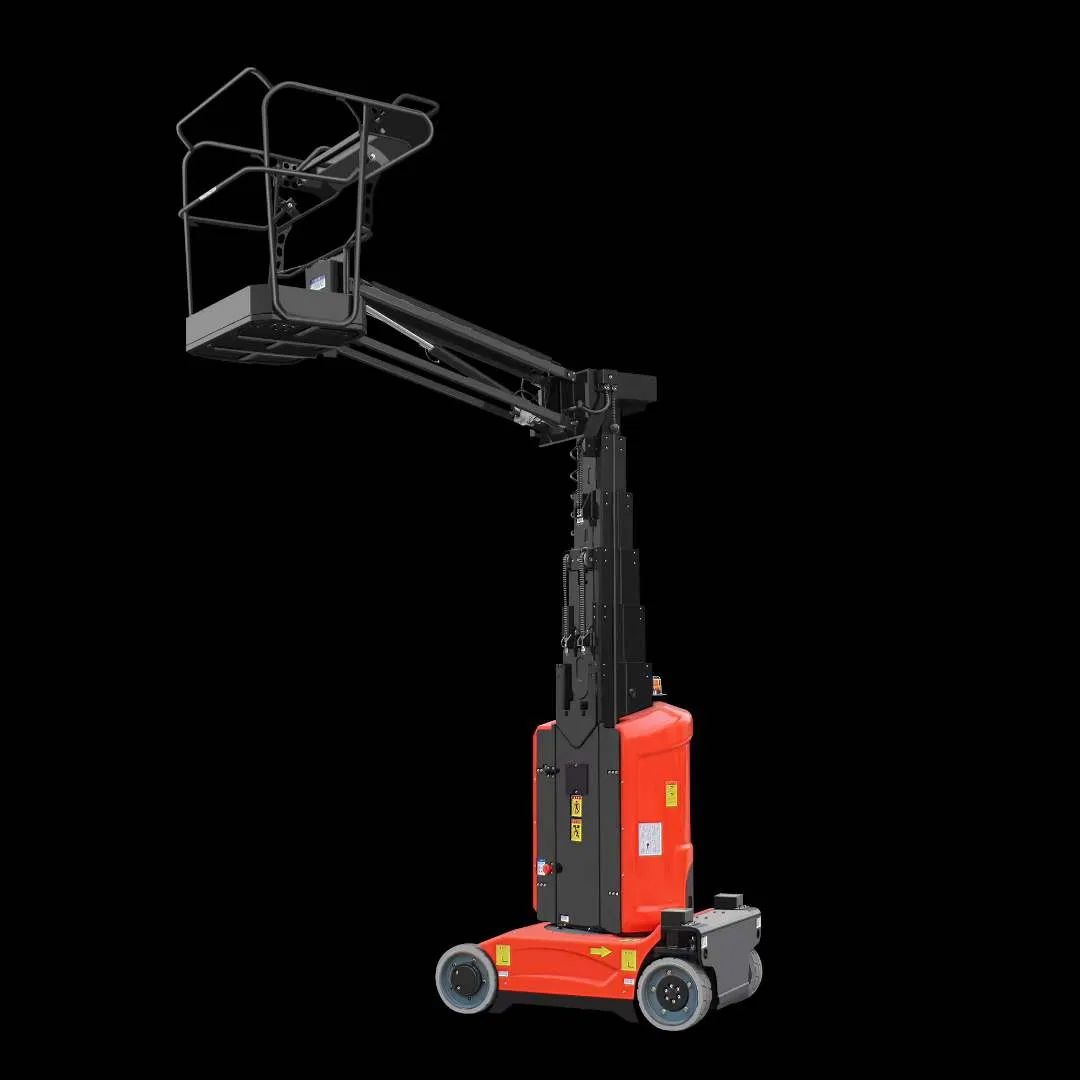

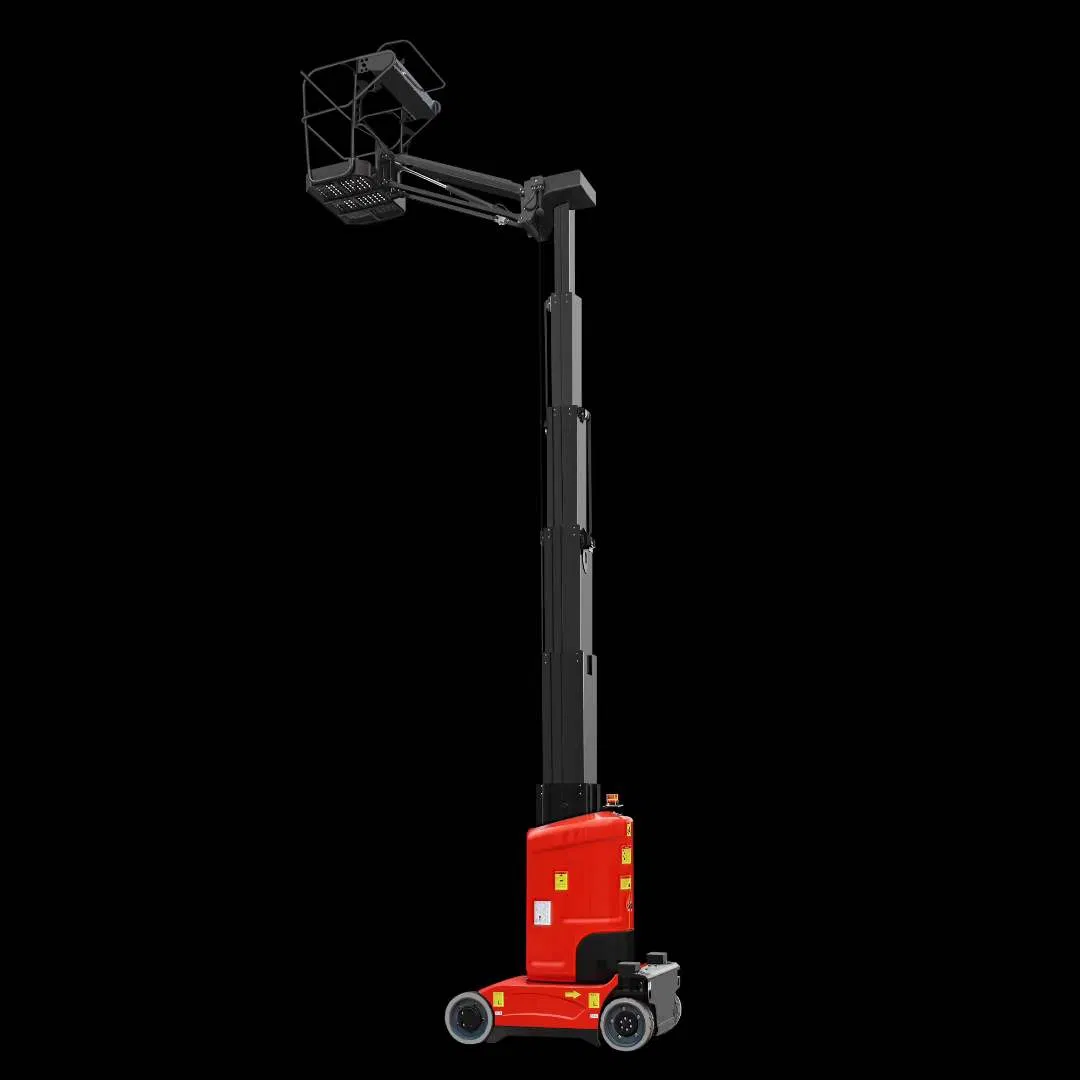

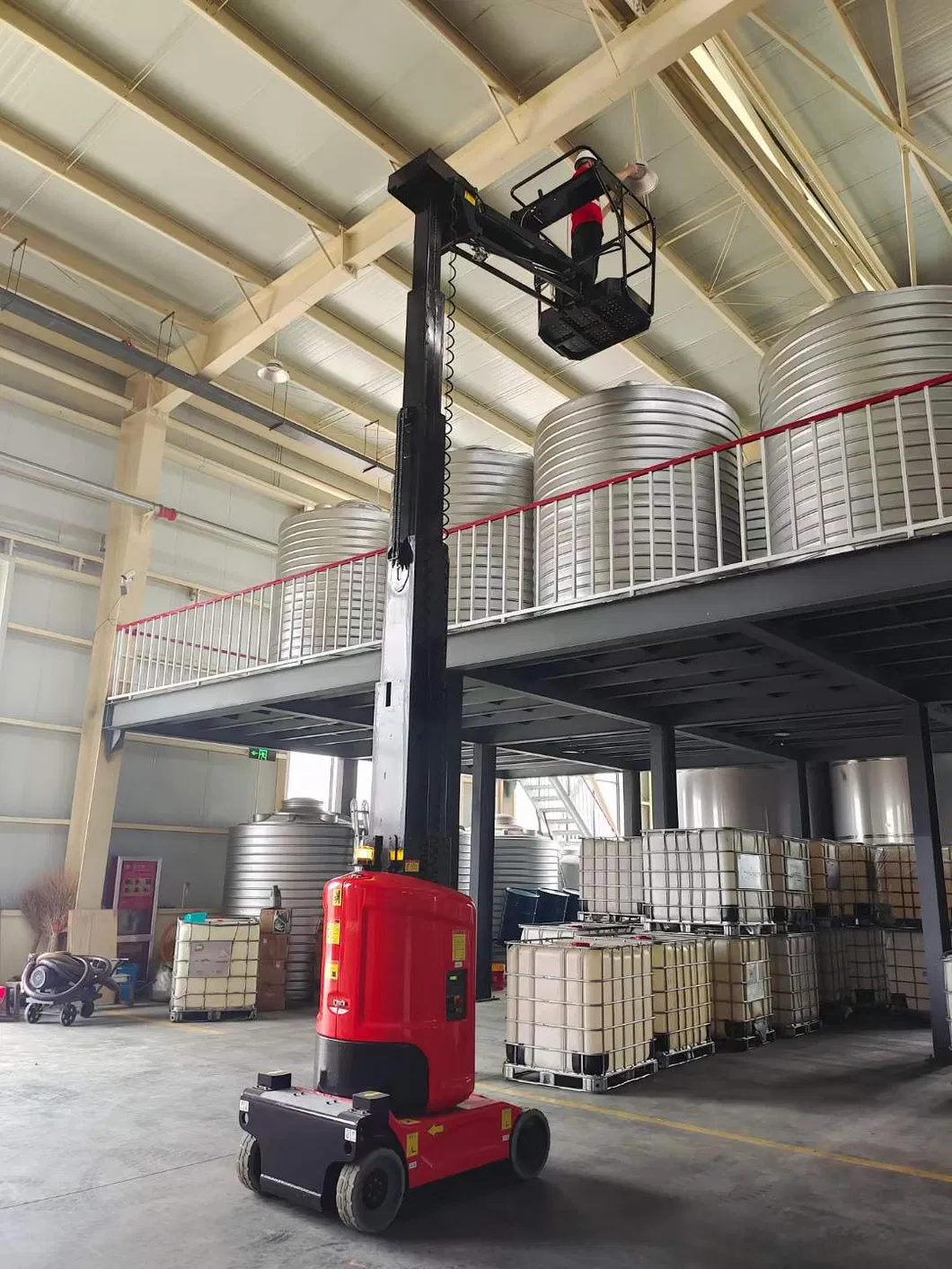

Detailed Photos

Frequently Asked Questions

What is the maximum working height of this mast lift? The AMWP11.2-8100 model offers a maximum working height of 11.2 meters, with a platform height reaching up to 9.2 meters.

What is the load capacity and how many people can it hold? This self-propelled mast lift has a loading capacity of 200kg and is designed to safely accommodate up to 2 occupants.

What are the power specifications for the battery and motor? The unit is equipped with a 24V/240Ah battery, a 24V/0.9kW driving motor, and a 24V/3kW lifting motor.

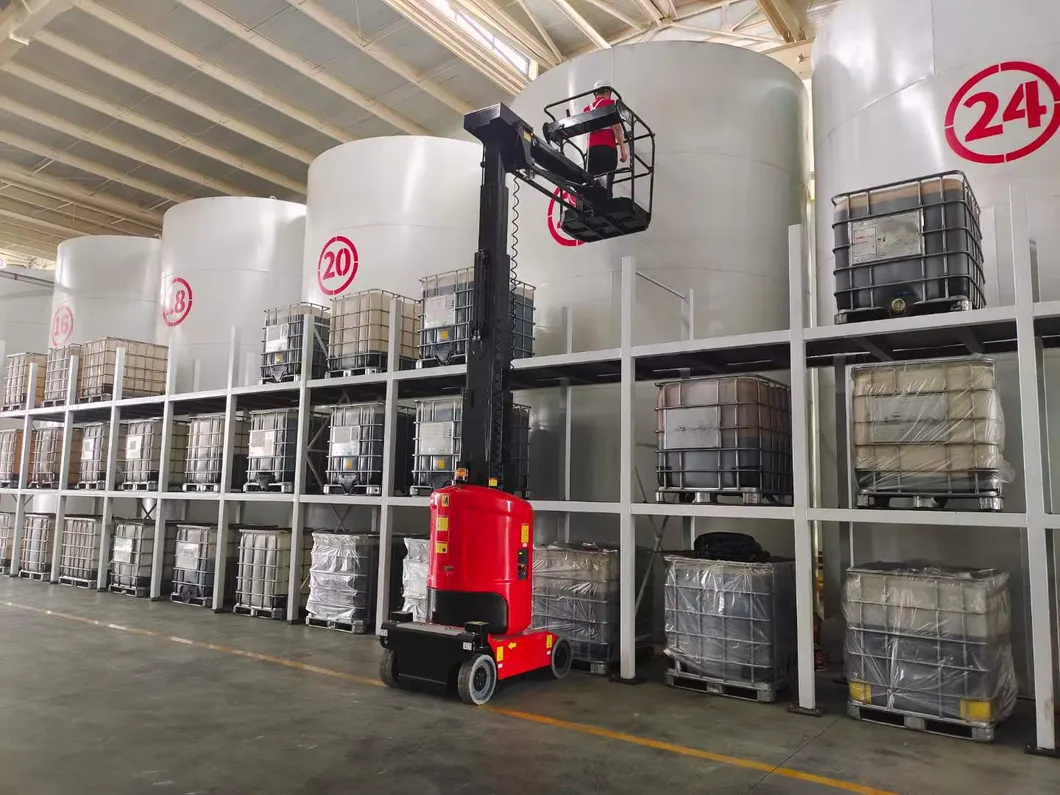

Can this lift be used in narrow warehouse spaces? Yes, with an overall width of only 1.0 meter and an inside turning radius of 0.23 meters, it is highly maneuverable in tight workshop and warehouse environments.

What is the travel speed of the equipment? The travel speed is 4.5km/h when stowed and reduces to a safe 0.5km/h when the platform is raised.

Does the equipment have professional certifications? Yes, this product is certified with CE and ISO9001: 2000 standards, ensuring high quality and safety compliance.
