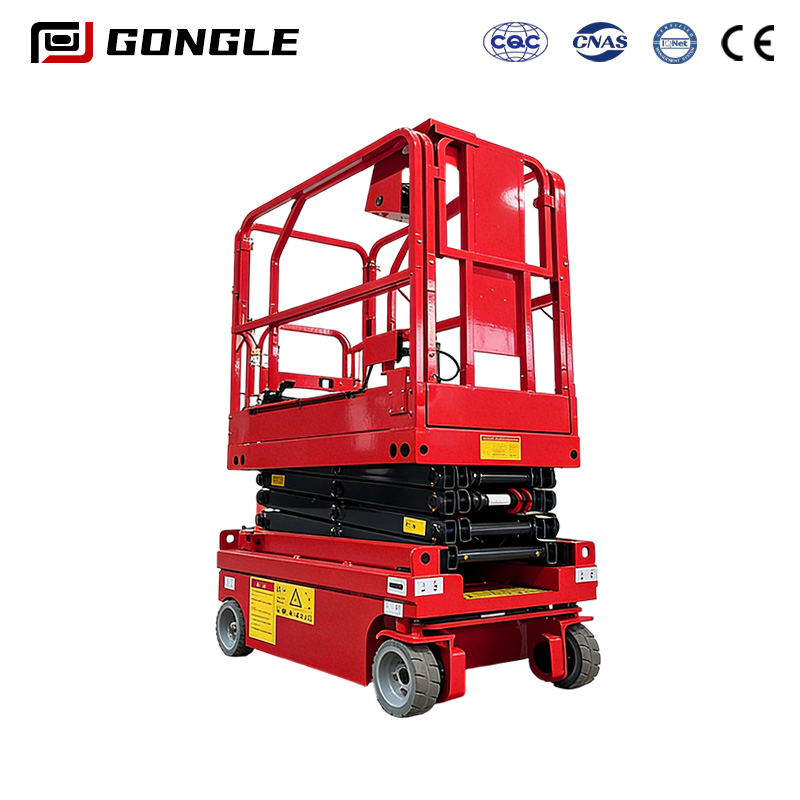

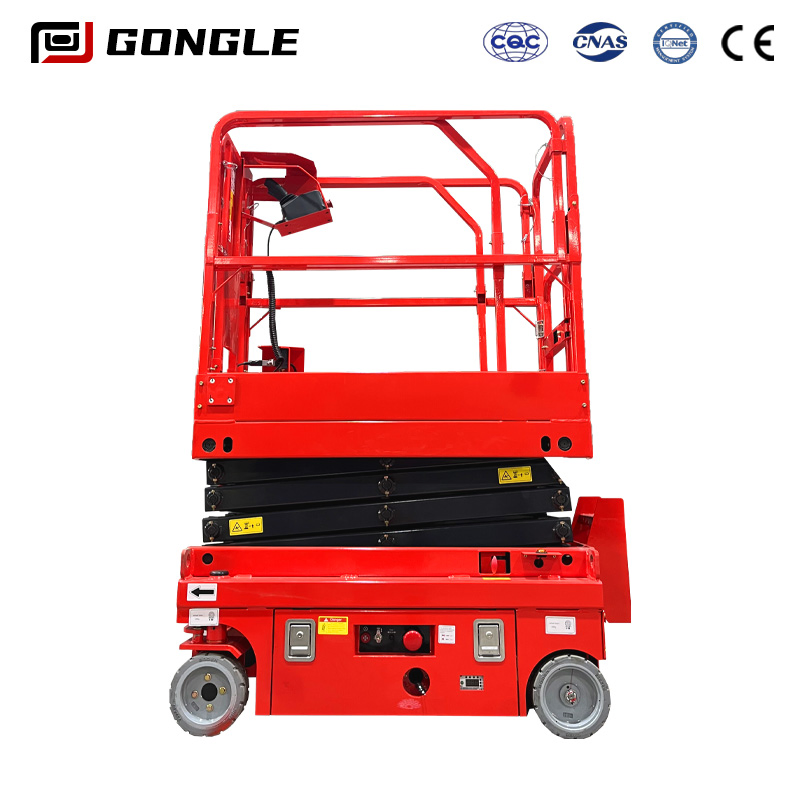

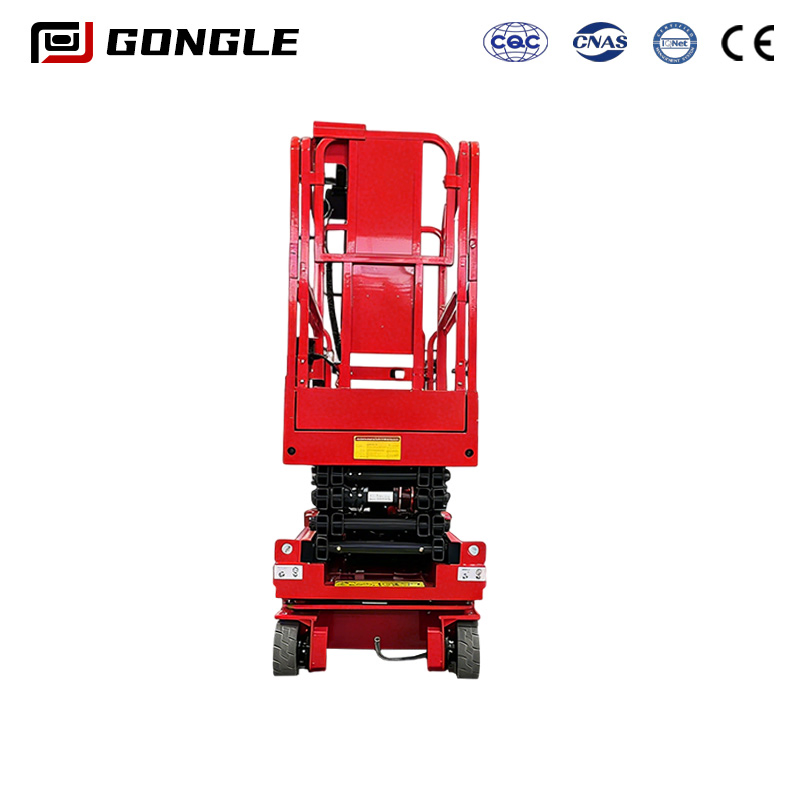

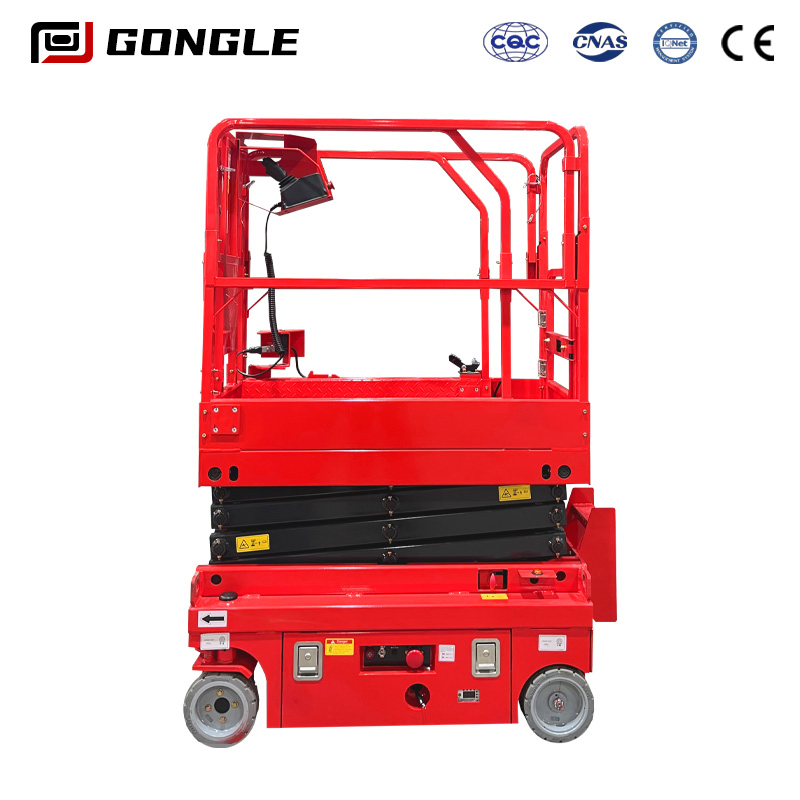

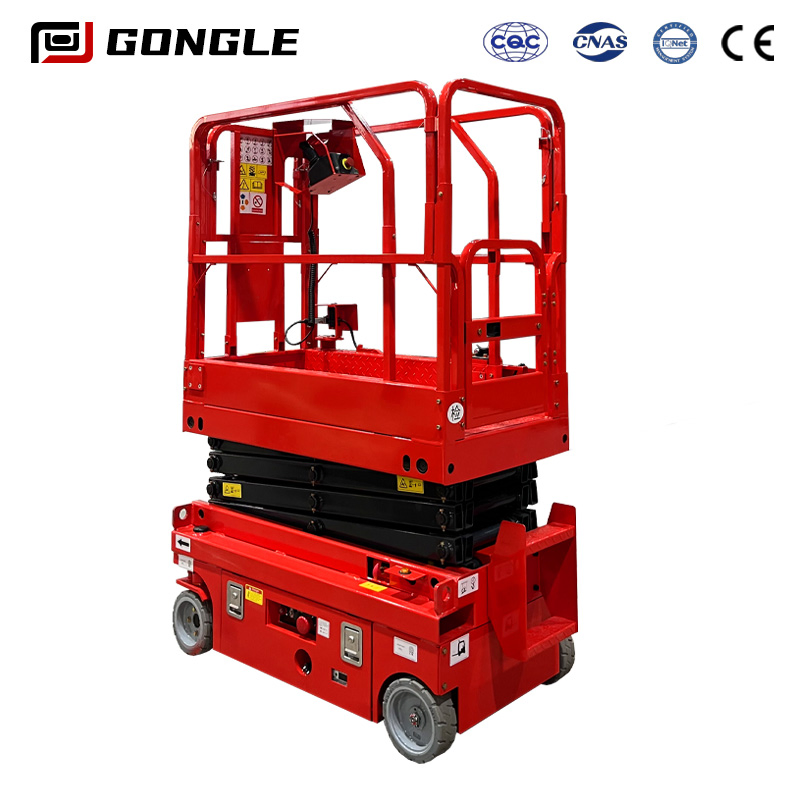

Mobile 6m Self-Propelled Rough Terrain Hydraulic Scaffolding Platform off-Road Table Electric Aerial Working Scissor Lift

Customization: Available
After-sales Service: Online Video Guidance
Warranty: 24 Months

Product Description

Basic Specifications

Model NO.
0608
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Certification
CE, ISO 9001
Max. Occupants
2
Platform Size
1.29m * 0.70m
Lifting Motor
24V / 1.3kw
Charger
24V / 15A
Package Weight
900kg

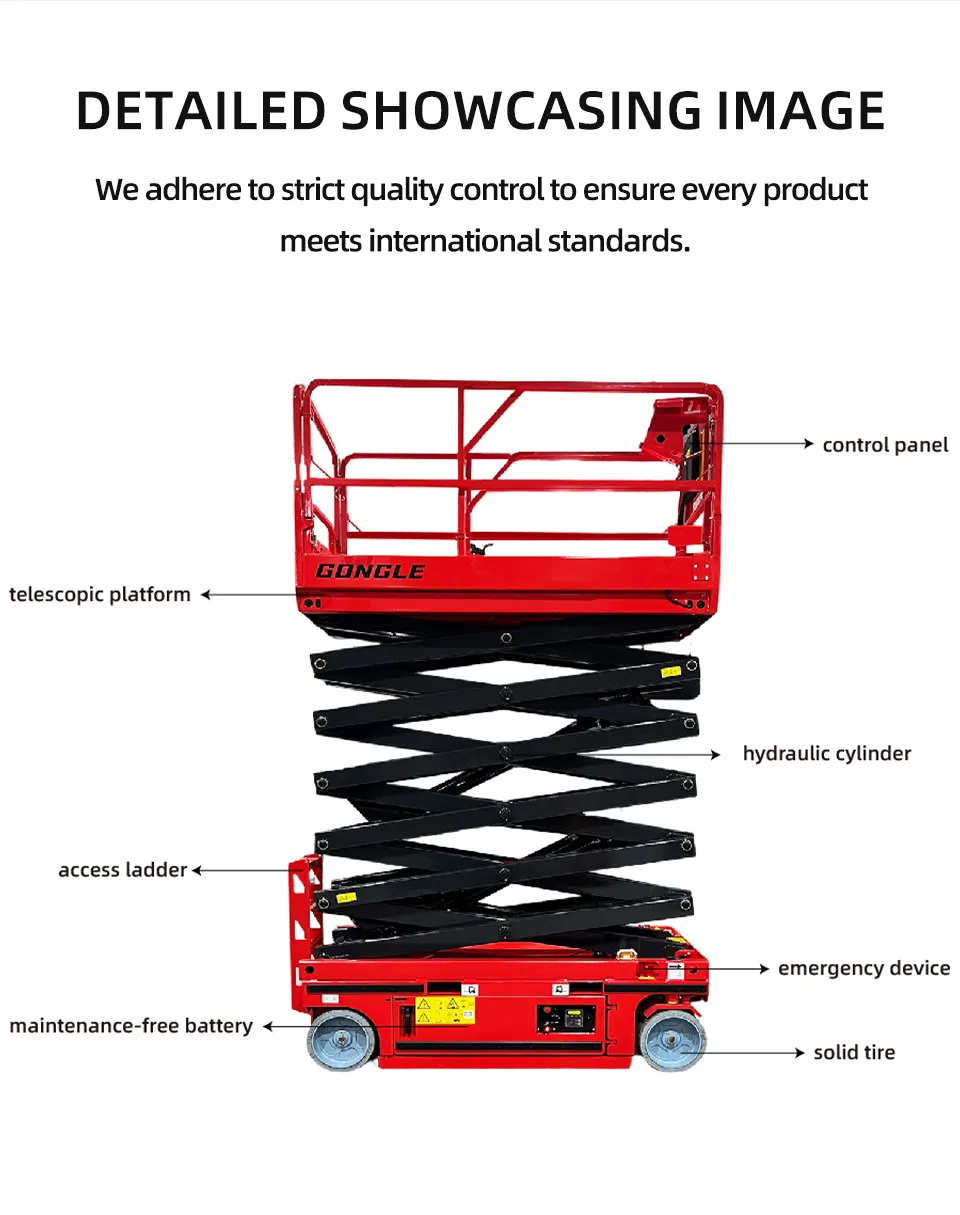

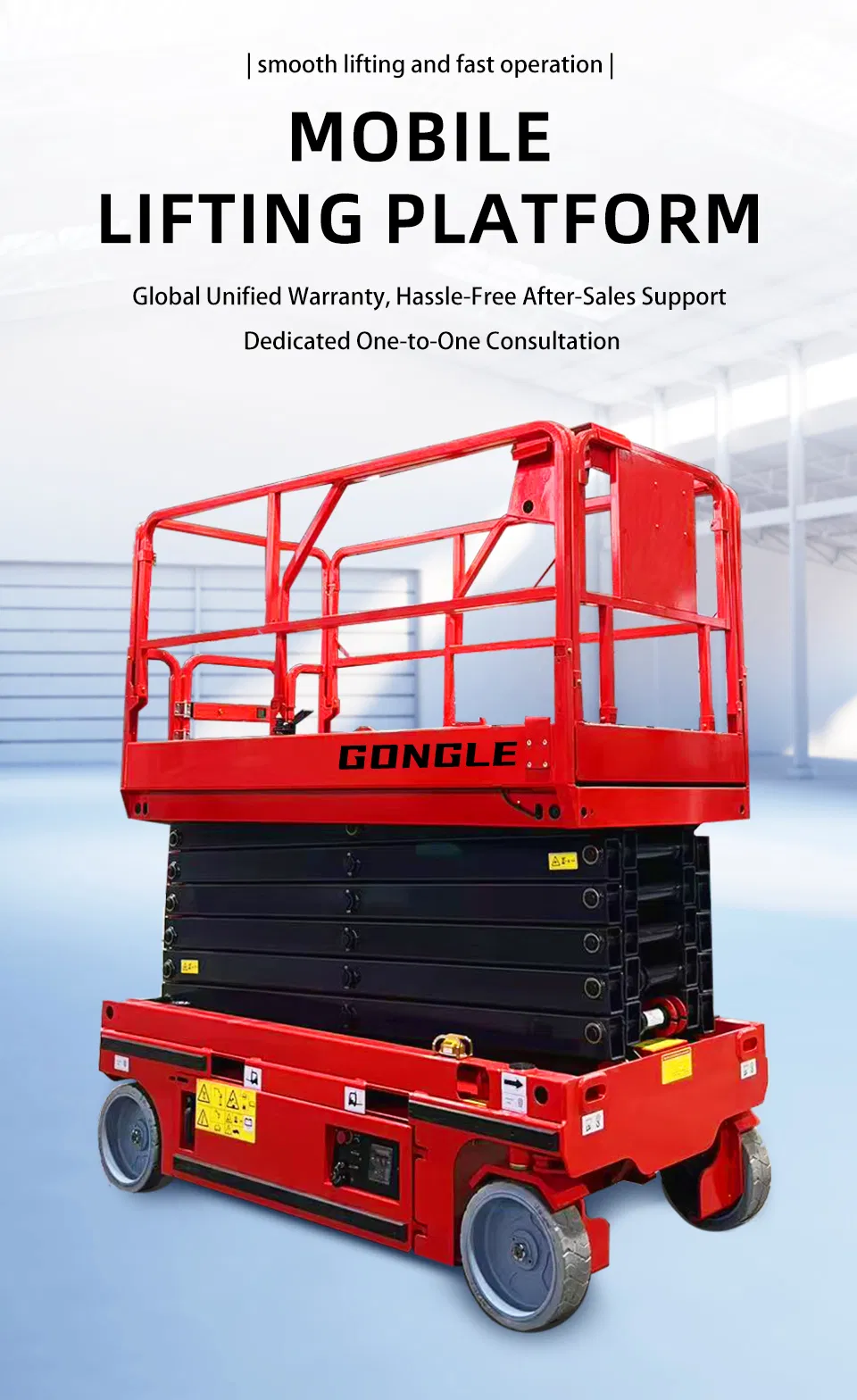

Product Presentation

Technical Parameters Comparison

Model0406040706080608 (High)08100810 (High)101212141416
Safe Working Load230kg230kg230kg450kg320kg450kg320kg320kg230kg
Max Working Height6.0m6.5m8m8m10m10m12m13.8m15.8m
Max Platform Height3.9m4.5m6m6m8m8m10m11.8m13.8m
Overall Width0.76m0.80m0.79m1.21m0.82m1.21m1.21m1.21m1.31m
Lifting Motor24v/1.3kw24v/1.3kw24v/3.3kw24v/4.5kw24v/4.5kw24v/4.5kw24v/4.5kw24v/4.5kw24v/4.5kw
Battery2x12V/80Ah2x12V/80Ah4x6V/200Ah4x6V/200Ah4x6V/200Ah4x6V/200Ah4x6V/200Ah4x6V/200Ah4x6V/240Ah
Climbing Capacity25%25%25%25%25%25%25%25%25%
Machine Weight900kg1050kg1430kg2250kg2260kg2350kg2550kg2980kg3670kg

Frequently Asked Questions

Q1: What is the maximum load capacity of the 0608 model?
The standard 0608 model supports a safe working load of 230kg, while the heavy-duty version can support up to 450kg.
Q2: Can this scissor lift be used on rough terrain?
Yes, this is a self-propelled rough terrain hydraulic platform designed for off-road table applications and aerial working environments.
Q3: What certifications do these lifts carry?
All models are certified with CE and ISO 9001 standards, ensuring high safety and quality compliance for industrial use.
Q4: What is the maximum climbing capacity for these machines?
These units feature a maximum climbing capacity of 25%, allowing them to navigate slopes and uneven workshop floors effectively.
Q5: How many people can the platform accommodate?
The working platform is designed for a maximum of 2 occupants safely.
Q6: What type of power system is used?
The lifts are powered by a 24V DC battery system (varying from 80Ah to 240Ah depending on the model) and a 24V hydraulic motor.
