Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
1 / 5
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric
Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric

Stacker Walkie Manual Stacker Fully Semi-Hydraulic Electric

Customization: Available
After-sales Service: Video Technical Support
Warranty: One Year
Send Inquiry

Product Description

Basic Info.

Cab Location
Ground
Type
Stacker
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Hand
Load center
500mm
Lift height
1600~3000mm
Condition
New
Color
Red or Yellow Optional
Transport Package
Bubble Wrap
Origin
China
HS Code
8427109000
Production Capacity
2000sets/Month

Product Description

Semi electric pallet stacker 1000KGS, 1500KGS, lift 1.6m 2m, 2.5m and 3.5m

Semi-electric Stacker Truck
ModelDYC10-1.6DYC20-1.6DYC10-2.0DYC20-2.0DYC10-2.5DYC20-2.5DYC10-3.0DYC20-3.0DYC10-3.5DYC20-3.5
Lifting Height/mm1600160020002000250025003000300035003500
Loading Capacity/Kg1000200010002000100020001000200010002000
Lower Height/mm85858585858585858585
Fork Length/mm1000110010001100100011001000110010001100
Outer Width of Fork/mm320-680320-680320-680320-680320-680320-680320-680320-680320-680320-680
Overall Width/mm800900800900800900800900800900
Overall Length/mm1690179016901790169017901690179016901790
Lifting Speed/s0.08-0.150.08-0.150.08-0.150.08-0.150.08-0.150.08-0.150.08-0.150.08-0.150.08-0.150.08-0.15
Lifting Motor12/1.512/1.512/1.512/1.512/1.512/1.512/1.512/1.512/1.512/1.5
Battery12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH12V/120AH
Net Weight380-460380-460380-460380-460380-460380-460380-460380-460380-460380-460

Detailed Photos

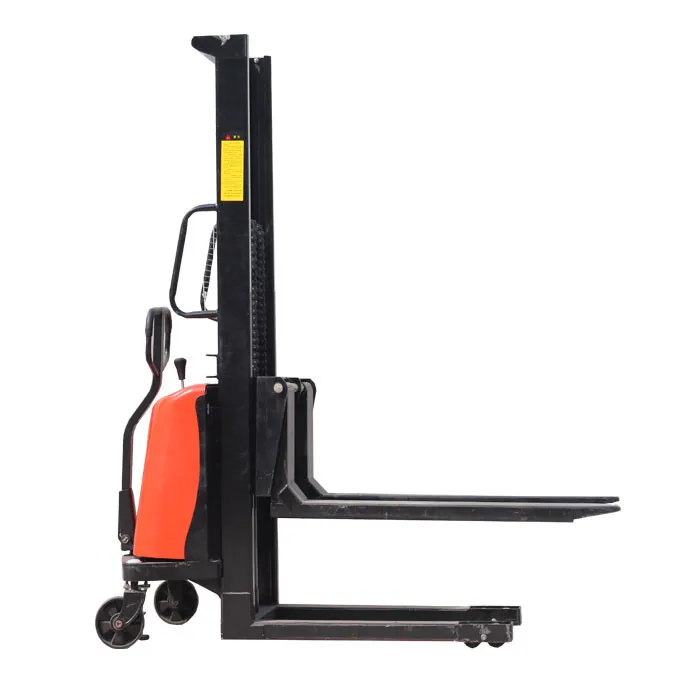

Semi-electric Stacker 1

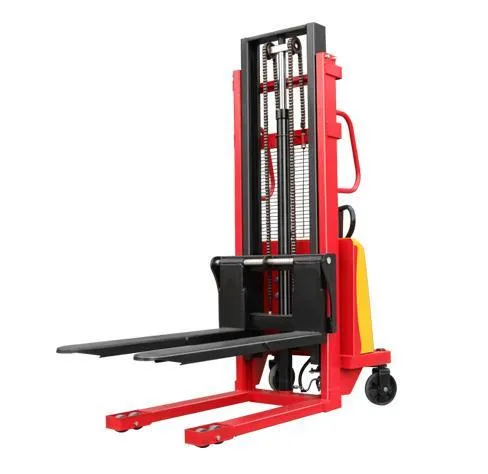

Semi-electric Stacker 2
Semi-electric Stacker 3

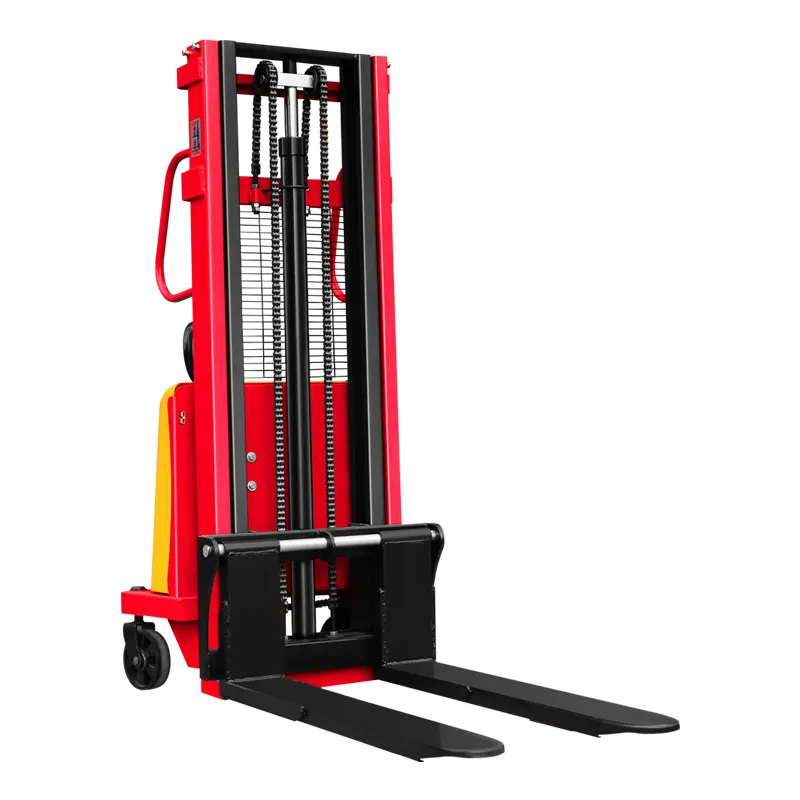

Semi-electric Stacker 4
Semi-electric Stacker 5

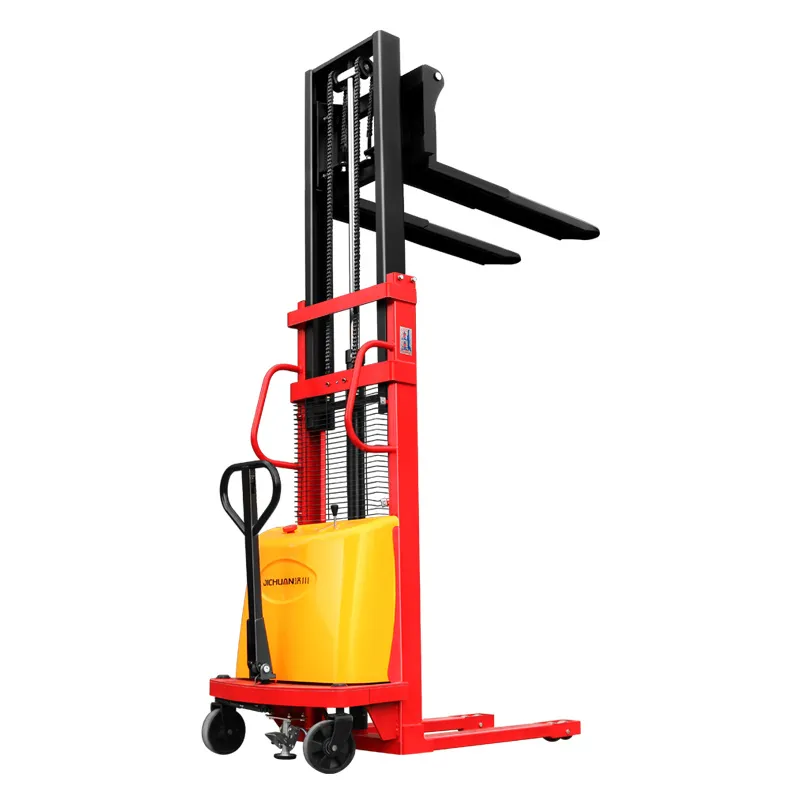

Semi-electric Stacker 6
Semi-electric Stacker 7
Semi-electric Stacker 8

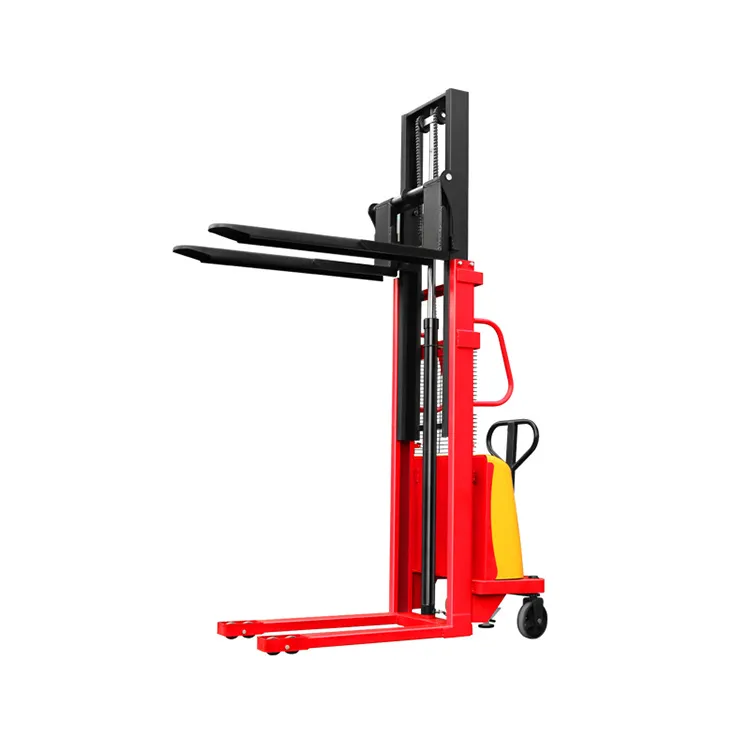

Semi-electric Stacker 9
Semi-electric Stacker 10

Frequently Asked Questions

What is the lifting capacity range of these stackers?
Our semi-electric pallet stackers offer a versatile load capacity ranging from 1000kg to 2000kg, suitable for various warehouse operations.
What are the available lifting heights?
You can choose from several lifting height options, including 1600mm, 2000mm, 2500mm, 3000mm, and up to 3500mm to meet your stacking requirements.
How is the stacker powered?
The stacker utilizes a 12V/120AH battery with a 12V/1.5KW DC motor for electric lifting, while movement is handled manually for precise control.
Are the forks adjustable for different pallet sizes?
Yes, the outer width of the forks is adjustable between 320mm and 680mm, making it compatible with various pallet types.
What is the charging requirement for the battery?
Each unit comes with a compatible 12V/15A charger. The battery system is designed for high efficiency and reliable daily performance.
What is the typical lowering speed of the unit?
The lowering speed is controlled and ranges between 0.08 to 0.15 meters per second, ensuring safe handling of delicate goods.
