Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Technical Specifications

Model NO.
HY1000R, HY1500R, HY2000R
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Moves
Stationary
Driven Type
AC Power
Feature
Lifting & Rotating
Certification
GS, CE
Material
High-strength Steel
HS Code
8427900000

Product Highlights

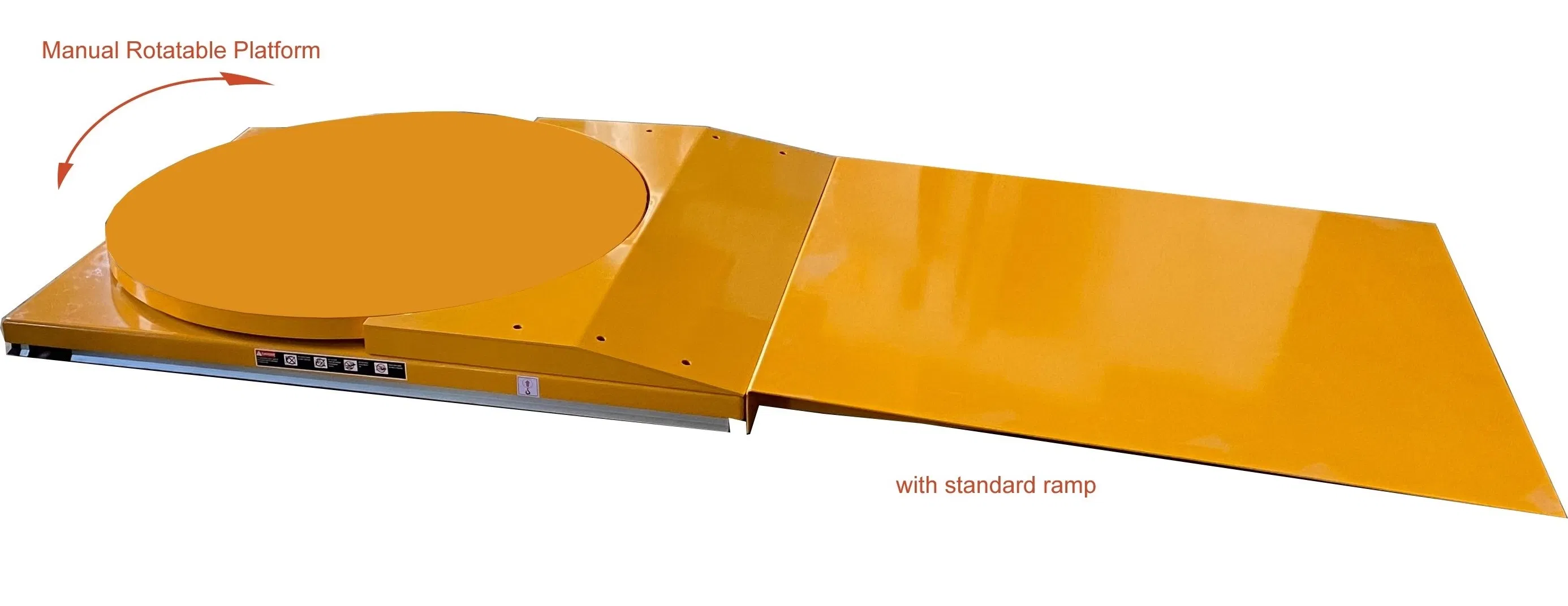

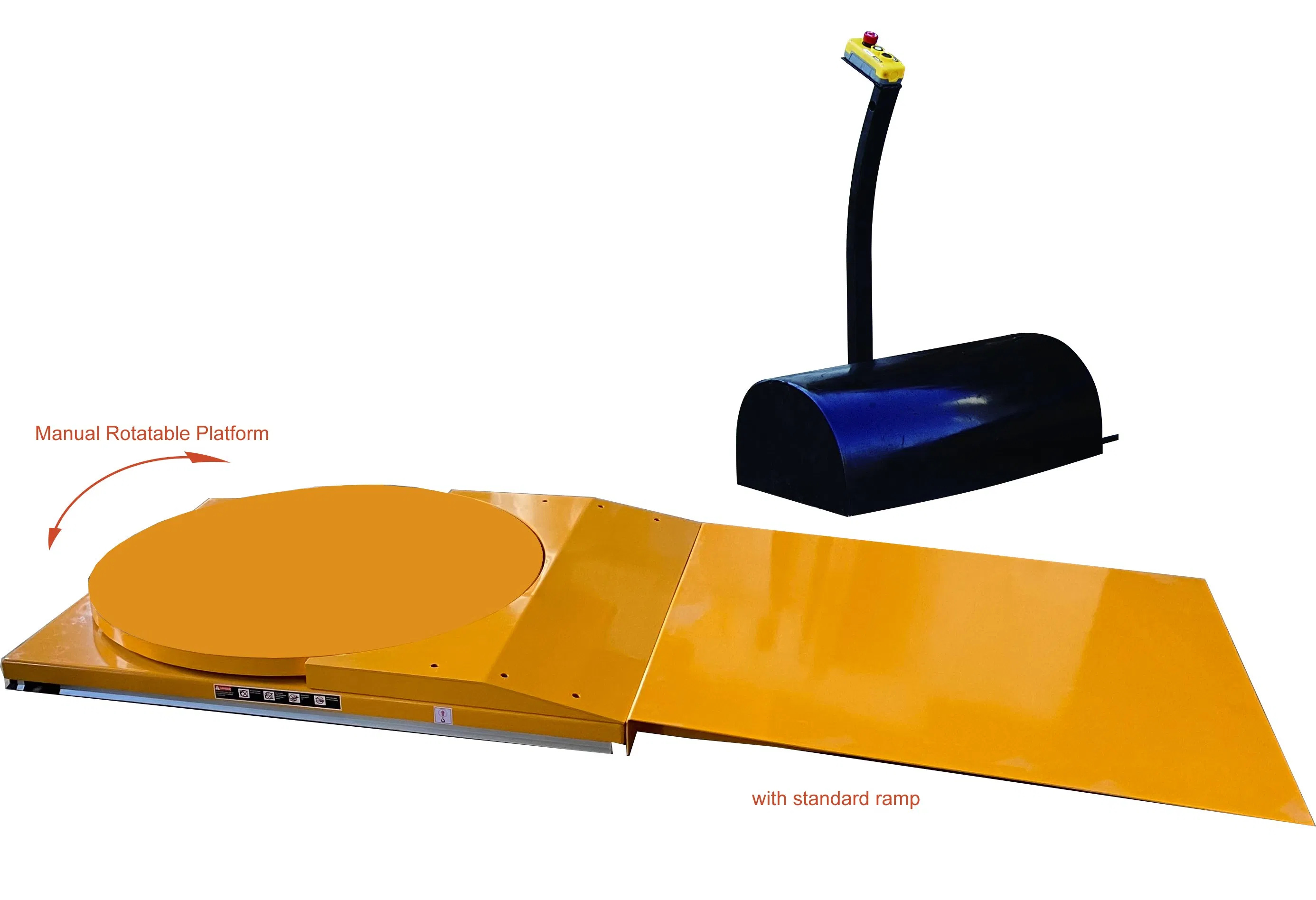

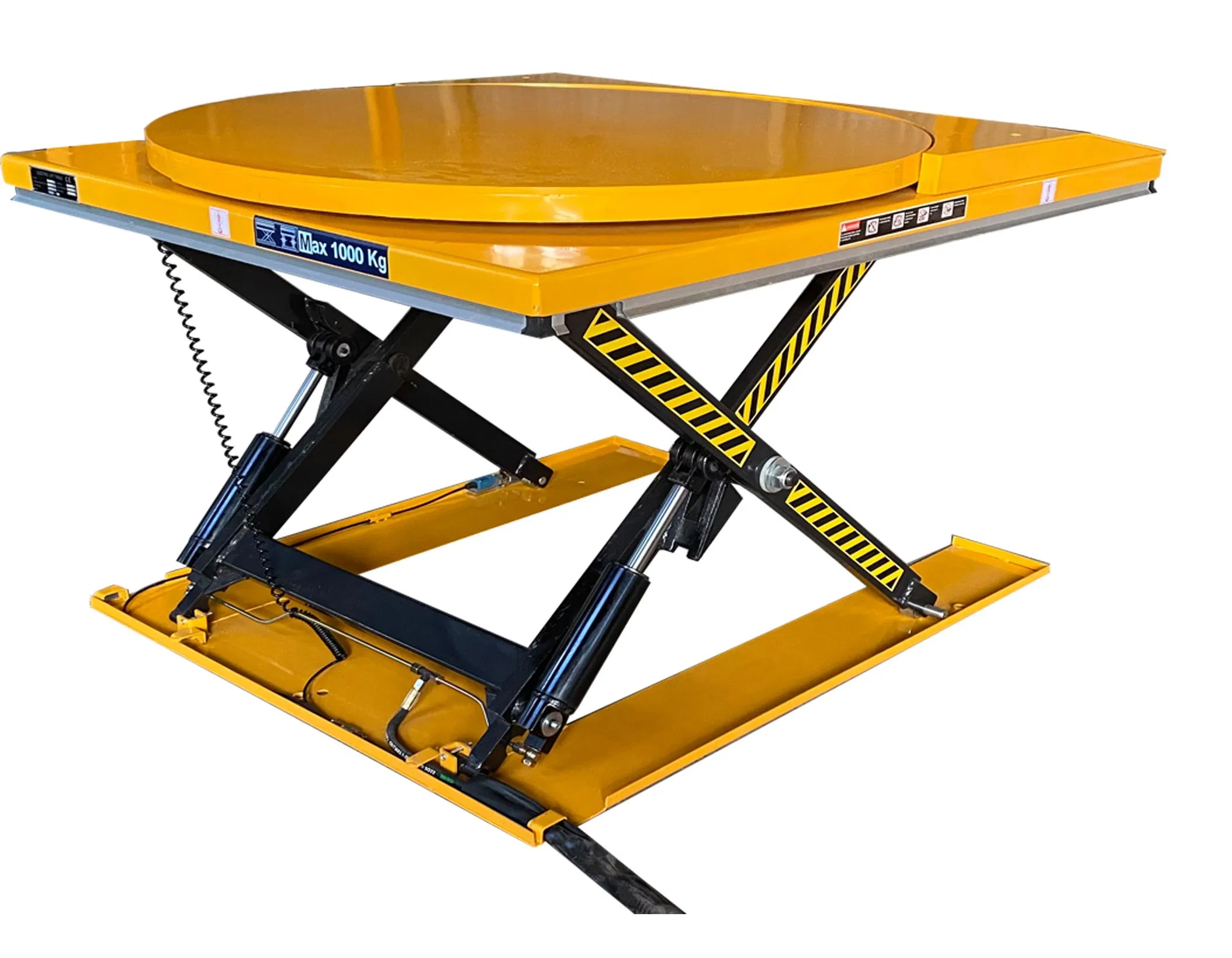

  • A low profile lift table with a rotatable platform for many applications which need platform rotation.
  • Available Capacities: 1 Ton, 1.5 Ton, 2 Ton (1000Kg, 1500Kg, 2000Kg).
  • Round Table Dimensions: Diameter 1200mm.
  • Super Low Profile: Minimum lowered height of only 170mm.
  • Standard Equipment: Loading ramp is included for easy access.
  • Durability: Equipped with oiless bushings on all pivot points for reduced maintenance.
Model Capacity (kg) Square Platform (mm) Round Platform (mm) Min. Height (mm) Max. Height (mm) Stroke (mm) Lifting Time (s) Power Pack
HY1000R 1000 1600 × 1200 Dia.1200 170 900 730 25 380V/50HZ, AC 0.75kw
HY1500R 1500 1600 × 1200 Dia.1200 170 900 730 30 380V/50HZ, AC 1.5kw
HY2000R 2000 1600 × 1200 Dia.1200 170 900 730 35 380V/50HZ, AC 2.2kw

Visual Gallery

Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series
Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series
Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series
Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series
Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series
Low Profile Rotating Stationary Scissor Lift Tables-HY. R Series

Frequently Asked Questions

What is the main advantage of the HY-R series lift table?
The HY-R series features a unique low-profile design combined with a 1200mm diameter rotatable platform, making it ideal for applications that require both lifting and circular positioning of loads.
What weight capacities are available for these rotating lift tables?
We offer three standard capacities: 1000kg (HY1000R), 1500kg (HY1500R), and 2000kg (HY2000R).
Is the loading ramp included with the purchase?
Yes, a loading ramp is provided as standard equipment to facilitate easy loading and unloading of goods onto the low-profile platform.
What are the power requirements for the motor?
The system operates on a standard 380V/50HZ AC power supply. Motor power ranges from 0.75kw to 2.2kw depending on the specific model capacity.
How high can the round platform reach?
The maximum height for all models in the HY-R series is 900mm, with a total lifting stroke of 730mm from the minimum height.
Are these lift tables suitable for heavy-duty industrial use?
Absolutely. Built with high-quality steel and featuring oiless bushings at pivot points, these tables are designed for durability in workshops, warehouses, and building applications.
