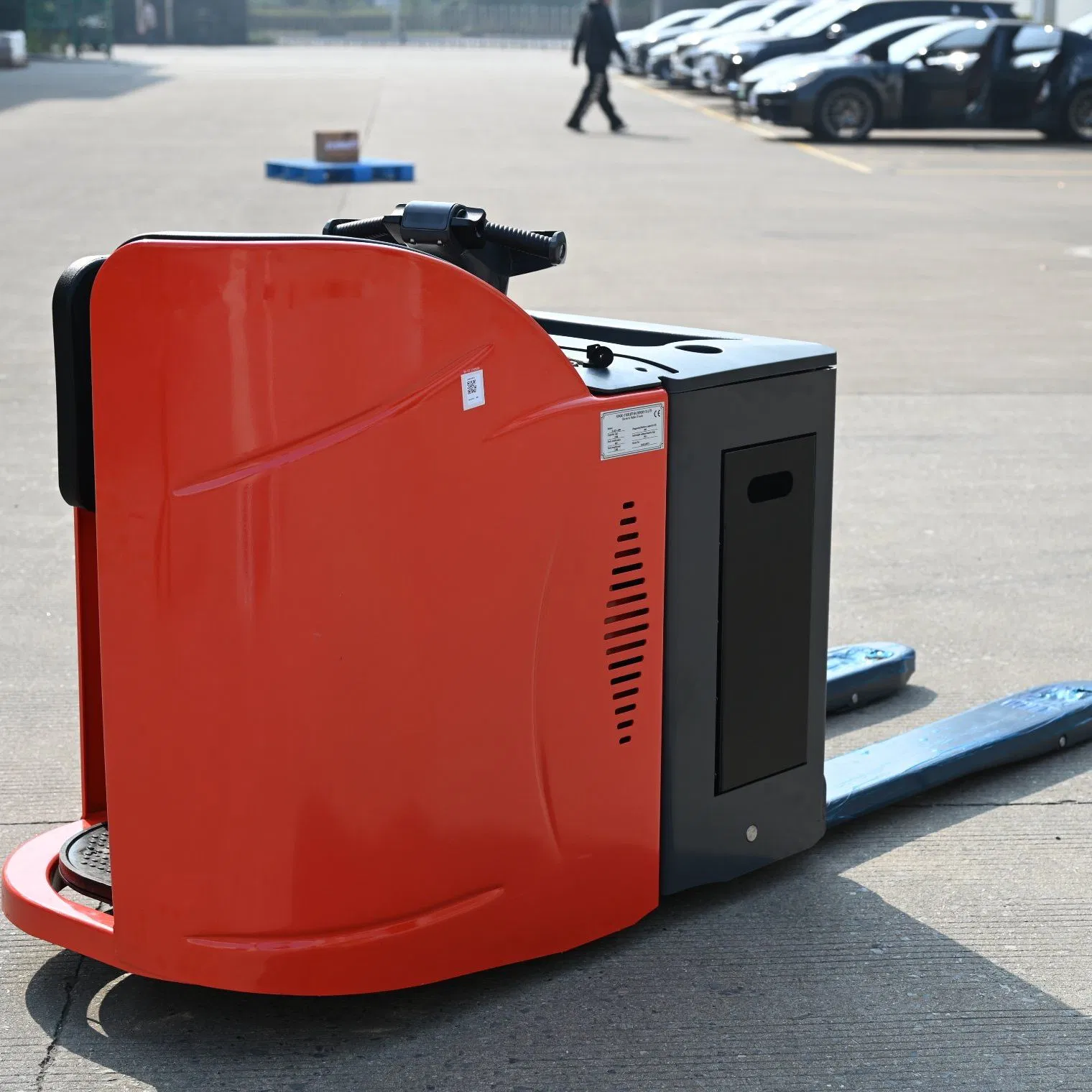

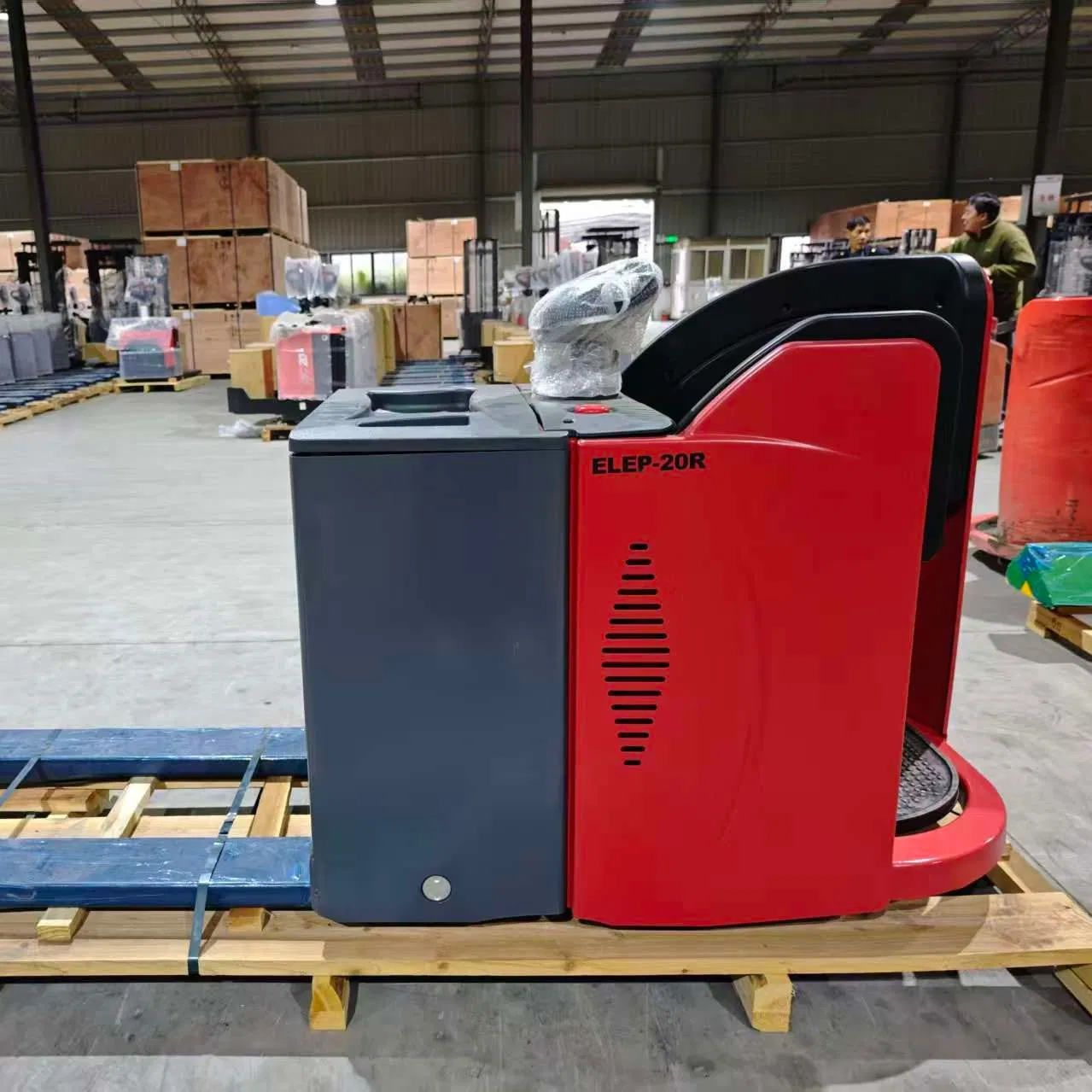

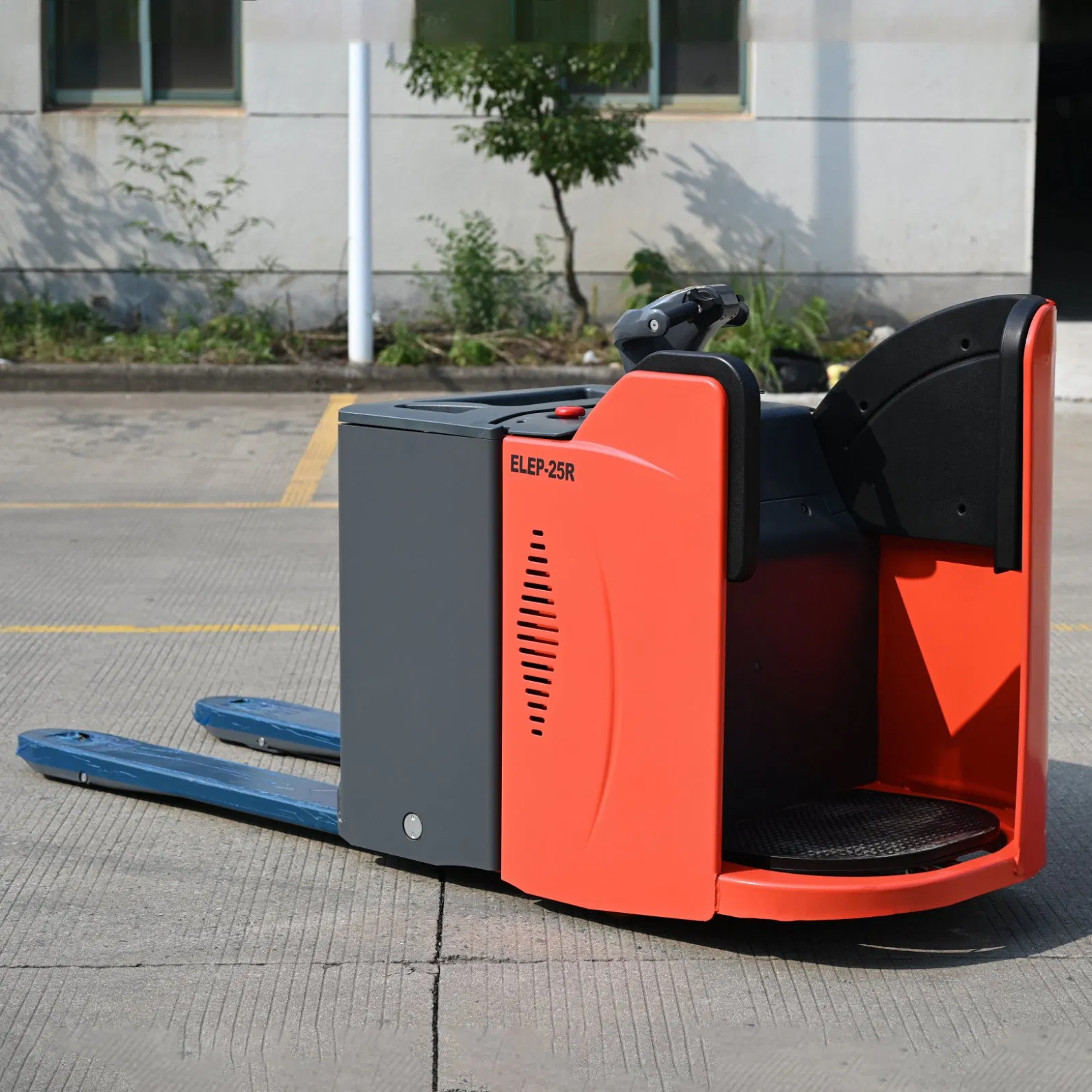

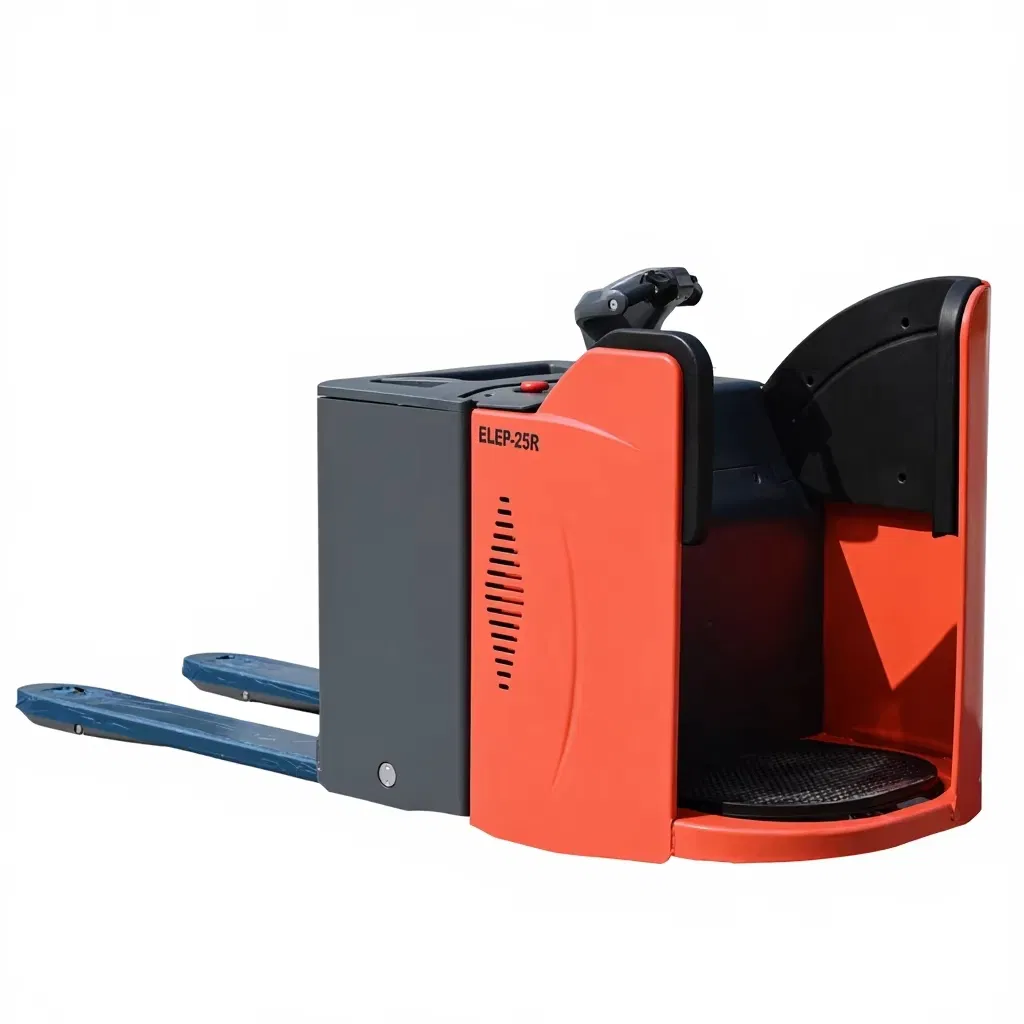

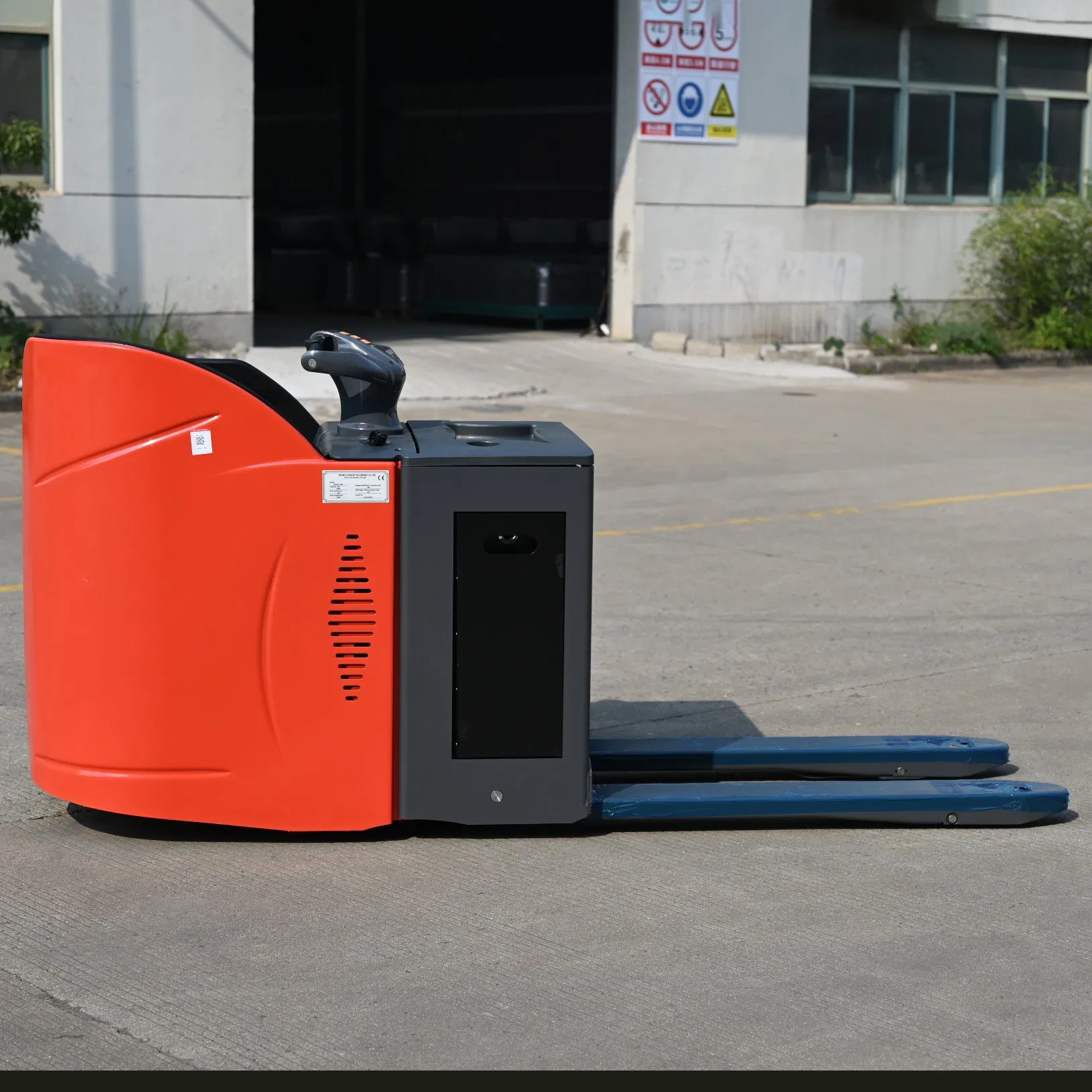

Heli Cbd20/25-491 Ugd 2t-2.5t Industrial Warehouse Electric Pallet Jack

◈ Basic Information

Model:

ELEP-20R

Type:

Pallet Jack

Power:

DC Motor / Electric

Load Capacity:

1T - 5T (2000kg/2500kg)

Operating Mode:

Standing Operation / Rider

Drive Type:

Walkie

Battery:

Lead-Acid / Lithium Battery

Tire Type:

Polyurethane / Nylon / Rubber

Lift Height:

>5000mm

Package Size:

160cm * 130cm * 145cm

◈ Product Description

CBD20/25-491 (UGD) ELECTRIC PALLET TRUCK

This electric pallet truck combines high-efficiency material handling with advanced industrial performance in one robust unit. It offers loading capacities from 2000kg to 2500kg, featuring a patented floating drive unit, maintenance-free AC drive motor, and efficient electric lifting system.

With a maximum travel speed of 11km/h and electronic power steering, it delivers exceptional productivity for high-frequency operations. Ideal for warehouses, distribution centers, and manufacturing plants, it streamlines heavy-load transport and reduces operator fatigue.

◈ Key Features

Patented drive unit floating bodies design for high running speed (up to 11Km/h).
Electronic power steering: Light operation and low noise levels.
Maintenance-free AC driving motor without carbon brushes.
Electric lifting system: Rapid, efficient, and equipped with a standard limit switch.
AC controller: Stepless speed control with multiple automatic protections.
Curve automatic deceleration function for enhanced safety.
Ergonomic half-cockpit design for operator safety.
Energy-saving lifting mechanism (guide rail) where the battery remains stationary.
LFP Lithium batteries: Fast charging and efficient sideway replacement.

◈ Technical Parameters

Technical Data
Model	CBD20/25-491
Operating type	Stand on/Rider
Load Capacity	2000kg/2500kg
Load center	600mm
Wheels type	PU (Polyurethane)
Max lifting height	205mm
Fork dimensions (LWT)	1150mm * 170mm * 55mm
Overall width	812mm
Travel speed, laden/unladen	10/11 km/h
Lift speed, laden/unladen	30/35 mm/s
Gradeability, laden/unladen	10/15%
Driving motor	AC 3.0 kW
Lifting motor	DC 2.2 kW
Battery voltage/capacity	24V/270AH or 24V/200AH
Steering type	Electronic

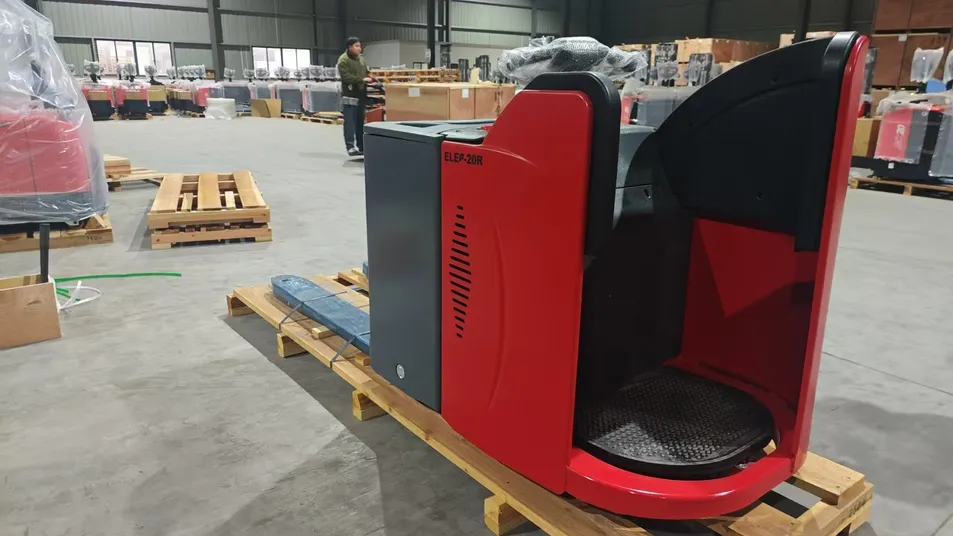

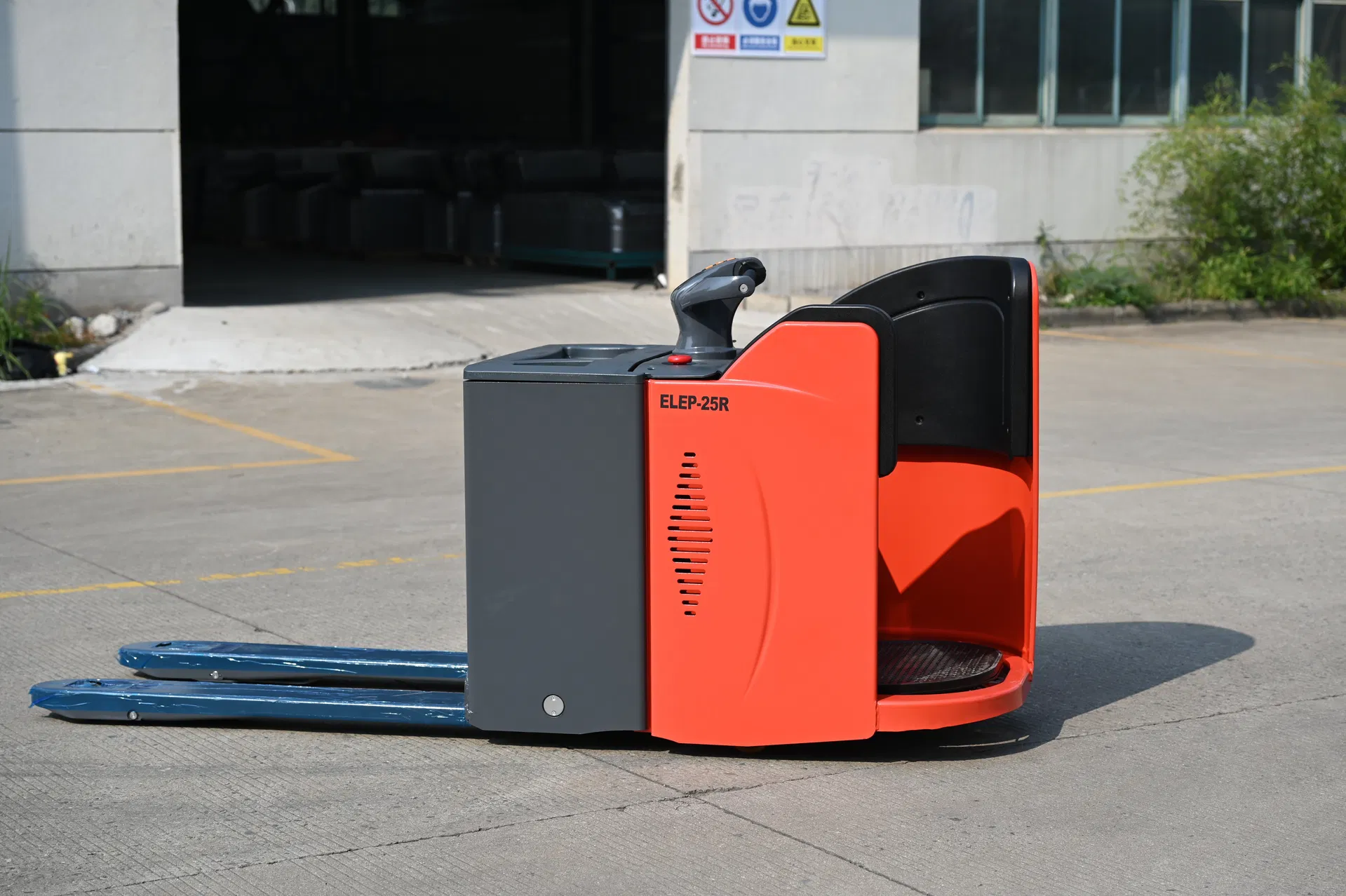

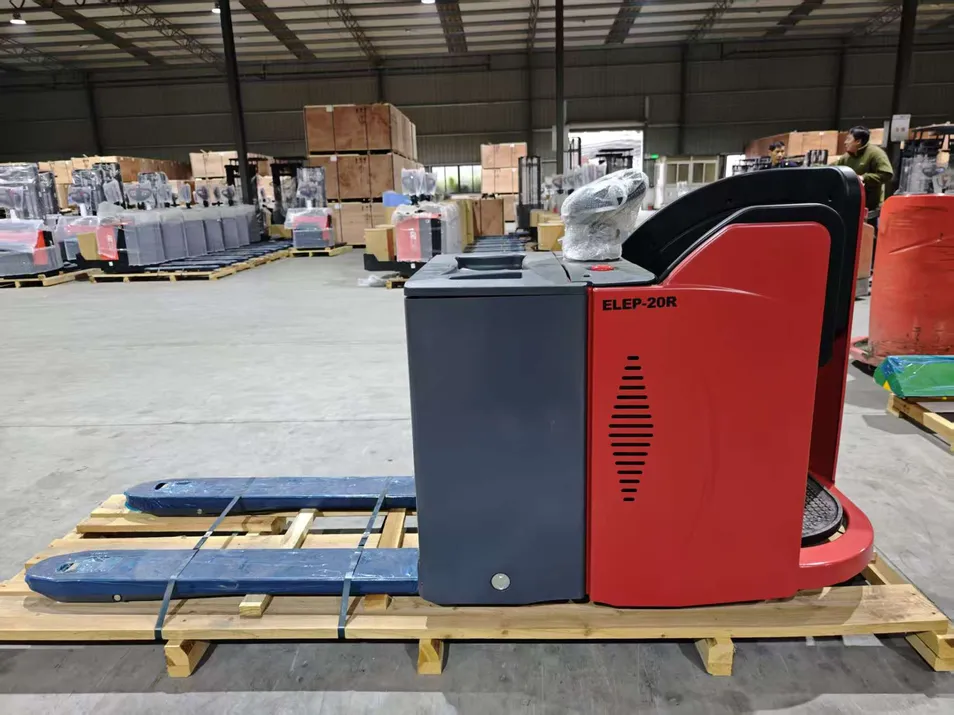

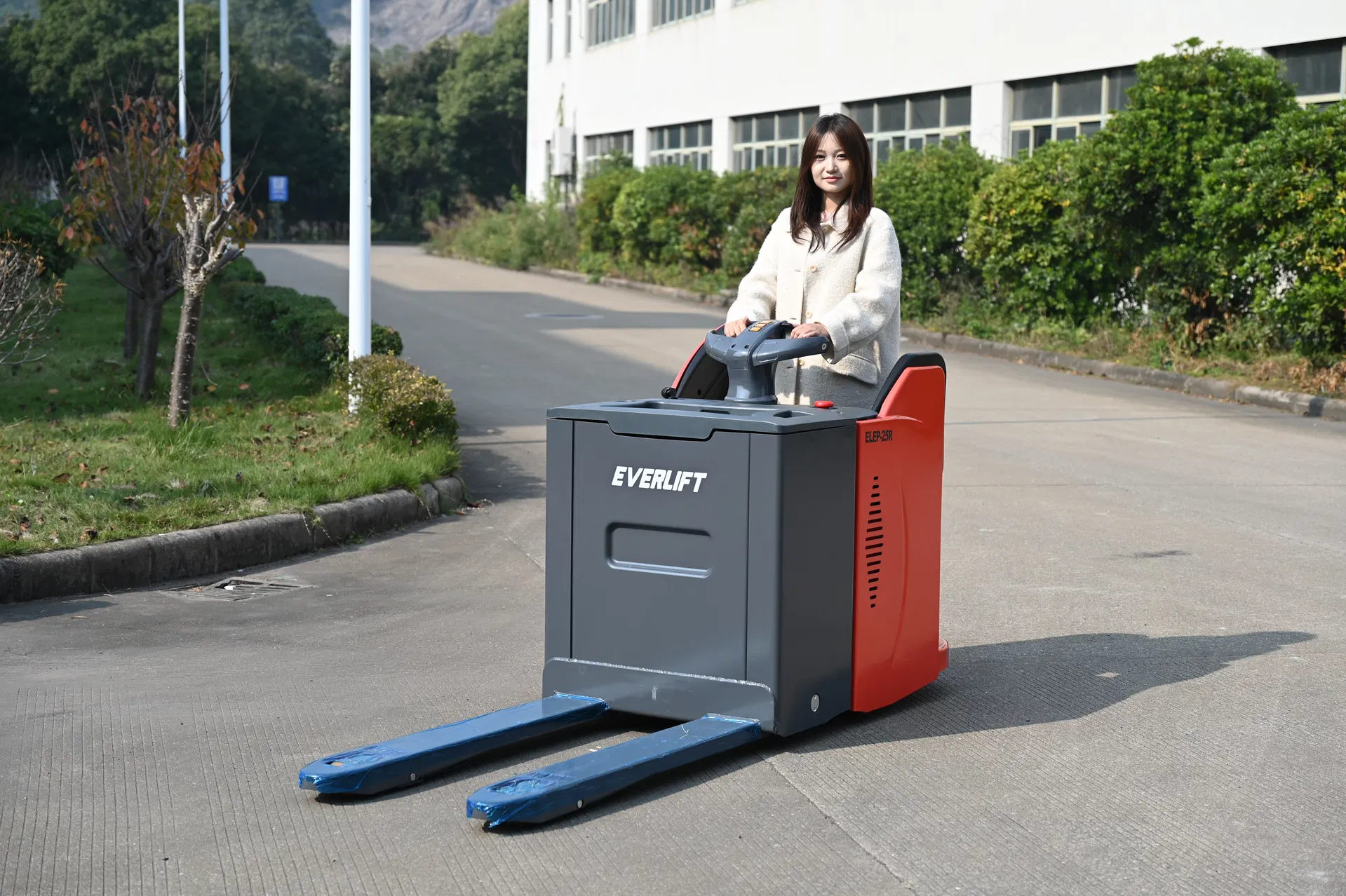

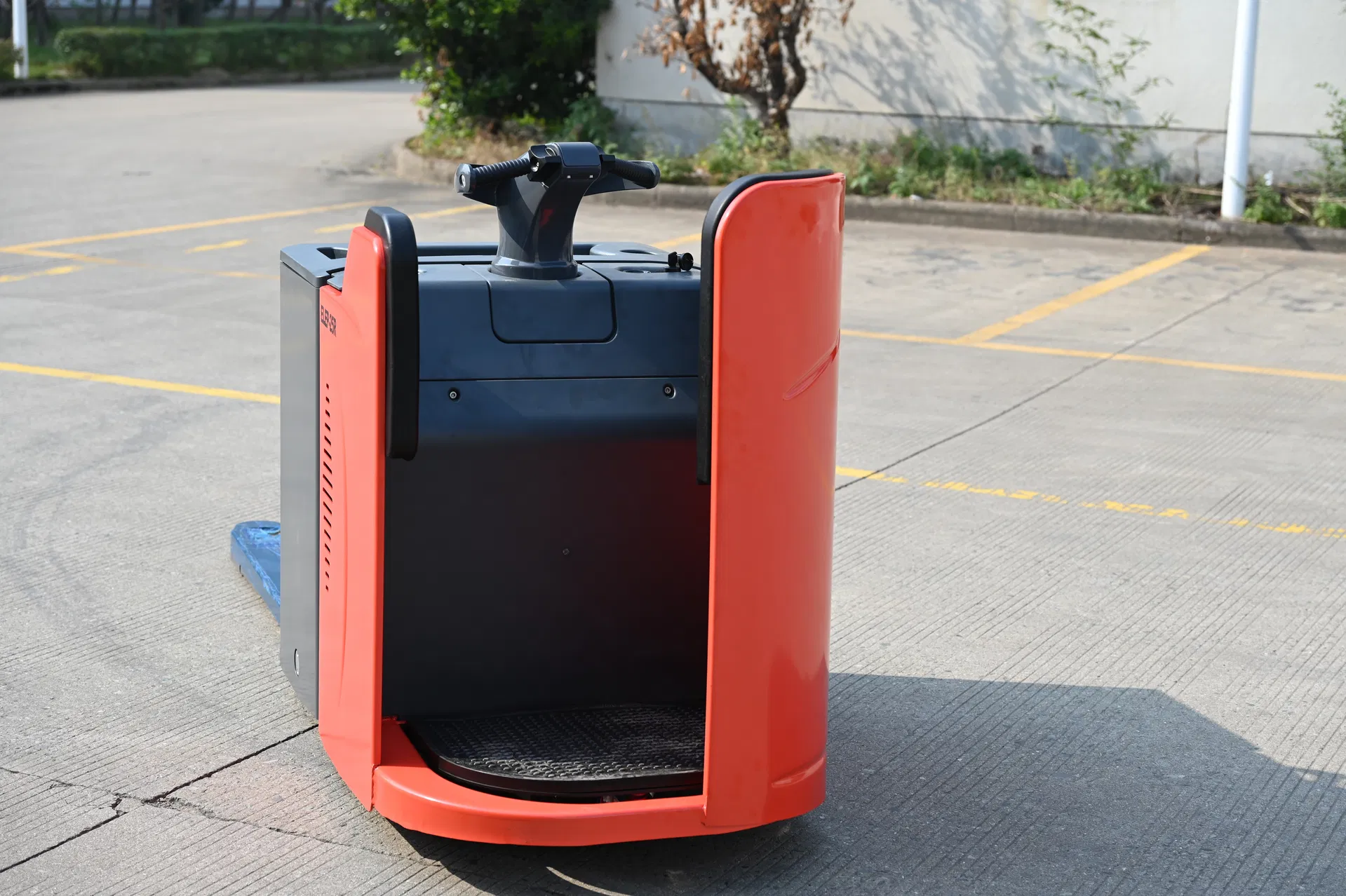

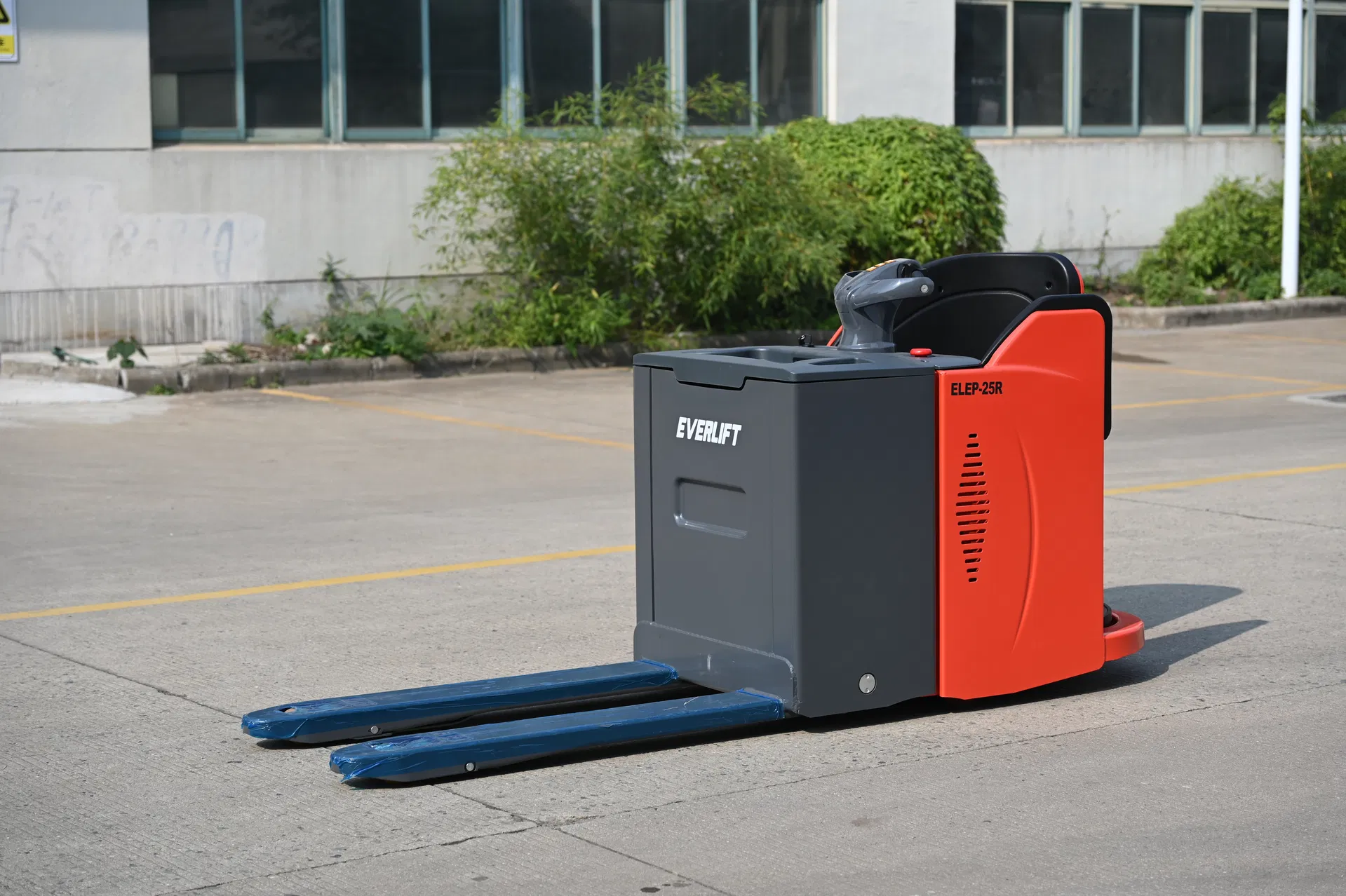

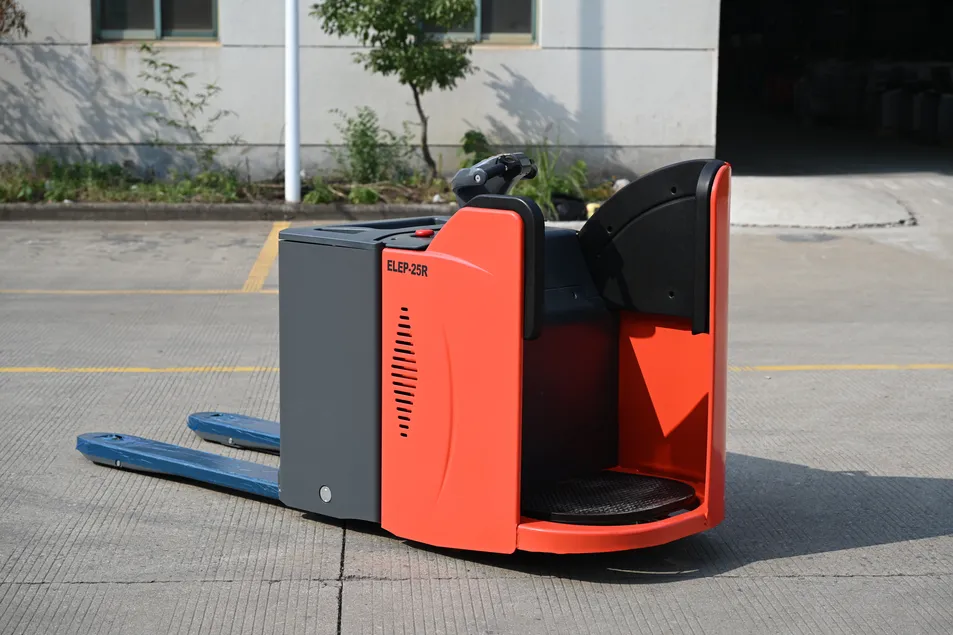

◈ Detailed Photos

◈ Frequently Asked Questions

Q1: How long is the warranty for the product? A: We provide a 12-month or 1000-hour warranty for the entire machine starting from the on-board time.

Q2: What is the typical delivery lead time? A: Usually, production takes 15-20 days after receiving the advance payment. For standard models, we may have stock available for immediate delivery.

Q3: Are customized OEM or ODM products available? A: Yes, we can provide customized products per your specific requests. Both OEM and ODM services are fully supported for non-standard equipment.

Q4: Can we request a specific color for the equipment? A: Certainly. You simply need to provide the RAL color code, and we can apply your preferred color to the products.

Q5: What are the specifications for the battery chargers? A: Standard configurations include 24V/50A or 24V/100A chargers depending on the battery type and capacity chosen.

Q6: What makes the lithium battery models different? A: LFP model lithium batteries offer fast charging capabilities and high efficiency. The sideway battery design allows for easy tool-free replacement.
