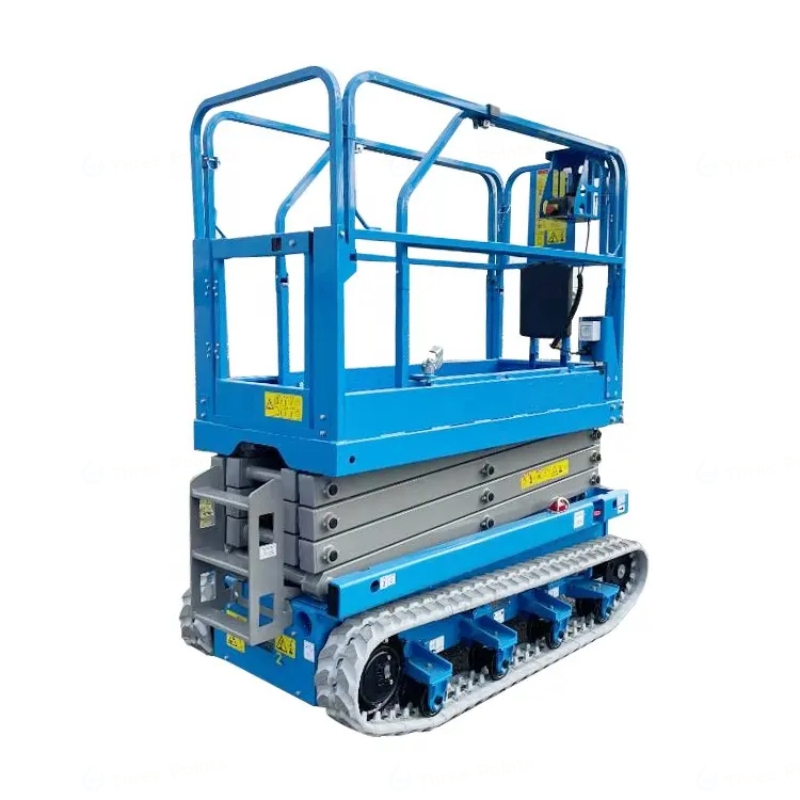

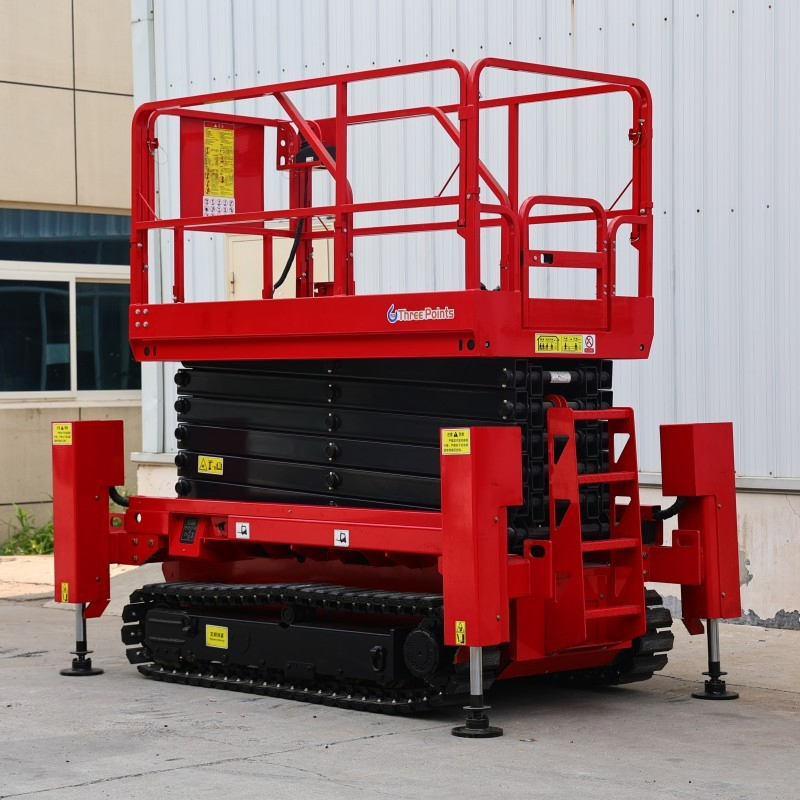

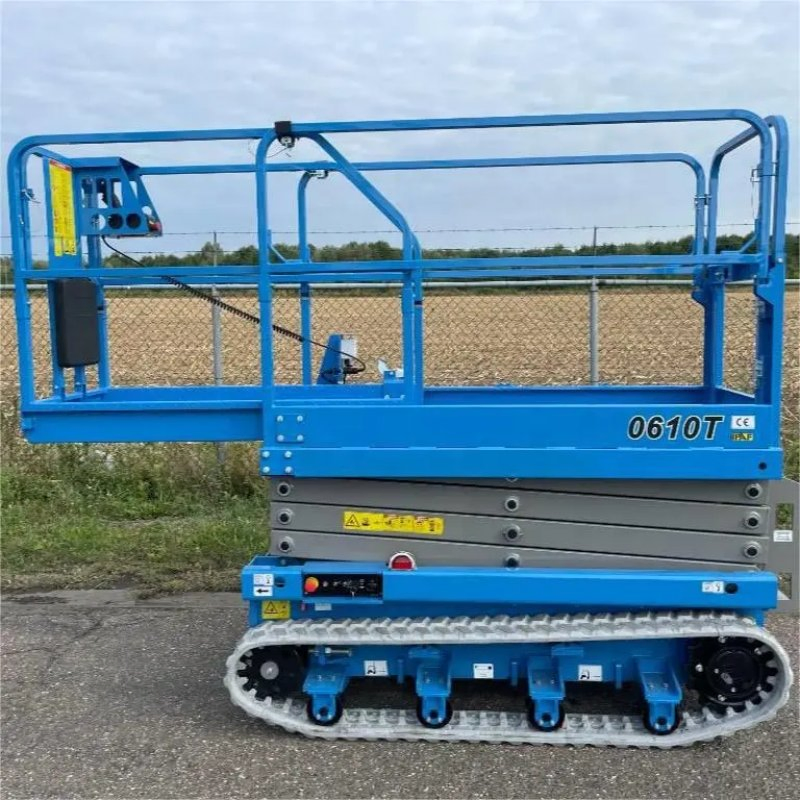

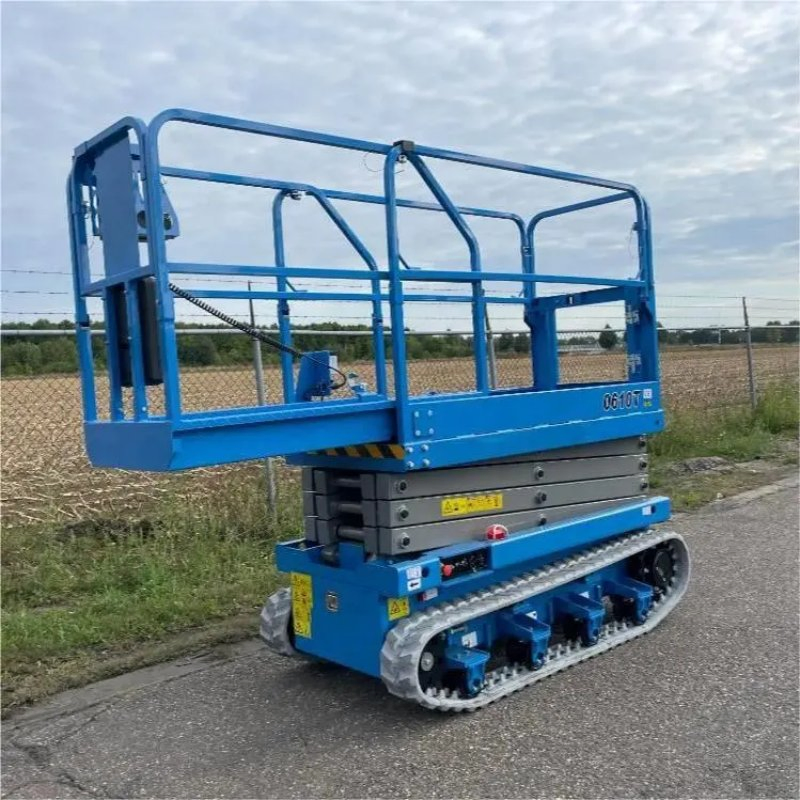

Factory Outlet 4m 6m 8m 10m 12m 500kg Rough Terrain Tracked Crawler Hydraulic Electric Scissor Lift for Sale

Customization: Available
After-sales Service: Free Spare Parts Will Be Provided for Any Quality-
Warranty: 12 Months for The Main Structure (Platform, Scisso

Product Description

i

Basic Information

Model NO.
TP-CL-01
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Capacity
Middle-Level (300kg - 500kg)
Moves
Self-propelled / Crawler
Driven Type
AC / Electric / Diesel
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Lifting Height
4m to 18m
Power
24V / 4.5kw
Tire Type
Rubber Tracks / Solid Tires
Platform
Anti-Skid with Extension

Product Description

Crawler-type Scissor Lift | 4–20m Working Height | Electric or Diesel Powered | CE Certified

This crawler scissor lift is specially designed for rough terrain, outdoor construction, and uneven ground. Equipped with rubber tracks and a powerful hydraulic system, it offers excellent traction, stability, and climbing ability. With a working height range of 4 to 20 meters and a load capacity of up to 450kg, it is ideal for use in construction sites, farms, mountainous areas, and factories. The lift supports both electric and diesel power options, making it flexible for various work environments. Simple joystick operation ensures ease of use and safety. CE certified and customizable with over 15 years of export experience.

P

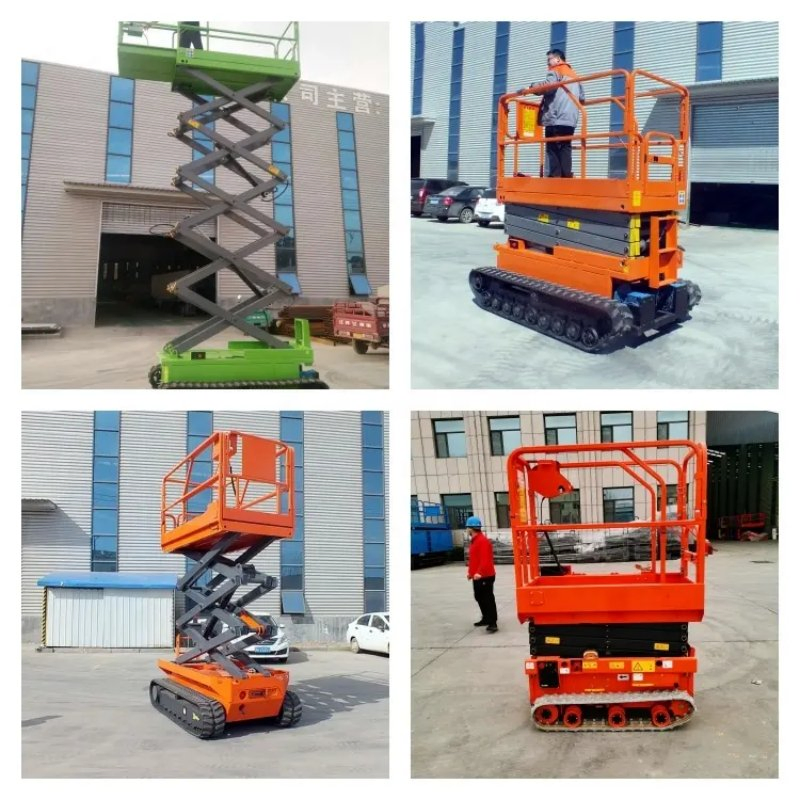

Product Presentation

Crawler Scissor Lift View 1
Crawler Scissor Lift View 2
Crawler Scissor Lift View 3
Details 1

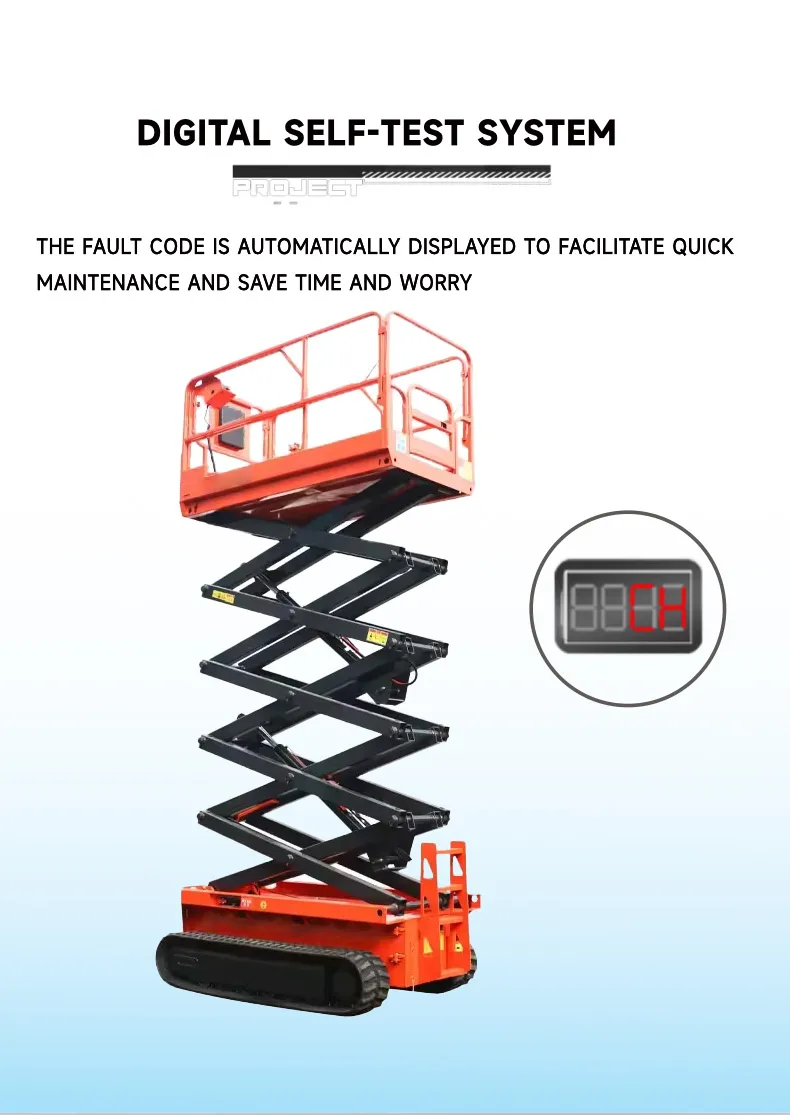

Details 2

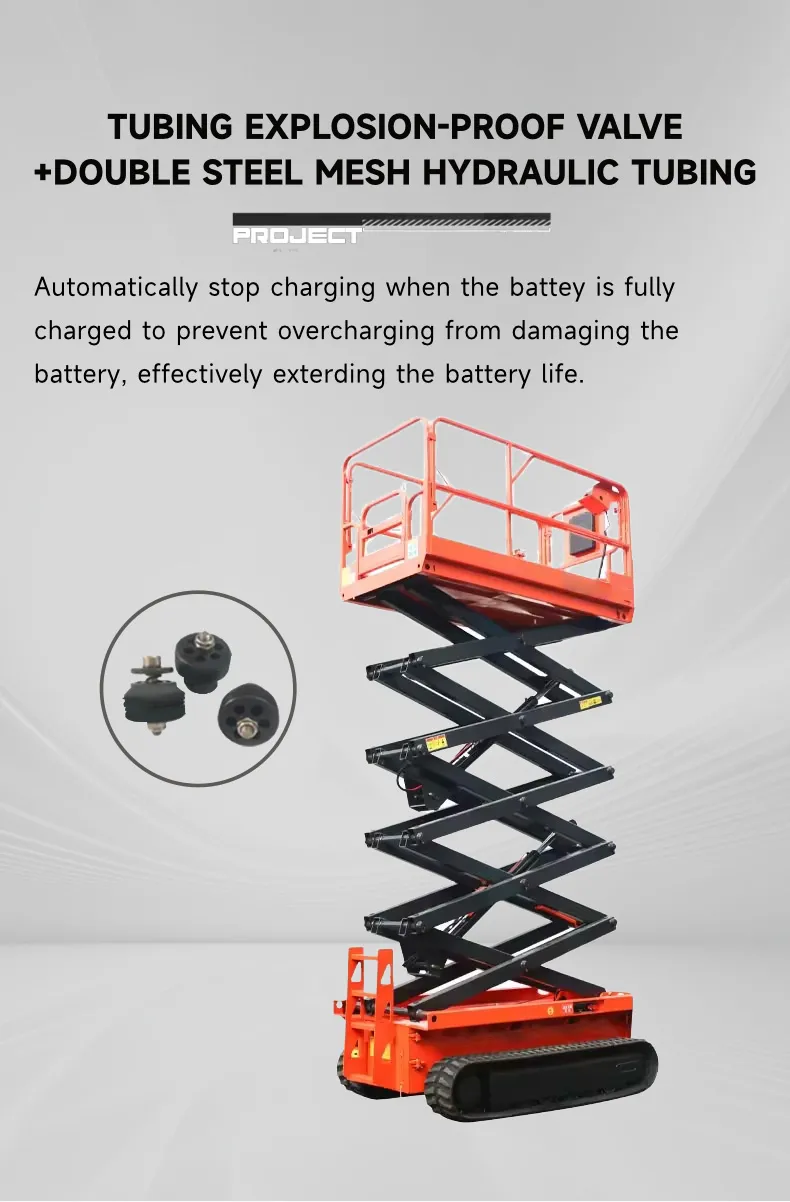

Details 3
Application 1
Application 2
S

Technical Specifications

Model Platform Size (mm) Load (kg) Working Height (m) Overall Dimensions (mm) Weight (kg)
TP-SL-0.32-6 Steel Track2300*1170320kg62560*1600*14502400kg
TP-SL-0.32-8 Steel Track2300*1170320kg82560*1600*15002500kg
TP-SL-0.32-10 Steel Track2300*1170320kg102560*1600*15602700kg
TP-SL-0.32-12 Steel Track2300*1170320kg122560*1600*17003000kg
TP-SL-0.32-14 Steel Track2300*1170320kg142900*1900*19403200kg
TP-SL-0.32-16 Steel Track2650*1280320kg163000*2000*20403600kg
Layout Analysis
Structure 1
Structure 2
Safety Features
Control System
Operation Demo
?

Frequently Asked Questions

What is the maximum working height of this crawler scissor lift?
The crawler scissor lift series offers a working height ranging from 4 meters up to 20 meters, depending on the specific model selected.
Is it suitable for rough terrain or outdoor construction?
Yes, it is specifically designed with rubber tracks and a robust hydraulic system to handle rough terrain, muddy ground, and outdoor construction environments.
What kind of power options are available for the lift?
The equipment supports multiple power options including electric (24V battery) and diesel-powered engines to suit different job site requirements.
Does the lift platform have an extension feature?
Yes, the platform includes an extension section with a load capacity of approximately 100kg, allowing for better reach over obstacles.
What safety precautions are included?
The lift is equipped with safety features such as an emergency descent device, explosion-proof components, insulating features, and dual control methods (upper and bottom controls).
Is the equipment certified for international use?
Yes, our crawler scissor lifts are CE, GS, RoHS, and ISO 9001 certified, ensuring they meet strict international safety and quality standards.
