Home > Low Profile Lift Table > EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
1 / 5
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate
EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate

EU standard U Shape 85mm Low Profile 600kgs 1Ton 1.5Ton Electric Hydraulic Scissor Lift Table with CE certificate

Customization: Available
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism: Scissor Lift
Send Inquiry

Product Description

Basic Specifications
Model NO.
HU600, HU1000, HU1500
Carrying Capacity
Middle-Level
Driven Type
AC
Feature
Lifting
Certification
GS, CE
Material
Steel
Motor
1.1kw, 1.5kw built-out motor
Voltage
220v/380v/415v 50hz/60hz 1ph/3ph
HS Code
8427900000
Production Capacity
2000PCS/ Month
Product Description
✓

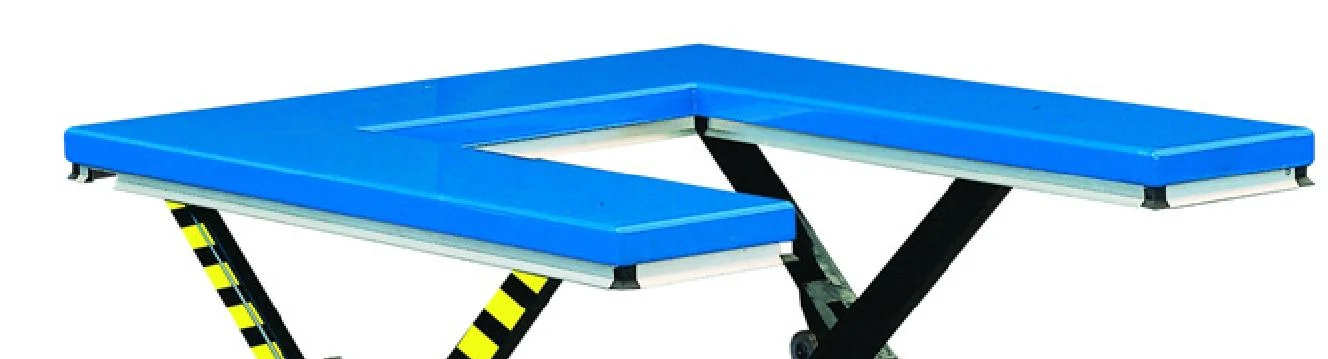

'U' Shaped Top Platform: Specially designed for handling pallets, eliminating the need for a pit or load ramps.
✓
Safety Standards: Manufactured to all European safety standards including EN1570: 1990.
✓

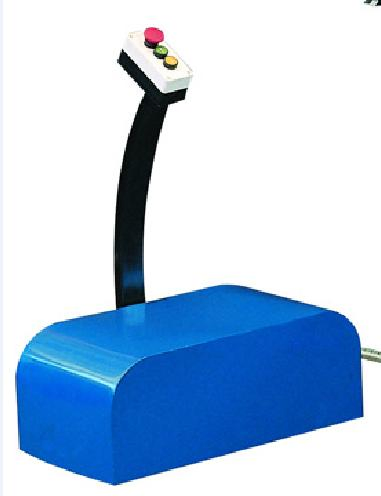

Advanced Controls: 24V control box with UP/DOWN buttons and emergency stop; Remote power pack protected to IP54.
✓
Safety Features: Upper platform fitted with safety perimeter; Hose burst safety valve to prevent sudden descent.
✓
Easy Maintenance: Mechanical safety chocks for maintenance and oiless bushings on pivot points.

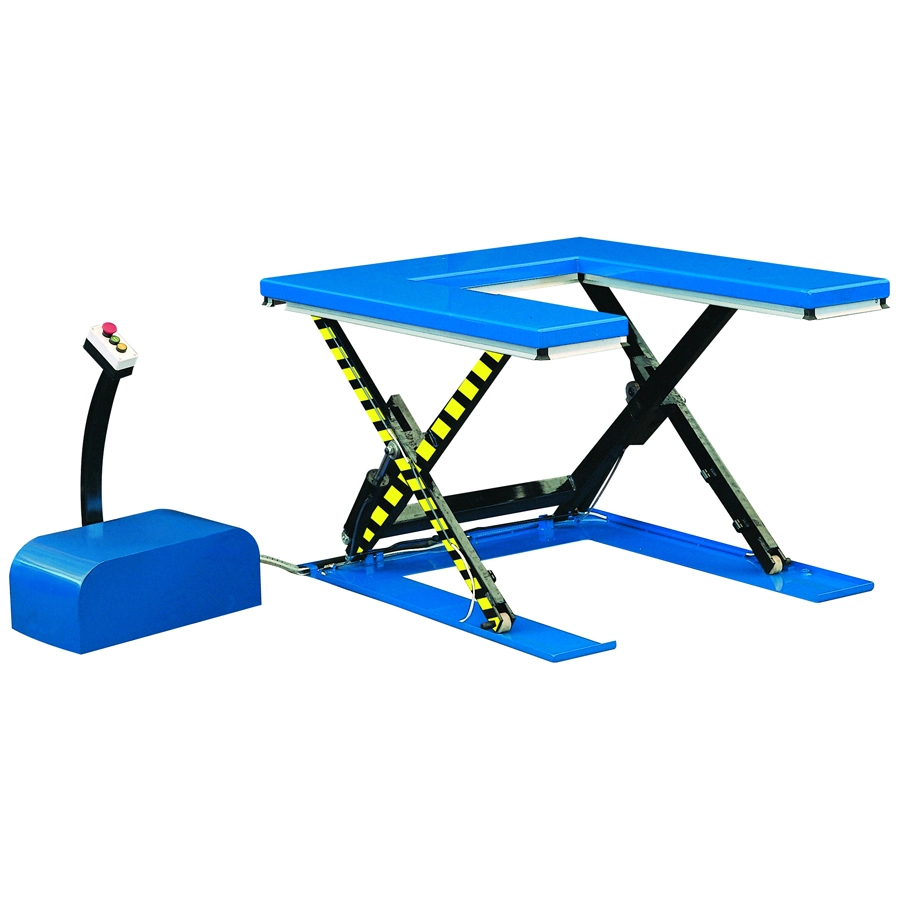

U Shape Electric Hydraulic Scissor Lift Table

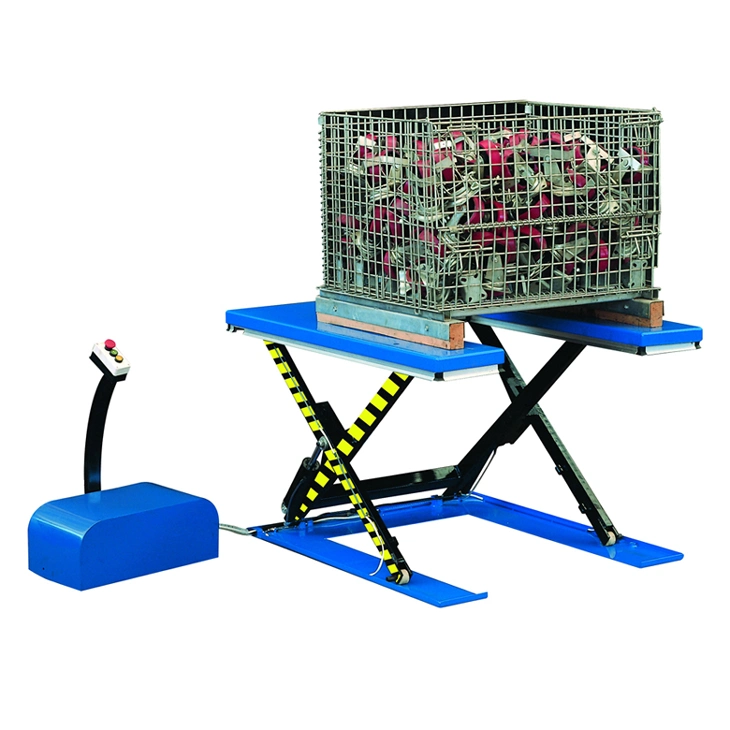

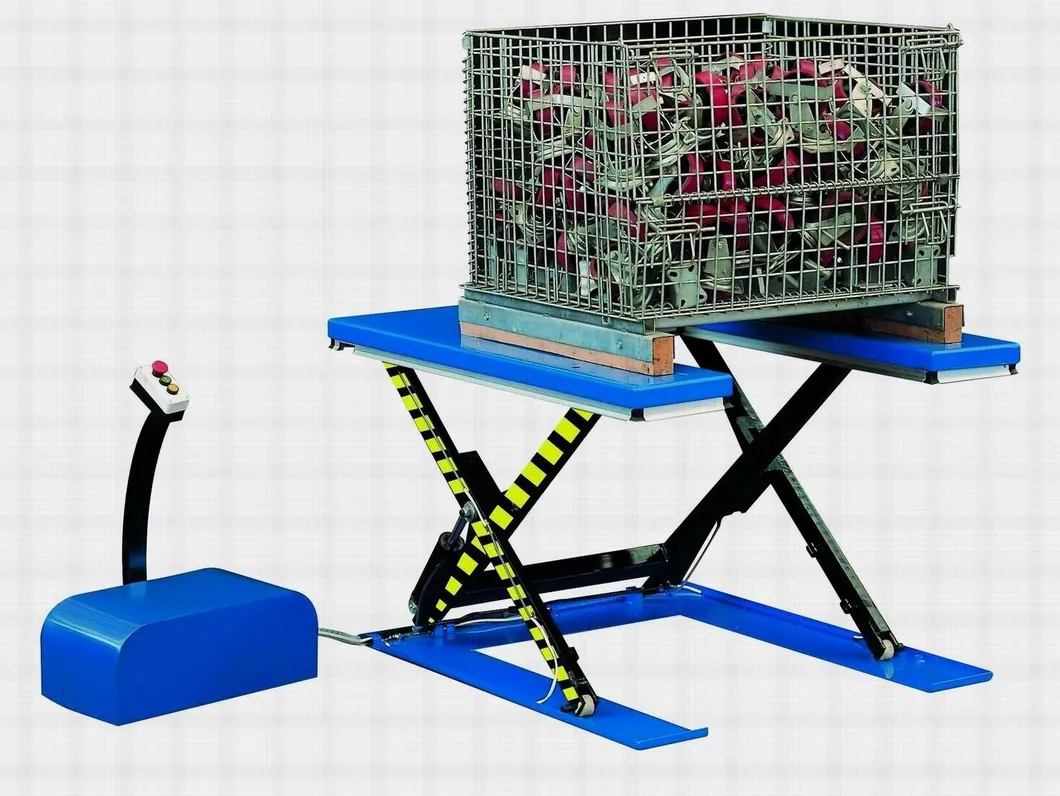

Low Profile Scissor Lift Table with CE
Technical Specifications
Model HU600 HU1000 HU1500
Capacity (kg) 600 1000 1500
Max. height H(mm) 860 860 860
Collapsed height h(mm) 85 85 105
Platform L×W(mm) 1450×985 1450×1140 1600×1180
Lifting Time (second) 25~35 25~35 30~40
Power Pack (KW) 380V/50Hz,AC1.1KW 380V/50Hz,AC0.75KW 380V/50Hz,AC1.5KW
Net Weight (kg) 207 280 380

Note: Clearance between two forks for pallet truck access is 585mm.

Frequently Asked Questions

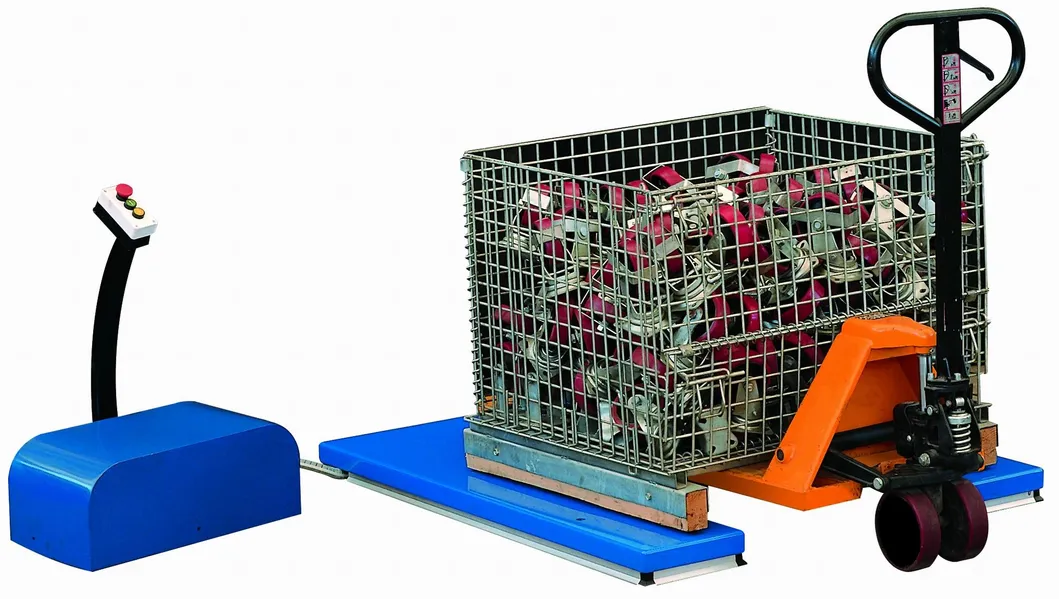

What is the advantage of the 'U' shaped platform?
The 'U' shape is specifically designed to allow pallet trucks to drive directly into the platform to load or unload pallets without the need for a floor pit or ramps.
What safety certifications do these lift tables have?
All models are manufactured to European safety standards, including EN1570:1990, and carry CE and GS certifications.
How does the safety perimeter work?
The upper platform is equipped with a safety perimeter frame. If it encounters any obstruction during descent, the lift stops immediately to prevent injury or damage.
What happens if a hydraulic hose breaks?
The lift is equipped with a hose burst safety valve that automatically stops the platform from lowering in the event of a hose failure.
Is the motor internal or external?
These models feature a remote (external) power pack with a pedestal and controls, which is protected to IP54 standards for durability.
Can I use this lift with different voltages?
Yes, the system supports multiple voltage configurations including 220V, 380V, and 415V at both 50Hz and 60Hz (1-phase or 3-phase).
