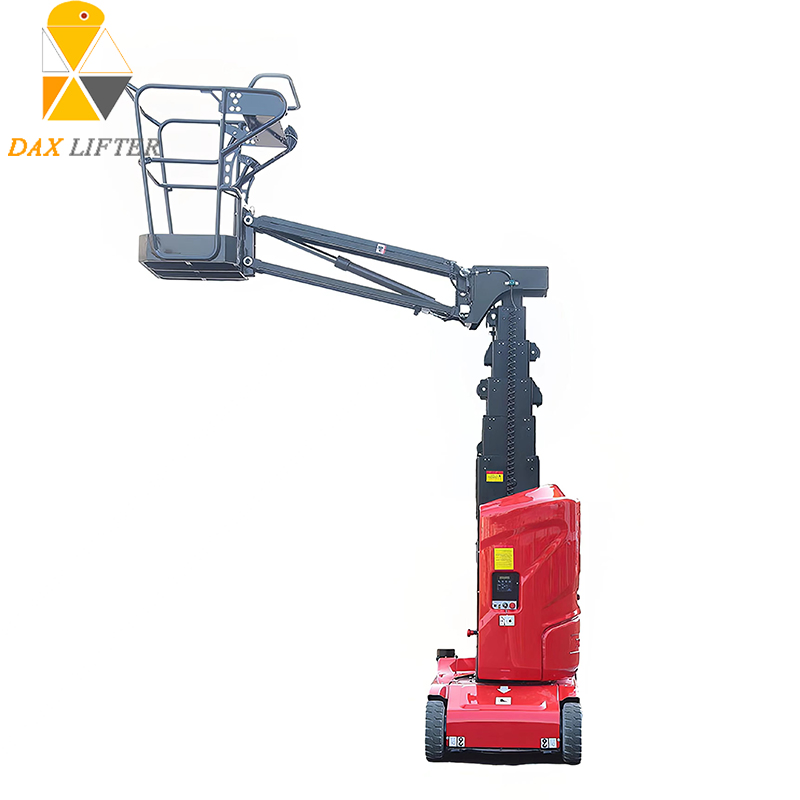

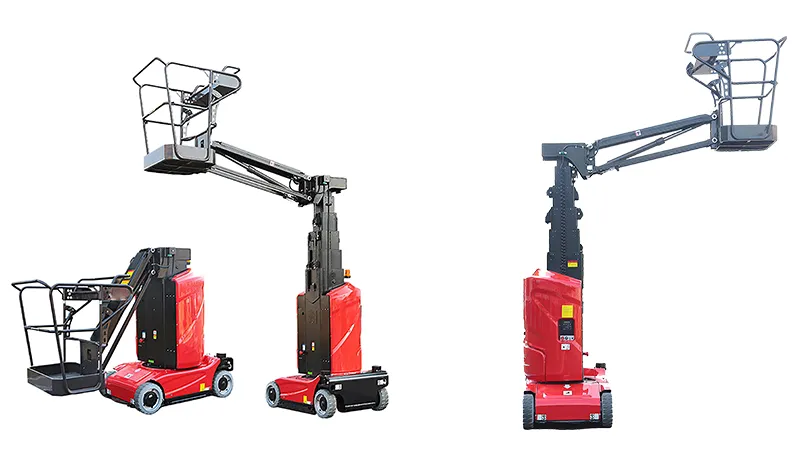

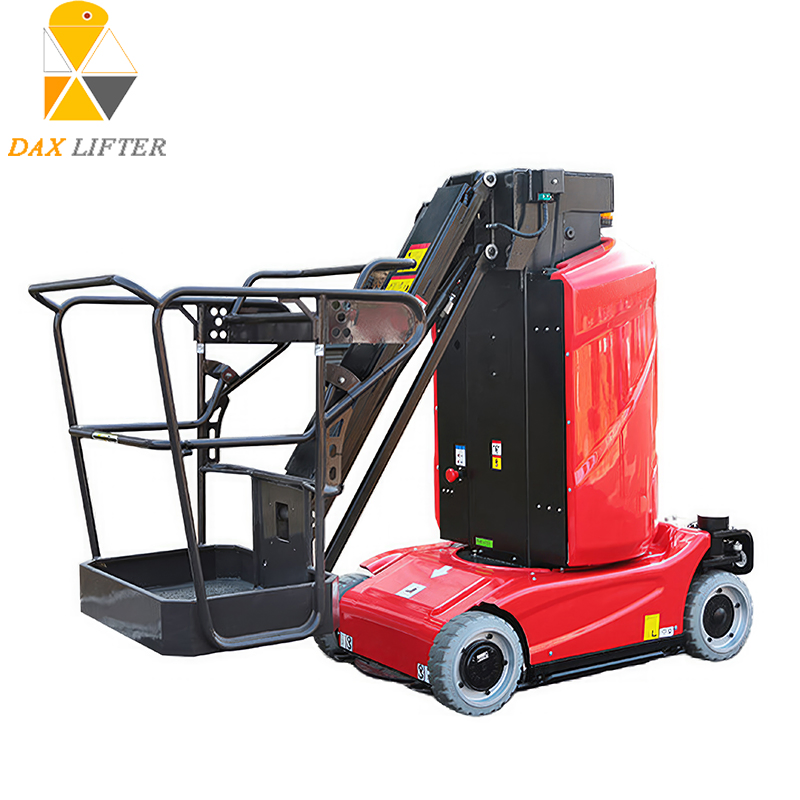

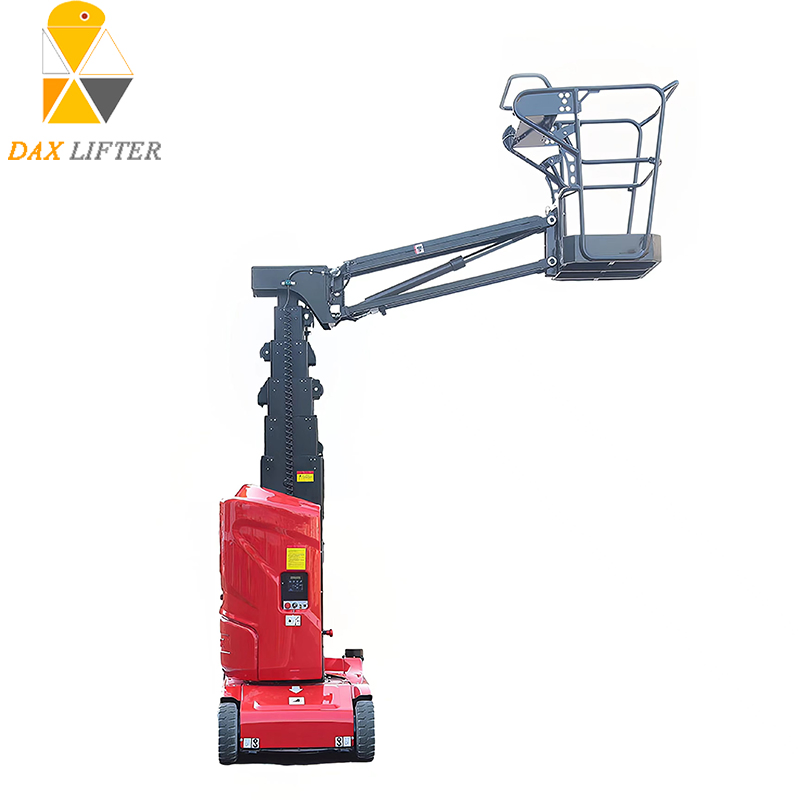

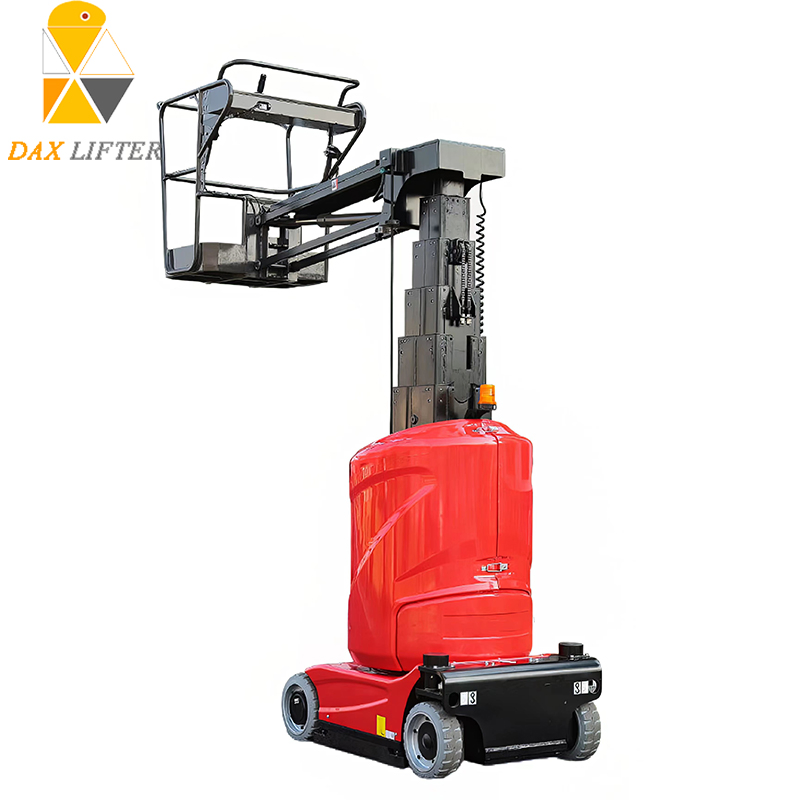

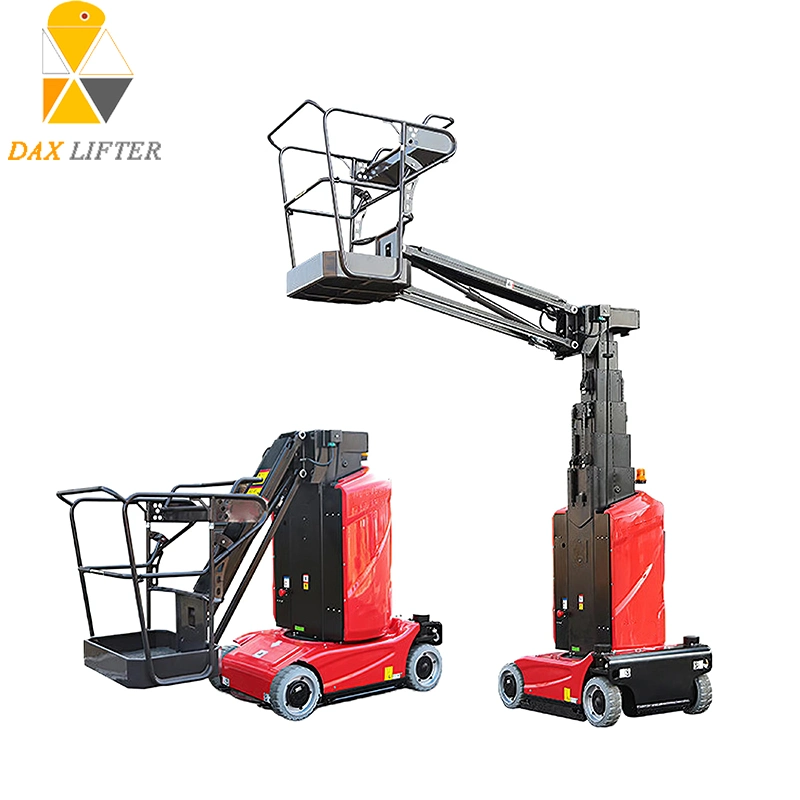

This equipment is a small, flexible aerial work solution ideal for confined working spaces such as airports, hotels, and supermarkets. It offers high-end configuration at a more accessible price point. The most prominent feature is its ability to extend 3m horizontally at high altitudes, significantly expanding the working range while ensuring safety and practicality.
Perfect for narrow warehouse work and tight aisles.
Horizontal extension for superior aerial coverage.
High-quality manufacturing with reliable DC drive.

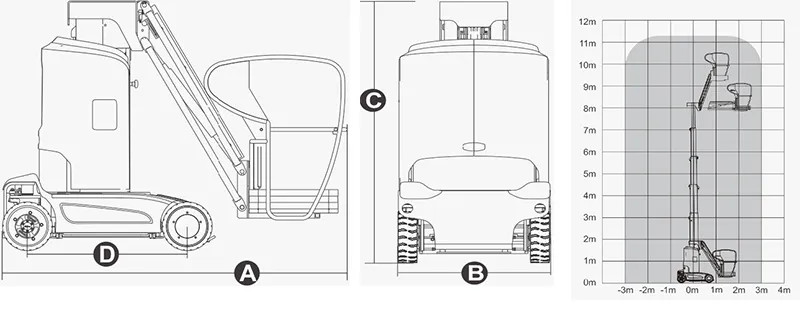

| Parameter | Specification |
|---|---|
| Max. Working Height | 11.2m |
| Max. Platform Height | 9.2m |
| Loading Capacity | 200kg |
| Max. Horizontal Reach | 3m |
| Up and Over Height | 7.89m |
| Platform Dimension | 0.62m × 0.87m × 1.1m |
| Overall Dimension (L*W*H) | 2.53m × 1.0m × 1.99m |
| Travel Speed (Stowed/Raised) | 4.5km/h / 0.5km/h |
| Drive Motors | 24VDC / 0.9kW |
| Lifting Motor | 24VDC / 3kW |
| Battery / Charger | 24V 240Ah / 24V 30A |
| Total Weight | 2950kg |
