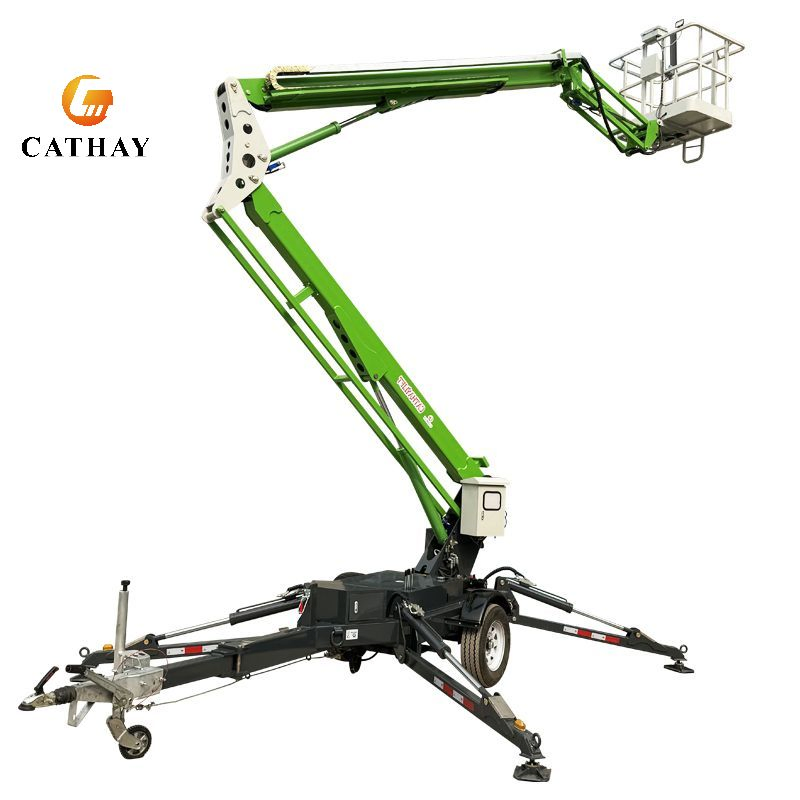

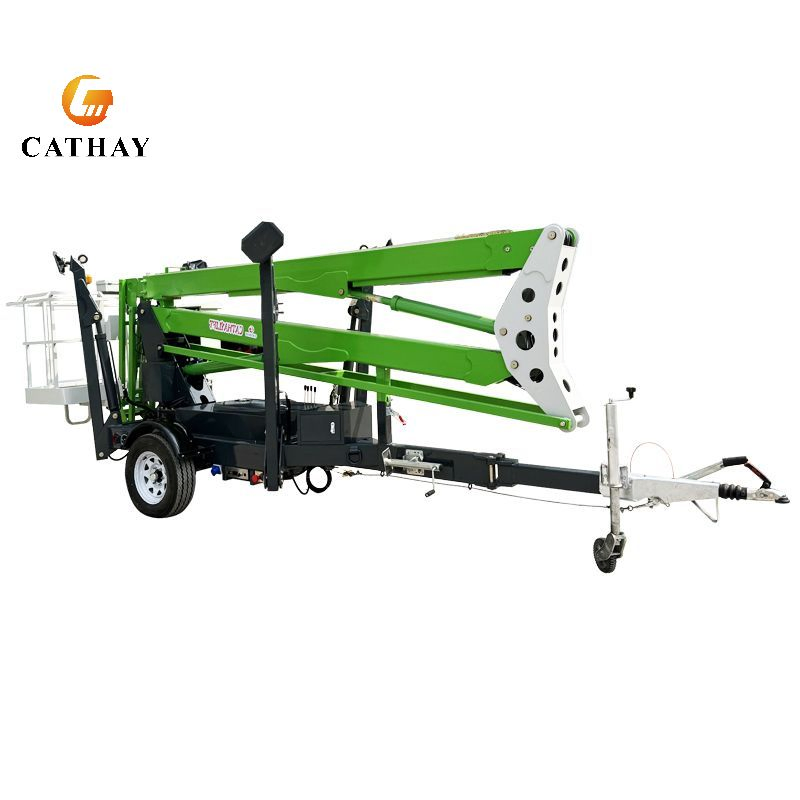

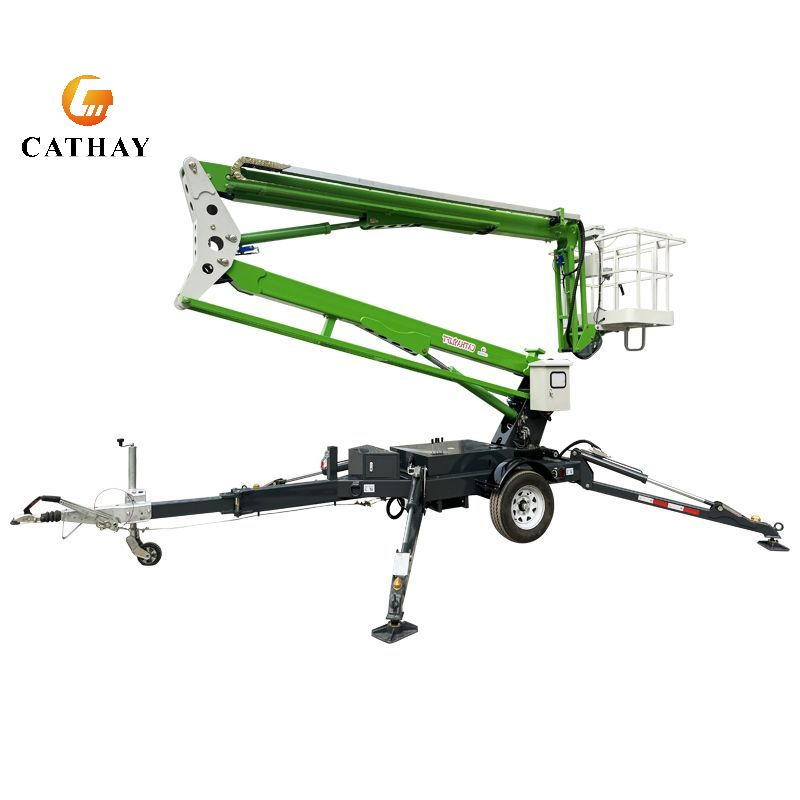

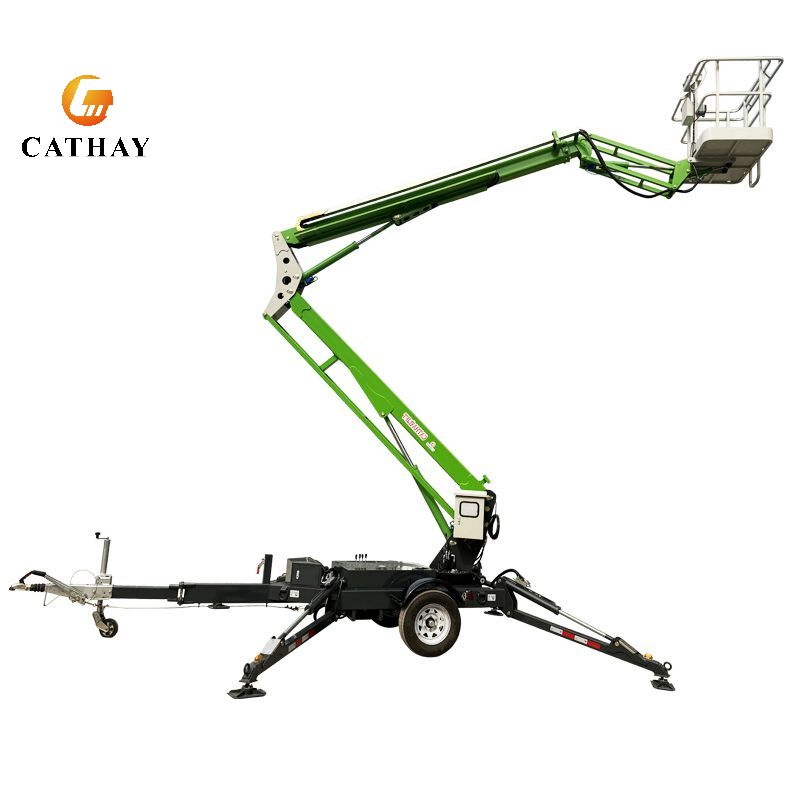

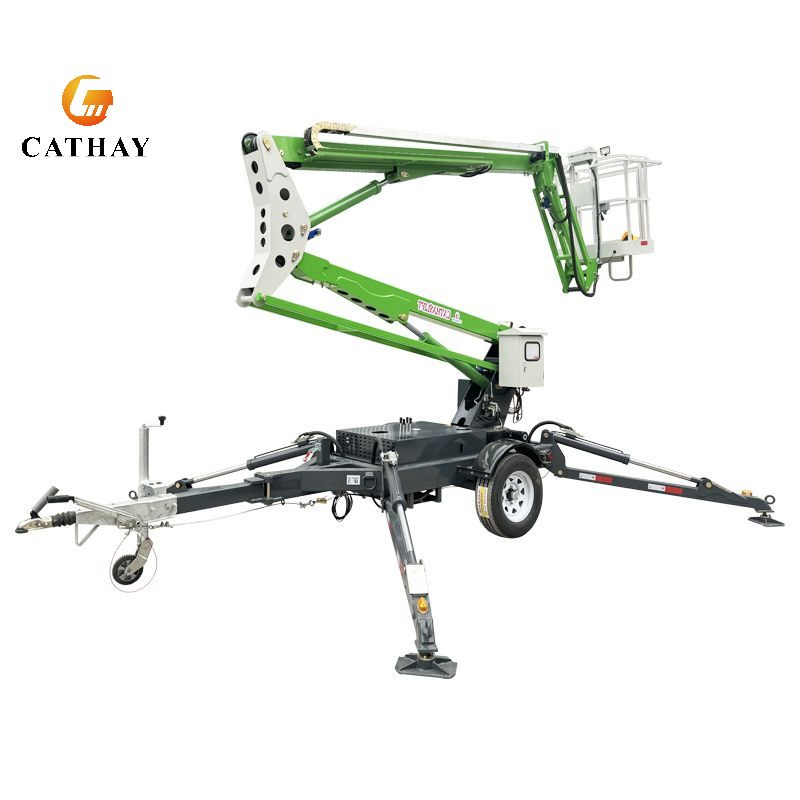

Electric Aerial Working Man Spider Cherry Picker Trailer Mounted Towable Articulated Boom Lift

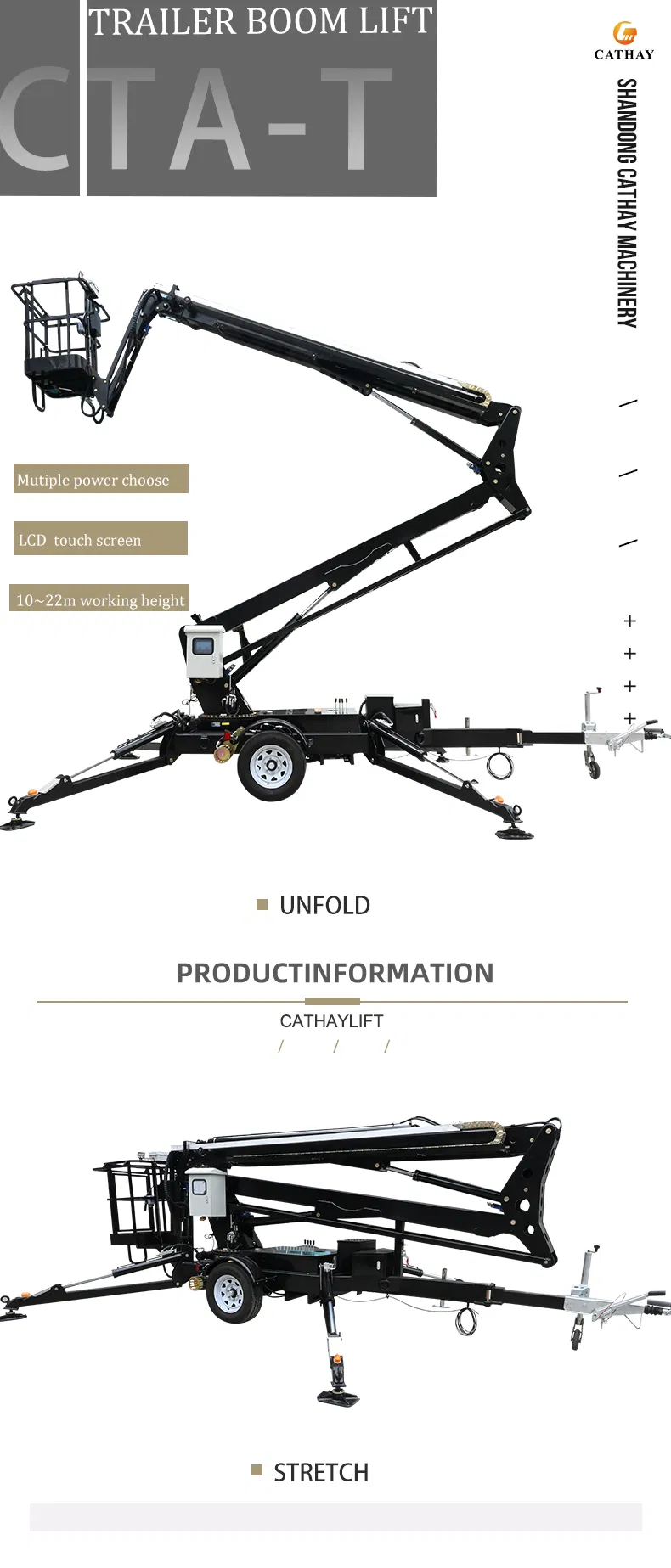

The trailer boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m, and the models with higher lift heights are all telescopic versions. The horizontal working radius of 5.5m~11m, and its 360-degree rotating table, make it have outstanding performance in various aerial work projects.
| Model Type |
CTA-12A |
CTA-14A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
CTA-22T |
CTA-24T |
| Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
| Lifting Height |
10M |
12M |
12M |
14M |
16M |
18M |
20M |
22M |
| Working Height |
12M |
14M |
14M |
16M |
18M |
20M |
22M |
24M |
| Load Capacity |
227Kg |
| Working Radius |
5.5M |
6.5M |
7.8M |
8.5M |
10.5M |
11M |
11M |
11M |
| Net Weight |
1750KG |
1950KG |
1850KG |
2150KG |
2350KG |
3000KG |
3500KG |
5000KG |
Please note: According to individual customer needs, we can tailor our products to suit specific requirements, such as large slope work, a one-key leg leveling button, an insulated basket, and a remote control.
U

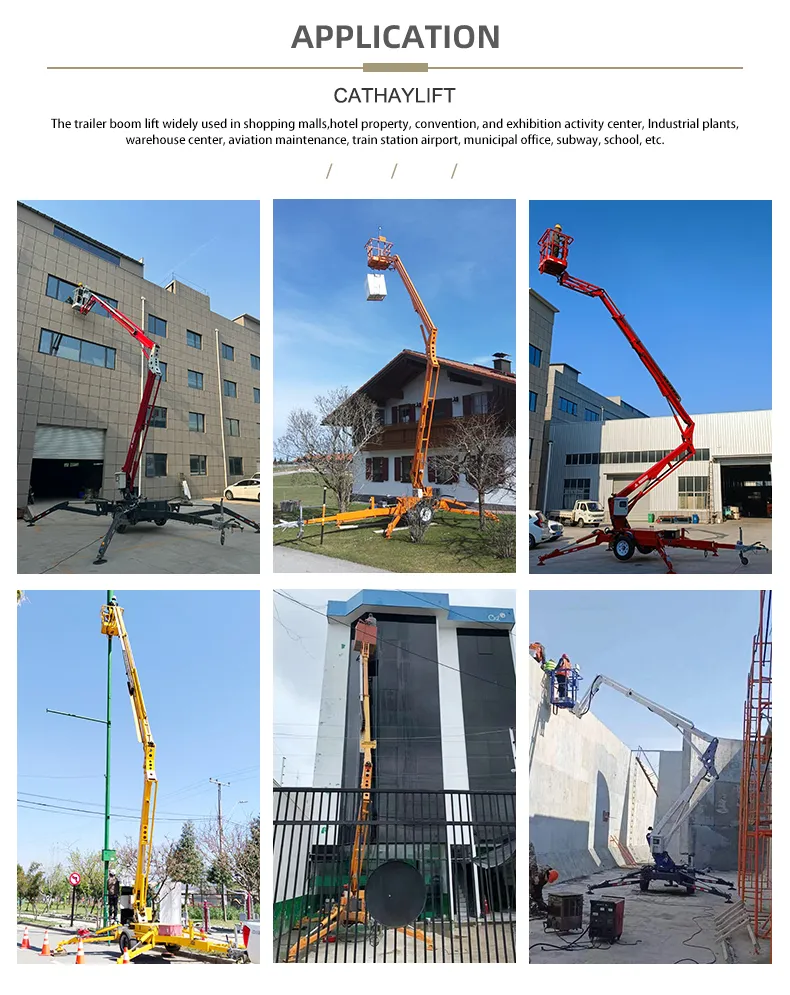

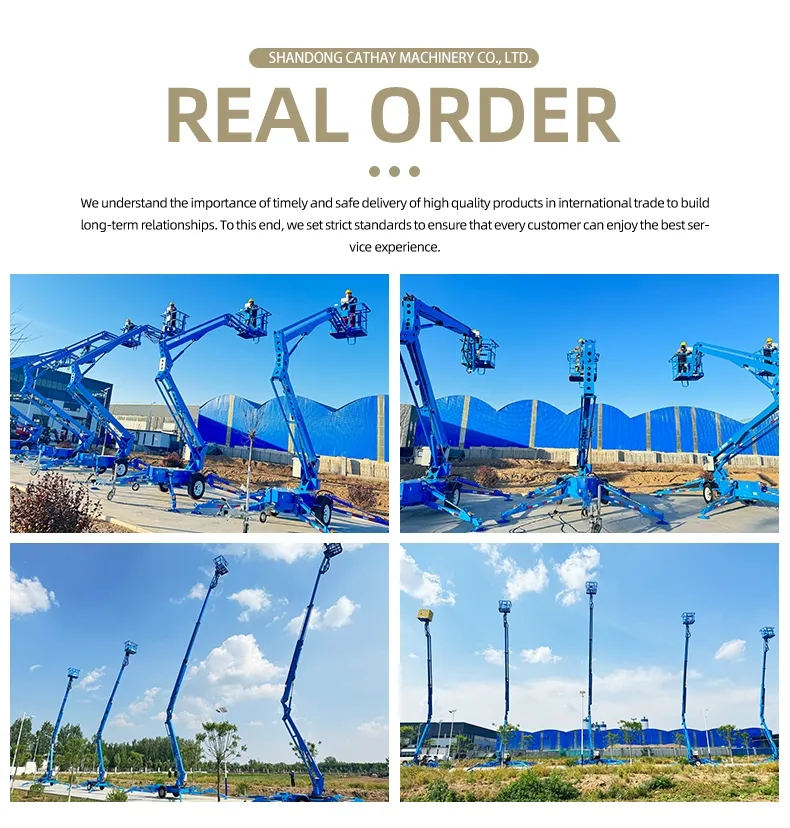

Application & Real Order
Boom lifts are versatile machines used across various industries to enhance safety and efficiency when working at height. In construction, they support tasks like installing steel structures and accessing high-rise buildings. For maintenance, they provide safe access to roofs, HVAC systems, and lighting. In agriculture, they assist with harvesting and pruning, while utility workers rely on them for electrical line maintenance and pole inspections.
?
Frequently Asked Questions
What is the maximum working height available for these lifts?
Our trailer-mounted boom lifts offer a range of working heights from 12 meters up to 24 meters, depending on the specific model selected.
What are the power options for the boom lift?
We provide multiple power configurations including AC electrical power, DC battery power, Diesel engine, Gasoline engine (Honda), and Dual Power options (e.g., AC + Diesel).
Can the lift be easily moved within a tight workspace?
Yes, models can be equipped with an optional friction wheel auxiliary moving device and remote control, allowing for easy positioning without external towing force.

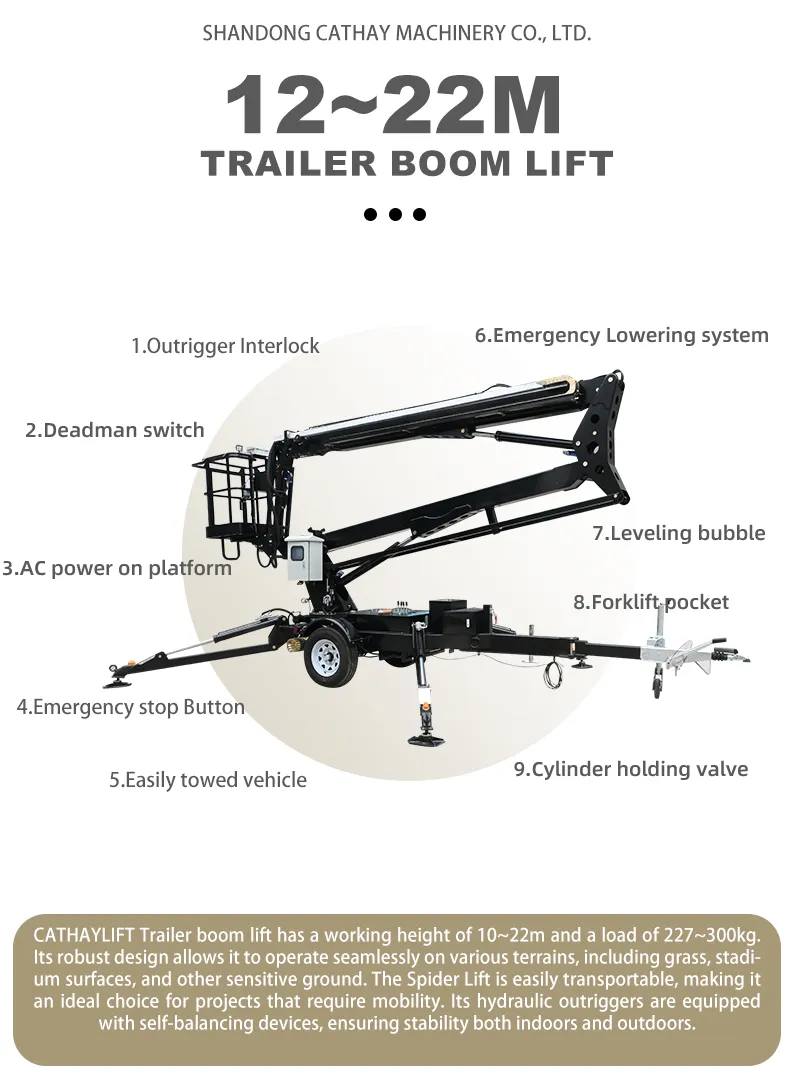

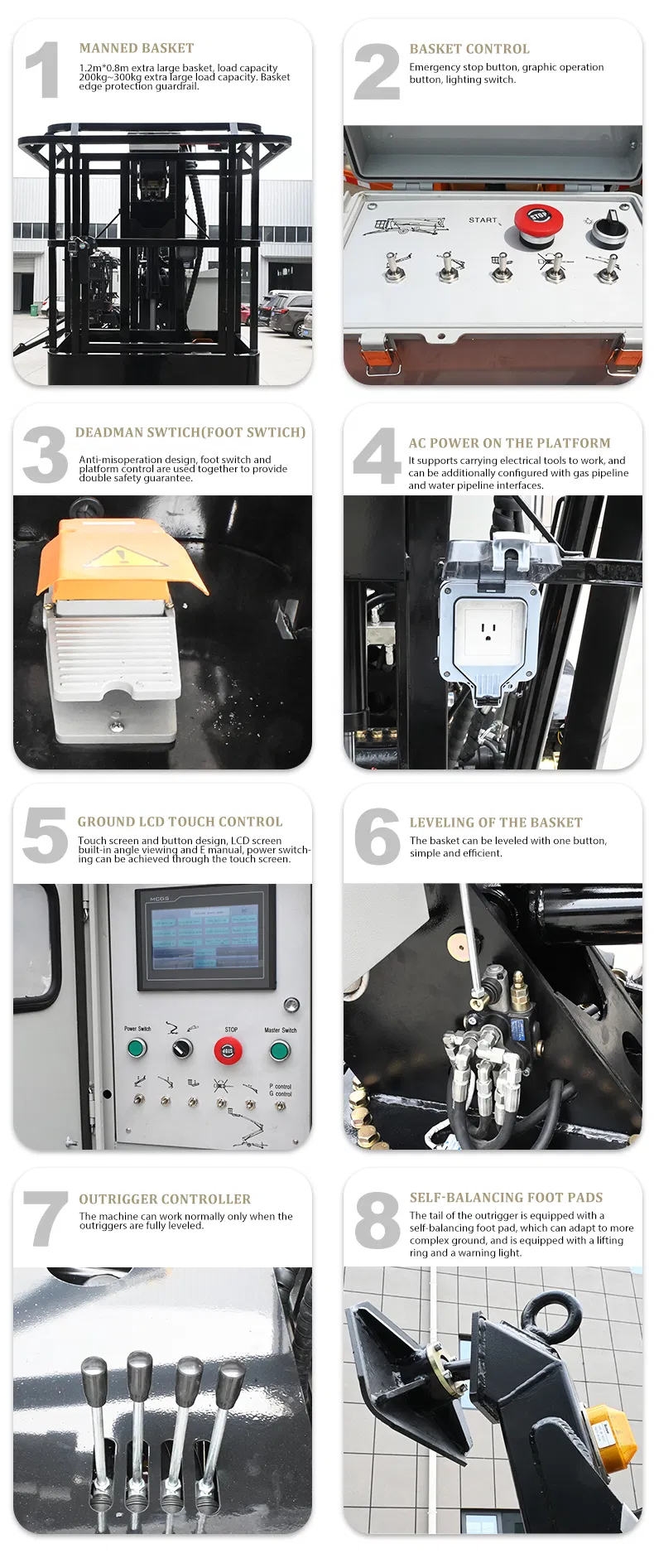

What safety features are included?

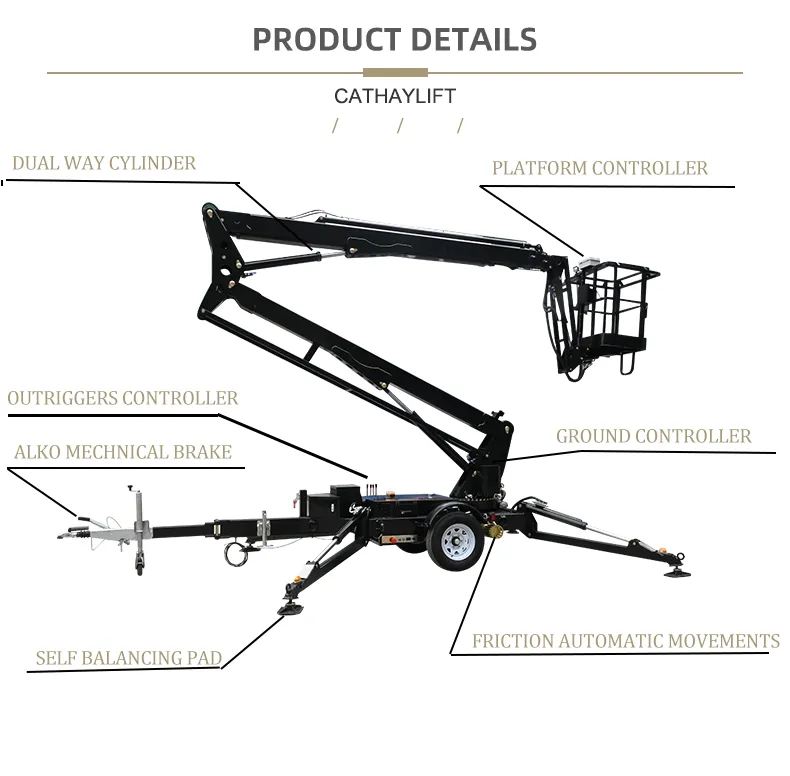

Safety features include hydraulic outriggers with automatic leveling, a Deadman switch on the platform control, waterproof control panels, and electromagnetic brakes.
Is the platform rotation continuous?
Yes, the lift features a 360-degree continuous turntable rotation, providing excellent accessibility and flexibility for various aerial tasks.
What is the load capacity of the basket?
The standard load capacity for all models in this series is 227kg, which is sufficient for two workers and their necessary tools.
