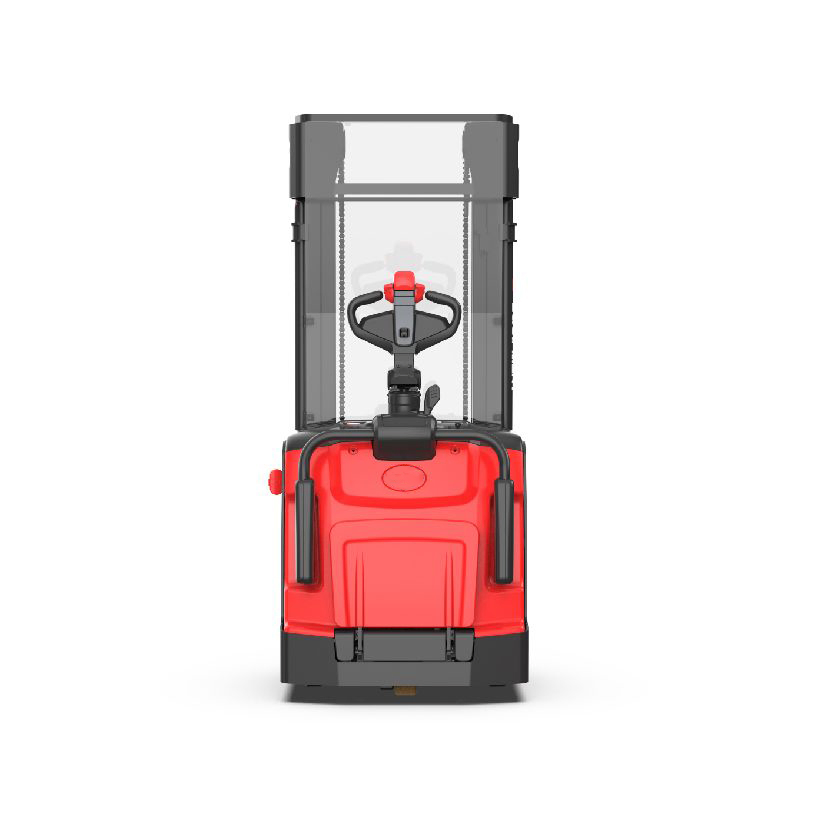

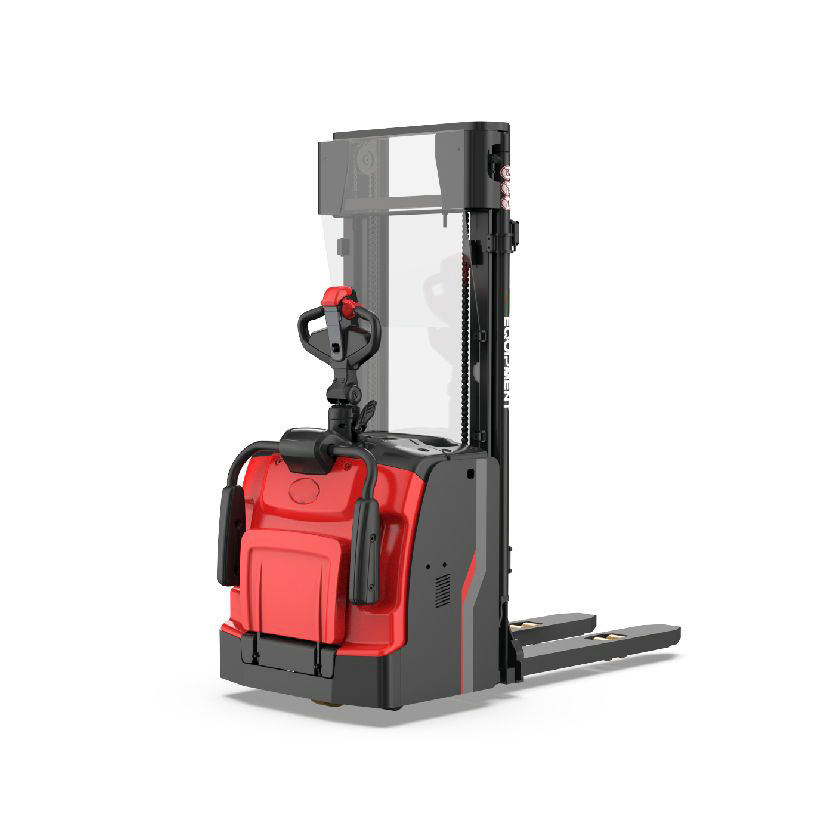

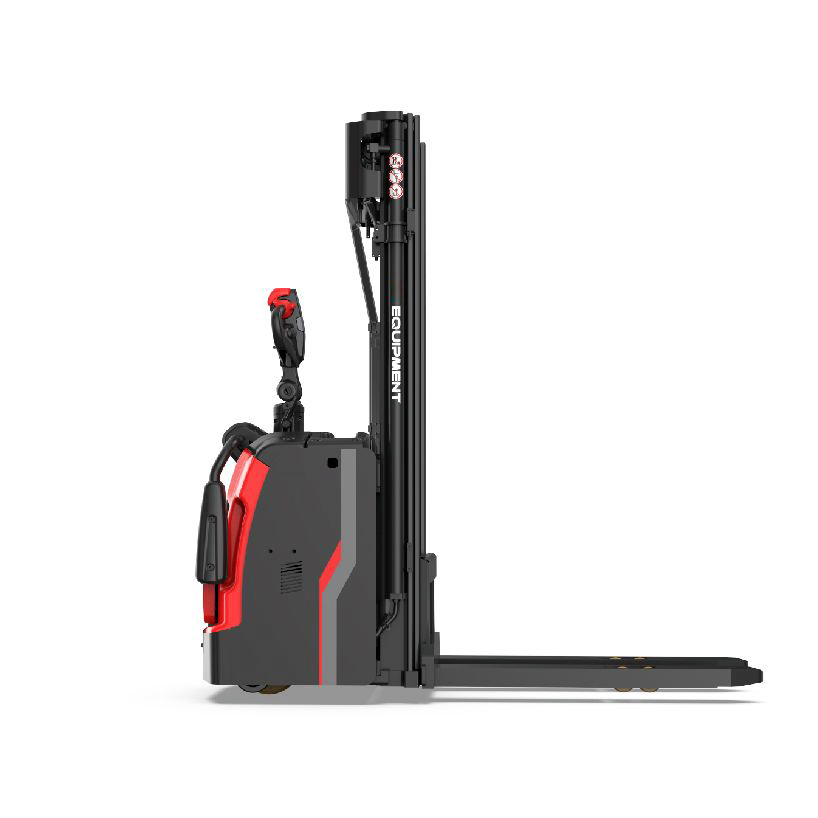

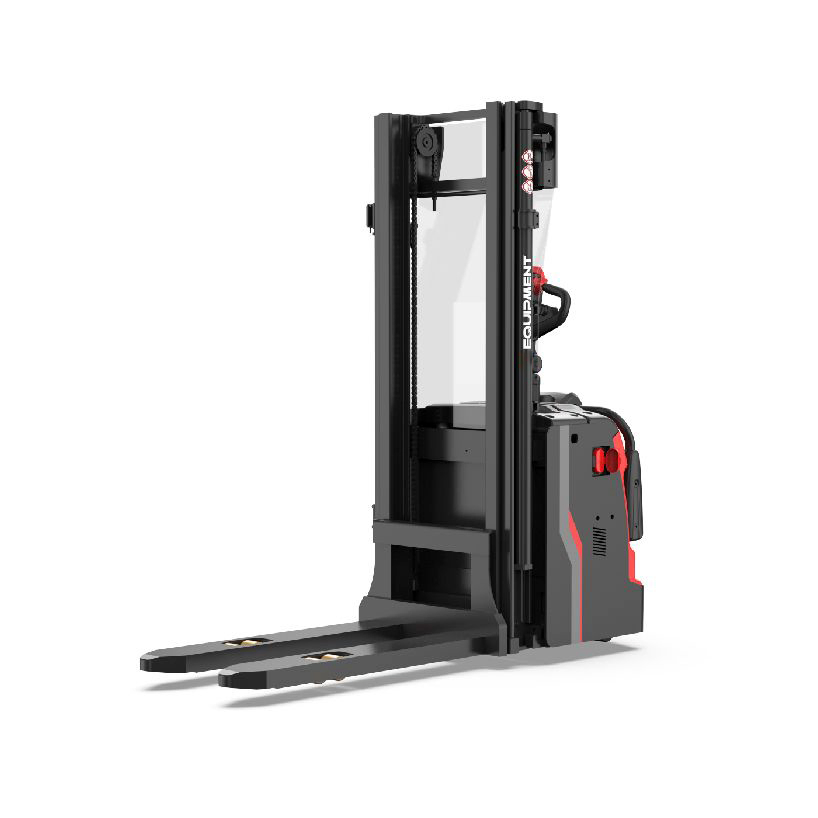

Hot Sale 1.6 Ton Manual Electric Forklift Truck Semi Automatic Fork Lift Reach Stacker with Battery of Hand Lifting Equipment Manufacturer

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model: RSL161/RSL161i
Type: Stacker
Power: AC Motor
Fuel: Electric
Load Capacity: 1.6 - 2.0 Ton
Lift Height: 2915mm
Battery: 24V 205Ah Lithium
Turning Radius: 1560mm

Product Description

Electric Forklift Stacker Banner

The RSL Series is a robust, lithium-powered stacker designed for heavy-duty applications. Featuring a foldable platform, it is available in two versions: the standard model and the one with initial lift, to meet a wide range of operational needs.

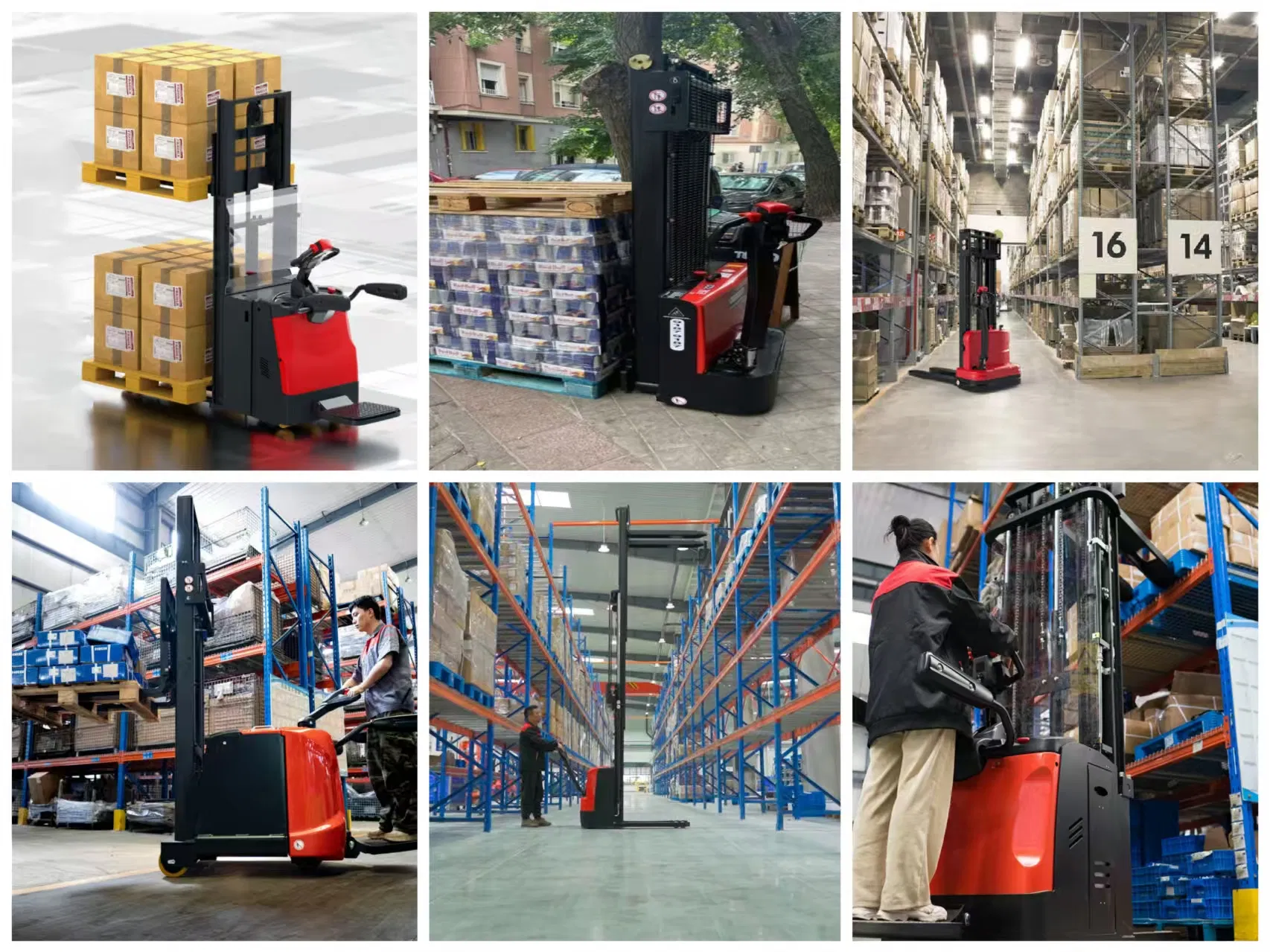

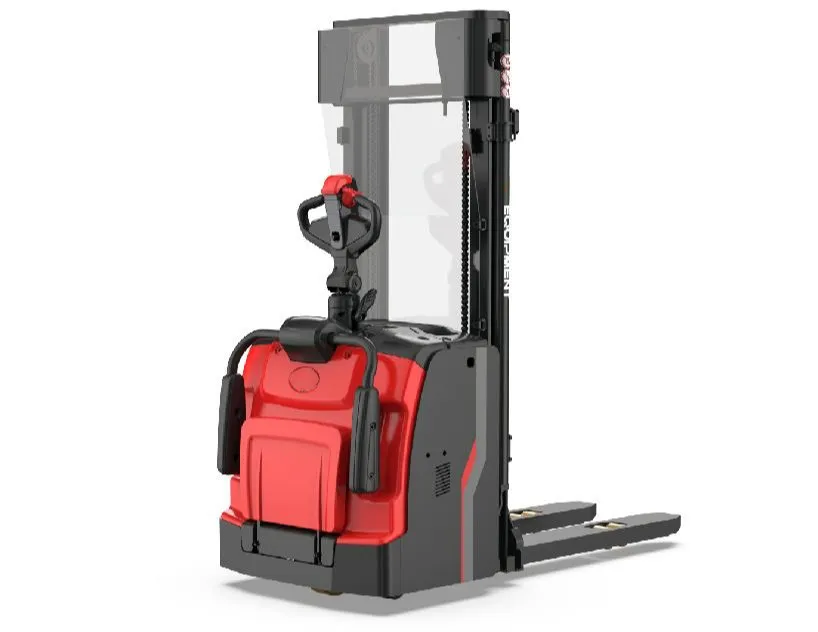

Stacker Operation
  • High Performance: Improved travel speed and lifting speeds for maximum productivity.
  • Lithium Technology: Opportunity charging, rapid charging, and zero maintenance.
  • Effortless Operation: Foldable platform and proportional electronic power steering.
  • Great Maneuverability: Compact design for narrow aisles and confined spaces.
  • Initial Lifting: Smooth travel on uneven surfaces and double decking capability.
Detail 1

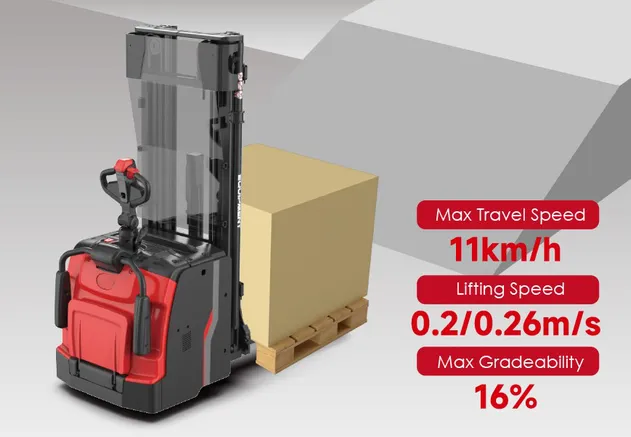

Detail 2

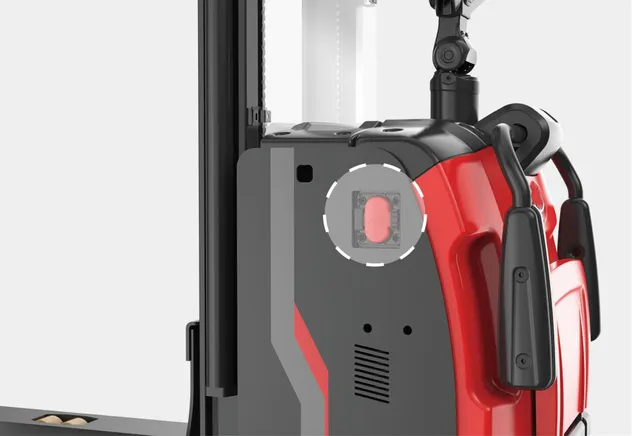

Detail 3

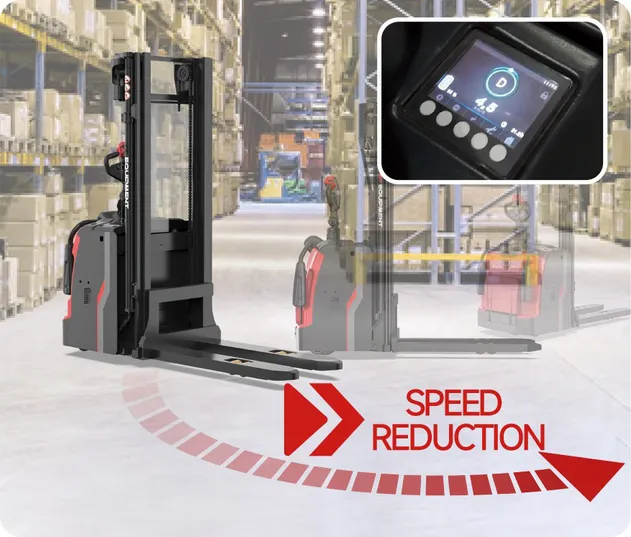

The proportional electronic power steering effectively reduces operator fatigue while ensuring precise and smooth control. For added safety, the truck automatically slows down at turns, enhancing stability. The new color display provides a quick and clear overview of the truck and battery status at a glance.

Technical Specification

Parameter Unit RSL161 RSL161i
Drive-ElectricElectric
Load capacityQ (kg)16001600
Load center distancec (mm)600600
Service weightkg12001340
Lift heighth3 (mm)29152915
Overall lengthl1 (mm)19612111
Overall widthb1/b2 (mm)850850
Turning radiusWa (mm)15601900
Travel speed (laden)km/h99
Battery voltageV/Ah24/20524/205
Technical Drawings
Dimensions

More Products

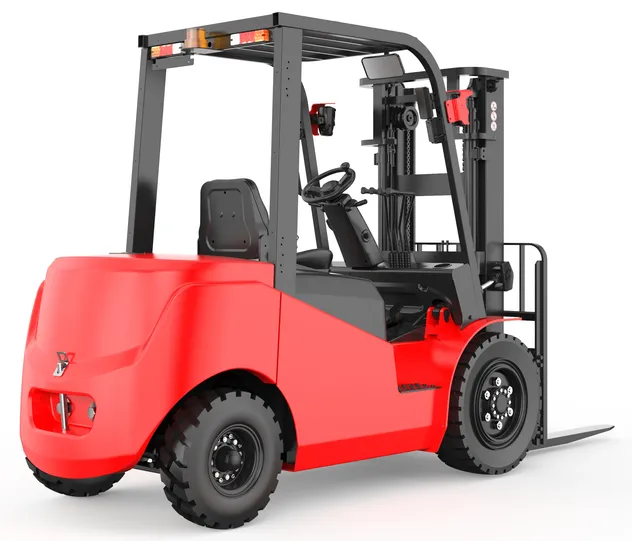

Forklift

Electric Forklift

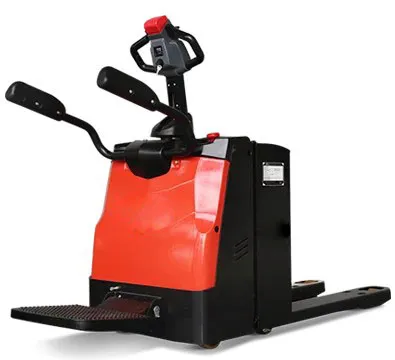

Pallet Truck

Pallet Truck

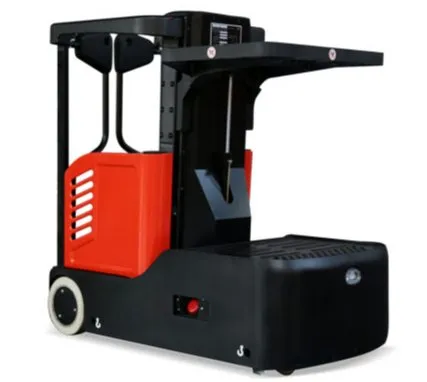

Order Picker

Order Picker

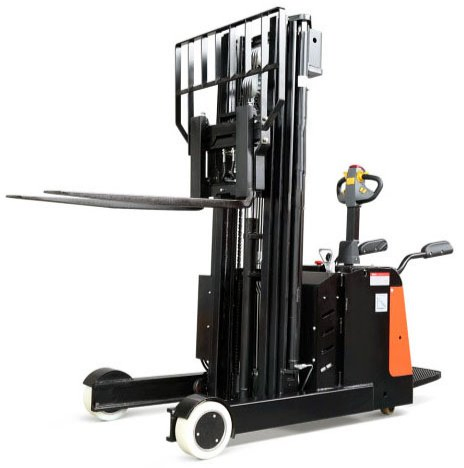

Reach Truck

Reach Truck

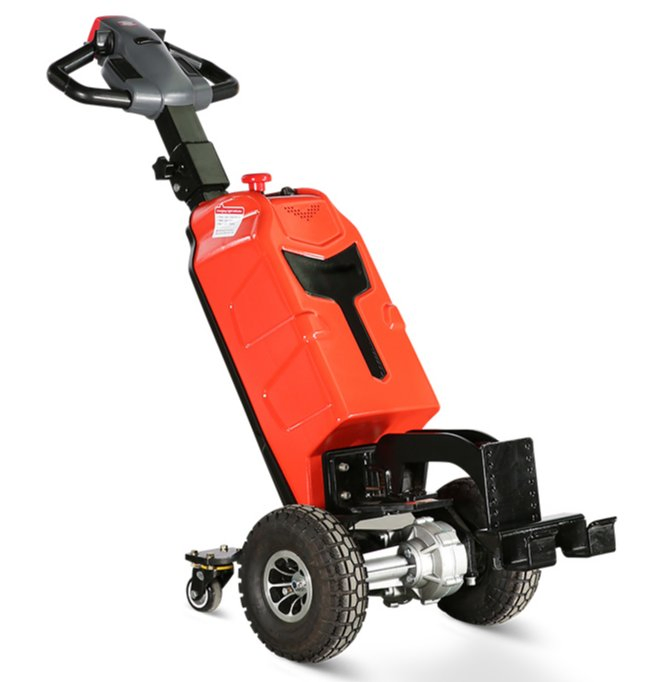

Tow Tractor

Tow Tractor

AGV

Automatic Guided Vehicle

Manufacturing Excellence

Established as a leading machinery manufacturer, we specialize in the R&D, production, and service of high-performance material handling equipment. Our products range from electric forklifts to industrial AGVs and floor cleaning vehicles, exported to over 100 countries including the USA, Mexico, Canada, and Russia.

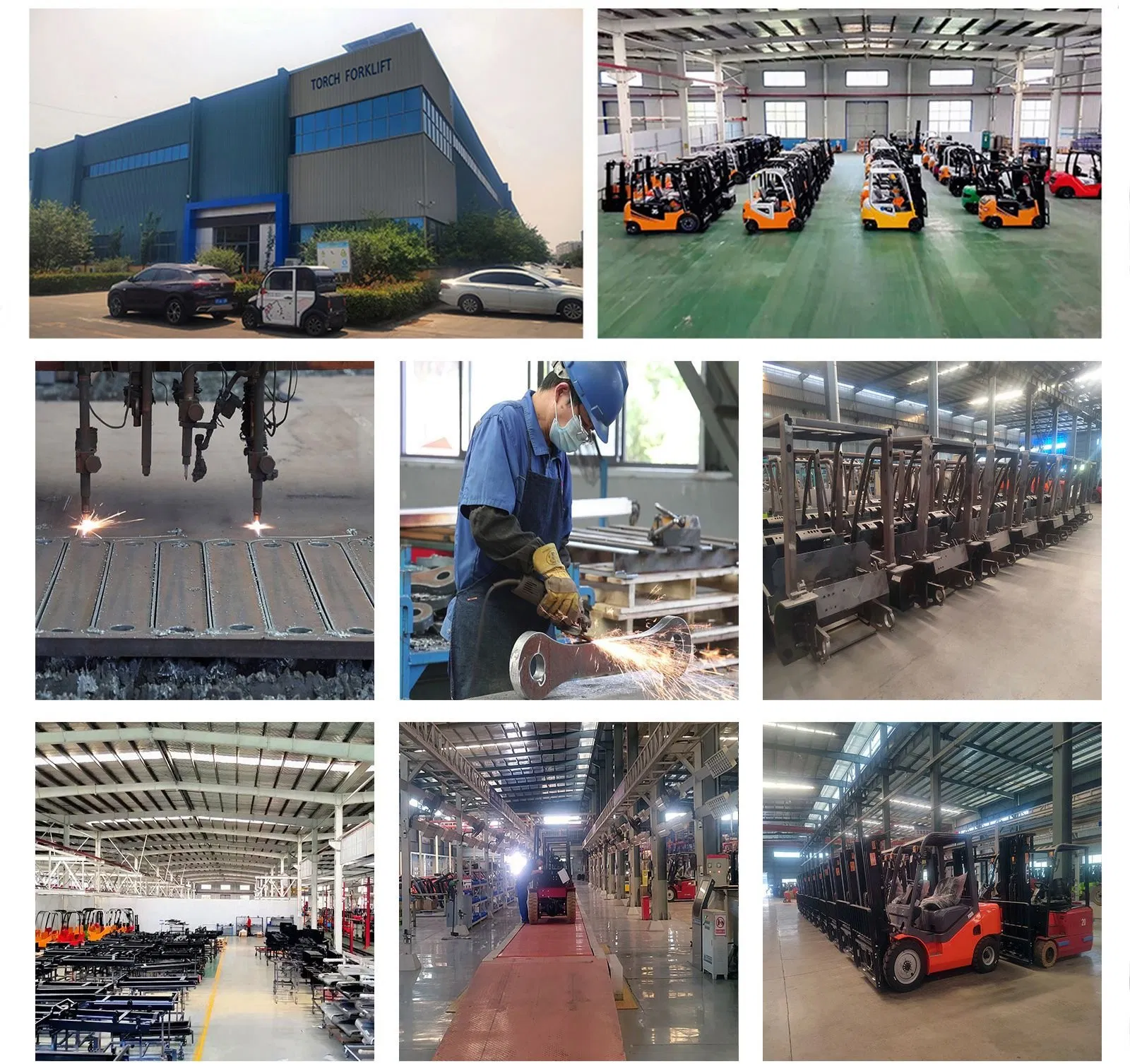

Factory Overview

Quality Control & Certifications

Certifications
Customer Support

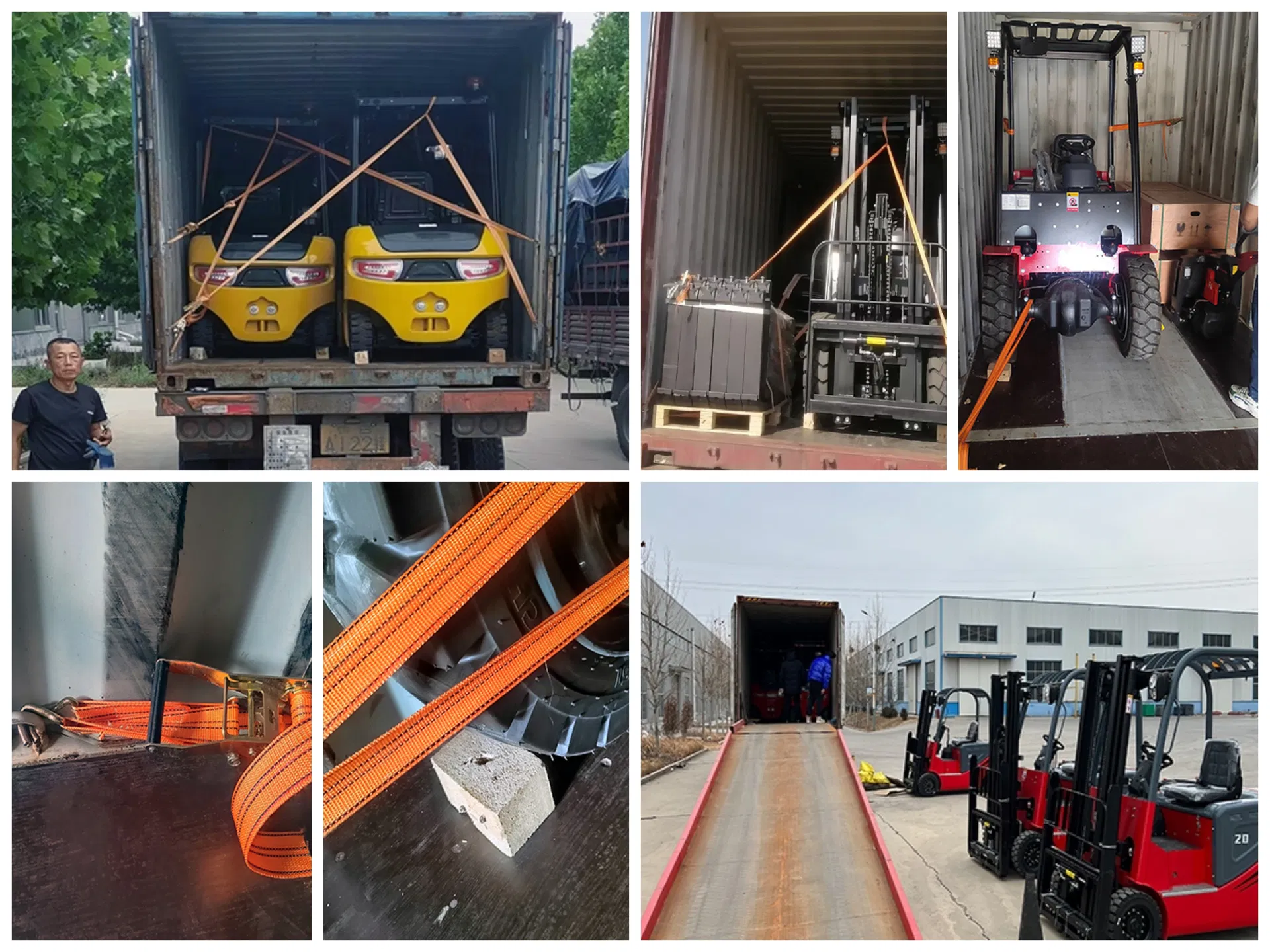

Packing

Frequently Asked Questions

Q: Why choose our material handling equipment?
A: We are a professional manufacturer with years of OEM experience. Most product components are produced in-house to ensure quality control and cost-efficiency.
Q: How do you ensure product quality?
A: We implement a five-step inspection process: material inspection, 100% in-process inspection, 100% assembly inspection, pre-shipment checks, and optional third-party buyer inspections.
Q: What is the typical lead time for an order?
A: Normally, the lead time is 30 days, ensuring thorough testing and quality assurance before dispatch.
Q: What warranty and technical support do you provide?
A: We offer a 12-month guarantee. If issues arise from the manufacturing side, we provide free parts. For customer-related issues, we offer technical support and spare parts at reasonable prices.
Q: What are your accepted payment terms?
A: We accept standard international payment terms including T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Q: How can I reach technical support?
A: Our team is available during workdays (8:00 - 17:00) with a guaranteed feedback response within 24 hours.
