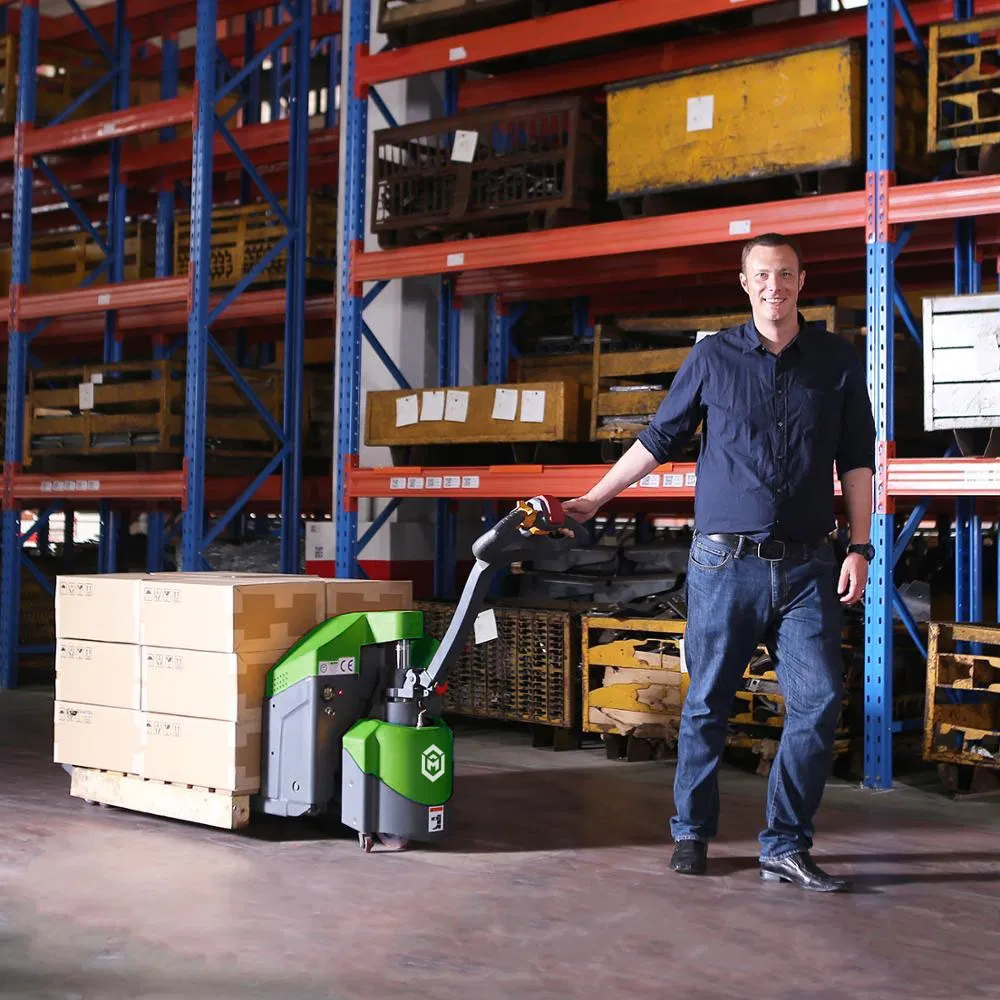

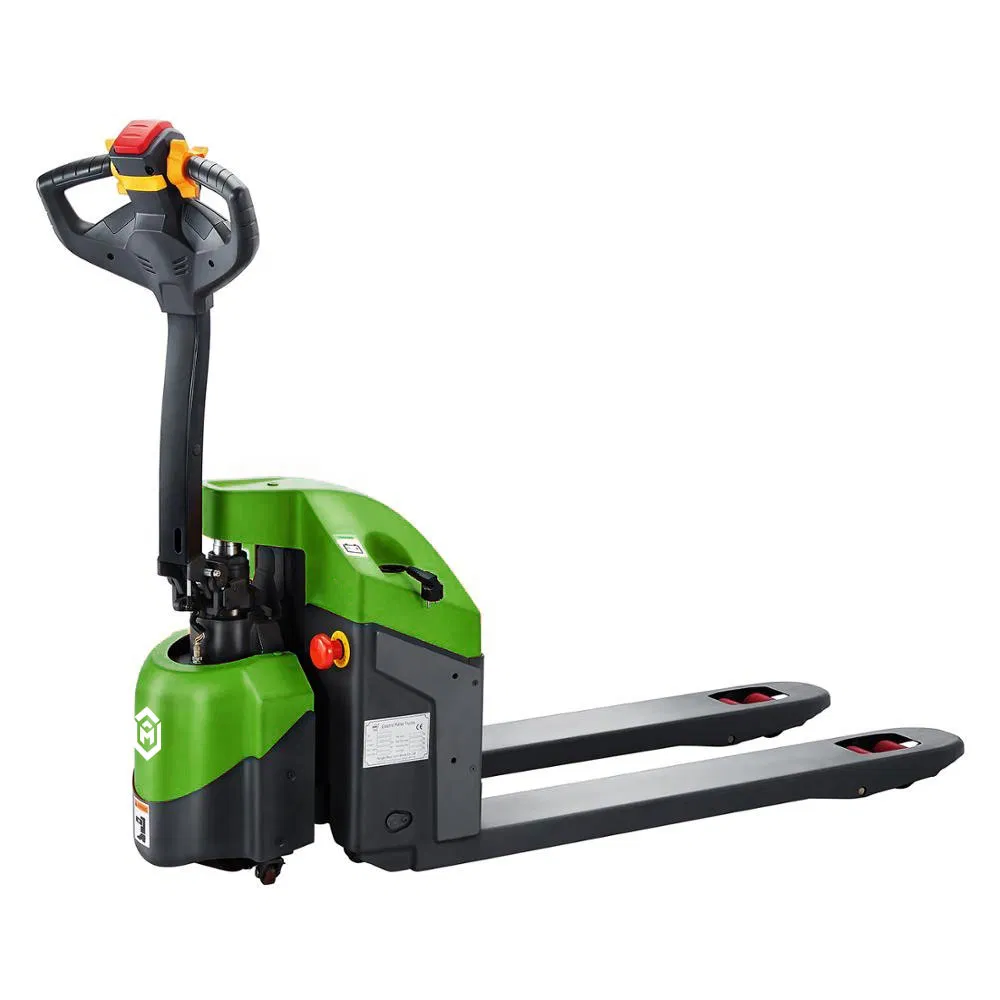

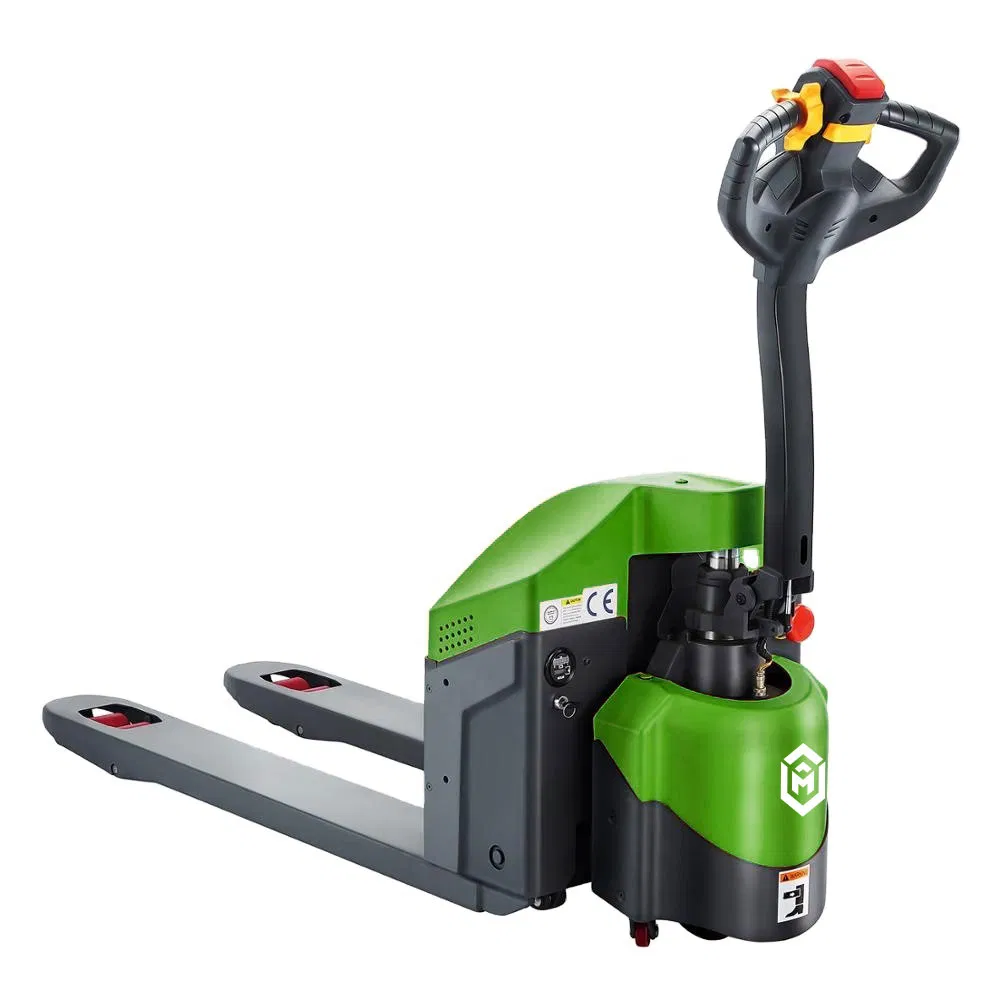

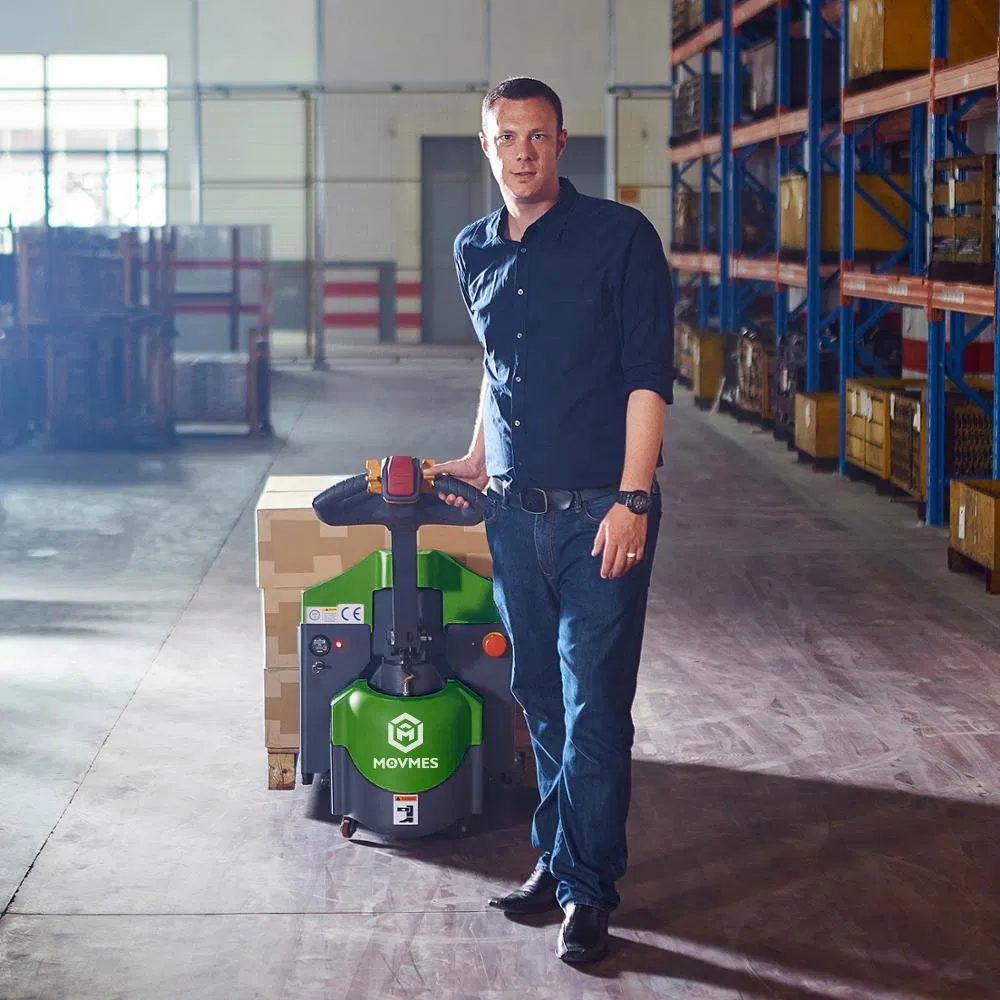

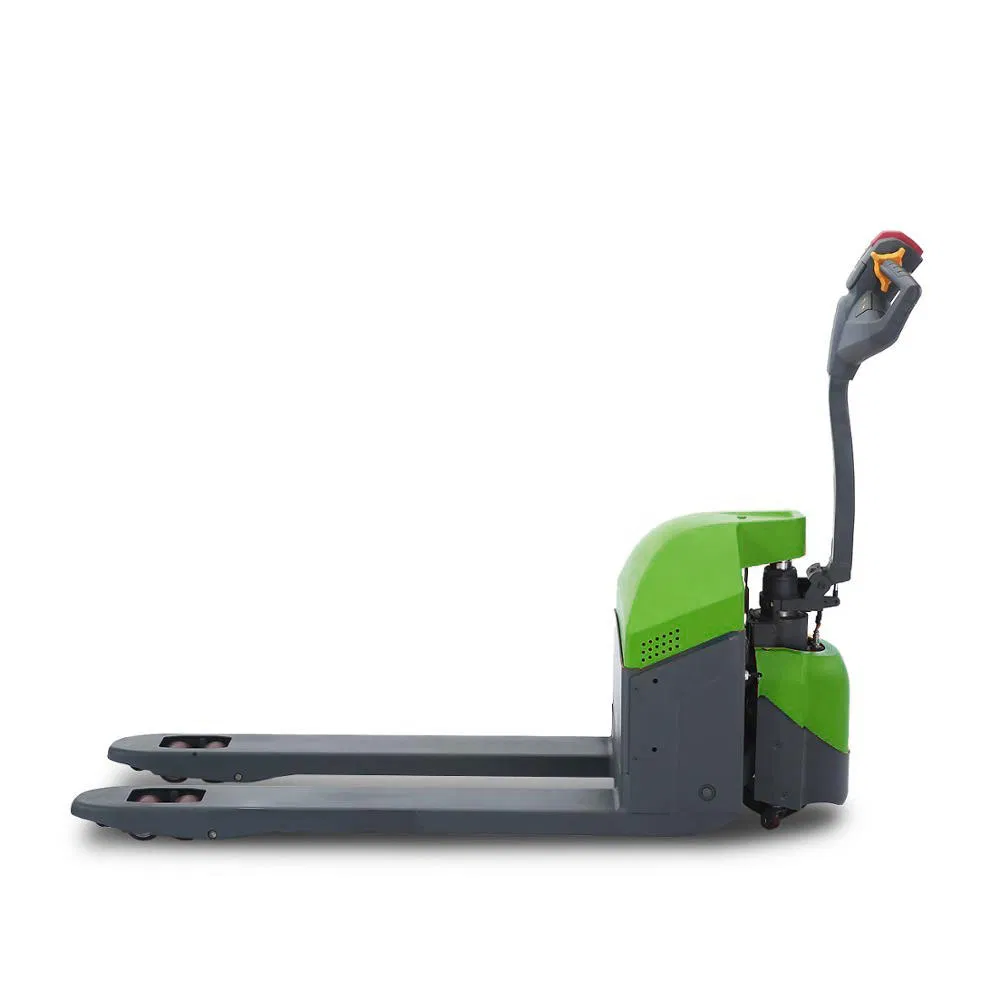

1.5 Ton 1500kg Self Propelled Powered Pallet Lift Electric Pallet Jack

📊

Basic Specifications

Model NO.CBD15W-E

TypePowered Pallet Truck

PowerDC Motor

Load Capacity1500kg (1.5T)

FuelElectric

Load Center600 mm

Lift Height190 mm

Battery Voltage24V/65Ah

Turning Radius1454/1424mm

Service Weight205 Kg

📦

Product Description

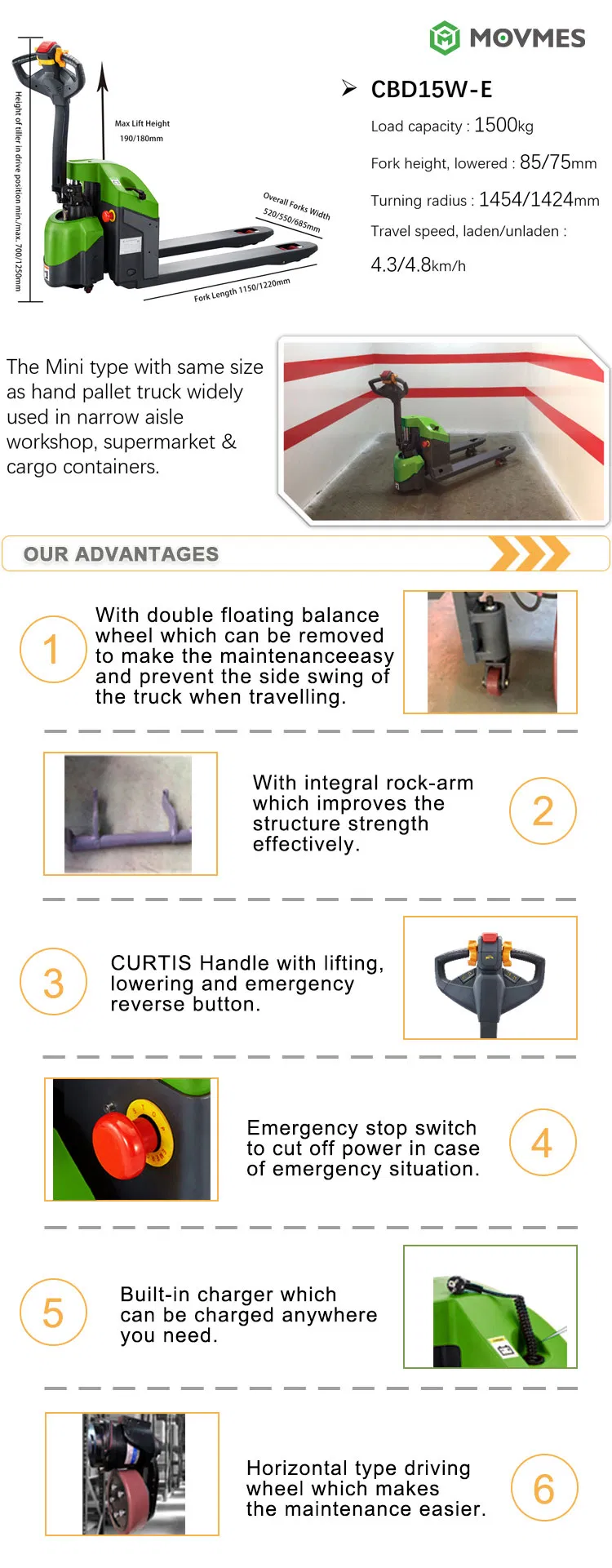

1.5 Ton 1500kg Self-Propelled Powered Electric Pallet Jack

Main Configuration:

✅ High-precision Controller
✅ 24V DC Brushless Motor
✅ Ergonomic Tiller System
✅ 24V 65AH GEL Maintenance-Free Battery
✅ 24V/6A Integrated Charger Included

📏

Detailed Size Information

Description	Unit (Imperial)	Unit (Metric)
Capacity	3300 lbs	1500 kg
Load centre distance	23.6 inch	600 mm
Fork height, lowered	3.3/3.0 inch	85/75 mm
Max. lift height	7.48/7.08 inch	190/180 mm
Overall length	65.1/67.8 inch	1654/1724 mm
Overall width	27.0/22.1 inch	685/562 mm
Fork dimensions (s/e/l)	2.0/6.3/61 inch	53/160/1550 mm
Turning radius	57.2/56.1 inch	1454/1424 mm

🔄

Related Production

🛡️

Quality Standards & Certifications

Our equipment meets rigorous international standards, ensuring safety and efficiency in your warehouse operations:

ISO9001:2008 Quality Management System
ISO14001:2004 Environmental Management System
OHSAS18001:2007 Occupational Health and Safety
TUV/GS/CE certified since 1991
Compliance with ISO3691-1, EN1175-1, and EN16307-1

🏭

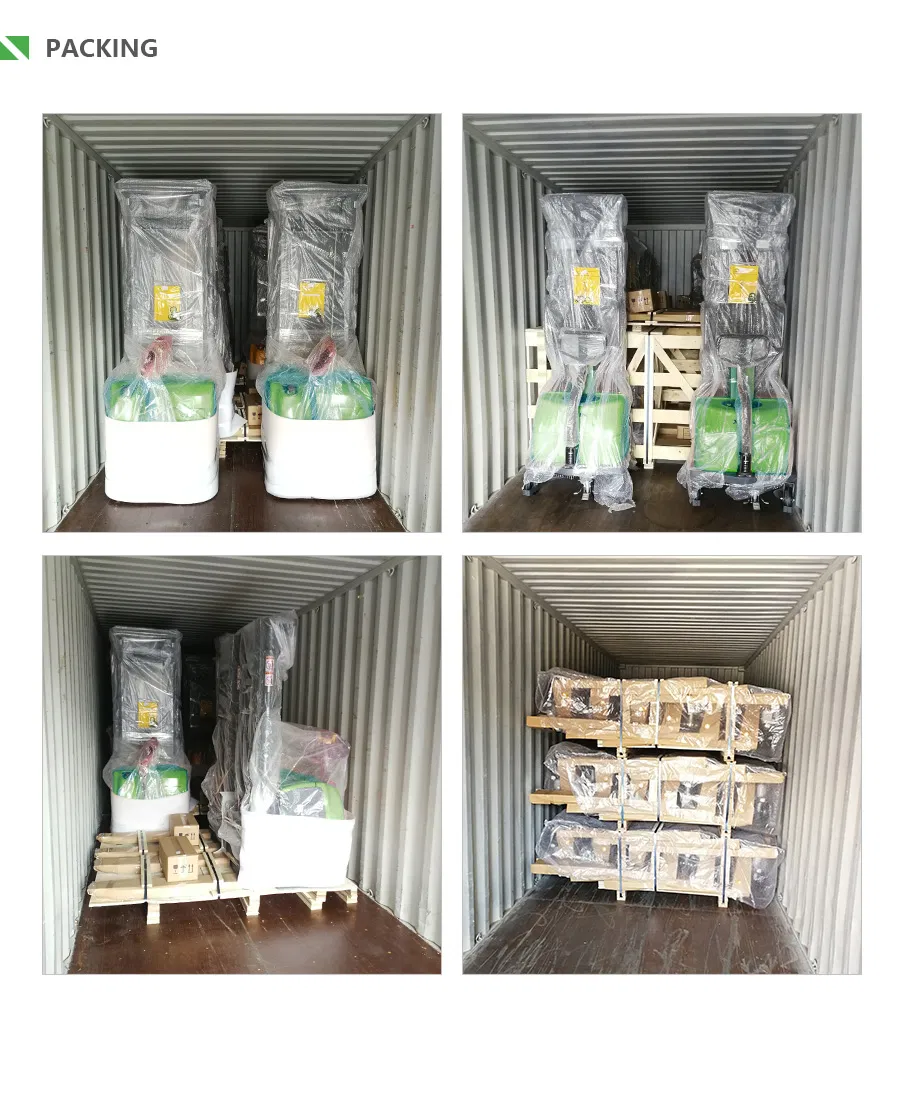

Manufacturing & Delivery

Every unit undergoes strict quality inspections. We provide comprehensive photos and videos before shipping to ensure customer satisfaction.

Factory Capabilities:

⭐ 36 Years Experience
⭐ 150,000m² Factory Area
⭐ 1,200+ Professional Employees
⭐ 500+ Types of Equipment

❓

Frequently Asked Questions

What is the continuous working time for the electric pallet truck?

The continuous working time is approximately 3 to 6 hours, depending on the battery volume and load conditions.

How long does it take to fully charge the battery?

It typically takes between 3 to 6 hours to reach a full charge using the included 24V charger.

Does this model come with a charger?

Yes, a 24V6A charger is included as part of the main configuration for the CBD15W-E model.

What kind of battery is used in the CBD15W-E?

It utilizes a high-quality 24V 65AH GEL battery, which is maintenance-free and reliable for daily operations.

Are customized OEM or ODM products available?

Yes, we have extensive experience since 1985 in developing and producing warehouse logistic equipment, including customized solutions for global brands.

What is the warranty period for this electric truck?

The product comes with a one-year warranty. During this period, we provide replacement wearing parts for free if damaged by non-human factors.
