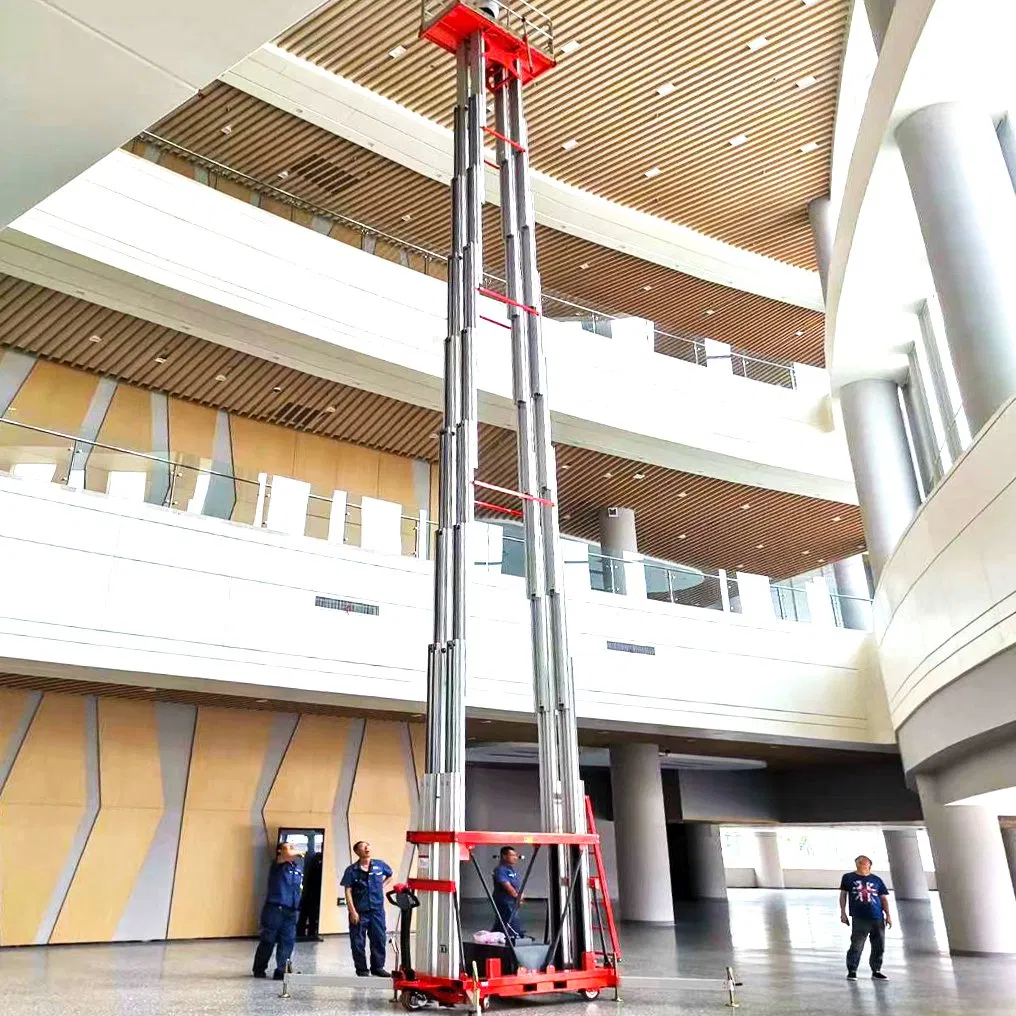

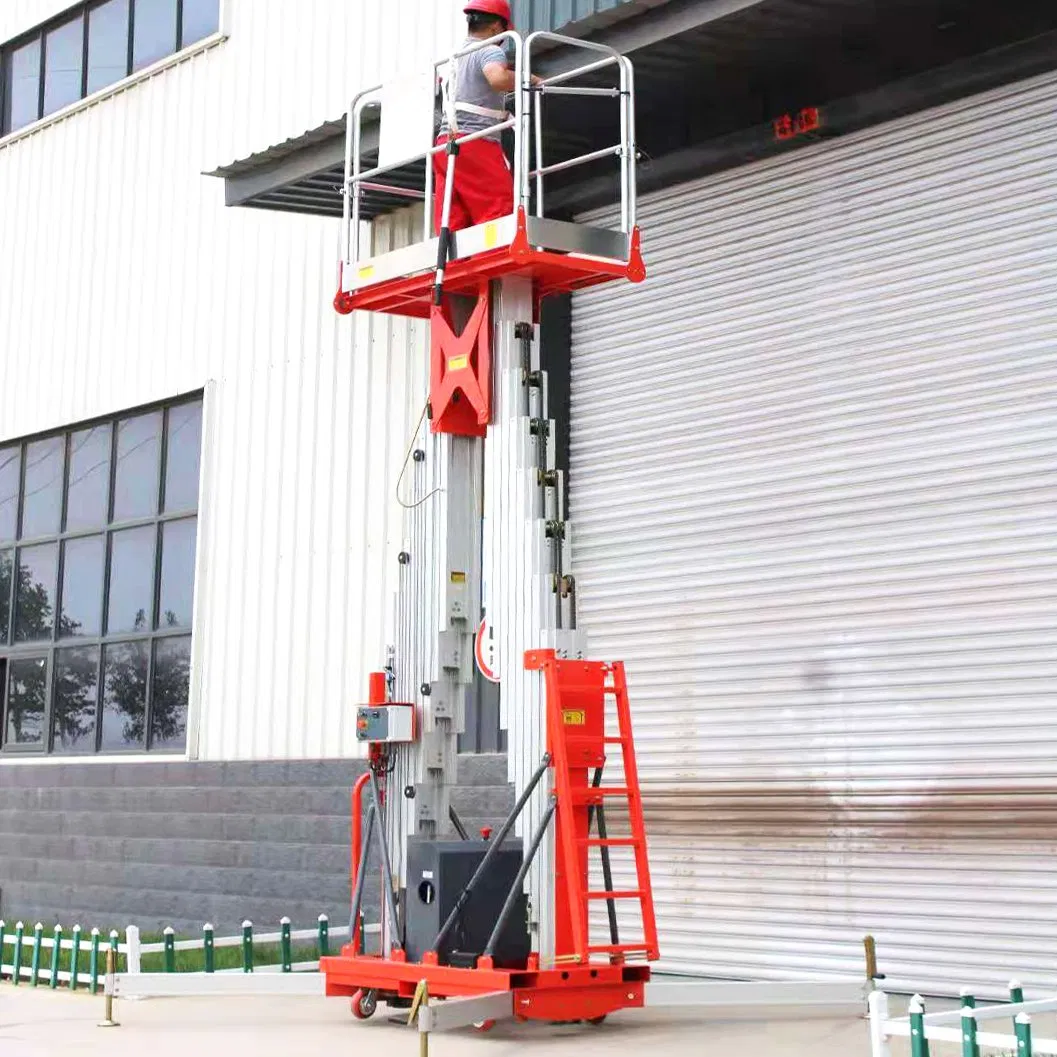

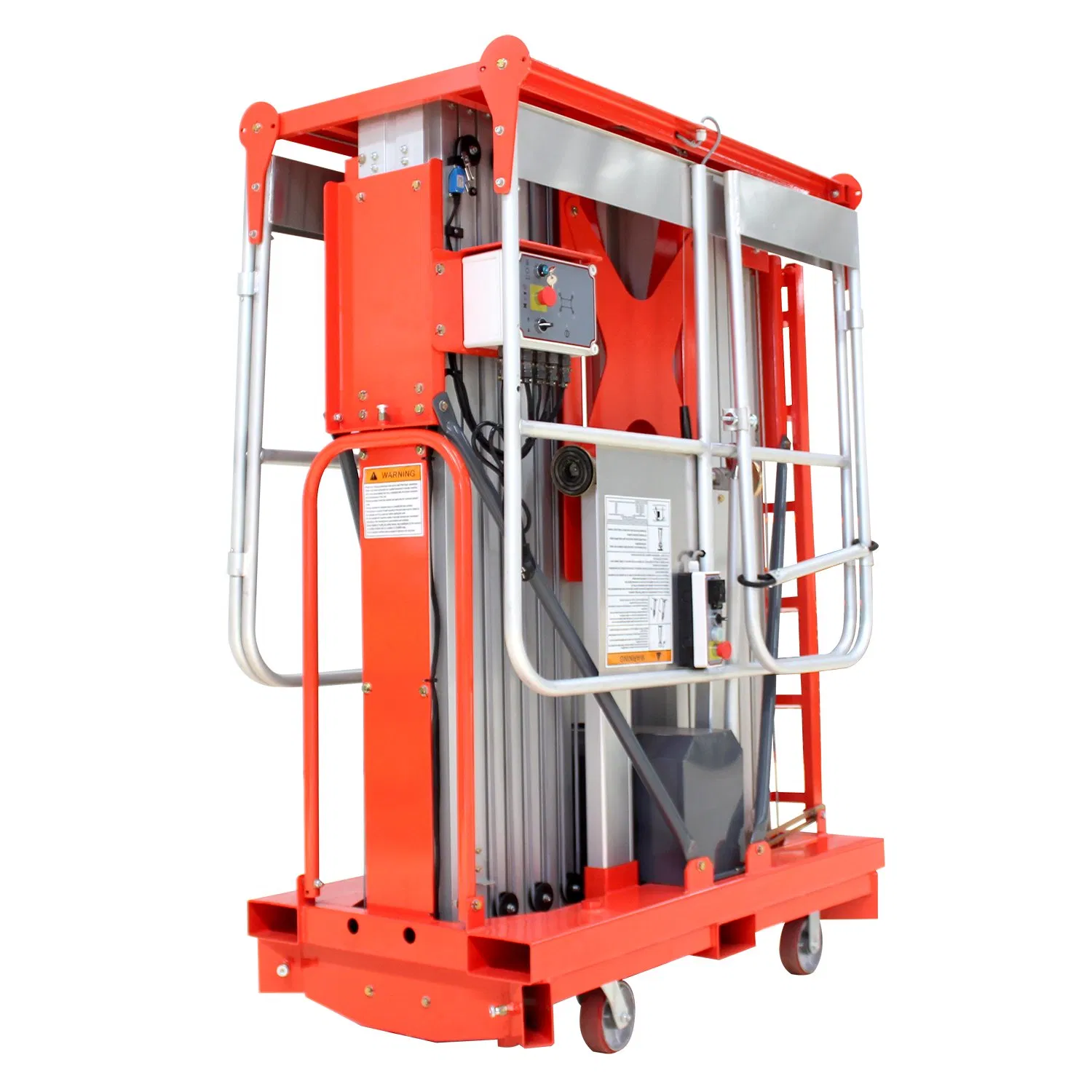

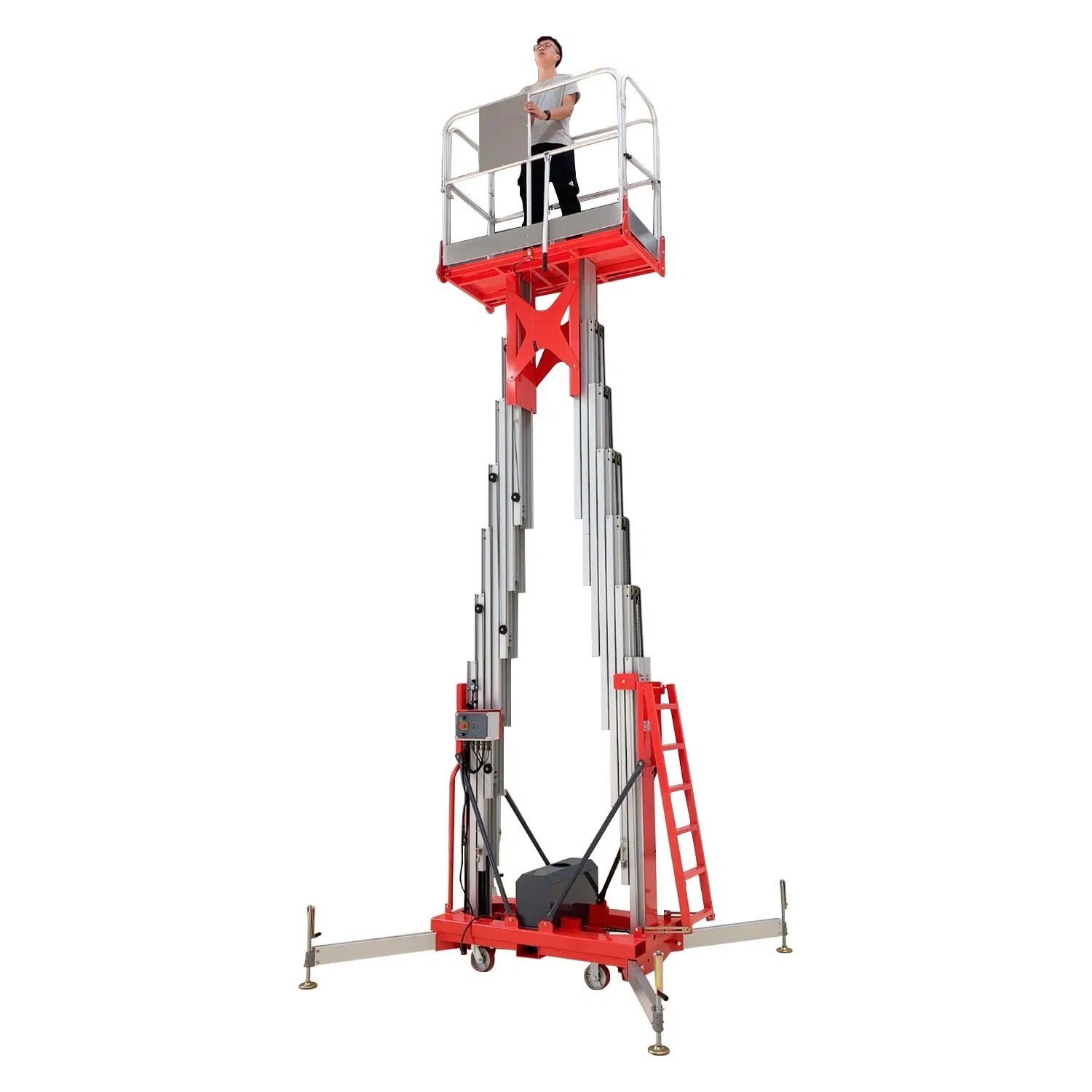

14m Double Mast Scissor Lift Aerial Work Platform

1 / 5

14m Double Mast Scissor Lift Aerial Work Platform

Customization:	Available
After-sales Service:	24 Hours Online After-Sales Service
Warranty:	12 Months Apart From Man-Made Faults

Send Inquiry

Product Description

📊

Basic Specifications

Model:GTWY2-12

Lift Mechanism:Lift Chain

Driven Type:AC

Max. Working Height:14m

Max. Platform Height:12m

Loading Capacity:200kg

Occupants:2

Platform Dimension:1.45m * 0.7m

Weight:750kg

Certification:CE, ISO 9001

🏗️

Double Mast Scissor Lift Overview

The double-mast vertical lift platform employs two synchronised masts to achieve greater height and enhanced stability during lifting operations. Constructed from high-strength aerospace aluminium alloy, its integrated sliders and monolithic connections deliver superior stability and reliability compared to single-mast systems.

💡

Applications & Key Features

Wide Application Range:

Industrial production and equipment maintenance.
Construction, renovation, and aerial work.
Commercial premises cleaning and layout.
Transport hubs and entertainment venues maintenance.

Technical Advantages:

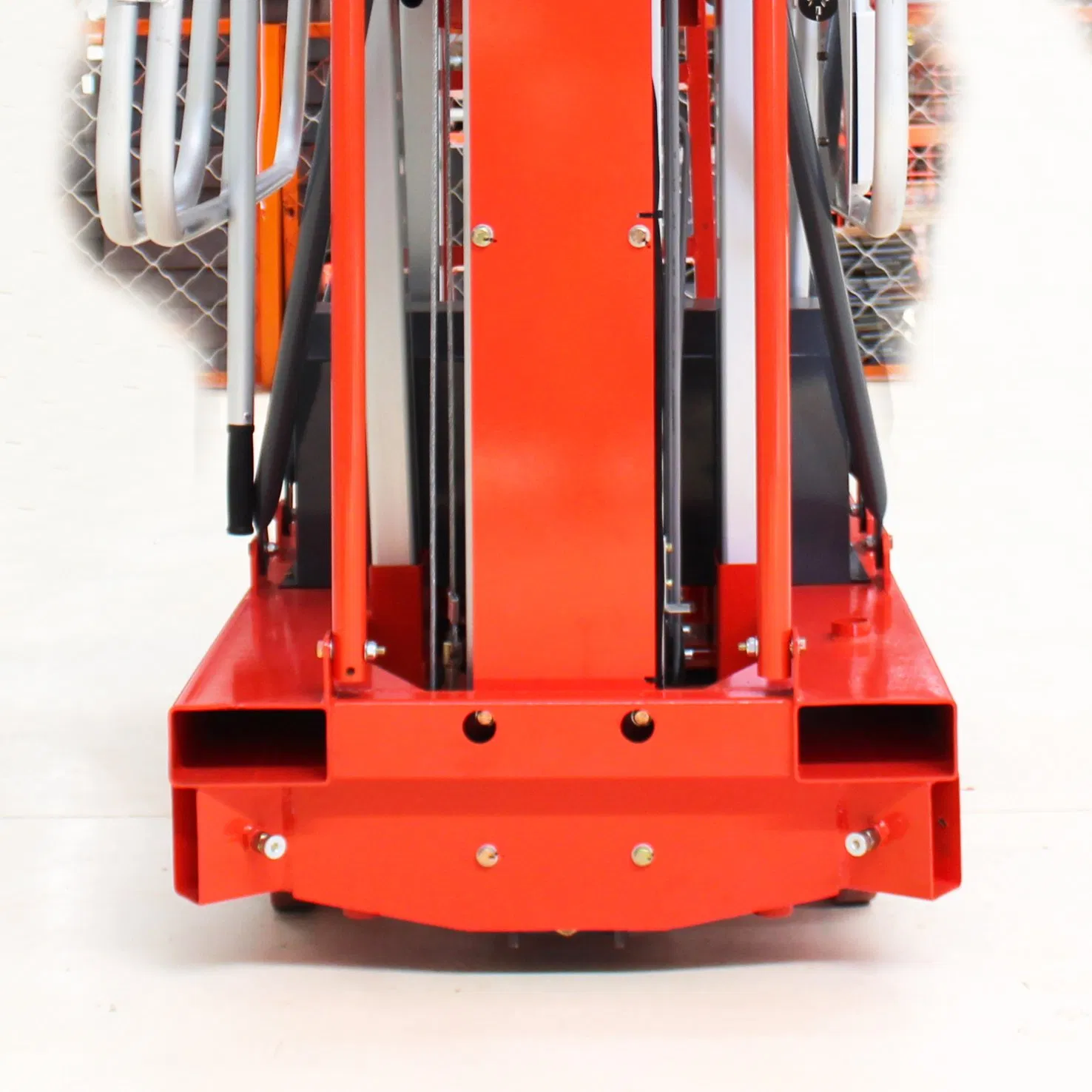

Forklift Pocket: Standard design for safe loading and preventing tipping.
Sync Device: Ensures synchronized mast movement during ascent and descent.
Signal Cable: High flexibility drag chain cable, wear-resistant and weather-resistant.
Self-Lubricating Sliders: Polymer sliders and nylon wheels for maintenance-free stability.
Explosion-proof Valves: Prevents sudden drops in case of oil pipe failure.
Ultra-Wide Masts: 200mm high-strength aluminum alloy reduces shaking at height.

📷

Visual Elevations

Right Elevation

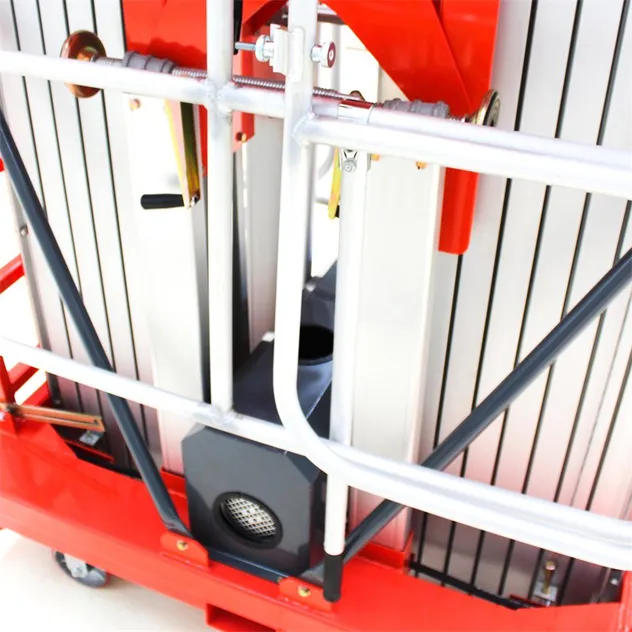

Left Elevation

Front Elevation

📋

Technical Specifications

Model	CTWY2-8	CTWY2-9	CTWY2-10
Max. Working Height (m)	9.8	11.3	12.6
Max. Platform Height (m)	7.8	9.3	10.6
Loading Capacity (kg)	250	250	250
Occupants	2	2	2
Platform Dimension (m)	1.45 * 0.7	1.45 * 0.7	1.45 * 0.7
Overall Height (m)	1.99	1.99	1.99

🏭

Quality Assurance

Warranty & Support:

English manual for operation and maintenance provided.
One-year warranty for the complete machine (excluding man-made faults).
Free replacement parts for non-human factor issues during the warranty period.
24-hour technical support via online communication channels.

❓

Frequently Asked Questions

1. What is the maximum working height of the double mast lift?

The GTWY2-12 model offers a maximum working height of up to 14 meters, while other models in the series range from 9.8m to 12.6m.

2. How many people can work on the platform simultaneously?

These double mast platforms are designed to safely accommodate up to 2 occupants with a loading capacity of up to 250kg.

3. Is the equipment stable at full height?

Yes, the use of 200mm high-strength aerospace aluminum alloy masts and a synchronized lifting device significantly reduces shaking and ensures stability.

4. What kind of power source does the lift use?

Standard models are equipped with an AC motor (typically 1.5kw) for reliable lifting power.

5. Does the lift require frequent lubrication?

The system utilizes self-lubricating polymer sliders and imported nylon wheels, which are designed to be maintenance-free and prevent wear on the aluminum masts.

6. How is the machine protected during transport?

The units are designed with standard forklift pockets for secure loading and are packaged using bubble bags and water-proof materials to ensure safe delivery.
