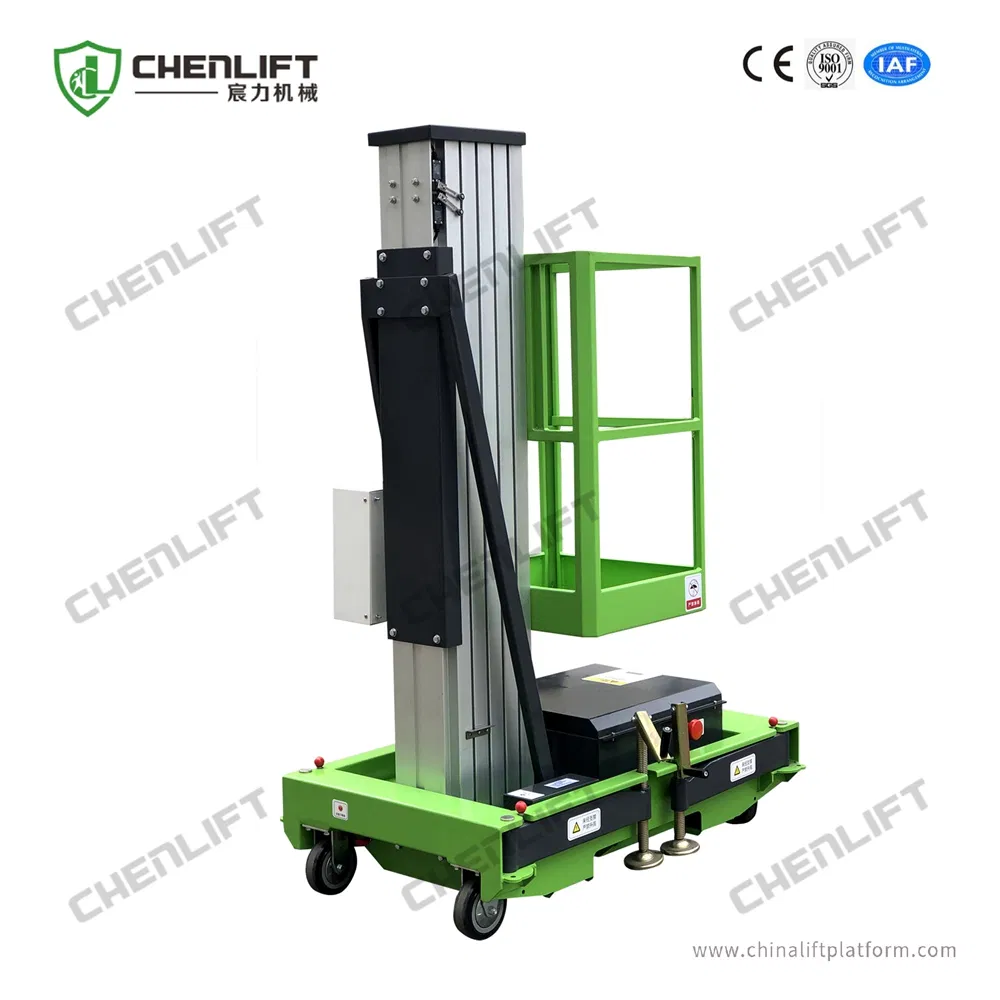

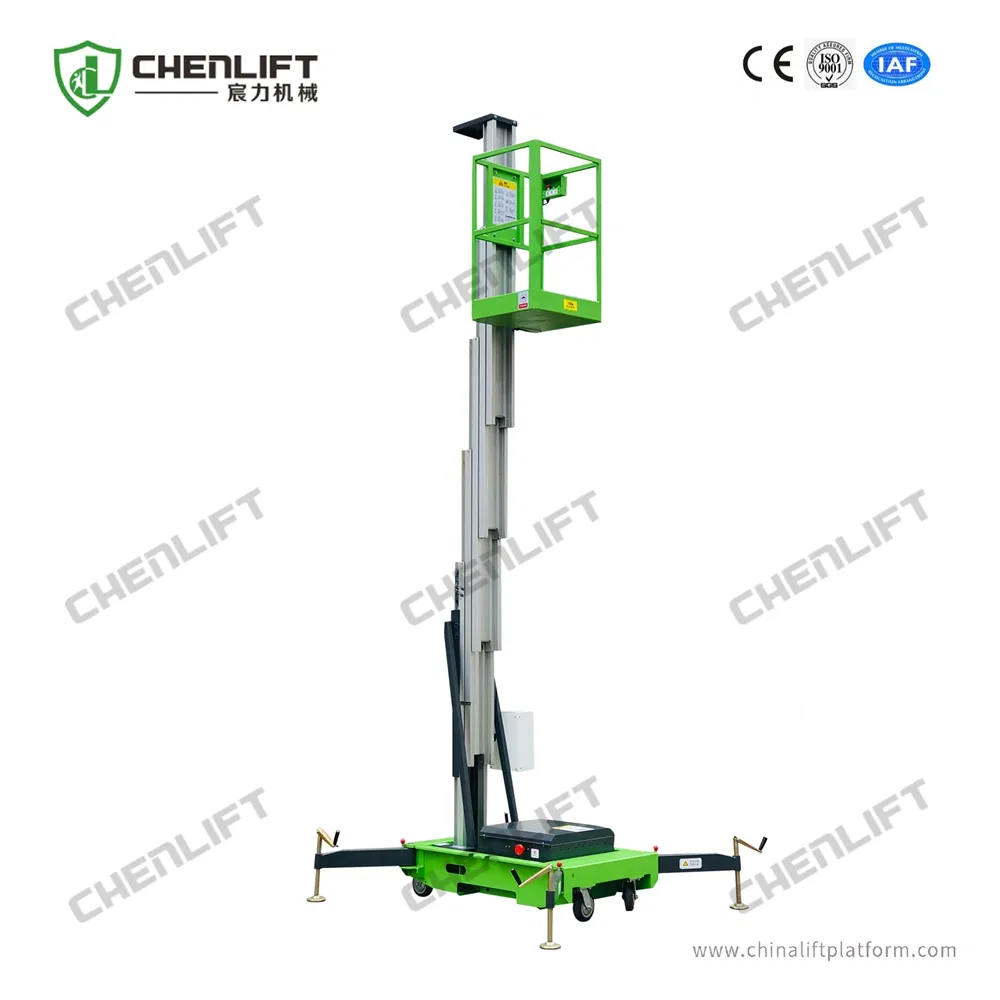

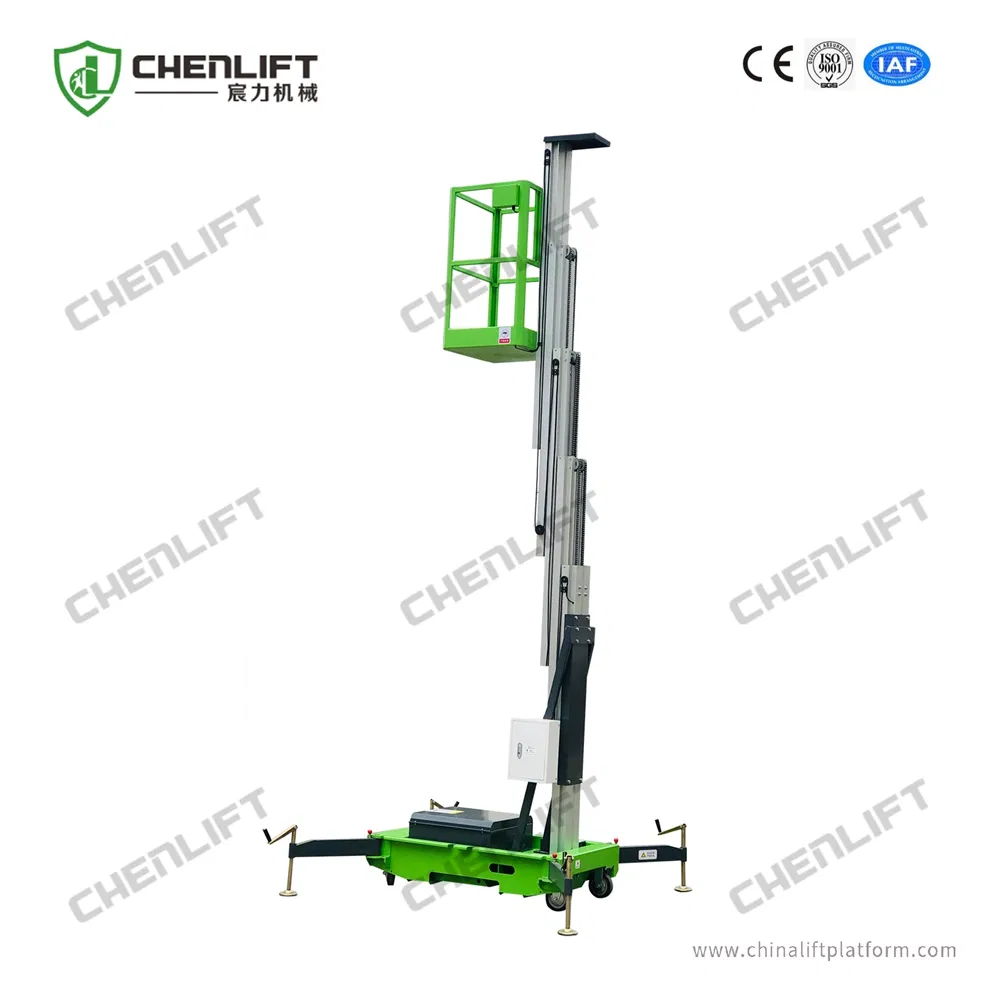

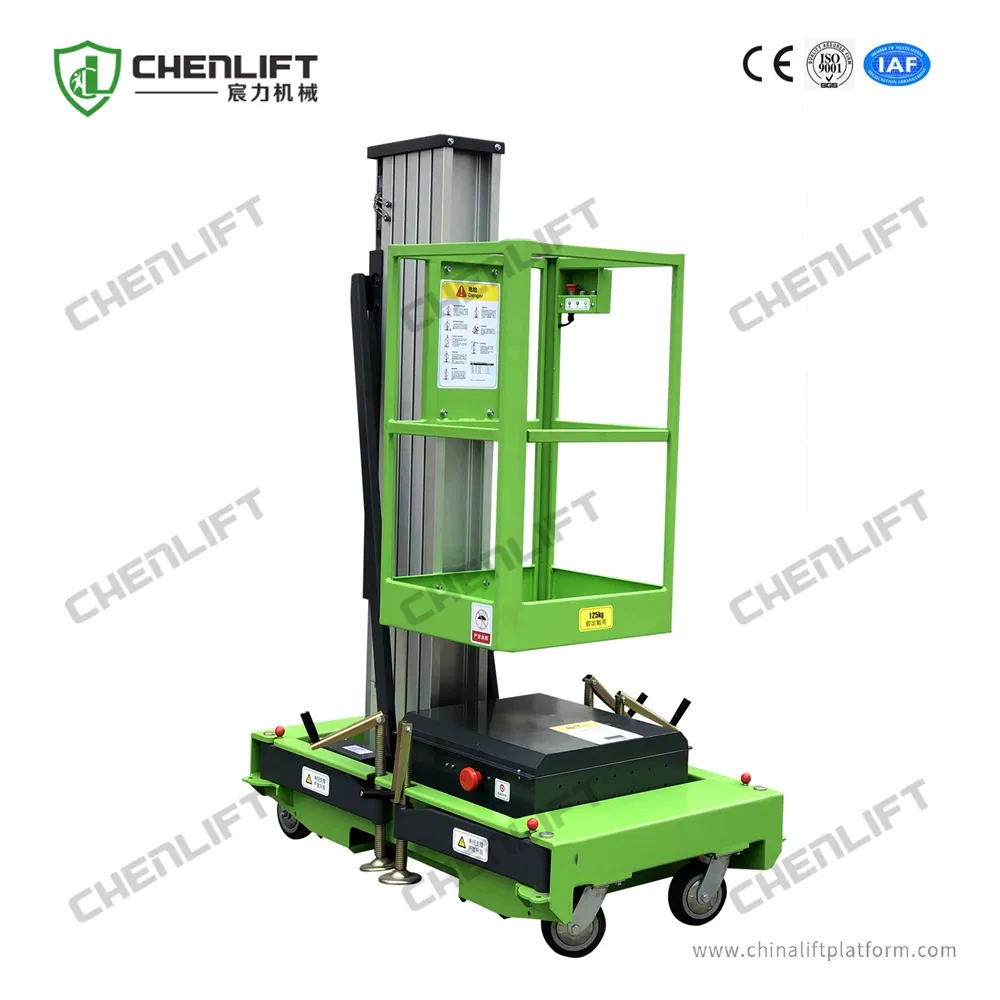

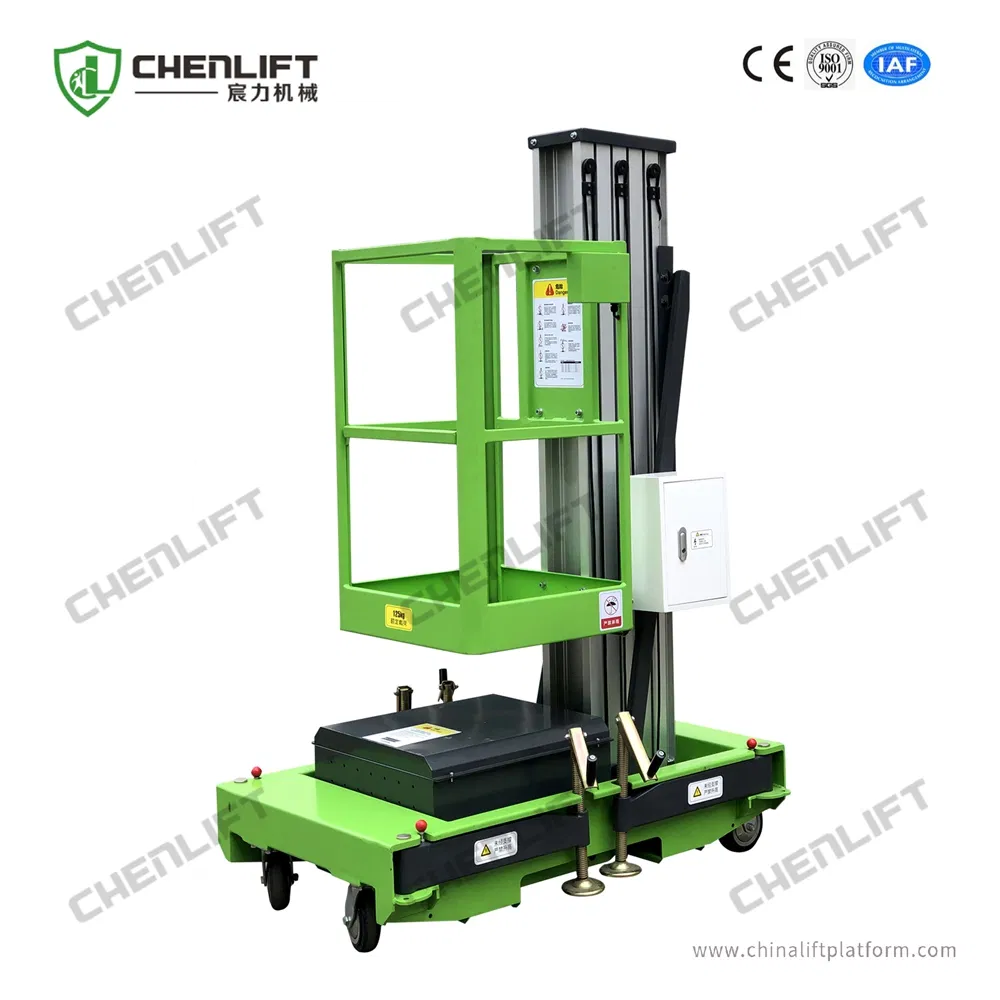

10m Elevating Work Platform Single Mast Manual Pushing Vertical Lift

Customization:	Available
Application:	Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism:	Lift Chain

Basic Specifications

Model NO.

ME1000-1(GTWY100-10)

Carrying Capacity

Light Level

Driven Type

AC

Feature

Explosion-Proof

Certification

CE, ISO 9001

Loading Capacity

130kg

Working Height

12m

Platform Height

10m

Platform Size

0.60*0.55m

Weight

420kg

HS Code

8428909090

Origin

China

Product Description

Man Pushing around Aluminum Aerial Work Platform

Our range of man-pushed aerial work platforms includes single, double, triple, quadruple, and six-mast configurations. These units feature non-marking tires and an anodized aluminum mast for durability and ease of use. Compact and lightweight, they are easily moved to designated sites, offering a safe and reliable solution for vertical access.

Operated by a robust telescopic cylinder, control panels are conveniently located on both the platform and the ground. Power options include standard AC (110V/220V), DC battery (12V/24V), or a dual AC&DC version.

Main Applications

Perfect for installation and maintenance in narrow spaces such as hotels, modern workshops, business halls, railway stations, and shopping malls. Its compact design allows it to pass through regular doors and elevators with low energy consumption and no damage to flooring.

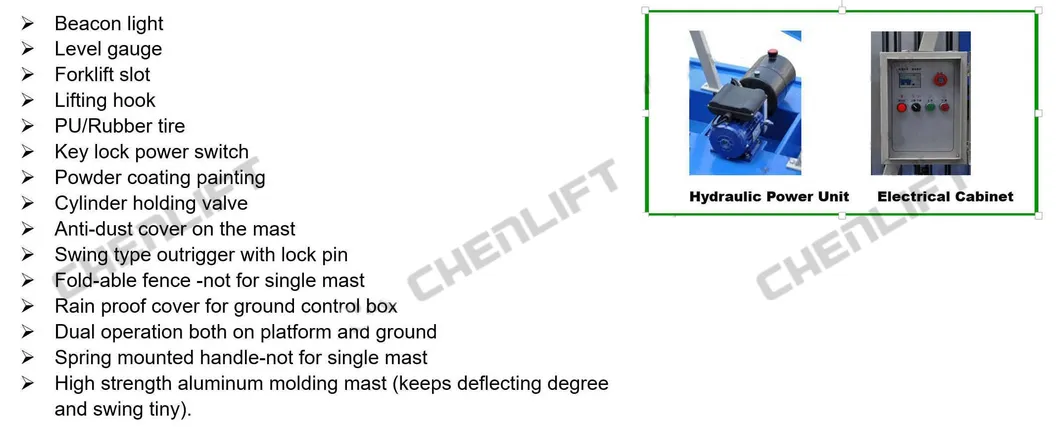

Main Configurations

Aluminum Aerial Work Platform Main Configuration

Safety Features

Toe protection boards on platform
Anti-skid deck surface
Auxiliary Lowering system
Dual limit switch for safety
24V safe operation voltage
Safety belt holding points
Anti-burst valve on cylinder
Emergency stop (Platform & Ground)
Short circuit/leakage protection
DC fuse for electric shock protection

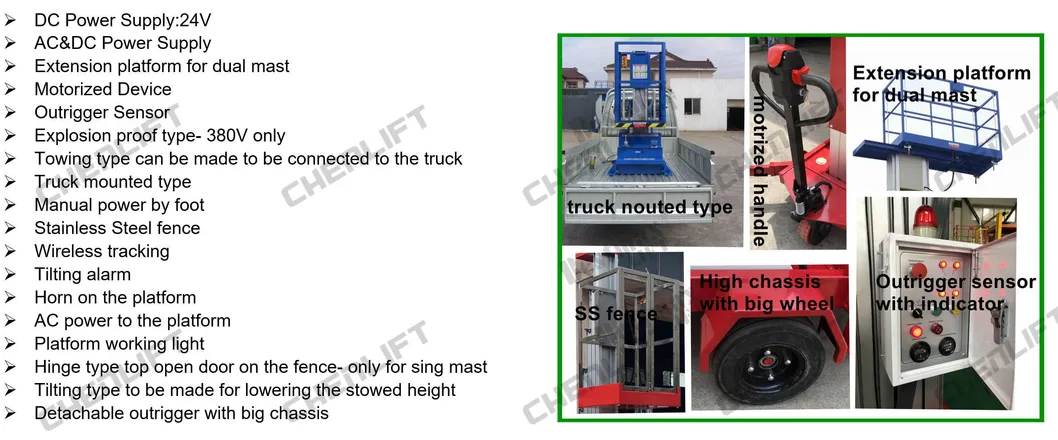

Optional Configuration

Technical Parameters

Single Mast Series

Model NO.	Working Height(m)	Capacity(Kg)	Platform Size(m)	Power(Kw)	Weight(Kg)
GTWY6-100	8	130	0.60x0.55	0.75	260
GTWY8-100	10	130	0.60x0.55	0.75	300
GTWY10-100	12	130	0.60x0.55	0.75	400

Double Mast Series

Model NO.	Working Height(m)	Capacity(Kg)	Platform Size(m)	Power(Kw)	Weight(Kg)
GTWY6-200	8	200	1.18x0.62	1.1	380
GTWY10-200	12	200	1.38x0.62	1.1	610
GTWY14-200	16	150	1.48x0.62	1.1	650

High Mast Series (Triple/Quad/Six)

Model NO.	Working Height(m)	Capacity(Kg)	Mast Type	Power(Kw)	Dimension(m)
GTWY14-300	16	250	Triple	2.2	1.90x1.10x2.32
GTWY16-400	18	200	Quadruple	2.2	2.28x1.35x2.82
GTWY22-420	24	150	Six Mast	2.2/1.1	3.00x1.60x2.82

Visual Overview

Frequently Asked Questions

Q1: What is the maximum working height available? A: The aluminum aerial work platforms offer a wide range of working heights, reaching up to 24 meters with the six-mast model.

Q2: Can this lift fit through standard doors? A: Yes, the compact design and light weight allow most models to easily pass through regular doors and elevators.

Q3: What power supply options are provided? A: We offer AC (110V/220V), DC battery (12V/24V) with built-in chargers, or dual AC&DC power configurations.

Q4: Is the platform safe for sensitive flooring? A: Yes, the units are equipped with non-marking tires designed to protect the ground from damage during movement.

Q5: What safety systems are included for emergency situations? A: Safety features include emergency stop buttons on both the platform and ground, anti-burst valves on the cylinder, and an auxiliary lowering system.

Q6: What is the loading capacity range? A: Depending on the mast type and model, the loading capacity typically varies from 130kg to 300kg.
